Agenda HP Converged Infrastructure What is it HP

Agenda • • •

HP Converged Infrastructure What is it? HP Converged Infrastructure accelerates the provisioning of IT services & applications through shared pools of interoperable resources Servers Management Storage Facilities Network Security Services The Foundation for HP Converged Cloud

Seamless management for virtual and physical environments System Center Consoles Servers Management software Consolidated management for your HP Converged Infrastructure Network Storage

HP Insight Control for Microsoft System Center Brings the native manageability of HP hardware to System Center environments Provides comprehensive system health, configuration management, and software deployment

System Center Operations Manager Integrations Proactive monitoring of hardware health and intelligent response to hardware events HP Management Packs • HP Pro. Liant Agentless Management Pack • HP Pro. Liant Linux Management Pack • HP Pro. Liant VMware Management Pack • HP Pro. Liant Server Management Pack • HP Blade. System Management Pack SCOM Management Packs Pro. Liant Server (Windows) Pro. Liant Linux Pro. Liant VMware ESX Pro. Liant Agentless (Gen 8) Blade. System Enclosure SCOM 2007 Y Y Y SCOM 2012 Y Y Y

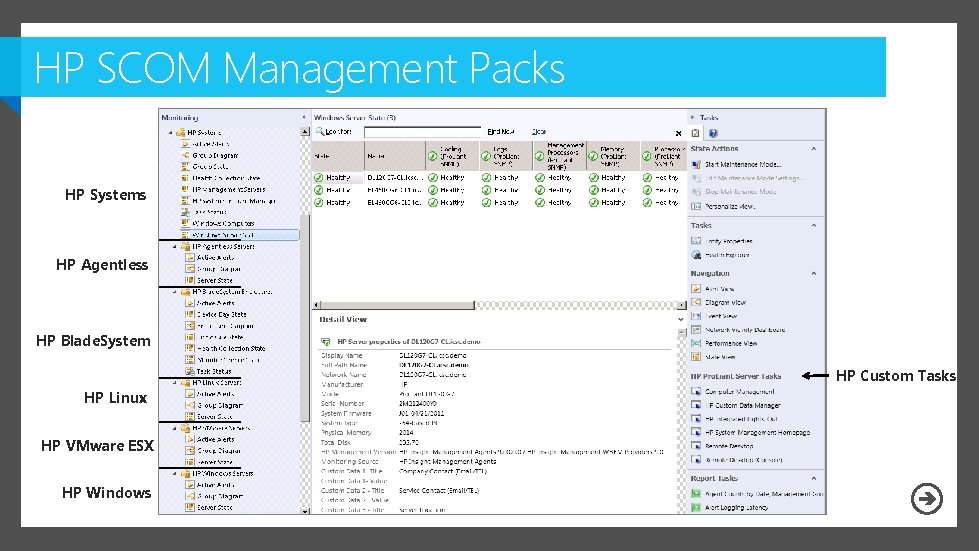

HP SCOM Management Packs HP Systems HP Agentless HP Blade. System HP Custom Tasks HP Linux HP VMware ESX HP Windows

System Center Configuration Manager Integrations • • HP SCCM Integrations • HP SCCM 2007 Integration Kit • HP SCCM 2012 Integration Kit • HP Pro. Liant Updates Catalog SCCM Integrations HP Pro. Liant Updates OS Deployment HP Inventory Tool SCCM 2007 Y Y Y SCCM 2012 Y Y Y

System Center Virtual Machine Manager Integrations • HP SCVMM Integrations • HP SCVMM 2012 Integration Kit • HP Pro. Liant Updates Catalog • • SCVMM Integrations OS Deployment * HP Pro. Liant Updates * SCVMM 2008 SCVMM 2012 N/A Y Y *Note: New features only available in SCVMM 2012

HP SCVMM 2012 Integration Kit Ensures latest HP drivers are readily available for SCVMM OS deployment process

SCVMM and HP Pro. Liant Updates Catalog • Ensures latest HP drivers are readily available for SCVMM firmware and driver updates

HP Fabric Management Add-in for SCVMM Technology Preview

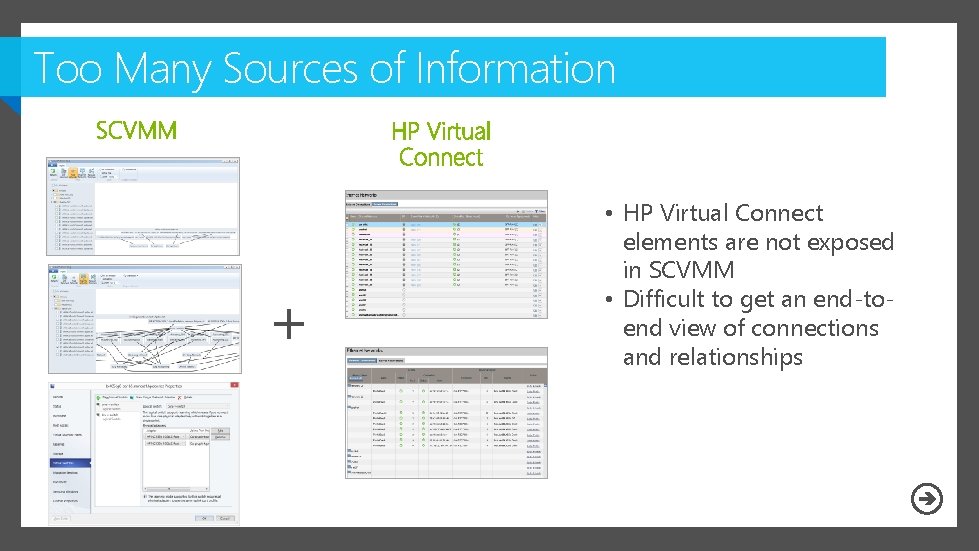

Too Many Sources of Information + • HP Virtual Connect elements are not exposed in SCVMM • Difficult to get an end-toend view of connections and relationships

Demo: HP Fabric Management Add-in for SCVMM 2012

Integrations for System Center Orchestrator 2012 http: //technet. microsoft. com/enus/library/hh 771475. aspx http: //technet. microsoft. com/enus/library/hh 771464. aspx http: //technet. microsoft. com/enus/library/hh 533440. aspx

What problems do you face with your current infrastructure? Midrange Tier 1 Billing SSD HFT Virt VMAX VNX-Clariion Xtreme. IO Filers Scaleout NAS Object storage VNX-Celerra Isilon Atmos Target backup Source backup Data Domain Avamar

HP Converged Storage is designed for the HP Converged Storage System Vision: Polymorphic Simplicity future Adj. Existence in several forms, shapes, & sizes Pr i Sto mar rag y e 1 , on cti s ote tic Pr aly on An ati n & orm tio Inf ten Re • • • High End Entry Block | Object | File HDD Flash

The HP Converged Storage vision: Simplify • Information retention/analytics Information protection • Primary storage • Converged management Software defined storage Common data services External hardware (HW)/ software (SW) integration

“Good enough” storage is no longer good enough Choose the HP 3 PAR Store. Serv Storage that meets your needs and budget HP 3 PAR Store. Serv 10400 Only from HP HP 3 PAR Store. Serv 10800 HP 3 PAR Store. Serv 7400 HP 3 PAR Store. Serv 7200 New Tier one storage at less than $40 K Redefining the midrange from $25 K

Software-defined storage from HP From enterprise ROBO to independent public clouds • An open pool of shared capacity • Span multiple hypervisors • Non-disruptive response to demands Available today with HP Store. Virtual as VSA or turnkey appliance built on HP Pro. Liant Gen 8 servers

Windows Server 2012 Storage Management Software File Server Administration Console Third-party Applications Windows Storage Management API (Power. Shell and WMI) Unified Storage Mgmt. API Pass-through API for extensibility (WMI) Storage Management Provider Interface (+ pass-through for extensibility enabling all of SMI-S and vendor proprietary extensions; Transport = WMI) SMP: Universal SMI-S Service (Proxy) Storage Vendor Hardware and Software System Center Virtual Machine Manager P 3000 MSA P 4000 LHN P 6000 EVA P 9000 XP SMI-S Provider SMP: 3 rd Party Providers Proprietary Transport and/or Protocol HP 3 PAR SMI-S Provider HP Restricted. For HP Internal Use Only. SMP: Storage Spaces

HP Storage Management Integrations: Microsoft System Center Amit Kumar Program Manager HP Storage

Management integration into Microsoft System Center Areas of Focus • •

HP Storage Management Pack for SCOM: feature matrix HP Storage Platforms & Features 3 PAR Store. Serv Store Virtual (LHN) SCOM Events/ Alerts (SNMP) SCOM: Topology View (SMI-S) SCOM: Health Monitoring (SMI-S) SCVMM Support (SMI-S) Store. Once (SNMP) Store. Ever Tape Drives (SNMP) Store. Easy (C-NAS) MSA (WMI) (SNMP) (WMI) (SMI-S) XP (SNMP) EVA (Web. ES) E 5000 (WMI) (SMI-S)

Alerts: Warning + Critical Alerts Error Alerts: Critical Alerts only Events: Informational Events and Warning & Critical Alerts Warning Alerts: Warning Alerts only

Demo: HP Storage Management Pack for 3 PAR on SCOM 2012 SP 1

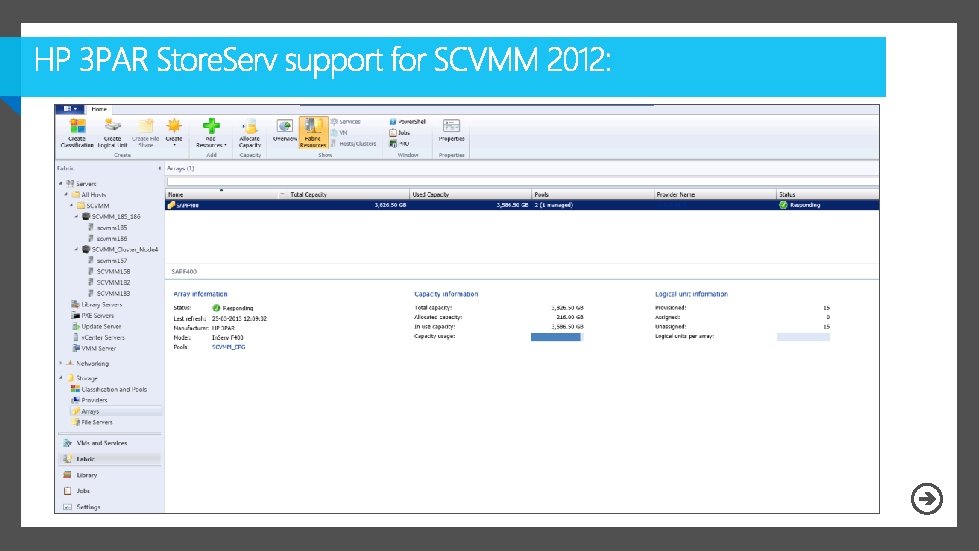

Management integration into Microsoft System Center HP Storage integration with System Center Virtual Machine Manager

+ Front • 2 -node private cloud optimized for Windows Server 2012 • Built in high availability and manageability Back • Complete best practices installation and configuration guidelines

HP Departmental Private Cloud + The HP Departmental Private Cloud Reference Architecture defines two modes of management: • Management of a standalone cluster using Windows Server 2012 Server Manager • Centralized management of a branch office cluster using Insight Control and Microsoft System Center HP Departmental Private Cloud RA combines HP and Microsoft® best practices for virtualization and cloud deployment For environments that support between 50 and 500 users • It can be configured as a simple virtualization platform that supports either Windows® Server 2012 or Windows Server 2008 R 2 • It can also be transformed into a private cloud with the addition of Microsoft System Center 3 1 2 x Pro. Liant DL 360 Gen 8 Servers 2 P 2000 G 3 SAS Storage 3 2 x HP Pro. Curve 2910 -24 G al Switches 4 HP Insight Control 5 Microsoft Windows Server 2012 www. hp. com/learn/ws 2012

HP Converged Infrastructure • • • Simplified setup with Intelligent Provisioning i. LO management engine for control from anywhere Online management of devices and support contracts • • • Up to 19. 6 k mixed read/write IOPs* Simple SAS connectivity at 6 GB/sec Volume copy and snapshots for simplified data recovery • • 10 GB uplinks supported Lifetime warranty and software updates 2 x Pro. Liant DL 360 Gen 8 P 2000 G 3 SAS Storage 2 x HP Pro. Curve 291024 G al Switch * IOPs will change based on storage configuration

Getting you there faster Whitepaper • Step-by-step guidance for delivering a highly available two-node private cloud http: //h 20195. www 2. hp. com/V 2/Get. PDF. aspx/4 AA 43327 ENW. pdf http: //h 20195. www 2. hp. com/V 2/Get. PDF. aspx/4 AA 43199 ENW. pdf • Datasheet Delivery video: watch the experts install the departmental private cloud http: //www. youtube. com/watch? v=LKaokacm. G 0 I Video

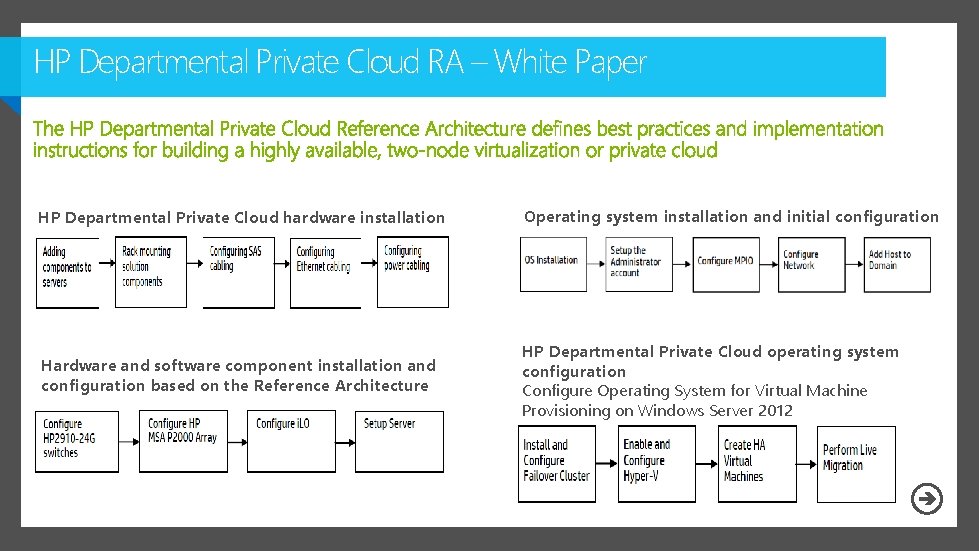

HP Departmental Private Cloud RA – White Paper HP Departmental Private Cloud hardware installation Operating system installation and initial configuration Hardware and software component installation and configuration based on the Reference Architecture HP Departmental Private Cloud operating system configuration Configure Operating System for Virtual Machine Provisioning on Windows Server 2012

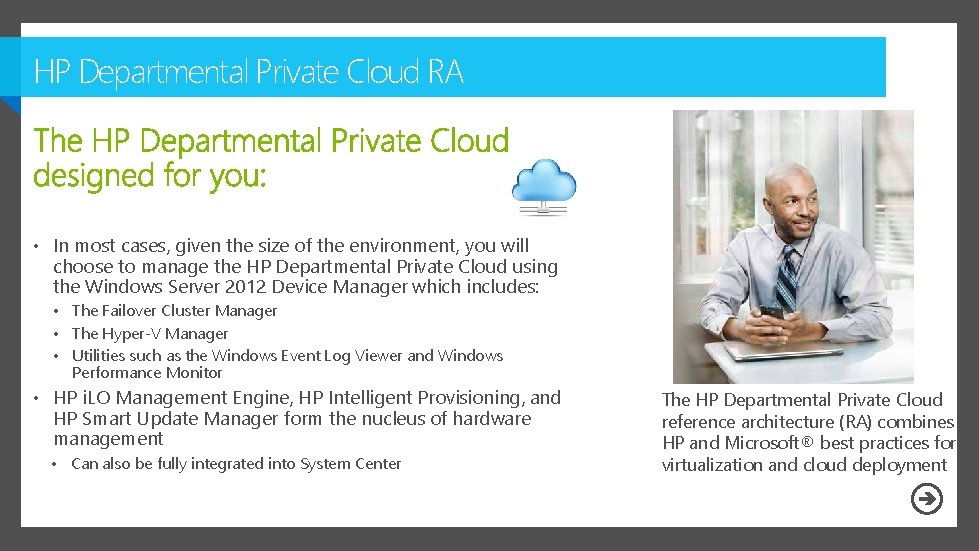

HP Departmental Private Cloud RA • In most cases, given the size of the environment, you will choose to manage the HP Departmental Private Cloud using the Windows Server 2012 Device Manager which includes: • The Failover Cluster Manager • The Hyper-V Manager • Utilities such as the Windows Event Log Viewer and Windows Performance Monitor • HP i. LO Management Engine, HP Intelligent Provisioning, and HP Smart Update Manager form the nucleus of hardware management • Can also be fully integrated into System Center The HP Departmental Private Cloud reference architecture (RA) combines HP and Microsoft® best practices for virtualization and cloud deployment

HP Departmental Private Cloud and HP Cloud. System Characteristic HP Departmental Private Cloud HP Cloud. System Target Customer Mid-market, ROBO Enterprise Number of VMs supported 20 or fewer 100 s or 1000 s Server Platform Pro. Liant DL 360 e Gen 8 Any HP Blade server Storage Technology SAS Fiber Channel, i. SCSI, SAS Storage Platform P 2000 Any HP and select 3 rd party i. SCSI and Fiber Channel storage OS, hypervisor support Windows Server, Hyper-V only Multiple OSes and Hypervisors Management Tools Windows Server Manager and System Center (optional) Matrix Operating Environment and System Center (optional)

Find out more Attend HP sessions Wednesday, April 10 th 10: 15 -11: 30 am, Banyan C Serverquarium Unwrapped - The HP Cloud Solution for Microsoft that powers MMS Hands On Labs Visit the Serverquarium See the infrastructure that is powering the MMS 2013 Hands on Labs Get an expert guided tour of this agile privatecloud ready solution that can increase business agility and contain costs by bringing everything you need for low-risk, high value cloud deployments. Follow #serverquarium to see how we are tracking to beat the 52, 000 VM challenge Stop by the HP Booth Check out these demos at the HP Booth Insight Control for System Center Your path to the Microsoft Private Cloud HP Cloud Solution for Microsoft HP Cloud Map for Microsoft System Center HP Store. System – Up & Running in Minutes HP Departmental Private Cloud HP Storage Management Integration into Microsoft System Center • Simplify Client Management with HP Elite PCs • HP Client Virtualization for Windows Server 2012 • •

Complete your session evaluations today and enter to win prizes daily. Provide your feedback at a Comm. Net kiosk or log on at www. 2013 mms. com. Upon submission you will receive instant notification if you have won a prize. Prize pickup is at the Information Desk located in Attendee Services in the Mandalay Bay Foyer. Entry details can be found on the MMS website.

Resources

Storage management integration into System Center Tools and Resources @ hp. com • Product Download Page: – https: //h 20392. www 2. hp. com/portal/swdepot/display. Product. Info. do? product. Number=SCOM • HP Storage Solutions for Microsoft Windows: – http: //www 8. hp. com/us/en/products/data-storage-solutions. html? comp. URI=1287431 • Converged Storage for Microsoft Hyper-V: – http: //www 8. hp. com/us/en/products/data-storage-solutions. html? comp. URI=1363737 Technical documentation • hp. com/go/storage • Technical White Paper: Microsoft SC-VMM 2012 and HP 3 PAR best practices and reference Architecture: http: //h 20195. www 2. hp. com/V 2/Get. Document. aspx? docname=4 AA 4 -2876 ENW&cc=us&lc=en • www. hp. com/learn/ws 2012 • www. hp. com/solutions/microsoft/virtualsystem
