AF Life Cycle Management Center Condition Based Maintenance

AF Life Cycle Management Center Condition Based Maintenance Plus 5 October 17 Frank Zahiri AFLCMC/EZPT-CPCO Providing the Warfighter’s Edge

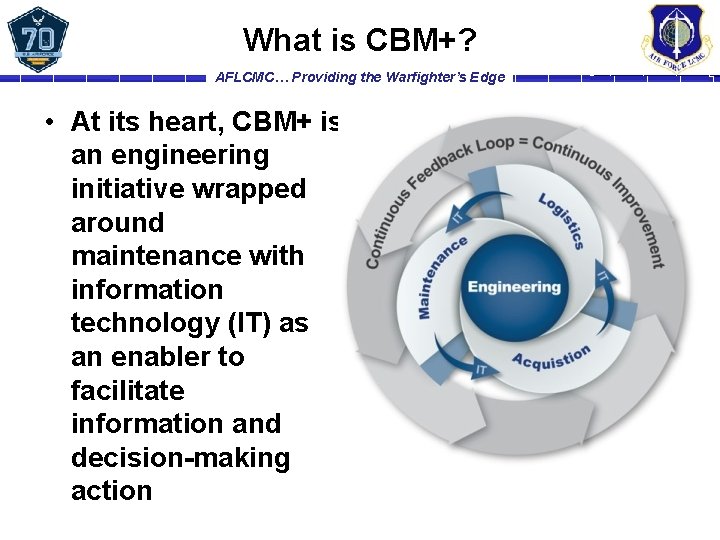

What is CBM+? AFLCMC… Providing the Warfighter’s Edge • At its heart, CBM+ is an engineering initiative wrapped around maintenance with information technology (IT) as an enabler to facilitate information and decision-making action

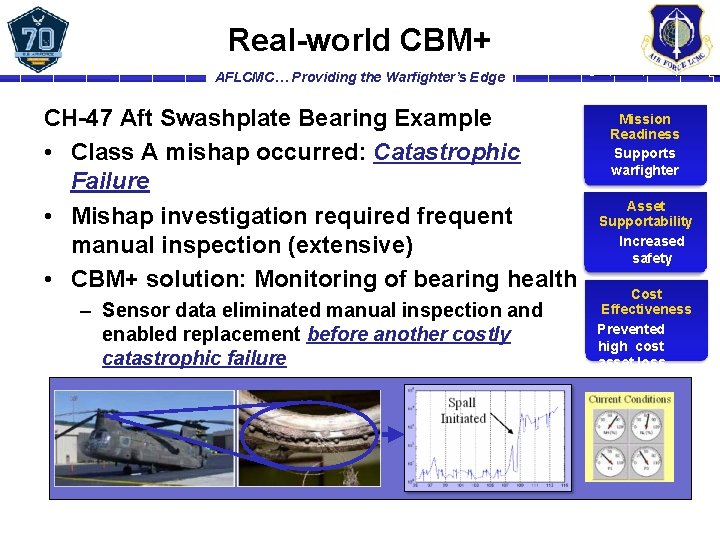

Real-world CBM+ AFLCMC… Providing the Warfighter’s Edge CH-47 Aft Swashplate Bearing Example • Class A mishap occurred: Catastrophic Failure • Mishap investigation required frequent manual inspection (extensive) • CBM+ solution: Monitoring of bearing health – Sensor data eliminated manual inspection and enabled replacement before another costly catastrophic failure Mission Readiness Supports warfighter Asset Supportability Increased safety Cost Effectiveness Prevented high cost asset loss

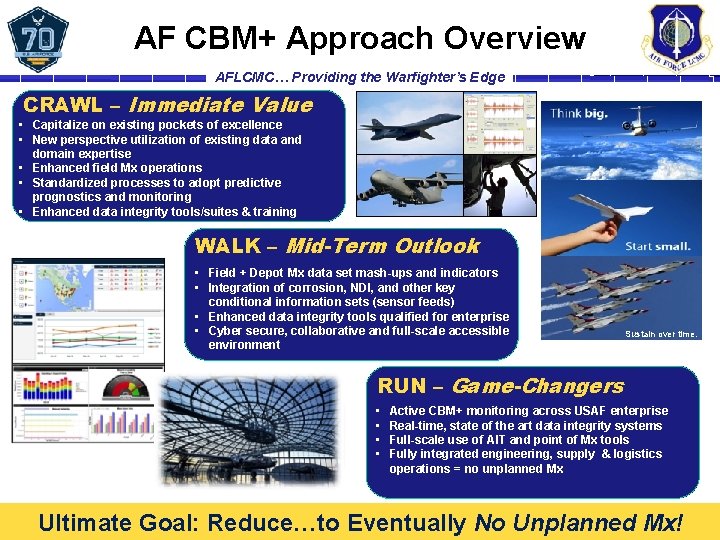

AF CBM+ Approach Overview AFLCMC… Providing the Warfighter’s Edge CRAWL – Immediate Value • Capitalize on existing pockets of excellence • New perspective utilization of existing data and domain expertise • Enhanced field Mx operations • Standardized processes to adopt predictive prognostics and monitoring • Enhanced data integrity tools/suites & training WALK – Mid-Term Outlook • Field + Depot Mx data set mash-ups and indicators • Integration of corrosion, NDI, and other key conditional information sets (sensor feeds) • Enhanced data integrity tools qualified for enterprise • Cyber secure, collaborative and full-scale accessible environment Sustain over time. RUN – Game-Changers • • Active CBM+ monitoring across USAF enterprise Real-time, state of the art data integrity systems Full-scale use of AIT and point of Mx tools Fully integrated engineering, supply & logistics operations = no unplanned Mx Ultimate Goal: Reduce…to Eventually No Unplanned Mx!

AF CBM+ Adoption Timeline AFLCMC… Providing the Warfighter’s Edge Introduce more SPOs into the CBM+ Program AF Enterprise CBM+ Culture Implementation of CBM+ Techniques (FY 17/18 Pilot Selection & Implementation SPOs) of CBM+ Viable Components (FY 17/18 Pilot SPOs) Selection & Implementation of CBM+ Viable Components (FY 15/16 Pilot SPOs) 2016 CRAWL 2016 -2017 Fully Operational CBM+ State CBM+ Monitoring & Assessment Period 2017 -2025+ WALK RUN 5

AF CBM+ Implementation AFLCMC… Providing the Warfighter’s Edge CBM+ Pilot Programs CBM+ Enabling Technology & Processes • CBM+ monitoring of select LRUs/subsystems • Focus Field Mx (MOB drivers) • Data Cleansing tools • Data Analytics (engineering) • Next Gen Data Collection Systems AF Enterprise Standardization • Implementation or enhancement of “best practices” • Standard tools and practices

CBM+ Candidate Process Phase III Phase I AFLCMC… Providing the Warfighter’s Edge Process Validated thru B-1 and C-5 CBM+ Initiatives

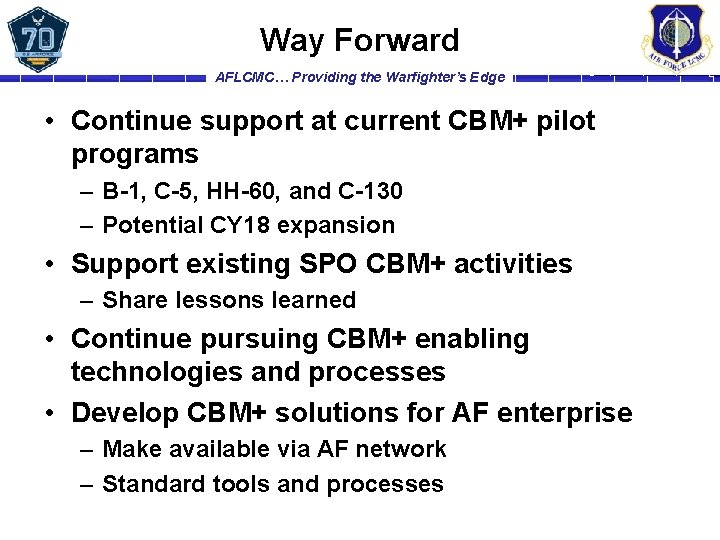

Way Forward AFLCMC… Providing the Warfighter’s Edge • Continue support at current CBM+ pilot programs – B-1, C-5, HH-60, and C-130 – Potential CY 18 expansion • Support existing SPO CBM+ activities – Share lessons learned • Continue pursuing CBM+ enabling technologies and processes • Develop CBM+ solutions for AF enterprise – Make available via AF network – Standard tools and processes
