Aerospace Defense AMICSA 2018 Microchip ATMX 150 RHA
- Slides: 29
Aerospace & Defense AMICSA 2018 Microchip ATMX 150 RHA European Mixed Technology for Advanced Designs. SAMRH 71

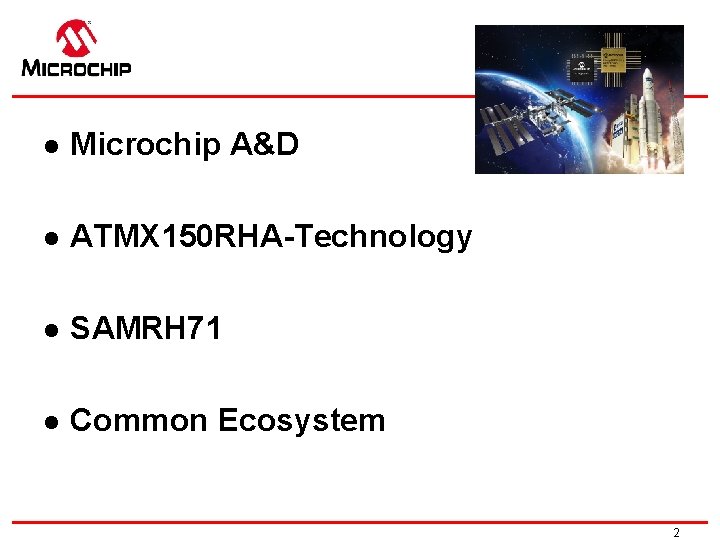

l Microchip A&D l ATMX 150 RHA-Technology l SAMRH 71 l Common Ecosystem 2

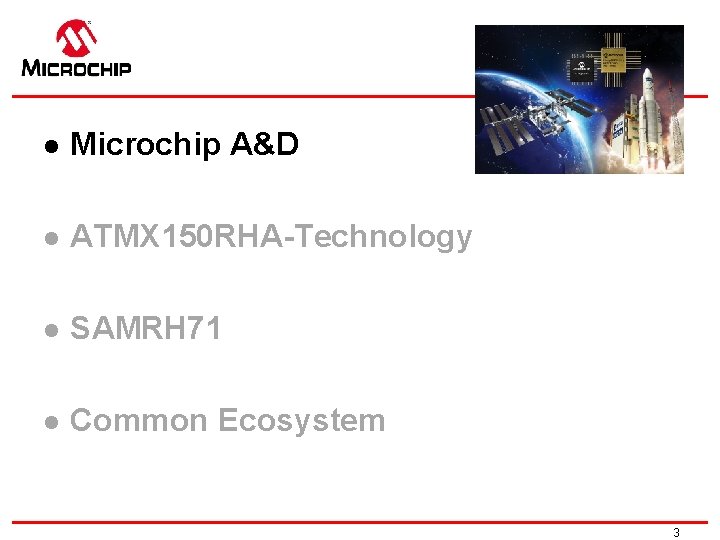

l Microchip A&D l ATMX 150 RHA-Technology l SAMRH 71 l Common Ecosystem 3

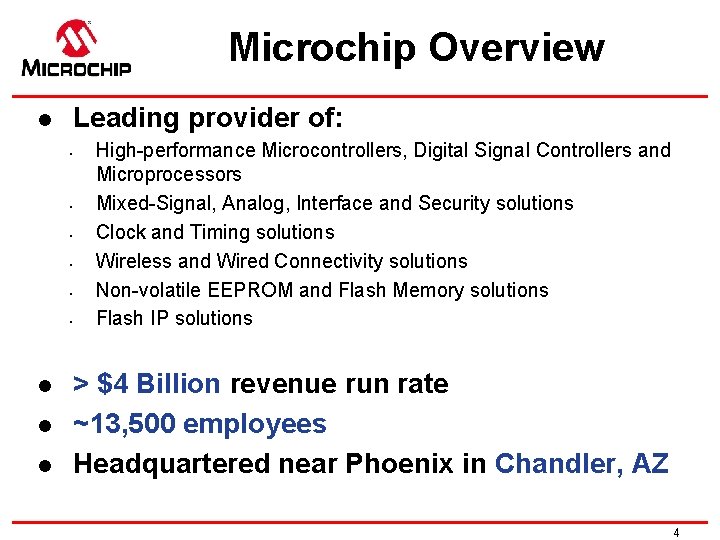

Microchip Overview Leading provider of: l • • • l l l High-performance Microcontrollers, Digital Signal Controllers and Microprocessors Mixed-Signal, Analog, Interface and Security solutions Clock and Timing solutions Wireless and Wired Connectivity solutions Non-volatile EEPROM and Flash Memory solutions Flash IP solutions > $4 Billion revenue run rate ~13, 500 employees Headquartered near Phoenix in Chandler, AZ 4
Microchip Solutions Power Encryption & Security DC-DC Converters Supervisors LDOs Precision Voltage Reference Digital Potentiometer High Voltage I/Os Motor Drivers Sensors Filters Amplifiers Touch Sensing • Proximity/3 D • Buttons/Slider • Touch Screen Timing • Clocks • Timers • RTCC A/D Power Drivers Memory • EEPROM • Serial Flash • Serial SRAM Microcontrollers & Microprocessors D/A LED Drivers USB • Smart Hubs • Switches • Transceivers • Bridges Auto/Industrial Communication • MOST® • RS 232/485 • CAN/LIN Wireless • Wi-Fi® • Bluetooth® • Lo. Ra® • Zig. Bee® /Mi. Wi™ Ethernet • Switches • Controllers • Ether. CAT • PHYs Smoke Detector & Piezoelectric Horn Drivers 5
Expanding Our Solutions Through Acquisitions HI-TECH Supertex Advanced Silicon Roving Networks Development Tools Compiler High-Voltage Analog & Mixed-Signal Products Bluetooth® & Embedded Wi-Fi® Motor Drive Products Zero. G Hampshire Touch Screen Controllers Low-Power Embedded Wi-Fi® 2008 2009 2010 LSS Novocell High-Speed ADCs Non-volatile Memory IP 2012 2011 High-Density Flash & IP Security & Life Safety ASICs 3 D Gesture Capture & Proximity Detect MMT Assembly & Test Capacity Expansion Analog, mixed-signal, Ethernet, timing & power management 2014 2015 Eqco. Logic Ident SST R&E International 2013 Micrel SMSC MOST®, USB, Ethernet, Wireless Audio & PC Controllers 2016 Atmel Equalizer & Coaxial Transceiver Products ISSC Microcontrollers, Wireless, Touch, Automotive, Security & Memory Bluetooth® Low Energy 6
Expanding Our Solutions Through Acquisitions HI-TECH Supertex Advanced Silicon Roving Networks Development Tools Compiler High-Voltage Analog & Mixed-Signal Products Bluetooth® & Embedded Wi-Fi® Motor Drive Products Zero. G Hampshire Touch Screen Controllers Low-Power Embedded Wi-Fi® 2008 2009 2010 LSS Novocell High-Speed ADCs Non-volatile Memory IP 2012 2011 High-Density Flash & IP Security & Life Safety ASICs 3 D Gesture Capture & Proximity Detect MMT Assembly & Test Capacity Expansion Analog, mixed-signal, Ethernet, timing & power management 2014 2015 Eqco. Logic Ident SST R&E International 2013 Micrel SMSC MOST®, USB, Ethernet, Wireless Audio & PC Controllers 2016 Atmel Equalizer & Coaxial Transceiver Products ISSC Microcontrollers, Wireless, Touch, Automotive, Security & Memory Bluetooth® Low Energy 7
Expanding Our Solutions Through Acquisitions HI-TECH Supertex Advanced Silicon Roving Networks Development Tools Compiler High-Voltage Analog & Mixed-Signal Products Bluetooth® & Embedded Wi-Fi® Motor Drive Products Zero. G Hampshire Touch Screen Controllers Low-Power Embedded Wi-Fi® 2008 2009 High-Speed ADCs 2011 Ident Dedicated High-Density Flash & IP Security & Life Safety ASICs Atmel 3 D Gesture Capture & Proximity Detect MMT Assembly & Test Capacity Expansion Analog, mixed-signal, Ethernet, timing & power management Non-volatile Memory IP Aerospace 2012 2013 Expertise SST R&E International Novocell LSS 2010 Micrel 2014 2015 Eqco. Logic Equalizer & Coaxial Transceiver Products Business Unit SMSC MOST®, USB, Ethernet, Wireless Audio & PC Controllers 2016 ISSC Microcontrollers, Wireless, Touch, Automotive, Security & Memory Bluetooth® Low Energy 8
30 Years History in Space • 1985 Delivery of the first space product • 1985 / 1999 • 1985 / 2005 Space product delivery according to ESA SCC 9000 3µm, 2µm, 1µm, 0. 8µm, 0. 6µm, 0. 5µm technologies • 1999 / 2000 QML RHA qualification by DSCC/DLA, 1 st non US entity • 2000 / 2003 ERC 32 – TSC 695 first Rad Hard SPARC Processor qualified • 2006 0. 35/MH 1 RT process qualified, ESCC QML, 1 st entity awarded • 2007 / 2010 0. 18/ATC 18 RHA QML qualified technology and SPARC V 8 qualified processors : AT 697 E/F, AT 7913, AT 7991 … • 2014 / 2016 0. 15/ATMX 150 mixed digital / analog SOI 0. 065/AT 65 RHA (STM process, under ESA and CNES contracts) • 2015 First Rad Tolerant product released (AVR 8 – ATmeg. S 128) • 2016 Microchip acquires Atmel => Aerospace & Defense BU 9
Aerospace Qualified Supply Chain Foundry • 180 nm • 150 nm • 65 nm Probe • Nantes • Rousset Assembly • E 2 v • HCM • MMT Test • Nantes • Rousset Support • Nantes • Rousset UMC Taiwan STM Crolles In Grenoble France La Rochelle France Bangkok Thailand & e c n a r F a i As NEW with Microchip 10
Microchip Aerospace & Defense l Targeting Aerospace, Harsh environment and Defense applications l Dealing with main environment constraints : extended temperature and radiations effects l Proposing a wide range of Standard and Custom products with the highest level of confidentiality l Enabling cost reduction, volumes leverage and time to market from industrial & automotive solutions l Committing to High Reliability and Long Term supply with full traceability 11
l Microchip A&D l ATMX 150 RHA-Technology l SAMRH 71 l Common Ecosystem 12
ATMX 150 RHA-Technology A set of radiation hardened standard cell libraries for Space Proven Technology Radiation Hardened SEL immune, TID > 100 Krad (Si tested) Extended temperature range -55°C to +125°C Reliability Life Time 20 years ATMX 150 RHA : 0, 15 µm Mixed Signal RAD HARD technology Improve integration with adaptable technology: a mixed-signal strategy • • • Logic (22 Mgates) Analog 5 V compatibility A set of qualified IP‘s High voltage options (25 V) NVM option 13
ATMX 150 RHA ASIC offer Radiation performances Mitigation techniques in addition to SOI capability (deep trench option) q SEL No single event latch-up below a LET threshold of 78 Me. V. cm²/mg at 125°C/Vccmax Std process with Dual DWELL Letth qualified > 78 Me. V. cm 2/mg (Vcc max, 125°C) Deep trench option by construction SEL immune Letth > 95 Me. V. cm 2/mg q SEU hardened flip-flops : LET > 30 Me. V. cm 2/mg for HDFF q TID : qualified up to 100 Krad(Si) RHA for 1, 8 V and 3, 3 V devices (300 krad(Si) tested) and 50 krads (Si) for 5 V I/Os q Radiation Report of the technology available through NDA 14

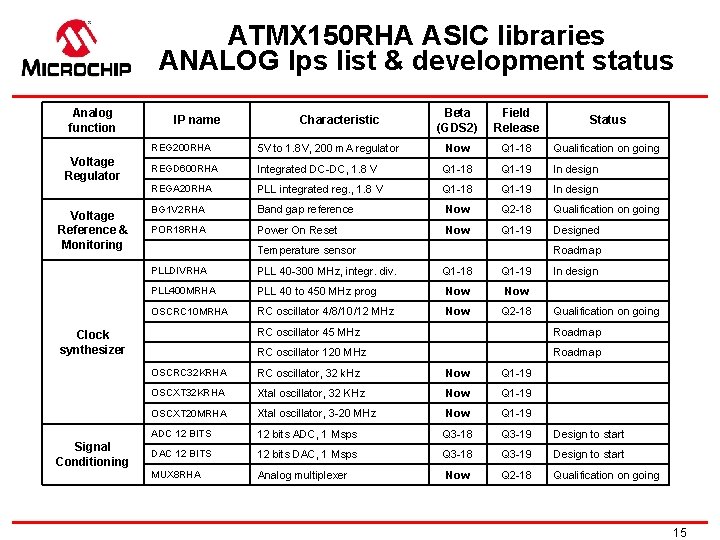

ATMX 150 RHA ASIC libraries ANALOG Ips list & development status Analog function Voltage Regulator Voltage Reference & Monitoring IP name Beta (GDS 2) Field Release Status Now Q 1 -18 Qualification on going REG 200 RHA 5 V to 1. 8 V, 200 m. A regulator REGD 600 RHA Integrated DC-DC, 1. 8 V Q 1 -18 Q 1 -19 In design REGA 20 RHA PLL integrated reg. , 1. 8 V Q 1 -18 Q 1 -19 In design BG 1 V 2 RHA Band gap reference Now Q 2 -18 Qualification on going POR 18 RHA Power On Reset Now Q 1 -19 Designed Temperature sensor PLLDIVRHA PLL 40 -300 MHz, integr. div. PLL 400 MRHA OSCRC 10 MRHA Clock synthesizer Signal Conditioning Characteristic Roadmap Q 1 -18 Q 1 -19 PLL 40 to 450 MHz prog Now RC oscillator 4/8/10/12 MHz Now Q 2 -18 In design Qualification on going RC oscillator 45 MHz Roadmap RC oscillator 120 MHz Roadmap OSCRC 32 KRHA RC oscillator, 32 k. Hz Now Q 1 -19 OSCXT 32 KRHA Xtal oscillator, 32 KHz Now Q 1 -19 OSCXT 20 MRHA Xtal oscillator, 3 -20 MHz Now Q 1 -19 ADC 12 BITS 12 bits ADC, 1 Msps Q 3 -18 Q 3 -19 Design to start DAC 12 BITS 12 bits DAC, 1 Msps Q 3 -18 Q 3 -19 Design to start MUX 8 RHA Analog multiplexer Now Q 2 -18 Qualification on going 15
l Microchip A&D l ATMX 150 RHA-Technology l SAMRH 71 l Common Ecosystem 16
MCU/MPU Selection for Aerospace ASIC Microprocessors (MPU)* 17
Long-Term Partnership with ARM A solid foundation for 32 -bit ARM® solutions Driving innovation since 1995 18
ARM Cortex M 7 Architecture Designed for Safety and Powerful real time applications MPU : Memory Protection Unit ECC: Error Checking & Correction FPU: Floating Point Unit TCM: Tightly Coupled Memory Embedded in SAMV 71 High End Automotive So. C ARM and Cortex are registered trademarks of ARM Limited (or its subsidiaries) in the EU and other countries 19

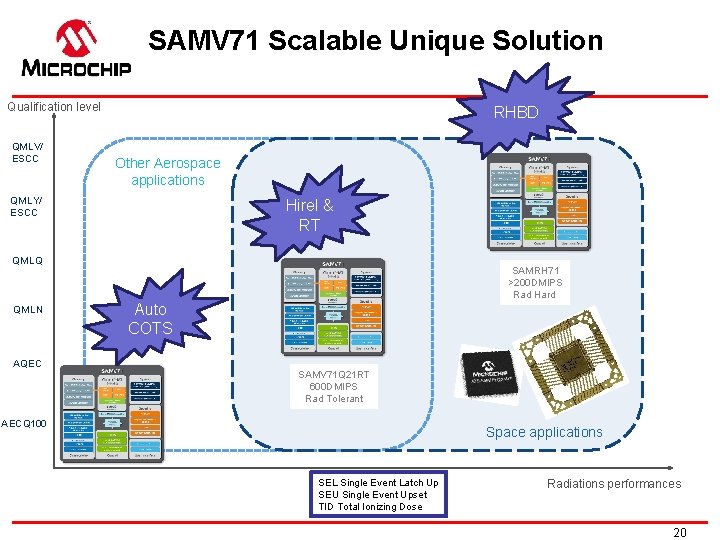

SAMV 71 Scalable Unique Solution Qualification level QMLV/ ESCC RHBD Other Aerospace applications QMLY/ ESCC Hirel & RT QMLQ QMLN AQEC SAMRH 71 >200 DMIPS Rad Hard Auto COTS SAMV 71 Q 21 RT 600 DMIPS Rad Tolerant AECQ 100 Space applications SEL Single Event Latch Up SEU Single Event Upset TID Total Ionizing Dose Radiations performances 20
System Architecture SAMRH 71 ARM Cortex M 7 21
SAMRH 71 Rad Hard Samples Q 119, FM Q 419 • SAMV 71 So. C architecture on Rad Hard techno • ATMX 150 RHA space qualified, 100 Mhz, >200 DMIPS • Benefit from same HW & SW environment • Temperature range -55°C / 125°C • Radiations perfs improved via Rad Hard design • • Latch up immune up to 62 Mev TID > 100 Krad SEU LET >20 to 30 Mev wo system mitigation Full Characterization TID & SEU for all functional blocks • Data integrity & Fault management ü ü ü ECC on TCM interface ECC on Embedded SRAM & Flash Memories ECC on External Memories Embedded “Integrity Checker Monitor” Hardening of the critical area of the design of the system-on-chip 16 -regions (max) memory protection unit (MPU) 128 KB Flash 1 MB SRAM (384 KB TCM) Ext Mem ECC QFP 256 Spacewire 1553 M/S FPU/DSP Dual CAN FD Ethernet AVB 22
SAMRH 71 Status N 1 l First Silicon available for MCHP validation (N 1) l Radiations campaign planned Jun 18 l Full perfs/functions Tape Out Q 318 (N 2) l First results confirm V 71 architecture benefits l Customer engagement Q 119 w full ecosystem HW & SW N 2 AT 697 F 0. 86 DMIPs/MHz SAMRH 71 2. 14 DMIPs/MHz SAMRH 71 >5 Coremark/MHz AT 697 F/ SAMRH 71 ~9 m. W/DMIPs 23
MCU/MPU companions Candidates for Aerospace priorities Development ds. PIC 33 ASIC Microprocessors (MPU)* Switch 24
l Microchip A&D l ATMX 150 RHA-Technology l SAMRH 71 l Common Ecosystem 25
HW & SW Environment Xplained board Ordering Code: ATSAMV 71 -XULT Atmel SAM-ICE Emulator Ordering Code: AT 91 SAM-ICE • Atmel Studio for both AVR and ARM • Same Graphic User interface • Same programming and debugging tools (Atmel Ice) Atmel ICE programmer and debugger Ordering code P/N: ATATMEL-ICE 26

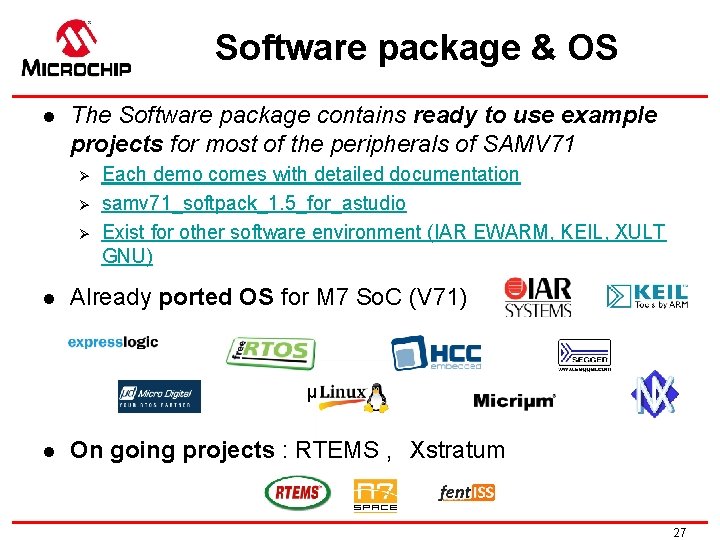

Software package & OS l The Software package contains ready to use example projects for most of the peripherals of SAMV 71 Ø Ø Ø l Each demo comes with detailed documentation samv 71_softpack_1. 5_for_astudio Exist for other software environment (IAR EWARM, KEIL, XULT GNU) Already ported OS for M 7 So. C (V 71) µ l On going projects : RTEMS , Xstratum 27

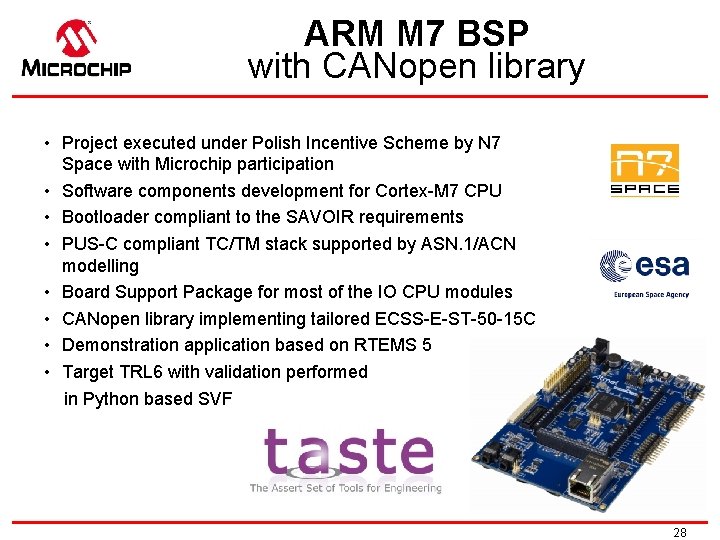

ARM M 7 BSP with CANopen library • Project executed under Polish Incentive Scheme by N 7 Space with Microchip participation • Software components development for Cortex-M 7 CPU • Bootloader compliant to the SAVOIR requirements • PUS-C compliant TC/TM stack supported by ASN. 1/ACN modelling • Board Support Package for most of the IO CPU modules • CANopen library implementing tailored ECSS-E-ST-50 -15 C • Demonstration application based on RTEMS 5 • Target TRL 6 with validation performed in Python based SVF 28
THANK YOU!
