Aerodrome Safety Workshop ICAO CERTIFICATION PRINCIPLES AND PROCEDURES Almaty, Kazakhstan – 18 to 22

Aerodrome Safety Workshop ICAO CERTIFICATION PRINCIPLES AND PROCEDURES Almaty, Kazakhstan – 18 to 22 November 2002

OVERVIEW Q INTRODUCTION Q PRINCIPLES Q STEPS OF THE CERTIFICATION PROCESS Q SUMMARY Aerodrome

OVERVIEW Q INTRODUCTION Q PRINCIPLES Q STEPS OF THE CERTIFICATION PROCESS Q SUMMARY Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 2

Introduction (1) Q Practical aspect • verify and document conformance with requirements Q Legal

Introduction (1) Q Practical aspect • verify and document conformance with requirements Q Legal aspect • The certificated: Both a prerequisite to do business, i. e. to pilot an aircraft or to operate an airline or an aerodrome. It can also be used to gain access to markets abroad, i. e. act as a basis for validation or acceptance by another country. Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 3

Introduction (2) Q Legal aspect (cont) • CAA: A certificate can be revoked, suspended

Introduction (2) Q Legal aspect (cont) • CAA: A certificate can be revoked, suspended or varied if the subject no longer conforms fully or partially to requirements Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 4

Principles Q Take a filter Q Pour the subject through Q See what remains

Principles Q Take a filter Q Pour the subject through Q See what remains in the filter Q If nothing, OK Q Residue are non-conformances Q Non-conformances must be handled Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 5

SUBJECT (aerodrome) RESIDUE (Non-conformances) FILTER (Specifications) SUBJECT - RESIDUE Aerodrome Safety Workshop - Almaty,

SUBJECT (aerodrome) RESIDUE (Non-conformances) FILTER (Specifications) SUBJECT - RESIDUE Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 6

The Filter (1) Q The filter is the set of design and operational regulations

The Filter (1) Q The filter is the set of design and operational regulations applicable to that specific aerodrome Q How to design the filter? Q Annex 14? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 7

The Filter (2) Q At least 2 runways (usually 4+) Q Several taxiways Q

The Filter (2) Q At least 2 runways (usually 4+) Q Several taxiways Q Several stands Q Low visibility Ops? Q One specification for each RWY, TWY, stand Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 8

The Filter (3) Q Reference Code Number (1 – 4) Q Reference Code letter

The Filter (3) Q Reference Code Number (1 – 4) Q Reference Code letter (A – F) Q 3 rd element Q Q Q Take-off Non-instrument Non-Precision Category II/III Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 9

Reference Code Number Q Aeroplane Reference Field Length? Q Physical length? Q Q TORA?

Reference Code Number Q Aeroplane Reference Field Length? Q Physical length? Q Q TORA? ASDA? TODA? LDA? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 10

Reference Code Letter Q Aeroplane properties? Q Aerodrome properties? Aerodrome Safety Workshop - Almaty,

Reference Code Letter Q Aeroplane properties? Q Aerodrome properties? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 11

3 rd Element Q Non-instrument Q Non-Precision Q Precision Category I Q Take-off Q

3 rd Element Q Non-instrument Q Non-Precision Q Precision Category I Q Take-off Q Precision Category II/III Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 12

Conclusion so far Q Having done this exercise for all runways, taxiways and stands,

Conclusion so far Q Having done this exercise for all runways, taxiways and stands, the technical specifications for the aerodrome as far as Annex 14, Chapters 3 and 4 are also established Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 13

Examples Q Q Q Q Q RWY 17 4 E - Precision RWY 35

Examples Q Q Q Q Q RWY 17 4 E - Precision RWY 35 4 E - Precision TWY A, D, E, F, G and Y E TWY B, C and ZN C TWY ZS D STAND 40, 41, 42 and 43 B STAND 04, 21, 23, 25, 26 C STAND 03, 22 and 27 D STAND 02 and 24 E STAND for Helicopter 50, 51 D= 22, 2 m Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 14

Annex 14 ex Chapters 3 & 4 Q Technical specifications for visual aids Q

Annex 14 ex Chapters 3 & 4 Q Technical specifications for visual aids Q Operational requirements for services Q Will the aerodrome be used during darkness or several levels of reduced visibility? Q The Manual on Surface Movement Guidance and Control Systems gives additional advice on this part Q To determine the level of Rescue and Fire-Fighting services, traffic data must be considered Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 15

Conclusions so far Q What we have tried to show is that the selection

Conclusions so far Q What we have tried to show is that the selection of the correct technical specification for an aerodrome is both an important and a non-trivial exercise. Q It is a necessary step in any certification process. Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 16

The certification process (1) Q Dealing with the expression of interest by an intending

The certification process (1) Q Dealing with the expression of interest by an intending applicant for the aerodrome certificate Q Assessing the formal application, including evaluation of the aerodrome manual Q Assessing the aerodrome facilities and equipment Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 17

The certification process (2) Q Issuing or refusing an aerodrome certificate Q Promulgating the

The certification process (2) Q Issuing or refusing an aerodrome certificate Q Promulgating the certified status of an aerodrome and the required details in the AIP Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 18

Expression of interest Q Early contact with CAA important Q Points of contact Q

Expression of interest Q Early contact with CAA important Q Points of contact Q CAA planning purposes Q Agree on technical and operations regulations applicable Q Flight Operations assessment Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 19

Assessing the formal application OBJECTIVE: To obtain certainty that the aerodrome complies with all

Assessing the formal application OBJECTIVE: To obtain certainty that the aerodrome complies with all applicable regulations Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 20

Tools Q An assessment of the aerodrome manual Q A site visit Aerodrome Safety

Tools Q An assessment of the aerodrome manual Q A site visit Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 21

Manual Assessment (1) Q Does the Manual fulfil formal requirements? Q Does the table

Manual Assessment (1) Q Does the Manual fulfil formal requirements? Q Does the table of contents conform with Doc 9774, Appendix 1? Q What sections are not applicable (e. g. Category II/III operations)? Q Is the management properly described? Q Are all systems described in a convincing way? Q Are safety related procedures described convincingly? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 22

Manual Assessment (2) Q Do the procedures reflect both the infrastructure and the competence

Manual Assessment (2) Q Do the procedures reflect both the infrastructure and the competence of personnel? Q Are competency requirements and training plans described? Q Is it likely that the aerodrome is capable of operating according to the manual? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 23

Site Visit (Inspection) Q Doc 9774, Chap 4. 4. 4 • Hardware Q Doc

Site Visit (Inspection) Q Doc 9774, Chap 4. 4. 4 • Hardware Q Doc 9774, Chap 5. 5. 4 • Systems and Operation Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 24

QDoc 9774, Paragraph 4. 4. 4 Q On-site verification of aerodrome data Q The

QDoc 9774, Paragraph 4. 4. 4 Q On-site verification of aerodrome data Q The checking of aerodrome facilities and equipment, which should include: Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 25

Dimensions and surface conditions of: Q Q Q Q Q runway(s) runway shoulders runway

Dimensions and surface conditions of: Q Q Q Q Q runway(s) runway shoulders runway strip(s) runway end safety areas stopway(s) and clearways taxiway(s) taxiway shoulders taxiway strips aprons Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 26

Obstacles Q The presence of obstacles in obstacle limitation surfaces at and in the

Obstacles Q The presence of obstacles in obstacle limitation surfaces at and in the vicinity of the aerodrome Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 27

Aeronautical ground lights Q Q Q Q Q Runway and taxiway lighting Approach lights

Aeronautical ground lights Q Q Q Q Q Runway and taxiway lighting Approach lights PAPI/APAPI or T-VASIS/AT-VASIS Apron floodlighting Obstacle lighting Pilot-activated lighting, if applicable Visual docking guidance systems Flight check records, where applicable Checking and maintenance procedures Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 28

Useful questions: Lighting Q Are there established lights to support the intended operation? Q

Useful questions: Lighting Q Are there established lights to support the intended operation? Q Are the lights of the correct design and in the correct locations? Q Are there established the necessary control systems for the lights? Q Checking and maintenance procedures? Q Are Aerodrome Manual and AIP in conformance with reality? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 29

Standby Power Q Are all relevant systems connected to standby power? Q Is the

Standby Power Q Are all relevant systems connected to standby power? Q Is the switch-over time compatible with the intended operating conditions of the aerodrome? Q Is the actual switch-over time within limits? Q Is the switch-over time published in the AIP? Q Maintenance and testing procedures and records? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 30

Markings Q Wind direction indicator(s)? • Illumination of the wind direction indicator(s) Q Aerodrome

Markings Q Wind direction indicator(s)? • Illumination of the wind direction indicator(s) Q Aerodrome markings and markers? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 31

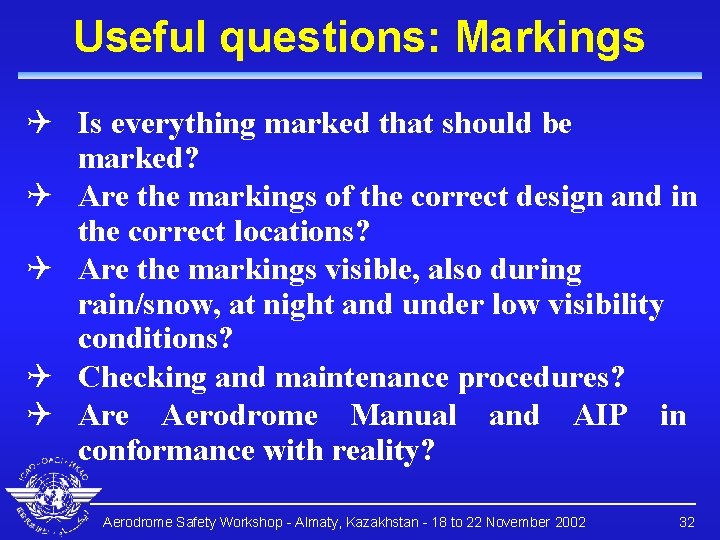

Useful questions: Markings Q Is everything marked that should be marked? Q Are the

Useful questions: Markings Q Is everything marked that should be marked? Q Are the markings of the correct design and in the correct locations? Q Are the markings visible, also during rain/snow, at night and under low visibility conditions? Q Checking and maintenance procedures? Q Are Aerodrome Manual and AIP in conformance with reality? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 32

Signs Q Are all mandatory instruction signs established, ref. Annex 14, 5. 4. 2?

Signs Q Are all mandatory instruction signs established, ref. Annex 14, 5. 4. 2? Q Are information signs established where there exists an operational need, ref. Annex 14, 5. 4. 3? Q Review the term operational need Q The signs, are they of the correct type, in the correct locations and sufficiently visible during all operational conditions? Q Checking and maintenance procedures? Q Are Aerodrome Manual and AIP in conformance with reality? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 33

RFF Q Rescue and fire-fighting equipment and installations Q Procedures Q Competency Q Training

RFF Q Rescue and fire-fighting equipment and installations Q Procedures Q Competency Q Training Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 34

Pavement Maintenance Q Aerodrome maintenance equipment, particularly for the airside facilities maintenance including runway

Pavement Maintenance Q Aerodrome maintenance equipment, particularly for the airside facilities maintenance including runway surface friction measurement Q Runway sweepers and snow removal equipment Q Checking and Maintenance procedures Q Snow Plan Q Competency Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 35

Miscellaneous Q Disabled aircraft removal equipment Q Wildlife management procedures and equipment Q Two-way

Miscellaneous Q Disabled aircraft removal equipment Q Wildlife management procedures and equipment Q Two-way radios installed in vehicles for use by the aerodrome operator in the movement area Q The presence of lights that may endanger the safety of aircraft Q Fuelling facilities Q Driver training, testing and competence Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 36

Safety Management System Q Q Q Q Are all elements described? Safety policy? Procedure

Safety Management System Q Q Q Q Are all elements described? Safety policy? Procedure for Management Review? Audit Program? Reporting system? Analysis and lesson dissemination? Is the system known throughout? Does it work? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 37

Objective Q Verify compliance with regulations Q Verify conformance with the Aerodrome Manual Q

Objective Q Verify compliance with regulations Q Verify conformance with the Aerodrome Manual Q Identify Non-conformances Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 38

Methods Q Q Q Measurements Records Documents Interviews Observations Q Assessment Aerodrome Safety Workshop

Methods Q Q Q Measurements Records Documents Interviews Observations Q Assessment Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 39

QResults Q Empty filter? Q Residue in the filter? Q Non-conformances must be handled

QResults Q Empty filter? Q Residue in the filter? Q Non-conformances must be handled • Corrected (within an agreed time) • Accepted as exemption on specified conditions Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 40

Issuing or Refusing an aerodrome certificate Q Everything OK – Issue Certificate Q Everything

Issuing or Refusing an aerodrome certificate Q Everything OK – Issue Certificate Q Everything NOT OK – Inform the applicant and agree on what steps must be taken Q If exemptions are accepted, state conditions (restrictions) Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 41

Promulgating the certified status of an aerodrome and the required details in the AIP

Promulgating the certified status of an aerodrome and the required details in the AIP Q Aerodrome responsibility Q CAA supervise Q Annex 14, Chapter 2 Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 42

Summary Q The basic principles of certification Q One of the crucial aspects of

Summary Q The basic principles of certification Q One of the crucial aspects of aerodrome certification, which is the selection of the technical and operational regulations applicable to a particular aerodrome Q The steps of aerodrome certification as described in Doc 9774 Chapter 4 Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 43

QUESTIONS? Aerodrome Safety Workshop - Almaty, Kazakhstan - 18 to 22 November 2002 44
