AERIAL VIEW OF CETP ABOUT CETP Common Effluent

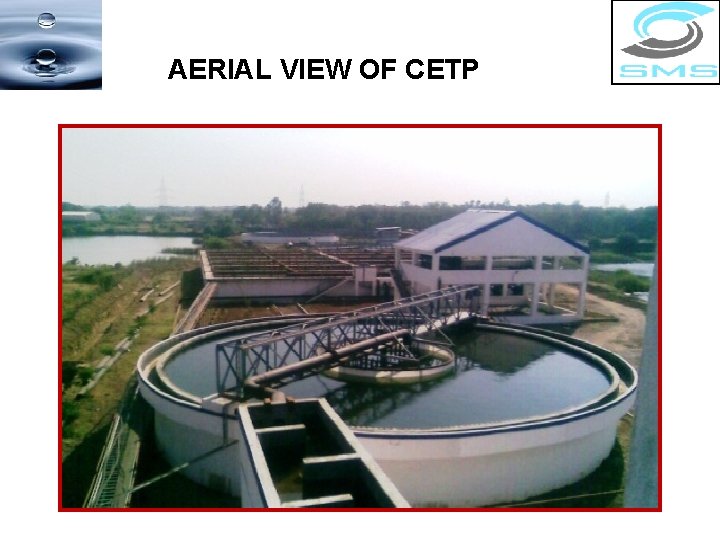

AERIAL VIEW OF CETP

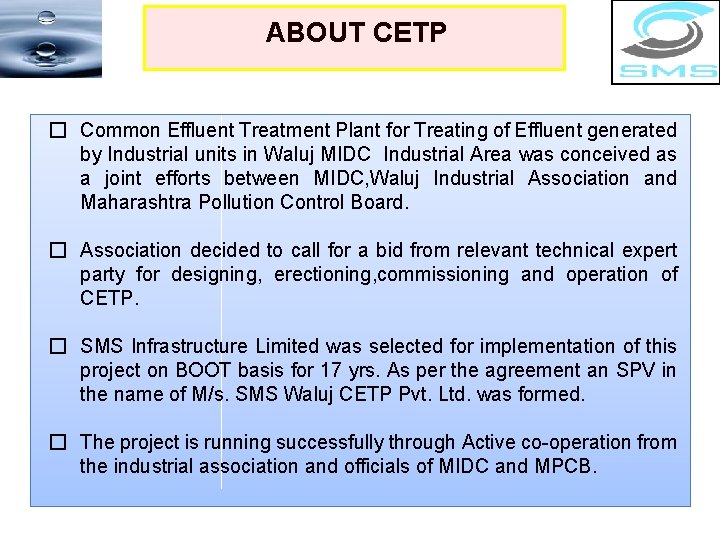

ABOUT CETP � Common Effluent Treatment Plant for Treating of Effluent generated by Industrial units in Waluj MIDC Industrial Area was conceived as a joint efforts between MIDC, Waluj Industrial Association and Maharashtra Pollution Control Board. � Association decided to call for a bid from relevant technical expert party for designing, erectioning, commissioning and operation of CETP. � SMS Infrastructure Limited was selected for implementation of this project on BOOT basis for 17 yrs. As per the agreement an SPV in the name of M/s. SMS Waluj CETP Pvt. Ltd. was formed. � The project is running successfully through Active co-operation from the industrial association and officials of MIDC and MPCB.

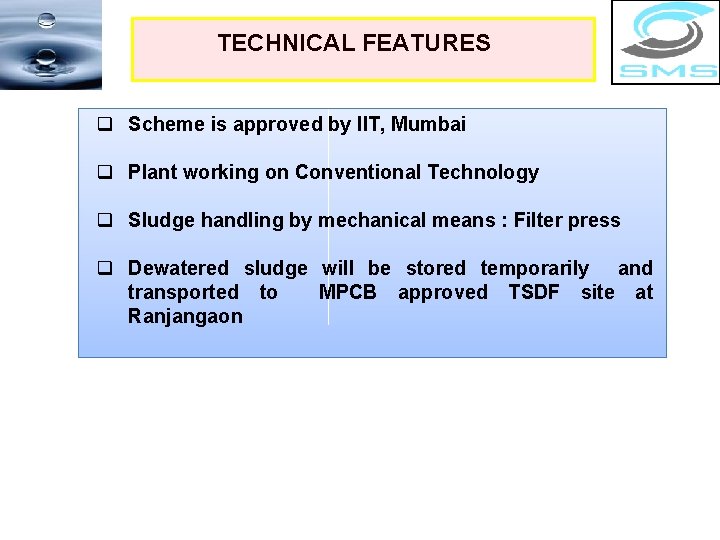

TECHNICAL FEATURES q Scheme is approved by IIT, Mumbai q Plant working on Conventional Technology q Sludge handling by mechanical means : Filter press q Dewatered sludge will be stored temporarily and transported to MPCB approved TSDF site at Ranjangaon

TECHNOLOGY – PROCESS DETAILS CAPACITY PROJECT START UP PROJECT COMMISSIONED PROJECT COST 10 MLD and 20% overloading 2007 June 2011 17 Crs. For 10 MLD Plant : Infrastructures like Eff. Collection Sumps, Pumping Stn. , etc. is provided by MIDC, Aurangabad.

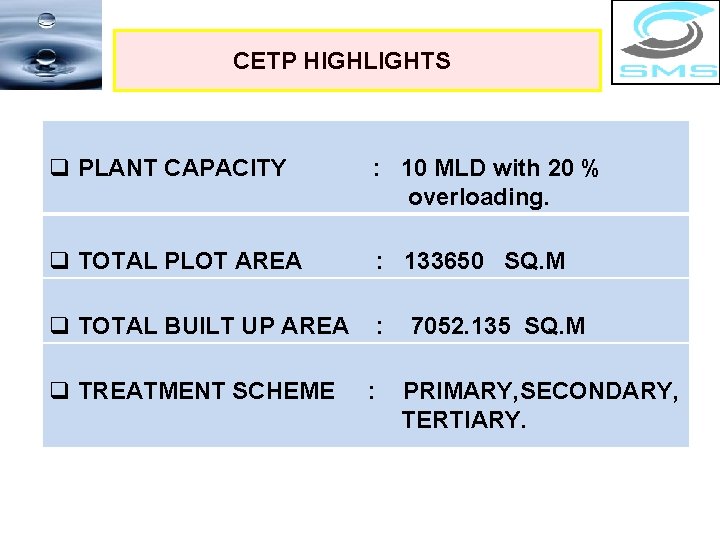

CETP HIGHLIGHTS q PLANT CAPACITY : 10 MLD with 20 % overloading. q TOTAL PLOT AREA : 133650 SQ. M q TOTAL BUILT UP AREA : q TREATMENT SCHEME : 7052. 135 SQ. M PRIMARY, SECONDARY, TERTIARY.

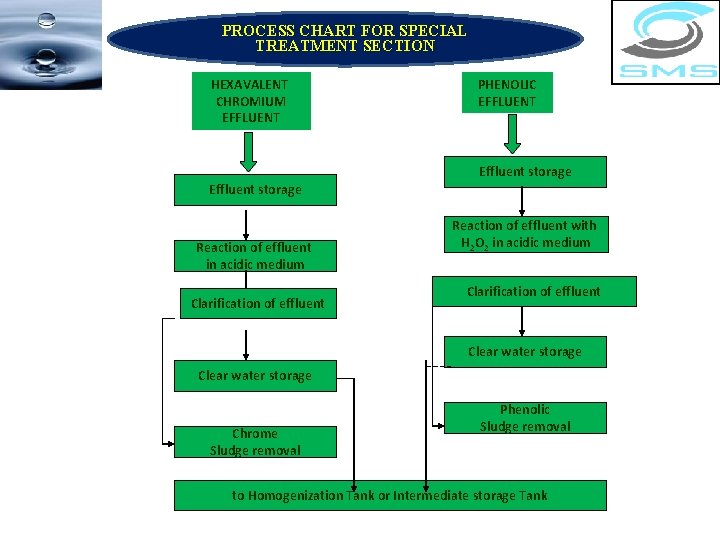

PROCESS CHART FOR SPECIAL TREATMENT SECTION HEXAVALENT CHROMIUM EFFLUENT PHENOLIC EFFLUENT Effluent storage Reaction of effluent in acidic medium Clarification of effluent Reaction of effluent with H 2 O 2 in acidic medium Clarification of effluent Clear water storage Chrome Sludge removal Phenolic Sludge removal to Homogenization Tank or Intermediate storage Tank

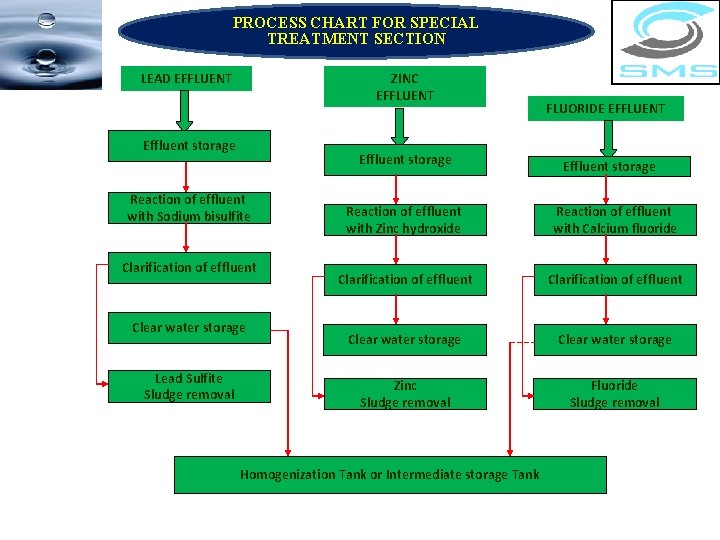

PROCESS CHART FOR SPECIAL TREATMENT SECTION LEAD EFFLUENT ZINC EFFLUENT Effluent storage Reaction of effluent with Sodium bisulfite Clarification of effluent Clear water storage Lead Sulfite Sludge removal FLUORIDE EFFLUENT Effluent storage Reaction of effluent with Zinc hydroxide Reaction of effluent with Calcium fluoride Clarification of effluent Clear water storage Zinc Sludge removal Fluoride Sludge removal Homogenization Tank or Intermediate storage Tank

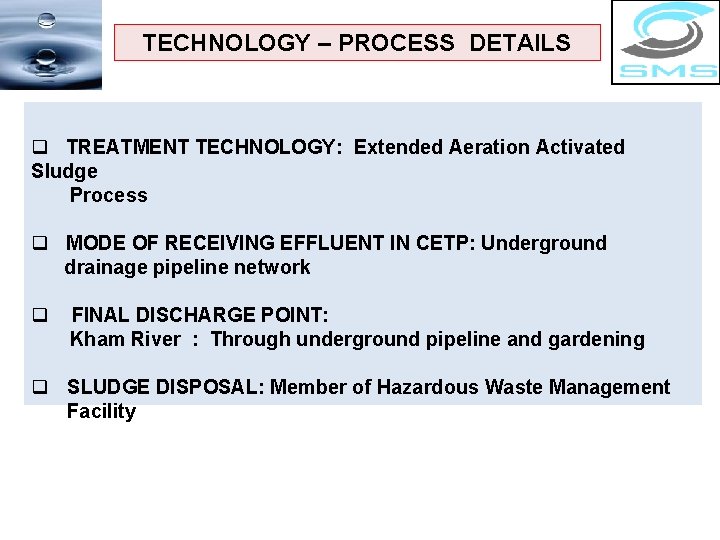

TECHNOLOGY – PROCESS DETAILS q TREATMENT TECHNOLOGY: Extended Aeration Activated Sludge Process q MODE OF RECEIVING EFFLUENT IN CETP: Underground drainage pipeline network q FINAL DISCHARGE POINT: Kham River : Through underground pipeline and gardening q SLUDGE DISPOSAL: Member of Hazardous Waste Management Facility

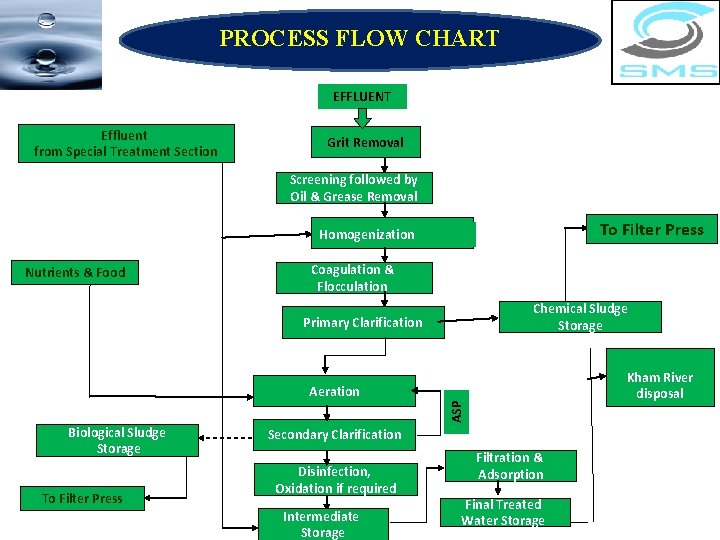

PROCESS FLOW CHART EFFLUENT Effluent from Special Treatment Section Grit Removal Screening followed by Oil & Grease Removal To Filter Press Homogenization Nutrients & Food Coagulation & Flocculation Chemical Sludge Storage Primary Clarification Kham River disposal ASP Aeration Biological Sludge Storage To Filter Press Secondary Clarification Disinfection, Oxidation if required Intermediate Storage Filtration & Adsorption Final Treated Water Storage
