ADW 535 Securi. Sens ADW 535 Sales Presentation Bern, Switzerland / May 14, 2014 Adrian Haenni, Sales Support 22. 11. 2020

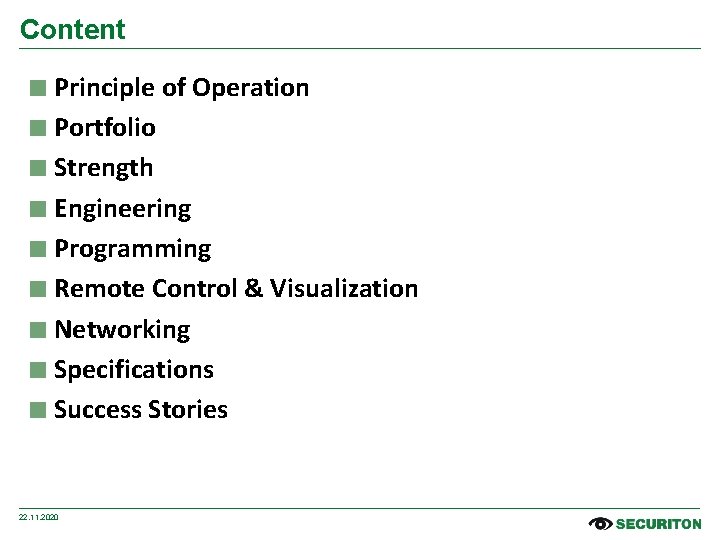

Content ■ Principle of Operation ■ Portfolio ■ Strength ■ Engineering ■ Programming ■ Remote Control & Visualization ■ Networking ■ Specifications ■ Success Stories 22. 11. 2020

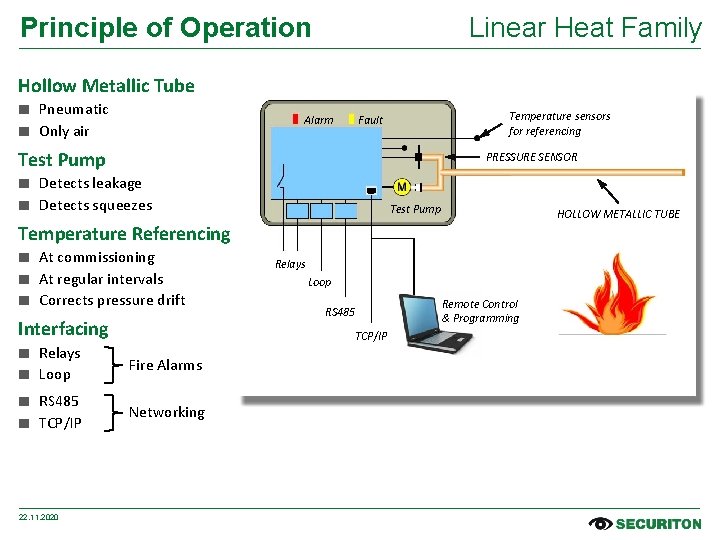

Principle of Operation Hollow Metallic Tube ■ Pneumatic ■ Only air Linear Heat Family Alarm Test Pump ■ Detects leakage ■ Detects squeezes Temperature Referencing ■ At commissioning ■ At regular intervals ■ Corrects pressure drift Interfacing ■ Relays ■ Loop ■ RS 485 ■ TCP/IP 22. 11. 2020 PRESSURE SENSOR Test Pump Networking HOLLOW METALLIC TUBE Relays Loop RS 485 TCP/IP Fire Alarms Temperature sensors for referencing Fault Remote Control & Programming

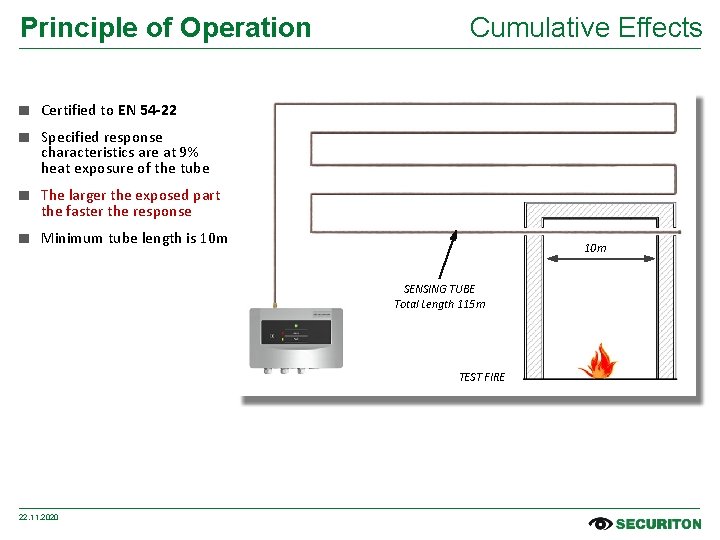

Principle of Operation Cumulative Effects ■ Certified to EN 54 -22 ■ Specified response characteristics are at 9% heat exposure of the tube ■ The larger the exposed part the faster the response ■ Minimum tube length is 10 m SENSING TUBE Total Length 115 m TEST FIRE 22. 11. 2020

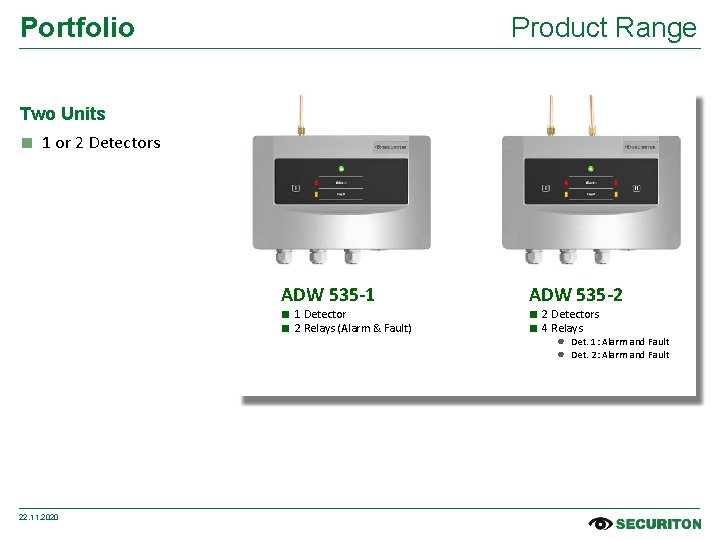

Portfolio Product Range Two Units ■ 1 or 2 Detectors ADW 535 -1 ■ 1 Detector ■ 2 Relays (Alarm & Fault) 22. 11. 2020 ADW 535 -2 ■ 2 Detectors ■ 4 Relays ● Det. 1: Alarm and Fault ● Det. 2: Alarm and Fault

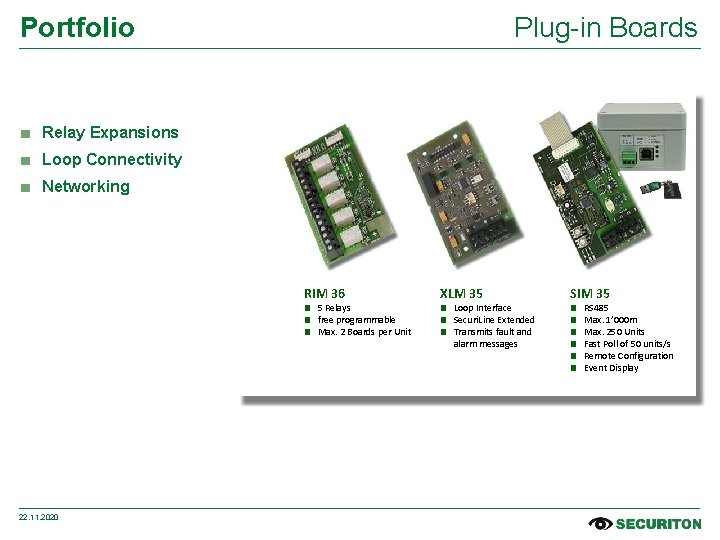

Portfolio Plug-in Boards ■ Relay Expansions ■ Loop Connectivity ■ Networking RIM 36 ■ ■ ■ 22. 11. 2020 5 Relays free programmable Max. 2 Boards per Unit XLM 35 ■ ■ ■ Loop Interface Securi. Line Extended Transmits fault and alarm messages SIM 35 ■ ■ ■ RS 485 Max. 1’ 000 m Max. 250 Units Fast Poll of 50 units/s Remote Configuration Event Display

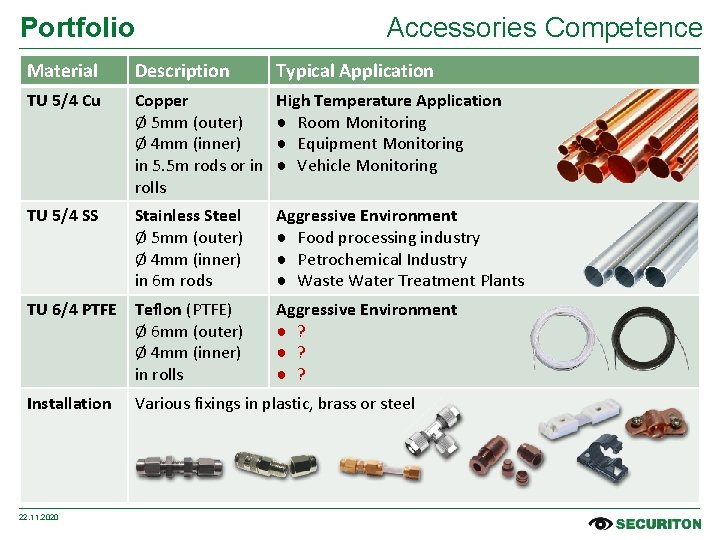

Portfolio Accessories Competence Material Description Typical Application TU 5/4 Cu Copper Ø 5 mm (outer) Ø 4 mm (inner) in 5. 5 m rods or in rolls High Temperature Application ● Room Monitoring ● Equipment Monitoring ● Vehicle Monitoring TU 5/4 SS Stainless Steel Ø 5 mm (outer) Ø 4 mm (inner) in 6 m rods Aggressive Environment ● Food processing industry ● Petrochemical Industry ● Waste Water Treatment Plants TU 6/4 PTFE Teflon (PTFE) Ø 6 mm (outer) Ø 4 mm (inner) in rolls Installation 22. 11. 2020 Aggressive Environment ● ? ● ? Various fixings in plastic, brass or steel

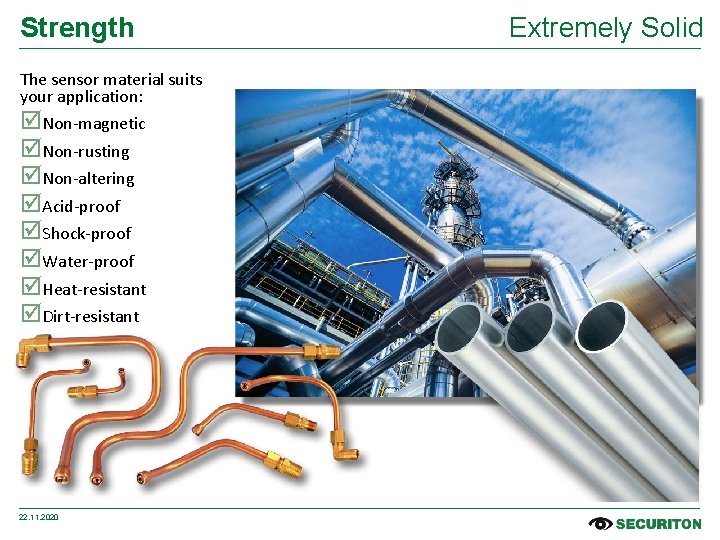

Strength The sensor material suits your application: Non-magnetic Non-rusting Non-altering Acid-proof Shock-proof Water-proof Heat-resistant Dirt-resistant 22. 11. 2020 Extremely Solid

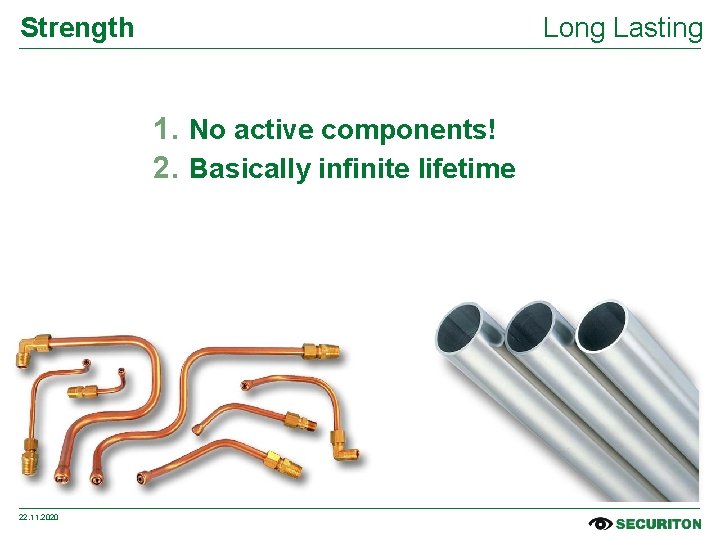

Strength Long Lasting 1. No active components! 2. Basically infinite lifetime 22. 11. 2020

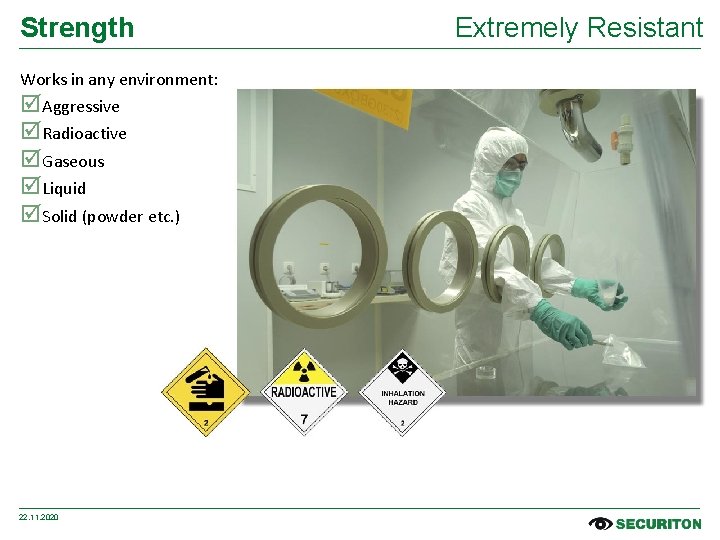

Strength Works in any environment: Aggressive Radioactive Gaseous Liquid Solid (powder etc. ) 22. 11. 2020 Extremely Resistant

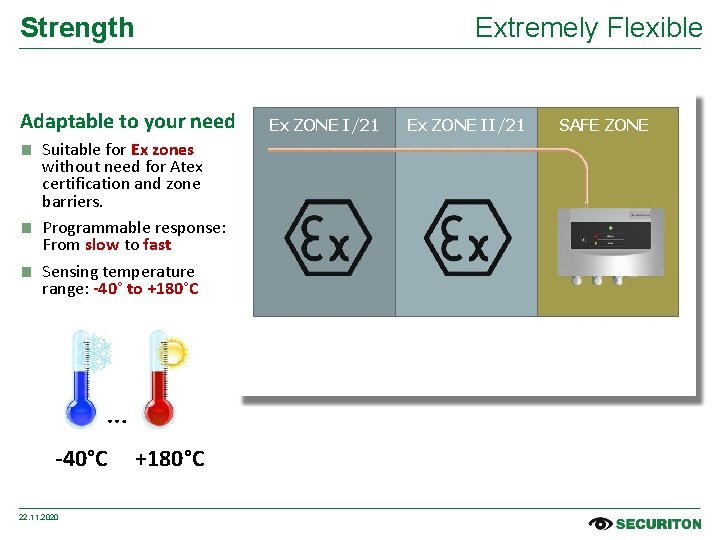

Strength Extremely Flexible Adaptable to your need ■ Suitable for Ex zones without need for Atex certification and zone barriers. ■ Programmable response: From slow to fast ■ Sensing temperature range: -40° to +180°C … -40°C 22. 11. 2020 +180°C Ex ZONE I/21 Ex ZONE II/21 SAFE ZONE

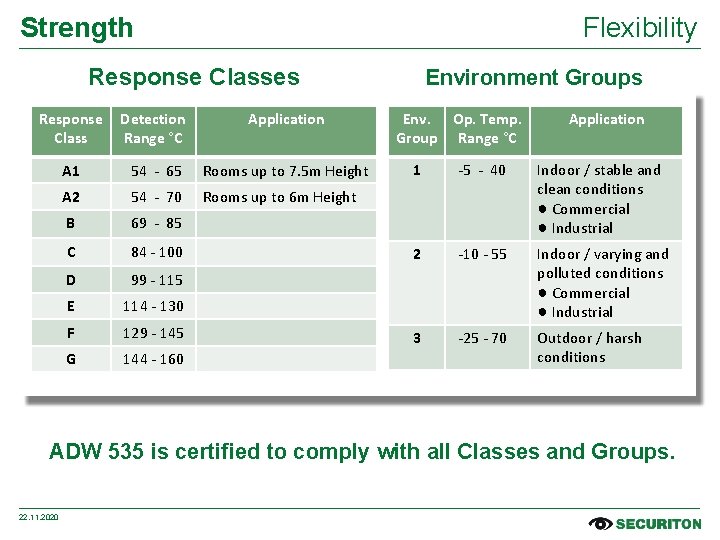

Strength Flexibility Response Classes Response Class Detection Range °C Application A 1 54 - 65 Rooms up to 7. 5 m Height A 2 54 - 70 Rooms up to 6 m Height B 69 - 85 C 84 - 100 D 99 - 115 E 114 - 130 F 129 - 145 G 144 - 160 Environment Groups Env. Op. Temp. Group Range °C Application 1 -5 - 40 Indoor / stable and clean conditions ● Commercial ● Industrial 2 -10 - 55 Indoor / varying and polluted conditions ● Commercial ● Industrial 3 -25 - 70 Outdoor / harsh conditions ADW 535 is certified to comply with all Classes and Groups. 22. 11. 2020

Strength Stability Self-Balancing The ADW 535 is regularly referencing the tube’s pressure to the ambient temperature. The detection sensitivity remains stable for years, if not forever. In consequence, extreme temperature variations during the day are no problem for the ADW 535. It is the most dependable heat detector for outdoor applications. 22. 11. 2020 STABLE NEUTRAL UNSTABLE

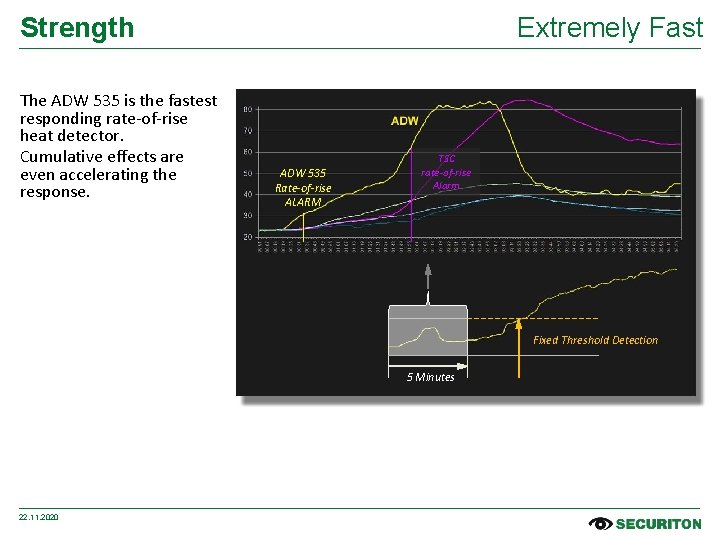

Strength The ADW 535 is the fastest responding rate-of-rise heat detector. Cumulative effects are even accelerating the response. Extremely Fast ADW 535 Rate-of-rise ALARM TSC rate-of-rise Alarm Fixed Threshold Detection 5 Minutes 22. 11. 2020

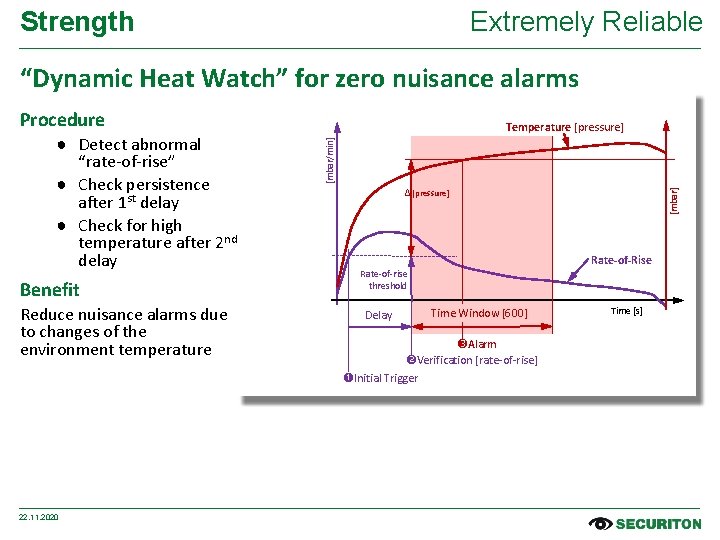

Strength Extremely Reliable “Dynamic Heat Watch” for zero nuisance alarms Procedure Benefit Reduce nuisance alarms due to changes of the environment temperature [mbar/min] Δ [pressure] Rate-of-Rise Rate-of-rise threshold Time Window [600] Delay Alarm Verification [rate-of-rise] Initial Trigger 22. 11. 2020 [mbar] ● Detect abnormal “rate-of-rise” ● Check persistence after 1 st delay ● Check for high temperature after 2 nd delay Temperature [pressure] Time [s]

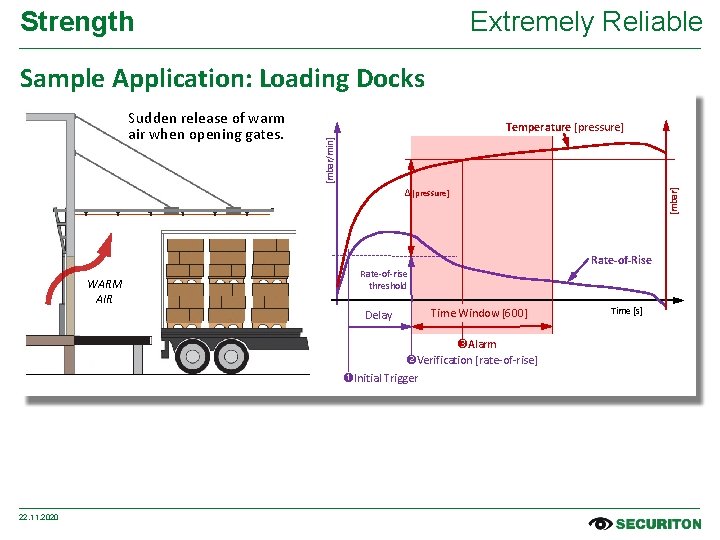

Strength Extremely Reliable Sample Application: Loading Docks Temperature [pressure] [mbar/min] Sudden release of warm air when opening gates. [mbar] Δ [pressure] Rate-of-Rise WARM AIR Rate-of-rise threshold Time Window [600] Delay Alarm Verification [rate-of-rise] Initial Trigger 22. 11. 2020 Time [s]

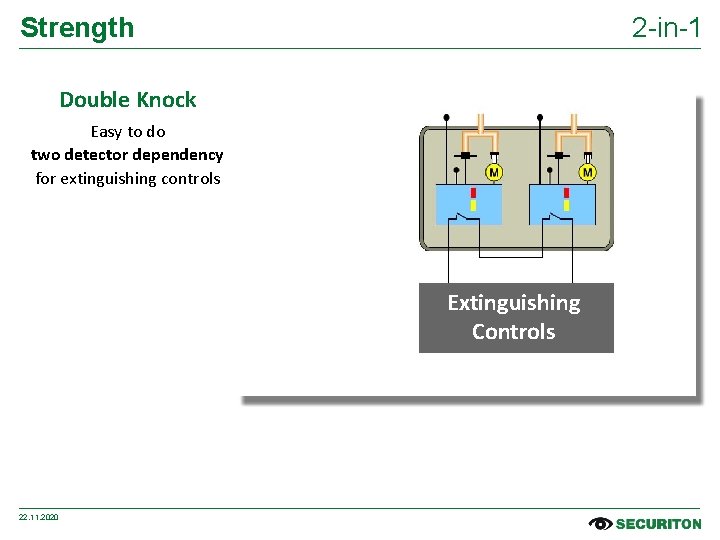

Strength 2 -in-1 Double Knock Easy to do two detector dependency for extinguishing controls Extinguishing Controls 22. 11. 2020

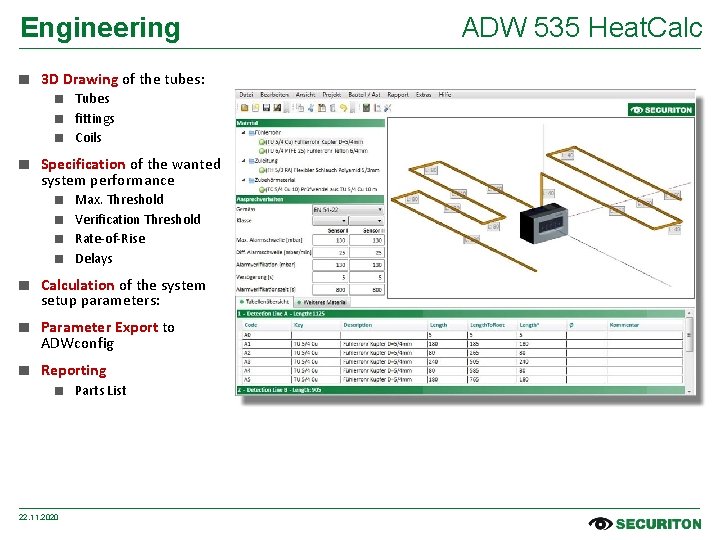

Engineering ■ 3 D Drawing of the tubes: ■ Tubes ■ fittings ■ Coils ■ Specification of the wanted system performance ■ ■ Max. Threshold Verification Threshold Rate-of-Rise Delays ■ Calculation of the system setup parameters: ■ Parameter Export to ADWconfig ■ Reporting ■ Parts List 22. 11. 2020 ADW 535 Heat. Calc

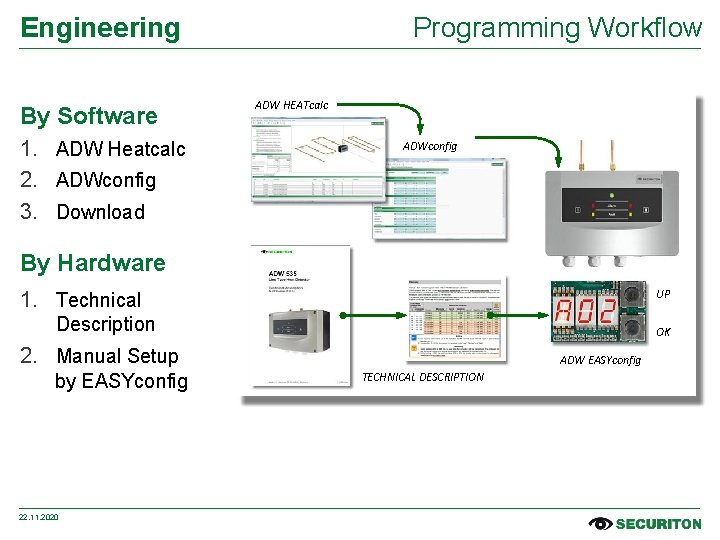

Engineering By Software 1. ADW Heatcalc 2. ADWconfig 3. Download Programming Workflow ADW HEATcalc ADWconfig By Hardware UP 1. Technical Description OK 2. Manual Setup by EASYconfig 22. 11. 2020 ADW EASYconfig TECHNICAL DESCRIPTION

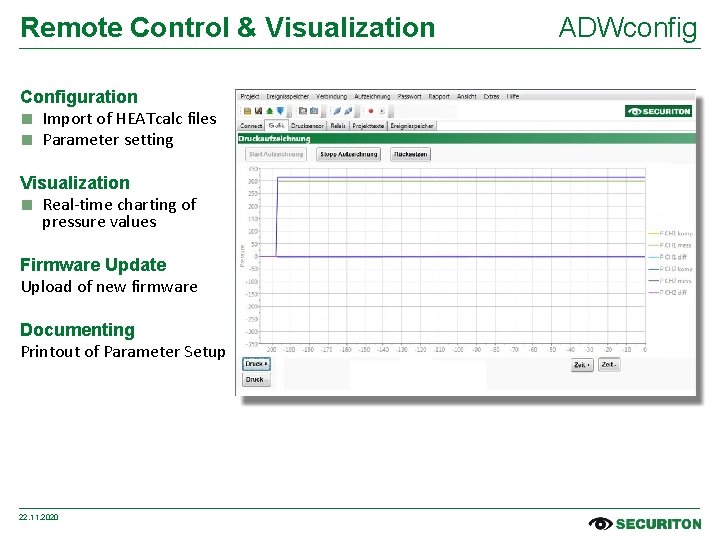

Remote Control & Visualization Configuration ■ Import of HEATcalc files ■ Parameter setting Visualization ■ Real-time charting of pressure values Firmware Update Upload of new firmware Documenting Printout of Parameter Setup 22. 11. 2020 ADWconfig

Networking Long Distance ■ Up to 1 km ■ Extendable by repeater Full Control ■ Remote configuration ■ Remote monitoring of faults and alarms ■ ADWconfig Software RS 485 Networking 1 RS 485 DONGLE 22. 11. 2020 3 250 USB Fast Scanning 50 Units in 1 second Open Protocol Disclosed under a license agreement. 2 ADW 535 config

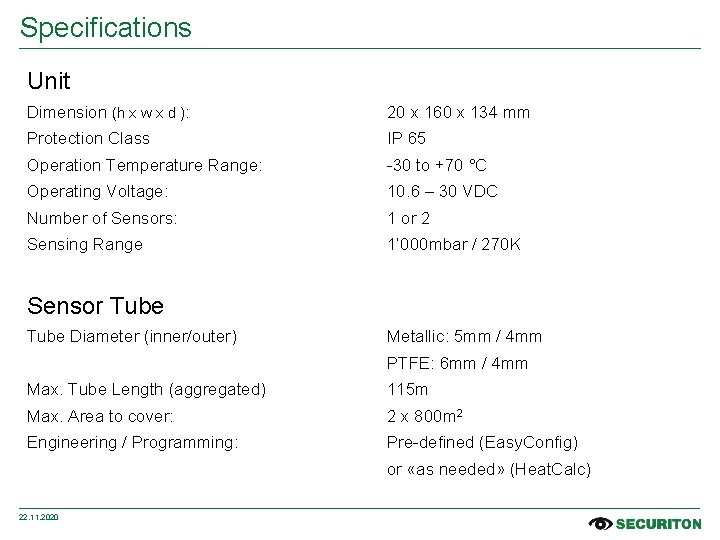

Specifications Unit Dimension (h x w x d ): 20 x 160 x 134 mm Protection Class IP 65 Operation Temperature Range: -30 to +70 °C Operating Voltage: 10. 6 – 30 VDC Number of Sensors: 1 or 2 Sensing Range 1’ 000 mbar / 270 K Sensor Tube Diameter (inner/outer) Metallic: 5 mm / 4 mm PTFE: 6 mm / 4 mm Max. Tube Length (aggregated) 115 m Max. Area to cover: 2 x 800 m 2 Engineering / Programming: Pre-defined (Easy. Config) or «as needed» (Heat. Calc) 22. 11. 2020

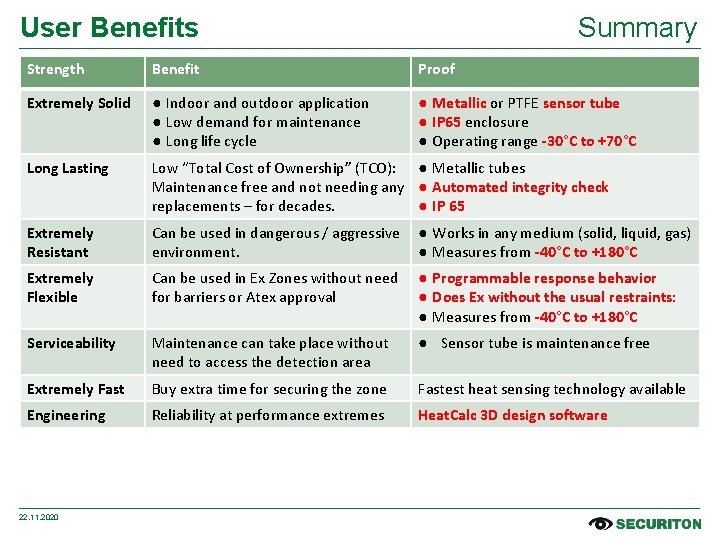

User Benefits Summary Strength Benefit Proof Extremely Solid ● Indoor and outdoor application ● Low demand for maintenance ● Long life cycle ● Metallic or PTFE sensor tube ● IP 65 enclosure ● Operating range -30°C to +70°C Long Lasting Low “Total Cost of Ownership” (TCO): ● Metallic tubes Maintenance free and not needing any ● Automated integrity check 3000 replacements – for decades. ● IP 65 Extremely Resistant Can be used in dangerous / aggressive environment. ● Works in any medium (solid, liquid, gas) ● Measures from -40°C to +180°C Extremely Flexible Can be used in Ex Zones without need for barriers or Atex approval ● Programmable response behavior ● Does Ex without the usual restraints: ● Measures from -40°C to +180°C Serviceability Maintenance can take place without need to access the detection area ● Sensor tube is maintenance free Extremely Fast Buy extra time for securing the zone Fastest heat sensing technology available Engineering Reliability at performance extremes Heat. Calc 3 D design software 22. 11. 2020

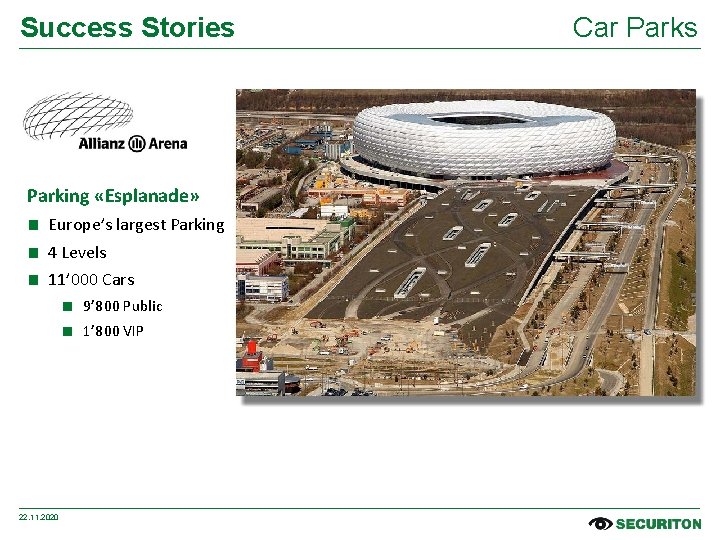

Success Stories Parking «Esplanade» ■ Europe’s largest Parking ■ 4 Levels ■ 11’ 000 Cars ■ 9’ 800 Public ■ 1’ 800 VIP 22. 11. 2020 Car Parks

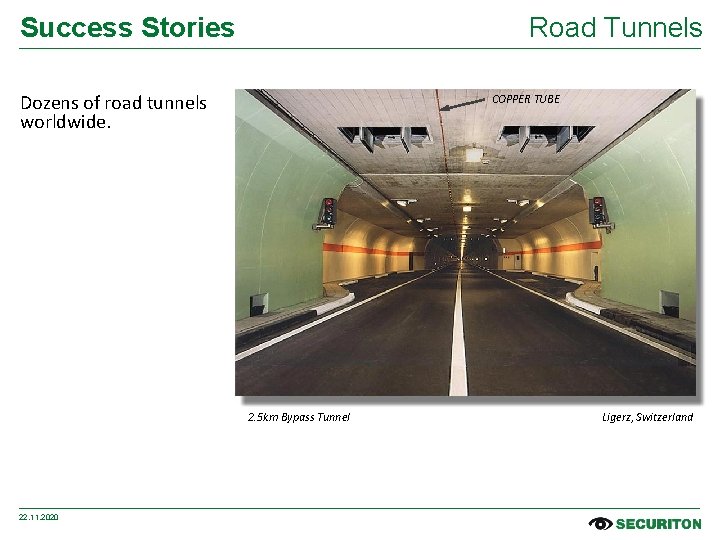

Success Stories Road Tunnels Dozens of road tunnels worldwide. COPPER TUBE 2. 5 km Bypass Tunnel 22. 11. 2020 Ligerz, Switzerland

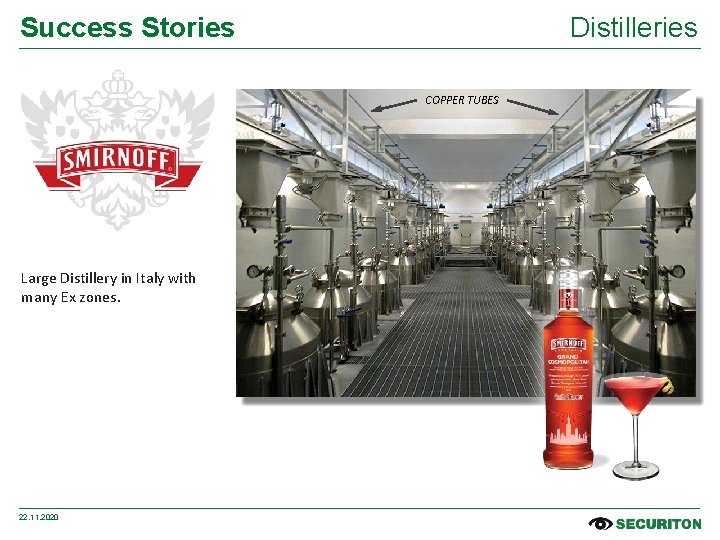

Success Stories Distilleries COPPER TUBES Large Distillery in Italy with many Ex zones. 22. 11. 2020

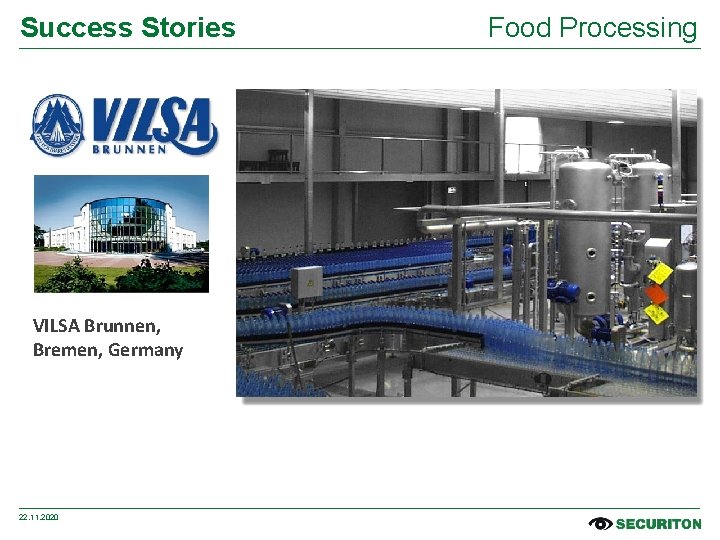

Success Stories VILSA Brunnen, Bremen, Germany 22. 11. 2020 Food Processing

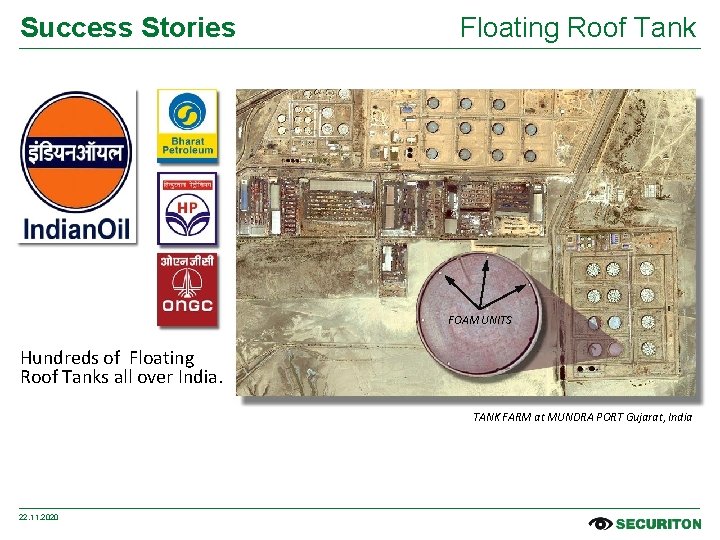

Success Stories Floating Roof Tank FOAM UNITS Hundreds of Floating Roof Tanks all over India. TANK FARM at MUNDRA PORT Gujarat, India 22. 11. 2020

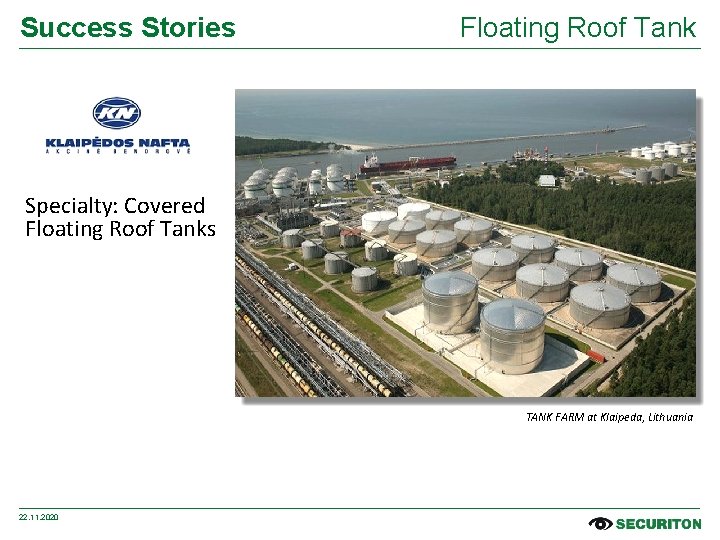

Success Stories Floating Roof Tank Specialty: Covered Floating Roof Tanks TANK FARM at Klaipeda, Lithuania 22. 11. 2020

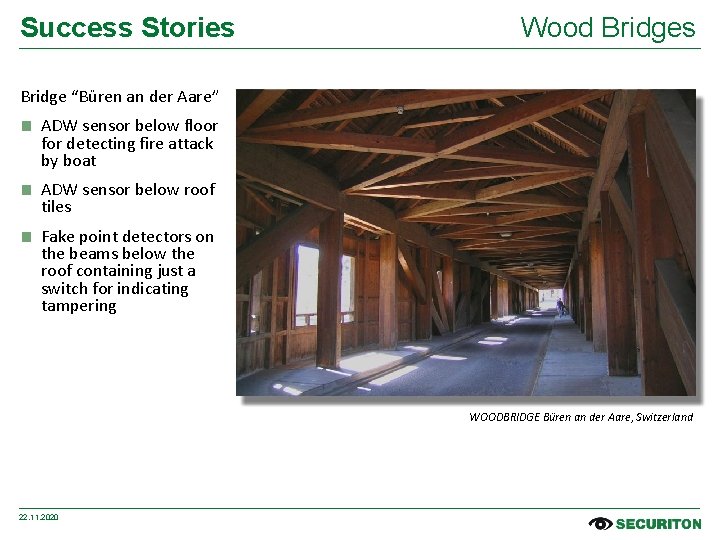

Success Stories Wood Bridges Bridge “Büren an der Aare” ■ ADW sensor below floor for detecting fire attack by boat ■ ADW sensor below roof tiles ■ Fake point detectors on the beams below the roof containing just a switch for indicating tampering WOODBRIDGE Büren an der Aare, Switzerland 22. 11. 2020
