ADVERSARIAL GAME SEARCH MinMax Search Between 2 adversaries

ADVERSARIAL GAME SEARCH: Min-Max Search • Between 2 adversaries O X X O Computer X Evaluated best move value = 1 (win) • Input: A board position • Output: Best move (actually, the score for moving there) • Objective function: • board position evaluated to a number (may be +-1, 0) • higher the number better the move: maximization • Task: To compute optimum value of objective function out of all possible legal moves – i. e. Optimize for the highest board value

Adversarial Games: Min-Max algorithm Computer move X 9 options Adversary move 8 options O X X O O X Leaf: return +1 • • O X X O Leaf: return -1 Search tree is going up to leaves (terminal board) to evaluate board May not be practically feasible for a given computation time – 9! total worst case Most algorithms will search for a pre-assigned depth or “ply” & evaluate board Alternate move by Adversary/human & Algorithm/computer: • Minimizes the objective function for adversary move • Maximizes the objective function for self-move or computer move • the same algorithm alternately calls maximizer and minimizer

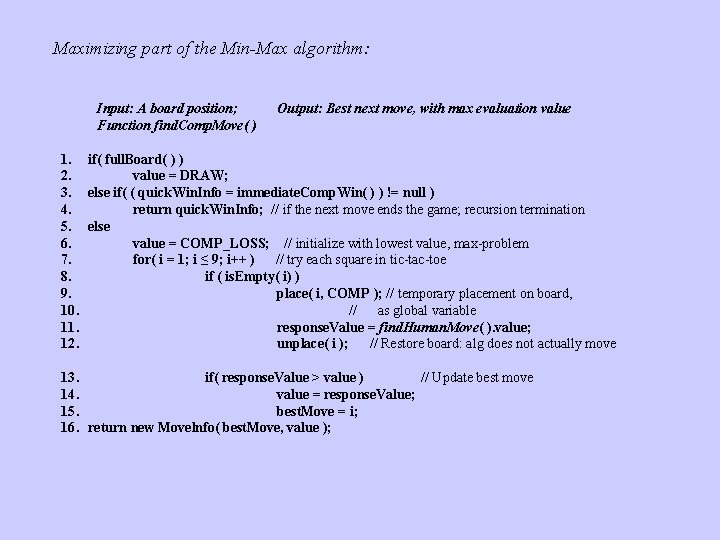

Maximizing part of the Min-Max algorithm: Input: A board position; Function find. Comp. Move( ) Output: Best next move, with max evaluation value 1. if( full. Board( ) ) 2. value = DRAW; 3. else if( ( quick. Win. Info = immediate. Comp. Win( ) ) != null ) 4. return quick. Win. Info; // if the next move ends the game; recursion termination 5. else 6. value = COMP_LOSS; // initialize with lowest value, max-problem 7. for( i = 1; i ≤ 9; i++ ) // try each square in tic-tac-toe 8. if ( is. Empty( i) ) 9. place( i, COMP ); // temporary placement on board, 10. // as global variable 11. response. Value = find. Human. Move( ). value; 12. unplace( i ); // Restore board: alg does not actually move 13. if( response. Value > value ) // Update best move 14. value = response. Value; 15. best. Move = i; 16. return new Movelnfo( best. Move, value );

Minimizing part of the Min-Max algorithm: Input: A board position; Output: Best opponent move, with min evaluation value Function find. Human. Move( ) 1. if( full. Board( ) ) 2. value = DRAW; 3. else if( ( quick. Win. Info = immediate. Human. Win( ) ) != null ) 4. return quick. Win. Info; // if the next move ends the game; recursion termination 5. else 6. value = COMP_WIN; // initialize with lowest value 7. for( i = 1; i ≤ 9; i++ ) // Try each square in tic-tac-toe 8. if ( is. Empty( i) ) 9. place( i, HUMAN ); // temporary placement on board, 10. // as global variable 11. response. Value = find. Comp. Move( ). value; 12. unplace( i ); // Restore board: alg does not actually move 13. if( response. Value < value ) // Update best move 14. value = response. Value; 15. best. Move = i; 16. return new Movelnfo( best. Move, value ); Driver call?

Alpha-beta pruning Max [- ] a=44 Max: get me >44 Min Must get >44 44 But will not return >40, so Do not call other children 60>40, so call 60 40 pruned All branches pruned

Min-max algorithm with Alpha-beta pruning Alpha pruning Must be true: Max-node’s value ≥ min-node’s value Otherwise, useless to expand tree: Prun the branch Beta pruning From Weiss’ text

Min-max algorithm Variable Ply on Min-Max: When to stop a search tree path? Quiscent: Stable boards, returned values are close to each other, no higher ply needed Horizon effect: Maybe just below this, there is a major event! Avoiding horizon effect strategies exist, e. g. remember from past search or games Delay tactic: stay conservative, don’t take risk, push the “horizon” to see what develops but, may actually just delay an eventual loss Iterative deepening: use (n-1)-th ply’s best move values toward alpha-beta in n-th ply Transposition table: multiple moves get to same board, hash table to avoid such moves From Weiss’ text

Min-max may lead to “wrong” path: very conservative search: presumes opponent is exactly as rational Text Figure 5. 14 Max (min(99, 1000, 1000), min(100, 101, 102, 100) ) = Max (99, 100) = 100, is not the best, 1000’s on the other branch was But, that is the point, opponent will not let ‘you’ go there! However, the risk may be worth taking => utility driven search, not just on board evaluation Prob. Cut: Probabilistic alpha-beta pruning, - weight heuristic function from past experience – machine (machine-learning) or human (knowledge-based) - alpha-beta are on probability distribution, - pruning of probably useless branches rather than provably useless From Weiss’ text

Forward Pruning: beam search K-best nodes are explored simultaneously/iteratively Not pure depth first, rather k-best first, but the optimum may be beyond k-best at a particular ply From Weiss’ text

Lookup Table Database / Knowledge base of past games Specially on start- or end-game in chess Knowledge-base: compressed information as strategy, if-then-else From Weiss’ text

Dice Games: Backgamon Max-probability-Min-Probability-… Max-Min part “Or” branches, Dice throwing part “And” branches: Must consider all possibilities, but probabilistic weight may be added from past knowledge From Weiss’ text

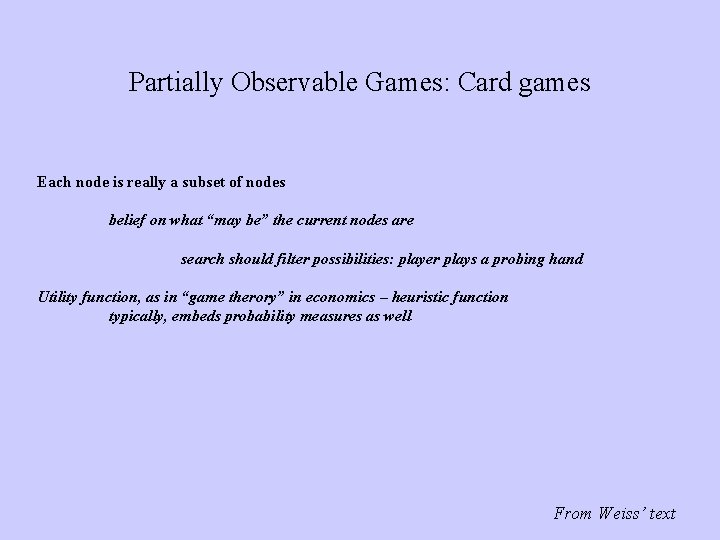

Partially Observable Games: Card games Each node is really a subset of nodes belief on what “may be” the current nodes are search should filter possibilities: player plays a probing hand Utility function, as in “game therory” in economics – heuristic function typically, embeds probability measures as well From Weiss’ text
