Advantech Embedded Automation PC UNO 2 Series Industrial

Advantech Embedded Automation PC UNO 2 Series Industrial Automation Group UNO Division Q 1. 2016

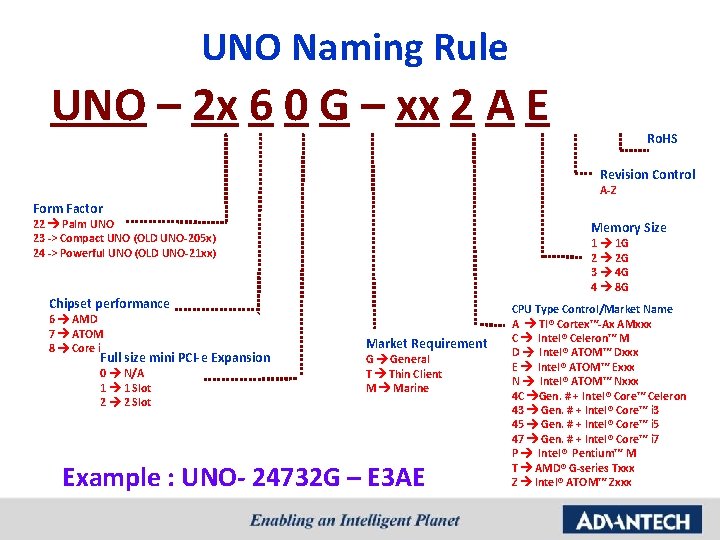

UNO Naming Rule UNO – 2 x 6 0 G – xx 2 A E Ro. HS Revision Control A-Z Form Factor 22 Palm UNO 23 -> Compact UNO (OLD UNO-205 x) 24 -> Powerful UNO (OLD UNO-21 xx) Memory Size 1 1 G 2 2 G 3 4 G 4 8 G Chipset performance 6 AMD 7 ATOM 8 Core i Full size mini PCI-e Expansion 0 N/A 1 1 Slot 2 2 Slot Market Requirement G General T Thin Client M Marine Example : UNO- 24732 G – E 3 AE CPU Type Control/Market Name A TI® Cortex™-Ax AMxxx C Intel® Celeron™ M D Intel® ATOM™ Dxxx E Intel® ATOM™ Exxx N Intel® ATOM™ Nxxx 4 C Gen. # + Intel® Core™ Celeron 43 Gen. # + Intel® Core™ i 3 45 Gen. # + Intel® Core™ i 5 47 Gen. # + Intel® Core™ i 7 P Intel® Pentium™ M T AMD® G-series Txxx Z Intel® ATOM™ Zxxx

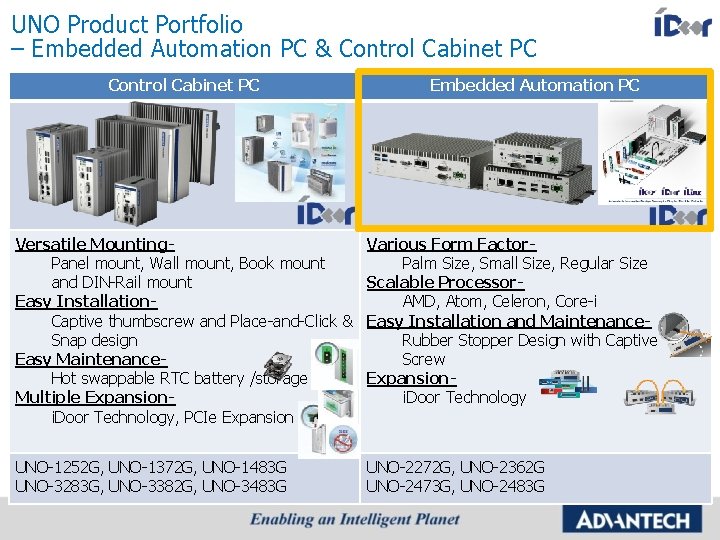

UNO Product Portfolio – Embedded Automation PC & Control Cabinet PC Embedded Automation PC Versatile Mounting. Various Form Factor. Panel mount, Wall mount, Book mount Palm Size, Small Size, Regular Size and DIN-Rail mount Scalable Processor. Easy Installation. AMD, Atom, Celeron, Core-i Captive thumbscrew and Place-and-Click & Easy Installation and Maintenance. Snap design Rubber Stopper Design with Captive Easy Maintenance. Screw Hot swappable RTC battery /storage Expansion. Multiple Expansioni. Door Technology, PCIe Expansion UNO-1252 G, UNO-1372 G, UNO-1483 G UNO-3283 G, UNO-3382 G, UNO-3483 G UNO-2272 G, UNO-2362 G UNO-2473 G, UNO-2483 G 3

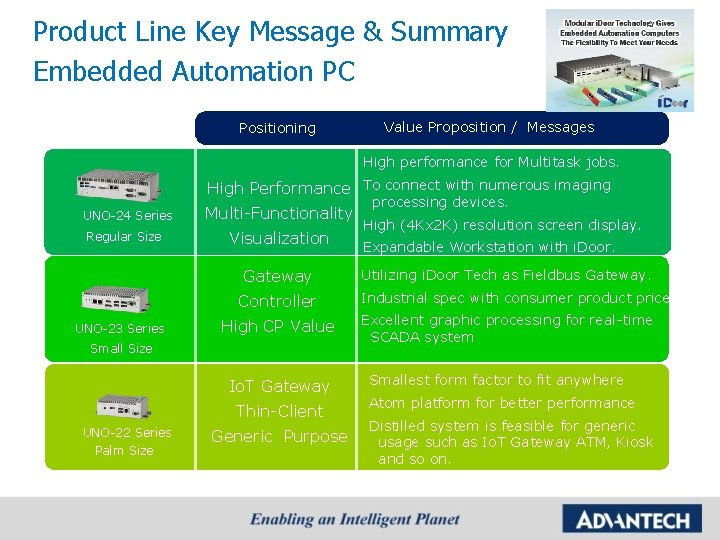

Product Line Key Message & Summary Embedded Automation PC Positioning Value Proposition / Messages High performance for Multitask jobs. High Performance To connect with numerous imaging UNO-24 Series Regular Size Multi-Functionality Visualization Gateway Controller UNO-23 Series High CP Value Small Size Io. T Gateway Thin-Client UNO-22 Series Palm Size Generic Purpose processing devices. High (4 Kx 2 K) resolution screen display. Expandable Workstation with i. Door. Utilizing i. Door Tech as Fieldbus Gateway. Industrial spec with consumer product price. Excellent graphic processing for real-time SCADA system Smallest form factor to fit anywhere Atom platform for better performance Distilled system is feasible for generic usage such as Io. T Gateway ATM, Kiosk and so on.

Best Gateway Solution for Io. T Logistics Remote Monitoring Signage Automatic Vehicle Location Farming Transportation Sports Medical Application Reverse Vending Mining Ticketing Retail First Responders Air Conditions Smart City Rail Industrial Environmental Agriculture Public Transport Smart Grid Medical Cool Chain Monitoring Energy Monitoring Vending Value Transport Green Houses First Responders Metering 5

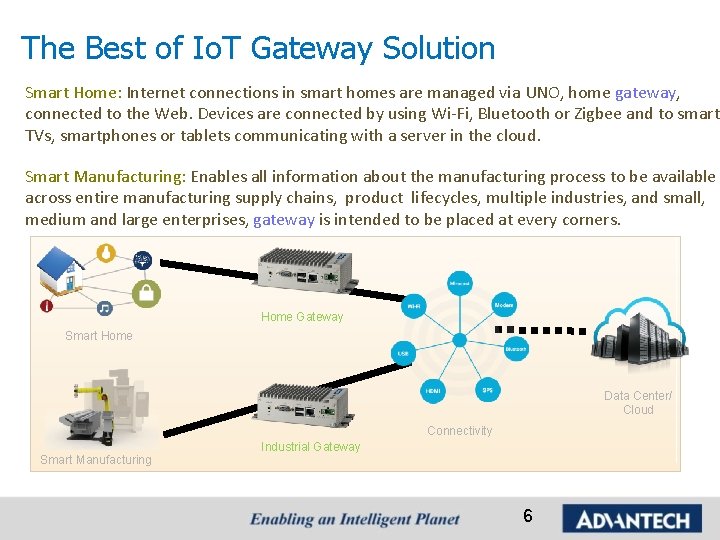

The Best of Io. T Gateway Solution Smart Home: Internet connections in smart homes are managed via UNO, home gateway, connected to the Web. Devices are connected by using Wi-Fi, Bluetooth or Zigbee and to smart TVs, smartphones or tablets communicating with a server in the cloud. Smart Manufacturing: Enables all information about the manufacturing process to be available across entire manufacturing supply chains, product lifecycles, multiple industries, and small, medium and large enterprises, gateway is intended to be placed at every corners. Home Gateway Smart Home Data Center/ Cloud Connectivity Smart Manufacturing Industrial Gateway 6

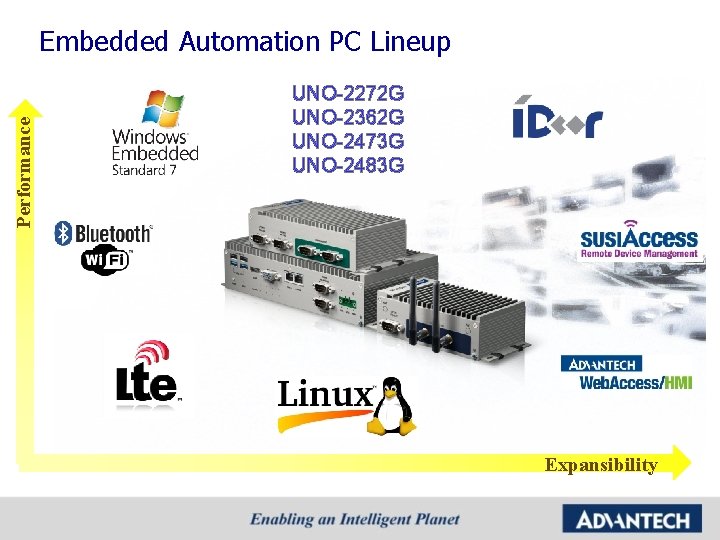

Performance Embedded Automation PC Lineup UNO-2272 G UNO-2362 G UNO-2473 G UNO-2483 G Expansibility

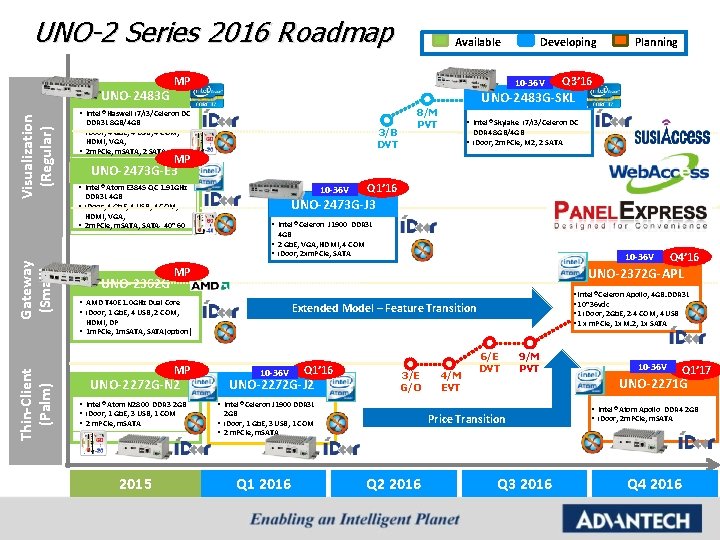

UNO-2 Series 2016 Roadmap Visualization (Regular) UNO-2483 G Available MP Developing 10 -36 V Gateway (Small) Q 3’ 16 UNO-2483 G-SKL • Intel® Haswell i 7/i 3/Celeron DC DDR 3 L 8 GB/4 GB • i. Door, 4 Gb. E, 4 USB, 4 COM, HDMI, VGA, • 2 m. PCIe, m. SATA, 2 SATA 3/B DVT 8/M PVT • Intel® Skylake i 7/i 3/Celeron DC DDR 4 8 GB/4 GB • i. Door, 2 m. PCIe, M 2, 2 SATA MP UNO-2473 G-E 3 • Intel® Atom E 3845 QC 1. 91 GHz DDR 3 L 4 GB • i. Door, 4 Gb. E, 4 USB, 4 COM, HDMI, VGA, • 2 m. PCIe, m. SATA, SATA- 40~ 60 10 -36 V Q 1’ 16 UNO-2473 G-J 3 • Intel® Celeron J 1900 DDR 3 L 4 GB • 2 Gb. E, VGA, HDMI, 4 COM • i. Door, 2 xm. PCIe, SATA Thin-Client (Palm) Planning UNO-2362 G 10 -36 V MP UNO-2372 G-APL • AMD T 40 E 1. 0 GHz Dual Core • i. Door, 1 Gb. E, 4 USB, 2 COM, • Intel® Celeron Apollo, 4 GB. DDR 3 L • 10~36 vdc • 1 i. Door, 2 Gb. E, 2 -4 COM, 4 USB • 1 x m. PCIe, 1 x M. 2, 1 x SATA Extended Model – Feature Transition HDMI, DP • 1 m. PCIe, 1 m. SATA, SATA(option) MP UNO-2272 G-N 2 • Intel® Atom N 2800 DDR 3 2 GB • i. Door, 1 Gb. E, 3 USB, 1 COM • 2 m. PCIe, m. SATA 2015 Q 4’ 16 10 -36 V Q 1’ 16 UNO-2272 G-J 2 3/E G/O 4/M EVT 6/E DVT 9/M PVT Q 1 2016 Price Transition Q 2 2016 Q 1’ 17 UNO-2271 G • Intel® Celeron J 1900 DDR 3 L 2 GB • i. Door, 1 Gb. E, 3 USB, 1 COM • 2 m. PCIe, m. SATA 10 -36 V Q 3 2016 • Intel® Atom Apollo DDR 4 2 GB • i. Door, 2 m. PCIe, m. SATA Q 4 2016

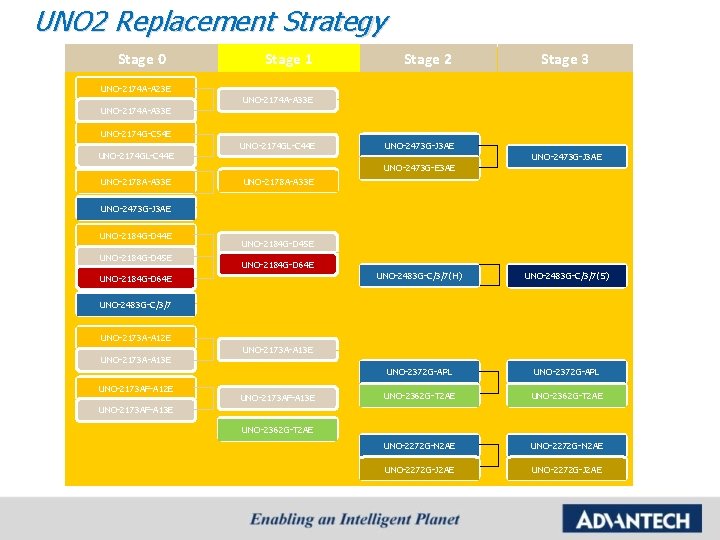

UNO 2 Replacement Strategy Stage 0 Stage 1 Stage 2 Stage 3 UNO-2174 A-A 23 E UNO-2174 A-A 33 E UNO-2174 G-C 54 E UNO-2174 GL-C 44 E UNO-2473 G-J 3 AE UNO-2473 G-E 3 AE UNO-2178 A-A 33 E UNO-2473 G-J 3 AE UNO-2184 G-D 44 E UNO-2184 G-D 45 E UNO-2184 G-D 64 E UNO-2483 G-C/3/7(H) UNO-2483 G-C/3/7(S) UNO-2372 G-APL UNO-2362 G-T 2 AE UNO-2272 G-N 2 AE UNO-2272 G-J 2 AE UNO-2483 G-C/3/7 UNO-2173 A-A 12 E UNO-2173 A-A 13 E UNO-2173 AF-A 13 E UNO-2362 G-T 2 AE

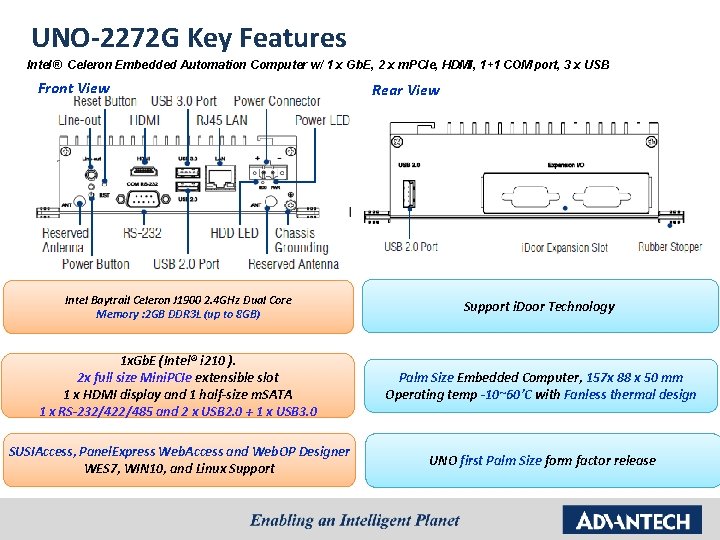

UNO-2272 G Key Features Intel® Celeron Embedded Automation Computer w/ 1 x Gb. E, 2 x m. PCIe, HDMI, 1+1 COM port, 3 x USB Front View Rear View Intel Baytrail Celeron J 1900 2. 4 GHz Dual Core Memory : 2 GB DDR 3 L (up to 8 GB) Support i. Door Technology 1 x. Gb. E (Intel® i 210 ). 2 x full size Mini. PCIe extensible slot 1 x HDMI display and 1 half-size m. SATA 1 x RS-232/422/485 and 2 x USB 2. 0 + 1 x USB 3. 0 Palm Size Embedded Computer, 157 x 88 x 50 mm Operating temp -10~60’C with Fanless thermal design SUSIAccess, Panel. Express Web. Access and Web. OP Designer WES 7, WIN 10, and Linux Support UNO first Palm Size form factor release

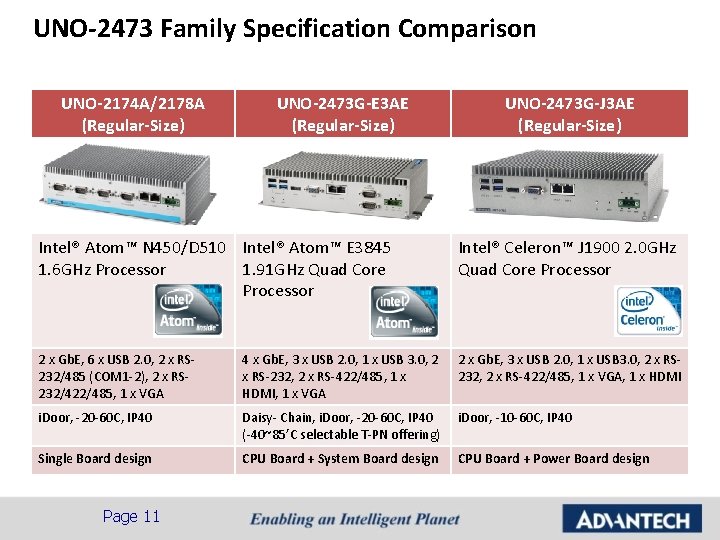

UNO-2473 Family Specification Comparison UNO-2174 A/2178 A (Regular-Size) UNO-2473 G-E 3 AE (Regular-Size) UNO-2473 G-J 3 AE (Regular-Size) Intel® Atom™ N 450/D 510 Intel® Atom™ E 3845 1. 6 GHz Processor 1. 91 GHz Quad Core Processor Intel® Celeron™ J 1900 2. 0 GHz Quad Core Processor 2 x Gb. E, 6 x USB 2. 0, 2 x RS 232/485 (COM 1 -2), 2 x RS 232/422/485, 1 x VGA 4 x Gb. E, 3 x USB 2. 0, 1 x USB 3. 0, 2 x RS-232, 2 x RS-422/485, 1 x HDMI, 1 x VGA 2 x Gb. E, 3 x USB 2. 0, 1 x USB 3. 0, 2 x RS 232, 2 x RS-422/485, 1 x VGA, 1 x HDMI i. Door, -20 -60 C, IP 40 Daisy- Chain, i. Door, -20 -60 C, IP 40 (-40~85’C selectable T-PN offering) i. Door, -10 -60 C, IP 40 Single Board design CPU Board + System Board design CPU Board + Power Board design Page 11

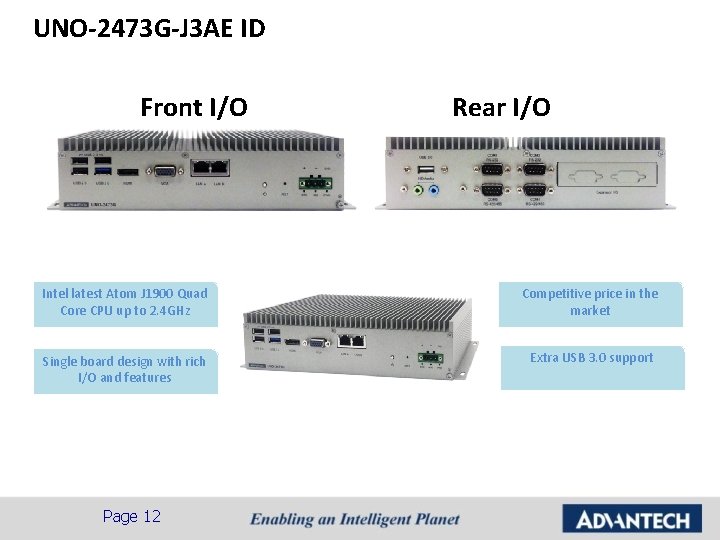

UNO-2473 G-J 3 AE ID Front I/O Rear I/O Intel latest Atom J 1900 Quad Core CPU up to 2. 4 GHz Competitive price in the market Single board design with rich I/O and features Extra USB 3. 0 support Page 12

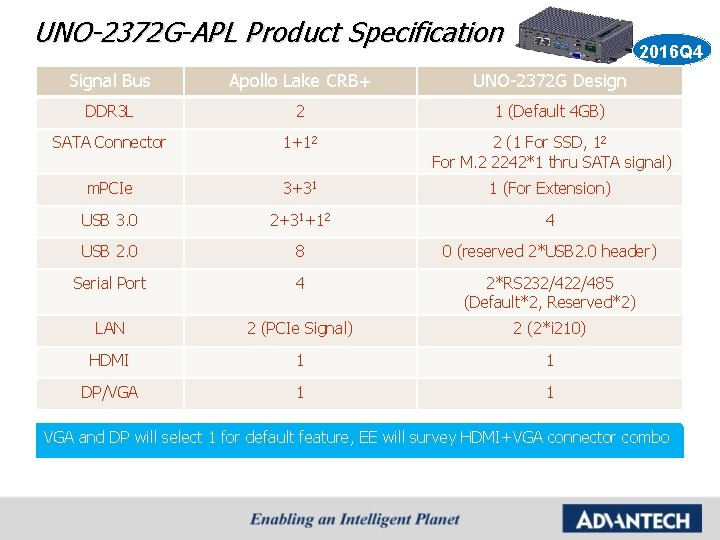

UNO-2372 G-APL Product Specification 2016 Q 4 Signal Bus Apollo Lake CRB+ UNO-2372 G Design DDR 3 L 2 1 (Default 4 GB) SATA Connector 1+12 2 (1 For SSD, 12 For M. 2 2242*1 thru SATA signal) m. PCIe 3+31 1 (For Extension) USB 3. 0 2+31+12 4 USB 2. 0 8 0 (reserved 2*USB 2. 0 header) Serial Port 4 2*RS 232/422/485 (Default*2, Reserved*2) LAN 2 (PCIe Signal) 2 (2*i 210) HDMI 1 1 DP/VGA 1 1 VGA and DP will select 1 for default feature, EE will survey HDMI+VGA connector combo

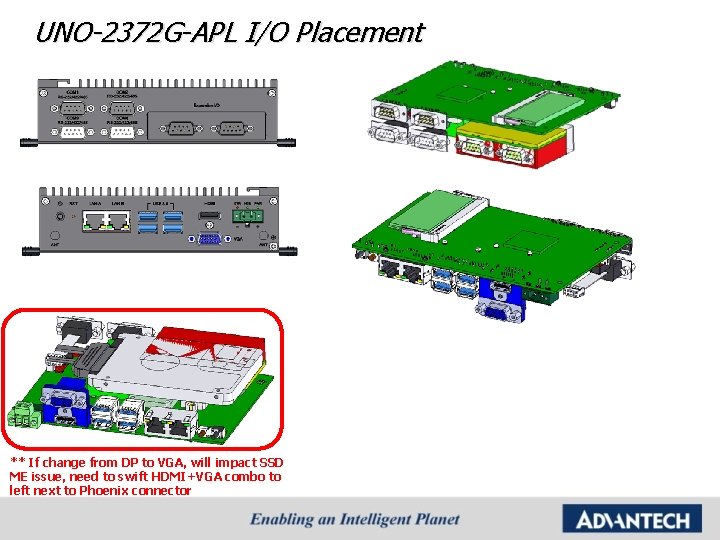

UNO-2372 G-APL I/O Placement ** If change from DP to VGA, will impact SSD ME issue, need to swift HDMI+VGA combo to left next to Phoenix connector

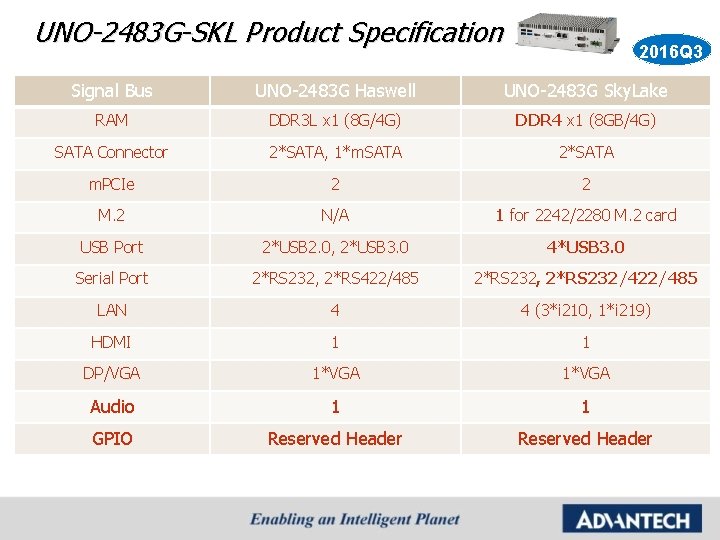

UNO-2483 G-SKL Product Specification 2016 Q 3 Signal Bus UNO-2483 G Haswell UNO-2483 G Sky. Lake RAM DDR 3 L x 1 (8 G/4 G) DDR 4 x 1 (8 GB/4 G) SATA Connector 2*SATA, 1*m. SATA 2*SATA m. PCIe 2 2 M. 2 N/A 1 for 2242/2280 M. 2 card USB Port 2*USB 2. 0, 2*USB 3. 0 4*USB 3. 0 Serial Port 2*RS 232, 2*RS 422/485 2*RS 232, 2*RS 232/422/485 LAN 4 4 (3*i 210, 1*i 219) HDMI 1 1 DP/VGA 1*VGA Audio 1 1 GPIO Reserved Header

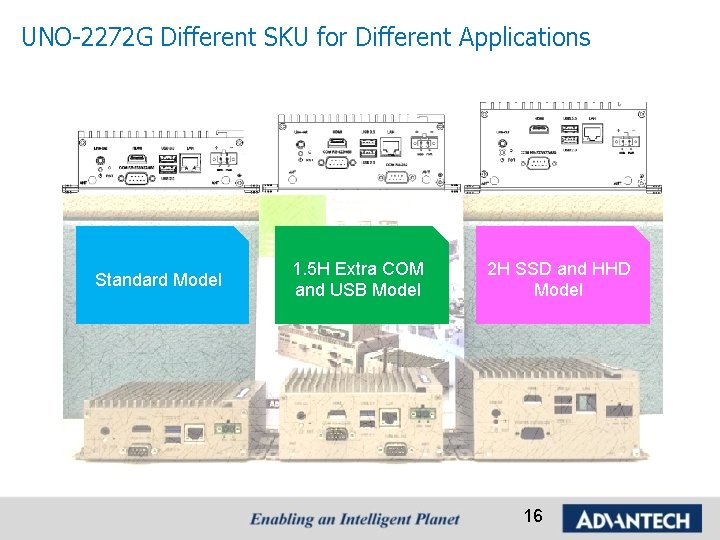

UNO-2272 G Different SKU for Different Applications Standard Model 1. 5 H Extra COM and USB Model 2 H SSD and HHD Model 16

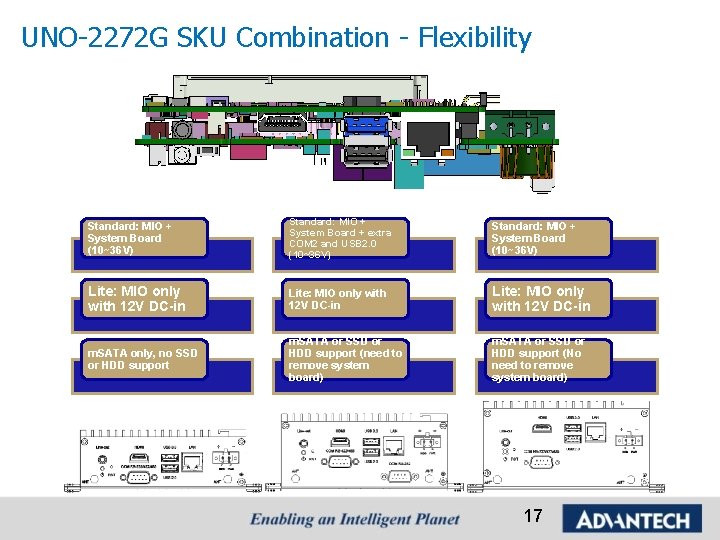

UNO-2272 G SKU Combination - Flexibility Standard: MIO + System Board (10~36 V) Standard: MIO + System Board + extra COM 2 and USB 2. 0 (10~36 V) Standard: MIO + System Board (10~36 V) Lite: MIO only with 12 V DC-in m. SATA only, no SSD or HDD support m. SATA or SSD or HDD support (need to remove system board) m. SATA or SSD or HDD support (No need to remove system board) 17

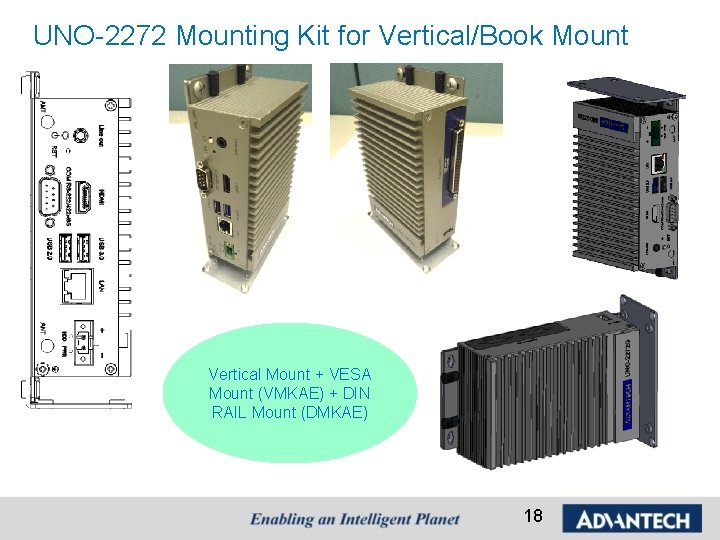

UNO-2272 Mounting Kit for Vertical/Book Mount Vertical Mount + VESA Mount (VMKAE) + DIN RAIL Mount (DMKAE) 18

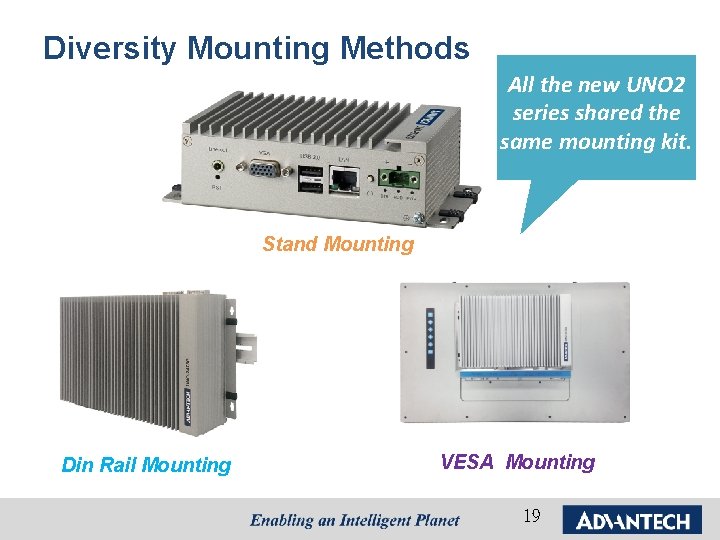

Diversity Mounting Methods All the new UNO 2 series shared the same mounting kit. Stand Mounting Din Rail Mounting VESA Mounting 19

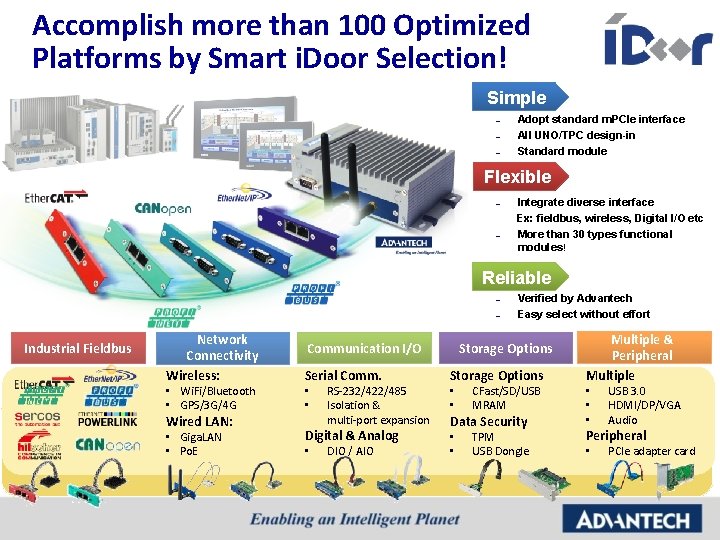

Accomplish more than 100 Optimized Platforms by Smart i. Door Selection! u. Simple – – – Adopt standard m. PCIe interface All UNO/TPC design-in Standard module ready to market! Flexible u – – Integrate diverse interface Ex: fieldbus, wireless, Digital I/O etc More than 30 types functional modules! u. Reliable – – Industrial Fieldbus Network Connectivity Wireless: • Wi. Fi/Bluetooth • GPS/3 G/4 G Wired LAN: • Giga. LAN • Po. E Communication I/O Serial Comm. • • RS-232/422/485 Isolation & multi-port expansion Digital & Analog • DIO / AIO Verified by Advantech Easy select without effort Storage Options • • CFast/SD/USB MRAM Data Security • • TPM USB Dongle Multiple & Peripheral Multiple • • • USB 3. 0 HDMI/DP/VGA Audio Peripheral • PCIe adapter card

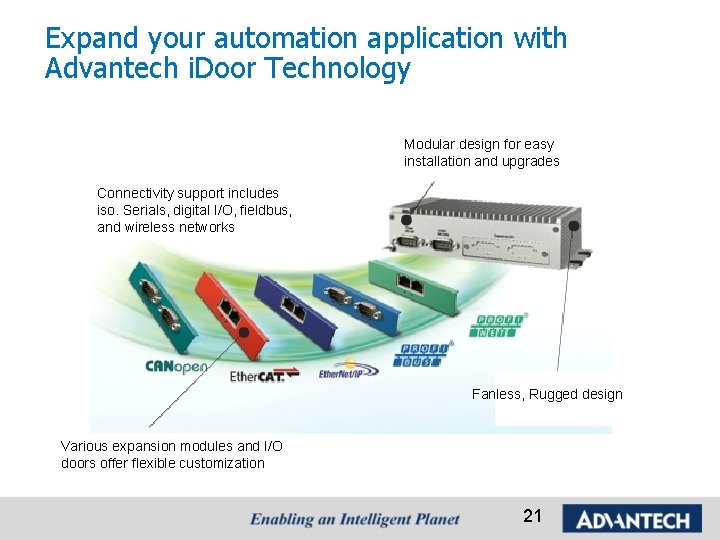

Expand your automation application with Advantech i. Door Technology Modular design for easy installation and upgrades Connectivity support includes iso. Serials, digital I/O, fieldbus, and wireless networks Fanless, Rugged design Various expansion modules and I/O doors offer flexible customization 21

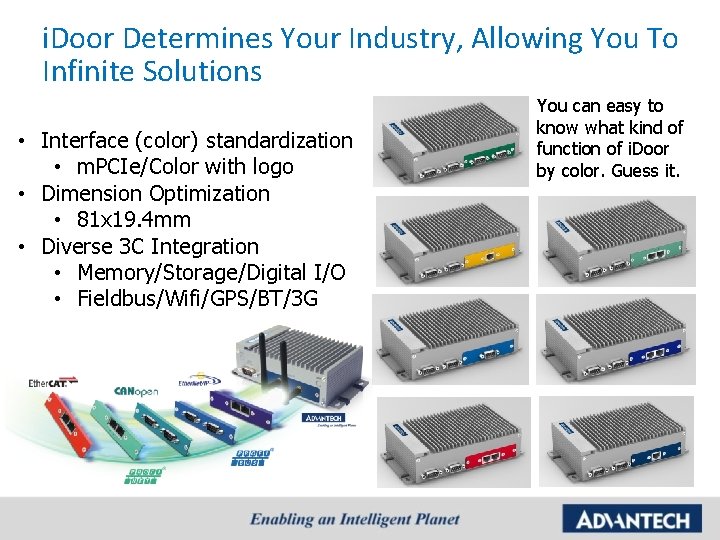

i. Door Determines Your Industry, Allowing You To Infinite Solutions • Interface (color) standardization • m. PCIe/Color with logo • Dimension Optimization • 81 x 19. 4 mm • Diverse 3 C Integration • Memory/Storage/Digital I/O • Fieldbus/Wifi/GPS/BT/3 G You can easy to know what kind of function of i. Door by color. Guess it.

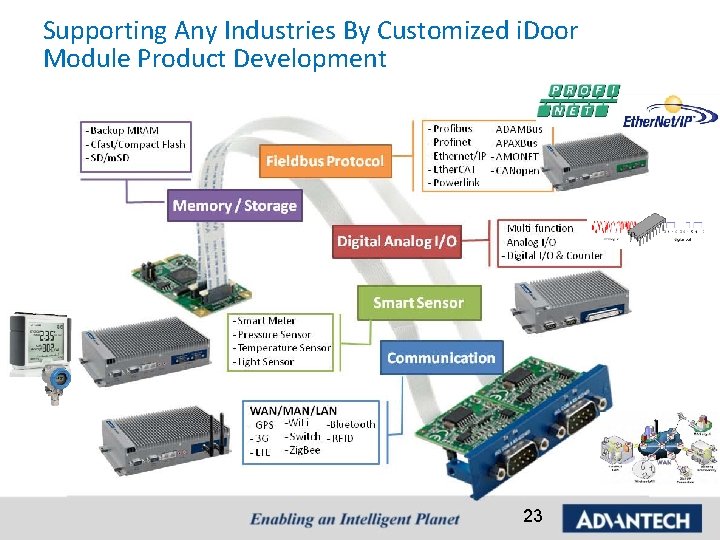

Supporting Any Industries By Customized i. Door Module Product Development 23

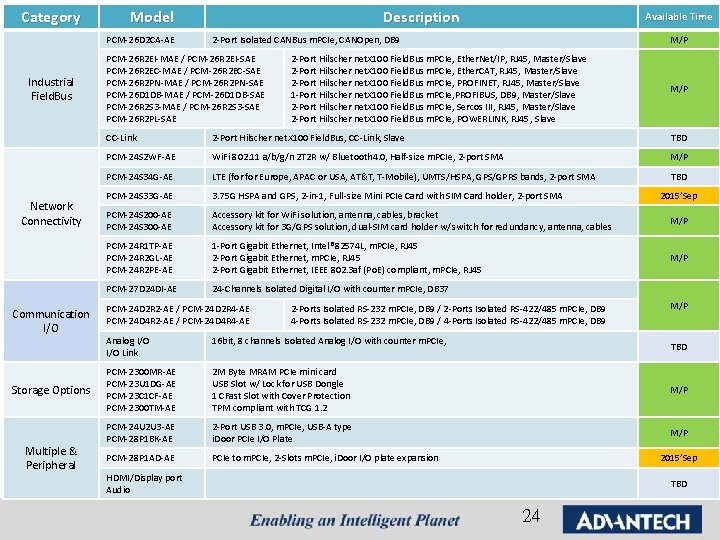

Category Model PCM-26 D 2 CA-AE Industrial Field. Bus Network Connectivity Communication I/O Storage Options Multiple & Peripheral Description Available Time 2 -Port Isolated CANBus m. PCIe, CANOpen, DB 9 PCM-26 R 2 EI-MAE / PCM-26 R 2 EI-SAE PCM-26 R 2 EC-MAE / PCM-26 R 2 EC-SAE PCM-26 R 2 PN-MAE / PCM-26 R 2 PN-SAE PCM-26 D 1 DB-MAE / PCM-26 D 1 DB-SAE PCM-26 R 2 S 3 -MAE / PCM-26 R 2 S 3 -SAE PCM-26 R 2 PL-SAE M/P 2 -Port Hilscher net. X 100 Field. Bus m. PCIe, Ether. Net/IP, RJ 45, Master/Slave 2 -Port Hilscher net. X 100 Field. Bus m. PCIe, Ether. CAT, RJ 45, Master/Slave 2 -Port Hilscher net. X 100 Field. Bus m. PCIe, PROFINET, RJ 45, Master/Slave 1 -Port Hilscher net. X 100 Field. Bus m. PCIe, PROFIBUS, DB 9, Master/Slave 2 -Port Hilscher net. X 100 Field. Bus m. PCIe, Sercos III, RJ 45, Master/Slave 2 -Port Hilscher net. X 100 Field. Bus m. PCIe, POWERLINK, RJ 45, Slave M/P CC-Link 2 -Port Hilscher net. X 100 Field. Bus, CC-Link, Slave TBD PCM-24 S 2 WF-AE Wi. Fi 802. 11 a/b/g/n 2 T 2 R w/ Bluetooth 4. 0, Half-size m. PCIe, 2 -port SMA M/P PCM-24 S 34 G-AE LTE (for Europe, APAC or USA, AT&T, T-Mobile), UMTS/HSPA, GPS/GPRS bands, 2 -port SMA TBD PCM-24 S 33 G-AE 3. 75 G HSPA and GPS, 2 -in-1, Full-size Mini PCIe Card with SIM Card holder, 2 -port SMA PCM-24 S 200 -AE PCM-24 S 300 -AE Accessory kit for Wi. Fi solution, antenna, cables, bracket Accessory kit for 3 G/GPS solution, dual-SIM card holder w/ switch for redundancy, antenna, cables M/P PCM-24 R 1 TP-AE PCM-24 R 2 GL-AE PCM-24 R 2 PE-AE 1 -Port Gigabit Ethernet, Intel® 82574 L, m. PCIe, RJ 45 2 -Port Gigabit Ethernet, IEEE 802. 3 af (Po. E) compliant, m. PCIe, RJ 45 M/P PCM-27 D 24 DI-AE 24 -Channels Isolated Digital I/O with counter m. PCIe, DB 37 PCM-24 D 2 R 2 -AE / PCM-24 D 2 R 4 -AE PCM-24 D 4 R 2 -AE / PCM-24 D 4 R 4 -AE 2 -Ports Isolated RS-232 m. PCIe, DB 9 / 2 -Ports Isolated RS-422/485 m. PCIe, DB 9 4 -Ports Isolated RS-232 m. PCIe, DB 9 / 4 -Ports Isolated RS-422/485 m. PCIe, DB 9 2015’Sep M/P Analog I/O Link 16 bit, 8 channels Isolated Analog I/O with counter m. PCIe, PCM-2300 MR-AE PCM-23 U 1 DG-AE PCM-23 C 1 CF-AE PCM-2300 TM-AE 2 M Byte MRAM PCIe mini card USB Slot w/ Lock for USB Dongle 1 CFast Slot with Cover Protection TPM compliant with TCG 1. 2 M/P PCM-24 U 2 U 3 -AE PCM-28 P 1 BK-AE 2 -Port USB 3. 0, m. PCIe, USB-A type i. Door PCIe I/O Plate M/P PCM-28 P 1 AD-AE PCIe to m. PCIe, 2 -Slots m. PCIe, i. Door I/O plate expansion TBD 2015’Sep HDMI/Display port Audio TBD 24

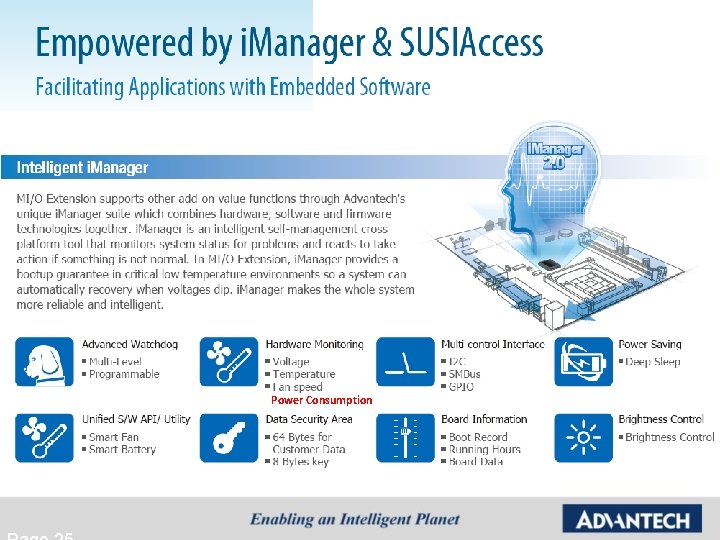

Power Consumption

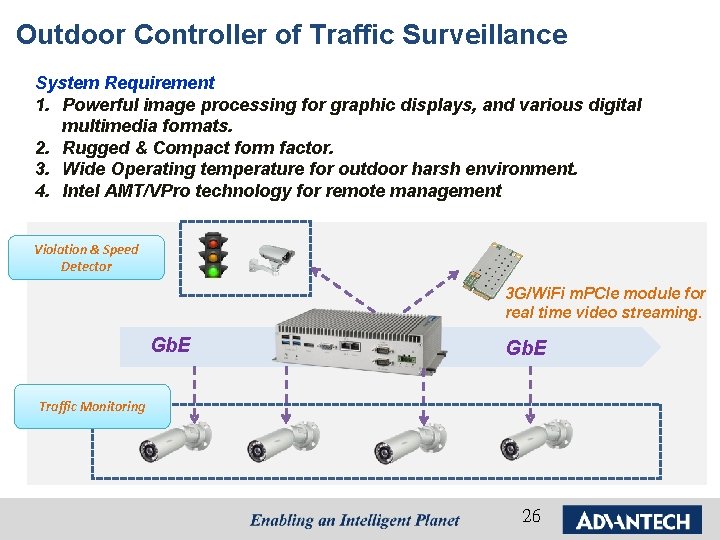

Outdoor Controller of Traffic Surveillance System Requirement 1. Powerful image processing for graphic displays, and various digital multimedia formats. 2. Rugged & Compact form factor. 3. Wide Operating temperature for outdoor harsh environment. 4. Intel AMT/VPro technology for remote management Violation & Speed Detector 3 G/Wi. Fi m. PCIe module for real time video streaming. Gb. E Traffic Monitoring 26

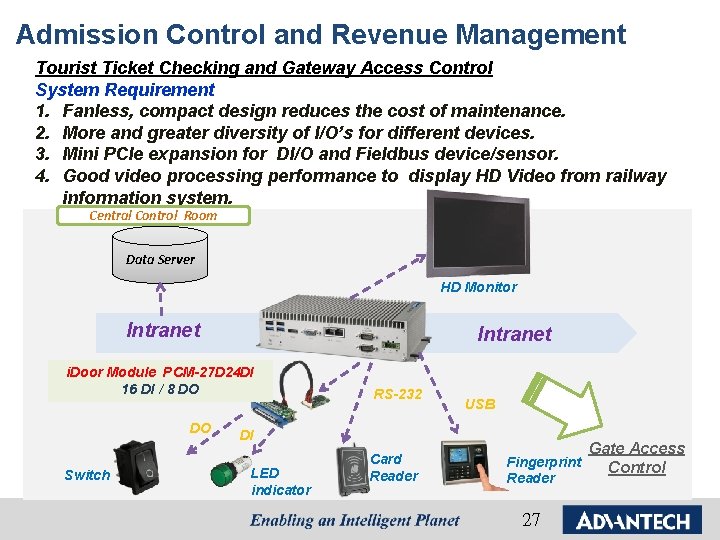

Admission Control and Revenue Management Tourist Ticket Checking and Gateway Access Control System Requirement 1. Fanless, compact design reduces the cost of maintenance. 2. More and greater diversity of I/O’s for different devices. 3. Mini PCIe expansion for DI/O and Fieldbus device/sensor. 4. Good video processing performance to display HD Video from railway information system. Central Control Room Data Server HD Monitor Intranet i. Door Module PCM-27 D 24 DI 16 DI / 8 DO DO Switch RS-232 USB DI LED indicator Card Reader Fingerprint Reader 27 Gate Access Control

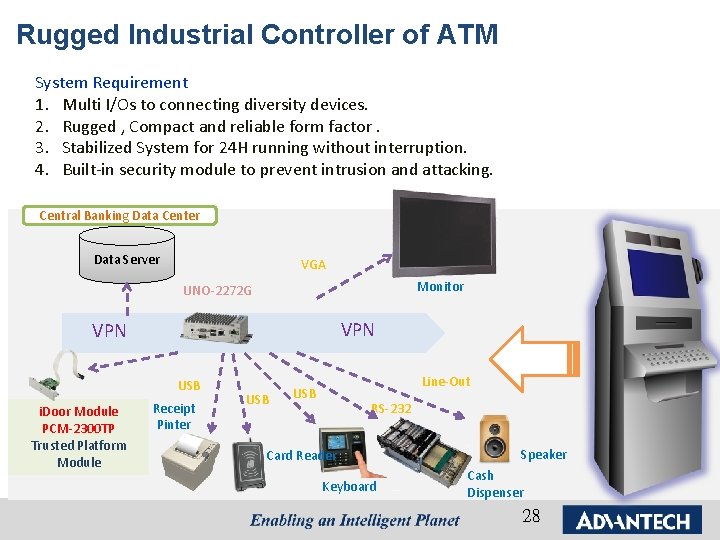

Rugged Industrial Controller of ATM System Requirement 1. Multi I/Os to connecting diversity devices. 2. Rugged , Compact and reliable form factor. 3. Stabilized System for 24 H running without interruption. 4. Built-in security module to prevent intrusion and attacking. Central Banking Data Center Data Server VGA Monitor UNO-2272 G VPN USB i. Door Module PCM-2300 TP Trusted Platform Module Receipt Pinter USB Line-Out USB RS-232 Card Reader Keyboard Speaker Cash Dispenser 28

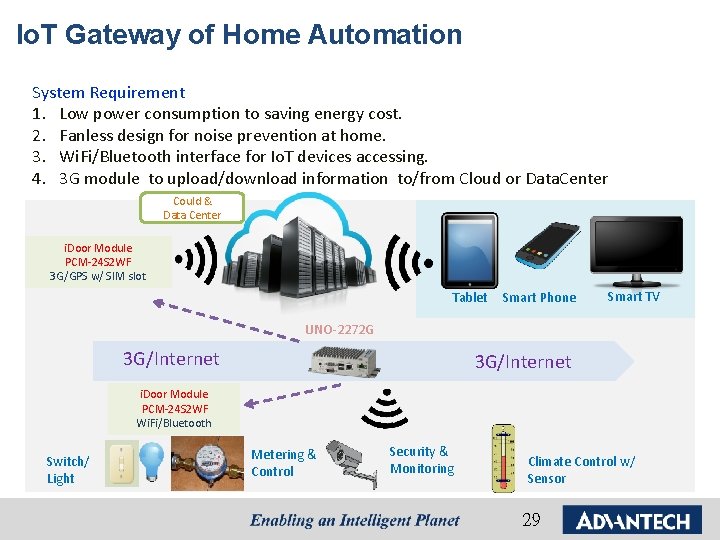

Io. T Gateway of Home Automation System Requirement 1. Low power consumption to saving energy cost. 2. Fanless design for noise prevention at home. 3. Wi. Fi/Bluetooth interface for Io. T devices accessing. 4. 3 G module to upload/download information to/from Cloud or Data. Center Could & Data Center i. Door Module PCM-24 S 2 WF 3 G/GPS w/ SIM slot Tablet Smart Phone Smart TV UNO-2272 G 3 G/Internet i. Door Module PCM-24 S 2 WF Wi. Fi/Bluetooth Switch/ Light Metering & Control Security & Monitoring Climate Control w/ Sensor 29

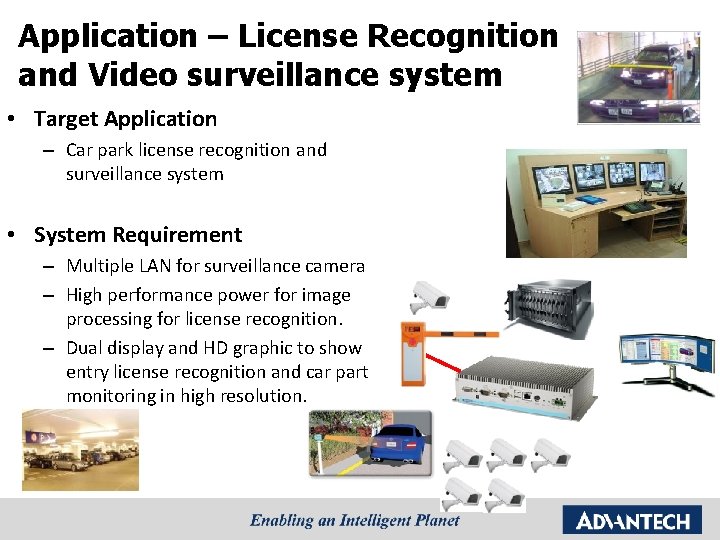

Application – License Recognition and Video surveillance system • Target Application – Car park license recognition and surveillance system • System Requirement – Multiple LAN for surveillance camera – High performance power for image processing for license recognition. – Dual display and HD graphic to show entry license recognition and car part monitoring in high resolution.
