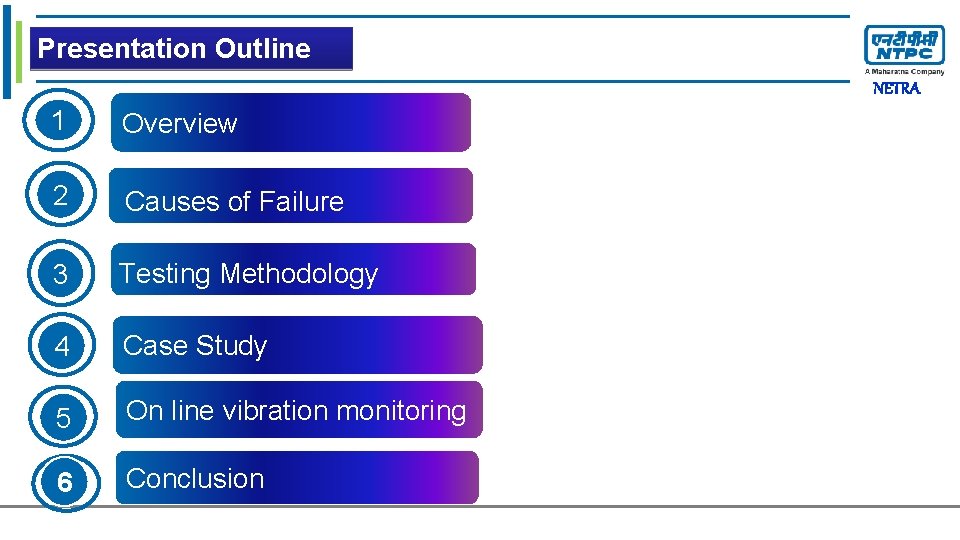

Click to edit Master title style Presentation Outline NETRA 1 Overview 2 Causes of Failure 3 Testing Methodology 4 Case Study 5 On line vibration monitoring 6 Conclusion Major Facilities Added/To be Added

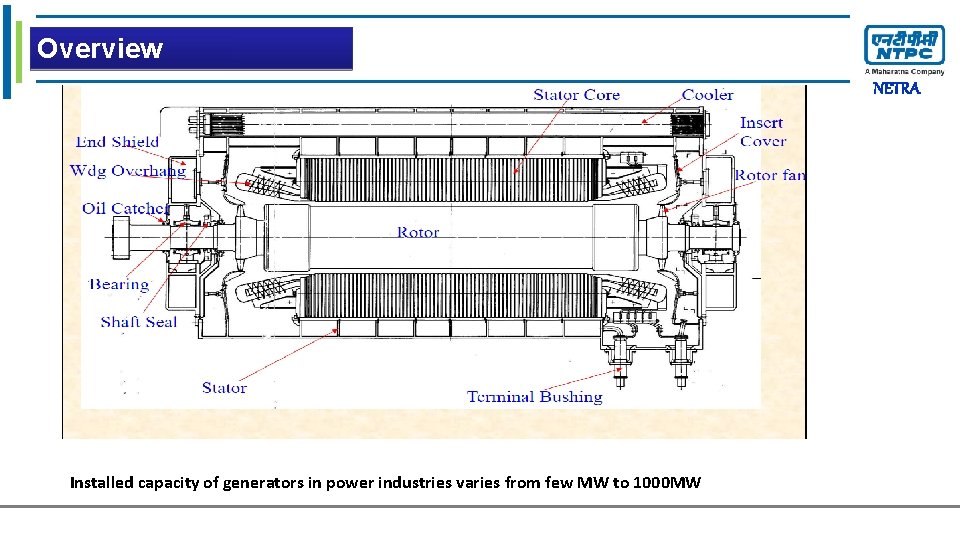

Overview Click to edit Master title style NETRA Causes of Failure Testing Methodology Major Facilities Added/To be Added Installed capacity of generators in power industries varies from few MW to 1000 MW

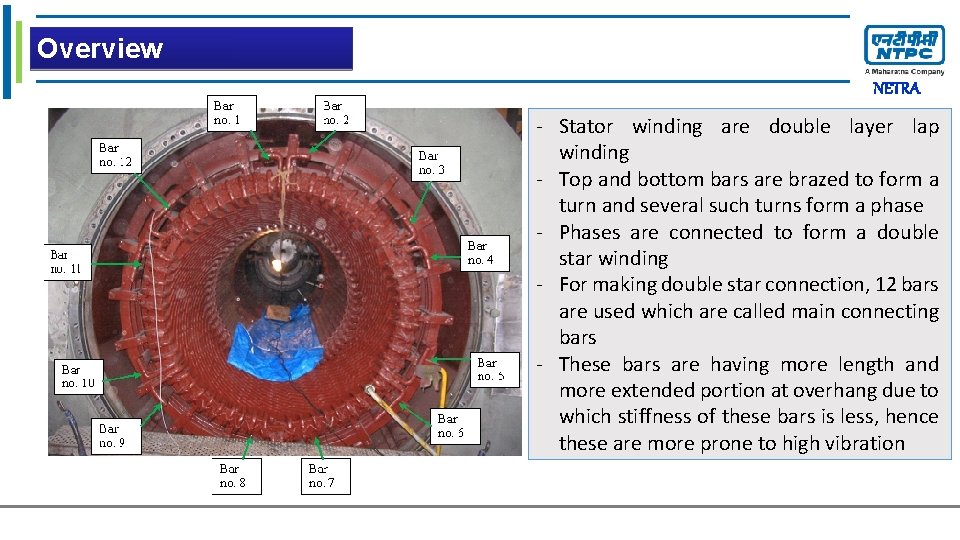

Overview Click to edit Master title style NETRA Causes of Failure Testing Methodology - Stator winding are double layer lap winding - Top and bottom bars are brazed to form a turn and several such turns form a phase - Phases are connected to form a double star winding - For making double star connection, 12 bars are used which are called main connecting bars - These bars are having more length and more extended portion at overhang due to which stiffness of these bars is less, hence Major Facilities these are more prone to high vibration Added/To be Added

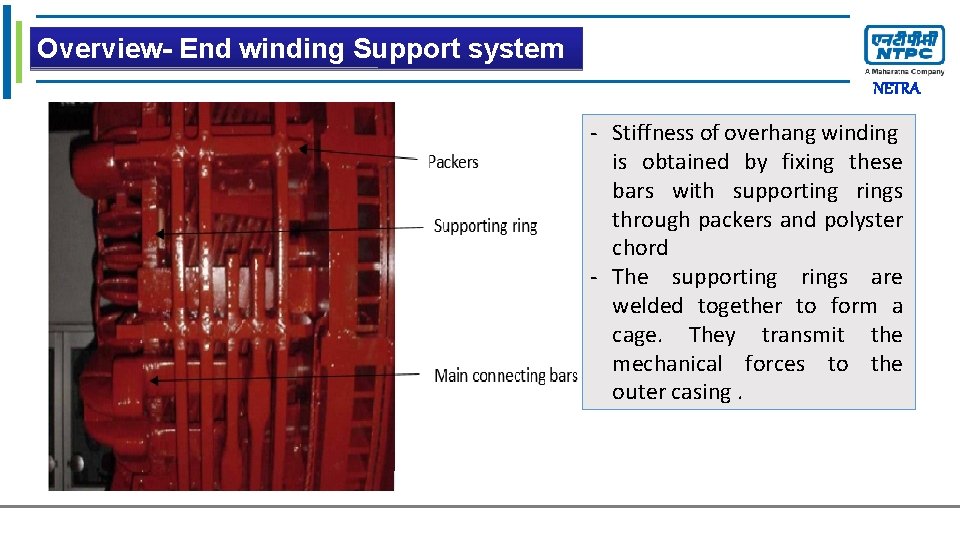

Click to edit Master Overview- End winding Support systemtitle style NETRA Causes of Failure Testing Methodology - Stiffness of overhang winding is obtained by fixing these bars with supporting rings through packers and polyster chord - The supporting rings are welded together to form a cage. They transmit the mechanical forces to the outer casing. Major Facilities Added/To be Added

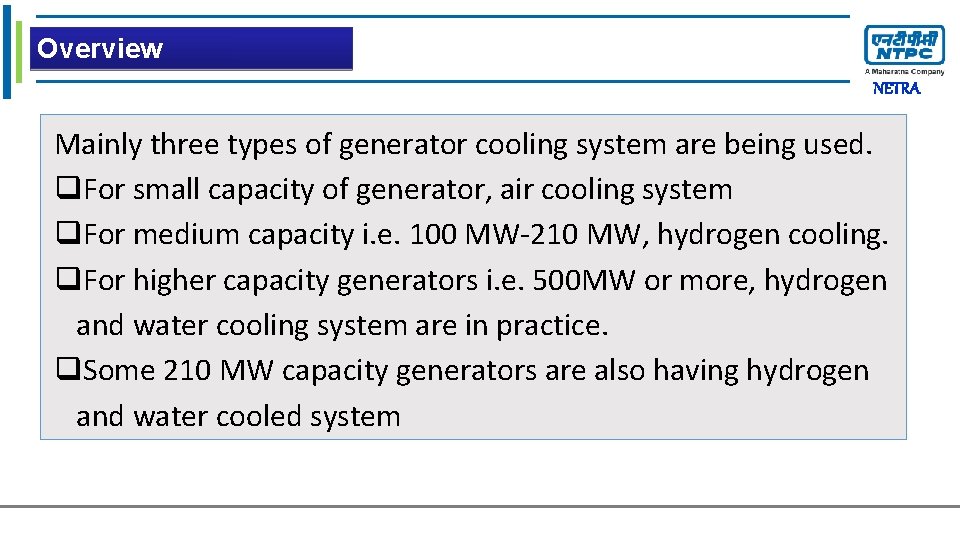

Overview Click to edit Master title style NETRA Mainly three types of generator cooling system are being used. of Failure q. Causes For small capacity of generator, air cooling system q. For medium capacity i. e. 100 MW-210 MW, hydrogen cooling. q. For higher capacity generators i. e. 500 MW or more, hydrogen and water cooling system are in practice. q. Some 210 MW capacity generators are also having hydrogen and water cooled system Major Facilities Added/To be Added

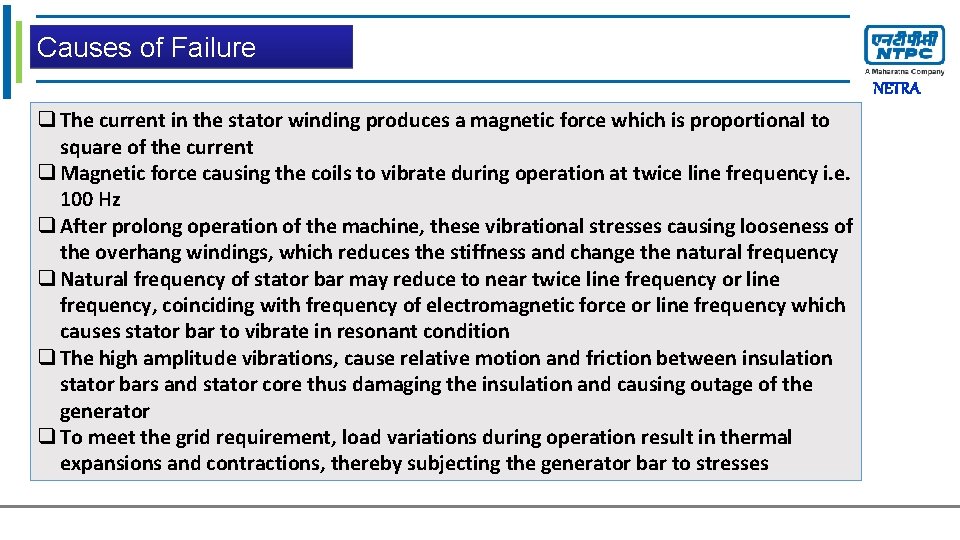

Causes of Failure Click to edit Master title style NETRA q The current in the stator winding produces a magnetic force which is proportional to square of the current q Magnetic force causing the coils to vibrate during operation at twice line frequency i. e. 100 Hz q After prolong operation of the machine, these vibrational stresses causing looseness of Causes of Failure the overhang windings, which reduces the stiffness and change the natural frequency q Natural frequency of stator bar may reduce to near twice line frequency or line frequency, coinciding with frequency of electromagnetic force or line frequency which Testing Methodology causes stator bar to vibrate in resonant condition q The high amplitude vibrations, cause relative motion and friction between insulation stator bars and stator core thus damaging the insulation and causing outage of the generator Major Facilities q To meet the grid requirement, load variations during operation result in thermal expansions and contractions, thereby subjecting the generator bar to stresses Added/To be Added

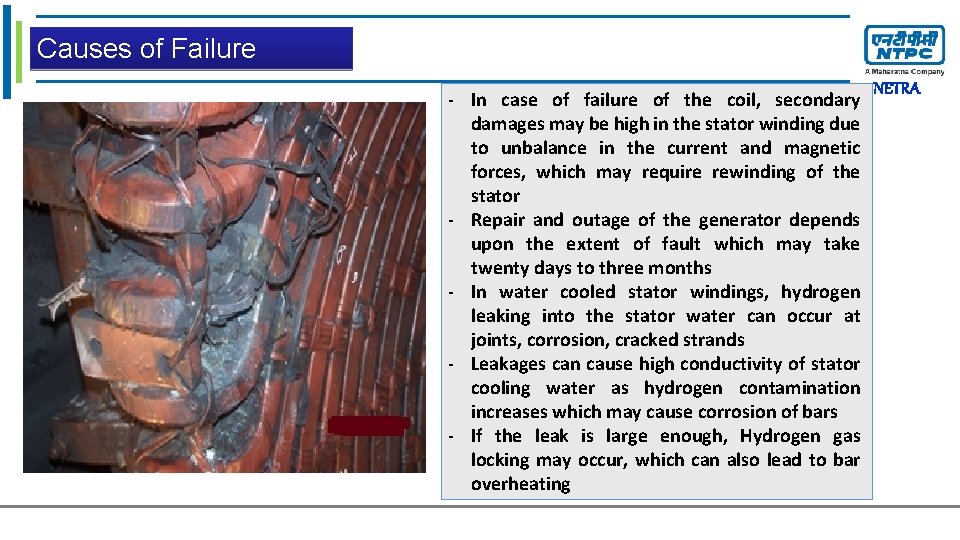

Causes of Failure Click to edit Master title style Causes of Failure Testing Methodology - In case of failure of the coil, secondary damages may be high in the stator winding due to unbalance in the current and magnetic forces, which may require rewinding of the stator - Repair and outage of the generator depends upon the extent of fault which may take twenty days to three months - In water cooled stator windings, hydrogen leaking into the stator water can occur at joints, corrosion, cracked strands - Leakages can cause high conductivity of stator cooling water as hydrogen contamination increases which may cause corrosion of bars Facilities - If the leak is. Major large enough, Hydrogen gas locking may occur, which canbe also. Added lead to bar Added/To overheating NETRA

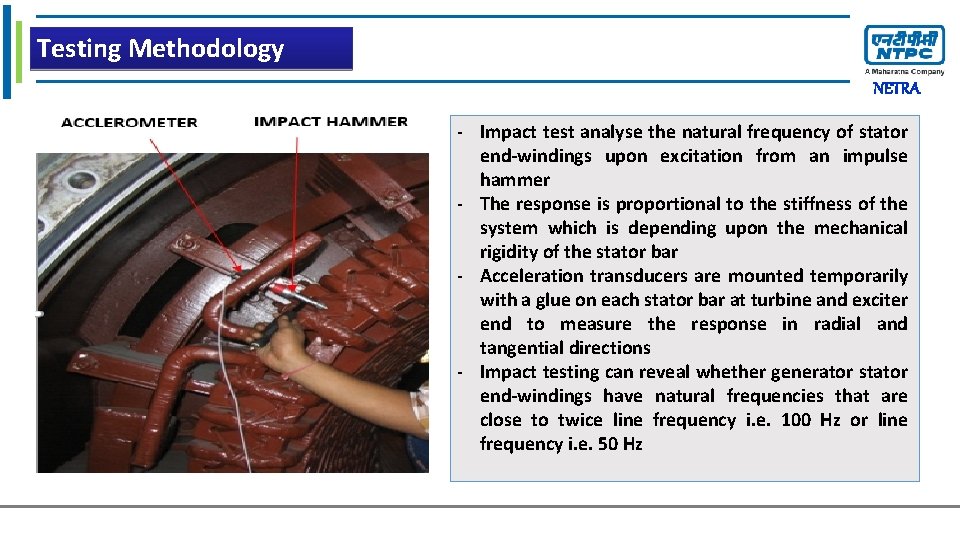

Click to edit Master title style Testing Methodology NETRA Causes of Failure Testing Methodology - Impact test analyse the natural frequency of stator end-windings upon excitation from an impulse hammer - The response is proportional to the stiffness of the system which is depending upon the mechanical rigidity of the stator bar - Acceleration transducers are mounted temporarily with a glue on each stator bar at turbine and exciter end to measure the response in radial and tangential directions - Impact testing can reveal whether generator stator end-windings have natural frequencies that are close to twice line frequency i. e. 100 Hz or line Major Facilities frequency i. e. 50 Hz Added/To be Added

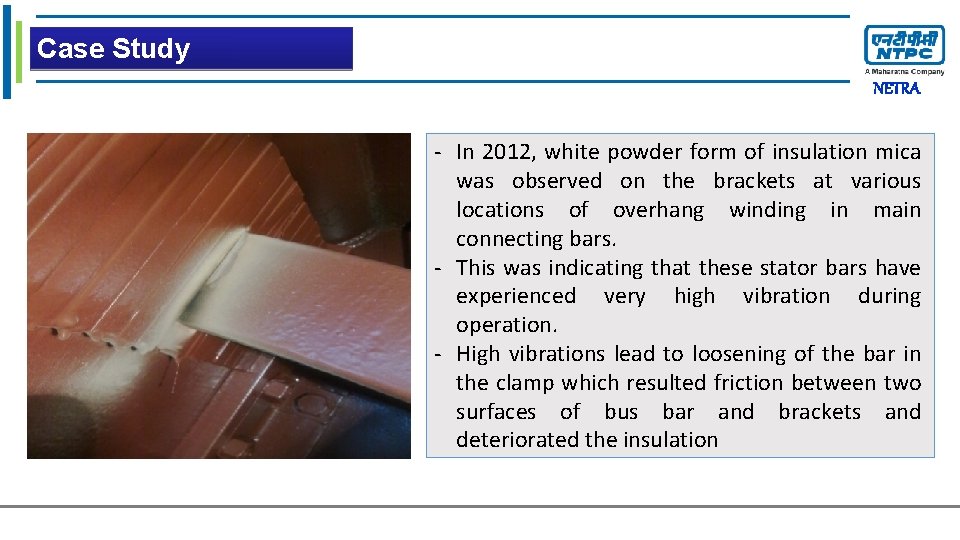

Case Study Click to edit Master title style NETRA Causes of Failure Testing Methodology - In 2012, white powder form of insulation mica was observed on the brackets at various locations of overhang winding in main connecting bars. - This was indicating that these stator bars have experienced very high vibration during operation. - High vibrations lead to loosening of the bar in the clamp which resulted friction between two surfaces of bus bar and brackets and Major Facilities deteriorated the insulation Added/To be Added

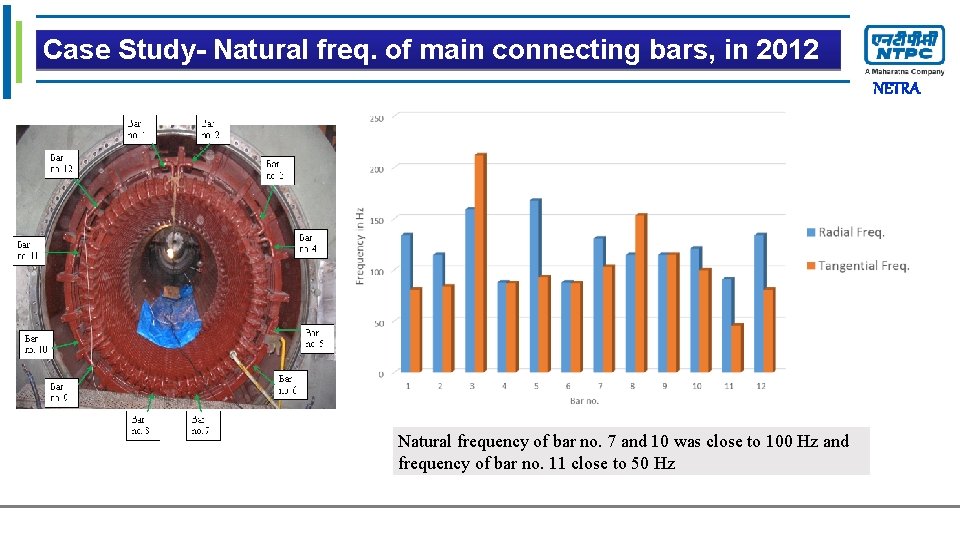

Clickfreq. to edit Master title style Case Study- Natural of main connecting bars, in 2012 NETRA Natural frequency of bar no. 7 and 10 was close to 100 Hz and frequency of bar no. 11 close to 50 Hz

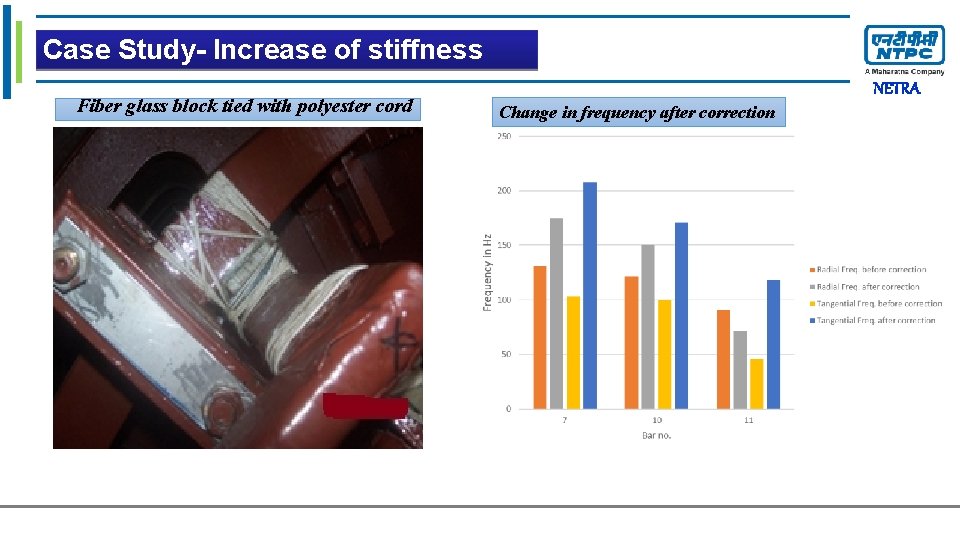

Clickof tostiffness edit Master title style Case Study- Increase Fiber glass block tied with polyester cord NETRA Change in frequency after correction

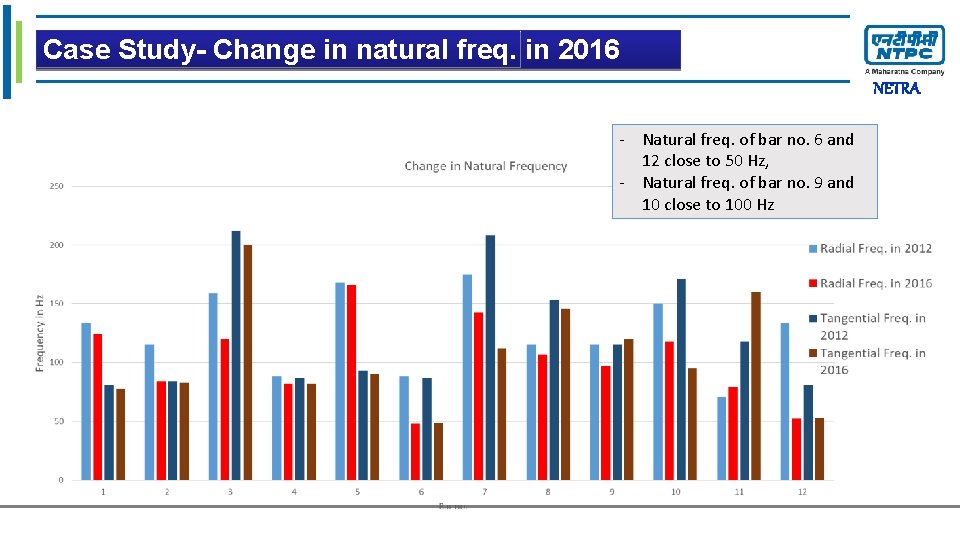

Clickintonatural edit Master title style Case Study- Change freq. in 2016 NETRA - Natural freq. of bar no. 6 and 12 close to 50 Hz, - Natural freq. of bar no. 9 and 10 close to 100 Hz

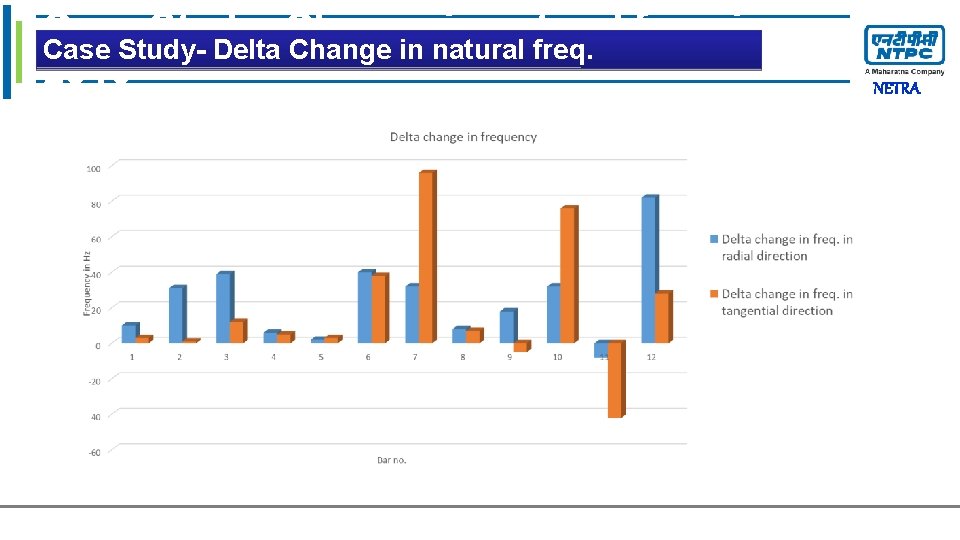

Case Study. Change in natural freq. in Click to edit Master title style Case Study- Delta Change in natural freq. 2016 NETRA

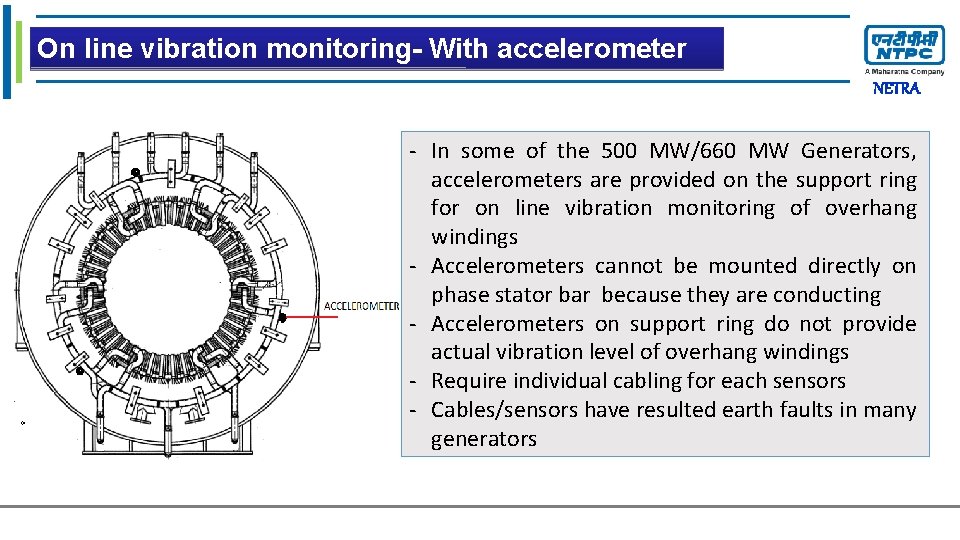

to edit. With Master title style On line vibration Click monitoringaccelerometer NETRA Causes of Failure Testing Methodology - In some of the 500 MW/660 MW Generators, accelerometers are provided on the support ring for on line vibration monitoring of overhang windings - Accelerometers cannot be mounted directly on phase stator bar because they are conducting - Accelerometers on support ring do not provide actual vibration level of overhang windings - Require individual cabling for each sensors - Cables/sensors have resulted earth faults in many Major Facilities generators Added/To be Added

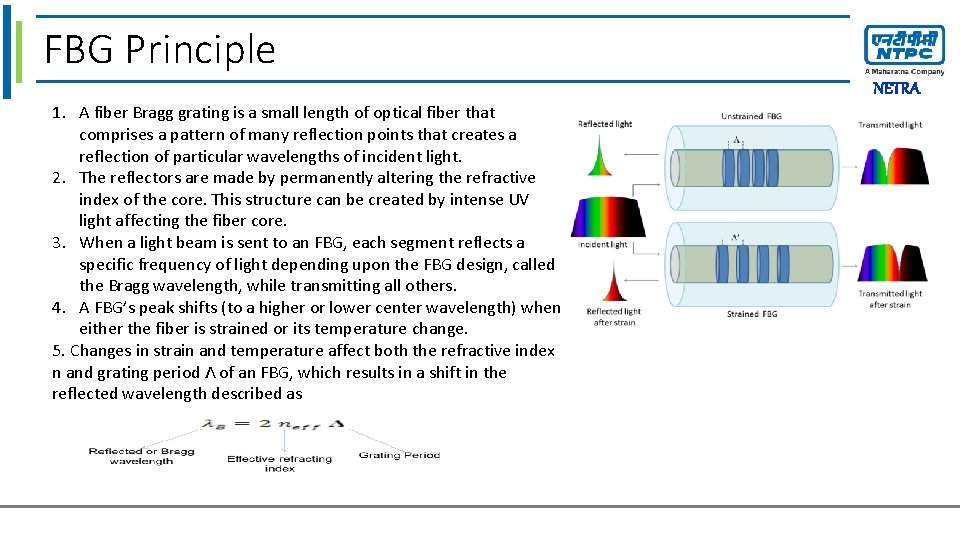

FBG Principle. Click to edit Master title style NETRA 1. A fiber Bragg grating is a small length of optical fiber that comprises a pattern of many reflection points that creates a reflection of particular wavelengths of incident light. 2. The reflectors are made by permanently altering the refractive index of the core. This structure can be created by intense UV light affecting the fiber core. 3. When a light beam is sent to an FBG, each segment reflects a specific frequency of light depending upon the FBG design, called the Bragg wavelength, while transmitting all others. 4. A FBG’s peak shifts (to a higher or lower center wavelength) when either the fiber is strained or its temperature change. 5. Changes in strain and temperature affect both the refractive index n and grating period Λ of an FBG, which results in a shift in the reflected wavelength described as

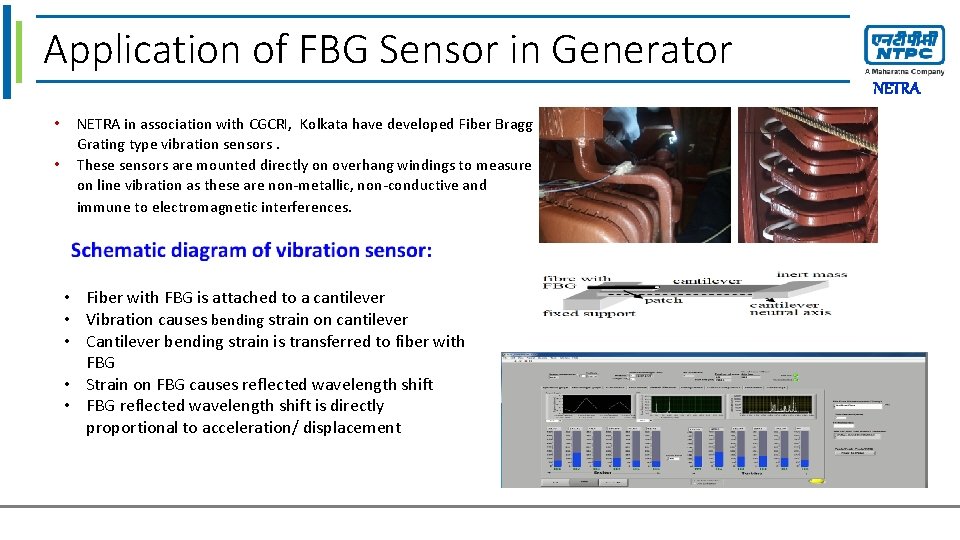

Click to Sensor edit Master title style Application of FBG in Generator NETRA • • NETRA in association with CGCRI, Kolkata have developed Fiber Bragg Grating type vibration sensors. These sensors are mounted directly on overhang windings to measure on line vibration as these are non-metallic, non-conductive and immune to electromagnetic interferences. • Fiber with FBG is attached to a cantilever • Vibration causes bending strain on cantilever • Cantilever bending strain is transferred to fiber with FBG • Strain on FBG causes reflected wavelength shift • FBG reflected wavelength shift is directly proportional to acceleration/ displacement

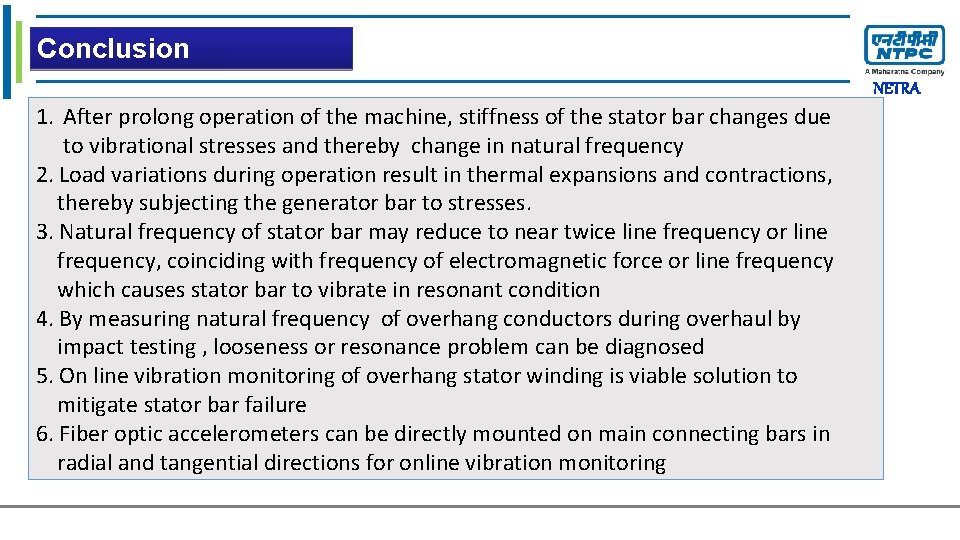

Conclusion Click to edit Master title style NETRA 1. After prolong operation of the machine, stiffness of the stator bar changes due to vibrational stresses and thereby change in natural frequency 2. Load variations during operation result in thermal expansions and contractions, thereby subjecting the generator bar to stresses. Causes of Failure 3. Natural frequency of stator bar may reduce to near twice line frequency or line frequency, coinciding with frequency of electromagnetic force or line frequency which causes stator bar to vibrate in resonant condition 4. By measuring natural frequency of overhang conductors during overhaul by Testing Methodology impact testing , looseness or resonance problem can be diagnosed 5. On line vibration monitoring of overhang stator winding is viable solution to mitigate stator bar failure 6. Fiber optic accelerometers can be directly mounted on main connecting bars in radial and tangential directions for online vibration monitoring
