Advantage Gen CBD Capabilities Dan Short Computer Associates

Advantage™ Gen CBD Capabilities Dan Short Computer Associates Session Code: 5 C

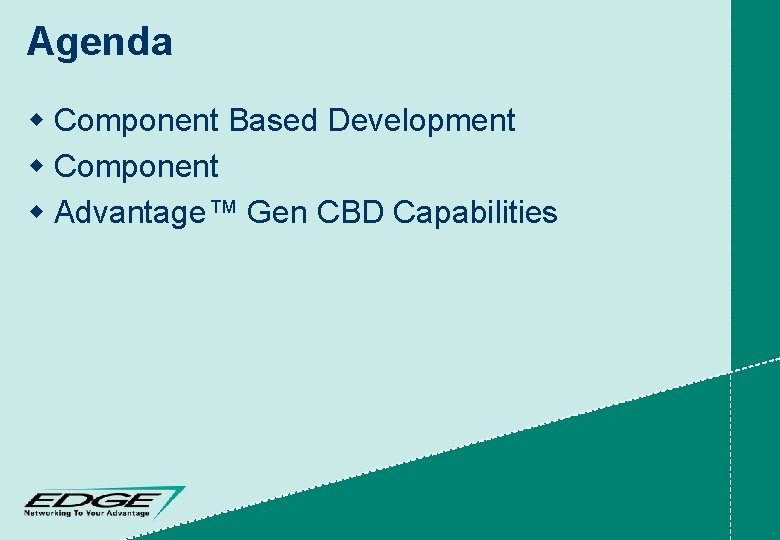

Agenda w Component Based Development w Component w Advantage™ Gen CBD Capabilities

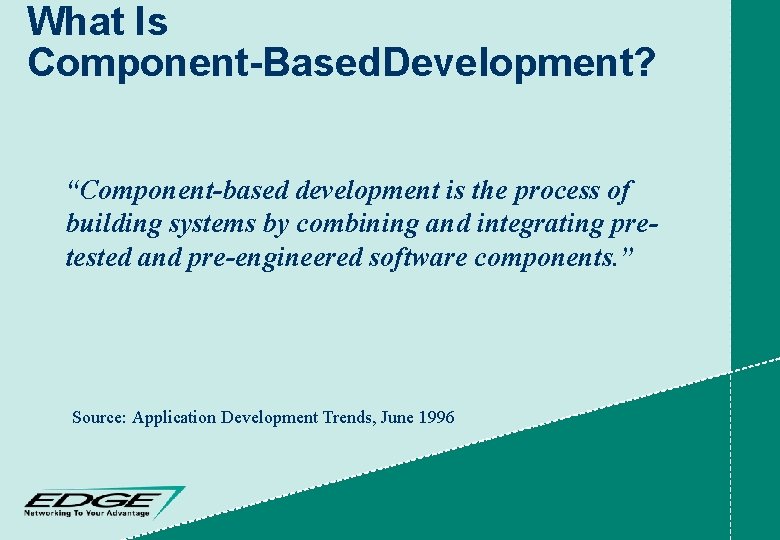

What Is Component-Based. Development? “Component-based development is the process of building systems by combining and integrating pretested and pre-engineered software components. ” Source: Application Development Trends, June 1996

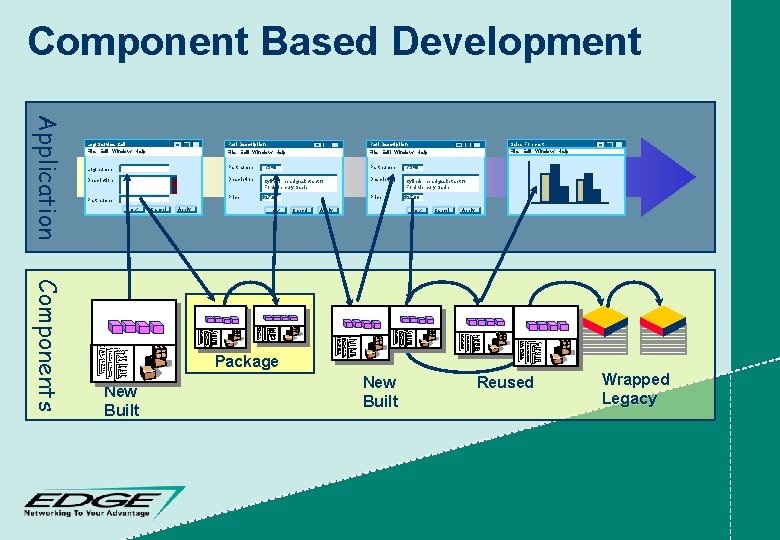

Component Based Development Application Log Service Call File Edit Window Help Sales Forecast File Edit Window Help Part Description File Edit Window Help Log number Part number Description Cylinder head gasket set for Ford Mercury Sable Price $27. 90 Part number OK Cancel Apply 7349 OK Cancel Apply Components Package New Built Reused Wrapped Legacy

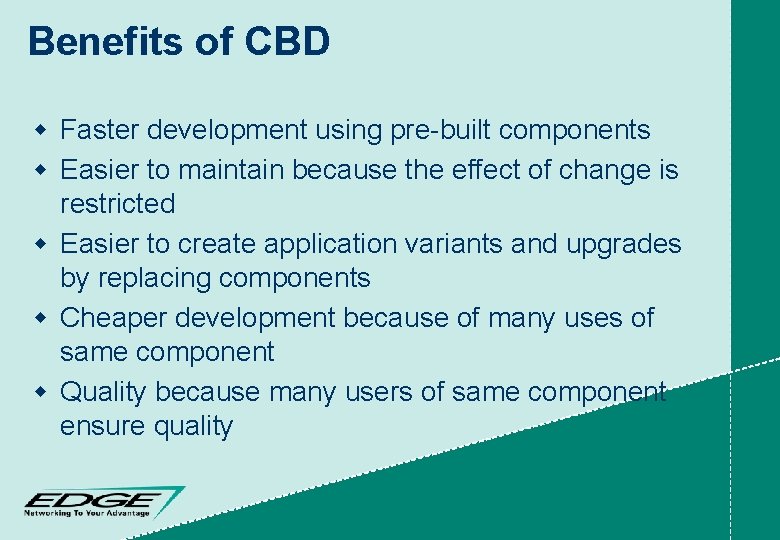

Benefits of CBD w Faster development using pre-built components w Easier to maintain because the effect of change is restricted w Easier to create application variants and upgrades by replacing components w Cheaper development because of many uses of same component w Quality because many users of same component ensure quality

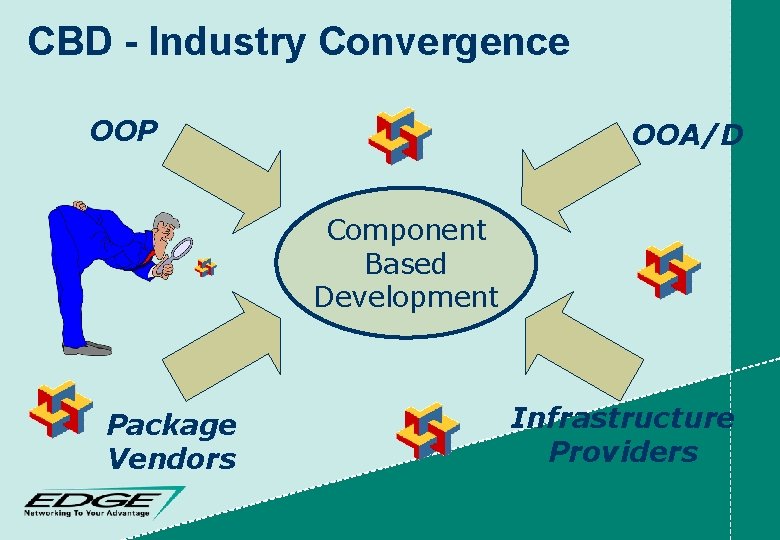

CBD - Industry Convergence OOP OOA/D Component Based Development Package Vendors Infrastructure Providers

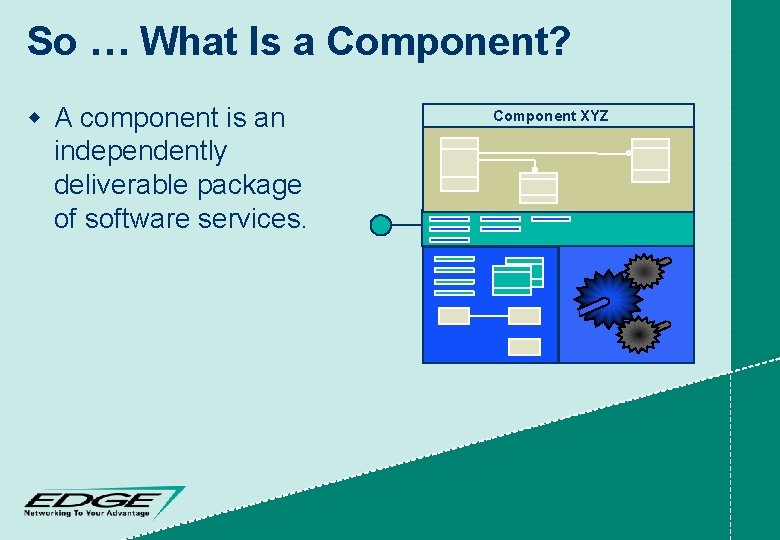

So … What Is a Component? w A component is an independently deliverable package of software services. Component XYZ

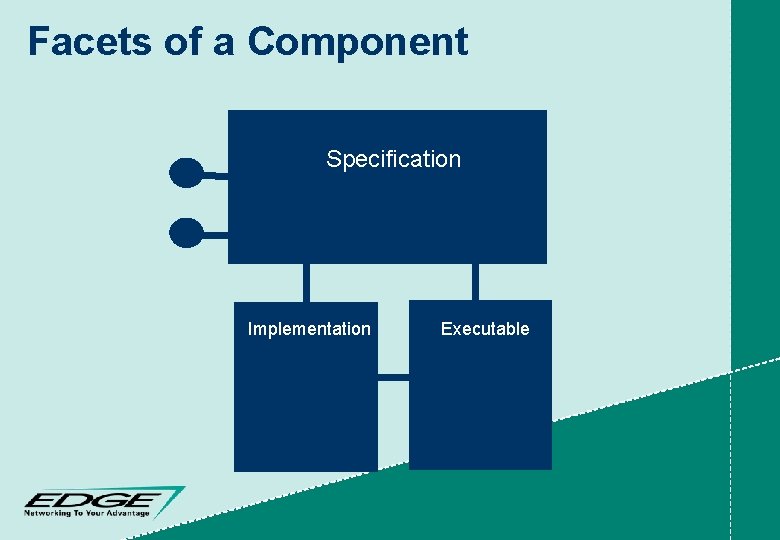

Facets of a Component Specification Implementation Executable

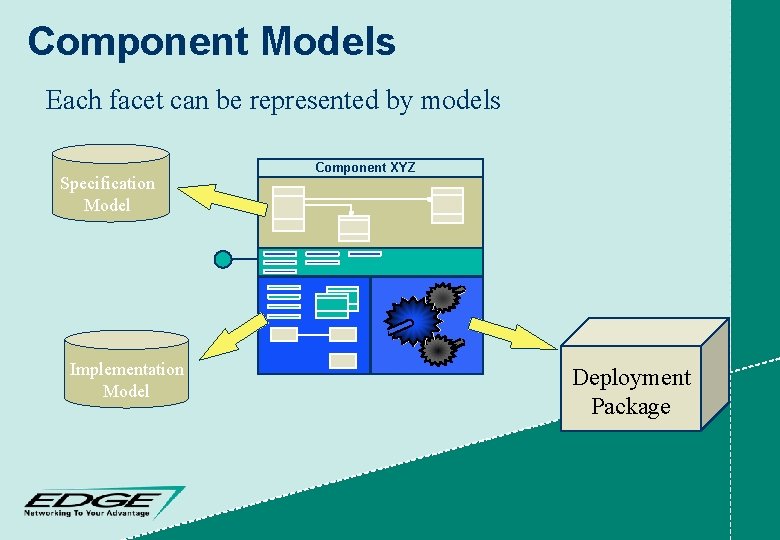

Component Models Each facet can be represented by models Specification Model Implementation Model Component XYZ Deployment Package

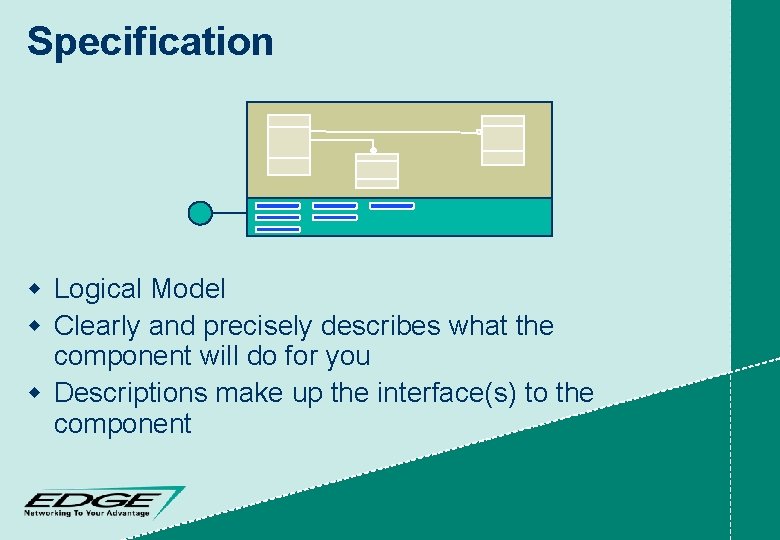

Specification w Logical Model w Clearly and precisely describes what the component will do for you w Descriptions make up the interface(s) to the component

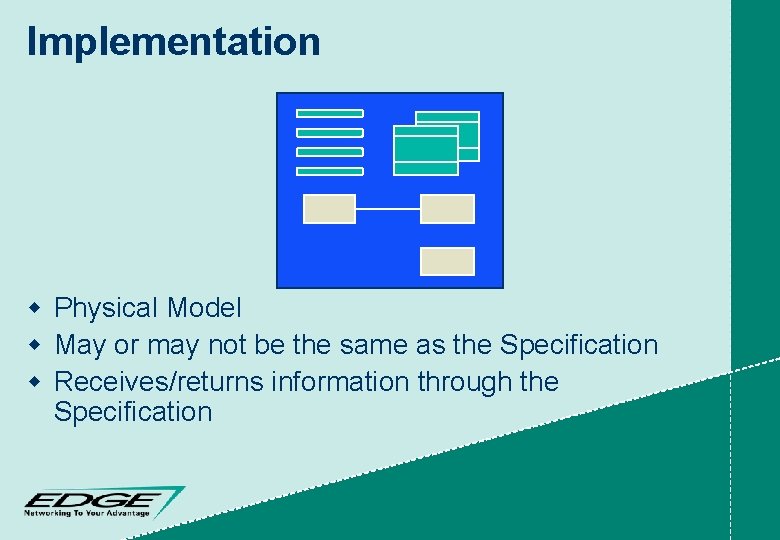

Implementation w Physical Model w May or may not be the same as the Specification w Receives/returns information through the Specification

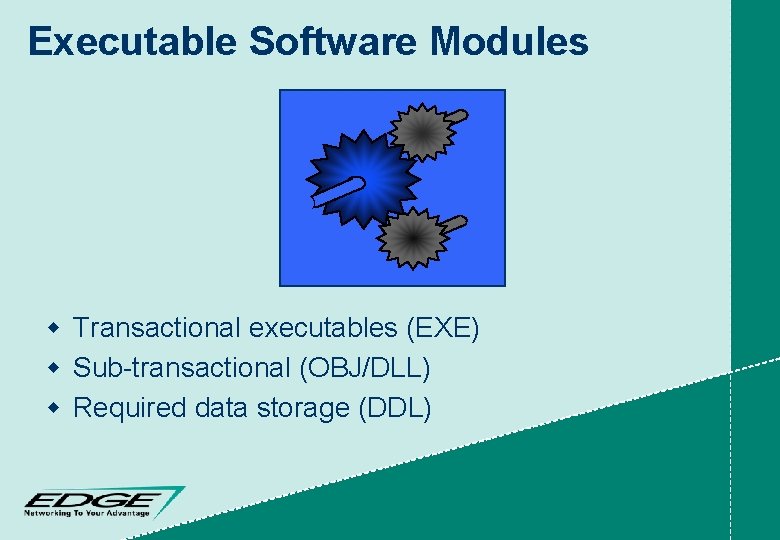

Executable Software Modules w Transactional executables (EXE) w Sub-transactional (OBJ/DLL) w Required data storage (DDL)

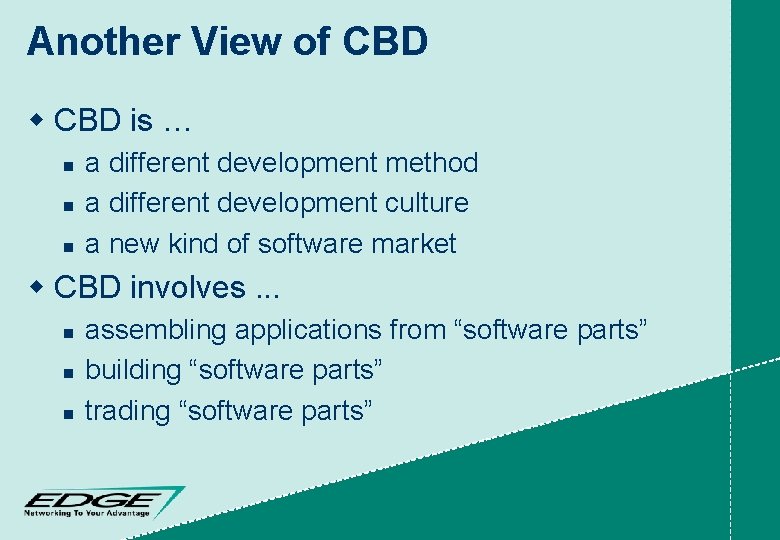

Another View of CBD w CBD is … n n n a different development method a different development culture a new kind of software market w CBD involves. . . n n n assembling applications from “software parts” building “software parts” trading “software parts”

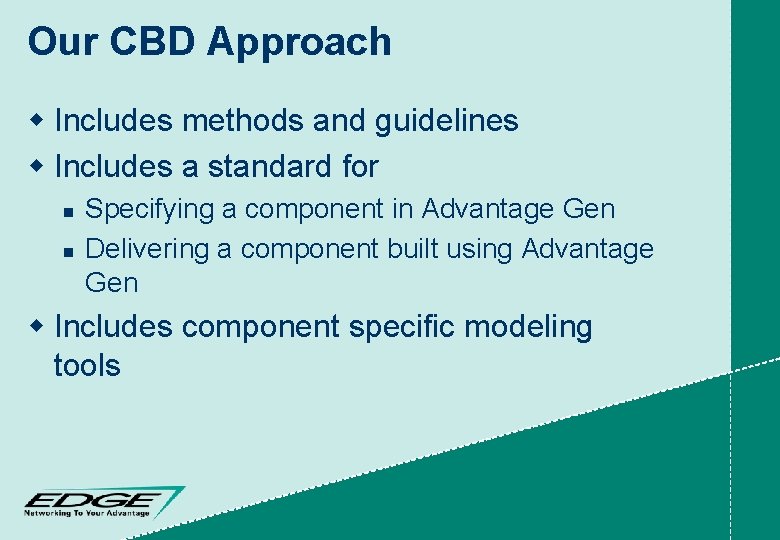

Our CBD Approach w Includes methods and guidelines w Includes a standard for n n Specifying a component in Advantage Gen Delivering a component built using Advantage Gen w Includes component specific modeling tools

CBD Customer Advisory Board Castek MCM Kaiser Permanente British Telecom ICL UK Post Zurich Insurance CISS Emery Worldwide ING Deutsche Telekom AG Volvo Universal Underwriters CYTA US Navy CVRD Case. Masters MBA Krediet Bank QA Technologies Travelers Insurance Siemaens Nixdorf Credit. Anstalt EDS Chevron State of Missouri National Grocers Old Mutual Telkom SA DEETYA

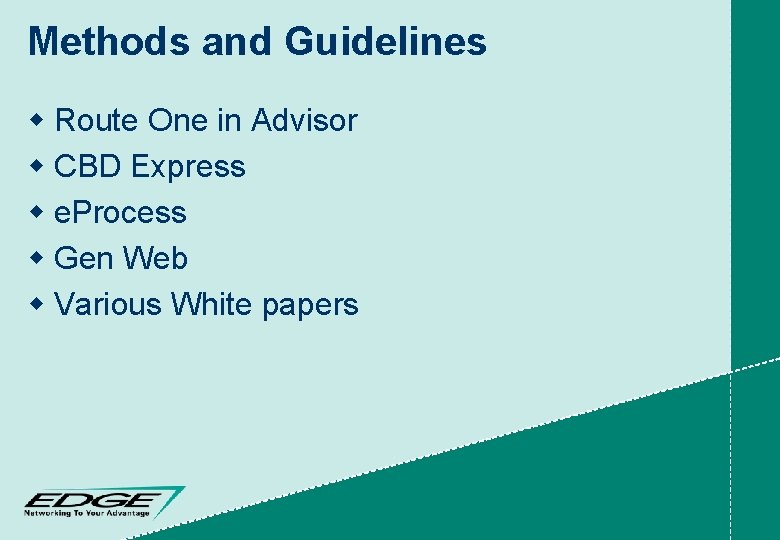

Methods and Guidelines w Route One in Advisor w CBD Express w e. Process w Gen Web w Various White papers

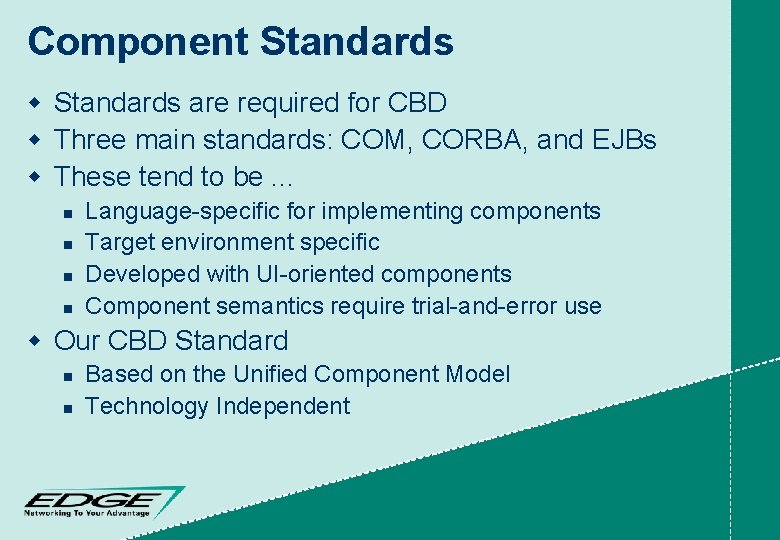

Component Standards w Standards are required for CBD w Three main standards: COM, CORBA, and EJBs w These tend to be. . . n n Language-specific for implementing components Target environment specific Developed with UI-oriented components Component semantics require trial-and-error use w Our CBD Standard n n Based on the Unified Component Model Technology Independent

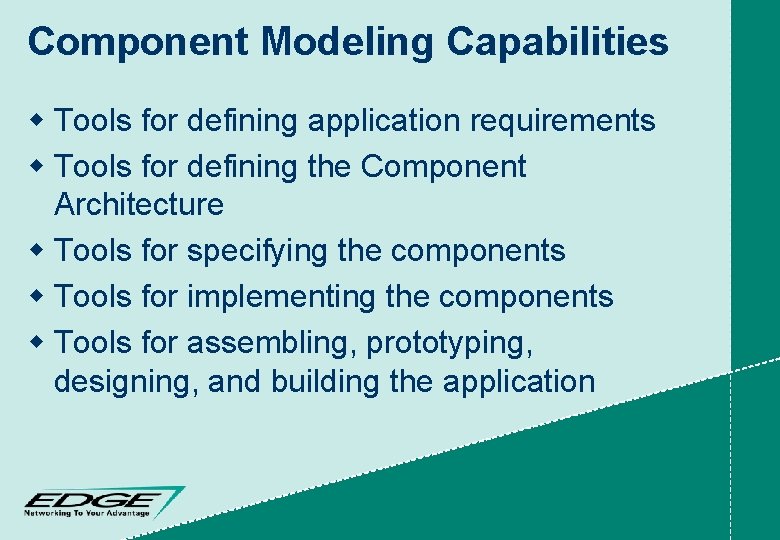

Component Modeling Capabilities w Tools for defining application requirements w Tools for defining the Component Architecture w Tools for specifying the components w Tools for implementing the components w Tools for assembling, prototyping, designing, and building the application

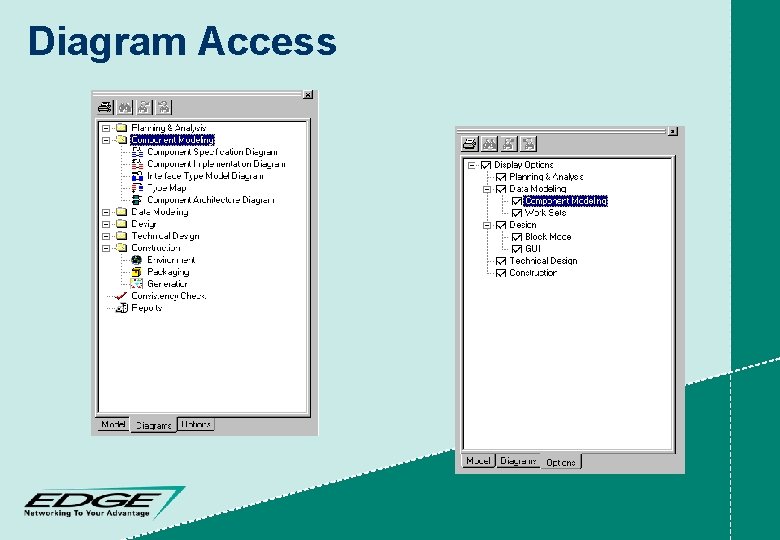

Diagram Access

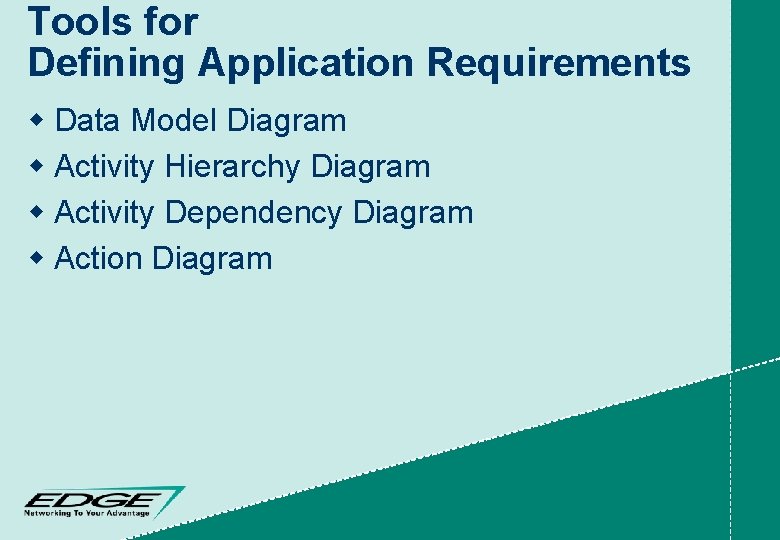

Tools for Defining Application Requirements w Data Model Diagram w Activity Hierarchy Diagram w Activity Dependency Diagram w Action Diagram

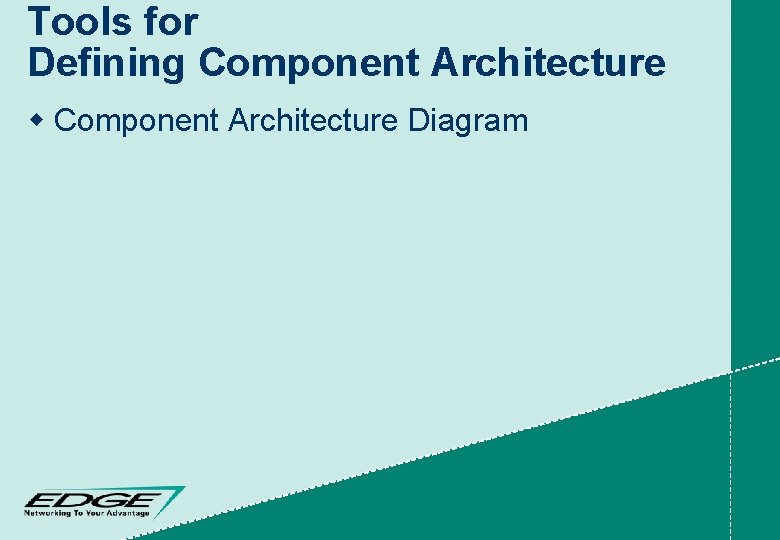

Tools for Defining Component Architecture w Component Architecture Diagram

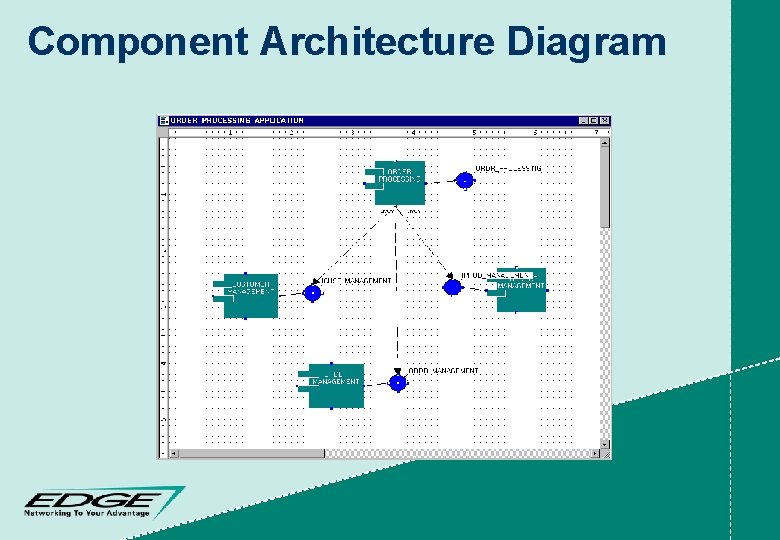

Component Architecture Diagram

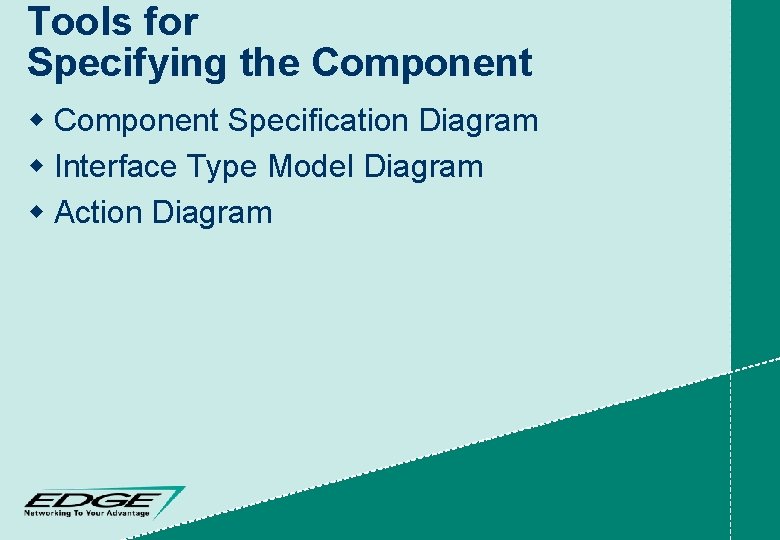

Tools for Specifying the Component w Component Specification Diagram w Interface Type Model Diagram w Action Diagram

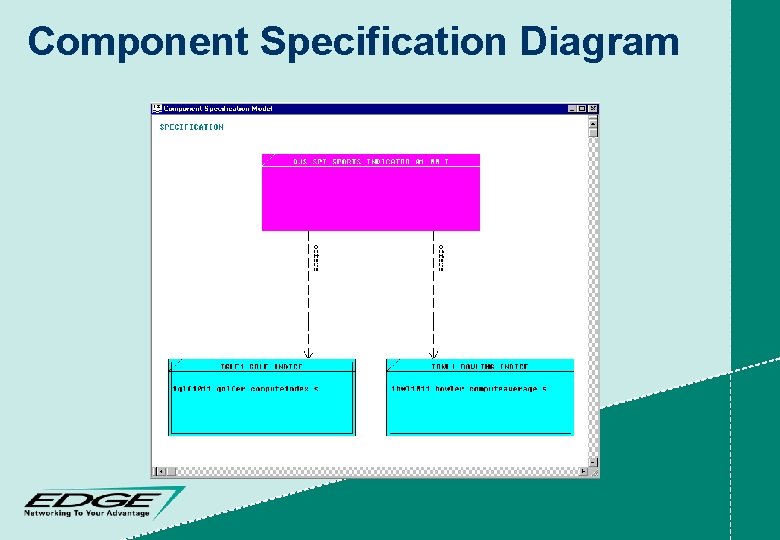

Component Specification Diagram

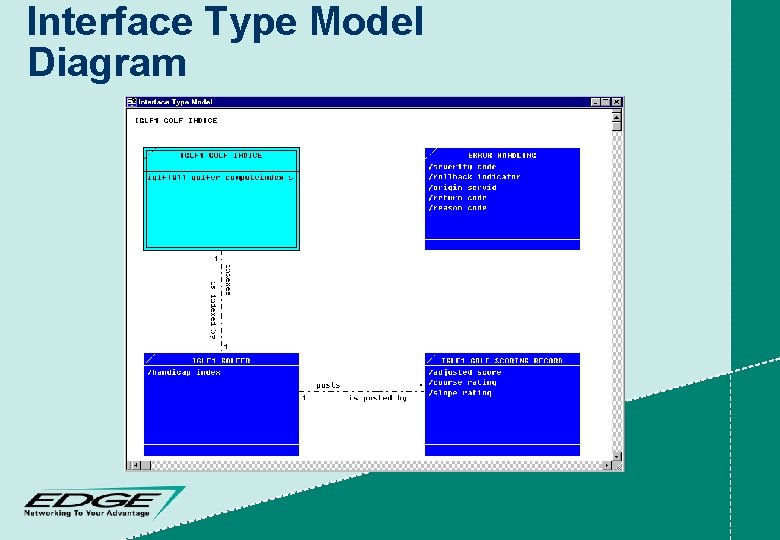

Interface Type Model Diagram

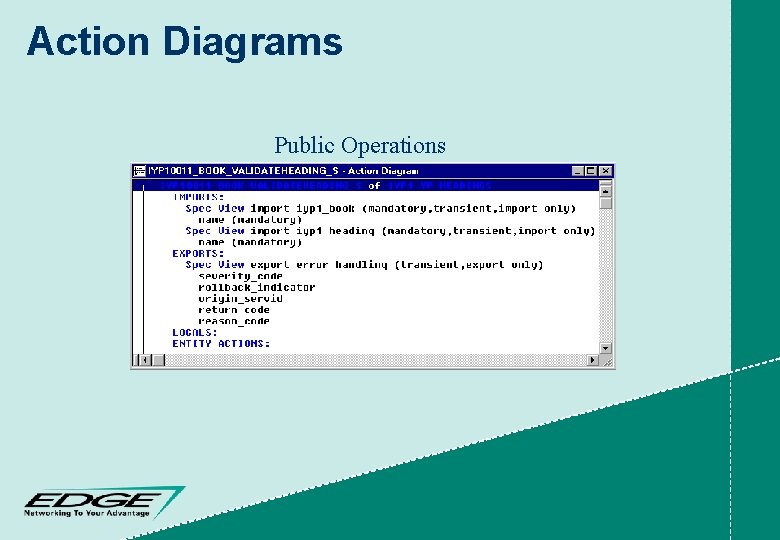

Action Diagrams Public Operations

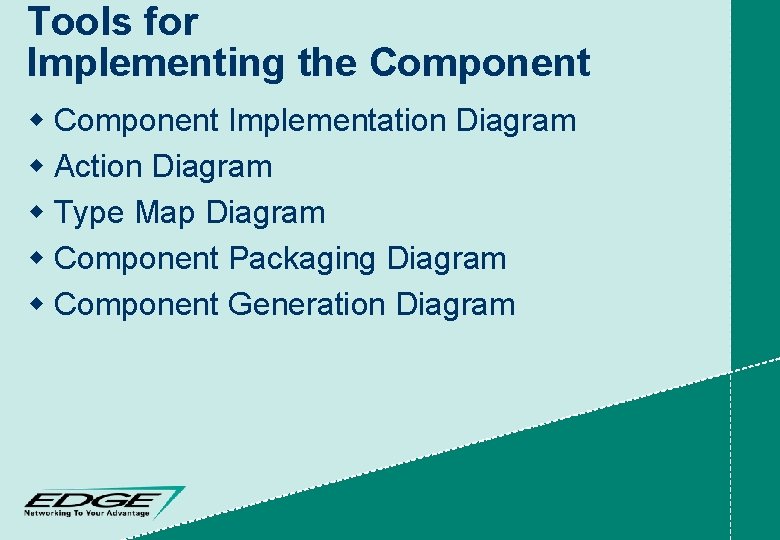

Tools for Implementing the Component w Component Implementation Diagram w Action Diagram w Type Map Diagram w Component Packaging Diagram w Component Generation Diagram

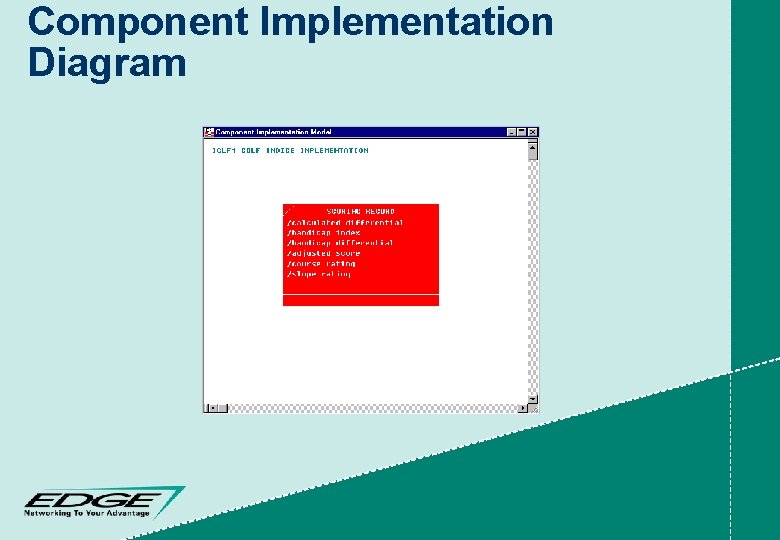

Component Implementation Diagram

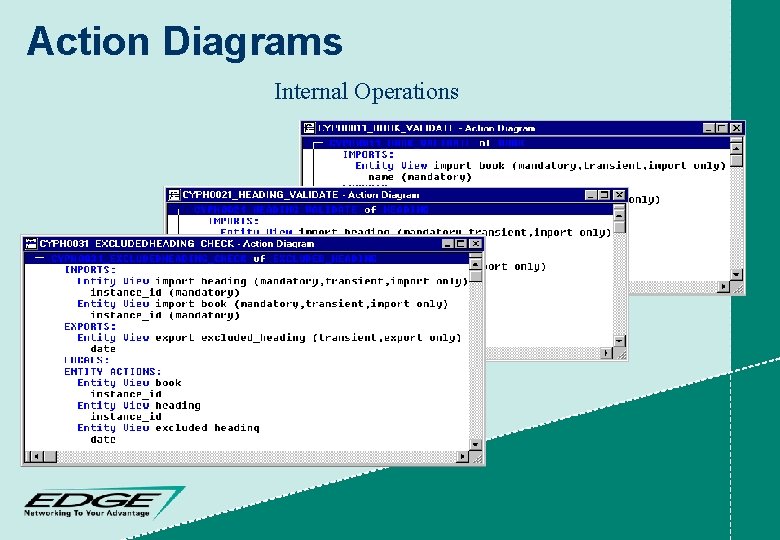

Action Diagrams Internal Operations

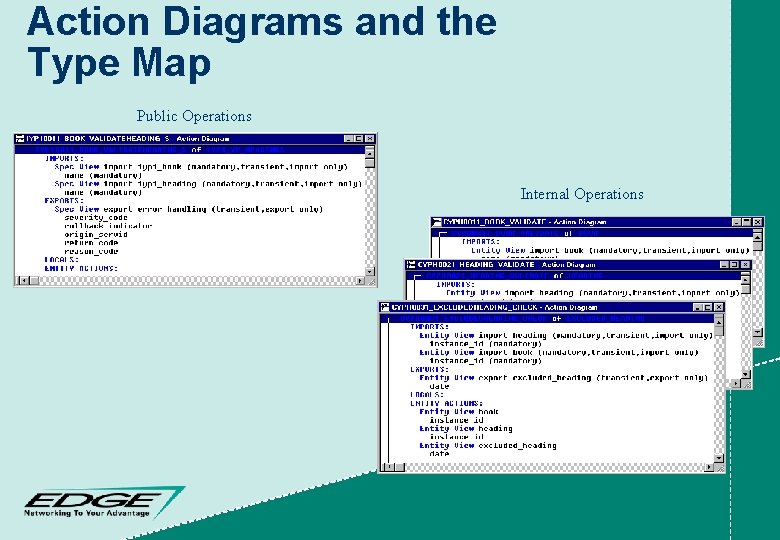

Action Diagrams and the Type Map Public Operations Internal Operations

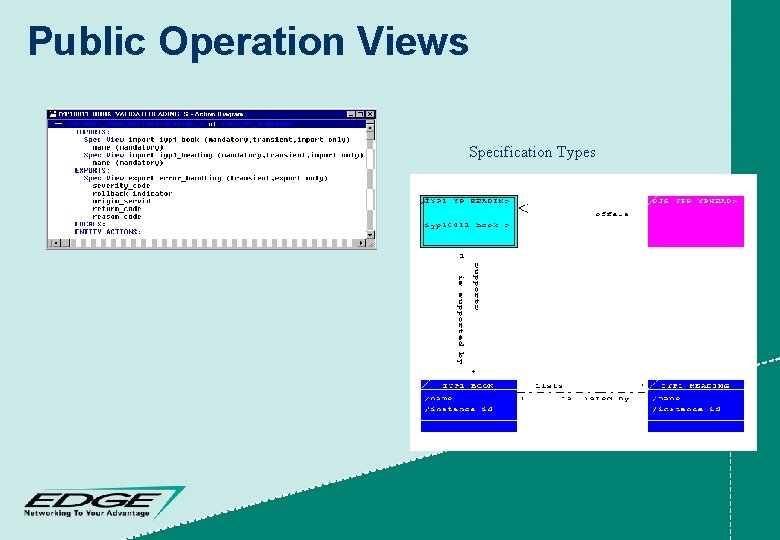

Public Operation Views Specification Types

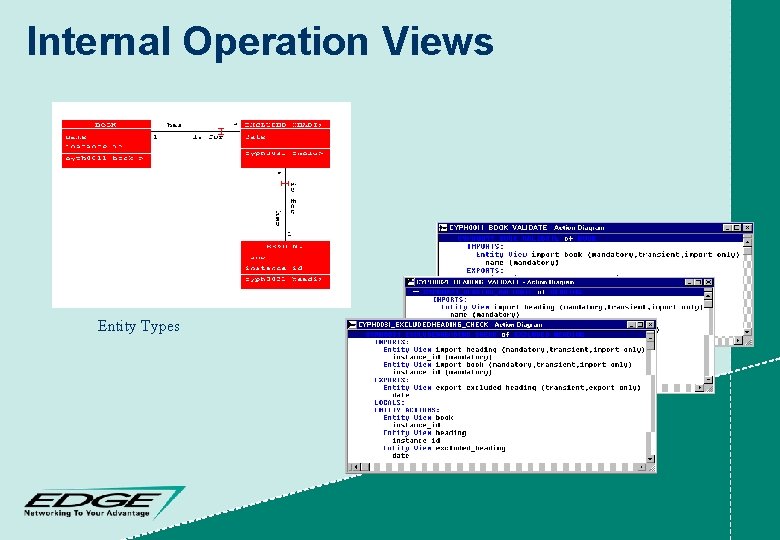

Internal Operation Views Entity Types

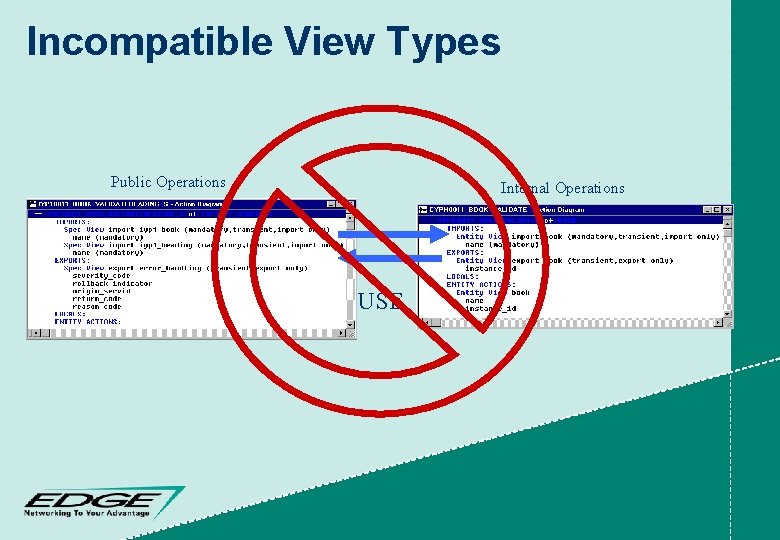

Incompatible View Types Public Operations Internal Operations USE

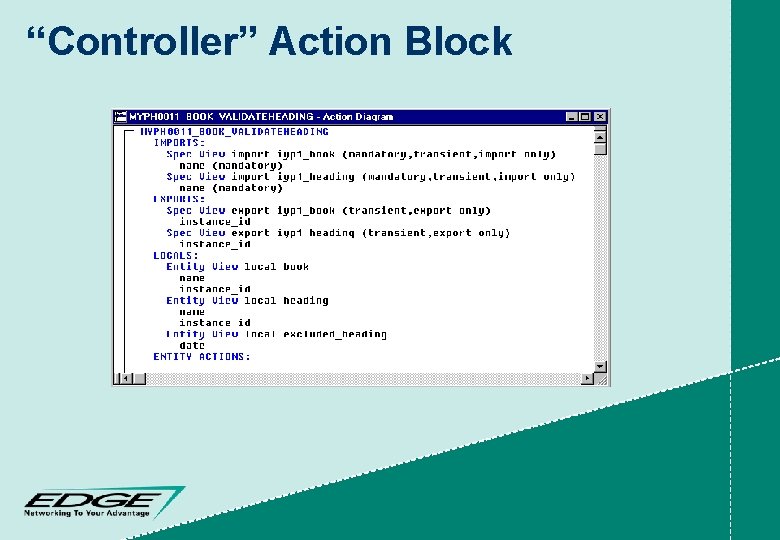

“Controller” Action Block

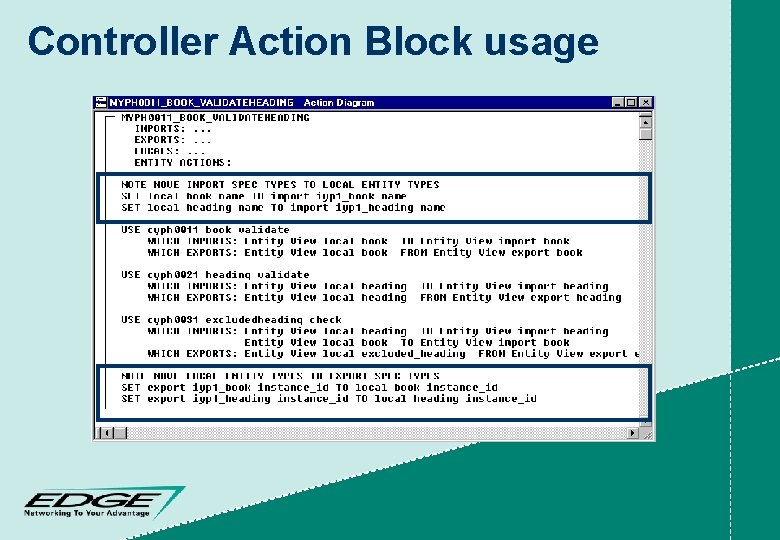

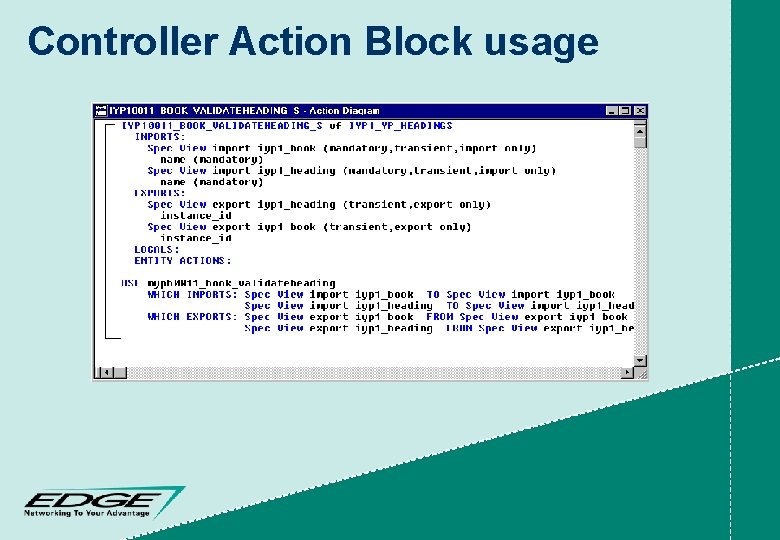

Controller Action Block usage

Controller Action Block usage

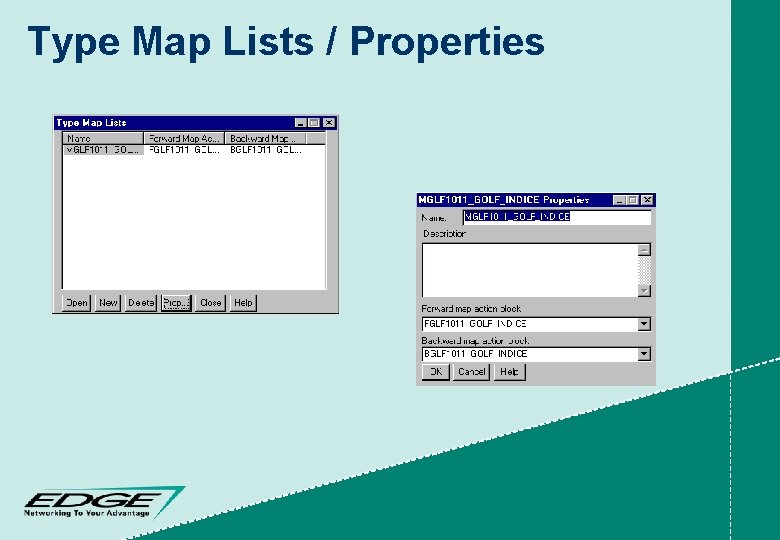

Type Map Lists / Properties

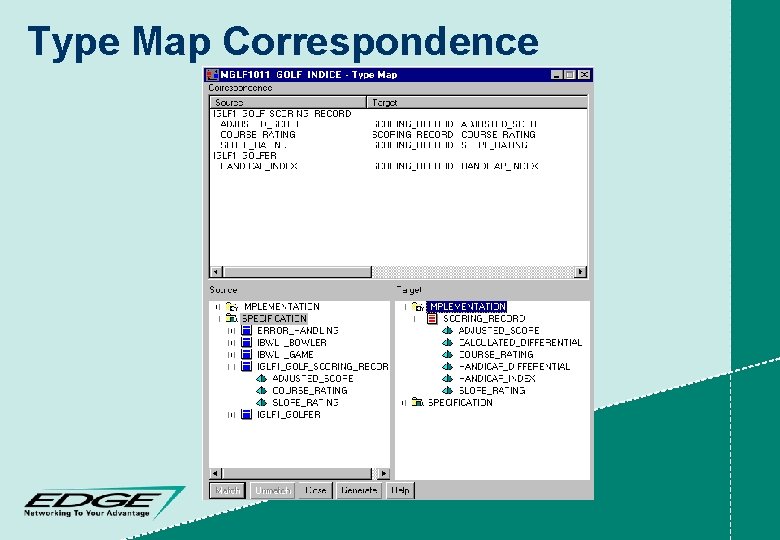

Type Map Correspondence

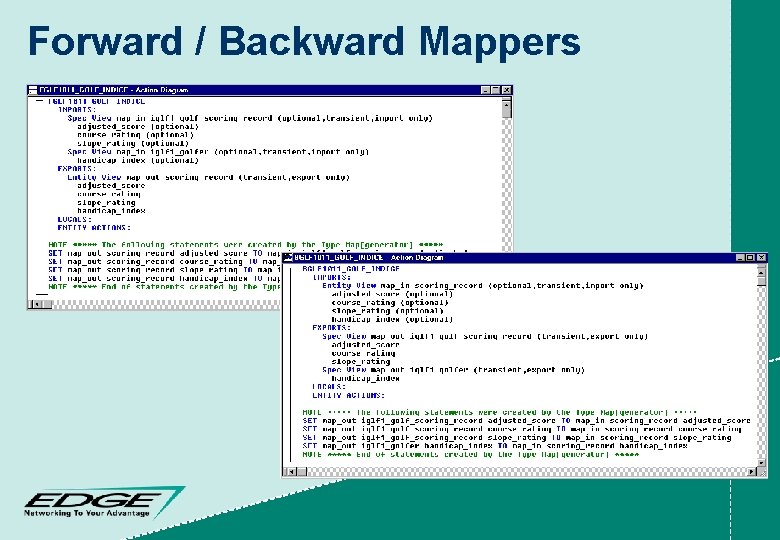

Forward / Backward Mappers

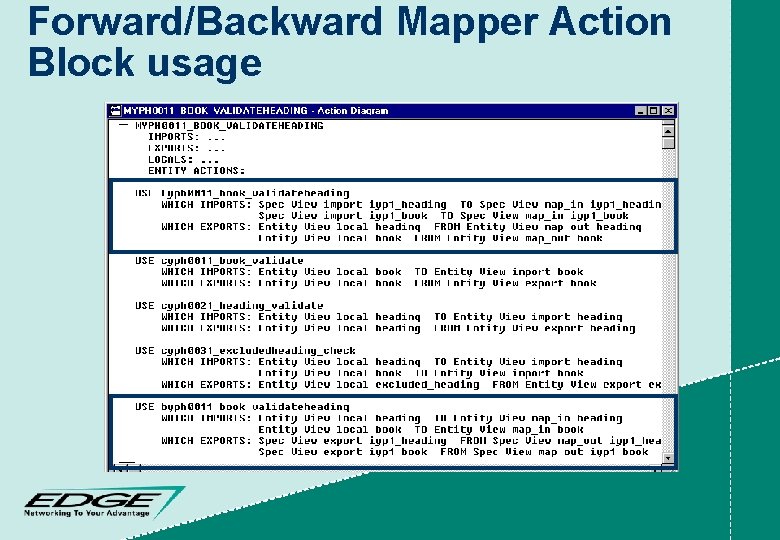

Forward/Backward Mapper Action Block usage

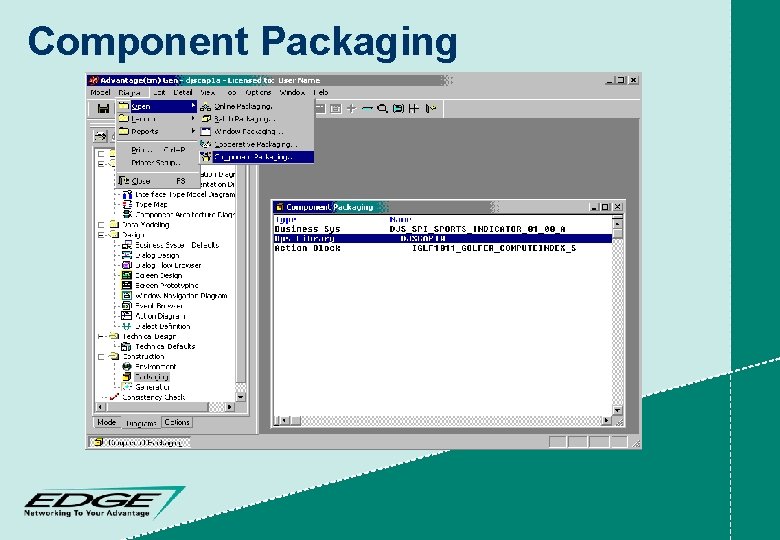

Component Packaging

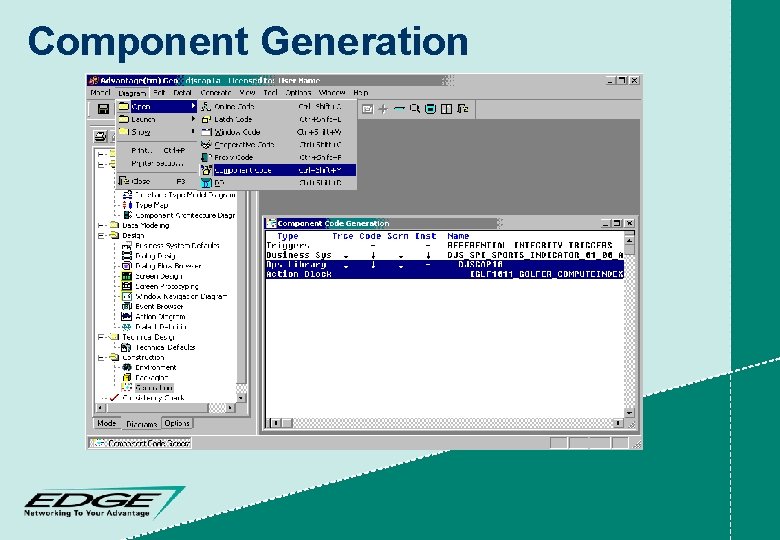

Component Generation

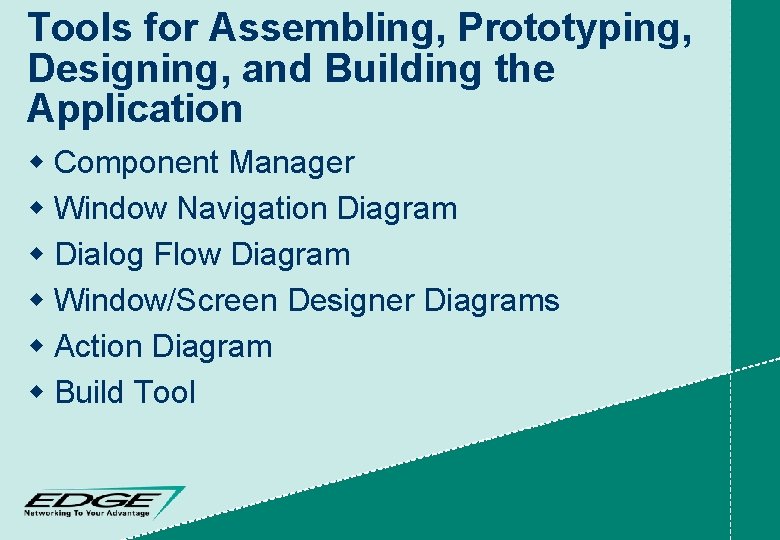

Tools for Assembling, Prototyping, Designing, and Building the Application w Component Manager w Window Navigation Diagram w Dialog Flow Diagram w Window/Screen Designer Diagrams w Action Diagram w Build Tool

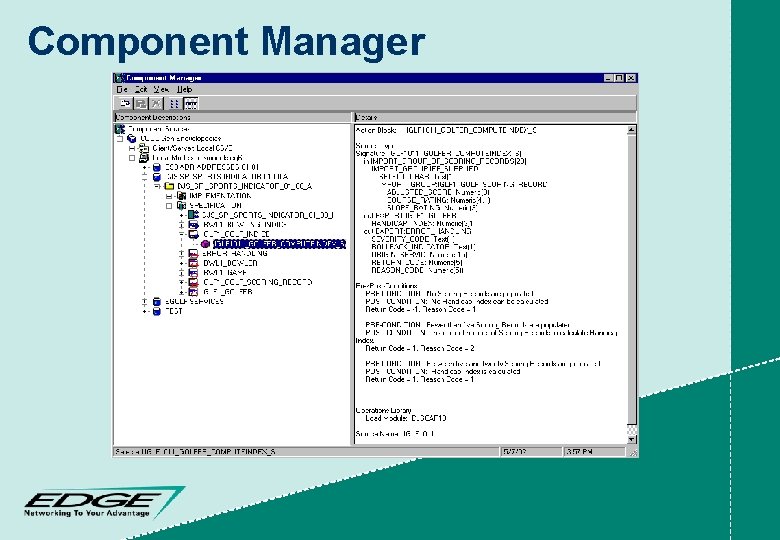

Component Manager

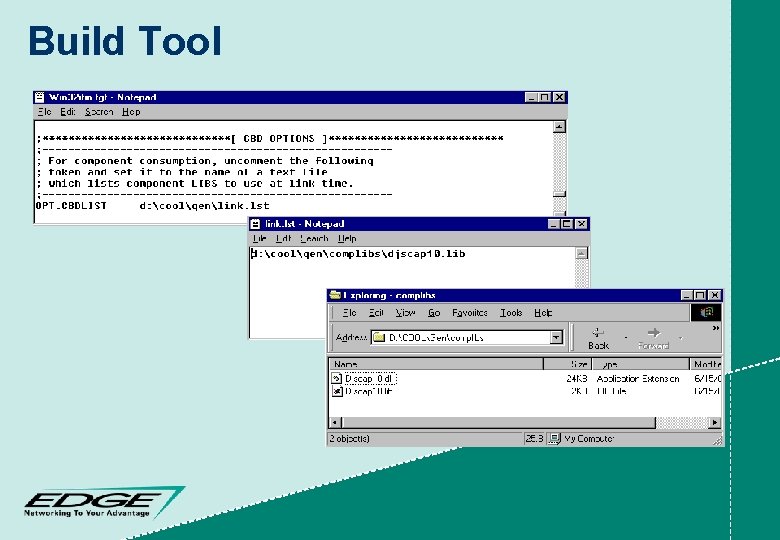

Build Tool

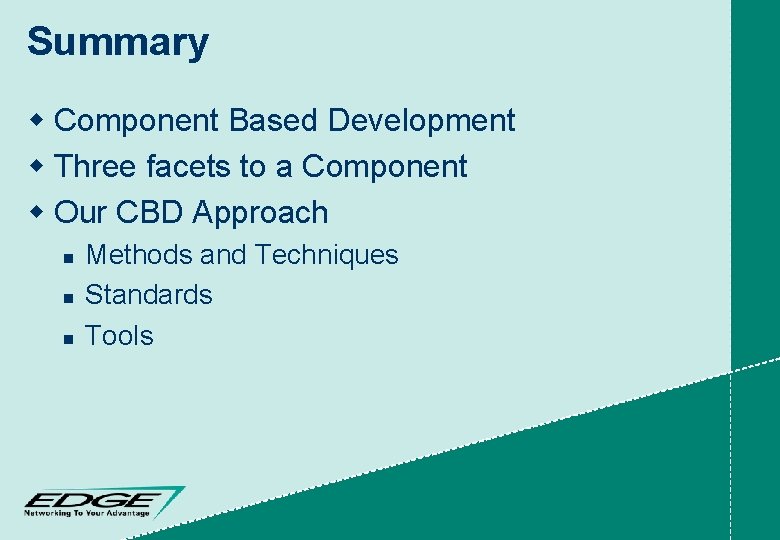

Summary w Component Based Development w Three facets to a Component w Our CBD Approach n n n Methods and Techniques Standards Tools

Questions
