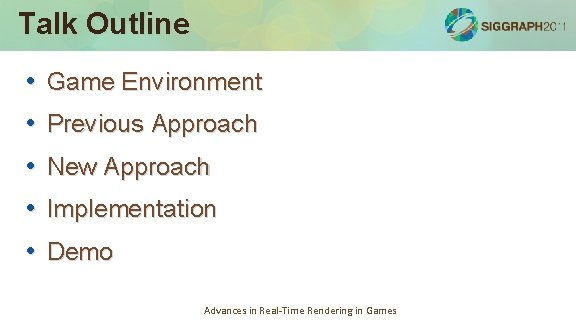

![Talk Outline • Game Environment • Previous Approach • New Approach • Implementation • Talk Outline • Game Environment • Previous Approach • New Approach • Implementation •](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-3.jpg)
![Halo Reach Advances in Real-Time Rendering in Games Halo Reach Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-4.jpg)
![More than pretty pixels • AI perception • Activation • Path-finding • Collision/Physics • More than pretty pixels • AI perception • Activation • Path-finding • Collision/Physics •](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-5.jpg)
![More than pretty pixels • AI perception • Activation • Object Attachment • Audibility More than pretty pixels • AI perception • Activation • Object Attachment • Audibility](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-6.jpg)
![Background § § § Cells and portals Potentially Visible Sets (PVS) Occluder rasterization § Background § § § Cells and portals Potentially Visible Sets (PVS) Occluder rasterization §](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-7.jpg)
![Halo Approach • Cells and portals • Watertight shell geometry • Artists manually placed Halo Approach • Cells and portals • Watertight shell geometry • Artists manually placed](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-8.jpg)
![Pros • Unified visibility/spatial connectivity • Precise spatial decomposition • Inside/outside test • Great Pros • Unified visibility/spatial connectivity • Precise spatial decomposition • Inside/outside test • Great](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-9.jpg)
![Cons • Manual portalization is non-trivial! • Watertightness is painful for content authoring • Cons • Manual portalization is non-trivial! • Watertightness is painful for content authoring •](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-10.jpg)
![Portalization Example Advances in Real-Time Rendering in Games Portalization Example Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-11.jpg)
![Polygon Soup! Advances in Real-Time Rendering in Games Polygon Soup! Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-12.jpg)
![Polygon Soup • Just pieces jammed together • No water-tightness • No manual portals Polygon Soup • Just pieces jammed together • No water-tightness • No manual portals](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-13.jpg)
![General Idea • Sub-divide the scene • Voxelize the subdivided volume • Segment the General Idea • Sub-divide the scene • Voxelize the subdivided volume • Segment the](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-14.jpg)
![2 D Example –Path Finding Input Scene [Recast Library: Mikko Mononen http: //code. google. 2 D Example –Path Finding Input Scene [Recast Library: Mikko Mononen http: //code. google.](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-15.jpg)
![2 D Example –Path Finding Voxelization Advances in Real-Time Rendering in Games 2 D Example –Path Finding Voxelization Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-16.jpg)
![2 D Example –Path Finding “Walk-able” voxels Advances in Real-Time Rendering in Games 2 D Example –Path Finding “Walk-able” voxels Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-17.jpg)
![2 D Example –Path Finding Distance Field Advances in Real-Time Rendering in Games 2 D Example –Path Finding Distance Field Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-18.jpg)
![2 D Example –Path Finding 2 D Watershed Transform Advances in Real-Time Rendering in 2 D Example –Path Finding 2 D Watershed Transform Advances in Real-Time Rendering in](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-19.jpg)
![2 D Example –Path Finding Contour Advances in Real-Time Rendering in Games 2 D Example –Path Finding Contour Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-20.jpg)
![2 D Example –Path Finding Nav Mesh Advances in Real-Time Rendering in Games 2 D Example –Path Finding Nav Mesh Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-21.jpg)
![3 D Watershed Bungie & Zhe Jiang University Zhefeng Wu, Xinguo Liu Advances in 3 D Watershed Bungie & Zhe Jiang University Zhefeng Wu, Xinguo Liu Advances in](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-22.jpg)
![3 D Watershed Transform Advances in Real-Time Rendering in Games 3 D Watershed Transform Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-23.jpg)
![Problems • 3 D is considerably harder/slower • Over-segmentation (small regions) • Sensitive to Problems • 3 D is considerably harder/slower • Over-segmentation (small regions) • Sensitive to](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-24.jpg)
![Collaboration with Umbra • Automatic portal generation • Incremental/local updates • CPU based solution, Collaboration with Umbra • Automatic portal generation • Incremental/local updates • CPU based solution,](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-25.jpg)
![Umbra Solution Polygon soup Preprocess Automatic cell and portal generation Runtime Visibility and connectivity Umbra Solution Polygon soup Preprocess Automatic cell and portal generation Runtime Visibility and connectivity](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-26.jpg)
![Preprocess Overview Polygon soup Preprocess Automatic cell and portal generation Runtime Visibility and connectivity Preprocess Overview Polygon soup Preprocess Automatic cell and portal generation Runtime Visibility and connectivity](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-27.jpg)
![Preprocess Overview § § Discretize the scene into voxels Determine voxel connectivity with respect Preprocess Overview § § Discretize the scene into voxels Determine voxel connectivity with respect](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-28.jpg)
![Tile Grid § Subdivide the input geometry into tiles Advances in Real-Time Rendering in Tile Grid § Subdivide the input geometry into tiles Advances in Real-Time Rendering in](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-29.jpg)
![Tile Grid § Subdivide the input geometry into tiles § § § Localizes computation Tile Grid § Subdivide the input geometry into tiles § § § Localizes computation](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-30.jpg)
![Tile Voxelization § Compute a BSP tree for each tile Advances in Real-Time Rendering Tile Voxelization § Compute a BSP tree for each tile Advances in Real-Time Rendering](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-31.jpg)
![Tile Voxelization § Compute a BSP tree for each tile § Subdivide to discretization Tile Voxelization § Compute a BSP tree for each tile § Subdivide to discretization](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-32.jpg)
![From Voxels to Cells and Portals Advances in Real-Time Rendering in Games From Voxels to Cells and Portals Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-33.jpg)
![From Voxels to Cells and Portals § § § Classify voxels Connect voxels Local From Voxels to Cells and Portals § § § Classify voxels Connect voxels Local](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-34.jpg)
![Voxel Classification § § § Classify voxels Connect voxels Local connected components represent view Voxel Classification § § § Classify voxels Connect voxels Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-35.jpg)
![Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-36.jpg)
![Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-37.jpg)
![Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-38.jpg)
![Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-39.jpg)
![Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view Voxel Connectivity § § § Classify voxels Connect voxels Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-40.jpg)
![Cells § § § Classify voxels Connect voxels Local connected components represent view cells Cells § § § Classify voxels Connect voxels Local connected components represent view cells](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-41.jpg)
![Portals § § § Classify voxels Build voxel connections Local connected components represent view Portals § § § Classify voxels Build voxel connections Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-42.jpg)
![Portals § § § Classify voxels Build voxel connections Local connected components represent view Portals § § § Classify voxels Build voxel connections Local connected components represent view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-43.jpg)
![Cell Graph § Optimize cells and portals to a runtime cell graph § Runtime Cell Graph § Optimize cells and portals to a runtime cell graph § Runtime](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-44.jpg)
![Cell Graph § § § Optimize cells and portals to a runtime cell graph Cell Graph § § § Optimize cells and portals to a runtime cell graph](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-45.jpg)
![Runtime Algorithms Polygon soup Preprocess Automatic cell and portal generation Runtime Visibility and connectivity Runtime Algorithms Polygon soup Preprocess Automatic cell and portal generation Runtime Visibility and connectivity](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-46.jpg)
![Connectivity Algorithms § § § Connectivity is encoded in the precomputed cell graph Connectivity Connectivity Algorithms § § § Connectivity is encoded in the precomputed cell graph Connectivity](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-47.jpg)
![Visibility Algorithms § Practical analytic visibility in the cell graph § Axis aligned portals Visibility Algorithms § Practical analytic visibility in the cell graph § Axis aligned portals](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-48.jpg)
![Potentially Visible Sets § § § Deterministic conservative visibility Computation time is directly related Potentially Visible Sets § § § Deterministic conservative visibility Computation time is directly related](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-49.jpg)
![Portal Culling § How to traverse 100 K+ portals fast? § Recursive algorithm does Portal Culling § How to traverse 100 K+ portals fast? § Recursive algorithm does](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-50.jpg)
![Renderer Integration • Focus on the pipeline, not on rendering techniques • Visibility integration Renderer Integration • Focus on the pipeline, not on rendering techniques • Visibility integration](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-51.jpg)
![Halo Reach Game Loop Advances in Real-Time Rendering in Games Halo Reach Game Loop Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-52.jpg)
![Halo Reach Game Loop • Coarse-grain parallelism – System on a thread Advances in Halo Reach Game Loop • Coarse-grain parallelism – System on a thread Advances in](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-53.jpg)
![Halo Reach Game Loop • Coarse-grain parallelism – System on a thread • Explicit Halo Reach Game Loop • Coarse-grain parallelism – System on a thread • Explicit](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-54.jpg)
![Halo Reach Game Loop • Coarse-grain parallelism – System on a thread • Explicit Halo Reach Game Loop • Coarse-grain parallelism – System on a thread • Explicit](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-55.jpg)
![Halo Reach Game Loop HW Thread 0 Simulation loop @ 30 hz HW Thread Halo Reach Game Loop HW Thread 0 Simulation loop @ 30 hz HW Thread](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-56.jpg)
![Halo Reach Game Loop HW Thread 0 Simulation loop @ 30 hz HW Thread Halo Reach Game Loop HW Thread 0 Simulation loop @ 30 hz HW Thread](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-57.jpg)
![Halo Reach Game Loop HW Thread 0 Simulation loop @ 30 hz HW Thread Halo Reach Game Loop HW Thread 0 Simulation loop @ 30 hz HW Thread](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-58.jpg)
![Halo Reach: Simulation Thread (MP) HW Thread 0 Simulation loop: 75 -100% HW Thread Halo Reach: Simulation Thread (MP) HW Thread 0 Simulation loop: 75 -100% HW Thread](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-59.jpg)
![Halo Reach: Simulation Thread (MP) HW Thread 0 Object Update loop: 75 -100% Simulation Halo Reach: Simulation Thread (MP) HW Thread 0 Object Update loop: 75 -100% Simulation](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-60.jpg)
![Halo Reach: Simulation Thread (MP) HW Thread 0 Havok Update Obj move Object Update Halo Reach: Simulation Thread (MP) HW Thread 0 Havok Update Obj move Object Update](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-61.jpg)
![Halo Reach: Simulation Thread (MP) HW Thread 0 Havok Update Obj move Object Update Halo Reach: Simulation Thread (MP) HW Thread 0 Havok Update Obj move Object Update](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-62.jpg)
![Halo Reach: Simulation Thread (MP) HW Thread 0 Havok Update Obj move Object Update Halo Reach: Simulation Thread (MP) HW Thread 0 Havok Update Obj move Object Update](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-63.jpg)
![Halo Reach: Simulation Thread (MP) HW Thread 0 HW Thread 1 HW Thread 2 Halo Reach: Simulation Thread (MP) HW Thread 0 HW Thread 1 HW Thread 2](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-64.jpg)
![Halo Reach: Render Thread (MP) HW Thread 0 HW Thread 1 HW Thread 2 Halo Reach: Render Thread (MP) HW Thread 0 HW Thread 1 HW Thread 2](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-65.jpg)
![Halo Reach: Render Thread (MP) HW Thread 0 HW Thread 1 HW Thread 2 Halo Reach: Render Thread (MP) HW Thread 0 HW Thread 1 HW Thread 2](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-66.jpg)
![Halo Reach: Thread Utilization HW Thread 0 Simulation loop: 75 -100% utilized HW Thread Halo Reach: Thread Utilization HW Thread 0 Simulation loop: 75 -100% utilized HW Thread](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-67.jpg)
![Halo Reach: Thread Utilization HW Thread 0 Simulation loop: 75 -100% utilized HW Thread Halo Reach: Thread Utilization HW Thread 0 Simulation loop: 75 -100% utilized HW Thread](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-68.jpg)
![Can We Do Better? • Observation #1: We don’t need the entire game state Can We Do Better? • Observation #1: We don’t need the entire game state](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-69.jpg)
![Gamestate and Visibility • In Reach, game state extraction happens before we do visibility Gamestate and Visibility • In Reach, game state extraction happens before we do visibility](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-70.jpg)
![Reduce CPU Latency • Visibility is a large chunk of CPU time on render Reduce CPU Latency • Visibility is a large chunk of CPU time on render](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-71.jpg)
![Gamestate and Visibility • But we can invert that operation • Only copy data Gamestate and Visibility • But we can invert that operation • Only copy data](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-72.jpg)
![Extract Post Visibility • Better: Drive game extraction and processing based on results of Extract Post Visibility • Better: Drive game extraction and processing based on results of](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-73.jpg)
![Better Load Balancing • Start by splitting off visibility computation into jobs per view Better Load Balancing • Start by splitting off visibility computation into jobs per view](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-74.jpg)
![Reducing Input Latency • Stagger visibility computation at the same time as game object Reducing Input Latency • Stagger visibility computation at the same time as game object](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-75.jpg)
![Improve CPU Latency • Run expensive CPU render operations for visible objects only – Improve CPU Latency • Run expensive CPU render operations for visible objects only –](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-76.jpg)

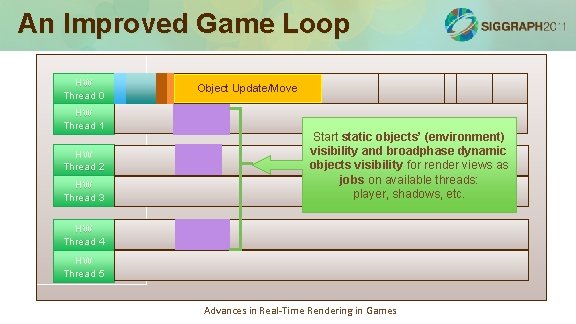

![An Improved Game Loop HW Thread 0 Simulation loop: 75 -100% HW Thread 1 An Improved Game Loop HW Thread 0 Simulation loop: 75 -100% HW Thread 1](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-77.jpg)
![An Improved Game Loop HW Thread 0 Simulation loop: 75 -100% HW Thread 1 An Improved Game Loop HW Thread 0 Simulation loop: 75 -100% HW Thread 1](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-78.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-79.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-80.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-81.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-82.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-83.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-84.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-85.jpg)
![An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW An Improved Game Loop HW Thread 0 Object Update/Move Simulation loop: 75 -100% HW](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-86.jpg)
![Streamlined Submission Thread HW Thread 0 Havok Update Obj move Object Update loop: Simulation Streamlined Submission Thread HW Thread 0 Havok Update Obj move Object Update loop: Simulation](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-87.jpg)
![Benefits • Decouple game-state traversal from drawing • Better CPU utilization with staggered visibility Benefits • Decouple game-state traversal from drawing • Better CPU utilization with staggered visibility](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-88.jpg)
![Benefits • Decouple game-state traversal from drawing • Better CPU utilization with staggered visibility Benefits • Decouple game-state traversal from drawing • Better CPU utilization with staggered visibility](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-89.jpg)
![A Simple Little Job Tree Advances in Real-Time Rendering in Games A Simple Little Job Tree Advances in Real-Time Rendering in Games](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-90.jpg)
![Future Work • Predict dynamic objects visibility with temporal bounding volume • Fixup after Future Work • Predict dynamic objects visibility with temporal bounding volume • Fixup after](https://slidetodoc.com/presentation_image/4f45b735557215eb9e53f0858e86695f/image-91.jpg)
