Advanced Distributed Systems Concurrency Pablo de la Fuente

Advanced Distributed Systems, Concurrency Pablo de la Fuente Departamento de Informática E. T. S. de Ingeniería Informática Campus Miguel Delibes 47011 Valladolid Spain pfuente@infor. uva. es

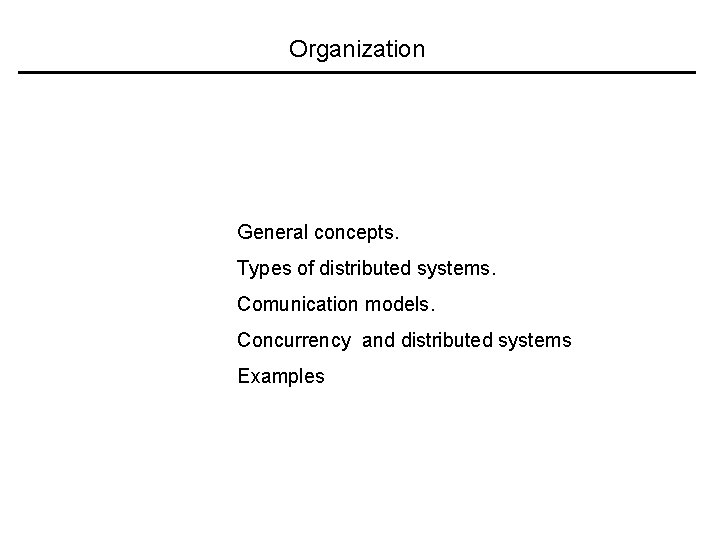

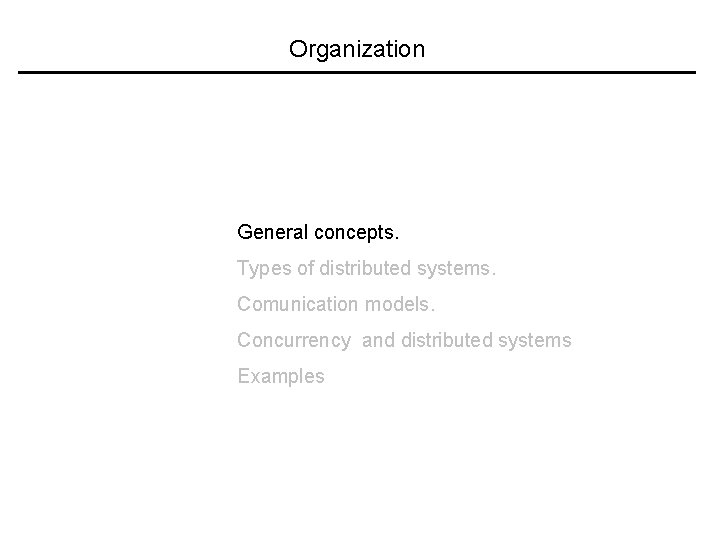

Organization General concepts. Types of distributed systems. Comunication models. Concurrency and distributed systems Examples

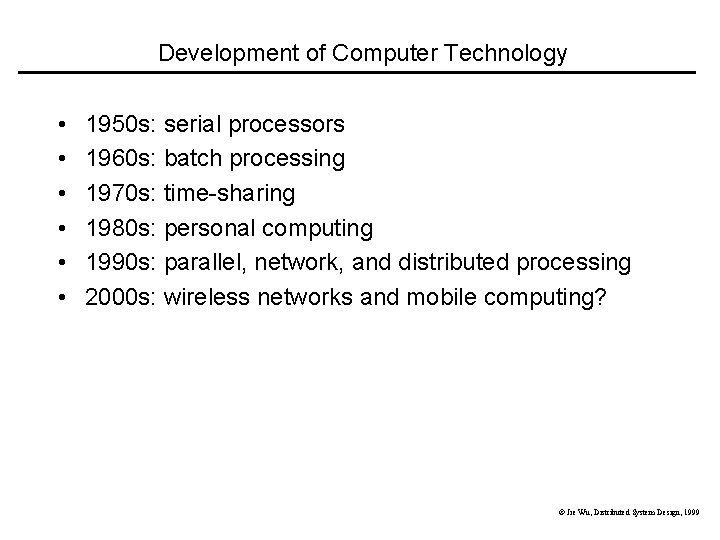

Development of Computer Technology • • • 1950 s: serial processors 1960 s: batch processing 1970 s: time-sharing 1980 s: personal computing 1990 s: parallel, network, and distributed processing 2000 s: wireless networks and mobile computing? © Jie Wu, Distributed System Design, 1999

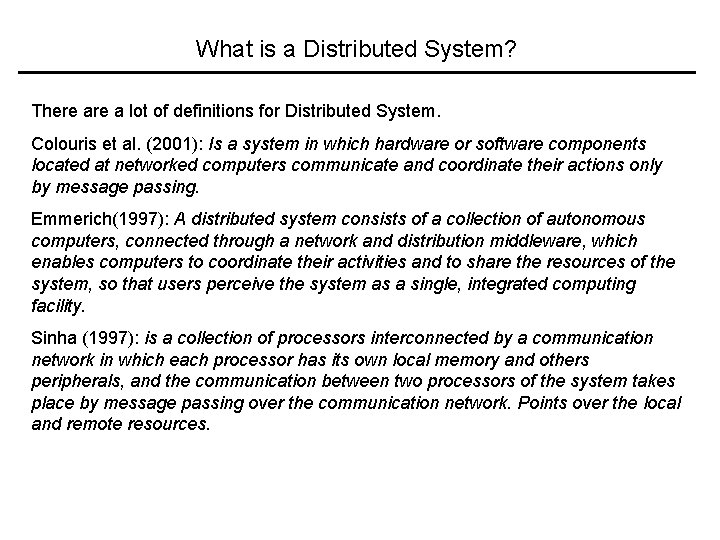

What is a Distributed System? There a lot of definitions for Distributed System. Colouris et al. (2001): Is a system in which hardware or software components located at networked computers communicate and coordinate their actions only by message passing. Emmerich(1997): A distributed system consists of a collection of autonomous computers, connected through a network and distribution middleware, which enables computers to coordinate their activities and to share the resources of the system, so that users perceive the system as a single, integrated computing facility. Sinha (1997): is a collection of processors interconnected by a communication network in which each processor has its own local memory and others peripherals, and the communication between two processors of the system takes place by message passing over the communication network. Points over the local and remote resources.

Centralised versus Distributed System Centralised One component with non-autonomous parts Component shared by users all the time All resources accessible Software runs in a single process Single Point of control Single Point of failure Distributed Multiple autonomous components Components are not shared by all users Resources may not be accessible Software runs in concurrent processes on different processors Multiple Points of control Multiple Points of failure

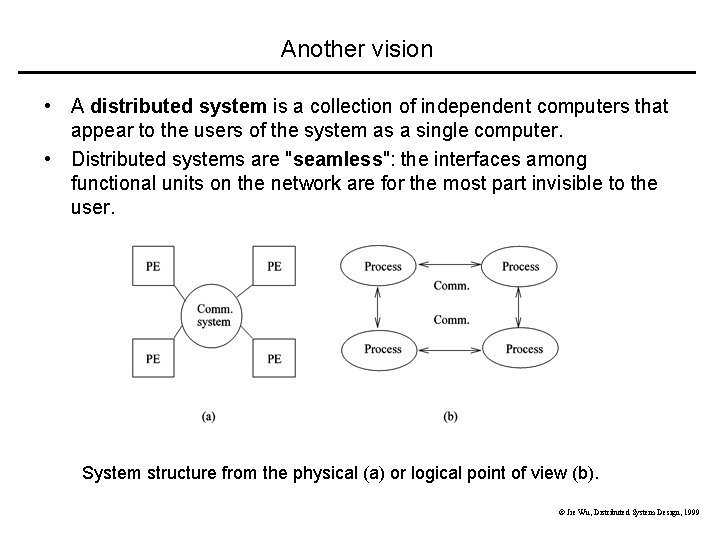

Another vision • A distributed system is a collection of independent computers that appear to the users of the system as a single computer. • Distributed systems are "seamless": the interfaces among functional units on the network are for the most part invisible to the user. System structure from the physical (a) or logical point of view (b). © Jie Wu, Distributed System Design, 1999

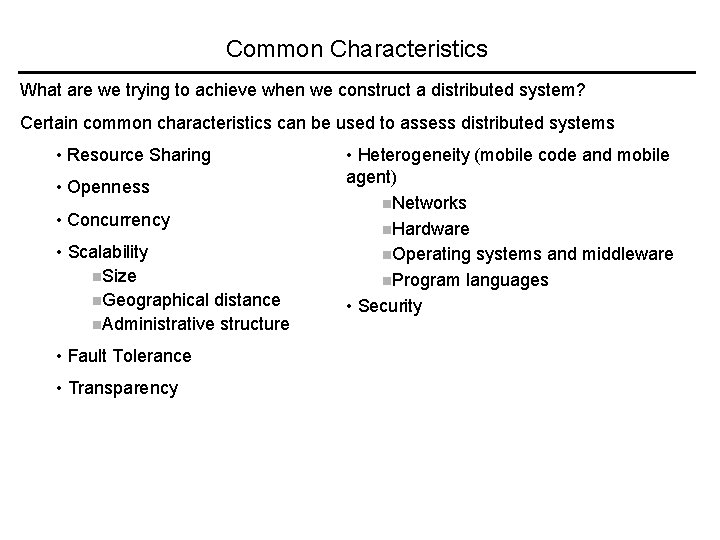

Common Characteristics What are we trying to achieve when we construct a distributed system? Certain common characteristics can be used to assess distributed systems • Resource Sharing • Openness • Concurrency • Scalability n. Size n. Geographical distance n. Administrative structure • Fault Tolerance • Transparency • Heterogeneity (mobile code and mobile agent) n. Networks n. Hardware n. Operating systems and middleware n. Program languages • Security

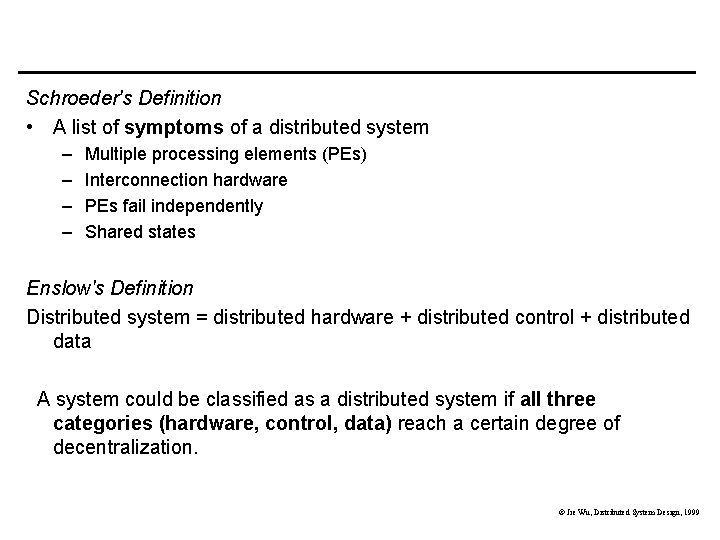

Schroeder's Definition • A list of symptoms of a distributed system – – Multiple processing elements (PEs) Interconnection hardware PEs fail independently Shared states Enslow's Definition Distributed system = distributed hardware + distributed control + distributed data A system could be classified as a distributed system if all three categories (hardware, control, data) reach a certain degree of decentralization. © Jie Wu, Distributed System Design, 1999

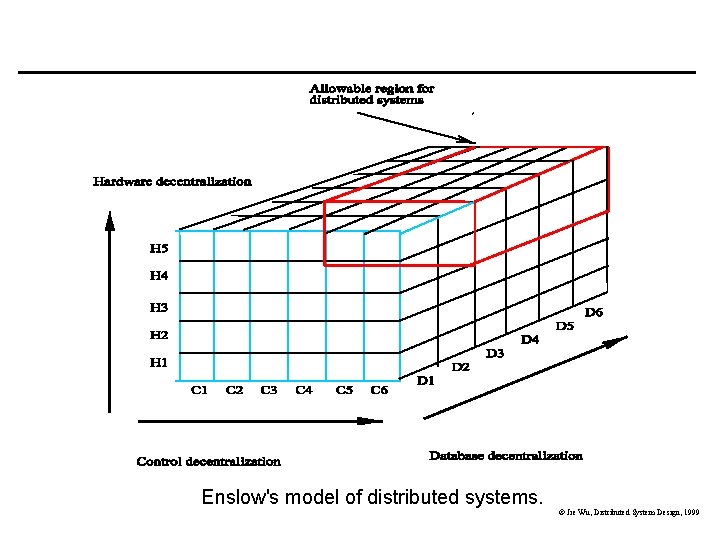

Enslow's model of distributed systems. © Jie Wu, Distributed System Design, 1999

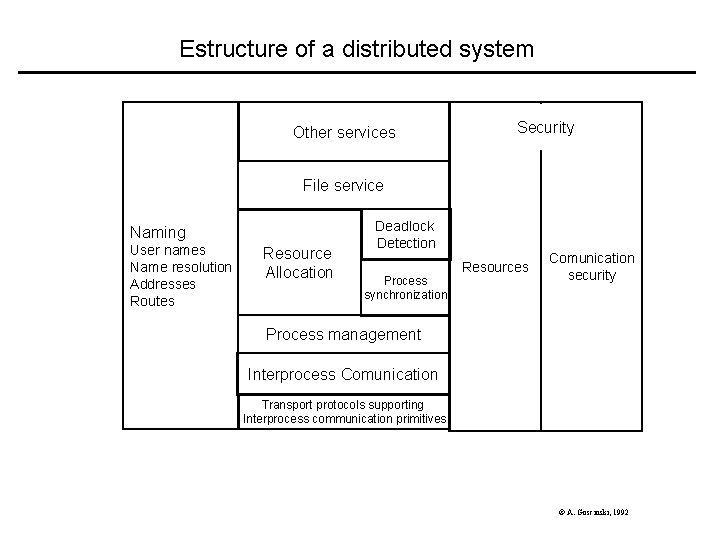

Estructure of a distributed system Other services Security File service Naming User names Name resolution Addresses Routes Resource Allocation Deadlock Detection Process synchronization Resources Comunication security Process management Interprocess Comunication Transport protocols supporting Interprocess communication primitives © A. Goscinski, 1992

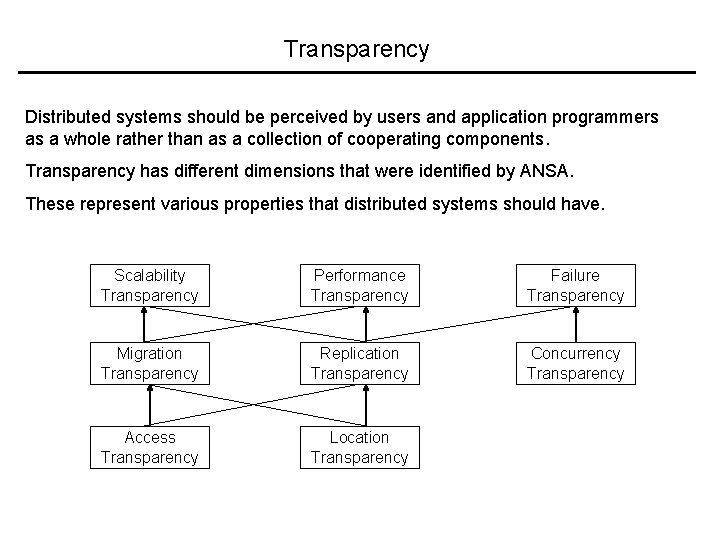

Transparency Distributed systems should be perceived by users and application programmers as a whole rather than as a collection of cooperating components. Transparency has different dimensions that were identified by ANSA. These represent various properties that distributed systems should have. Scalability Transparency Performance Transparency Failure Transparency Migration Transparency Replication Transparency Concurrency Transparency Access Transparency Location Transparency

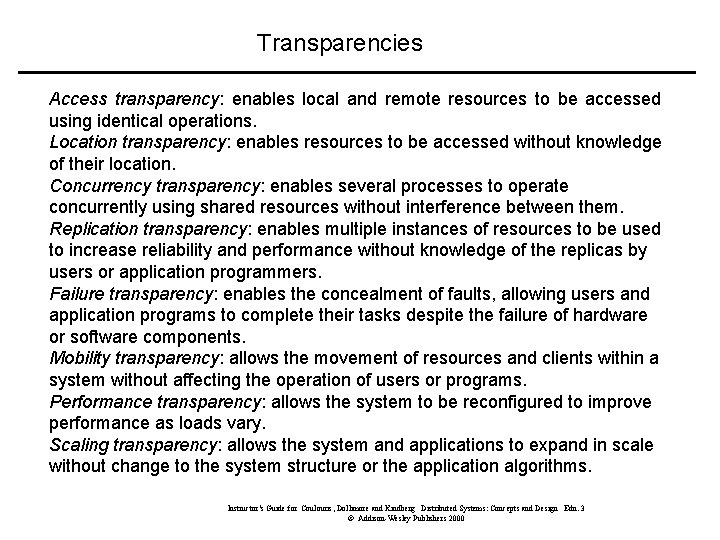

Transparencies Access transparency: enables local and remote resources to be accessed using identical operations. Location transparency: enables resources to be accessed without knowledge of their location. Concurrency transparency: enables several processes to operate concurrently using shared resources without interference between them. Replication transparency: enables multiple instances of resources to be used to increase reliability and performance without knowledge of the replicas by users or application programmers. Failure transparency: enables the concealment of faults, allowing users and application programs to complete their tasks despite the failure of hardware or software components. Mobility transparency: allows the movement of resources and clients within a system without affecting the operation of users or programs. Performance transparency: allows the system to be reconfigured to improve performance as loads vary. Scaling transparency: allows the system and applications to expand in scale without change to the system structure or the application algorithms. Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

Software and hardware service layers in distributed systems Applications, services Middleware Operating system Platform Computer and network hardware Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

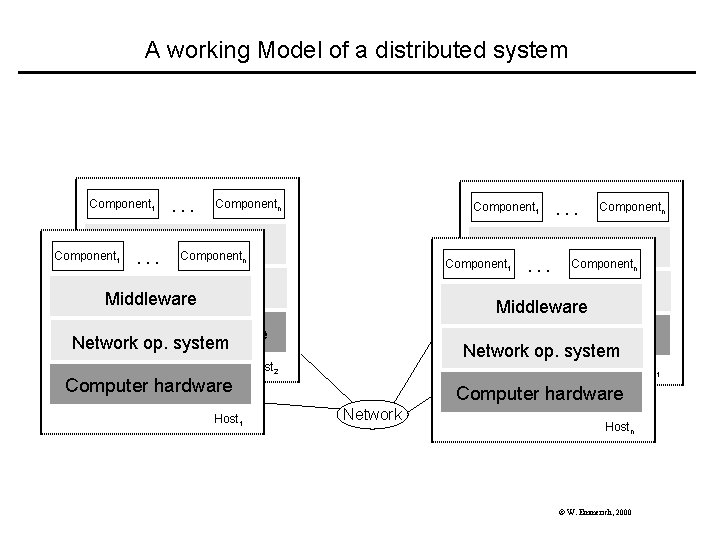

A working Model of a distributed system Component 1 . . . Componentn Component 1 Middleware. . . Componentn Component 1 . . . Componentn Middleware. . . Componentn Network op. system Middleware Computer hardware Network op. system Computer hardware Host 1 Network op. system Host 2 Hostn-1 Computer hardware Network Hostn © W. Emmerich, 2000

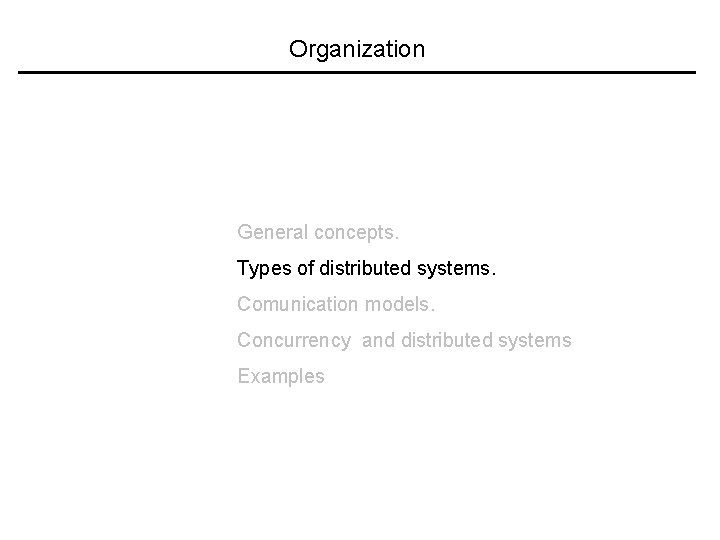

Organization General concepts. Types of distributed systems. Comunication models. Concurrency and distributed systems Examples

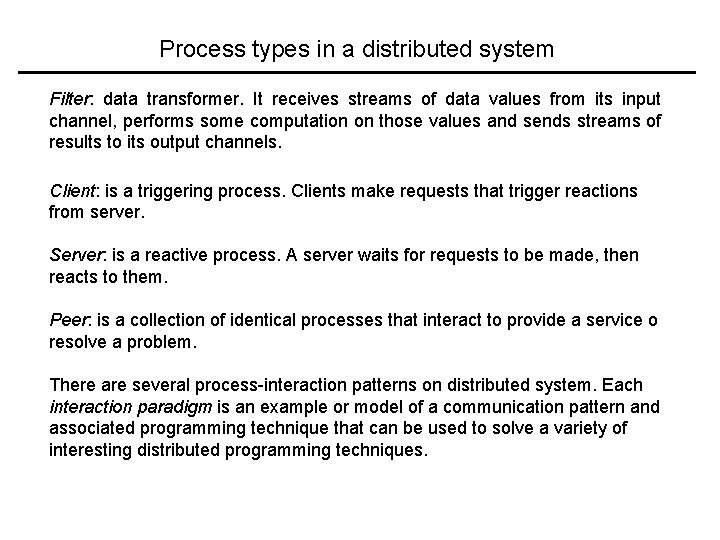

Process types in a distributed system Filter: data transformer. It receives streams of data values from its input channel, performs some computation on those values and sends streams of results to its output channels. Client: is a triggering process. Clients make requests that trigger reactions from server. Server: is a reactive process. A server waits for requests to be made, then reacts to them. Peer: is a collection of identical processes that interact to provide a service o resolve a problem. There are several process-interaction patterns on distributed system. Each interaction paradigm is an example or model of a communication pattern and associated programming technique that can be used to solve a variety of interesting distributed programming techniques.

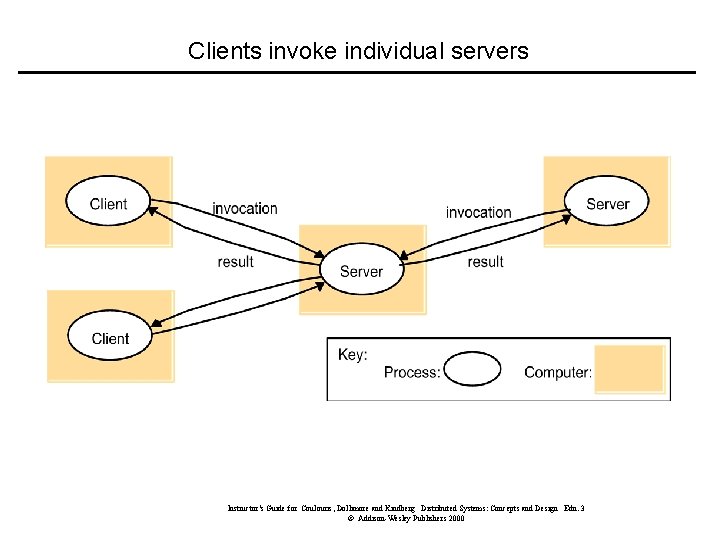

Clients invoke individual servers Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

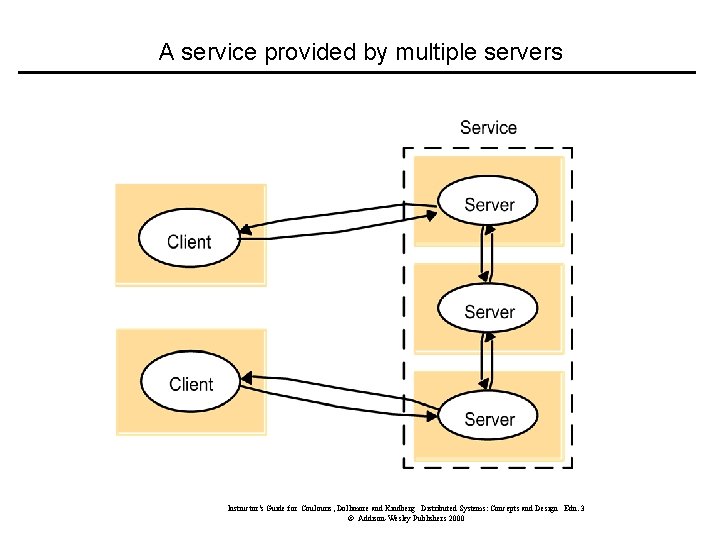

A service provided by multiple servers Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

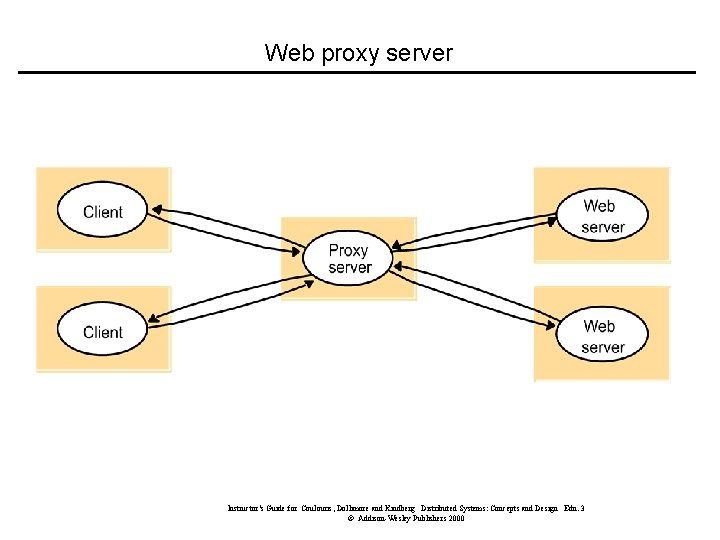

Web proxy server Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

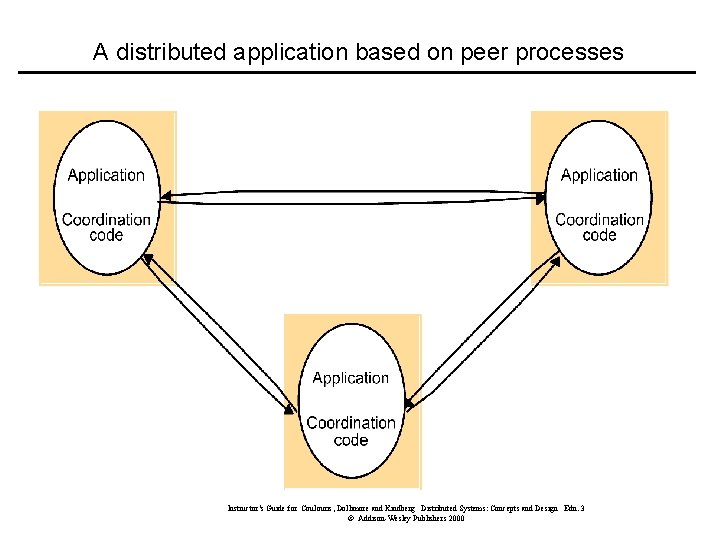

A distributed application based on peer processes Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

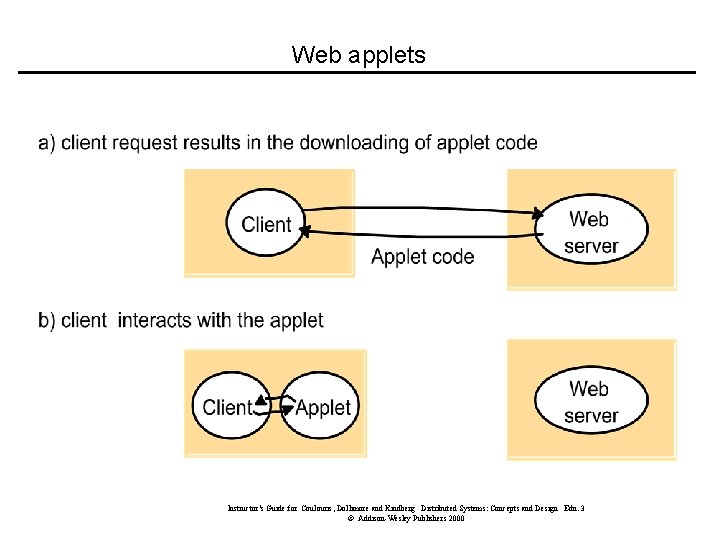

Web applets Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

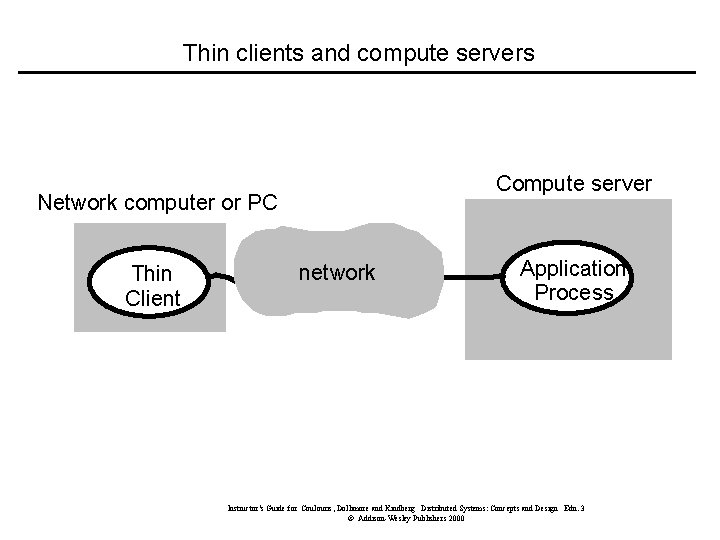

Thin clients and compute servers Compute server Network computer or PC Thin Client network Application Process Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

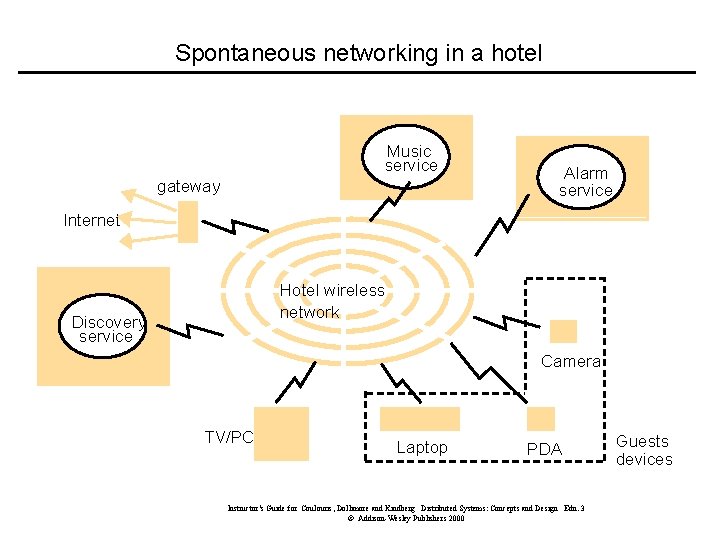

Spontaneous networking in a hotel Music service gateway Alarm service Internet Hotel wireless network Discovery service Camera TV/PC Laptop PDA Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000 Guests devices

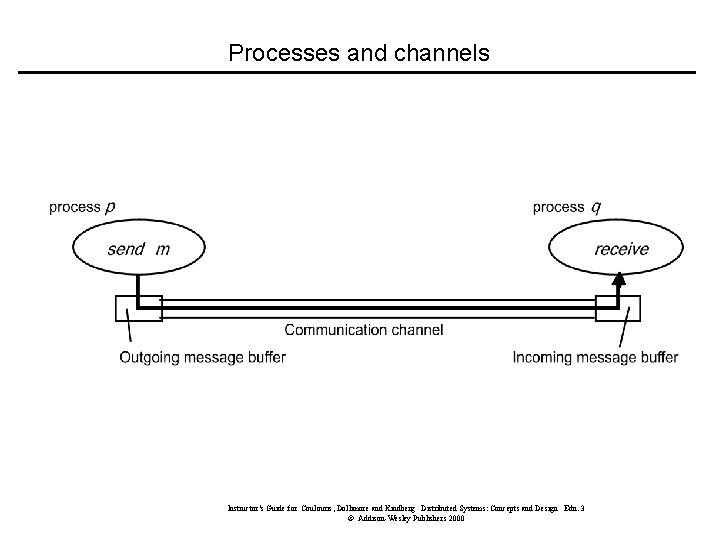

Processes and channels Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

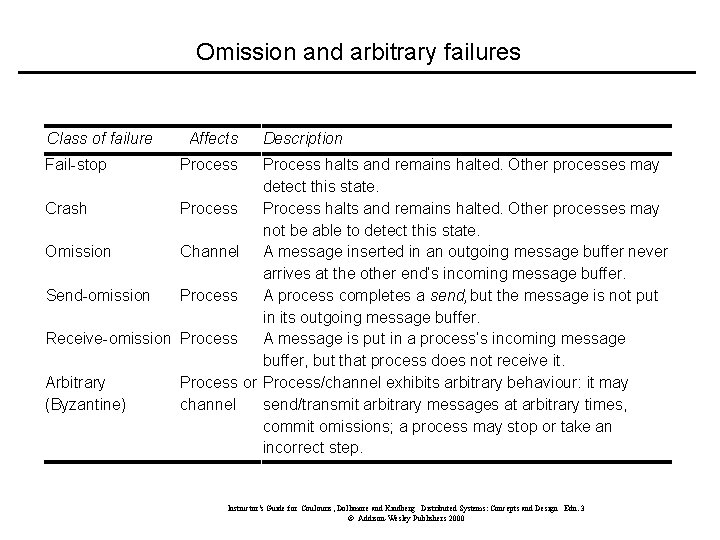

Omission and arbitrary failures Class of failure Fail-stop Affects Description Process halts and remains halted. Other processes may detect this state. Process halts and remains halted. Other processes may Crash Process not be able to detect this state. Omission Channel A message inserted in an outgoing message buffer never arrives at the other end’s incoming message buffer. Send-omission Process A process completes a send, but the message is not put in its outgoing message buffer. Receive-omission Process A message is put in a process’s incoming message buffer, but that process does not receive it. Arbitrary Process or Process/channel exhibits arbitrary behaviour: it may send/transmit arbitrary messages at arbitrary times, (Byzantine) channel commit omissions; a process may stop or take an incorrect step. Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

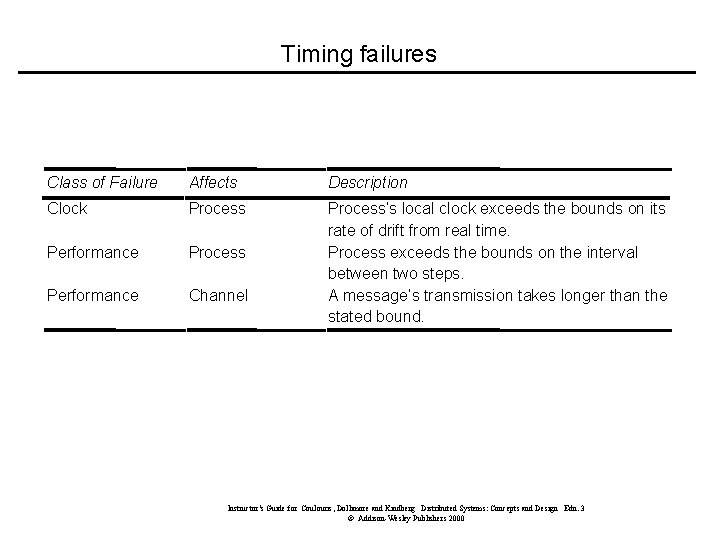

Timing failures Class of Failure Affects Description Clock Process Performance Channel Process’s local clock exceeds the bounds on its rate of drift from real time. Process exceeds the bounds on the interval between two steps. A message’s transmission takes longer than the stated bound. Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

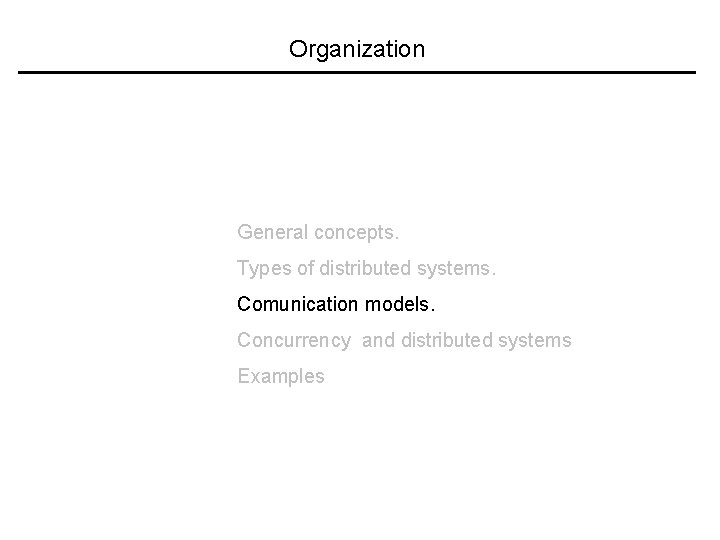

Organization General concepts. Types of distributed systems. Comunication models. Concurrency and distributed systems Examples

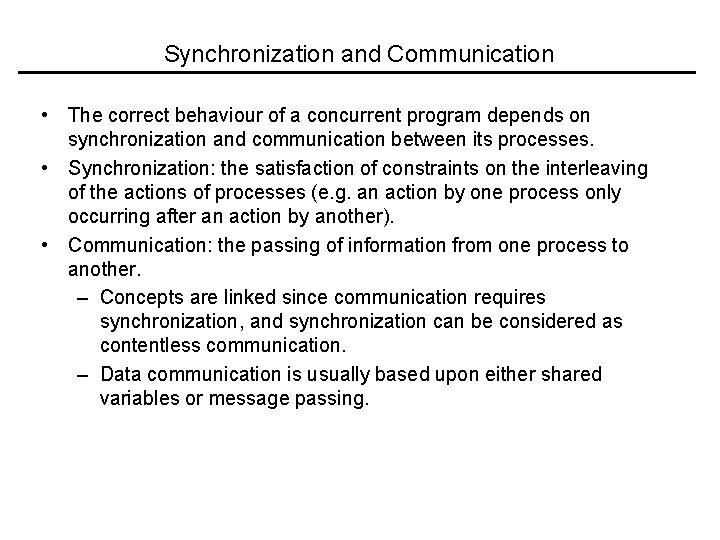

Synchronization and Communication • The correct behaviour of a concurrent program depends on synchronization and communication between its processes. • Synchronization: the satisfaction of constraints on the interleaving of the actions of processes (e. g. an action by one process only occurring after an action by another). • Communication: the passing of information from one process to another. – Concepts are linked since communication requires synchronization, and synchronization can be considered as contentless communication. – Data communication is usually based upon either shared variables or message passing.

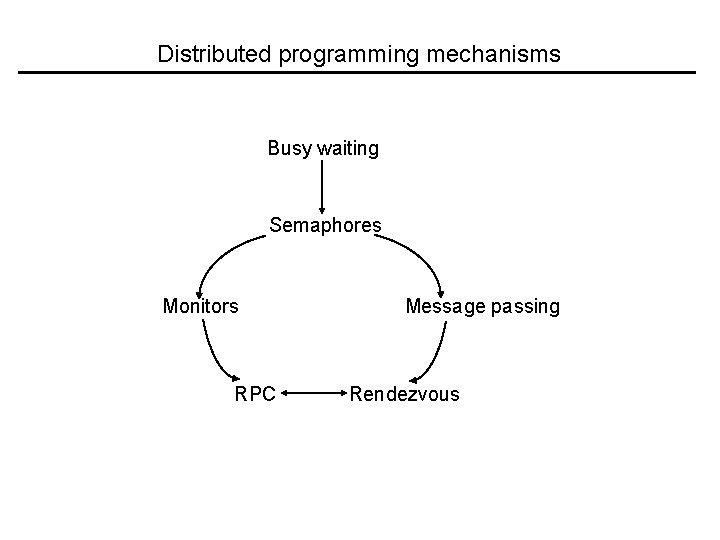

Distributed programming mechanisms Busy waiting Semaphores Monitors RPC Message passing Rendezvous

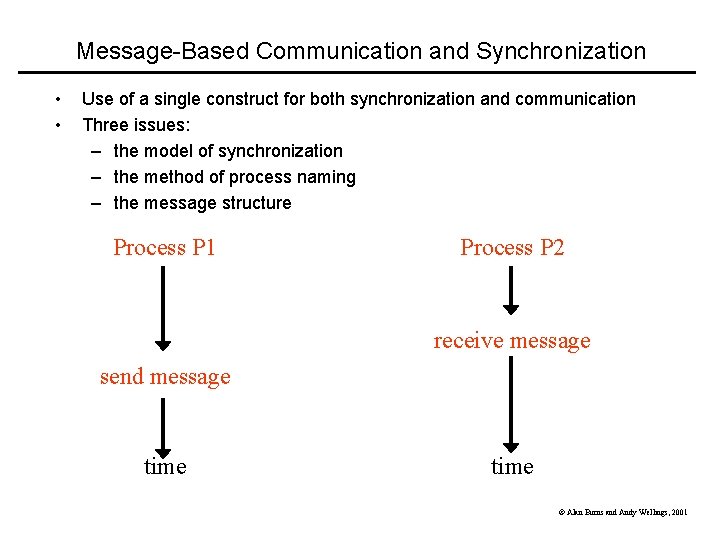

Message-Based Communication and Synchronization • • Use of a single construct for both synchronization and communication Three issues: – the model of synchronization – the method of process naming – the message structure Process P 1 Process P 2 receive message send message time © Alan Burns and Andy Wellings, 2001

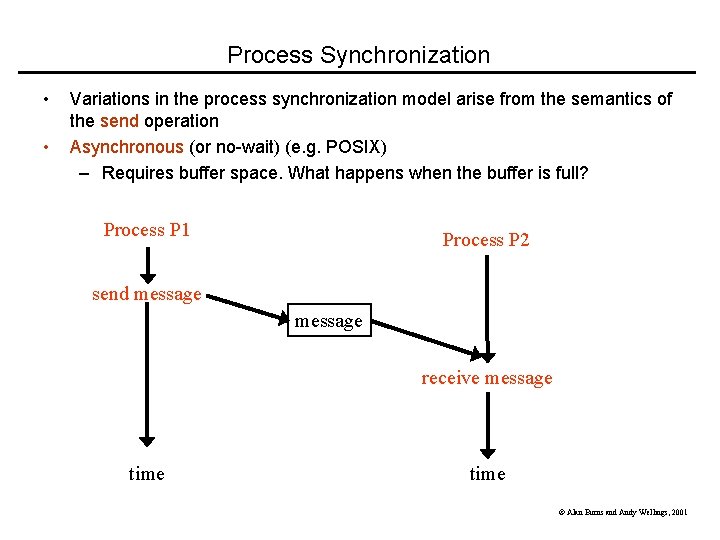

Process Synchronization • • Variations in the process synchronization model arise from the semantics of the send operation Asynchronous (or no-wait) (e. g. POSIX) – Requires buffer space. What happens when the buffer is full? Process P 1 Process P 2 send message receive message time © Alan Burns and Andy Wellings, 2001

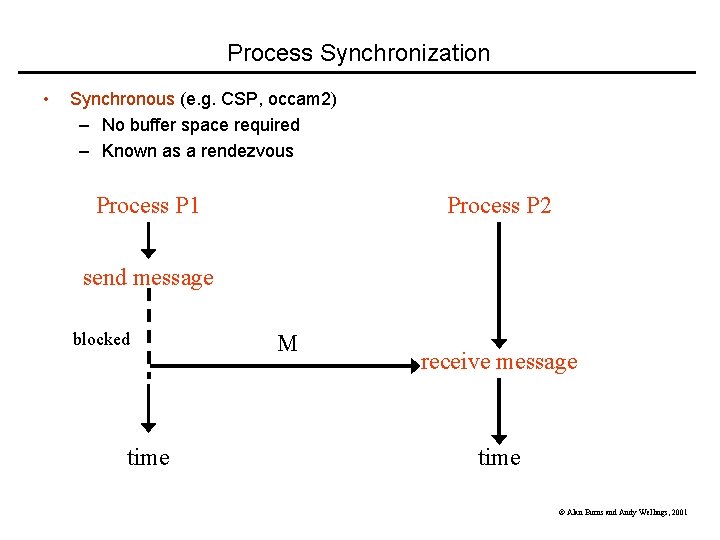

Process Synchronization • Synchronous (e. g. CSP, occam 2) – No buffer space required – Known as a rendezvous Process P 1 Process P 2 send message blocked time M receive message time © Alan Burns and Andy Wellings, 2001

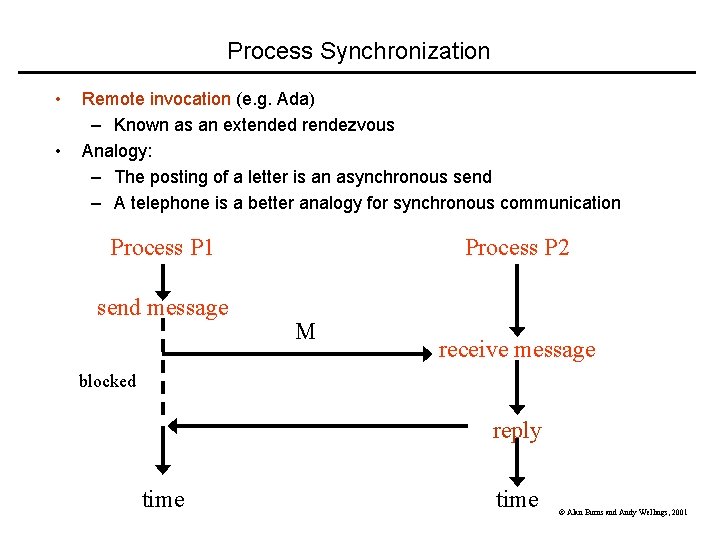

Process Synchronization • • Remote invocation (e. g. Ada) – Known as an extended rendezvous Analogy: – The posting of a letter is an asynchronous send – A telephone is a better analogy for synchronous communication Process P 1 send message Process P 2 M receive message blocked reply time © Alan Burns and Andy Wellings, 2001

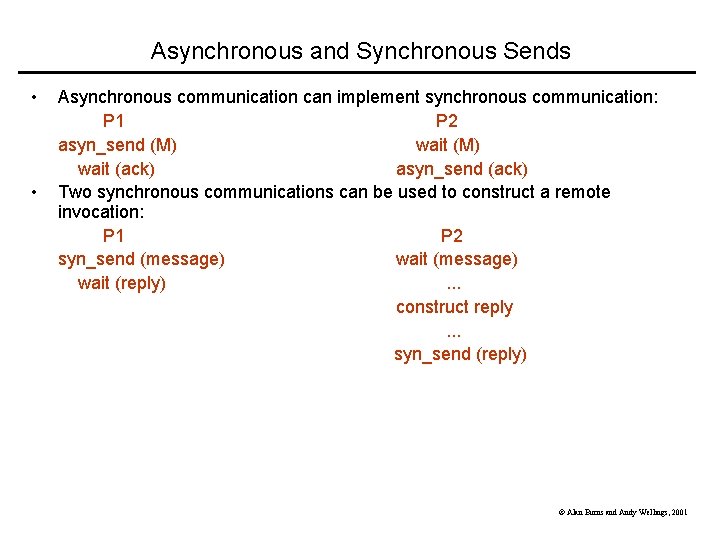

Asynchronous and Synchronous Sends • • Asynchronous communication can implement synchronous communication: P 1 P 2 asyn_send (M) wait (ack) asyn_send (ack) Two synchronous communications can be used to construct a remote invocation: P 1 P 2 syn_send (message) wait (reply). . . construct reply. . . syn_send (reply) © Alan Burns and Andy Wellings, 2001

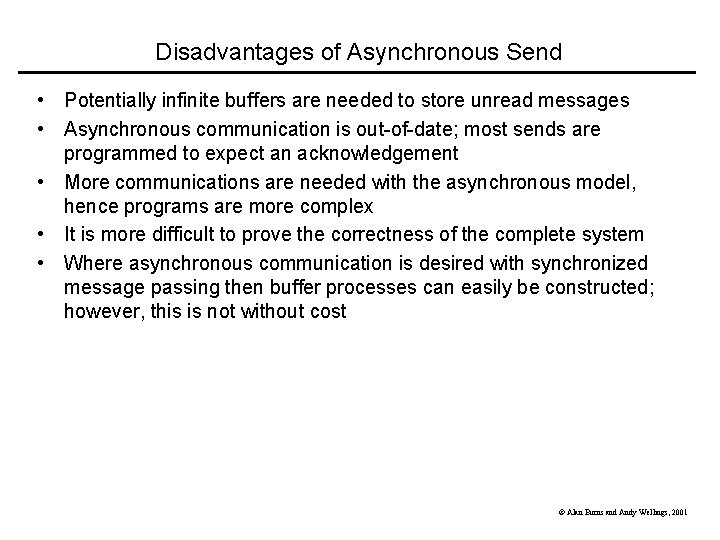

Disadvantages of Asynchronous Send • Potentially infinite buffers are needed to store unread messages • Asynchronous communication is out-of-date; most sends are programmed to expect an acknowledgement • More communications are needed with the asynchronous model, hence programs are more complex • It is more difficult to prove the correctness of the complete system • Where asynchronous communication is desired with synchronized message passing then buffer processes can easily be constructed; however, this is not without cost © Alan Burns and Andy Wellings, 2001

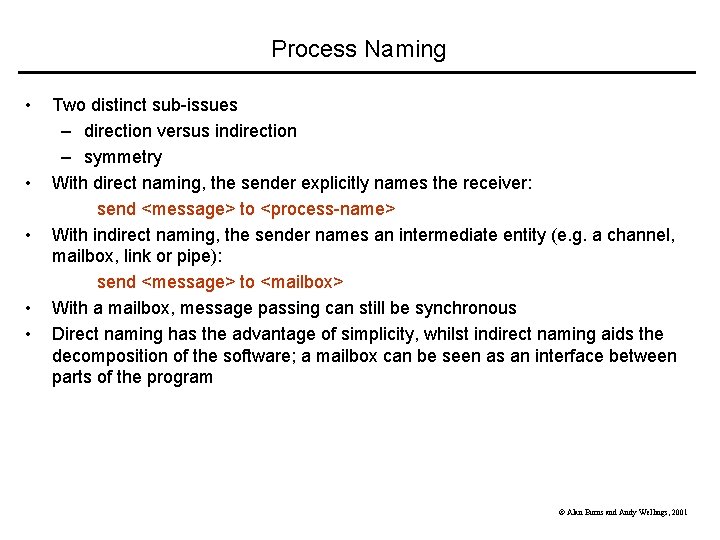

Process Naming • • • Two distinct sub-issues – direction versus indirection – symmetry With direct naming, the sender explicitly names the receiver: send <message> to <process-name> With indirect naming, the sender names an intermediate entity (e. g. a channel, mailbox, link or pipe): send <message> to <mailbox> With a mailbox, message passing can still be synchronous Direct naming has the advantage of simplicity, whilst indirect naming aids the decomposition of the software; a mailbox can be seen as an interface between parts of the program © Alan Burns and Andy Wellings, 2001

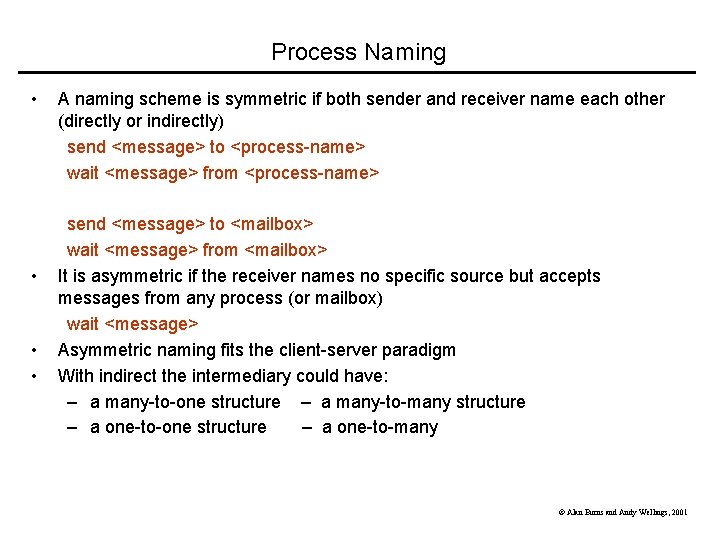

Process Naming • • A naming scheme is symmetric if both sender and receiver name each other (directly or indirectly) send <message> to <process-name> wait <message> from <process-name> send <message> to <mailbox> wait <message> from <mailbox> It is asymmetric if the receiver names no specific source but accepts messages from any process (or mailbox) wait <message> Asymmetric naming fits the client-server paradigm With indirect the intermediary could have: – a many-to-one structure – a many-to-many structure – a one-to-one structure – a one-to-many © Alan Burns and Andy Wellings, 2001

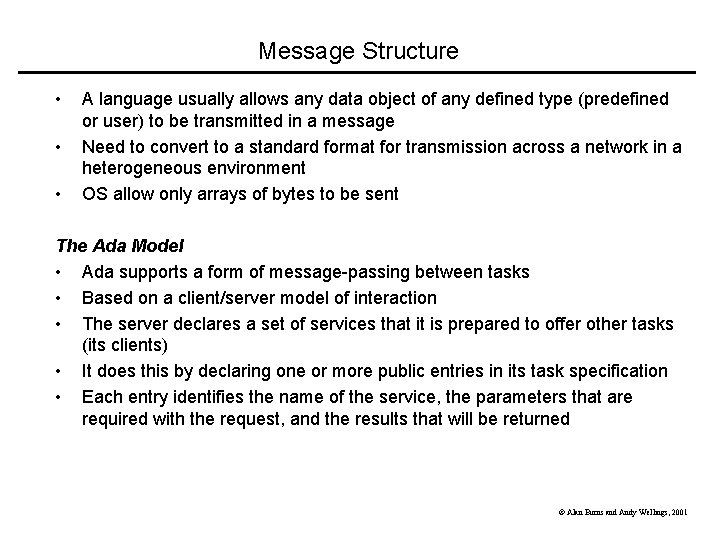

Message Structure • • • A language usually allows any data object of any defined type (predefined or user) to be transmitted in a message Need to convert to a standard format for transmission across a network in a heterogeneous environment OS allow only arrays of bytes to be sent The Ada Model • Ada supports a form of message-passing between tasks • Based on a client/server model of interaction • The server declares a set of services that it is prepared to offer other tasks (its clients) • It does this by declaring one or more public entries in its task specification • Each entry identifies the name of the service, the parameters that are required with the request, and the results that will be returned © Alan Burns and Andy Wellings, 2001

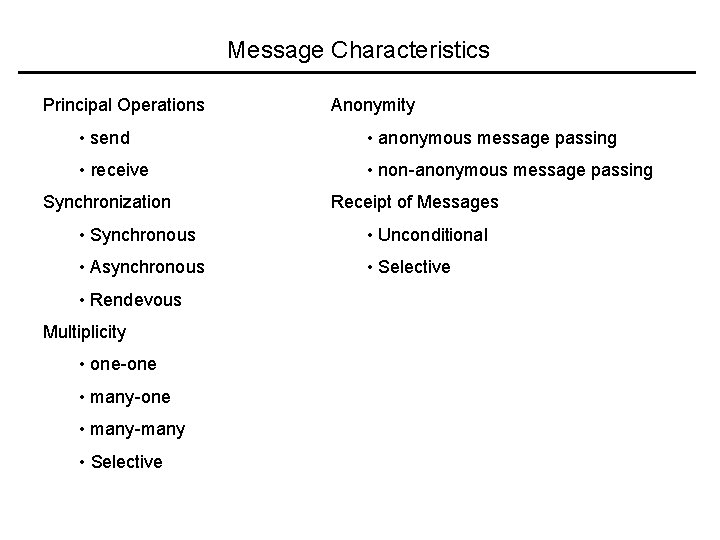

Message Characteristics Principal Operations Anonymity • send • anonymous message passing • receive • non-anonymous message passing Synchronization Receipt of Messages • Synchronous • Unconditional • Asynchronous • Selective • Rendevous Multiplicity • one-one • many-many • Selective

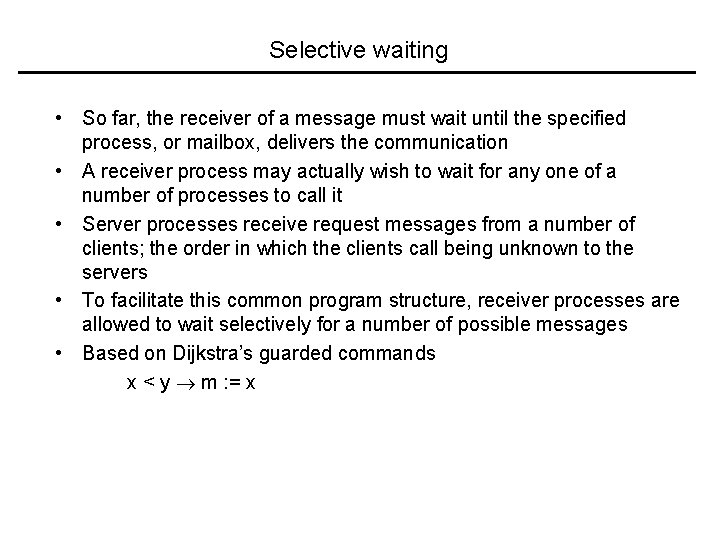

Selective waiting • So far, the receiver of a message must wait until the specified process, or mailbox, delivers the communication • A receiver process may actually wish to wait for any one of a number of processes to call it • Server processes receive request messages from a number of clients; the order in which the clients call being unknown to the servers • To facilitate this common program structure, receiver processes are allowed to wait selectively for a number of possible messages • Based on Dijkstra’s guarded commands x < y m : = x

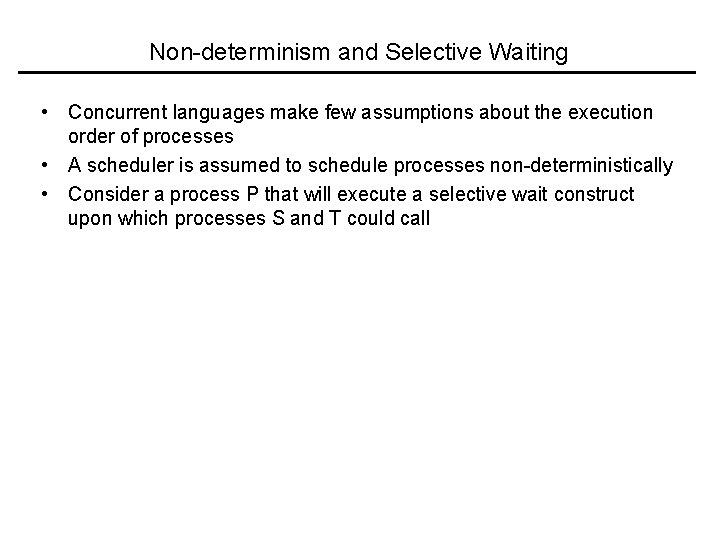

Non-determinism and Selective Waiting • Concurrent languages make few assumptions about the execution order of processes • A scheduler is assumed to schedule processes non-deterministically • Consider a process P that will execute a selective wait construct upon which processes S and T could call

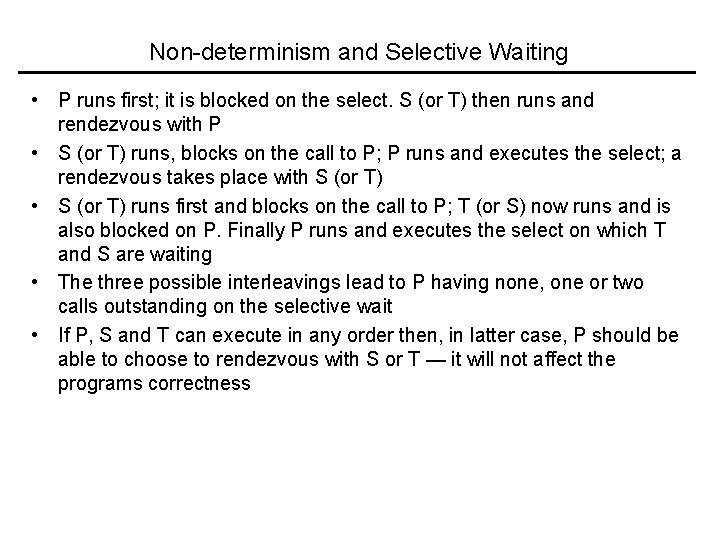

Non-determinism and Selective Waiting • P runs first; it is blocked on the select. S (or T) then runs and rendezvous with P • S (or T) runs, blocks on the call to P; P runs and executes the select; a rendezvous takes place with S (or T) • S (or T) runs first and blocks on the call to P; T (or S) now runs and is also blocked on P. Finally P runs and executes the select on which T and S are waiting • The three possible interleavings lead to P having none, one or two calls outstanding on the selective wait • If P, S and T can execute in any order then, in latter case, P should be able to choose to rendezvous with S or T — it will not affect the programs correctness

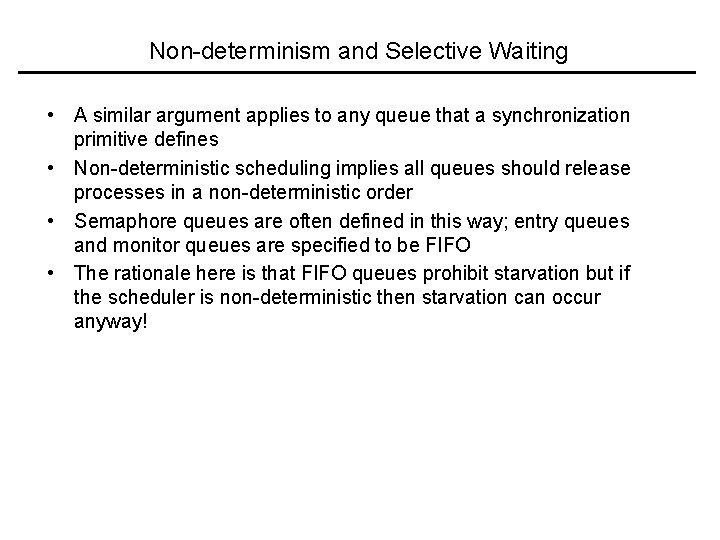

Non-determinism and Selective Waiting • A similar argument applies to any queue that a synchronization primitive defines • Non-deterministic scheduling implies all queues should release processes in a non-deterministic order • Semaphore queues are often defined in this way; entry queues and monitor queues are specified to be FIFO • The rationale here is that FIFO queues prohibit starvation but if the scheduler is non-deterministic then starvation can occur anyway!

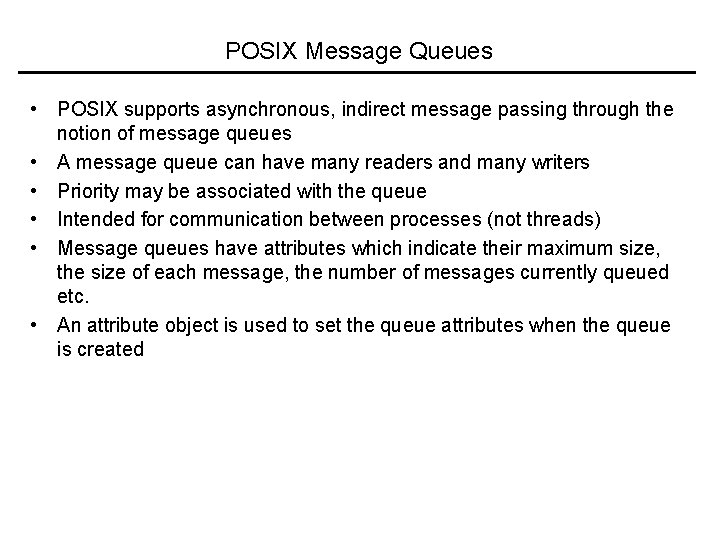

POSIX Message Queues • POSIX supports asynchronous, indirect message passing through the notion of message queues • A message queue can have many readers and many writers • Priority may be associated with the queue • Intended for communication between processes (not threads) • Message queues have attributes which indicate their maximum size, the size of each message, the number of messages currently queued etc. • An attribute object is used to set the queue attributes when the queue is created

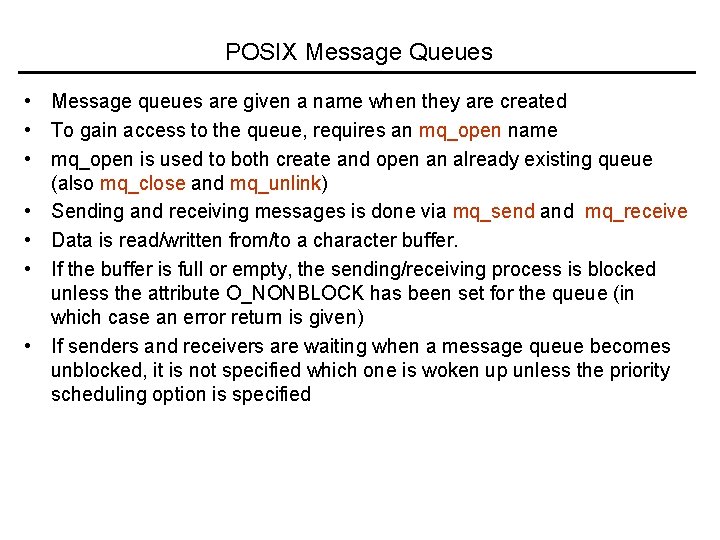

POSIX Message Queues • Message queues are given a name when they are created • To gain access to the queue, requires an mq_open name • mq_open is used to both create and open an already existing queue (also mq_close and mq_unlink) • Sending and receiving messages is done via mq_send and mq_receive • Data is read/written from/to a character buffer. • If the buffer is full or empty, the sending/receiving process is blocked unless the attribute O_NONBLOCK has been set for the queue (in which case an error return is given) • If senders and receivers are waiting when a message queue becomes unblocked, it is not specified which one is woken up unless the priority scheduling option is specified

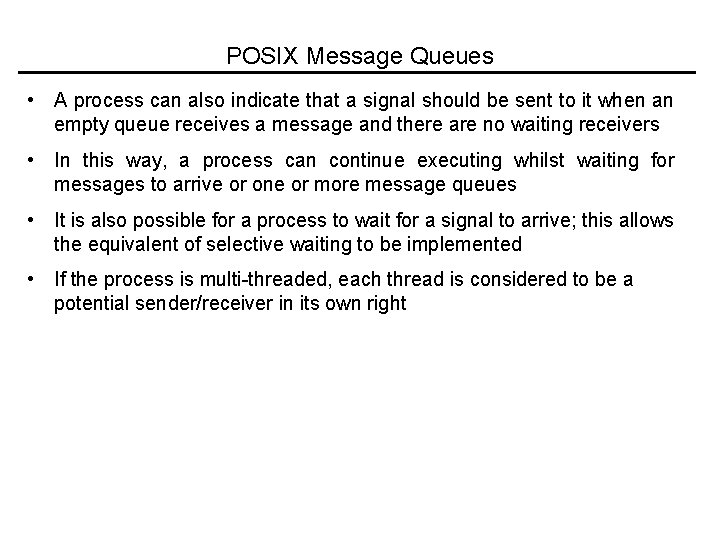

POSIX Message Queues • A process can also indicate that a signal should be sent to it when an empty queue receives a message and there are no waiting receivers • In this way, a process can continue executing whilst waiting for messages to arrive or one or more message queues • It is also possible for a process to wait for a signal to arrive; this allows the equivalent of selective waiting to be implemented • If the process is multi-threaded, each thread is considered to be a potential sender/receiver in its own right

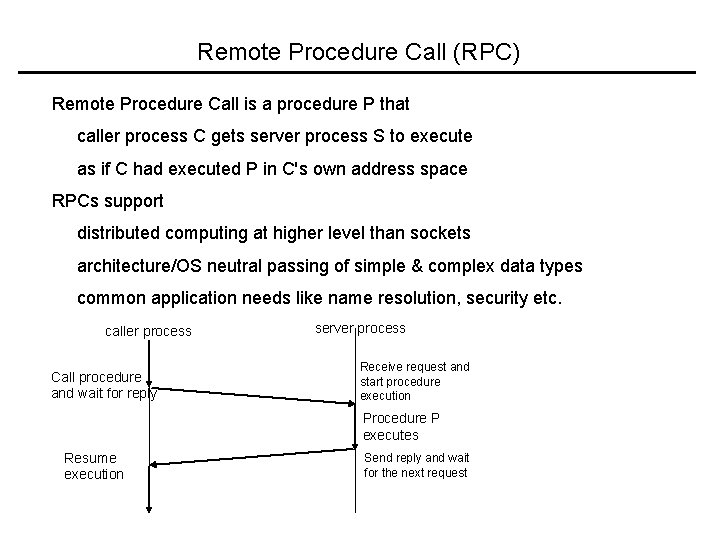

Remote Procedure Call (RPC) Remote Procedure Call is a procedure P that caller process C gets server process S to execute as if C had executed P in C's own address space RPCs support distributed computing at higher level than sockets architecture/OS neutral passing of simple & complex data types common application needs like name resolution, security etc. caller process Call procedure and wait for reply server process Receive request and start procedure execution Procedure P executes Resume execution Send reply and wait for the next request

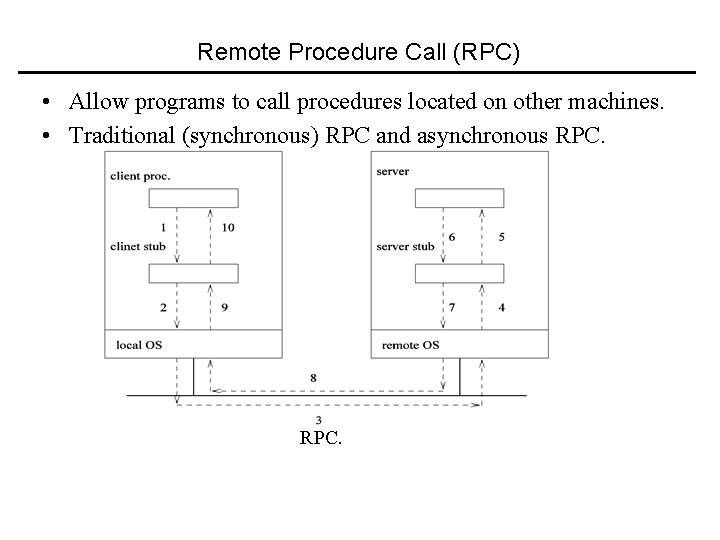

Remote Procedure Call (RPC) • Allow programs to call procedures located on other machines. • Traditional (synchronous) RPC and asynchronous RPC.

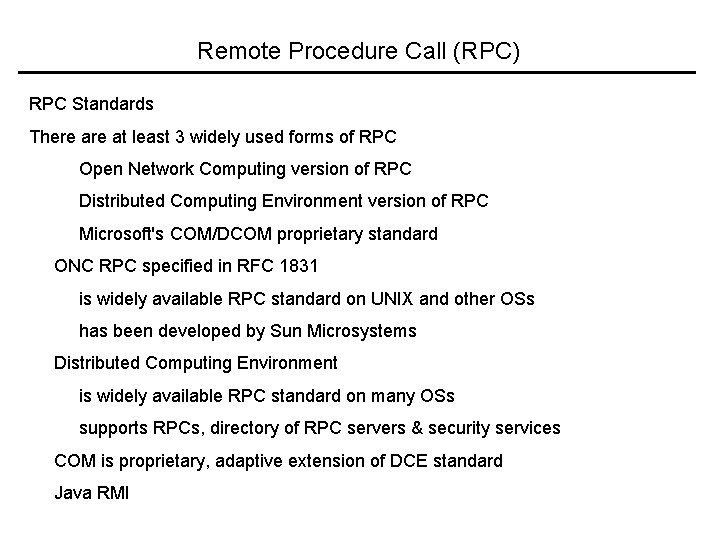

Remote Procedure Call (RPC) RPC Standards There at least 3 widely used forms of RPC Open Network Computing version of RPC Distributed Computing Environment version of RPC Microsoft's COM/DCOM proprietary standard ONC RPC specified in RFC 1831 is widely available RPC standard on UNIX and other OSs has been developed by Sun Microsystems Distributed Computing Environment is widely available RPC standard on many OSs supports RPCs, directory of RPC servers & security services COM is proprietary, adaptive extension of DCE standard Java RMI

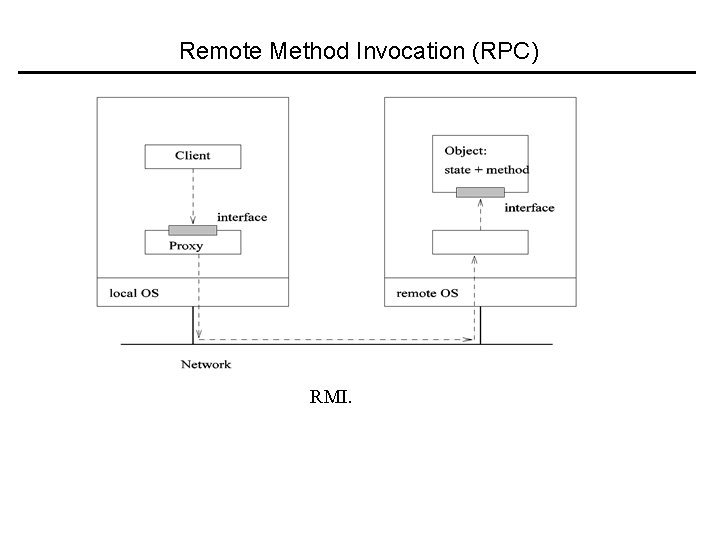

Remote Method Invocation (RPC) RMI.

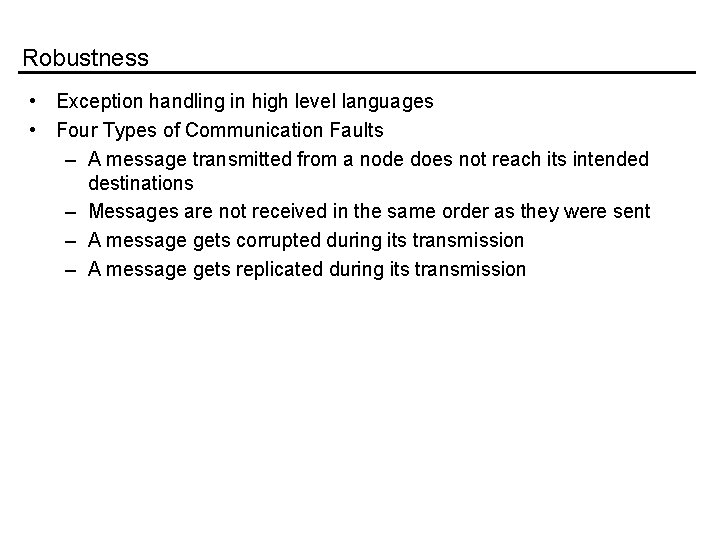

Robustness • Exception handling in high level languages • Four Types of Communication Faults – A message transmitted from a node does not reach its intended destinations – Messages are not received in the same order as they were sent – A message gets corrupted during its transmission – A message gets replicated during its transmission

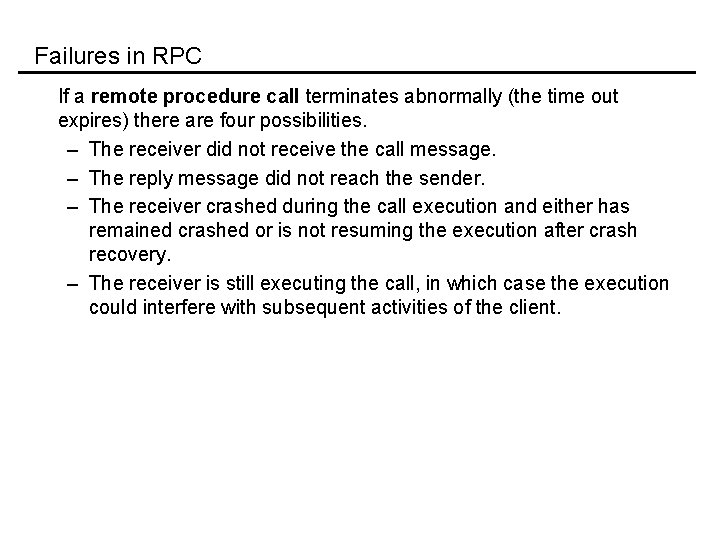

Failures in RPC If a remote procedure call terminates abnormally (the time out expires) there are four possibilities. – The receiver did not receive the call message. – The reply message did not reach the sender. – The receiver crashed during the call execution and either has remained crashed or is not resuming the execution after crash recovery. – The receiver is still executing the call, in which case the execution could interfere with subsequent activities of the client.

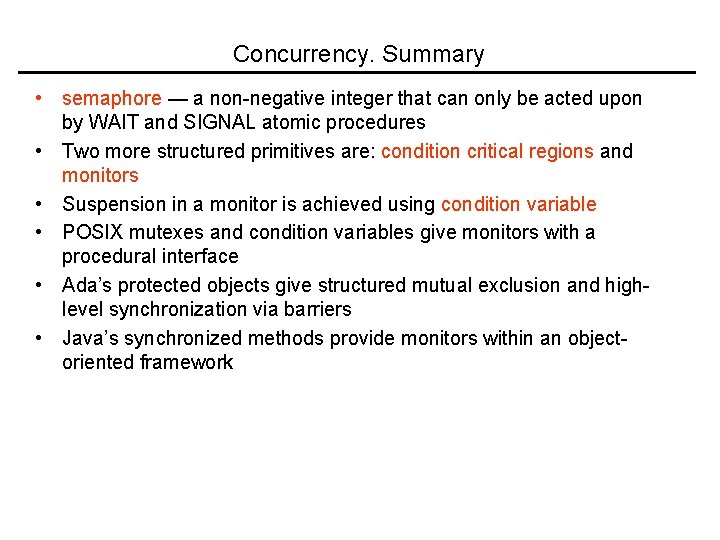

Concurrency. Summary • semaphore — a non-negative integer that can only be acted upon by WAIT and SIGNAL atomic procedures • Two more structured primitives are: condition critical regions and monitors • Suspension in a monitor is achieved using condition variable • POSIX mutexes and condition variables give monitors with a procedural interface • Ada’s protected objects give structured mutual exclusion and highlevel synchronization via barriers • Java’s synchronized methods provide monitors within an objectoriented framework

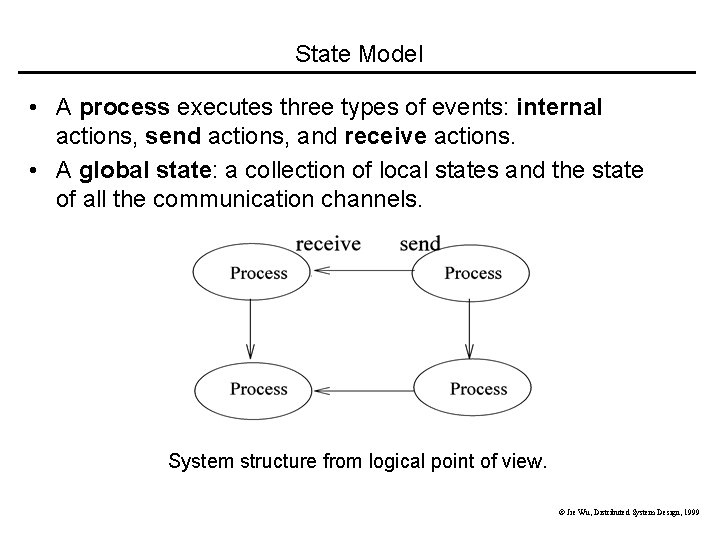

State Model • A process executes three types of events: internal actions, send actions, and receive actions. • A global state: a collection of local states and the state of all the communication channels. System structure from logical point of view. © Jie Wu, Distributed System Design, 1999

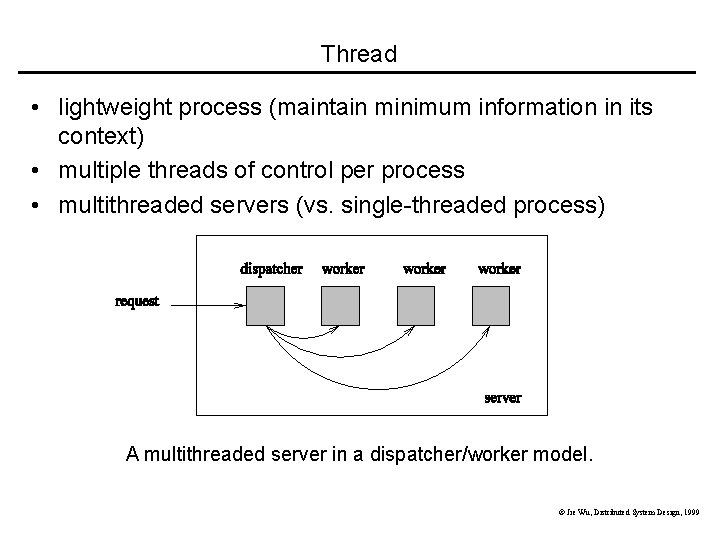

Thread • lightweight process (maintain minimum information in its context) • multiple threads of control per process • multithreaded servers (vs. single-threaded process) A multithreaded server in a dispatcher/worker model. © Jie Wu, Distributed System Design, 1999

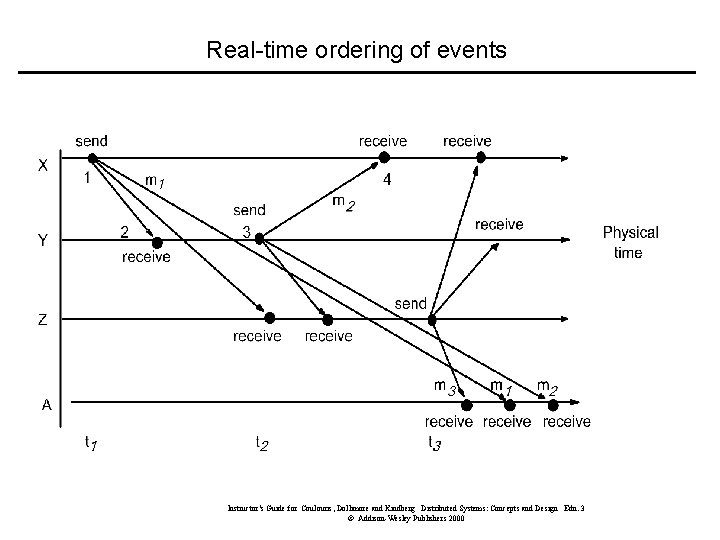

Real-time ordering of events Instructor’s Guide for Coulouris, Dollimore and Kindberg Distributed Systems: Concepts and Design Edn. 3 © Addison-Wesley Publishers 2000

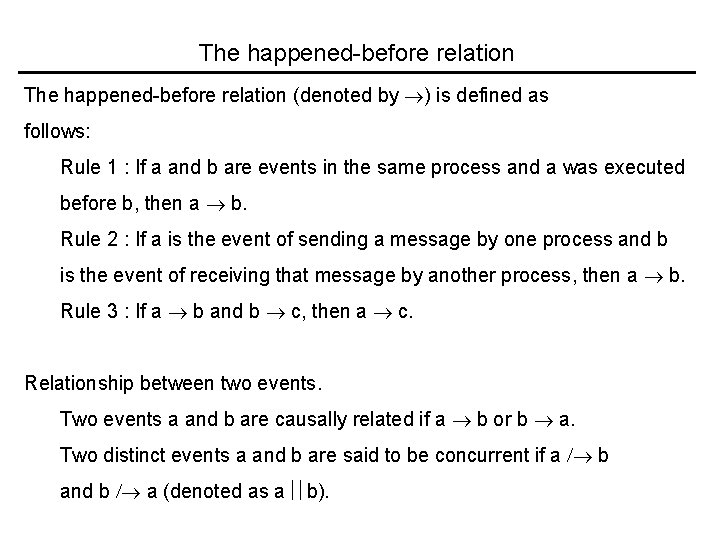

The happened-before relation (denoted by ) is defined as follows: Rule 1 : If a and b are events in the same process and a was executed before b, then a b. Rule 2 : If a is the event of sending a message by one process and b is the event of receiving that message by another process, then a b. Rule 3 : If a b and b c, then a c. Relationship between two events. Two events a and b are causally related if a b or b a. Two distinct events a and b are said to be concurrent if a b and b a (denoted as a b).

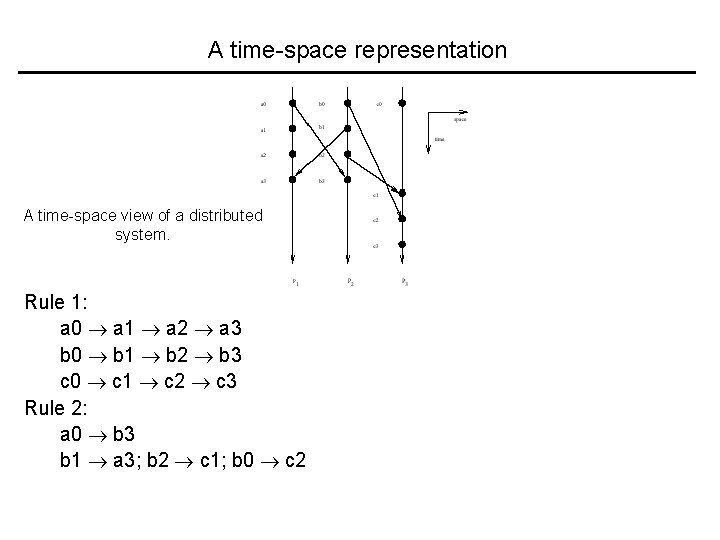

A time-space representation A time-space view of a distributed system. Rule 1: a 0 a 1 a 2 a 3 b 0 b 1 b 2 b 3 c 0 c 1 c 2 c 3 Rule 2: a 0 b 3 b 1 a 3; b 2 c 1; b 0 c 2

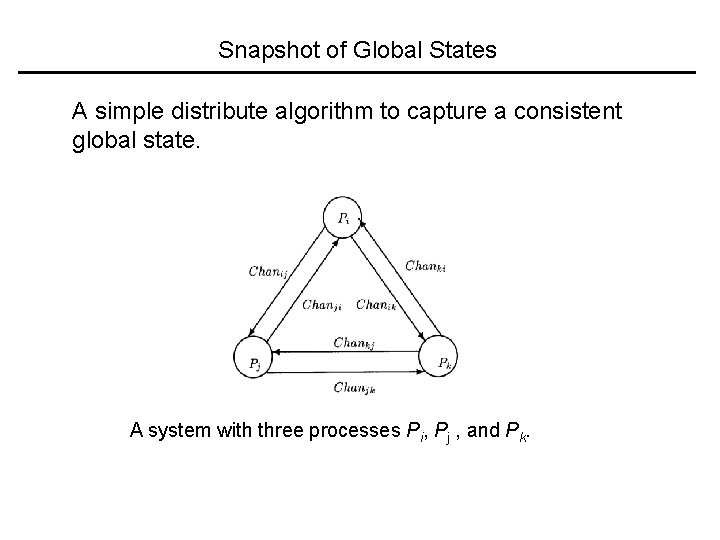

Snapshot of Global States A simple distribute algorithm to capture a consistent global state. A system with three processes Pi, Pj , and Pk.

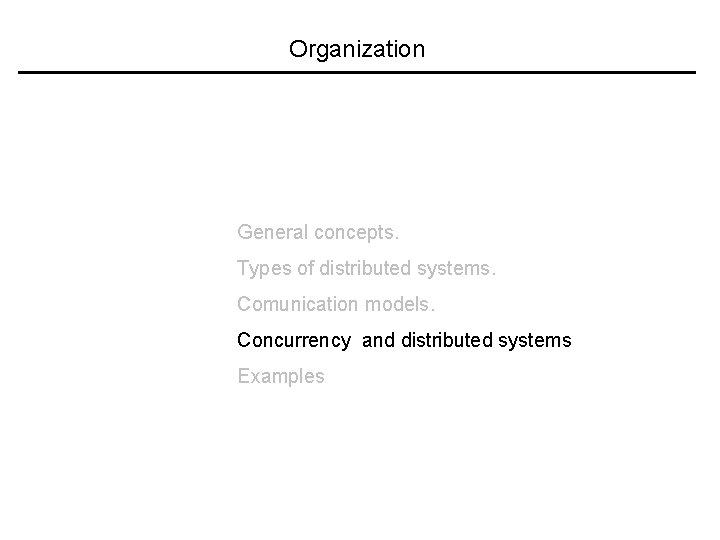

Organization General concepts. Types of distributed systems. Comunication models. Concurrency and distributed systems Examples

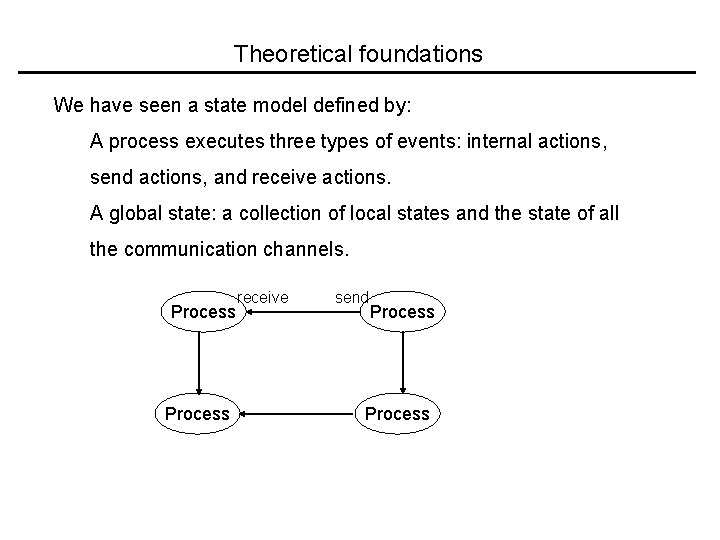

Theoretical foundations We have seen a state model defined by: A process executes three types of events: internal actions, send actions, and receive actions. A global state: a collection of local states and the state of all the communication channels. Process receive send Process

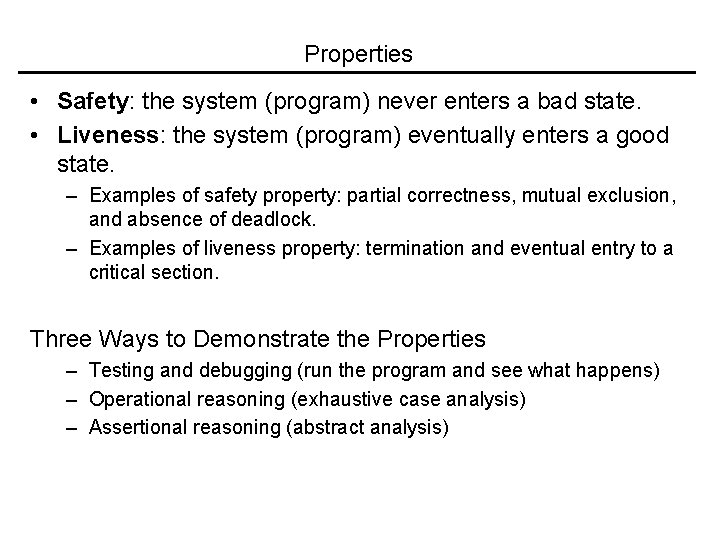

Properties • Safety: the system (program) never enters a bad state. • Liveness: the system (program) eventually enters a good state. – Examples of safety property: partial correctness, mutual exclusion, and absence of deadlock. – Examples of liveness property: termination and eventual entry to a critical section. Three Ways to Demonstrate the Properties – Testing and debugging (run the program and see what happens) – Operational reasoning (exhaustive case analysis) – Assertional reasoning (abstract analysis)

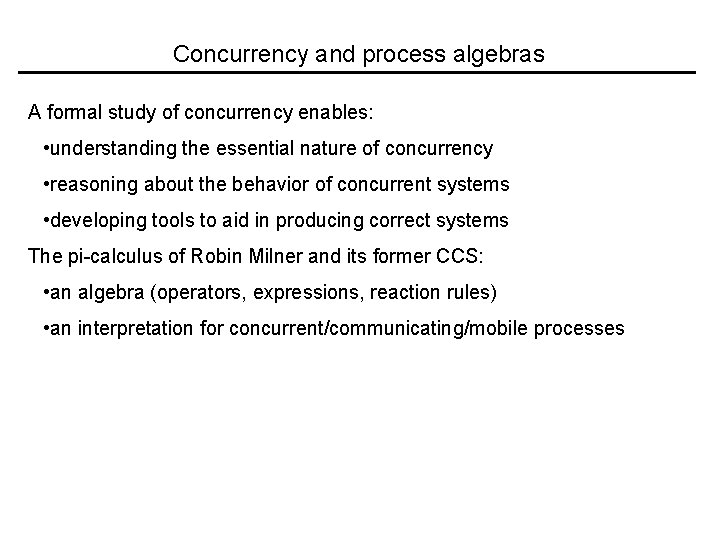

Concurrency and process algebras A formal study of concurrency enables: • understanding the essential nature of concurrency • reasoning about the behavior of concurrent systems • developing tools to aid in producing correct systems The pi-calculus of Robin Milner and its former CCS: • an algebra (operators, expressions, reaction rules) • an interpretation for concurrent/communicating/mobile processes

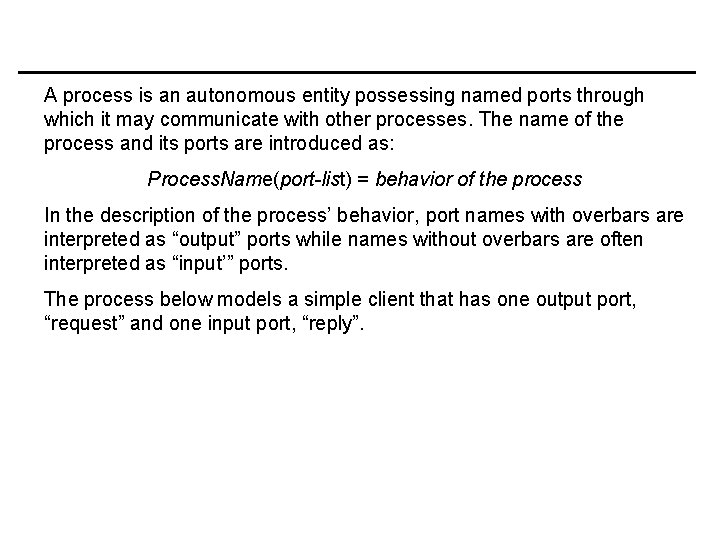

A process is an autonomous entity possessing named ports through which it may communicate with other processes. The name of the process and its ports are introduced as: Process. Name(port-list) = behavior of the process In the description of the process’ behavior, port names with overbars are interpreted as “output” ports while names without overbars are often interpreted as “input’” ports. The process below models a simple client that has one output port, “request” and one input port, “reply”.

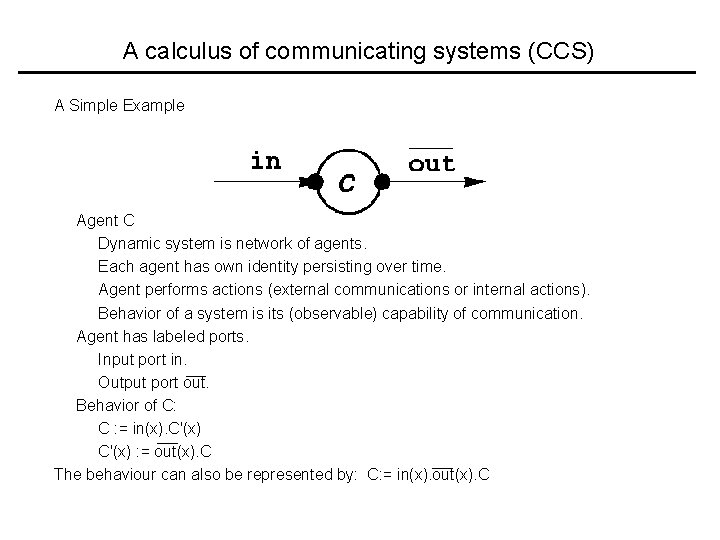

A calculus of communicating systems (CCS) A Simple Example Agent C Dynamic system is network of agents. Each agent has own identity persisting over time. Agent performs actions (external communications or internal actions). Behavior of a system is its (observable) capability of communication. Agent has labeled ports. Input port in. Output port out. Behavior of C: C : = in(x). C'(x) : = out(x). C The behaviour can also be represented by: C: = in(x). out(x). C

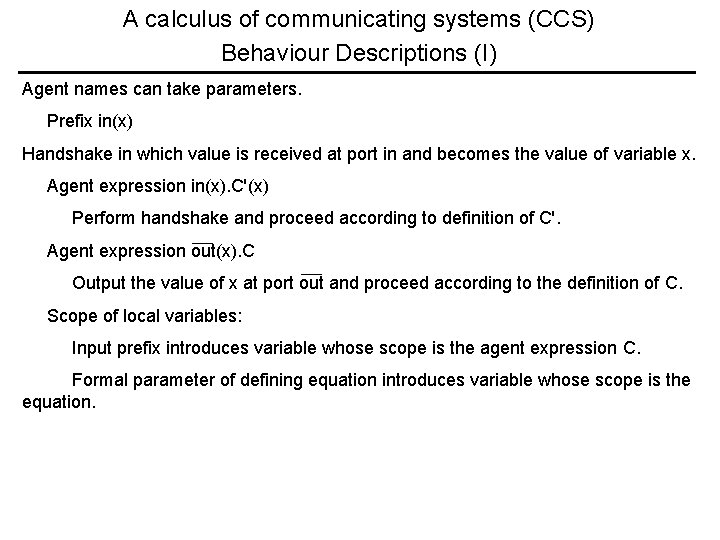

A calculus of communicating systems (CCS) Behaviour Descriptions (I) Agent names can take parameters. Prefix in(x) Handshake in which value is received at port in and becomes the value of variable x. Agent expression in(x). C'(x) Perform handshake and proceed according to definition of C'. Agent expression out(x). C Output the value of x at port out and proceed according to the definition of C. Scope of local variables: Input prefix introduces variable whose scope is the agent expression C. Formal parameter of defining equation introduces variable whose scope is the equation.

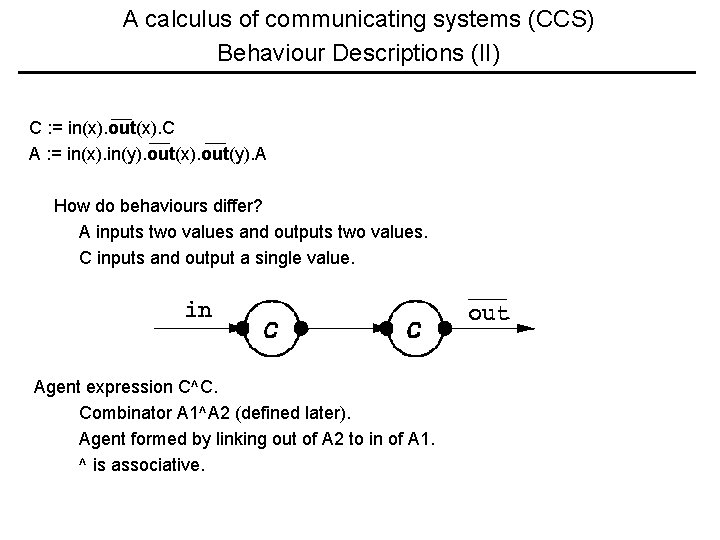

A calculus of communicating systems (CCS) Behaviour Descriptions (II) C : = in(x). out(x). C A : = in(x). in(y). out(x). out(y). A How do behaviours differ? A inputs two values and outputs two values. C inputs and output a single value. Agent expression C^C. Combinator A 1^A 2 (defined later). Agent formed by linking out of A 2 to in of A 1. ^ is associative.

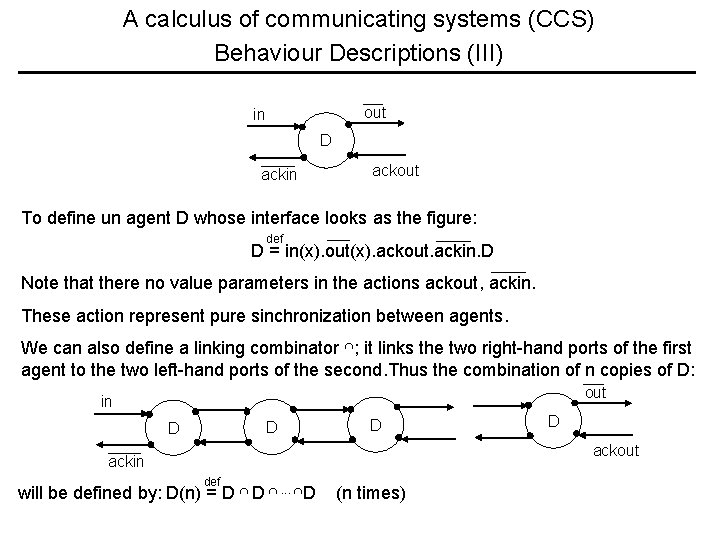

A calculus of communicating systems (CCS) Behaviour Descriptions (III) out in D ackin ackout To define un agent D whose interface looks as the figure: def D = in(x). out(x). ackout. ackin. D Note that there no value parameters in the actions ackout, ackin. These action represent pure sinchronization between agents. We can also define a linking combinator ; it links the two right-hand ports of the first agent to the two left-hand ports of the second. Thus the combination of n copies of D: out in D D ackout ackin def will be defined by: D(n) = D D . . . D (n times)

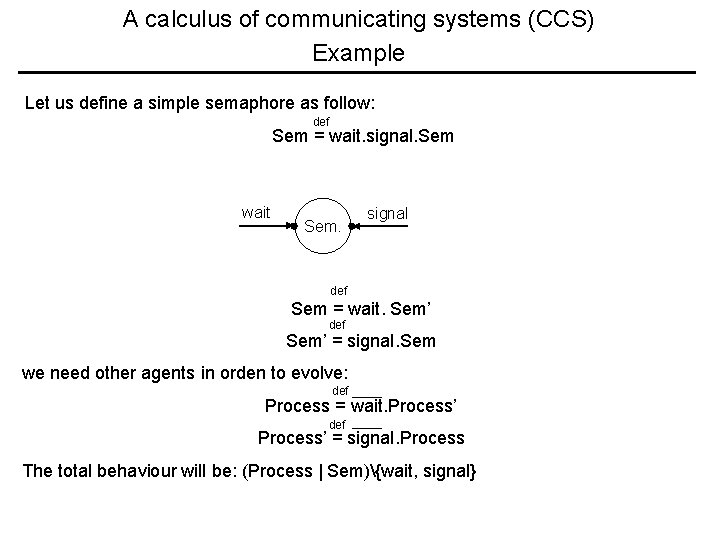

A calculus of communicating systems (CCS) Example Let us define a simple semaphore as follow: def Sem = wait. signal. Sem wait Sem. signal def Sem = wait. Sem’ def Sem’ = signal. Sem we need other agents in orden to evolve: def Process = wait. Process’ def Process’ = signal. Process The total behaviour will be: (Process | Sem){wait, signal}

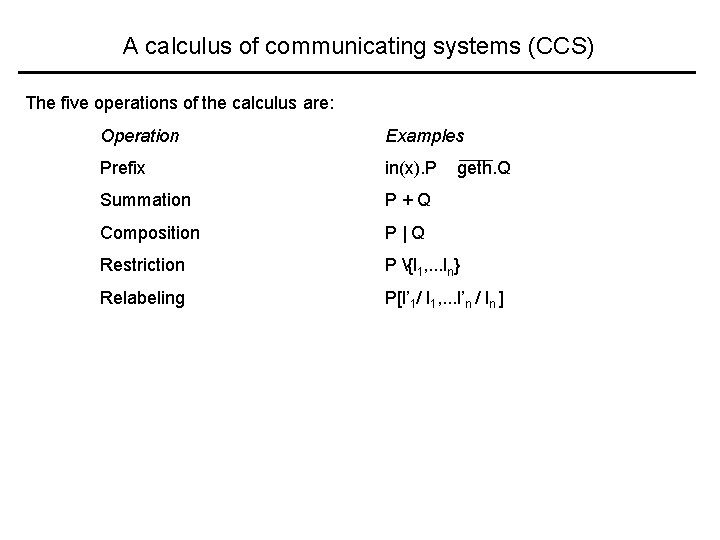

A calculus of communicating systems (CCS) The five operations of the calculus are: Operation Examples Prefix in(x). P Summation P+Q Composition P|Q Restriction P {l 1, . . . ln} Relabeling P[l’ 1/ l 1, . . . l’n / ln ] geth. Q

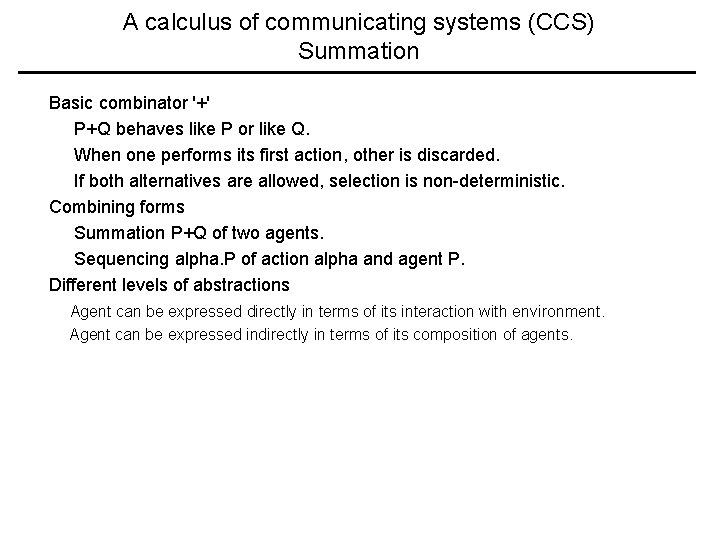

A calculus of communicating systems (CCS) Summation Basic combinator '+' P+Q behaves like P or like Q. When one performs its first action, other is discarded. If both alternatives are allowed, selection is non-deterministic. Combining forms Summation P+Q of two agents. Sequencing alpha. P of action alpha and agent P. Different levels of abstractions Agent can be expressed directly in terms of its interaction with environment. Agent can be expressed indirectly in terms of its composition of agents.

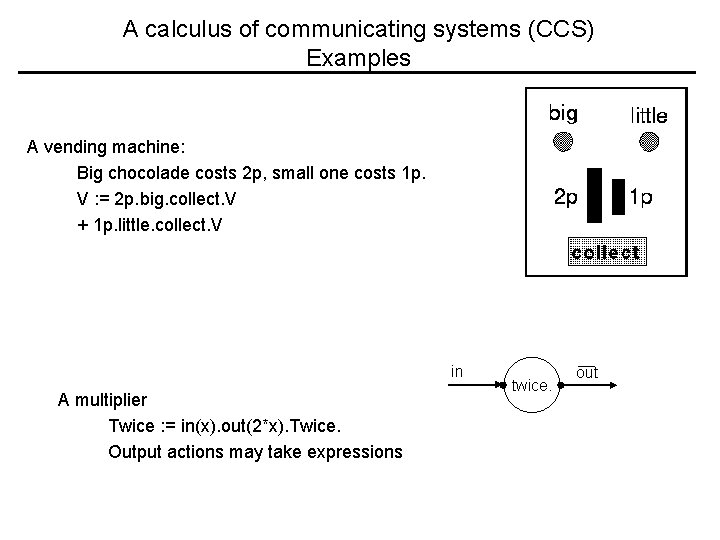

A calculus of communicating systems (CCS) Examples A vending machine: Big chocolade costs 2 p, small one costs 1 p. V : = 2 p. big. collect. V + 1 p. little. collect. V in A multiplier Twice : = in(x). out(2*x). Twice. Output actions may take expressions twice. out

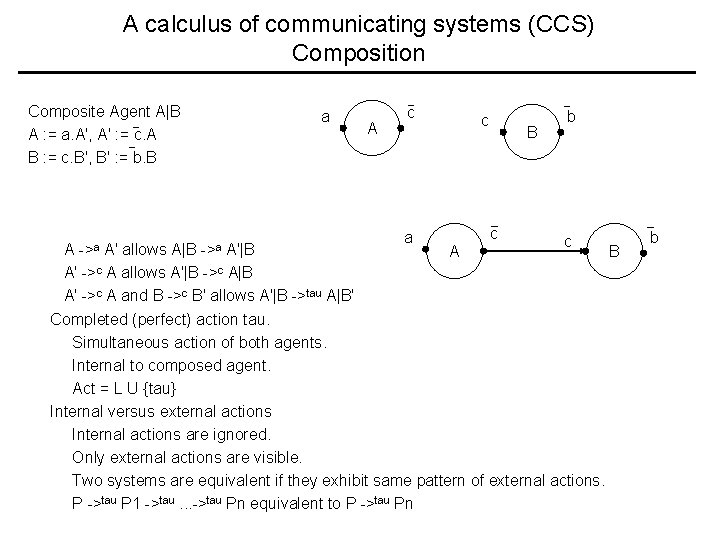

A calculus of communicating systems (CCS) Composition Composite Agent A|B A : = a. A', A' : = c. A B : = c. B', B' : = b. B a A c a c B c b c A A' allows A|B A'|B A B A' ->c A allows A'|B ->c A|B A' ->c A and B ->c B' allows A'|B ->tau A|B' Completed (perfect) action tau. Simultaneous action of both agents. Internal to composed agent. Act = L U {tau} Internal versus external actions Internal actions are ignored. Only external actions are visible. Two systems are equivalent if they exhibit same pattern of external actions. P ->tau P 1 ->tau. . . ->tau Pn equivalent to P ->tau Pn ->a b

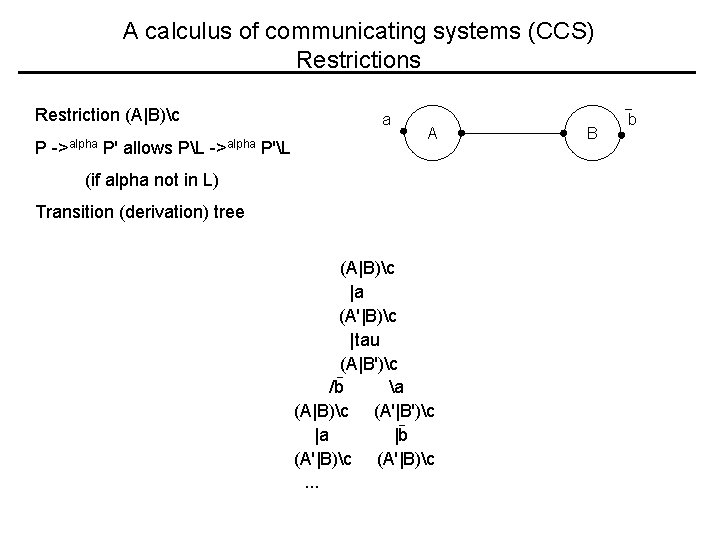

A calculus of communicating systems (CCS) Restrictions Restriction (A|B)c P ->alpha P' allows PL ->alpha P'L a A (if alpha not in L) Transition (derivation) tree (A|B)c |a (A'|B)c |tau (A|B')c /b a (A|B)c (A'|B')c |a |b (A'|B)c. . . B b

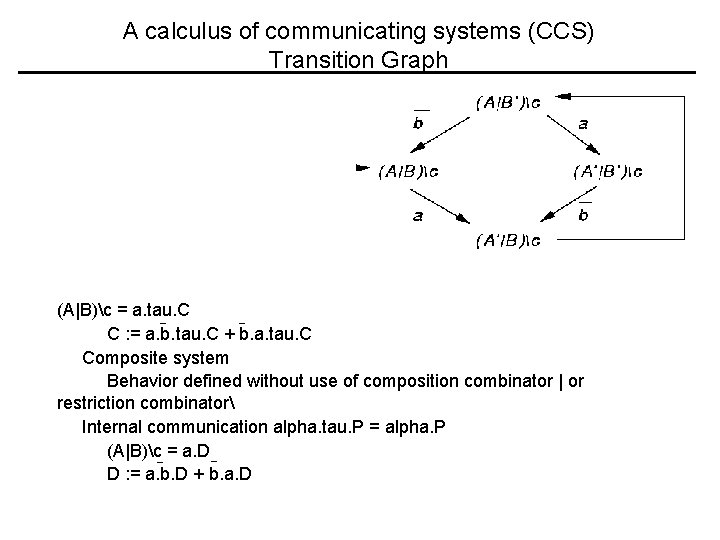

A calculus of communicating systems (CCS) Transition Graph (A|B)c = a. tau. C C : = a. b. tau. C + b. a. tau. C Composite system Behavior defined without use of composition combinator | or restriction combinator Internal communication alpha. tau. P = alpha. P (A|B)c = a. D D : = a. b. D + b. a. D

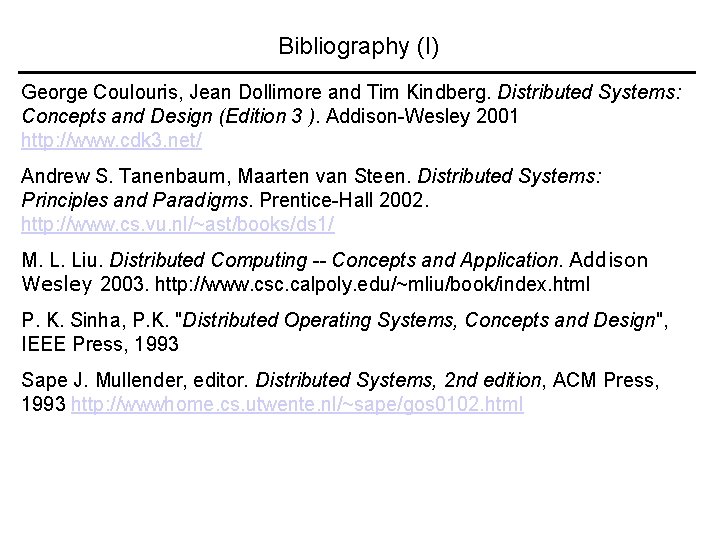

Bibliography (I) George Coulouris, Jean Dollimore and Tim Kindberg. Distributed Systems: Concepts and Design (Edition 3 ). Addison-Wesley 2001 http: //www. cdk 3. net/ Andrew S. Tanenbaum, Maarten van Steen. Distributed Systems: Principles and Paradigms. Prentice-Hall 2002. http: //www. cs. vu. nl/~ast/books/ds 1/ M. L. Liu. Distributed Computing -- Concepts and Application. Addison Wesley 2003. http: //www. csc. calpoly. edu/~mliu/book/index. html P. K. Sinha, P. K. "Distributed Operating Systems, Concepts and Design", IEEE Press, 1993 Sape J. Mullender, editor. Distributed Systems, 2 nd edition, ACM Press, 1993 http: //wwwhome. cs. utwente. nl/~sape/gos 0102. html

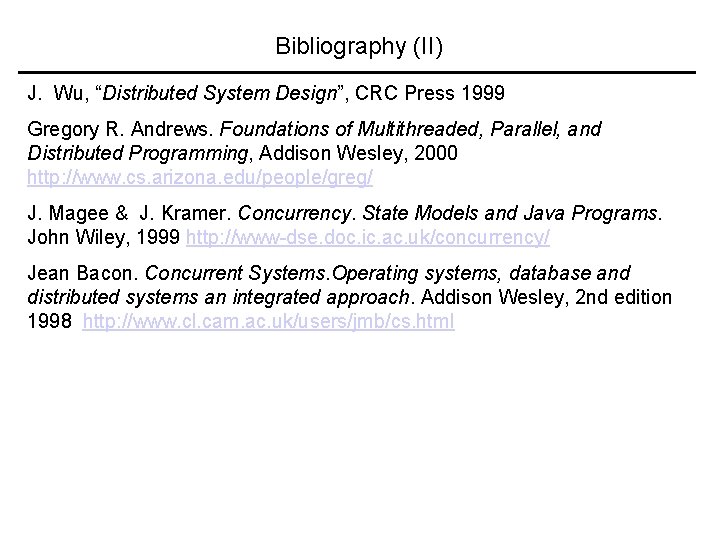

Bibliography (II) J. Wu, “Distributed System Design”, CRC Press 1999 Gregory R. Andrews. Foundations of Multithreaded, Parallel, and Distributed Programming, Addison Wesley, 2000 http: //www. cs. arizona. edu/people/greg/ J. Magee & J. Kramer. Concurrency. State Models and Java Programs. John Wiley, 1999 http: //www-dse. doc. ic. ac. uk/concurrency/ Jean Bacon. Concurrent Systems. Operating systems, database and distributed systems an integrated approach. Addison Wesley, 2 nd edition 1998 http: //www. cl. cam. ac. uk/users/jmb/cs. html
