Advanced ABAP Objects Programming Horst Keller Stefan Bresch

Advanced ABAP Objects Programming Horst Keller / Stefan Bresch Business Programming Languages, SAP AG

Overview Interfaces and Inheritance Visibility and Access Method Call Object Services

Interfaces and Inheritance Abstract and Final Classes and Methods Composing Interfaces Polymorphism Polymorphic Event Handling

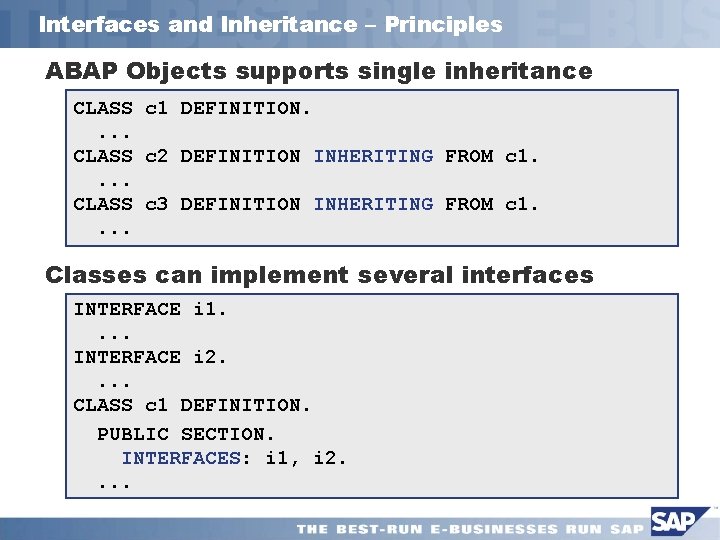

Interfaces and Inheritance – Principles ABAP Objects supports single inheritance CLASS c 1 DEFINITION. . . . CLASS c 2 DEFINITION INHERITING FROM c 1. . . . CLASS c 3 DEFINITION INHERITING FROM c 1. . . . Classes can implement several interfaces INTERFACE i 1. . . . INTERFACE i 2. . . . CLASS c 1 DEFINITION. PUBLIC SECTION. INTERFACES: i 1, i 2. . . .

Abstract and Final Classes and Methods Abstract Classes and Methods CLASS c 1 DEFINTION ABSTRACT. METHODS: m 1, m 2 ABSTRACT. ENDCLASS. CLASS c 1 IMPLEMENTATION. METHODS m 1. ENDMETHOD. ENDCLASS. u Abstract classes can‘t be instantiated u Abstract methods can only be implemented in a subclass, using REDEFINITION. u A class containing an abstract method must itself be abstract. u Compared to interfaces, abstract classes can be partly implemented but are restricted by single inheritance.

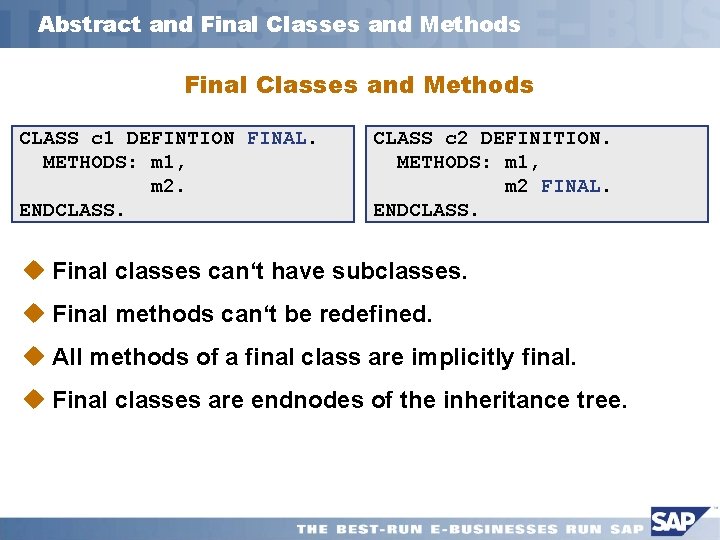

Abstract and Final Classes and Methods CLASS c 1 DEFINTION FINAL. METHODS: m 1, m 2. ENDCLASS. CLASS c 2 DEFINITION. METHODS: m 1, m 2 FINAL. ENDCLASS. u Final classes can‘t have subclasses. u Final methods can‘t be redefined. u All methods of a final class are implicitly final. u Final classes are endnodes of the inheritance tree.

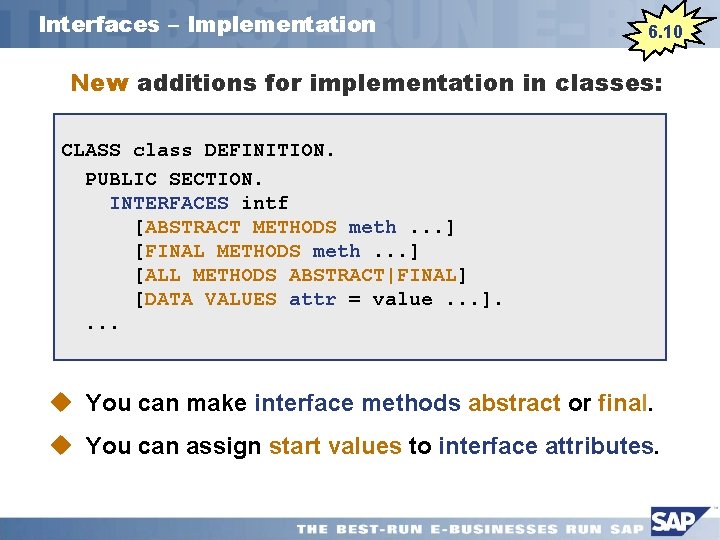

Interfaces – Implementation 6. 10 New additions for implementation in classes: CLASS class DEFINITION. PUBLIC SECTION. INTERFACES intf. [ABSTRACT METHODS meth. . . ] [FINAL METHODS meth. . . ] [ALL METHODS ABSTRACT|FINAL] [DATA VALUES attr = value. . . ]. . . . u You can make interface methods abstract or final. u You can assign start values to interface attributes.

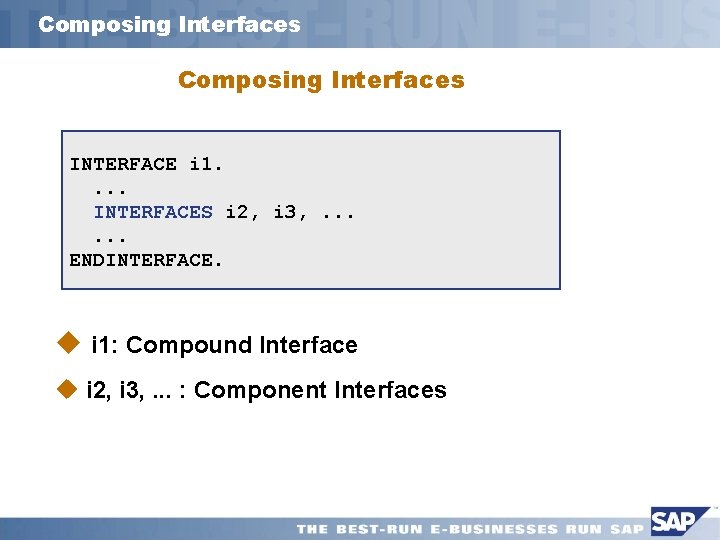

Composing Interfaces INTERFACE i 1. . . . INTERFACES i 2, i 3, . . . ENDINTERFACE. u i 1: Compound Interface u i 2, i 3, . . . : Component Interfaces

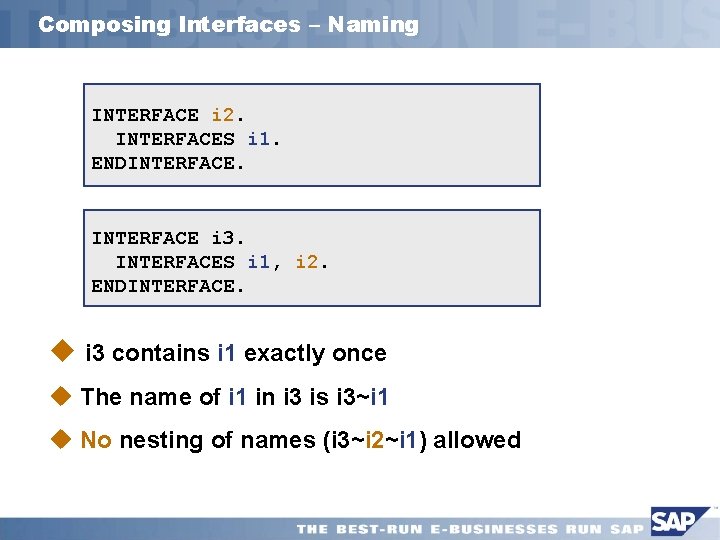

Composing Interfaces – Naming INTERFACE i 2. INTERFACES i 1. ENDINTERFACE. INTERFACE i 3. INTERFACES i 1, i 2. ENDINTERFACE. u i 3 contains i 1 exactly once u The name of i 1 in i 3 is i 3~i 1 u No nesting of names (i 3~i 2~i 1) allowed

Composing Interfaces – Diamond Inheritance INTERFACE i 1. METHODS meth. ENDINTERFACE. INTERFACE i 2. INTERFACES i 1. METHODS meth. ENDINTERFACE. INTERFACE i 3. INTERFACES i 1. METHODS meth. ENDINTERFACE. INTERFACE i 4. INTERFACES i 2, i 3. ENDINTERFACE. Problem?

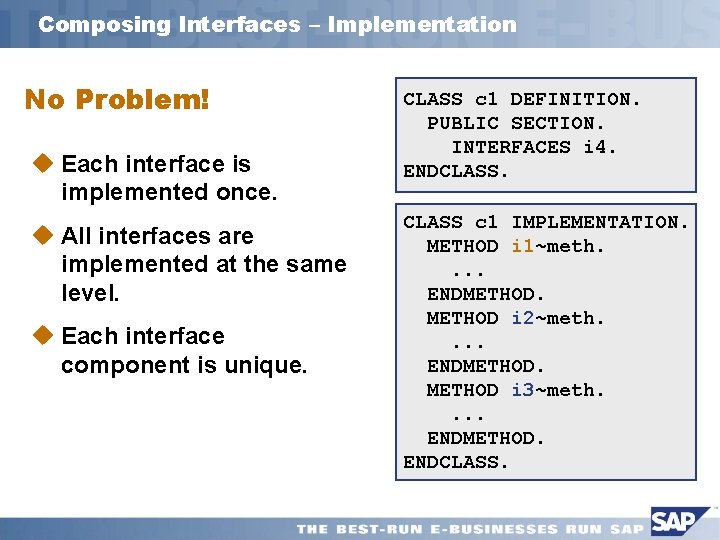

Composing Interfaces – Implementation No Problem! u Each interface is implemented once. u All interfaces are implemented at the same level. u Each interface component is unique. CLASS c 1 DEFINITION. PUBLIC SECTION. INTERFACES i 4. ENDCLASS c 1 IMPLEMENTATION. METHOD i 1~meth. . ENDMETHOD. METHOD i 2~meth. . ENDMETHOD. METHOD i 3~meth. . ENDMETHOD. ENDCLASS.

Composing Interfaces – Aliases INTERFACE i 1. METHODS m 1. ENDINTERFACE i 2. INTERFACES i 1. ALIASES m 2 FOR i 1~m 1. ENDINTERFACE i 3. INTERFACES i 2. ALIASES m 3 FOR i 2~m 2. ENDINTERFACE. DATA: iref 1 TYPE REF TO i 1, iref 3 TYPE REF TO i 3. iref 1 = iref 3. iref 1 ->m 1( ). iref 3 ->m 3( ). u Inside: Access to deep components of compound interfaces via aliases only. u Outside: Narrowing cast. FOR i 2~i 1~m 1. iref 3 ->i 2~i 1~m 1( ).

Polymorphism Accessing different methods in different objects and with different behavior via the same interface. u You access objects via reference variables. u You can use one and the same reference variable to access various objects. u What is the technical background?

Polymorphism – Reference Variables u Object: CREATE OBJECT oref TYPE class. Instance of a class. u Reference Variable: DATA oref TYPE REF TO class|interface. Typed with a class or an interface Reference Variable Types: Static Type Dynamic Type - from typing class of object oref

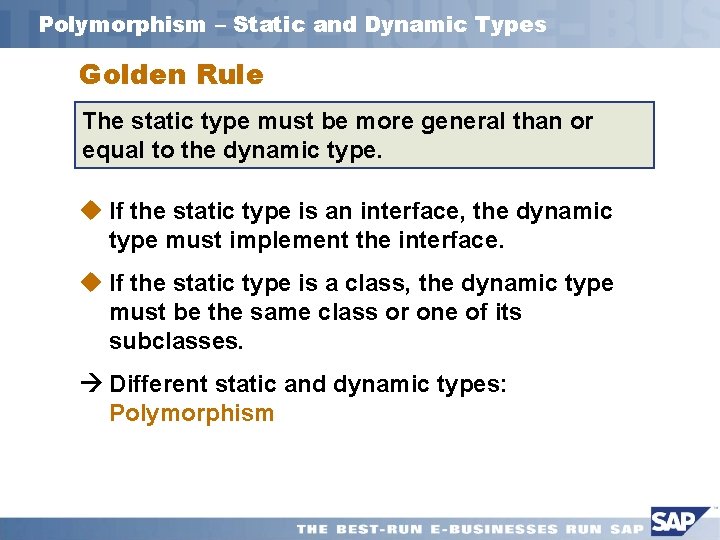

Polymorphism – Static and Dynamic Types Golden Rule The static type must be more general than or equal to the dynamic type. u If the static type is an interface, the dynamic type must implement the interface. u If the static type is a class, the dynamic type must be the same class or one of its subclasses. Different static and dynamic types: Polymorphism

Polymorphism – Reference Variable Assignments Two cases for assignments: 1. Golden rule can be tested statically: Static type of target is more general than or equal to static type of source. Narrowing (Up) Cast 2. Golden rule cannot be tested statically: Static type of target is more special than static type of source. Widening (Down) Cast

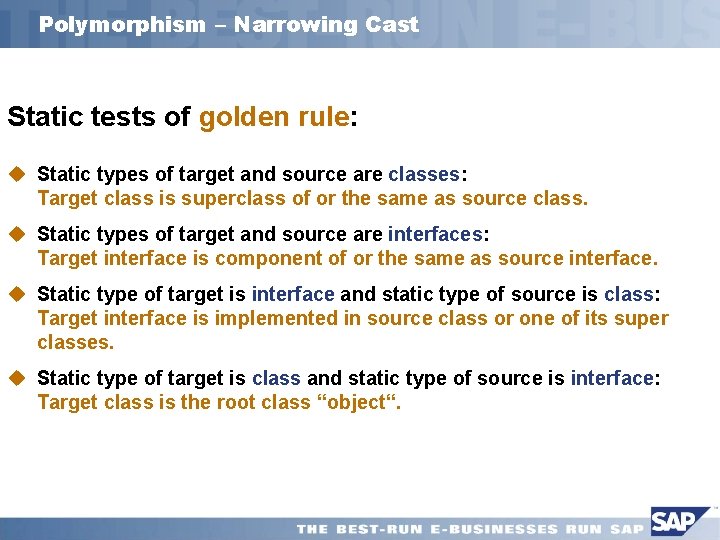

Polymorphism – Narrowing Cast Static tests of golden rule: u Static types of target and source are classes: Target class is superclass of or the same as source class. u Static types of target and source are interfaces: Target interface is component of or the same as source interface. u Static type of target is interface and static type of source is class: Target interface is implemented in source class or one of its super classes. u Static type of target is class and static type of source is interface: Target class is the root class “object“.

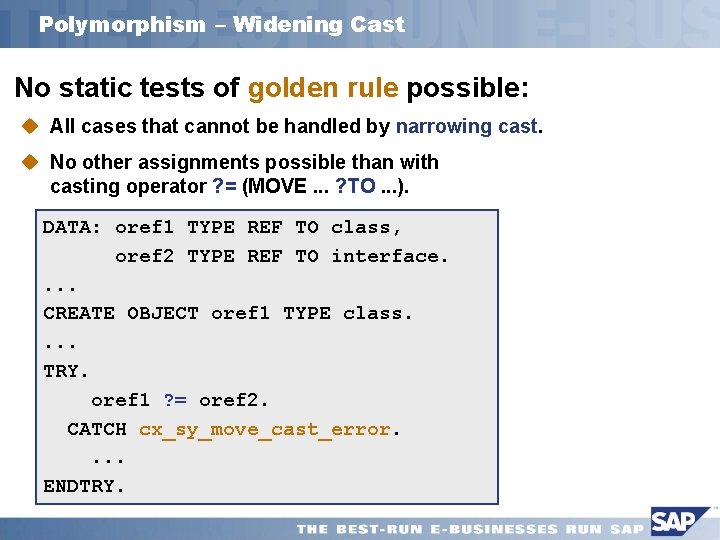

Polymorphism – Widening Cast No static tests of golden rule possible: u All cases that cannot be handled by narrowing cast. u No other assignments possible than with casting operator ? = (MOVE. . . ? TO. . . ). DATA: oref 1 TYPE REF TO class, oref 2 TYPE REF TO interface. . CREATE OBJECT oref 1 TYPE class. . TRY. oref 1 ? = oref 2. CATCH cx_sy_move_cast_error. . ENDTRY.

Polymorphic Event Handling Principle The event handler defines the objects that can trigger the event handler method. EVENTS evt Inheritance case: METHODS handler FOR EVENT evt OF class

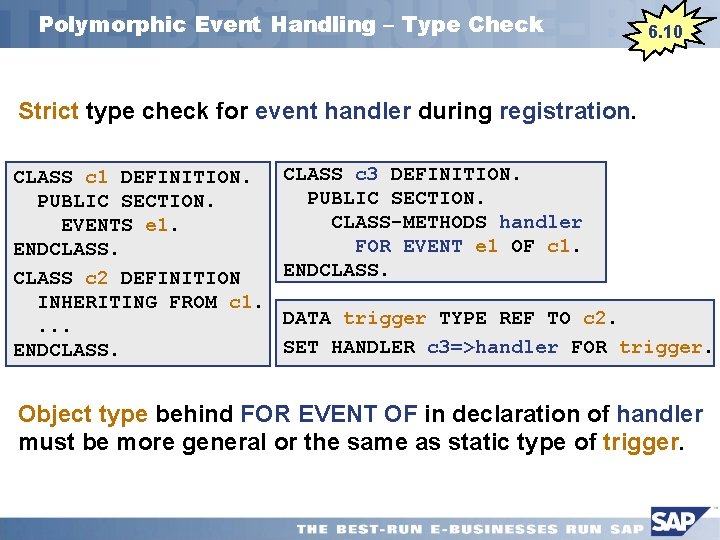

Polymorphic Event Handling – Type Check 6. 10 Strict type check for event handler during registration. CLASS c 1 DEFINITION. PUBLIC SECTION. EVENTS e 1. ENDCLASS c 2 DEFINITION INHERITING FROM c 1. . . . ENDCLASS. CLASS c 3 DEFINITION. PUBLIC SECTION. CLASS-METHODS handler FOR EVENT e 1 OF c 2. FOR EVENT e 1 OF c 1. ENDCLASS. DATA trigger TYPE REF TO c 2. DATA trigger TYPE REF TO c 1. SET HANDLER c 3=>handler FOR trigger. Object type behind FOR EVENT OF in declaration of handler must be more general or the same as static type of trigger.

Polymorphic Event Handling – Type of Sender 6. 10 New data type of sender. CLASS c_handler DEFINITION. PUBLIC SECTION. [CLASS-]METHODS handler FOR EVENT evt OF class|interface IMPORTING sender. . . ENDCLASS. Data type of the implicit event parameter sender is the object type class or interface behind FOR EVENT OF. Before release 6. 10 the type was defined by the class or interface where the event was declared.

Visibility and Access Read-Only Attributes in Internal Tables Dynamic Access Restricted Instantiation Friends

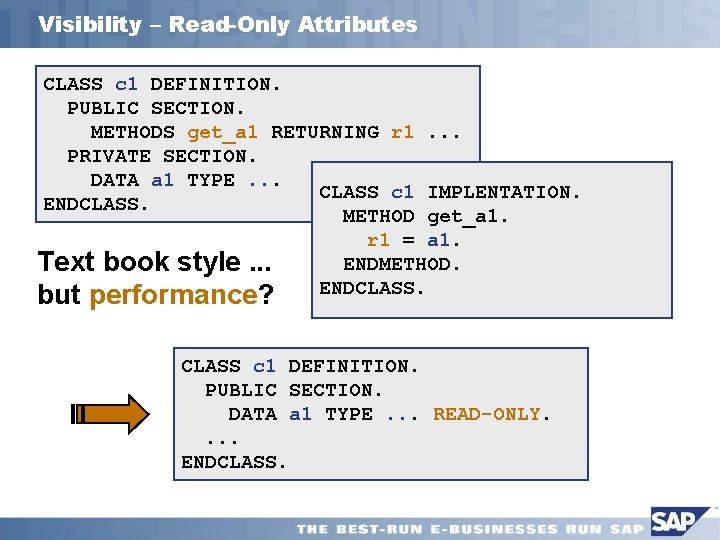

Visibility – Read-Only Attributes CLASS c 1 DEFINITION. PUBLIC SECTION. METHODS get_a 1 RETURNING r 1. . . PRIVATE SECTION. DATA a 1 TYPE. . . CLASS c 1 IMPLENTATION. ENDCLASS. METHOD get_a 1. r 1 = a 1. ENDMETHOD. Text book style. . . ENDCLASS. but performance? CLASS c 1 DEFINITION. PUBLIC SECTION. DATA a 1 TYPE. . . READ-ONLY. . . . ENDCLASS.

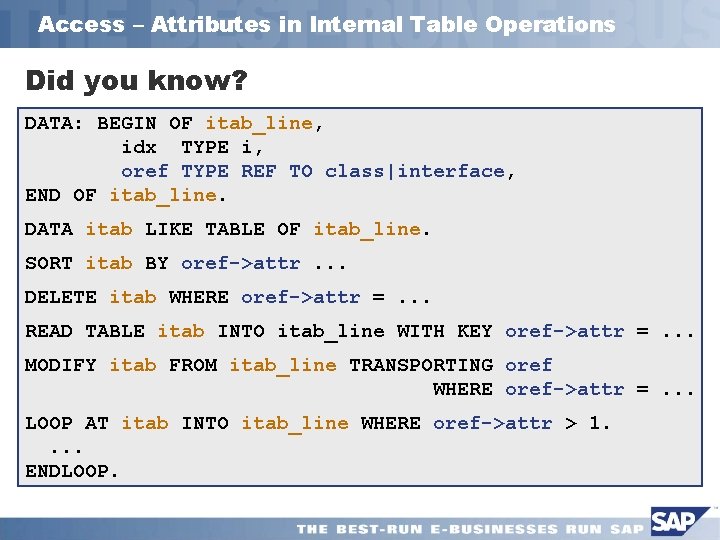

Access – Attributes in Internal Table Operations Did you know? DATA: BEGIN OF itab_line, idx TYPE i, oref TYPE REF TO class|interface, END OF itab_line. DATA itab LIKE TABLE OF itab_line. SORT itab BY oref->attr. . . DELETE itab WHERE oref->attr =. . . READ TABLE itab INTO itab_line WITH KEY oref->attr =. . . MODIFY itab FROM itab_line TRANSPORTING oref WHERE oref->attr =. . . LOOP AT itab INTO itab_line WHERE oref->attr > 1. . . . ENDLOOP.

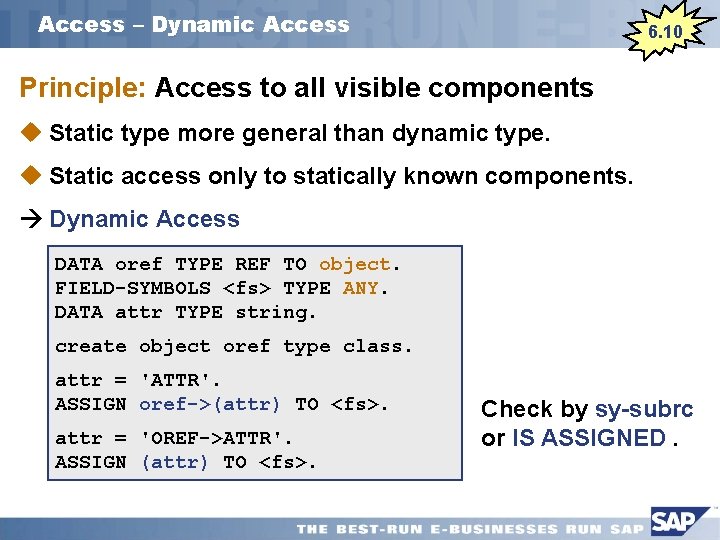

Access – Dynamic Access 6. 10 Principle: Access to all visible components u Static type more general than dynamic type. u Static access only to statically known components. Dynamic Access DATA oref TYPE REF TO object. FIELD-SYMBOLS <fs> TYPE ANY. DATA attr TYPE string. create object oref type class. attr = 'ATTR'. ASSIGN oref->(attr) TO <fs>. attr = 'OREF->ATTR'. ASSIGN (attr) TO <fs>. Check by sy-subrc or IS ASSIGNED.

Access – Restricted Instantiation Visibility of Instance Constructor CLASS class DEFINITION CREATE PUBLIC|PROTECTED|PRIVATE. CLASS class DEFINITION. PUBLIC SECTION. ? ? ? METHODS constructor. . . u Declaration of constructor in public section. u Constructor is called by CREATE OBJECT statement u Constructor visibility set implicitly by CREATE addition. u Subclasses inherit constructor visibility or override it. But: Subclasses of superclass with addition CREATE PRIVATE cannot be instantiated (exception: FRIENDS) They always inherit the implicit addition CREATE NONE. Classes with addition CREATE PRIVATE should be FINAL.

Access – Friends 6. 10 Giving up Protection and Privacy CLASS class DEFINITION CREATE PROTECTED|PRIVATE. FRIENDS classes interfaces. . . PROTECTED|PRIVATE SECTION. u A class can offer friendship to other classes or interfaces. u Subclasses of friends and all classes/interfaces that implement a friend interface are also friends. u Friends have access to all components of a class. u Friends can allways instantiate a class. u A class offering friendship is not automatically friend of its friends. u Offering friendship is not inherited by subclasses.

Method Call Functional Methods Short Form for Static Invoke Dynamic Invoke via OO-Transaction

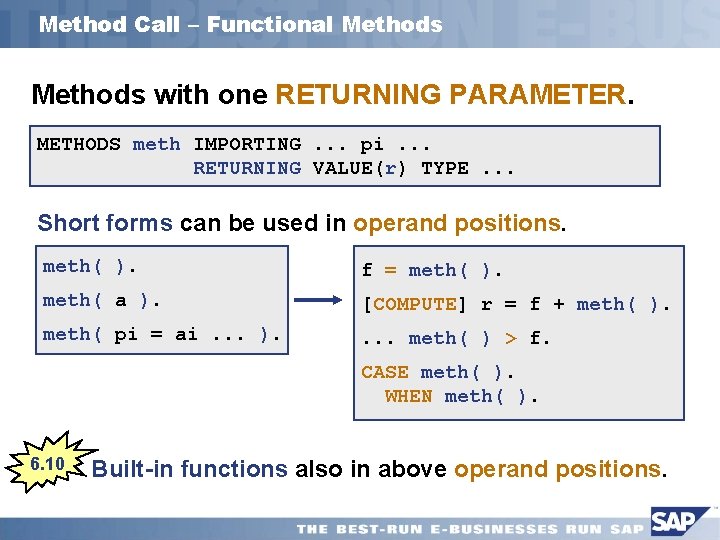

Method Call – Functional Methods with one RETURNING PARAMETER. METHODS meth IMPORTING. . . pi. . . RETURNING VALUE(r) TYPE. . . Short forms can be used in operand positions. meth( ). f = meth( ). meth( a ). [COMPUTE] r = f + meth( ). meth( pi = ai. . . ). . meth( ) > f. CASE meth( ). WHEN meth( ). 6. 10 Built-in functions also in above operand positions.

Method Call – Short Form for Static Invoke 6. 10 4. 6 CALL METHOD optional in Static Invoke CALL METHOD meth EXPORTING pi = ai. . . CALL METHOD meth( EXPORTING pi = ai. . . IMPORTING pj = aj. . . ). CALL METHOD meth( a ). CALL METHOD meth( pi = ai. . . ). When the passing of parameters is done in parenthesis, the keyword CALL METHOD is not necessary. * Examples transaction_manager->start( ). html_viewer->show_url( url ).

Method Call – Dynamic Invoke Dynamic Passing of Parameters TYPE-POOLS abap. DATA: ptab TYPE abap_parmbind_tab, ptab_line LIKE LINE OF ptab_line-name = 'P'. GET REFERENCE OF a INTO ptab_line-value. INSERT ptab_line INTO TABLE ptab. TRY. meth = 'METH'. CALL METHOD oref->(meth) PARAMETER-TABLE ptab. CATCH cx_sy_dyn_call_error. . ENDTRY. 6. 10 PARAMETER-TABLE also in CALL FUNCTION.

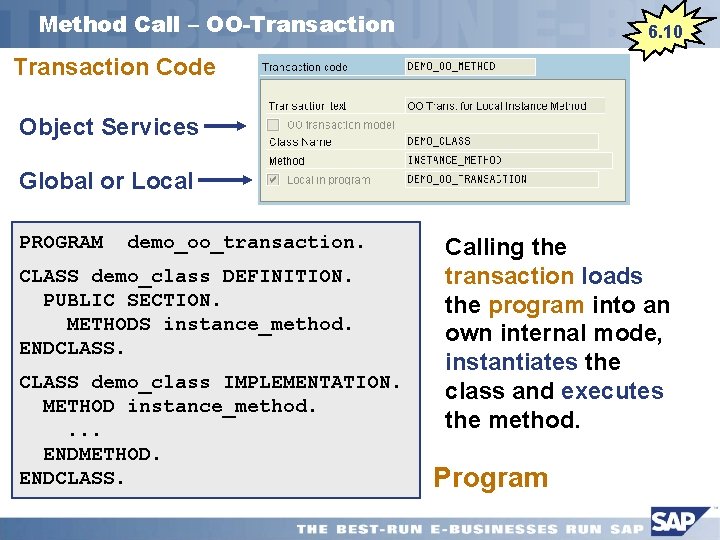

Method Call – OO-Transaction 6. 10 Transaction Code Object Services Global or Local PROGRAM demo_oo_transaction. CLASS demo_class DEFINITION. PUBLIC SECTION. METHODS instance_method. ENDCLASS demo_class IMPLEMENTATION. METHOD instance_method. . ENDMETHOD. ENDCLASS. Calling the transaction loads the program into an own internal mode, instantiates the class and executes the method. Program

Object Services Introduction Transparent Object Persistence Handling persistent Objects Additional transaction service 6. 10

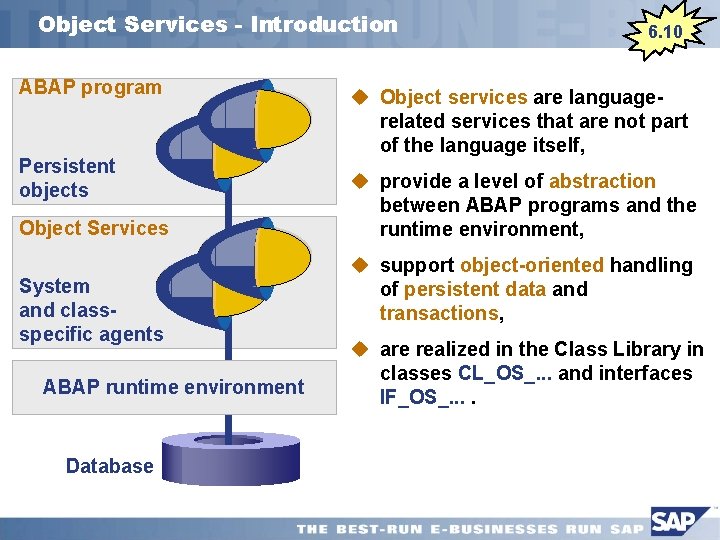

Object Services - Introduction ABAP program Persistent objects Object Services System and classspecific agents ABAP runtime environment Database 6. 10 u Object services are languagerelated services that are not part of the language itself, u provide a level of abstraction between ABAP programs and the runtime environment, u support object-oriented handling of persistent data and transactions, u are realized in the Class Library in classes CL_OS_. . . and interfaces IF_OS_. .

Object Services - Transparent Object Persistence 6. 10 Persistence Service Persistent Classes Object-relational Mapping Persistence Representation

Object Services - Persistence Service 6. 10 Object Services offers you a transparent object persistence. The persistence of your objects is managed by the persistence service. u The persistence service loads your objects. u The persistence service tracks the changes made to your objects. u The persistence service stores your (changed) objects.

Object Services - Persistent Classes 6. 10 The persistence service handles instances of persistent classes. With the Class Builder, you can create a persistent class.

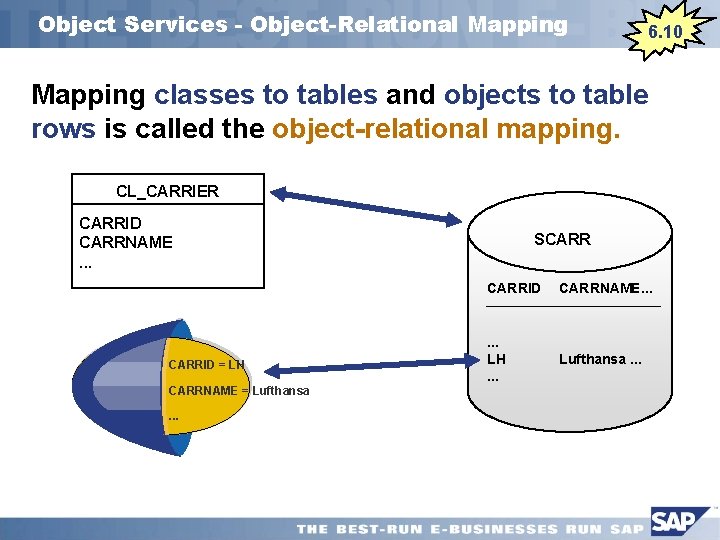

Object Services - Object-Relational Mapping 6. 10 Mapping classes to tables and objects to table rows is called the object-relational mapping. CL_CARRIER CARRID CARRNAME. . . CARRID = LH CARRNAME = Lufthansa. . . SCARRID CARRNAME. . . LH. . . Lufthansa. . .

Object Services - Persistence Representation 6. 10 u For a persistent class, the object-relational mapping can be defined within the Class Builder. u The „persistence representation“ tool can be accessed using the button Persistence. u Here, starting with fields of an existing table, persistent attributes can be created.

Object Services - Handling Persistent Objects Accessor Methods Life Cycle Management Methods Class Agents Loading, Creating, Deleting, . . . Object Identity Persistent Object References 6. 10

Object Services - Accessor Methods 6. 10 u The Class Builder generates accessor methods for each attribute of a persistent class. u The attribute A of a persistent class can only be accessed with the methods GET_A and SET_A. u The accessor methods inform the persistence service of attribute access.

Object Services - Life Cycle Management Methods 6. 10 With the life cycle management methods, you can handle the life cycle of persistent instances. u Methods for creating persistent instances. u Methods for loading persistent instances. u Methods for deleting persistent instances. A persistent instance has one of the following life cycle states: NEW, LOADED, CHANGED, DELETED, NOT_LOADED.

Object Services - Class Agents 6. 10 u The life cycle management methods are provided by the class agent. u The class agent is generated by the Class Builder. u The class agent for the persistent class CL_X is named CA_X. u The class agent is a singleton and has a class attribute AGENT containing an object reference to this singleton.

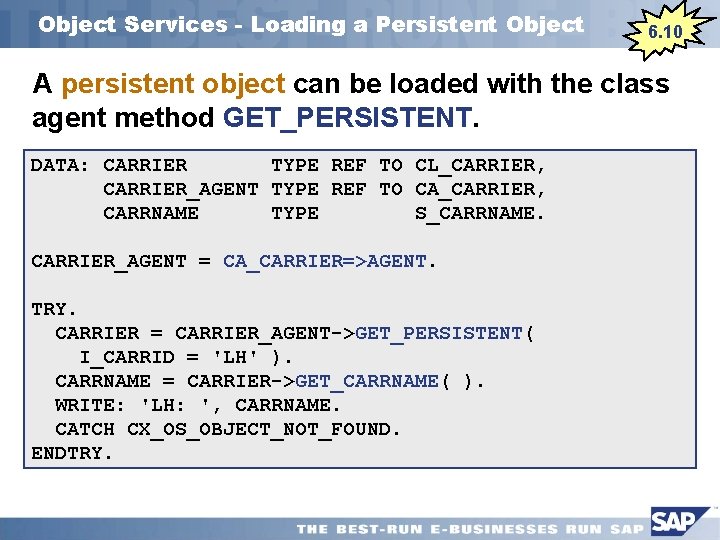

Object Services - Loading a Persistent Object 6. 10 A persistent object can be loaded with the class agent method GET_PERSISTENT. DATA: CARRIER TYPE REF TO CL_CARRIER, CARRIER_AGENT TYPE REF TO CA_CARRIER, CARRNAME TYPE S_CARRNAME. CARRIER_AGENT = CA_CARRIER=>AGENT. TRY. CARRIER = CARRIER_AGENT->GET_PERSISTENT( I_CARRID = 'LH' ). CARRNAME = CARRIER->GET_CARRNAME( ). WRITE: 'LH: ', CARRNAME. CATCH CX_OS_OBJECT_NOT_FOUND. ENDTRY.

Object Services - Creating a Persistent Object 6. 10 A persistent object can be created with the class agent method CREATE_PERSISTENT. DATA: CARRIER TYPE REF TO CL_CARRIER, CARRIER_AGENT TYPE REF TO CA_CARRIER_AGENT = CA_CARRIER=>AGENT. TRY. CARRIER = CARRIER_AGENT->CREATE_PERSISTENT( I_CARRID = 'LH' ). CARRIER->SET_CARRNAME('Lufthansa' ). CATCH CX_OS_OBJECT_EXISTING. ENDTRY. COMMIT WORK.

Object Services - Deleting a Persistent Object 6. 10 A persistent object can be deleted with the class agent method DELETE_PERSISTENT. DATA: CARRIER_AGENT TYPE REF TO CA_CARRIER_AGENT = CA_CARRIER=>AGENT. TRY. CARRIER_AGENT->DELETE_PERSISTENT( I_CARRID = 'LH' ). CATCH CX_OS_OBJECT_NOT_EXISTING. ENDTRY. COMMIT WORK.

Object Services – Object Identity 6. 10 Object identity business key: The object identity is controlled by the application. (The business keys are the attributes mapped to the primary key fields of the table mapped to this persistent class. ) Object identity GUID: The object Identity is controlled by the persistence service. (There‘s a GUID related to each persistent object. The GUID is not an attribute of the persistent class, but the primary key field of the table mapped to this persistent class. )

Object Services – Persistent Object References 6. 10 A persistent attribute can be a reference to another persistent object with object identity GUID. Runtime references are converted to persistent references during database access (and vice versa). The persistent service supports transparent navigation. A referenced object is not loaded until it is accessed.

Object Services – Transaction Service Transaction service Transactions Nested transactions Transactions and the SAP-LUW 6. 10

Object Services – Transaction Service 6. 10 Object Services offers you an additional transaction service. Inside an OO-transaction (with OO transaction model checked) you must use the transaction service with the specified update mode.

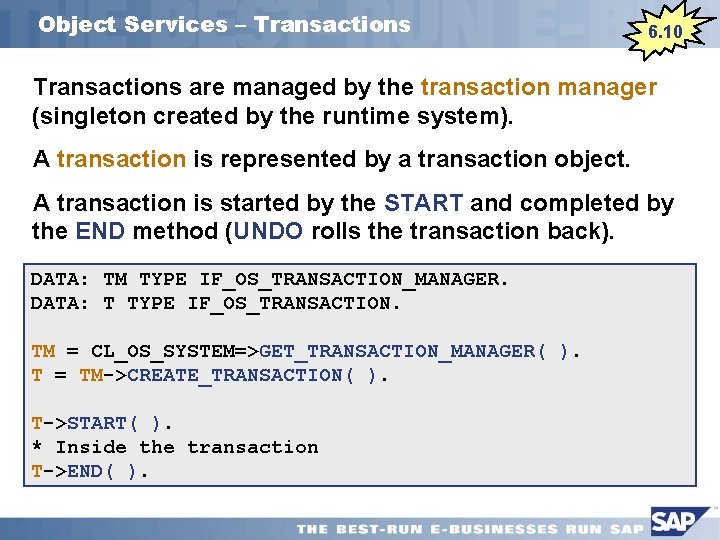

Object Services – Transactions 6. 10 Transactions are managed by the transaction manager (singleton created by the runtime system). A transaction is represented by a transaction object. A transaction is started by the START and completed by the END method (UNDO rolls the transaction back). DATA: TM TYPE IF_OS_TRANSACTION_MANAGER. DATA: T TYPE IF_OS_TRANSACTION. TM = CL_OS_SYSTEM=>GET_TRANSACTION_MANAGER( ). T = TM->CREATE_TRANSACTION( ). T->START( ). * Inside the transaction T->END( ).

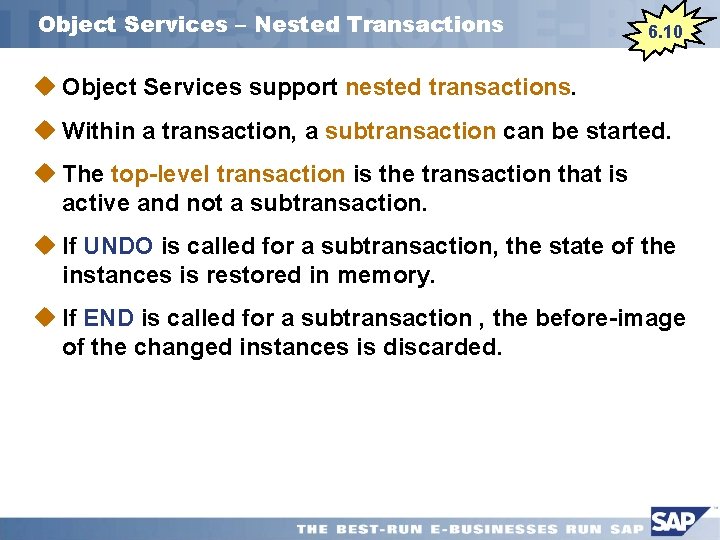

Object Services – Nested Transactions 6. 10 u Object Services support nested transactions. u Within a transaction, a subtransaction can be started. u The top-level transaction is the transaction that is active and not a subtransaction. u If UNDO is called for a subtransaction, the state of the instances is restored in memory. u If END is called for a subtransaction , the before-image of the changed instances is discarded.

Object Services – Transactions and the SAP-LUW 6. 10 The object services transactions are tightly coupled with the SAP-LUW concept. There are two scenarios for this coupling. u A legacy application (standard ABAP application) calls object services components (components using object services persistence service). The legacy application executes COMMIT WORK. u An object services application (application using object services persistence and transaction service) calls legacy components (standard ABAP components). At top-level transaction completion (using the method END), the transaction services executes COMMIT WORK implicitly.
