ADVANCE SERIES ADVANCE SERIES PRODUCT RANGE MODELS CONFIGURATION

ADVANCE SERIES

ADVANCE SERIES PRODUCT RANGE MODELS CONFIGURATION P&T Extn. Advance - 624 06 24 Advance - 936 09 36 Advance - 1048 10 48

ADVANCE SERIES CPU CARD CONSISTS OF FOLLOWING HARDWARE Real Time Clock (RTC) Printer Port Paging Port Central Ringer Port External Music Port Provision for Connecting DISA Card DTMF Dialer / Receiver In Built Music On Hold Remote Programming 2 Console & 1 DSS Port

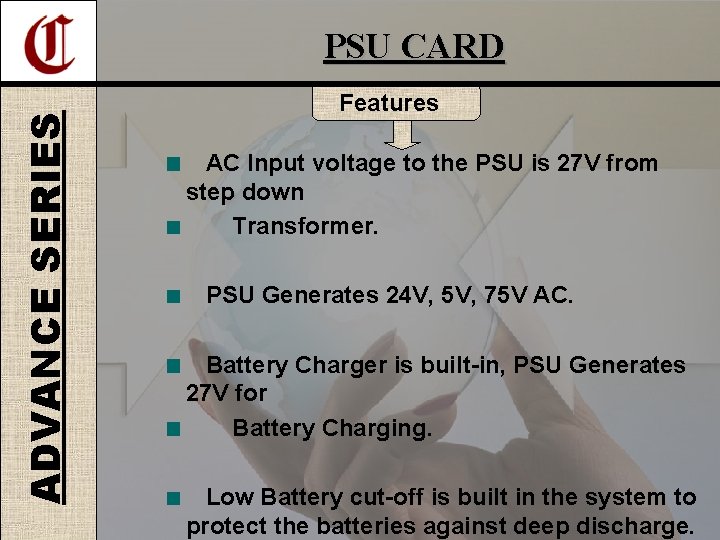

ADVANCE SERIES PSU CARD Features AC Input voltage to the PSU is 27 V from step down Transformer. PSU Generates 24 V, 5 V, 75 V AC. Battery Charger is built-in, PSU Generates 27 V for Battery Charging. Low Battery cut-off is built in the system to protect the batteries against deep discharge.

ADVANCE SERIES LINE CARD Features 3 MOV’S and PTC’S are provided on P&T Lines to protect Against External Voltages and Lighting. Each P&T Line and Extn. Has Hybrid Transformer for isolation & Balancing. Line Voltage is 24 Volts. 312 Line Card is common in all Models. (624 -936 -1048) 25 Pin D-Connector is provided for MDF

ADVANCE SERIES TECHNICAL SPECIFICATION Extension Loop Resistance – 600 Ohms. Junction Loop Resistance – 1200 Ohms. Max Operating Temperature – 50 DEG C. Technology : SPC, SDM with cross point switching (Microprocessor Based) Battery Back-up – 24 Volts.

ADVANCE SERIES UNIQUE FEATURES Fully Functional Operator Console. Dynamic Line Status Display 32 Character LCD Display 4 Level Voice Guidance DISA. Printer Port. ASMDR Billing in Rupees / Paisa. Fax Detection & Monitored DOSA. Battery Back-up – 24 Volts.

ADVANCE SERIES BASIC FEATURES Extn. to Extn. Call Local / STD / ISD Call Control Call Transfer After Consultation Music on Hold – Internal / External Call Camp On Redial Abbreviated Dialing – Global / Personal Auto Call Back on P&T and Extn. Call parking & Pick up from any Extn. Call Forwarding – While Busy / All Call.

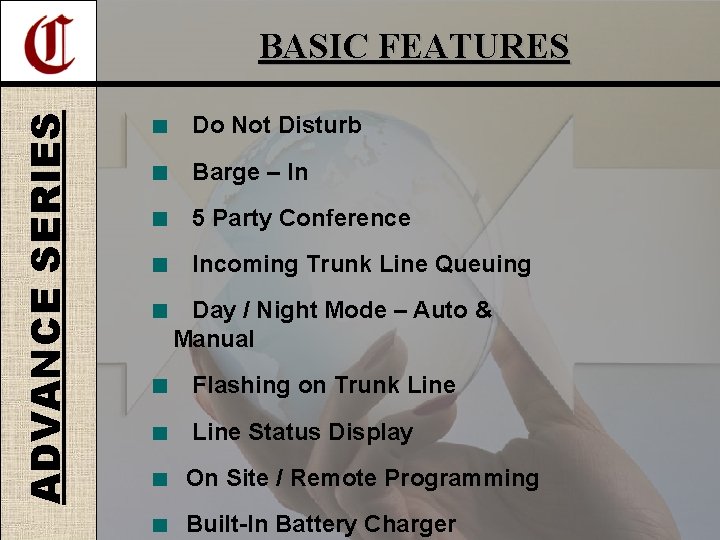

ADVANCE SERIES BASIC FEATURES Do Not Disturb Barge – In 5 Party Conference Incoming Trunk Line Queuing Day / Night Mode – Auto & Manual Flashing on Trunk Line Status Display On Site / Remote Programming Built-In Battery Charger

ADVANCE SERIES HOTEL FEATURES Guest Name Identification on Console. Comprehensive Room Billing in Rs. / Ps. Call Budgeting in Rupee Terms. Check – In / Check – Out. Temporary Check – Out / Room Dial Lock – Up. Room Status Display. Room Shifting on Console. Flexible Numbering Plan. Single Digit Call Desk Story Phone Private Line

ADVANCE SERIES OPERATOR FEATURES Caller Name Identification. 32 Character Alphanumeric LCD Display. Dynamic Display of Extn. Status. Single Key Trunk Access. Hands Free Dialing. Simultaneous Hold of all Trunk Lines. Console Lock Out.

ADVANCE SERIES TARGET CUSTOMER Medium Size Enterprises with the need for Hotel Features. Govt. Offices Customers with requirement of Analog System with expandable up to 10 P&T and 48 Extensions. Enterprises with the need for others powerful features. Enterprises with specific needs for seamless scalability to enable growth and flexible move, add and changes.

ADVANCE SERIES CUSTOMER BENEFITS An Ideal communication Medium & Big & Offices. system for A highly versatile and Flexible EPABX System to increase your office Efficiency and comfort at your homes. To monitor telephone expenses. User can connect the accessories like Video Door Phone, Speakers, Printer, Fixed Cellular Terminal (FCT), Fax Detection, DOSA, DISA etc. Completely resolve the Problems in internal communication at your work place. Able to ensure privacy of telephonic conversation. Do not waste your time in attending calls

ADVANCE SERIES SERVICE & MAINTENANCE System is based on Multiple Card, due to this it is easy to Maintain the system. Reliable & Stable EPABX System. Remote Maintenance. Hassle free due to Best quality P&T & Extension of the system are protected against High Voltage.

ADVANCE SERIES CONTACT DETAILS CREATIVE TELECOM PVT. LTD. 162, DSIDC COMPLEX, PHASE – I, OKHLA INDUSTRIAL AREA, NEW DELHI – 110 020 PH. : 26817414 (6 Lines) 26811492 / 26811496 / 7415 / 2542 Fax: - 26811389 EMAIL: - creative@ndb. vsnl. net. in sales@creativetele. com
