ADSeries At the Door Retrofit Cylindrical Door Prep

AD-Series At the Door

Retrofit

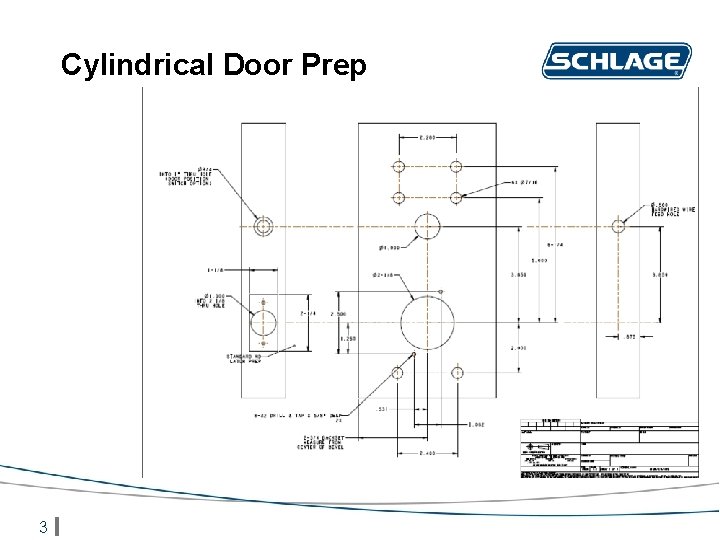

Cylindrical Door Prep 3

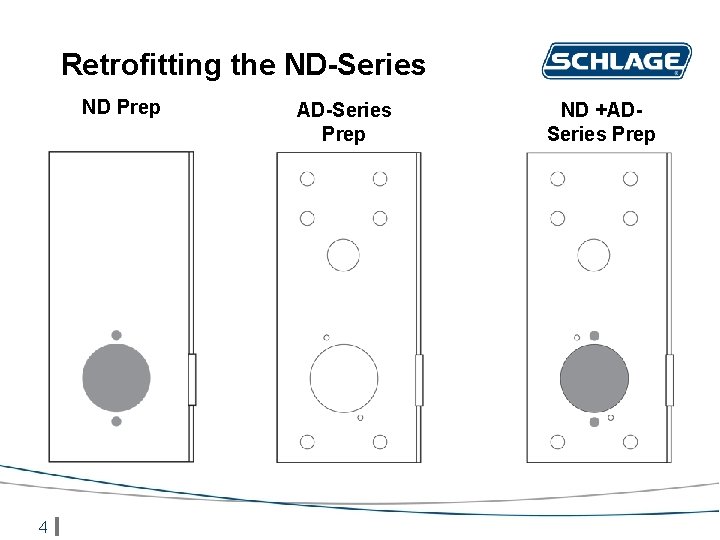

Retrofitting the ND-Series ND Prep 4 AD-Series Prep ND +ADSeries Prep

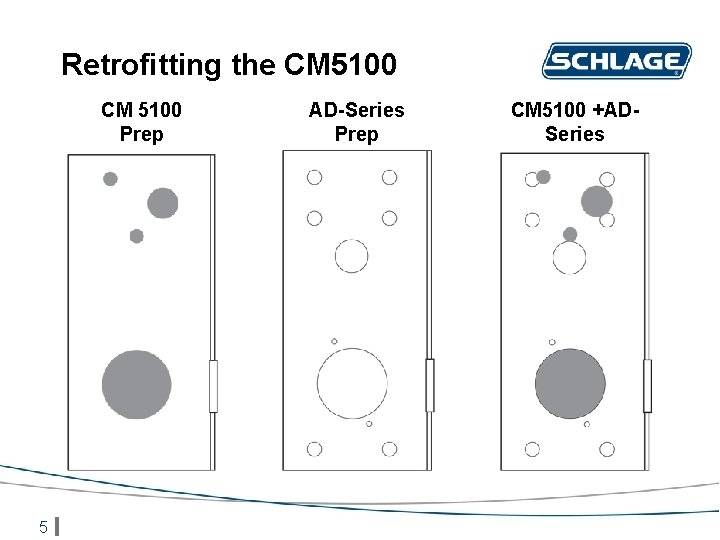

Retrofitting the CM 5100 Prep 5 AD-Series Prep CM 5100 +ADSeries

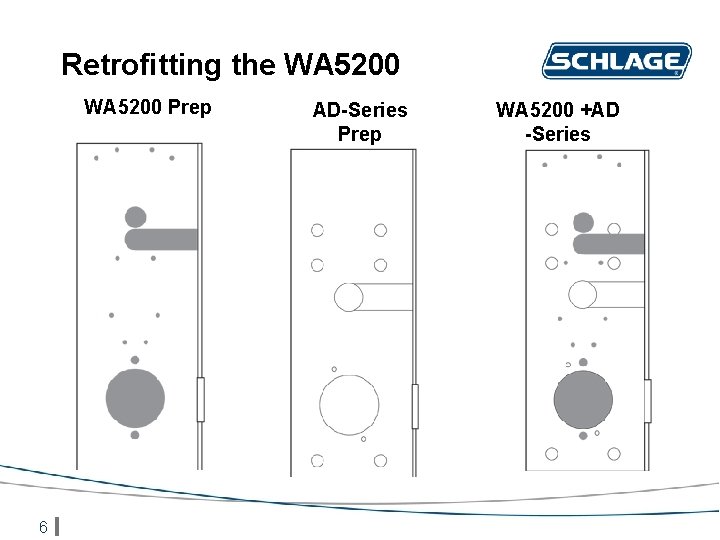

Retrofitting the WA 5200 Prep 6 AD-Series Prep WA 5200 +AD -Series

Mortise Door Prep 7

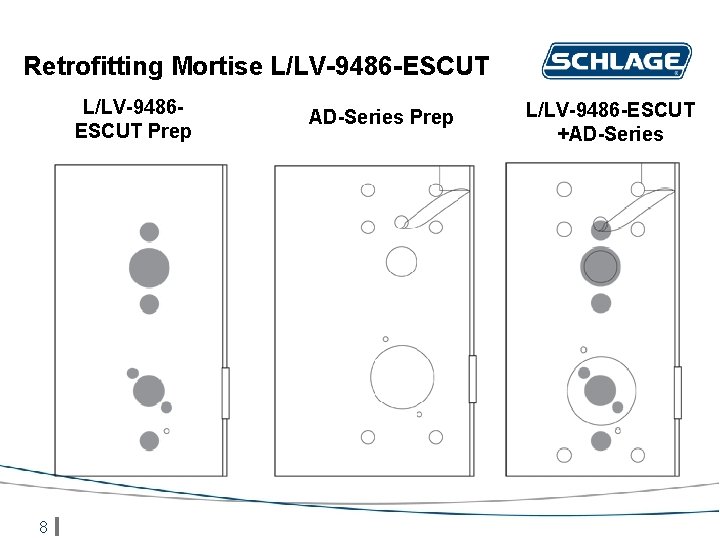

Retrofitting Mortise L/LV-9486 -ESCUT L/LV-9486 ESCUT Prep 8 AD-Series Prep L/LV-9486 -ESCUT +AD-Series

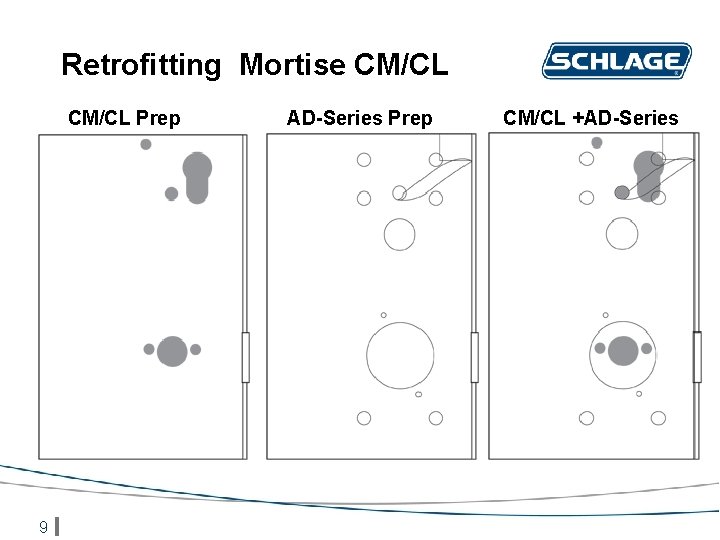

Retrofitting Mortise CM/CL Prep 9 AD-Series Prep CM/CL +AD-Series

Retrofitting WA 5600 Prep 10 AD-Series Prep WA 5600 +AD -Series

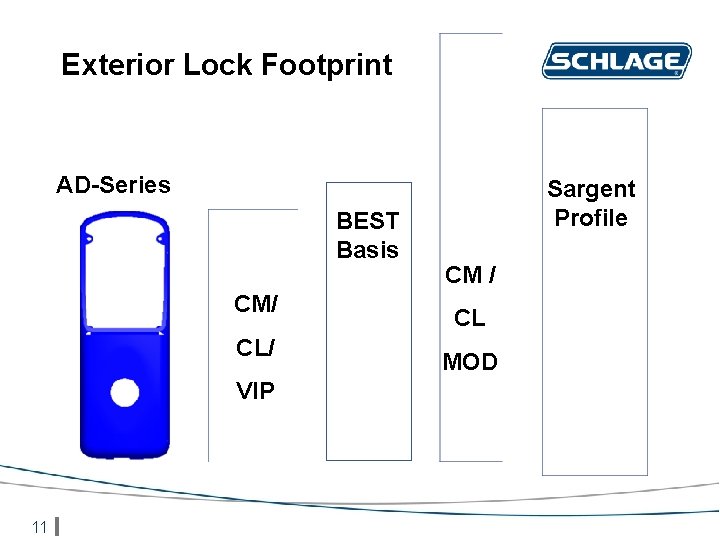

Exterior Lock Footprint AD-Series BEST Basis CM/ CL/ VIP 11 Sargent Profile CM / CL MOD

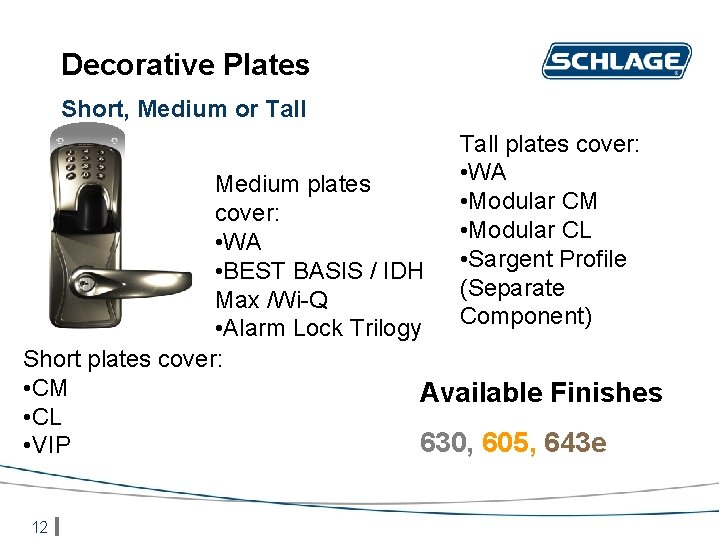

Decorative Plates Short, Medium or Tall plates cover: • WA • Modular CM • Modular CL • Sargent Profile (Separate Component) Medium plates cover: • WA • BEST BASIS / IDH Max /Wi-Q • Alarm Lock Trilogy Short plates cover: • CM Available Finishes • CL 630, 605, 643 e • VIP 12

Exit Components

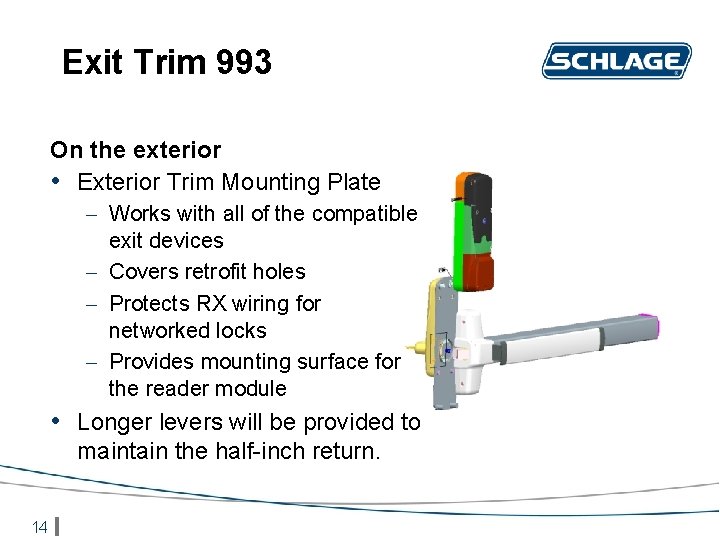

Exit Trim 993 On the exterior • Exterior Trim Mounting Plate – Works with all of the compatible exit devices – Covers retrofit holes – Protects RX wiring for networked locks – Provides mounting surface for the reader module • Longer levers will be provided to maintain the half-inch return. 14

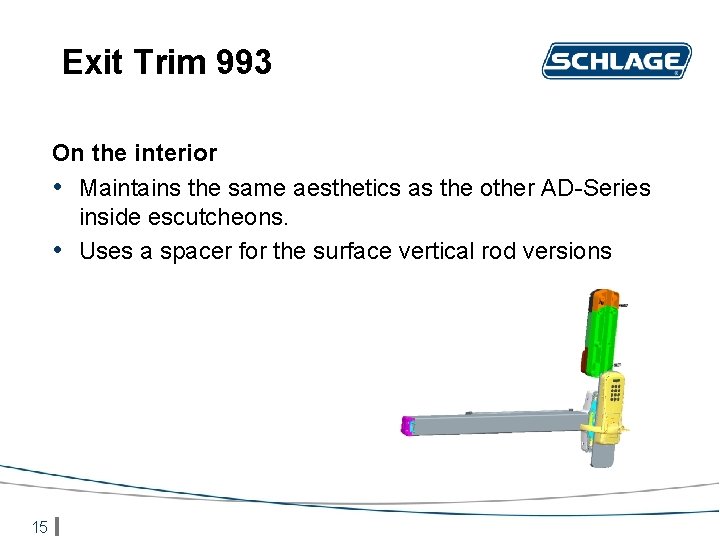

Exit Trim 993 On the interior • Maintains the same aesthetics as the other AD-Series inside escutcheons. • Uses a spacer for the surface vertical rod versions 15
