ADO NET Fill Data AdapterTable Adapter SQL Command
ADO. NET 非接続型の実装概念 Fill メソッド Data. Adapter/Table. Adapter オブジェクトにSQLクエリ(または ストアドプロシージャ)の Command を設定 ① コマンド設定 ② Fill メソッド実行 Data. Set Select. Command Insert. Command Update メソッド Data. Adapter Table. Adapter Update. Command Delete. Command Data. Base

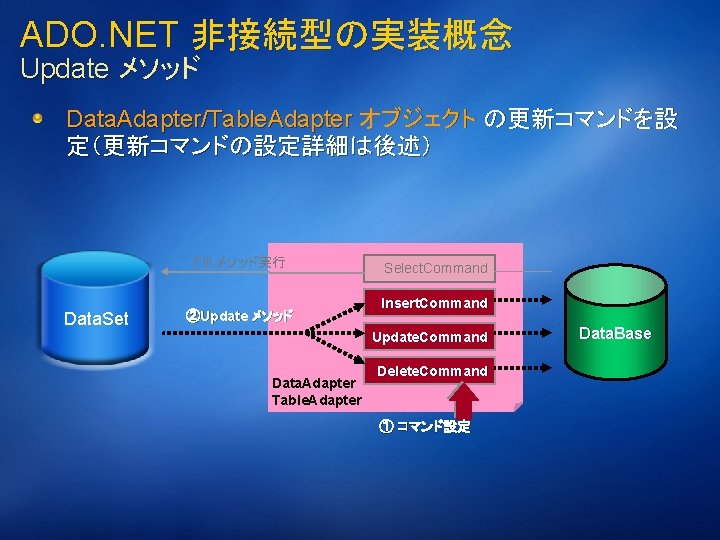

ADO. NET 非接続型の実装概念 Update メソッド Data. Adapter/Table. Adapter オブジェクト の更新コマンドを設 定(更新コマンドの設定詳細は後述) Fill メソッド実行 Data. Set ②Update メソッド Select. Command Insert. Command Update. Command Data. Adapter Table. Adapter Delete. Command ① コマンド設定 Data. Base
ADO. NET 非接続型の実装概念 Row. State による状態管理 Fill 直後の Data. Table Row. State Column 1 Column 2 Unchanged 1 Dog Unchanged 2 Cat Unchanged 3 更新後の Data. Table 更 新 Snake Row. State Column 1 Column 2 Unchanged 1 Dog Modified 2 Lion Deleted 3 Snake Added 4 Cow 関連 Method • Cancel. Edit 直前の行の更新を キャンセル • Reject. Change 一連の更新処理を 元に戻す • Accept. Change 一連の更新処理を 確定する
ADO. NET その他の実装 パラメータの使用 Parameterオブジェクトを使用することで、単なる文字列置換でな い、意味的な引数管理をおこなう Command. Text のSQL文中で、パラメタ位置を指定 Sql. Client では @xxxx で指定、Ole. Db では ? で指定 Parameterオブジェクトを使ってパラメータをアタッチ Parameter object をAdd Value プロパティにパラメータの内容(入力引数)を設定 ‘SQL Server Client Dim cmd As New Sql. Command( “select * from authors where au_id = @au_id”, conn ) cmd. Parameters. Add(“@au_id”, Sql. Db. Type. Var. Char, 11) cmd. Parameters(“@au_id”). Value = “ 172 -32 -1176” : ‘ OLE DB Client Dim cmd As New Ole. Db. Command( “select * from authors where au_id = ? ”, conn ) cmd. Parameters. Add(“au_id”, Ole. Db. Type. Var. Char, 11 ) cmd. Parameters(0). Value = “ 172 -32 -1176” :
ADO. NET その他の実装 ストアドプロシージャの使用 非接続型においても、コマンドに “ロジック” を実装 できるため有用 パラメータのない簡単なストアドプロシージャの実装方法 Command. Text プロパティ、Command. Type プロパティを設定 Dim cmd As New Sql. Command(conn) cmd. Command. Text = “My. Procedure” cmd. Command. Type = Command. Type. Stored. Procedure conn. Open() Sql. Data. Reader dr = cmd. Execute. Reader() : パラメータを持つストアドプロシージャの実装方法 Direction プロパティ (Output / Input / Return. Value) でさまざまな引数を指定 Dim cmd As New Sql. Command(conn) Dim param As New Sql. Client. Sql. Parameter cmd. Command. Text = “My. Procedure” cmd. Command. Type = Command. Type. Stored. Procedure cmd. Parameters. Add(“@Param 1”, Sql. Db. Type. Int). Value = 3 param. Direction = Parameter. Direction. Return. Value param. Parameter. Name = “@Return. Value” param. Sql. Db. Type = Sql. Db. Type. Int cmd. Parameters. Add(param) : 入力パラメータの場合 返り値の場合
データアクセスにおける実装上の留意点 移植性への配慮(プロバイダ非依存な実装) 方法1: System. Data. Common 名前空間とDb. Provider. Factory を使用 (ADO. NET 2. 0の新機能) ‘ プロバイダ依存な記載 Dim data. Factory As Db. Provider. Factory = Db. Provider. Factories. Get. Factory("System. Data. Sql. Client") ‘ 以降、プロバイダ非依存な記載 Dim cmd As Db. Command = conn. Create. Command() cmd. Command. Text = "SELECT Name FROM Sales. Store WHERE Customer. ID = @Customer. ID" Dim param As Db. Parameter = data. Factory. Create. Parameter() param. Parameter. Name = "@Customer. ID" param. Value = txt. Customer. ID. Text cmd. Parameters. Add(param) Dim customer. Name As String = cmd. Execute. Scalar() 方法 2: インタフェースへのキャストを使用 ‘ プロバイダ依存な記載 IDb. Connection con = new Sql. Connection(“Server=(local); Integrated Security=SSPI; Database=northwind”); ‘ 以降、プロバイダ非依存な記載 string sql. Str = "SELECT id, name FROM Test. Table"; IDb. Command cmd = con. Create. Command(); cmd. Command. Text = sql. Str; con. Open(); IData. Reader dr = cmd. Execute. Reader();
トランザクションの管理 2. 0 で追加された System. Transaction を使用すると、 Transaction. Scope を使用したプログラミングモデルを使用可能 SQL Server 2005 では、状況に応じ、LTM から DTC (Ole. Tx) に自動 的に昇格 ネイティブ トランザクション System. Enterprise. Services (Ole. Tx , DTC) System. Transaction VS スケーラブルでない! u 分散環境に未対応 オーバーヘッド大 (遅い!) u マルチリソースに未対応 Using tx As New Transaction. Scope() Dim My. Con As Sql. Connection = New Sql. Connection("server=My. Server; " & _ "database=Adventure. Works; user id=My. User; password=My. Password") My. Con. Open() : Dim Rec. Num As Integer = My. Command. Execute. Non. Query() My. Con. Close() tx. Complete() End Using

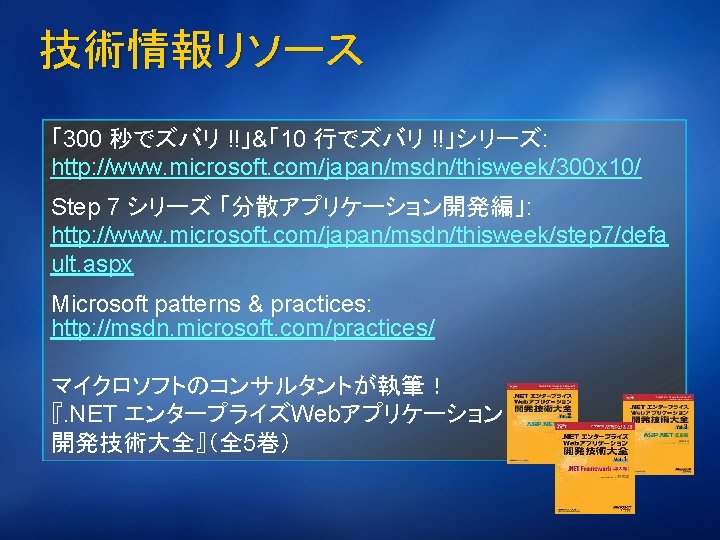

技術情報リソース 「300 秒でズバリ !!」&「10 行でズバリ !!」シリーズ: http: //www. microsoft. com/japan/msdn/thisweek/300 x 10/ Step 7 シリーズ 「分散アプリケーション開発編」: http: //www. microsoft. com/japan/msdn/thisweek/step 7/defa ult. aspx Microsoft patterns & practices: http: //msdn. microsoft. com/practices/ マイクロソフトのコンサルタントが執筆! 『. NET エンタープライズWebアプリケーション 開発技術大全』(全 5巻)
