Content Of Administrator Course • Log-On to Vapor. Tracer 2 • Menus • Interfacing

Content Of Administrator Course • Log-On to Vapor. Tracer 2 • Menus • Interfacing with a computer • Advanced Menu Functions TM 001028 E

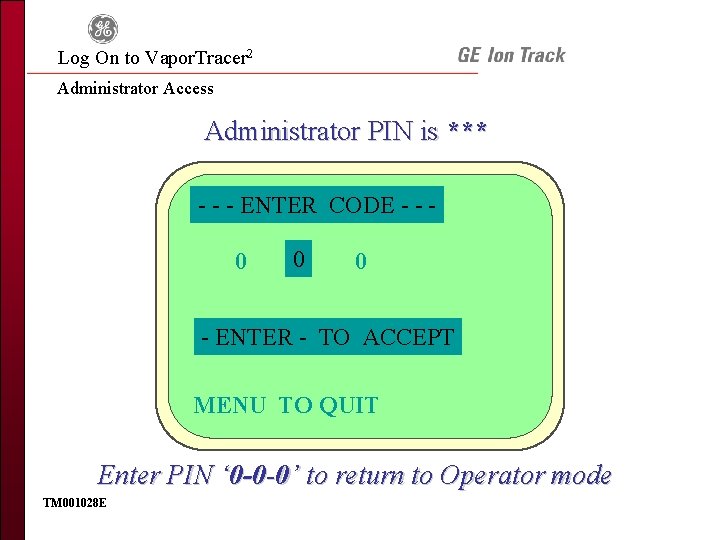

Log On to Vapor. Tracer 2 Administrator Access Administrator PIN is *** - -

Log On to Vapor. Tracer 2 Administrator Access Administrator PIN is *** - - - ENTER CODE - - 0 0 0 - ENTER - TO ACCEPT MENU TO QUIT Enter PIN ‘ 0 -0 -0’ to return to Operator mode TM 001028 E

Menus Menu 2 MENU 2 CAL ON SUBSTANCE CLEAN SECONDS INTEGRATION TIME SAMPLE TIME

Menus Menu 2 MENU 2 CAL ON SUBSTANCE CLEAN SECONDS INTEGRATION TIME SAMPLE TIME PLASMAGRAM 15 5 2 Defaults are set at the factory for optimal performance, and should not be altered without consulting GE Ion. Track Technical Service! TM 001028 E

Menus Plasmagram Configuration PEAKS HEIGHT COCAIN 7. 60 -0. 08 +0. 08 TIME (ms)

Menus Plasmagram Configuration PEAKS HEIGHT COCAIN 7. 60 -0. 08 +0. 08 TIME (ms) HEROIN 8. 48 -0. 04 +0. 08 6629 3. 083 THC 1905 7. 012 METHAM 6. 48 -0. 08 +0. 08 TM 001028 E 8. 40 -0. 04 +0. 04 MDMA 6. 08 -0. 04 +0. 04 EPHDRI 5. 64 -0. 04 +0. 04

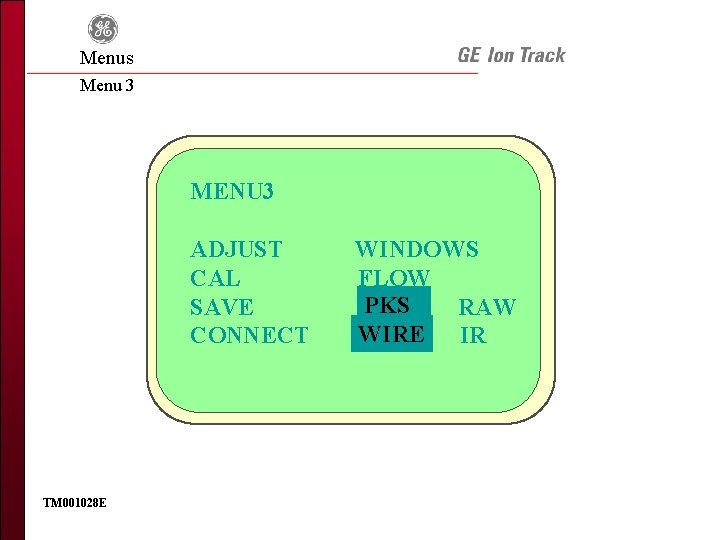

Menus Menu 3 MENU 3 ADJUST CAL SAVE CONNECT TM 001028 E WINDOWS FLOW

Menus Menu 3 MENU 3 ADJUST CAL SAVE CONNECT TM 001028 E WINDOWS FLOW PKS RAW WIRE IR

Interfacing with a Computer Advanced Functions Advanced functions can be accessed when interfaced with

Interfacing with a Computer Advanced Functions Advanced functions can be accessed when interfaced with a computer. These include: • Downloading, viewing, and deleting alarm and plasmagram files • Advanced Menu Functions • Upgrading Software • Special Viewing Options TM 001028 E

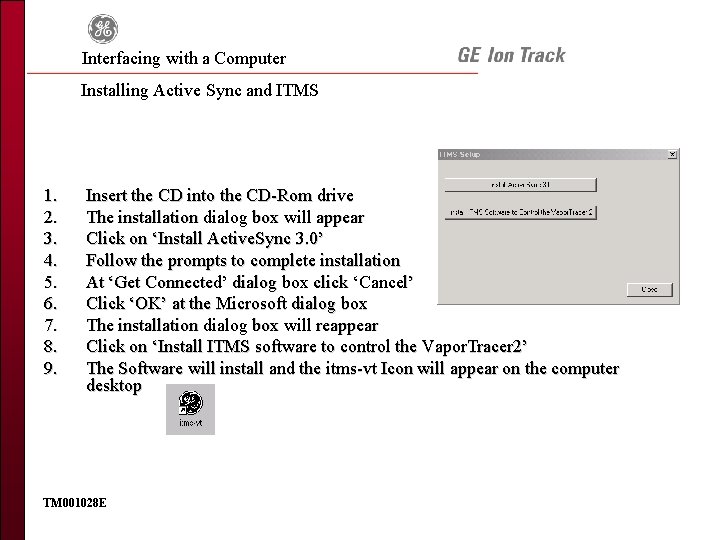

Interfacing with a Computer Installing Active Sync and ITMS 1. 2. 3. 4. 5.

Interfacing with a Computer Installing Active Sync and ITMS 1. 2. 3. 4. 5. 6. 7. 8. 9. Insert the CD into the CD-Rom drive The installation dialog box will appear Click on ‘Install Active. Sync 3. 0’ Follow the prompts to complete installation At ‘Get Connected’ dialog box click ‘Cancel’ Click ‘OK’ at the Microsoft dialog box The installation dialog box will reappear Click on ‘Install ITMS software to control the Vapor. Tracer 2’ The Software will install and the itms-vt Icon will appear on the computer desktop TM 001028 E

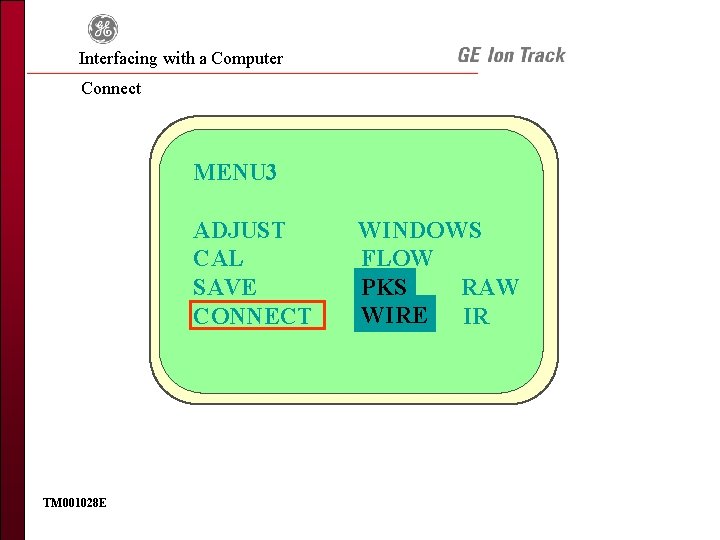

Interfacing with a Computer Connect MENU 3 ADJUST CAL SAVE CONNECT TM 001028 E

Interfacing with a Computer Connect MENU 3 ADJUST CAL SAVE CONNECT TM 001028 E WINDOWS FLOW RAW PKS WIRE IR

Interfacing with a Computer Location of Active Sync icon located in the Task Bar.

Interfacing with a Computer Location of Active Sync icon located in the Task Bar. Shown dark (not connected) The Task Bar will be located at the bottom, or right side of your computer screen. TM 001028 E

Interfacing with a Computer Select Cancel at the Partnership Screen Press OK at the

Interfacing with a Computer Select Cancel at the Partnership Screen Press OK at the ‘Partnership Not Set Up’ screen. TM 001028 E

Interfacing with a Computer Log-on to itms-vt Software TM 001028 E

Interfacing with a Computer Log-on to itms-vt Software TM 001028 E

Interfacing with a Computer Log-On to itms-vt Software TM 001028 E

Interfacing with a Computer Log-On to itms-vt Software TM 001028 E

Interfacing with a Computer Plasmagram and Select. Scan Plasmagram TM 001028 E Select. Scan

Interfacing with a Computer Plasmagram and Select. Scan Plasmagram TM 001028 E Select. Scan

Interfacing with a Computer Retrieving Files Press <G> on computer keyboard to retrieve files

Interfacing with a Computer Retrieving Files Press <G> on computer keyboard to retrieve files Pressing OK on this dialog box will take you to “VT alarms” folder. TM 001028 E

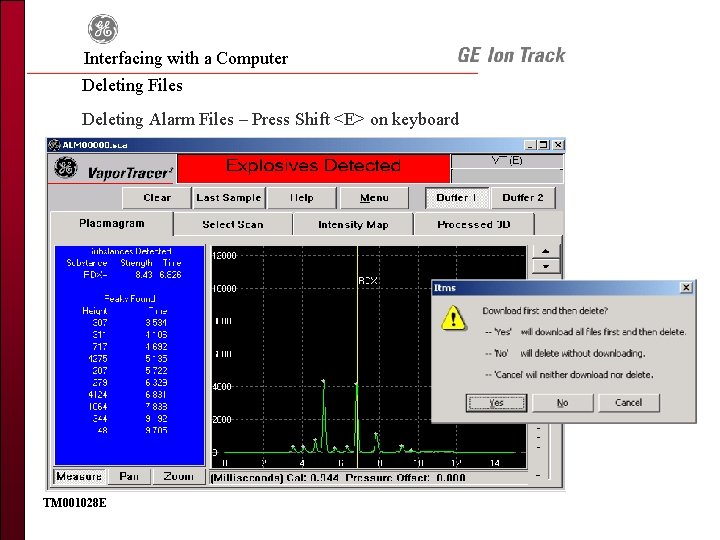

Interfacing with a Computer Deleting Files Deleting Alarm Files – Press Shift <E> on

Interfacing with a Computer Deleting Files Deleting Alarm Files – Press Shift <E> on keyboard TM 001028 E

Advanced Features Recall and print files, print config TM 001028 E

Advanced Features Recall and print files, print config TM 001028 E

Advanced Menu Functions Recalling Alarms Alarm - ALM 00000. sca - Opened Press Menu,

Advanced Menu Functions Recalling Alarms Alarm - ALM 00000. sca - Opened Press Menu, Recall & Select a downloaded file to open. TM 001028 E

Advanced Menu Functions Upgrading Software h. Insert the upgrade disk into the computer CD

Advanced Menu Functions Upgrading Software h. Insert the upgrade disk into the computer CD Rom drive h. Press <ALT-U> on the computer. h. When prompted, press the ENTER button on the Vapor. Tracer 2. h. Click OK when the Upgrade Now message appears. h. Once the upgrade has been completed, the Vapor. Tracer 2 will restart automatically. TM 001028 E

Advanced Menu Functions Upgrading Vapor. Tracer 2 Software TM 001028 E

Advanced Menu Functions Upgrading Vapor. Tracer 2 Software TM 001028 E

Advanced Menu Functions • • TM 001028 E Options Configuration Substances Notes Manual Calibrate

Advanced Menu Functions • • TM 001028 E Options Configuration Substances Notes Manual Calibrate Find Match Recalled file views Zoom Function

Advanced Menu Functions Options Administrator Menu Functions Defaults are set at the factory and

Advanced Menu Functions Options Administrator Menu Functions Defaults are set at the factory and should not be altered without consulting GE Ion. Track Technical Service! TM 001028 E

Advanced Menu Functions Labels TM 001028 E

Advanced Menu Functions Labels TM 001028 E

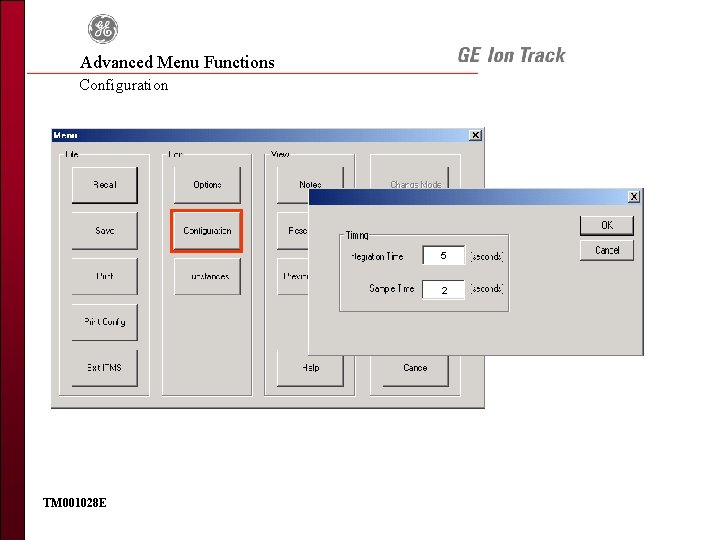

Advanced Menu Functions Configuration 5 2 TM 001028 E

Advanced Menu Functions Configuration 5 2 TM 001028 E

Advanced Menu Functions Substances Defaults are set at the factory and should not be

Advanced Menu Functions Substances Defaults are set at the factory and should not be altered without consulting GE Ion. Track Technical Service! TM 001028 E

Advanced Menu Functions Notes, Zoom, and Help TM 001028 E

Advanced Menu Functions Notes, Zoom, and Help TM 001028 E

Advanced Menu Functions Calibrate, Find Match, and Cancel TM 001028 E

Advanced Menu Functions Calibrate, Find Match, and Cancel TM 001028 E

Advanced Menu Functions Intensity Map and Processed 3 D Intensity Map TM 001028 E

Advanced Menu Functions Intensity Map and Processed 3 D Intensity Map TM 001028 E Processed 3 D

Advanced Menu Functions Zoom Function TM 001028 E

Advanced Menu Functions Zoom Function TM 001028 E

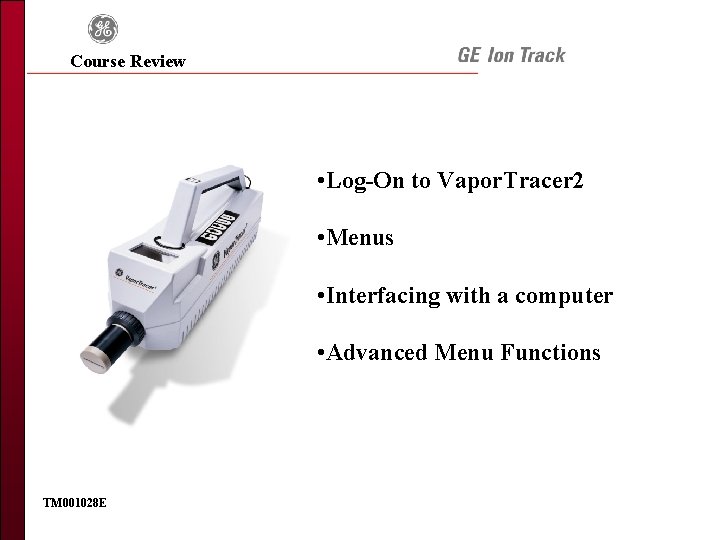

Course Review • Log-On to Vapor. Tracer 2 • Menus • Interfacing with a

Course Review • Log-On to Vapor. Tracer 2 • Menus • Interfacing with a computer • Advanced Menu Functions TM 001028 E
