ADJACENT VERTICAL SUPPLEMENTARY AND COMPLEMENTARY ANGLES LINEAR PAIR
- Slides: 55
ADJACENT, VERTICAL, SUPPLEMENTARY, AND COMPLEMENTARY ANGLES LINEAR PAIR, PERPENDICULAR LINES
Adjacent angles are “side by side” and share a common ray. 45º 15º
These are examples of adjacent angles. 80º 45º 35º 55º 85º 130º 20º 50º
These angles are NOT adjacent. 100º 50º 35º 55º 45º
When 2 lines intersect, they make vertical angles. 75º 105º 75º
Vertical angles are opposite from one another. 75º 105º 75º
Vertical angles are opposite from one another. 75º 105º 75º
Vertical angles are congruent (equal). 150º 30º 150º
Supplementary angles add up to 180º. 40º 120º 60º Adjacent and Supplementary Angles 140º Supplementary Angles but not Adjacent
Complementary angles add up to 90º. 30º 40º 60º Adjacent and Complementary Angles 50º Complementary Angles but not Adjacent
Linear Pair: a pair of adjacent angles that measures 180°
Perpendicular Lines: intersect to form four right angles
Practice Time!
Practice Directions: Identify each pair of angles as vertical, supplementary, complementary, linear pair or none of the above.
#1 120º 60º
#1 120º 60º Supplementary Angles Linear Pair
#2 30º 60º
#2 30º 60º Complementary Angles
#3 75º
#3 Vertical Angles 75º
#4 40º 60º

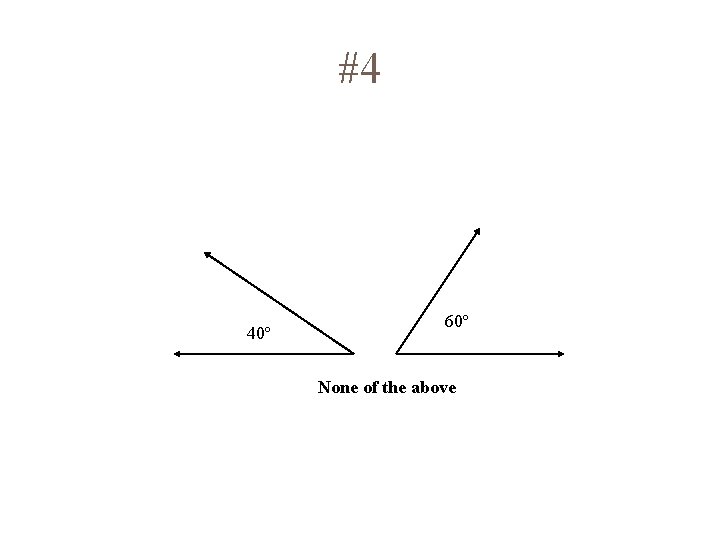

#4 40º 60º None of the above
#5 60º

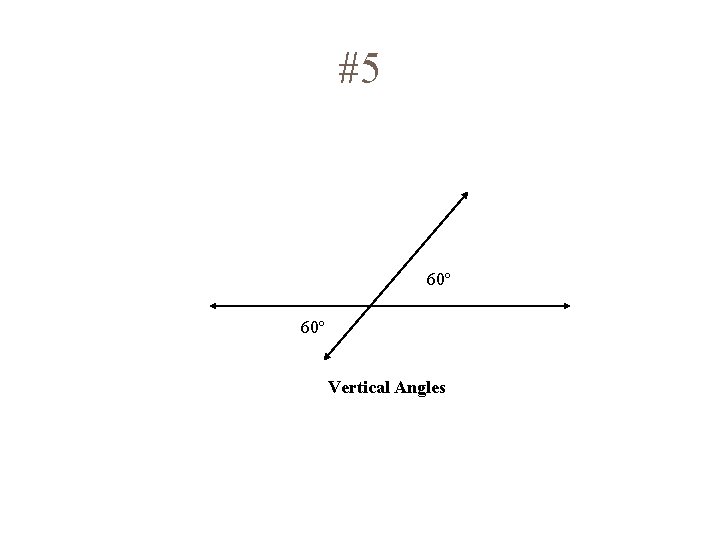

#5 60º Vertical Angles
#6 135º 45º
#6 135º 45º Supplementary Angles Linear Pair
#7 25º 65º
#7 25º 65º Complementary Angles
#8 90º 50º
#8 90º 50º None of the above
Directions: Determine the missing angle.

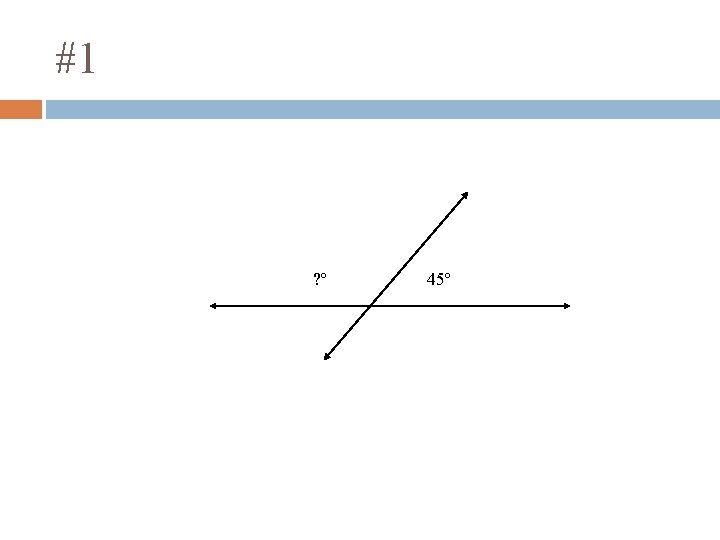

#1 135º 45º
#2 25º 65º

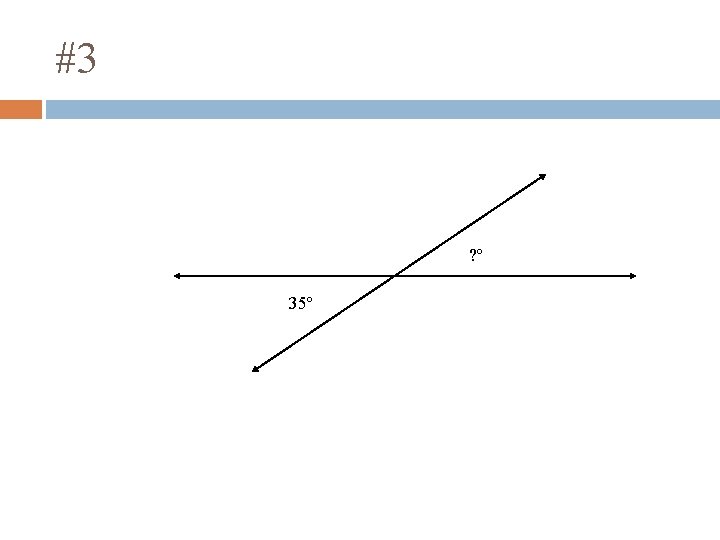

#3 35º
#4 130º 50º
#5 140º

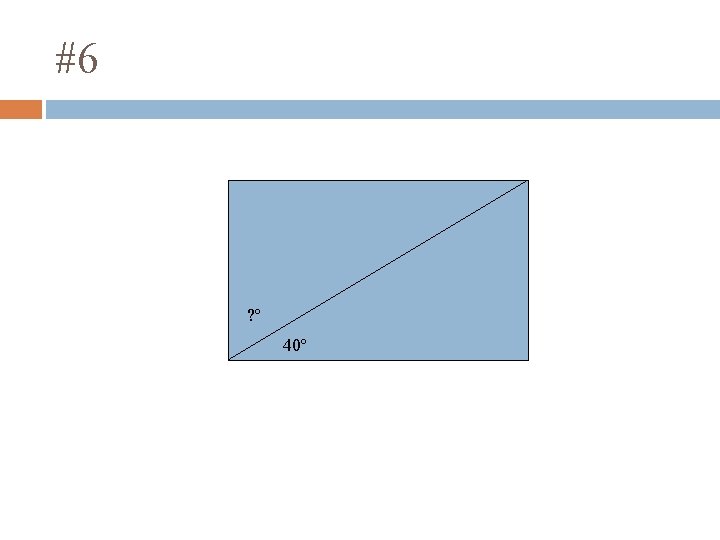

#6 50º 40º
Angle Relationship: Investigation 1 The Linear Pair Conjecture Materials: paper, pencil, 2 sheets of patty paper & protractor Draw line PQ and place a point R between P and Q. Choose another point S not on line PQ and draw ray RS. You have just create a linear pair of angles. Place the “zero edge” of your protractor along line PQ. What do you notice about the sum of the measures of the linear pair of angles? Compare your results with those of your class. Does everyone make the same observation? What is the Linear Pair Conjecture? Example:

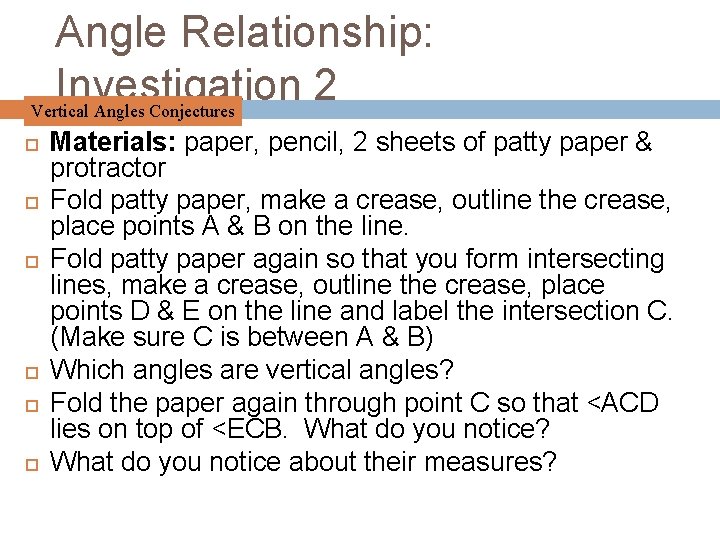

Angle Relationship: Investigation 2 Vertical Angles Conjectures Materials: paper, pencil, 2 sheets of patty paper & protractor Fold patty paper, make a crease, outline the crease, place points A & B on the line. Fold patty paper again so that you form intersecting lines, make a crease, outline the crease, place points D & E on the line and label the intersection C. (Make sure C is between A & B) Which angles are vertical angles? Fold the paper again through point C so that <ACD lies on top of <ECB. What do you notice? What do you notice about their measures?

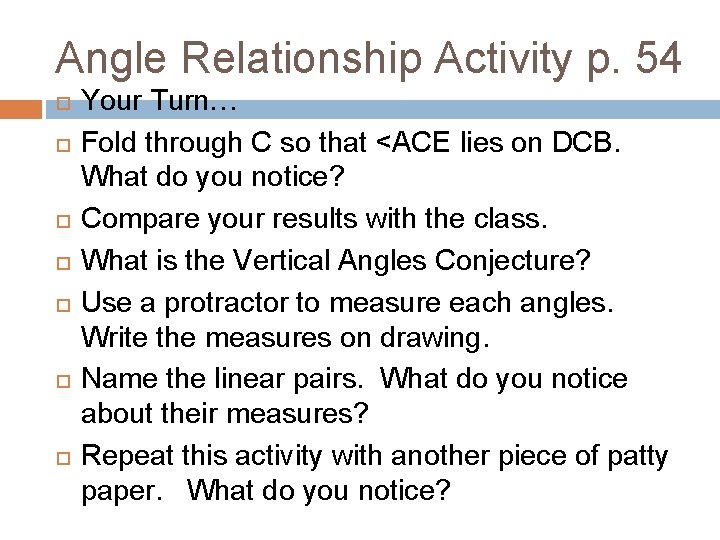

Angle Relationship Activity p. 54 Your Turn… Fold through C so that <ACE lies on DCB. What do you notice? Compare your results with the class. What is the Vertical Angles Conjecture? Use a protractor to measure each angles. Write the measures on drawing. Name the linear pairs. What do you notice about their measures? Repeat this activity with another piece of patty paper. What do you notice?
Practice: complementary and supplementary Let’s Race! Find a partner, get a deck of cards, and play “Say it faster!” Whoever say the complement/supplement faster gets the pair of cards. The person with the most cards, WINS! 10, Jacks, Queens, Kings, & Aces = 1 Every other find the complement or supplement.
Practice: Adjacent Complete Angles Relationships. Vertical Complete Angle Addition Quiz will be tomorrow Complementary Study guide tomorrow Test will be on Friday Angle Addition Postulate Supplementary Linear Pair
Warm-Up: Identify each pair of angles Use: adjacent, vertical, complementary, supplementary, and/or linear pair 1. <1 & <2 2. <1 & <4 3. <4 & <5 4. <3 & <4 2 3 1 5 4
Warm-Up: Find x and each measure 1. (5 x+ 16)º 3. (10 x + 35)º (6 x + 8)º (13 x + 30)º 2. (5 x + 18)º (7 x + 12)º 4. Ray BC is an angle bisector. Find <CBD & <ABC. A 63º B C D
Warm-Up: Find x and each measure 1. (5 x+ 16)º (6 x + 8)º 2. (5 x + 18)º (7 x + 12)º
Warm-Up: Find x and each measure 3. (10 x + 35)º (13 x + 30)º 4. Ray BC is an angle bisector. Find <CBD & ABC. A 63º B C D
Warm-Up: Angle Addition 1. The m < ABC = 6 x – 8, m < ABD = 3 x + 2, and m < DBC = 2 x – 1. Find the measure of each angle. A B D C
How to measure and construct angles? How to analyze and measure pairs of angles? Warm-Up: A C I 1 B 3 2 3. If m < IBT is 135, find <SBT. S 4 T 1. Name angle 3. 2. < 3 & <4 are…. 4. <4 = 4 x + 5 & <3 = 6 x + 5. Find each measure.
Before Test How to measure and construct angles? How to analyze and measure pairs of angles? Check study guide Any last minute questions before test
