Adjacent Vertical Supplementary and Complementary Angles Adjacent angles
- Slides: 41
Adjacent, Vertical, Supplementary, and Complementary Angles

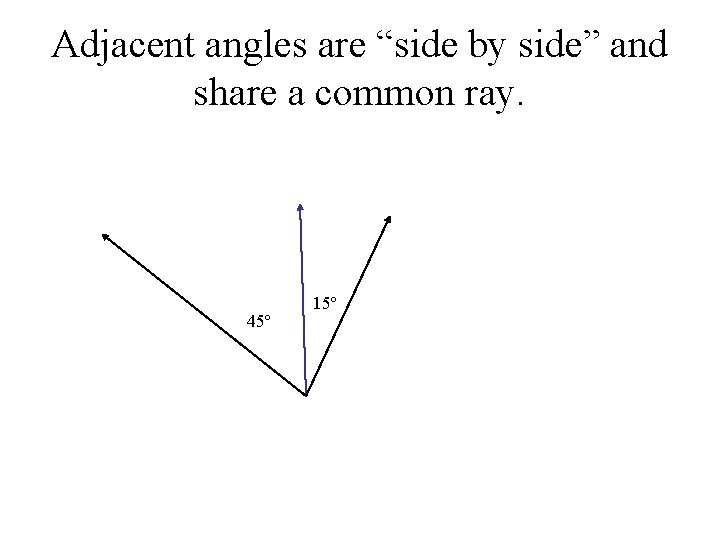

Adjacent angles are “side by side” and share a common ray. 45º 15º

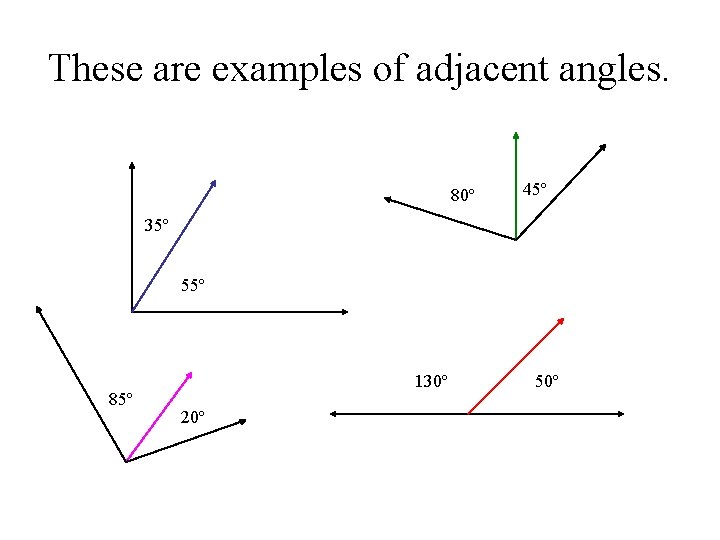

These are examples of adjacent angles. 80º 45º 35º 55º 85º 130º 20º 50º

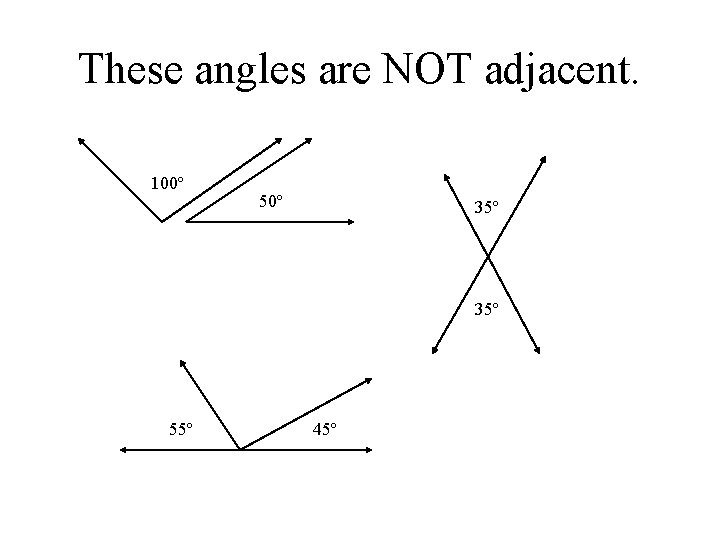

These angles are NOT adjacent. 100º 50º 35º 55º 45º

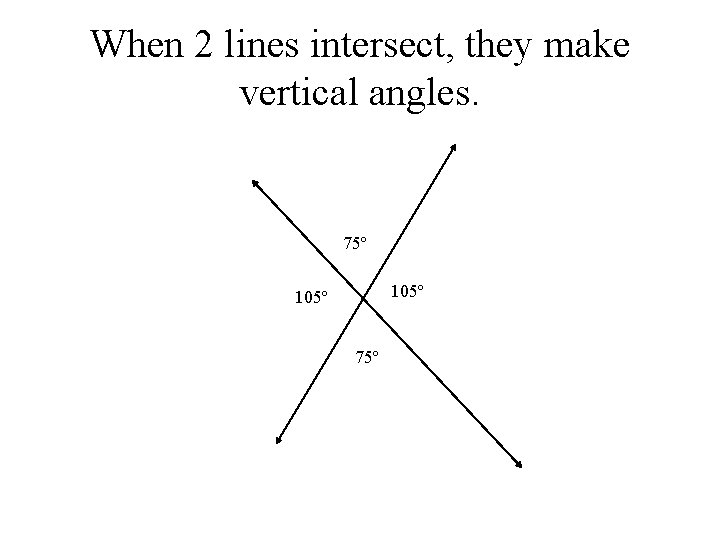

When 2 lines intersect, they make vertical angles. 75º 105º 75º

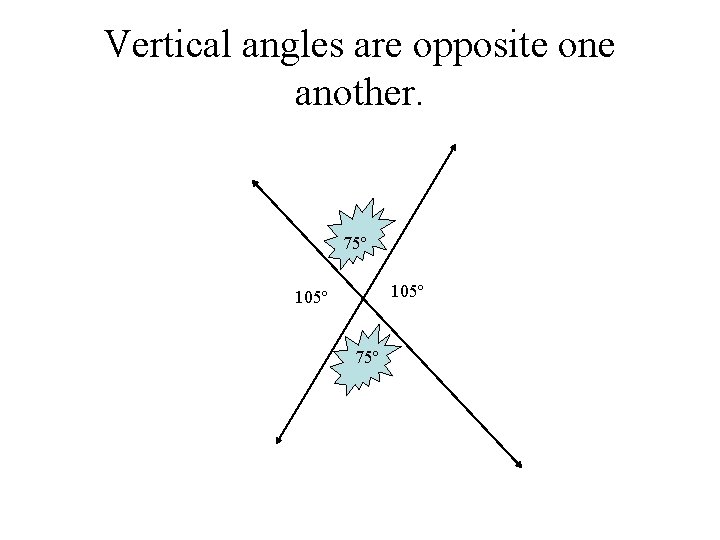

Vertical angles are opposite one another. 75º 105º 75º
Vertical angles are opposite one another. 75º 105º 75º

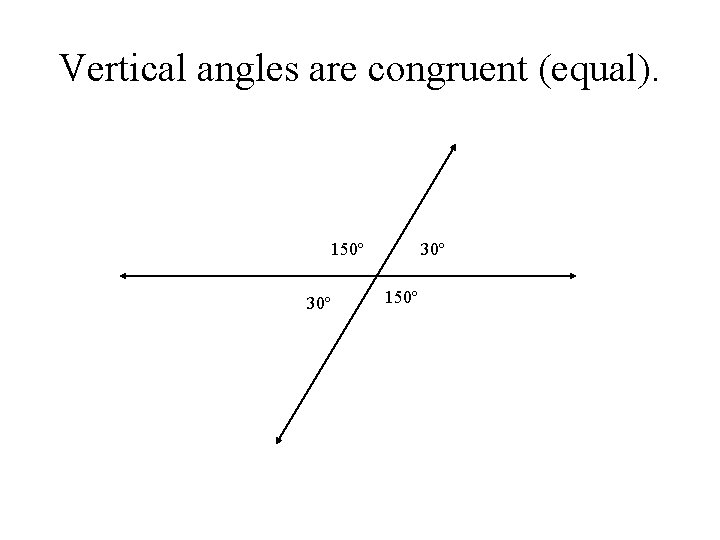

Vertical angles are congruent (equal). 150º 30º 150º
Supplementary angles add up to 180º. 40º 120º 60º Adjacent and Supplementary Angles 140º Supplementary Angles but not Adjacent
Complementary angles add up to 90º. 30º 40º 60º Adjacent and Complementary Angles 50º Complementary Angles but not Adjacent
Practice Time!

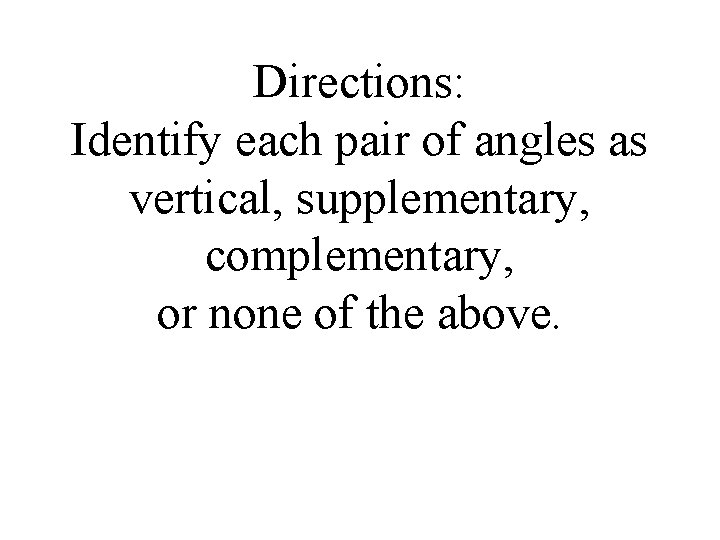

Directions: Identify each pair of angles as vertical, supplementary, complementary, or none of the above.
#1 120º 60º
#1 120º 60º Supplementary Angles

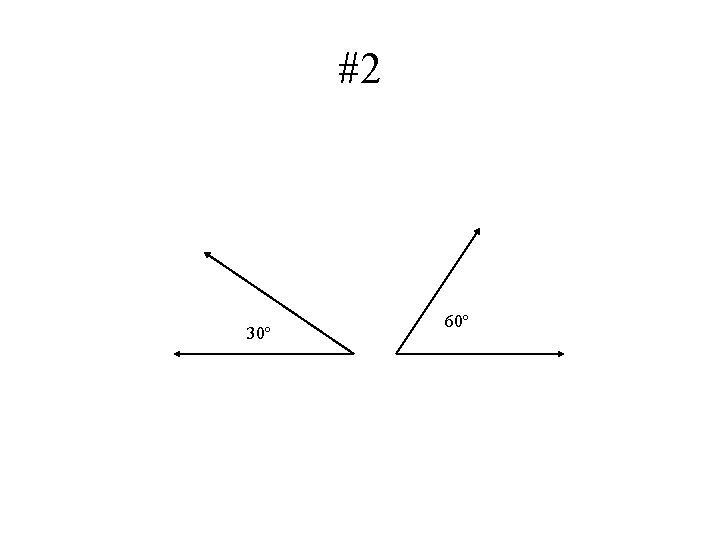

#2 30º 60º

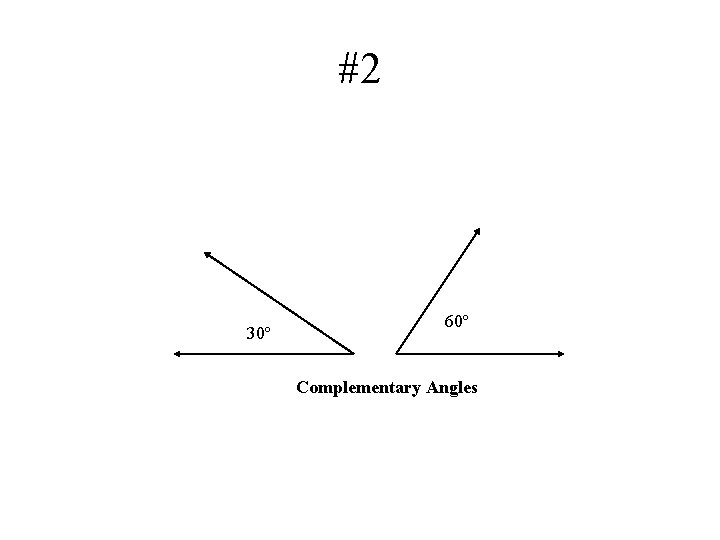

#2 30º 60º Complementary Angles

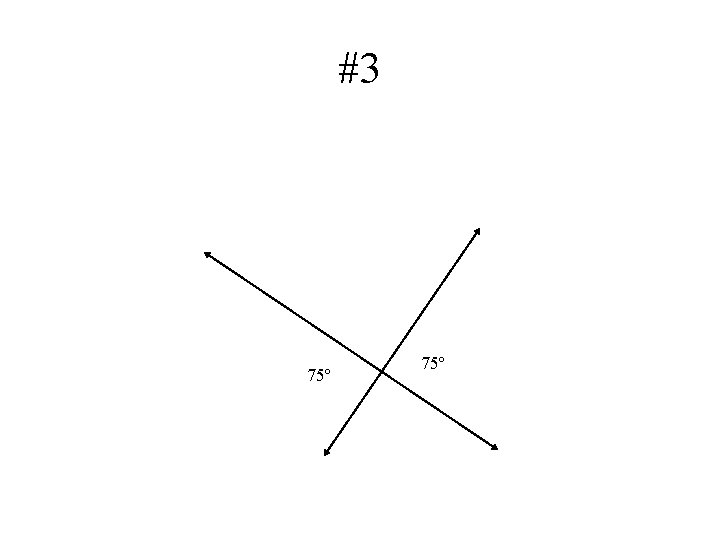

#3 75º
#3 Vertical Angles 75º
#4 40º 60º
#4 40º 60º None of the above

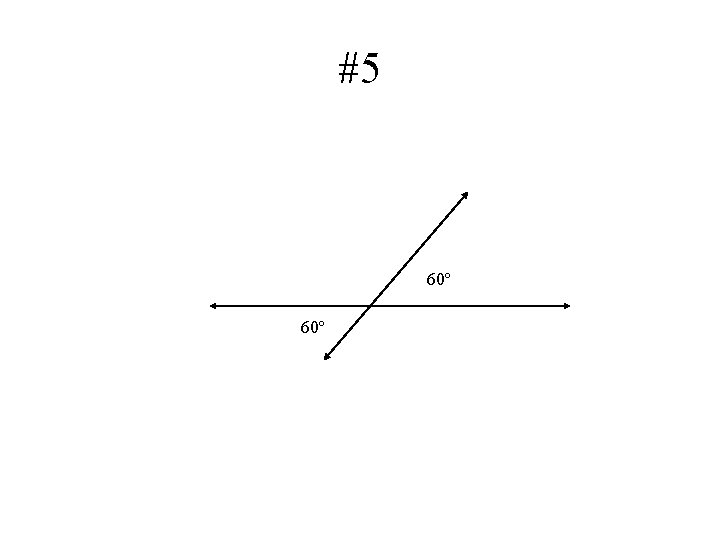

#5 60º
#5 60º Vertical Angles

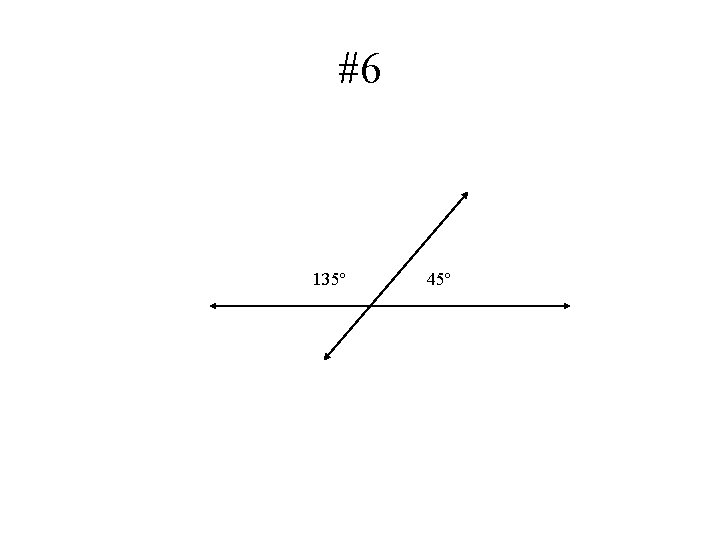

#6 135º 45º

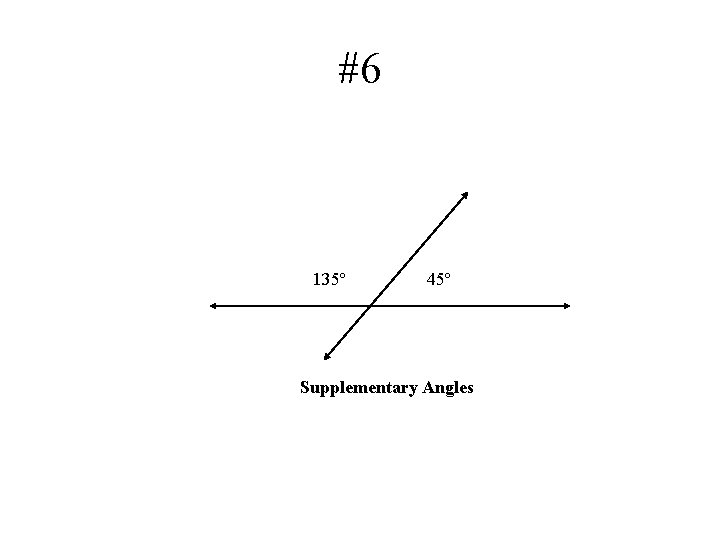

#6 135º 45º Supplementary Angles

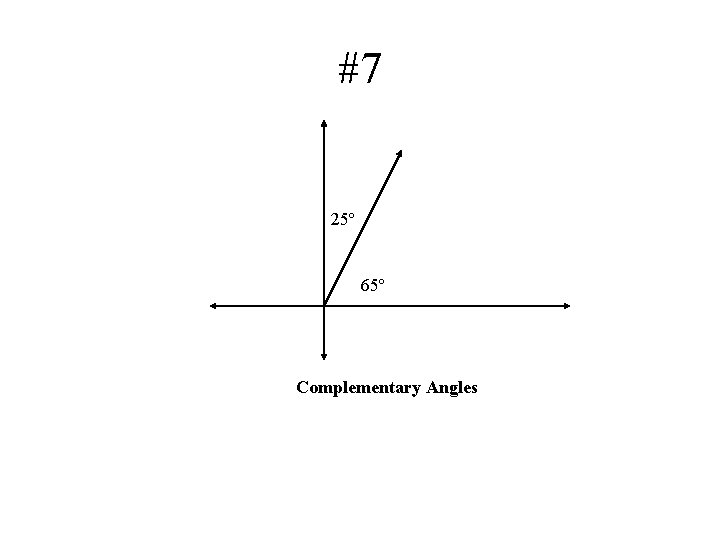

#7 25º 65º
#7 25º 65º Complementary Angles

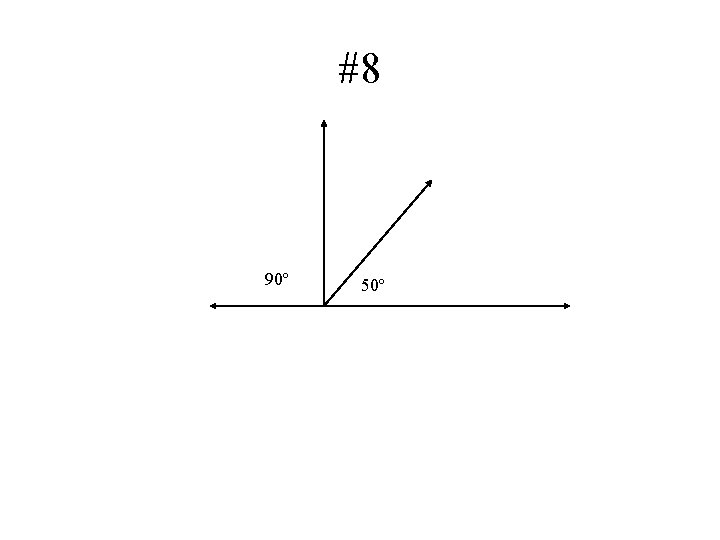

#8 90º 50º
#8 90º 50º None of the above
Directions: Determine the missing angle.
#1 135º 45º

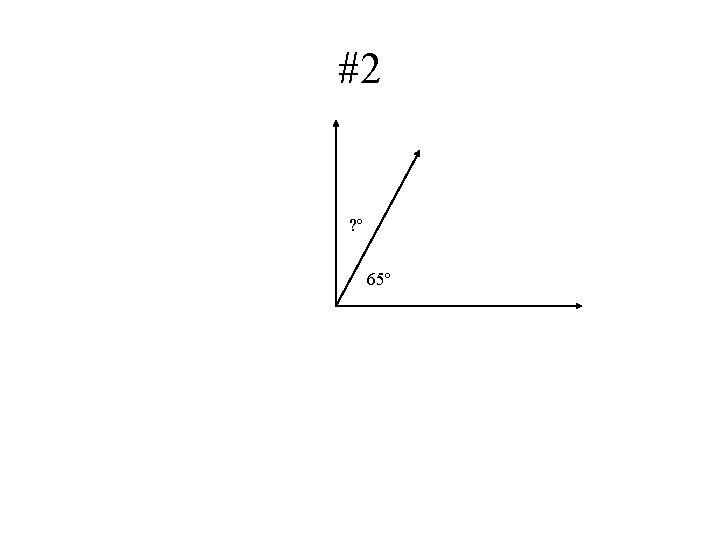

#2 25º 65º

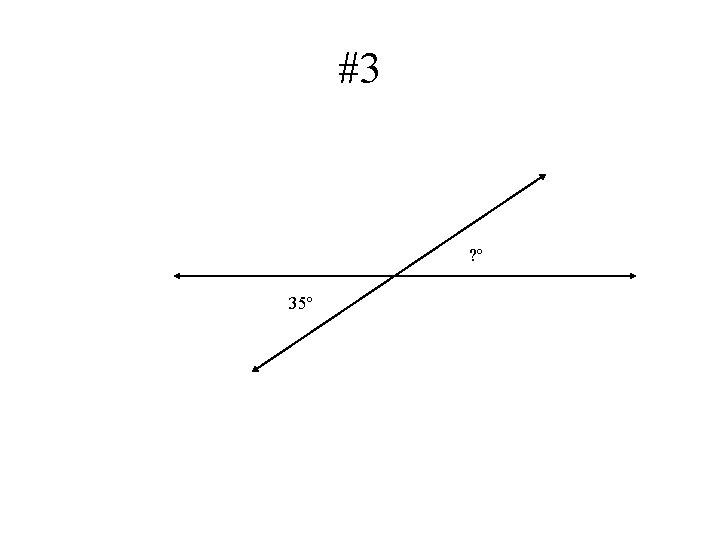

#3 35º

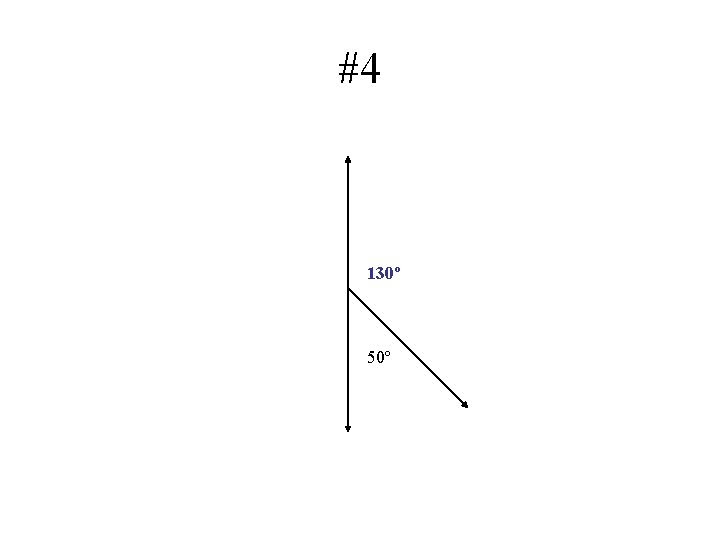

#4 130º 50º

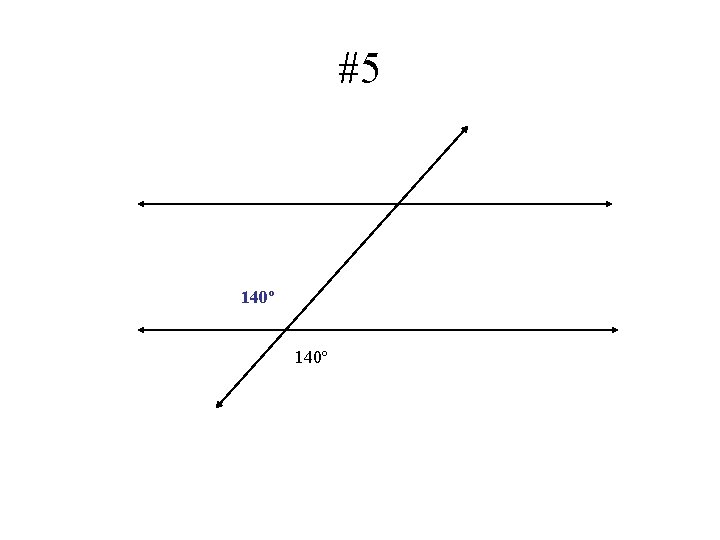

#5 140º

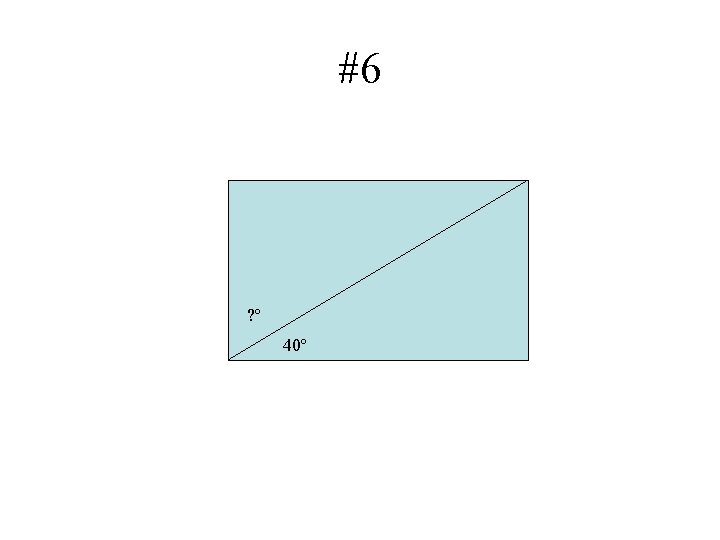

#6 50º 40º
