Adding Vectors by the Component Method Yesterday we added vectors which were at right angles to one another. What would happen if the vectors were not at right angles? ¡ A crow (who apparently isn’t aware that he should only fly in straight lines) first flies 10 km at 60° N of E. The he flies 25 km at 10° N of E. What is his total displacement? ¡

Adding Vectors by the Component Method – The Strategy B = 25 km @ 10° N of E 10° A = 10 km @ 60° N of E 60° ¡ Obviously the answer is not 35 km, so what must be done?

Adding Vectors by the Component Method B = 25 km @ 10° N of E R = resultant A = 10 km @ 60° N of E Obviously the answer is not 35 km, so what must be done? ¡ Find the RESULTANT ¡

Adding Vectors by the Component Method The vectors need to be added vectorally. ¡ Both vectors need to be RESOLVED into their components. ¡ The components are then added together to find the resultant. ¡ A to be resolved into Ax and Ay. ¡ B to be resolved into Bx and By. ¡

Adding Vectors by the Component Method – Resolve each vector into components B = 25 km @ 10° N of E A = 10 km @ 60° N of E

Adding Vectors by the Component Method – Resolve each vector into components B = 25 km @ 10° N of E Bx Ay A = 10 km @ 60° N of E Ax By

Adding Vectors by the Component Method B = 25 km @ 10° N of E By Bx Ay A = 10 km @ 60° N of E Ax Ax = 10 cos 60° Bx = 25 cos 10° Ay = 10 sin 60° By = 25 sin 10°

Adding Vectors by the Component Method Bx By Ay Ax ¡ The x-components and y-components can each be considered legs of the resulting triangle.

Adding Vectors by the Component Method By Ay Ax ¡ Bx The x-components and y-components can each be considered legs of the resulting triangle.

Adding Vectors by the Component Method – Construct the “resulting triangle” from components By Ry R Ax ¡ Rx Rx = A x + B x Ay Bx Ry = A y + B y

Adding Vectors by the Component Method Rx = 29. 60 Ry = 13. 00 By R = ? ? Ry R Ax Rx Ay Bx How do we find R? YES!! Pythagorean Theorem: R 2 = Rx 2 + Ry 2

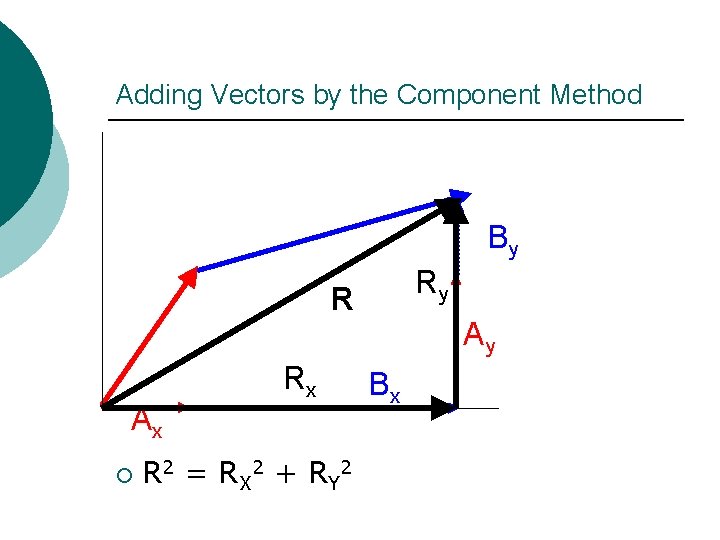

Adding Vectors by the Component Method By Ry R Ax ¡ Rx R 2 = R X 2 + R Y 2 Ay Bx

Adding Vectors by the Component Method Math – IN DEGREE MODE ¡ Ax = 10 cos 60° = 5. 00 km ¡ Ay = 10 sin 60° = 8. 66 km ¡ Bx = 25 cos 10° = 24. 6 km ¡ By = 25 sin 10° = 4. 34 km ¡ Rx = Ax + Bx = 29. 6 km ¡ Ry = Ay + By = 13. 00 km ¡ R = 32. 33 km ¡

Adding Vectors by the Component Method ¡ Another way to organize data x-axis y-axis A 10 cos 60° 10 sin 60° B 25 cos 10° 25 sin 10° R

Adding Vectors by the Component Method ¡ Another way to organize data x-axis y-axis A 5. 00 8. 66 B 24. 62 4. 34 R

Adding Vectors by the Component Method ¡ Another way to organize data x-axis y-axis A 5. 00 8. 66 B 24. 62 4. 34 R 29. 62 13. 00

Adding Vectors by the Component Method Rx = 29. 60 Ry = 13. 00 By R = 32. 33 Ry R Ax Rx Ay Bx Is this it? 32. 33 km?

Adding Vectors by the Component Method Rx = 29. 60 Ry = 13. 00 By R = 32. 33 Ry R Ax Rx Ay Bx Is this it? No!! Now we have to find the direction.

Adding Vectors by the Component Method Rx = 29. 60 Ry = 13. 00 R = 32. 33 R θ Rx tan θ = Ry/Rx θ = tan-1(Ry/Rx) Ry

Adding Vectors by the Component Method Rx = 29. 60 Ry = 13. 00 R = 32. 33 R θ Ry Rx θ = 23. 71° N of E How do we know it is North of East?

Adding Vectors by the Component Method N (north) A W (west) B 40° N of E C Which angle is 10° North of West? A, B or C? Which angle is 10° West of North? A, B or C? What is angle C? S (South) E (east)

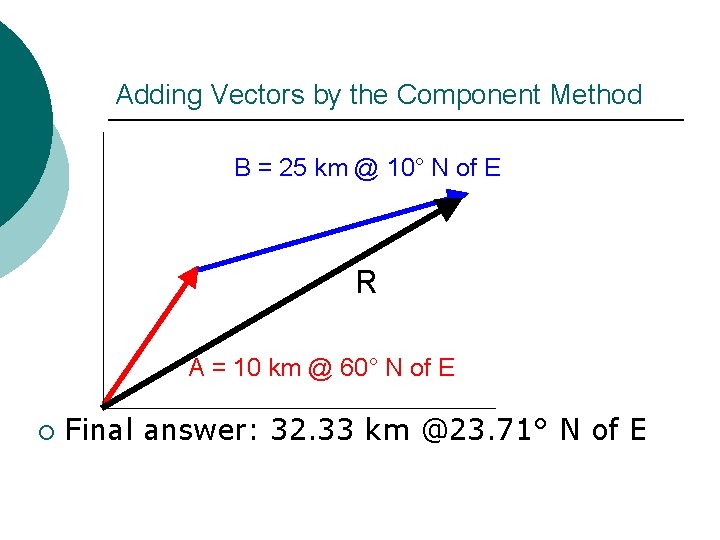

Adding Vectors by the Component Method B = 25 km @ 10° N of E R A = 10 km @ 60° N of E ¡ Final answer: 32. 33 km @23. 71° N of E

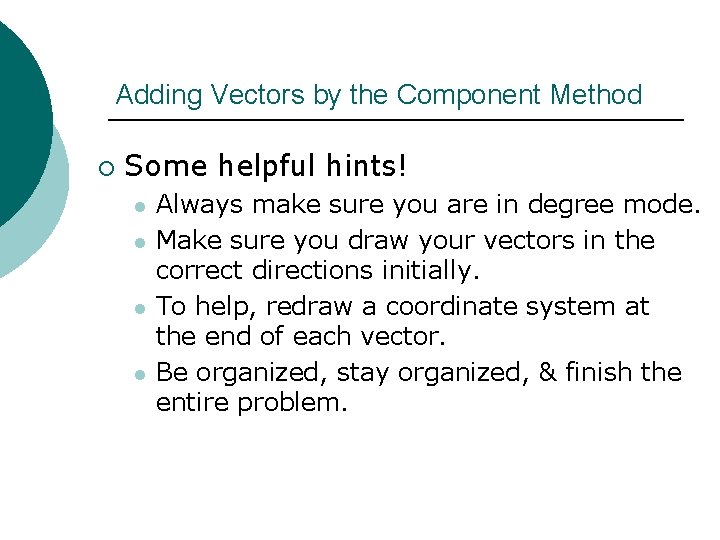

Adding Vectors by the Component Method ¡ Some helpful hints! l l l Never use the original values after the vector has been resolved. Assign negative values to S and W components of vectors (assuming N and E are positive) Always make sure you are in degree mode.

Adding Vectors by the Component Method ¡ Some helpful hints! l l Always make sure you are in degree mode. Make sure you draw your vectors in the correct directions initially. To help, redraw a coordinate system at the end of each vector. Be organized, stay organized, & finish the entire problem.

Adding Vectors by the Component Method ¡ Other examples l A duck flies 10 m/s @ 30° S of W with a wind blowing 5 m/s N. What is the resulting velocity of the duck? ¡ Answer:

Adding Vectors by the Component Method ¡ Other examples l A duck flies 10 m/s @ 30° S of W with a wind blowing 5 m/s N. What is the resulting velocity of the duck? ¡ Answer: B 0 x & +y A -x & -y

Adding Vectors by the Component Method ¡ Other examples l A duck flies 10 m/s @ 30° S of W with a R = ? ? wind blowing 5 m/s N. ¡ B Answer: x-axis y-axis A -10 cos 30 -10 sin 30 B 0 +5 R A

Adding Vectors by the Component Method ¡ Other examples l A duck flies 10 m/s @ 30° S of W with a R = ? ? wind blowing 5 m/s N. ¡ B Answer: x-axis y-axis A -8. 66 -5 B 0 +5 R A

Adding Vectors by the Component Method ¡ Other examples l A duck flies 10 m/s @ 30° S of W with a R = ? ? wind blowing 5 m/s N. ¡ B Answer: x-axis y-axis A -8. 66 -5 B 0 +5 R -8. 66 0 A

Adding Vectors by the Component Method ¡ Other examples l A duck flies 10 m/s @ 30° S of W with a wind blowing 5 m/s N. ¡ Answer: R = -8. 66 m/s or 8. 66 m/s W B A x-axis y-axis R -8. 66 0

Adding Vectors by the Component Method ¡ ANY and ALL vectors can (and will) be analyzed this way. l l l Displacements Velocities Accelerations Forces Momentum

Adding Vectors by the Component Method Any questions? ¡ These notes will be online ¡ You MUST be good at vectors to succeed / pass this class. ¡ Ask questions (in class) whenever necessary. ¡
