Adding a Charging Station to your City Charging

Adding a Charging Station to your City

Charging Equipment Manufacturers • Charging companies provide either the physical equipment, the network, or both • Many options exist that provide quality products and services • Once you know what style of charging station you want, research available options • Common manufacturers include Charge. Point, ZEF Energy, e. Motorwerks, and Clipper. Creek Photo: insideevs. com

EV Charging Station Funding • Cooperative purchasing includes electric vehicle supply equipment (EVSE) • Available via the state contract and Sourcewell • The US Department of Energy has a list of charging incentives by utility—check for yours! • Sign-up for updates on VW Settlement funding • https: //www. pca. state. mn. us/air/volkswagensettlement

Attract EV Drivers to Your City! • Adding an EV charging station attracts EV drivers to your city • Tourism is an important part of charging infrastructure • Many drivers report how happy they are a station has been added to a destination around MN!

Red Wing’s New DCFC • The City of Red Wing purchased a 25 k. W DCFC • Installed in a public lot • In exchange for sponsoring the project and paying for the electricity, local businesses advertise on the unit!

VW Settlement DCFC Plans • Volkswagen Settlement money is going to build up a DCFC network around Minnesota • Phase 1 is done but expect more in 2020+

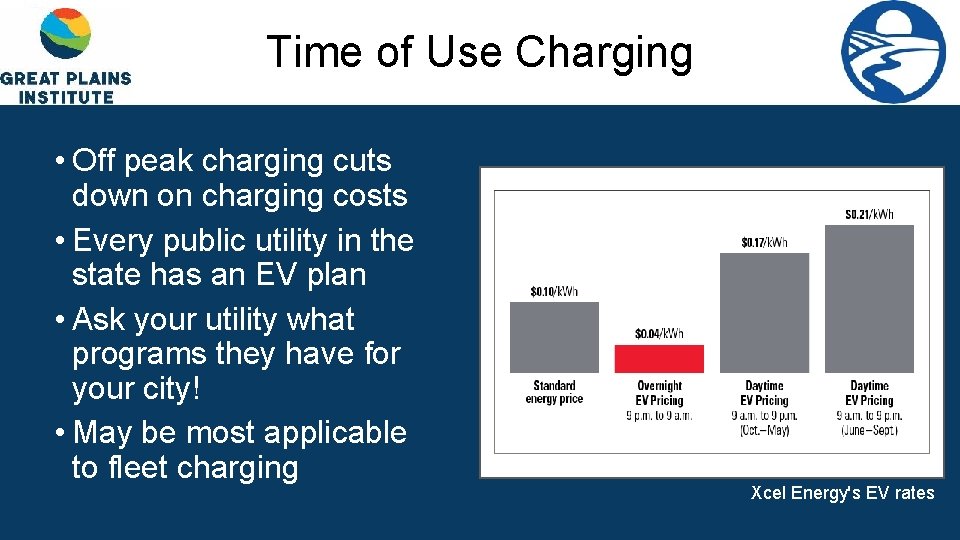

Time of Use Charging • Off peak charging cuts down on charging costs • Every public utility in the state has an EV plan • Ask your utility what programs they have for your city! • May be most applicable to fleet charging Xcel Energy's EV rates

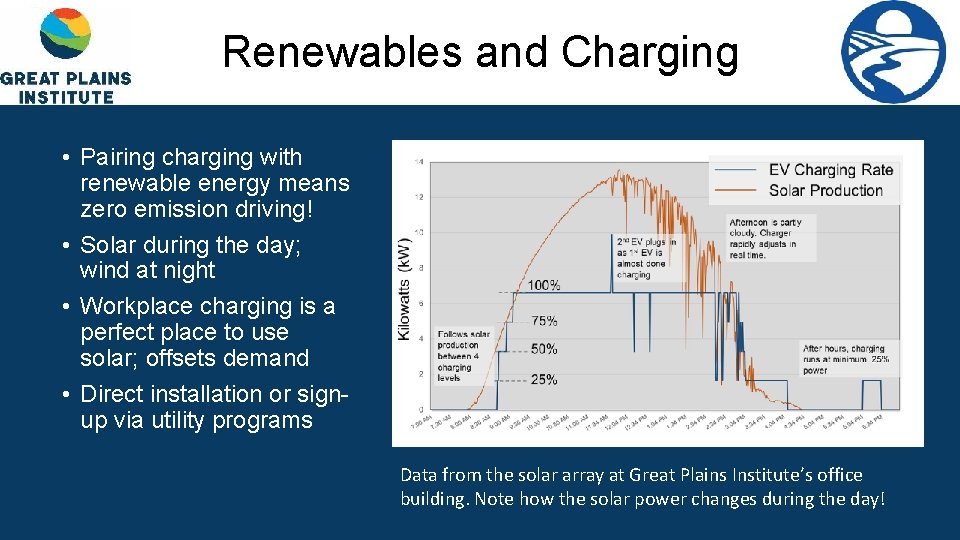

Renewables and Charging • Pairing charging with renewable energy means zero emission driving! • Solar during the day; wind at night • Workplace charging is a perfect place to use solar; offsets demand • Direct installation or signup via utility programs Data from the solar array at Great Plains Institute’s office building. Note how the solar power changes during the day!

“Smart” vs. “Dumb” Charger "Smart" Charger "Dumb" Charger • Allows data collection and usage statistics • Enables requiring payment for use • Adds cost upfront • Requires a data plan or network subscription to maintain • Available on Level 2 charging stations • Enables load distribution sharing and monitoring • Does not allow for usage statistics • Usually no way to require payment for usage • Much cheaper equipment • No data or service plan required

To Charge for Power or Not? • Level 2: extra equipment cost required to collect payment generally outweighs the potential for income from charging users • There are some creative ways to collect payment with a "dumb" charger • DC Fast Chargers: many choose to charge fees due to the expensive installation costs, knowing it is unlikely that you will recoup the price of installation

Bluff Country Co-op • Asks for a suggested donation of $2 per hour of charge • People give money to cashiers inside the co-op • Allowed the co-op to install a cheaper, level 2 station and still receive income from folks using it!

Where to Locate Chargers in a Community • Good site locations: Anywhere people stop for 2+ hours (theaters, restaurants, shops, ski hills, etc. ) • For DCFC infrastructure: install them along major public corridors and near amenities for maximum use • See the Drive Electric MN site selection tools!

Business Opportunities for Charging • Charging an EV takes longer than filling a tank with gas but also encourages EV owners to spend dollars in the local economy • Places where customers spend 2+ hours are perfect candidates to host EV charging stations • Restaurants, hotels, shops, theaters, libraries, etc… • EV owners love finding a business that they can patronize and charge their vehicle at the same time

Protect Your Charging Station • It is important to protect your charging station when it is installed • Bollards and wheel stops prevent accidental vandalism • Retractable cords help protect the electrical equipment from snowplows!

Promote Your Charging Station • Signs help guide users to your station and help to show it off! • Post your charging station on plugshare. com—it’s free • Establish a policy for non-EVs parking in the spot—a small fine or a police warning works well

On Site Location Tips • Installing closer to electrical supply equipment reduces costs significantly • Choosing a parking spot in a desirable location indicates you support EV drivers • Well-lit locations help deter vandalism

Install Close to Power Supply • Installing near the power supply cuts costs significantly • Refer to the Drive Electric MN installation checklists for more indepth guidance From Charge. Point’s guide

Future Proofing Your Community • Including conduit and power lines in new development will save you money in the future • Cheaper to lay conduit now than tear up concrete later • Higher k. W charging units will prepare you for better battery technology

Thank You! Diana Mc. Keown Metro. CERT Director dmckeown@gpisd. net 612 -278 -7158 Kris Acuña Project Assistant kacuna@gpisd. net 612 -400 -6291
