Adaptive Traffic Light Control in Wireless Sensor Network-based Intelligent Transportation System Binbin Zhou; Jiannong Cao; Xiaoqin Zeng; Hejun Wu; Dept. of Comput. , Hong Kong Polytech. Univ. , Hong Kong, China Presentation by: Vipul Singh(vs 2416)

Objectives: • Proposes an Adaptive Traffic light algorithm that adjusts both the sequence and length of traffic lights in accordance with the real time traffic detected. • Compares the results obtained with fixed-time control algorithm and also actuated control algorithm.

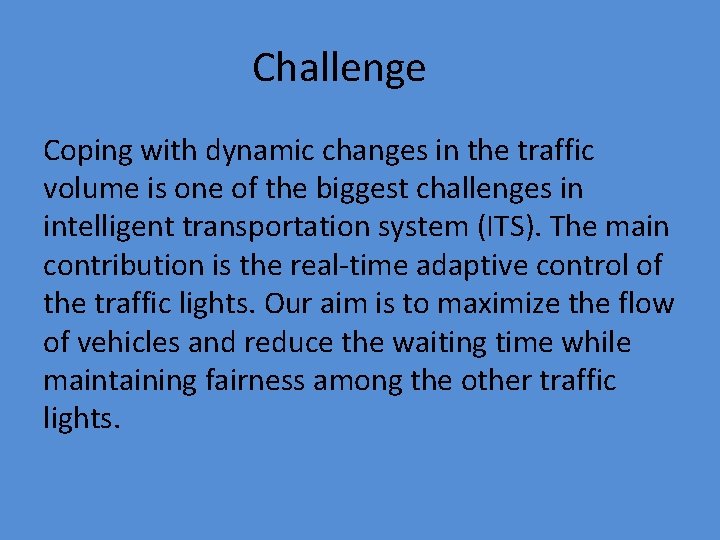

Challenge Coping with dynamic changes in the traffic volume is one of the biggest challenges in intelligent transportation system (ITS). The main contribution is the real-time adaptive control of the traffic lights. Our aim is to maximize the flow of vehicles and reduce the waiting time while maintaining fairness among the other traffic lights.

Results: • Higher throughput • Lower vehicle’s average waiting time

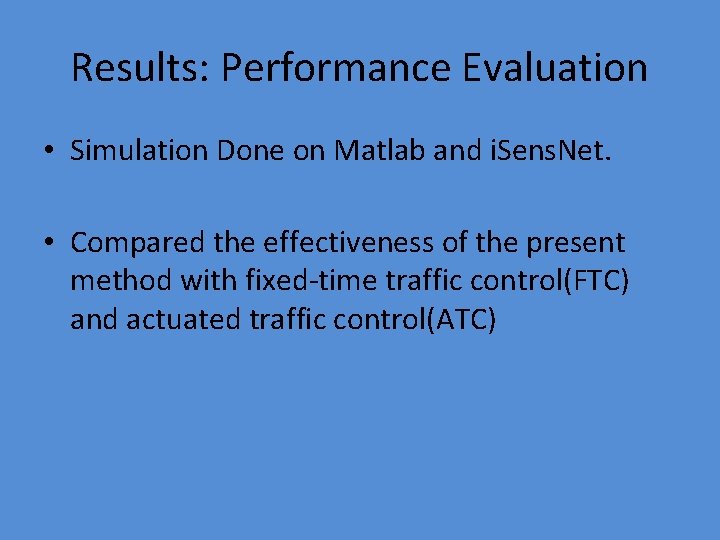

Results: Performance Evaluation • Simulation Done on Matlab and i. Sens. Net. • Compared the effectiveness of the present method with fixed-time traffic control(FTC) and actuated traffic control(ATC)

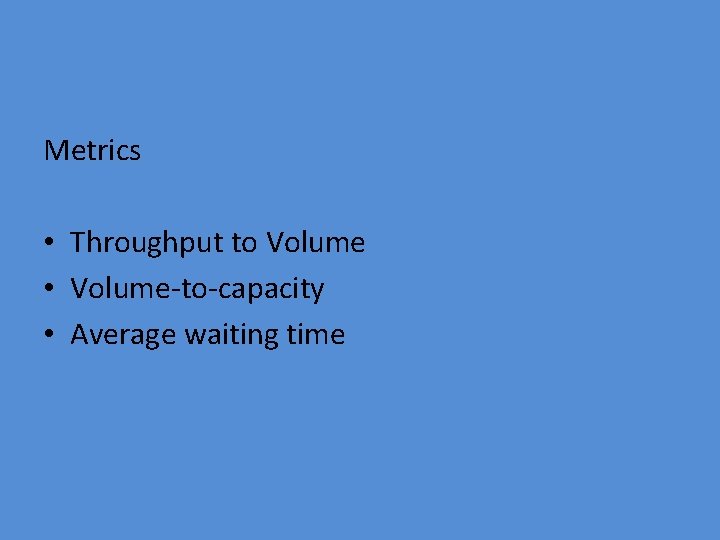

Metrics • Throughput to Volume • Volume-to-capacity • Average waiting time

Results(2/3)

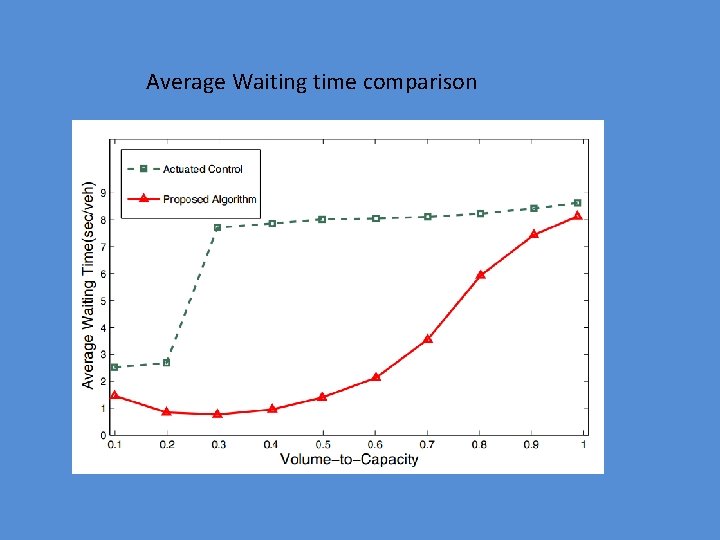

Average Waiting time comparison

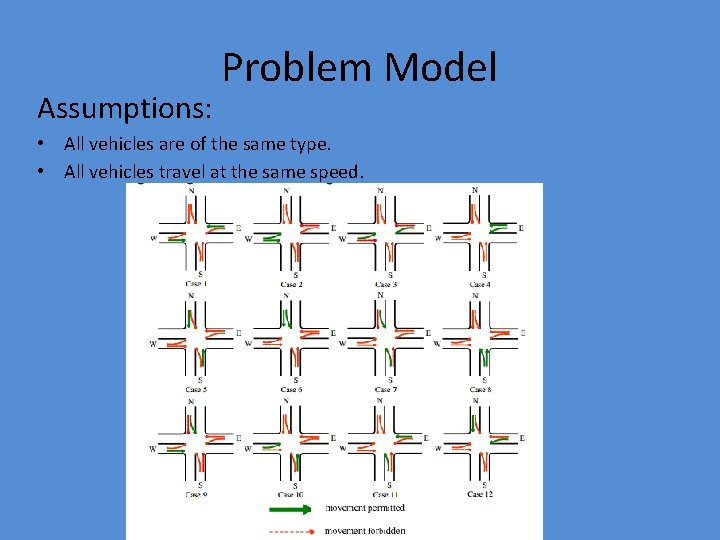

Assumptions: Problem Model • All vehicles are of the same type. • All vehicles travel at the same speed.

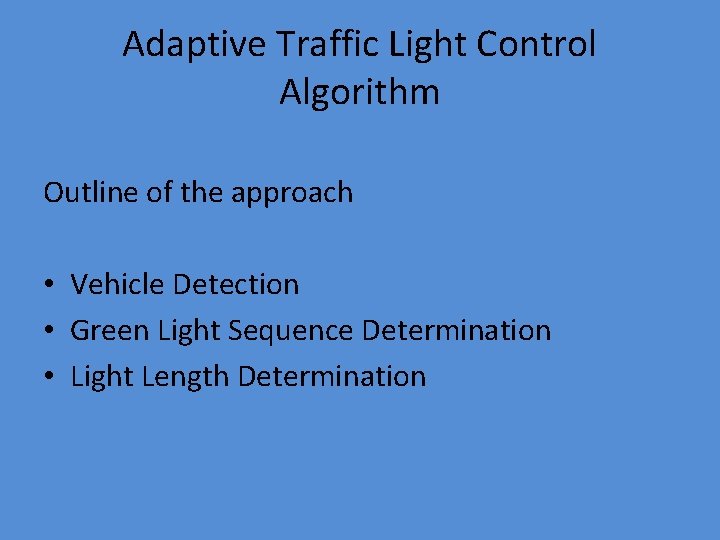

Adaptive Traffic Light Control Algorithm Outline of the approach • Vehicle Detection • Green Light Sequence Determination • Light Length Determination

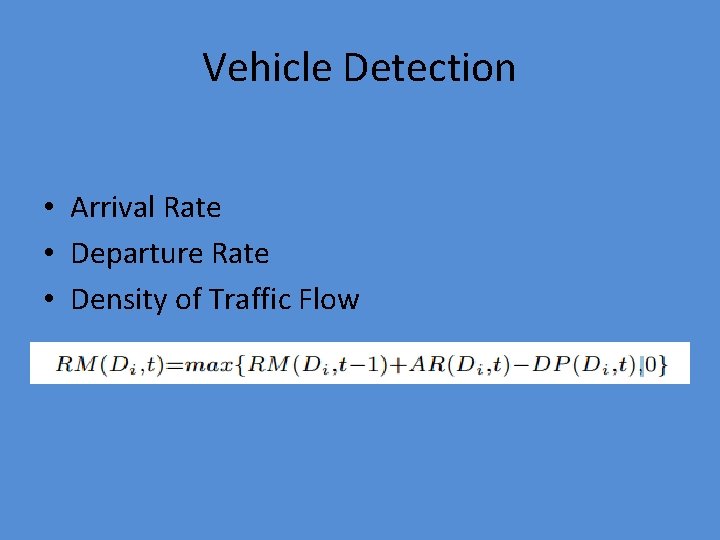

Vehicle Detection • Arrival Rate • Departure Rate • Density of Traffic Flow

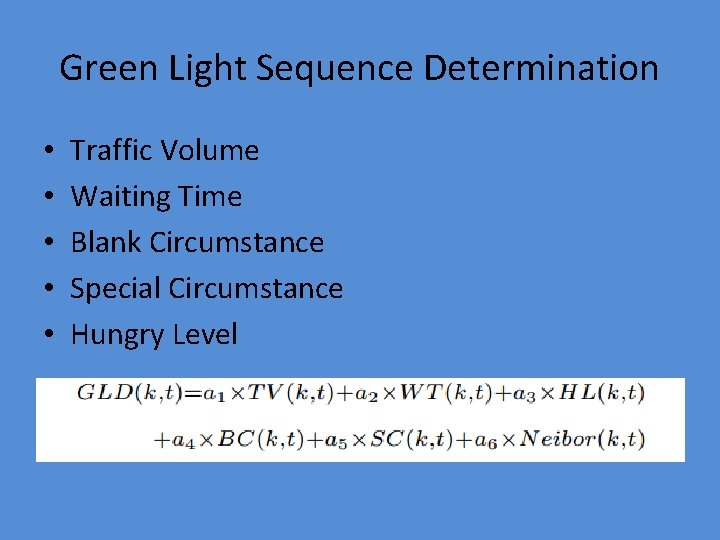

Green Light Sequence Determination • • • Traffic Volume Waiting Time Blank Circumstance Special Circumstance Hungry Level

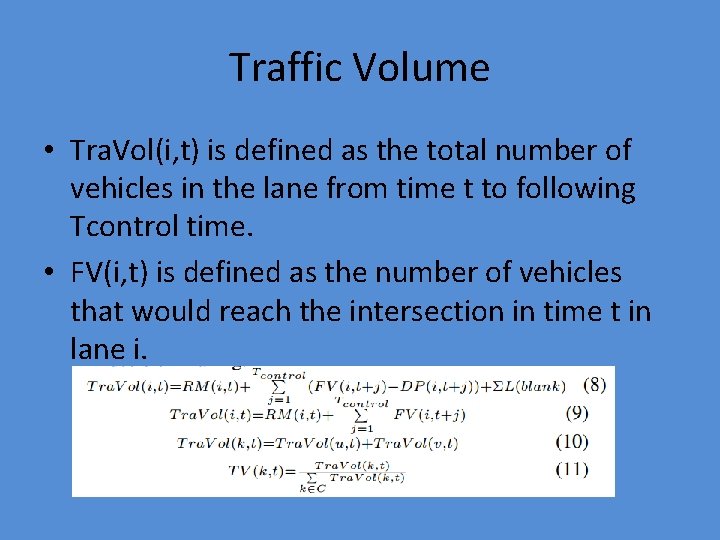

Traffic Volume • Tra. Vol(i, t) is defined as the total number of vehicles in the lane from time t to following Tcontrol time. • FV(i, t) is defined as the number of vehicles that would reach the intersection in time t in lane i.

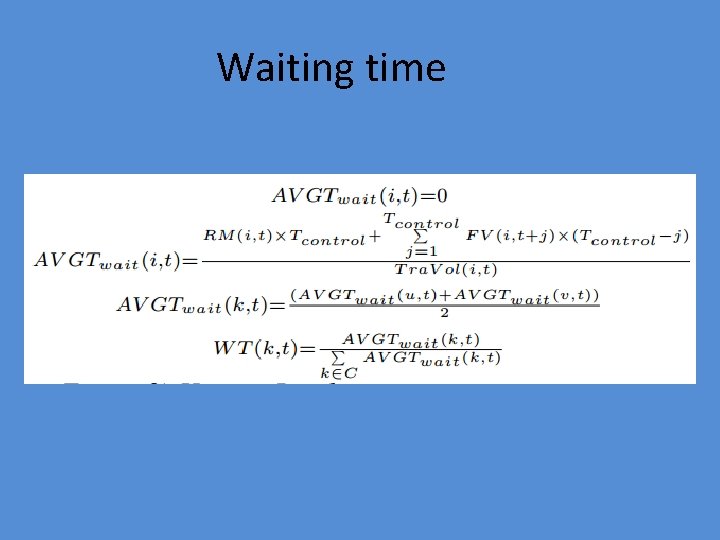

Waiting time

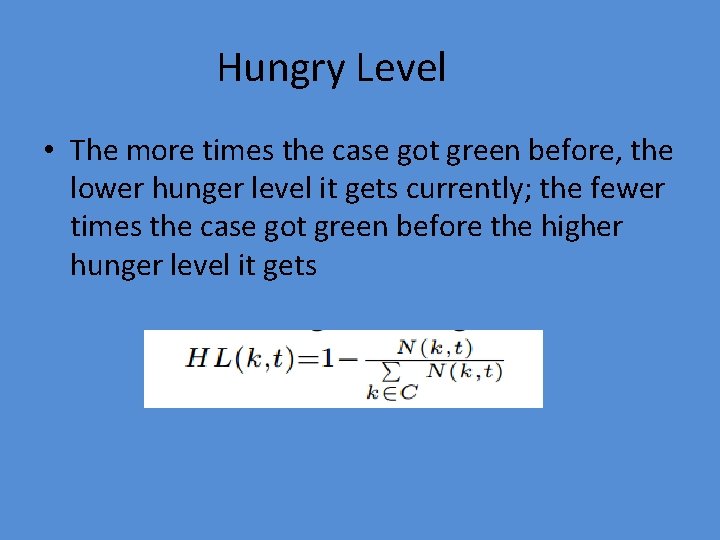

Hungry Level • The more times the case got green before, the lower hunger level it gets currently; the fewer times the case got green before the higher hunger level it gets

Reference • Adaptive Traffic Light Control in Wireless Sensor Network-based Intelligent Transportation System, Binbin Zhou, Jiannong Cao, Xiaoqin Zeng and Hejun Wu, Dept. of Comput. , Hong Kong Polytech. Univ. , Hong Kong, China.
