Adaptive Parallelism for Web Search Myeongjae Jeon Rice University In collaboration with Yuxiong He (MSR), Sameh Elnikety (MSR), Alan L. Cox (Rice), and Scott Rixner (Rice) 1

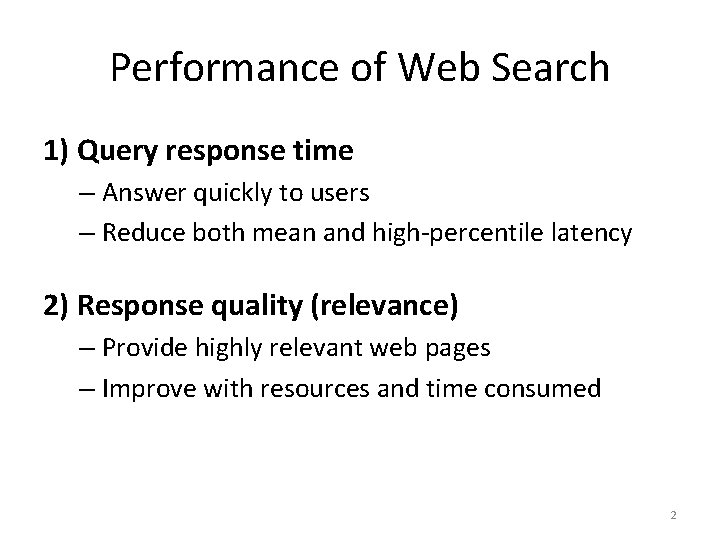

Performance of Web Search 1) Query response time – Answer quickly to users – Reduce both mean and high-percentile latency 2) Response quality (relevance) – Provide highly relevant web pages – Improve with resources and time consumed 2

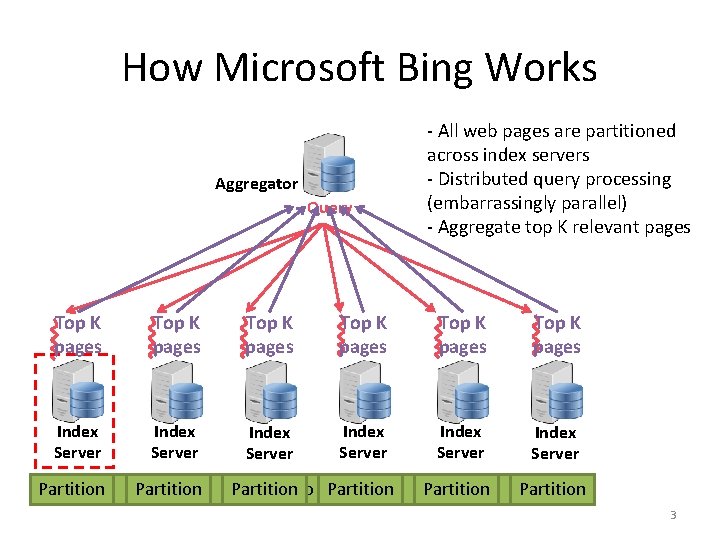

How Microsoft Bing Works Aggregator Query - All web pages are partitioned across index servers - Distributed query processing (embarrassingly parallel) - Aggregate top K relevant pages Top K pages Top K pages Index Server Index Server Partition Partition All web pages Partition 3

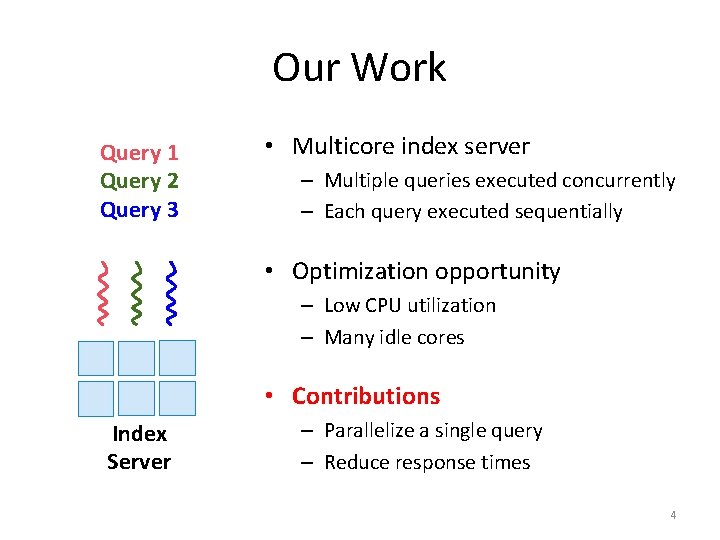

Our Work Query 1 Query 2 Query 3 • Multicore index server – Multiple queries executed concurrently – Each query executed sequentially • Optimization opportunity – Low CPU utilization – Many idle cores • Contributions Index Server – Parallelize a single query – Reduce response times 4

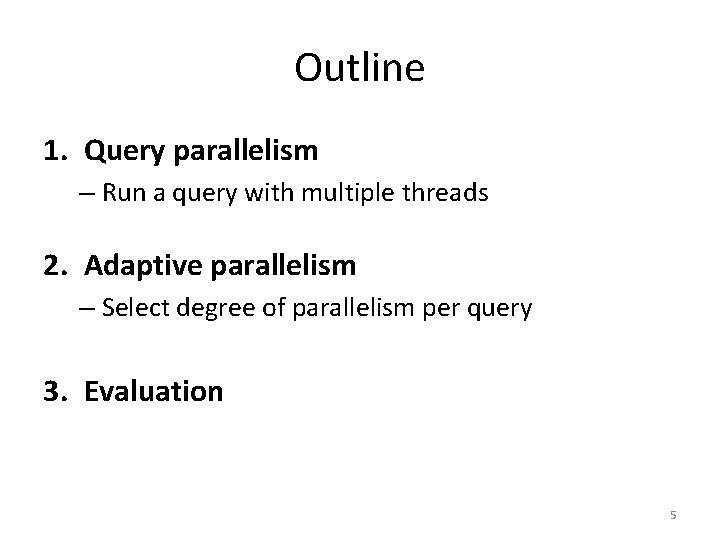

Outline 1. Query parallelism – Run a query with multiple threads 2. Adaptive parallelism – Select degree of parallelism per query 3. Evaluation 5

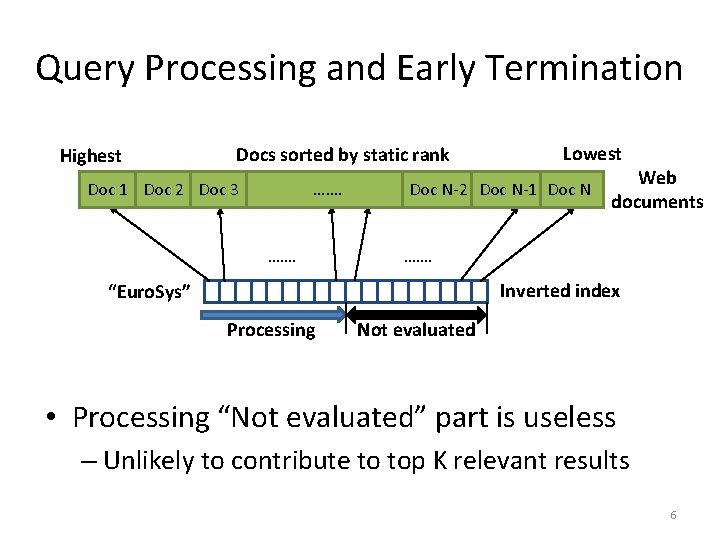

Query Processing and Early Termination Highest Docs sorted by static rank Doc 1 Doc 2 Doc 3 ……. Lowest Doc N-2 Doc N-1 Doc N Web documents ……. Inverted index “Euro. Sys” Processing Not evaluated • Processing “Not evaluated” part is useless – Unlikely to contribute to top K relevant results 6

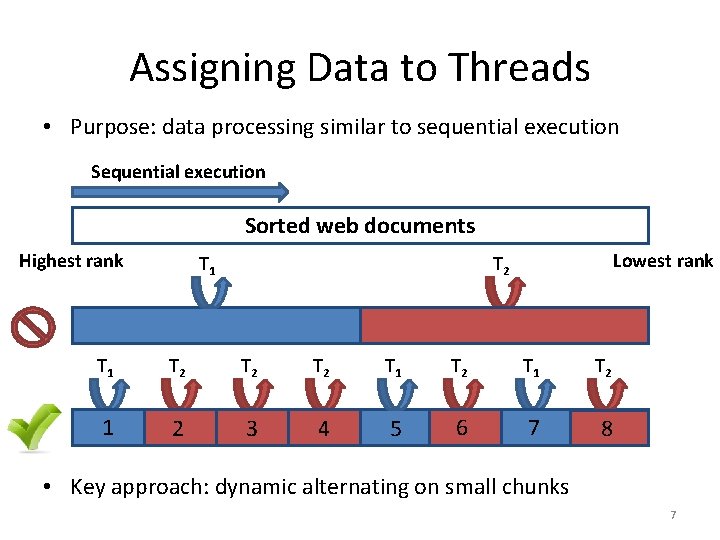

Assigning Data to Threads • Purpose: data processing similar to sequential execution Sorted web documents Highest rank T 1 Lowest rank T 2 T 1 T 2 1 2 3 4 5 6 7 8 • Key approach: dynamic alternating on small chunks 7

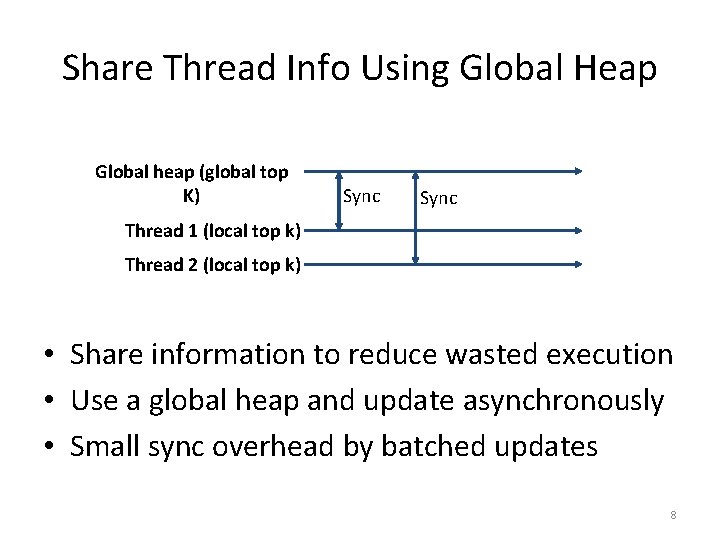

Share Thread Info Using Global Heap Global heap (global top K) Sync Thread 1 (local top k) Thread 2 (local top k) • Share information to reduce wasted execution • Use a global heap and update asynchronously • Small sync overhead by batched updates 8

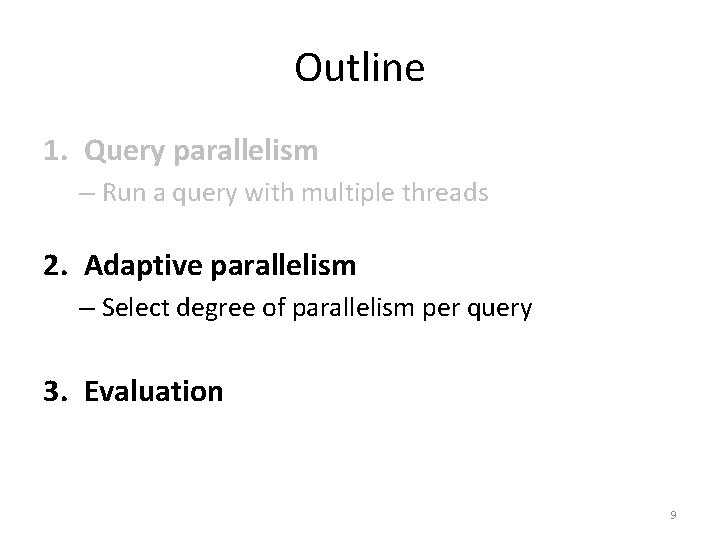

Outline 1. Query parallelism – Run a query with multiple threads 2. Adaptive parallelism – Select degree of parallelism per query 3. Evaluation 9

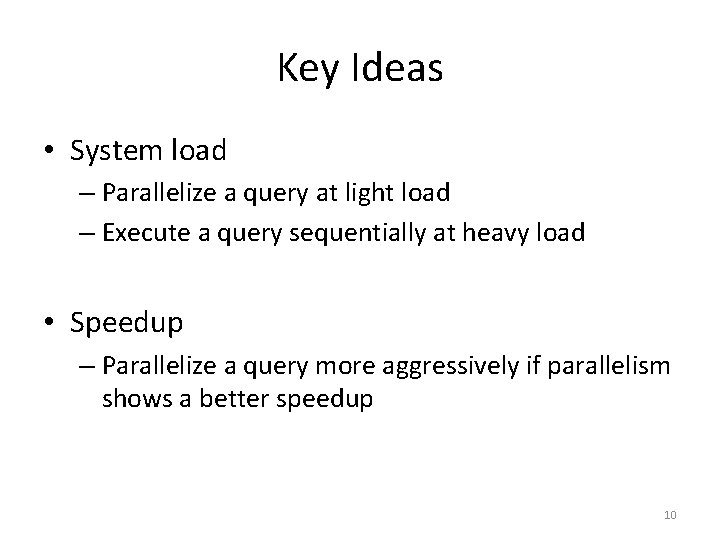

Key Ideas • System load – Parallelize a query at light load – Execute a query sequentially at heavy load • Speedup – Parallelize a query more aggressively if parallelism shows a better speedup 10

No Load Heavy Load Query 1 Query 4 Query 2 Query 5 Query 3 Query 6 11

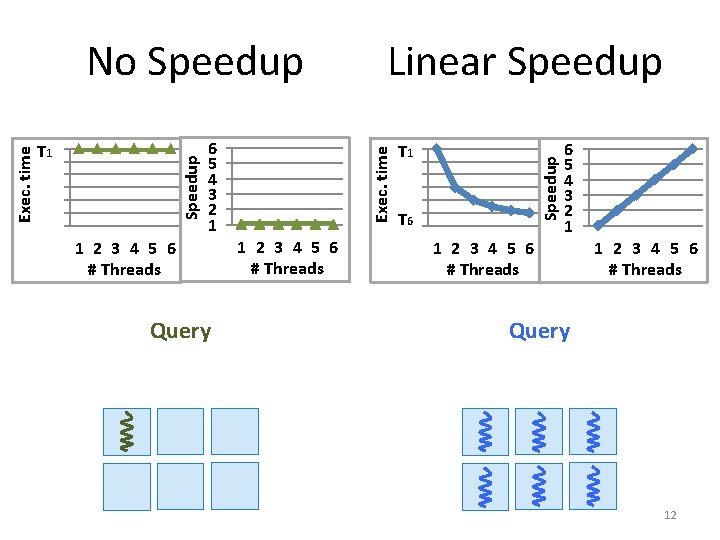

1 2 3 4 5 6 # Threads Query 1 2 3 4 5 6 # Threads 60 T 1 50 40 30 20 10 T 06 Speedup 6 5 4 3 2 1 Linear Speedup Exec. time 60 T 1 50 40 30 20 10 0 Speedup Exec. time No Speedup 1 2 3 4 5 6 # Threads 6 5 4 3 2 1 1 2 3 4 5 6 # Threads Query 12

Speedup in Reality 90 80 70 60 50 40 30 20 10 0 Speedup Exec. Time (ms) • Mostly neither no speedup nor linear speedup 1 2 3 4 5 # Threads 6 6 5 4 3 2 1 Linear speedup Bing No speedup 1 2 3 4 5 # Threads 6 13

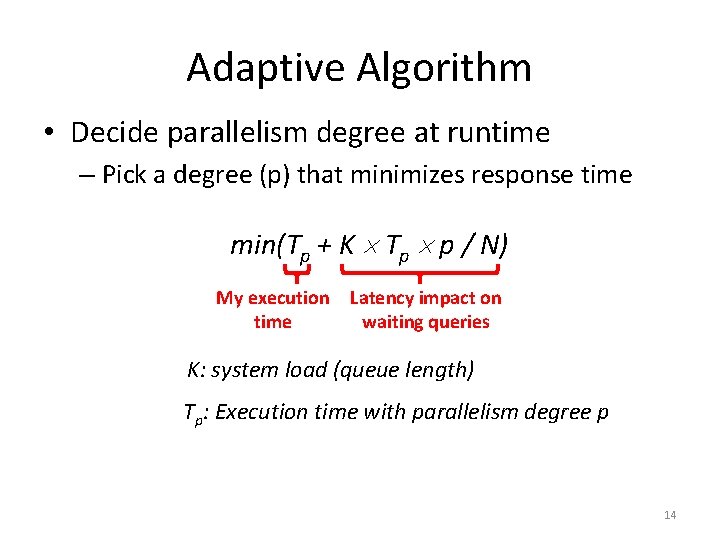

Adaptive Algorithm • Decide parallelism degree at runtime – Pick a degree (p) that minimizes response time min(Tp + K Tp p / N) My execution time Latency impact on waiting queries K: system load (queue length) Tp: Execution time with parallelism degree p 14

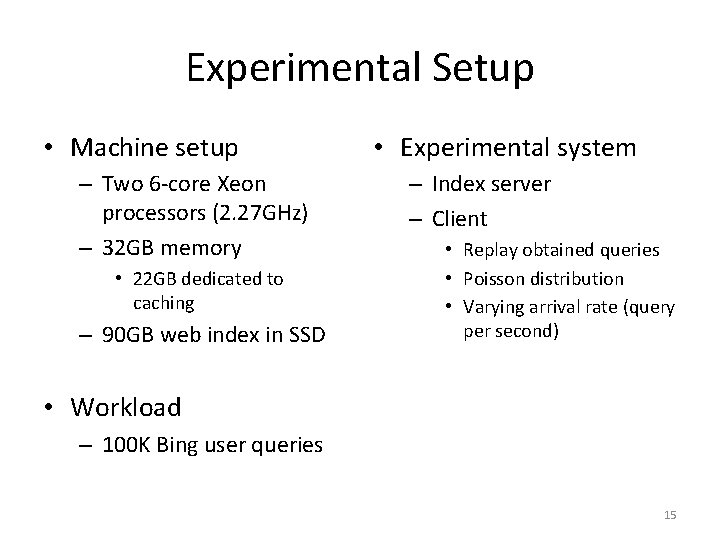

Experimental Setup • Machine setup – Two 6 -core Xeon processors (2. 27 GHz) – 32 GB memory • 22 GB dedicated to caching – 90 GB web index in SSD • Experimental system – Index server – Client • Replay obtained queries • Poisson distribution • Varying arrival rate (query per second) • Workload – 100 K Bing user queries 15

Mean Response Time (ms) Mean Response Time 100 90 80 70 60 50 40 30 - Fixed Parallelism - Degree = 1 Degree = 2 Degree = 3 Degree = 6 10 20 30 40 50 60 70 System Load (QPS) 80 90 100 • No fixed degree of parallelism performs well for all loads 16

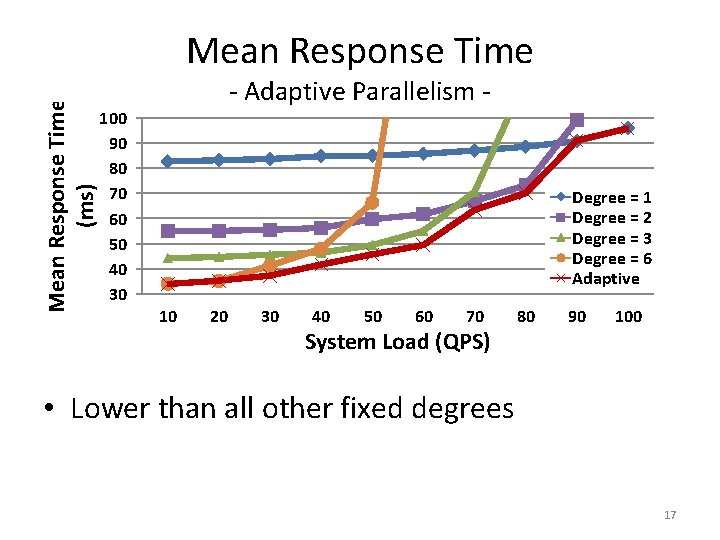

Mean Response Time (ms) Mean Response Time 100 90 80 70 60 50 40 30 - Adaptive Parallelism - Degree = 1 Degree = 2 Degree = 3 Degree = 6 Adaptive 10 20 30 40 50 60 70 System Load (QPS) 80 90 100 • Lower than all other fixed degrees 17

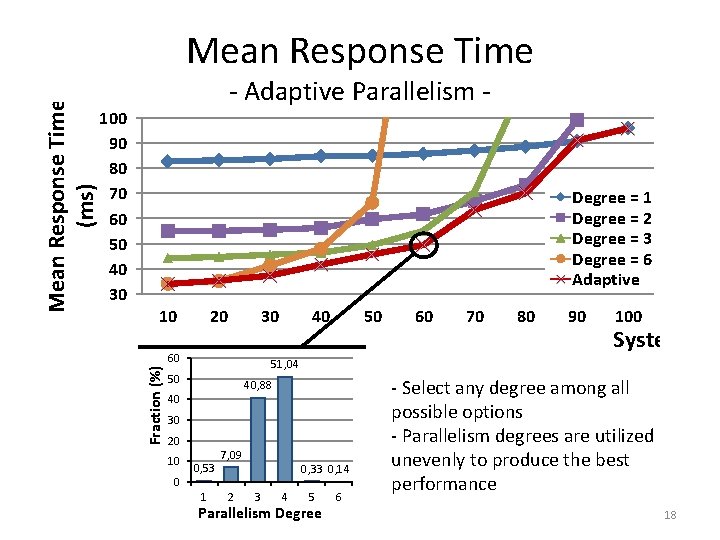

100 90 80 70 60 50 40 30 - Adaptive Parallelism - Degree = 1 Degree = 2 Degree = 3 Degree = 6 Adaptive 10 20 30 60 Fraction (%) Mean Response Time (ms) Mean Response Time 40 50 40, 88 40 30 20 0 70 80 90 100 System Loa 51, 04 50 10 60 0, 53 1 7, 09 2 0, 33 0, 14 3 4 5 Parallelism Degree 6 - Select any degree among all possible options - Parallelism degrees are utilized unevenly to produce the best performance 18

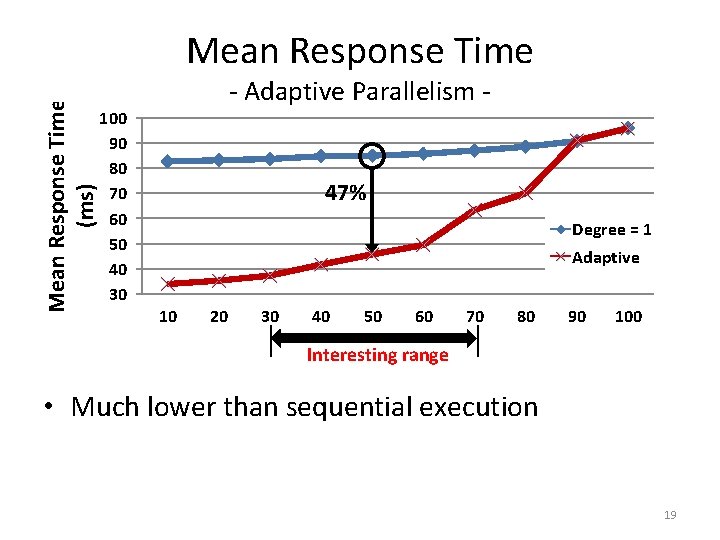

Mean Response Time (ms) Mean Response Time 100 90 80 70 60 50 40 30 - Adaptive Parallelism 47% Degree = 1 Adaptive 10 20 30 40 50 60 70 System Load (QPS) Interesting range 80 90 100 • Much lower than sequential execution 19

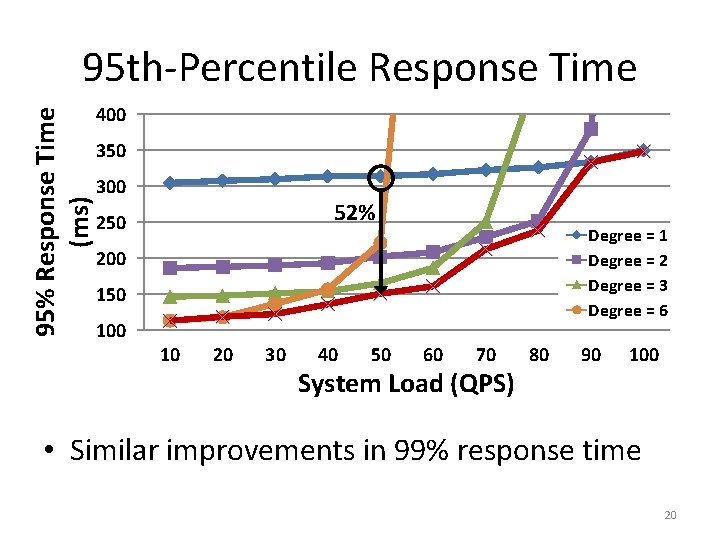

95% Response Time (ms) 95 th-Percentile Response Time 400 350 300 52% 250 Degree = 1 Degree = 2 Degree = 3 Degree = 6 200 150 10 20 30 40 50 60 70 System Load (QPS) 80 90 100 • Similar improvements in 99% response time 20

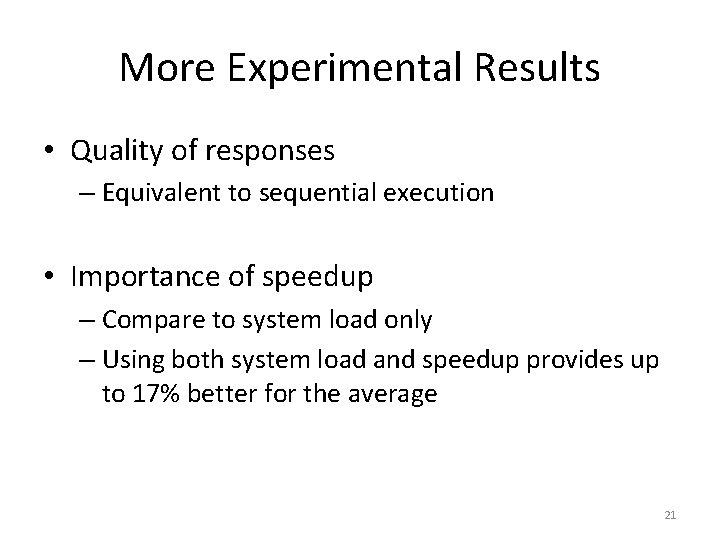

More Experimental Results • Quality of responses – Equivalent to sequential execution • Importance of speedup – Compare to system load only – Using both system load and speedup provides up to 17% better for the average 21

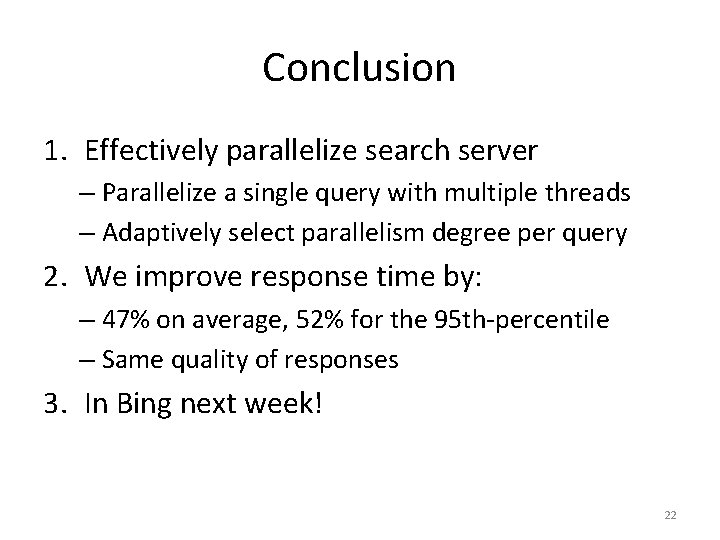

Conclusion 1. Effectively parallelize search server – Parallelize a single query with multiple threads – Adaptively select parallelism degree per query 2. We improve response time by: – 47% on average, 52% for the 95 th-percentile – Same quality of responses 3. In Bing next week! 22
