Adaptive Optics Deformable Mirror Electronics Simulation Pearl Yamaguchi

Adaptive Optics Deformable Mirror Electronics Simulation Pearl Yamaguchi Subaru Telescope National Astronomical Observatory of Japan Mentor: Stephen Colley

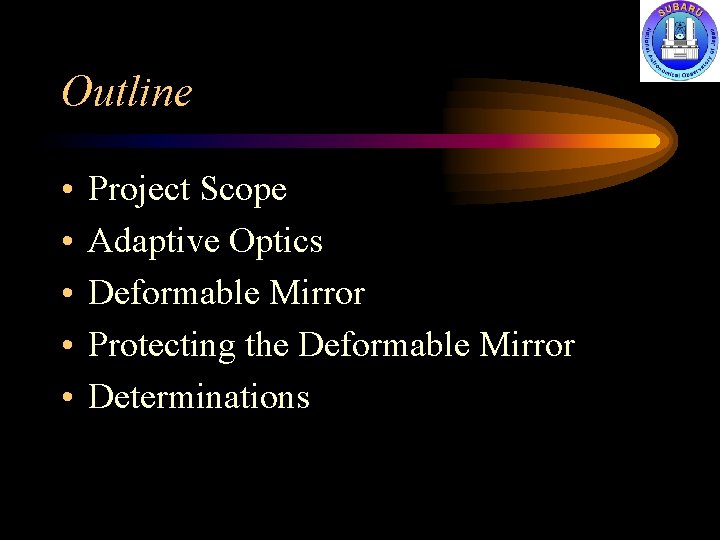

Outline • • • Project Scope Adaptive Optics Deformable Mirror Protecting the Deformable Mirror Determinations

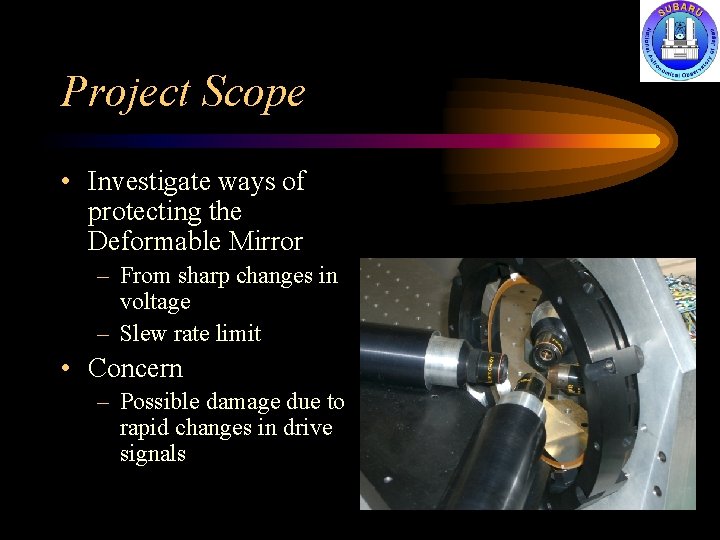

Project Scope • Investigate ways of protecting the Deformable Mirror – From sharp changes in voltage – Slew rate limit • Concern – Possible damage due to rapid changes in drive signals

Adaptive Optics • Primary Components of AO System – Wavefront Sensor – Control Computer Image without AO Image with AO – Deformable Mirror

Bimorph Deformable Mirror • • Two piezoelectric wafers Oppositely polarized Array of electrodes Dynamically compensates for aberrations • Expanding or contracting with stimulus

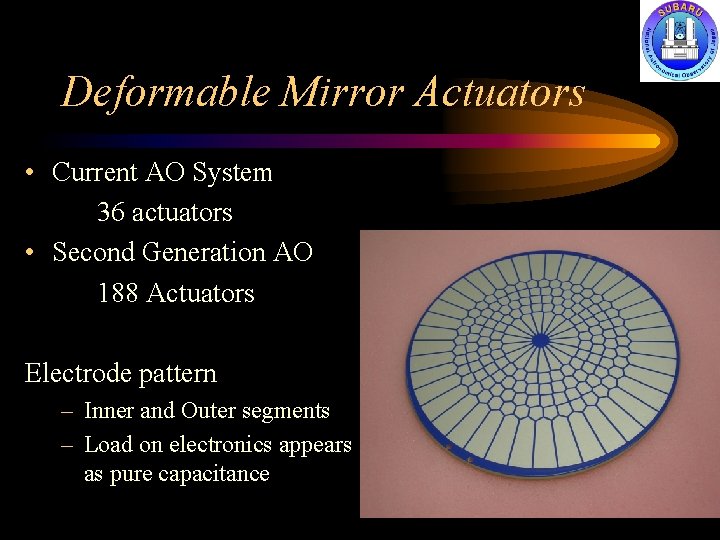

Deformable Mirror Actuators • Current AO System 36 actuators • Second Generation AO 188 Actuators Electrode pattern – Inner and Outer segments – Load on electronics appears as pure capacitance

Project Objective • Manufacturer suggested slew rate limit 100 Volts/ms • Full scale range +/- 400 Volts • Ramping insures limit V 200 V 1 ms 2 ms time

Protection from Voltage Jumps • Control Computer • Digital to Analog Converters • High Voltage Amplifiers Control Computer D/A Converter HV Amplifier DM Ideal safety feature here

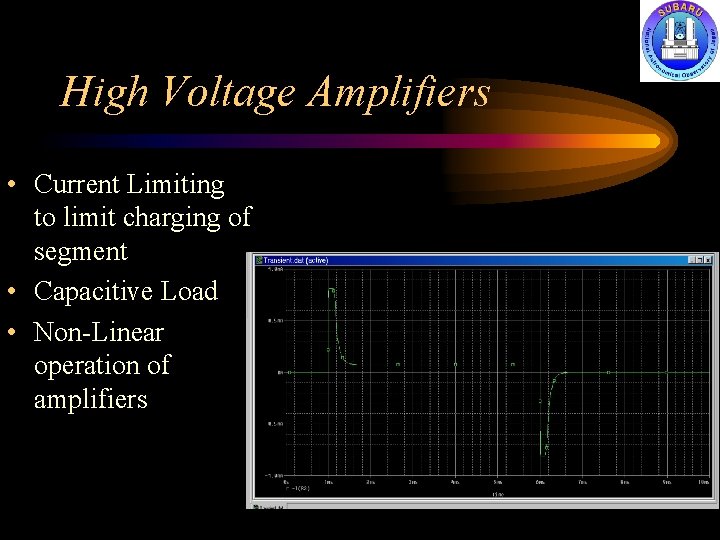

High Voltage Amplifiers • Current Limiting to limit charging of segment • Capacitive Load • Non-Linear operation of amplifiers

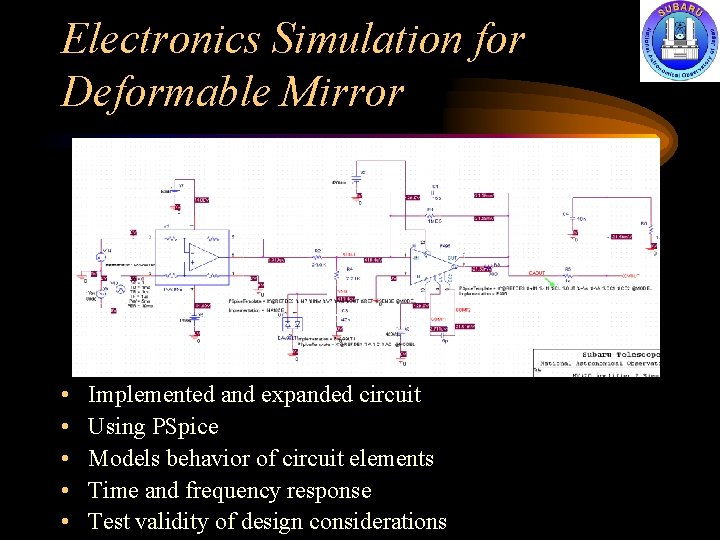

Electronics Simulation for Deformable Mirror • • • Implemented and expanded circuit Using PSpice Models behavior of circuit elements Time and frequency response Test validity of design considerations

Current Limiting High Voltage Amplifiers Significant Results • Oscillates • Unstable • Eliminated as a solution

Digital to Analog Converters • Determine if digital logic implemented slew rate limit is feasible • Continue simulation of D/A Converters • Test step limited slew rate Control Computer D/A Converter HV Amplifier DM

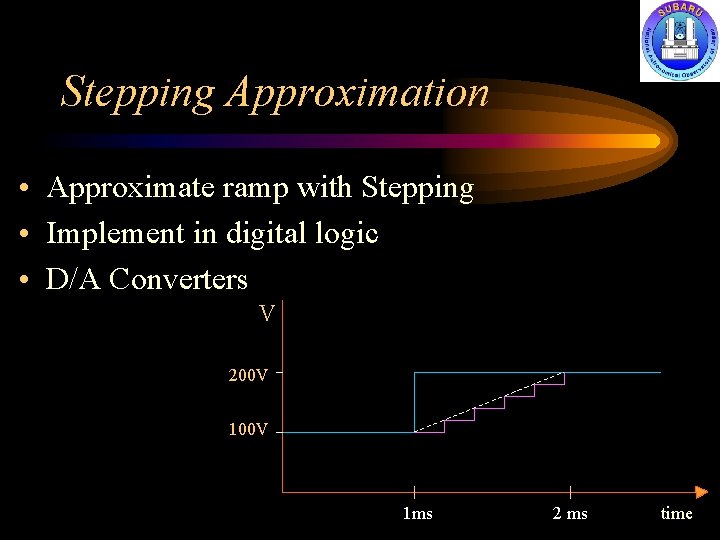

Stepping Approximation • Approximate ramp with Stepping • Implement in digital logic • D/A Converters V 200 V 1 ms 2 ms time

Summary • • Protect the mirror Created PSpice model Ruled out High Voltage Amplifiers V Investigated D/A 200 V Converters 100 V 1 ms 2 ms time

Acknowledgements • • • Stephen Colley, AO Project Engineer Hideki Takami, AO Project Manager Subaru Telescope, NAOJ Center for Adaptive Optics University of Hawaii, Manoa This project is supported by the National Science Foundation Science and Technology Center for Adaptive Optics, managed by the University of California at Santa Cruz under cooperative agreement. No. AST - 9876783
