adaptive body bias for reducing process variations nuno

adaptive body bias for reducing process variations nuno alves 19 / october / 2006 1

background goal of processor design: • achieve maximum operating frequency • meet power density constraint process variations create differences: • across a single die • across multiple wafers and lots 2

differences in transistors ? some dies cannot be accepted because: • low frequency • high power consumption dies 3

solving leakage problem… leakage can be controlled to some extent using body bias. remember: non-zero body-to-source bias can modulate threshold voltage of a transistors 4

reverse body bias (rbb) we can use rbb to reduce leakage power in standby mode by: • raising the voltage of the p. MOS n-wells with respect to vdd or • lowering the voltage of substrate relative to gnd 5

forward body bias (fbb) use fbb to increase operating frequency in active mode the good the bad increase in sub-threshold and substrate-to-source leakage slows down the discharge of nodes Vt by the lowering the source-body potential barrier lower Vt = higher on current hence higher performance 6

ideally Vt should be • lowered for slow dies • raised for leaky dies accomplished by an adaptive body bias 7

testchip 21 subsites each subsite contains: • an abb generator • control circuit 8

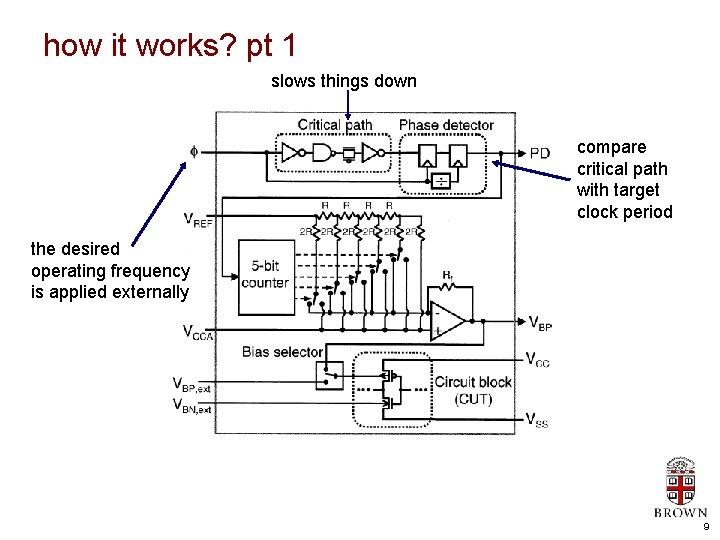

how it works? pt 1 slows things down compare critical path with target clock period the desired operating frequency is applied externally 9

how it works? pt 2 output of first ff is sampled by second ff this allows sufficient time for the body bias to stabilize 10

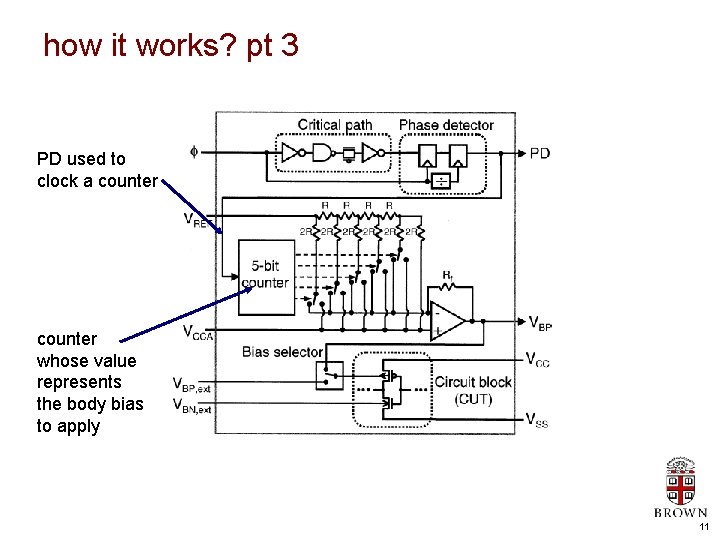

how it works? pt 3 PD used to clock a counter whose value represents the body bias to apply 11

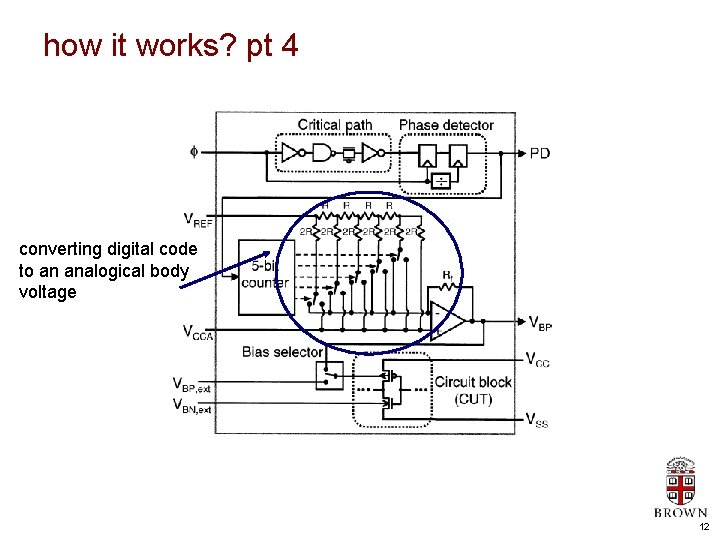

how it works? pt 4 converting digital code to an analogical body voltage 12

how it works? pt 5 the output voltage, which biases the p. MOS transistors is a function of output voltage • VREF • VCCA 13

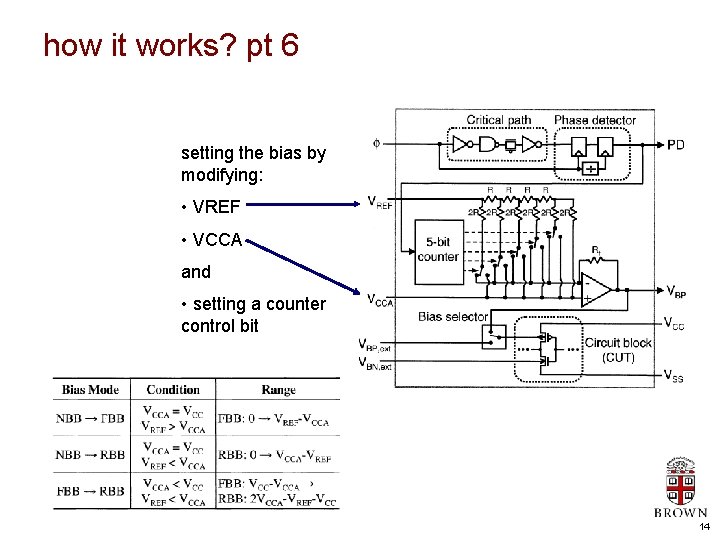

how it works? pt 6 setting the bias by modifying: • VREF • VCCA and • setting a counter control bit 14

operation pt 1 initially frequency is lower than the target one body voltage reduces, forward biasing the p. MOS transistor & increasing frequency 15

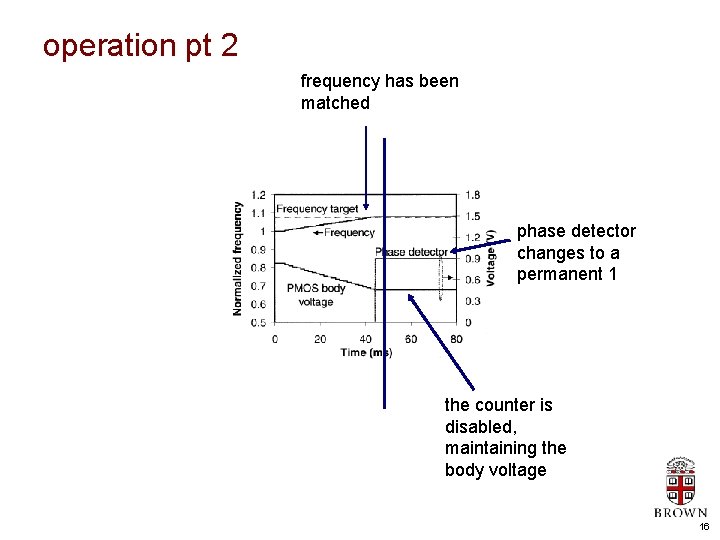

operation pt 2 frequency has been matched phase detector changes to a permanent 1 the counter is disabled, maintaining the body voltage 16

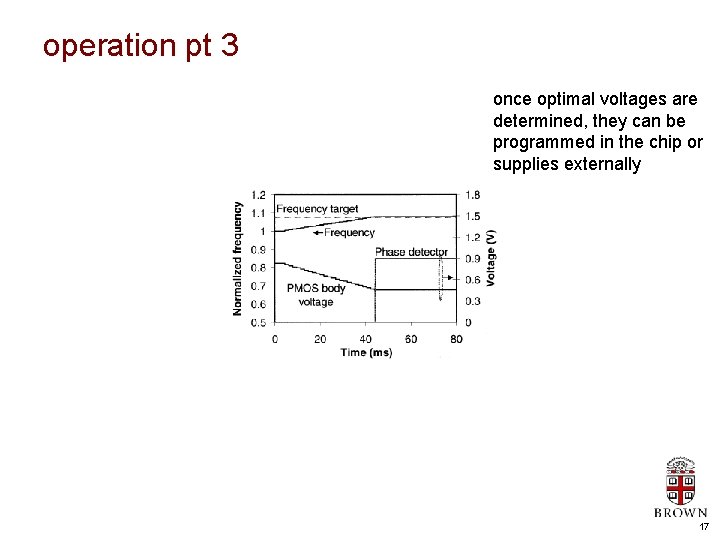

operation pt 3 once optimal voltages are determined, they can be programmed in the chip or supplies externally 17

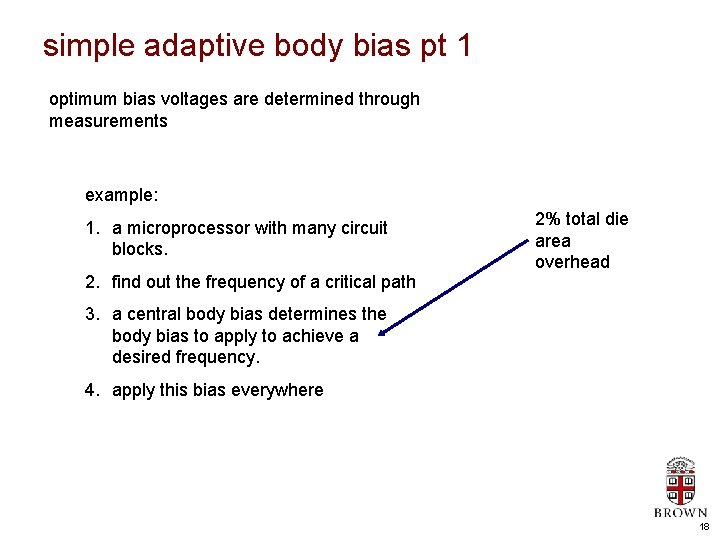

simple adaptive body bias pt 1 optimum bias voltages are determined through measurements example: 1. a microprocessor with many circuit blocks. 2. find out the frequency of a critical path 2% total die area overhead 3. a central body bias determines the body bias to apply to achieve a desired frequency. 4. apply this bias everywhere 18

simple adaptive body bias pt 2 optimum bias is determined by applying a target clock frequency… …highest possible operating frequency for the die under the given power constraint. maximum clock frequency for this maximum frequency • n. MOS body bias is applied from outside • p. MOS body bias comes from on-chip control circuitry 19

simple adaptive body bias pt 3 pick target frequency manually adjust n. MOS body bias p. MOS body bias automatically adjusts repeat until we find the best combination of lowest leakage with target frequency determine leakage power 20

effects of simple body bias pt 1 NBB = no body bias 21

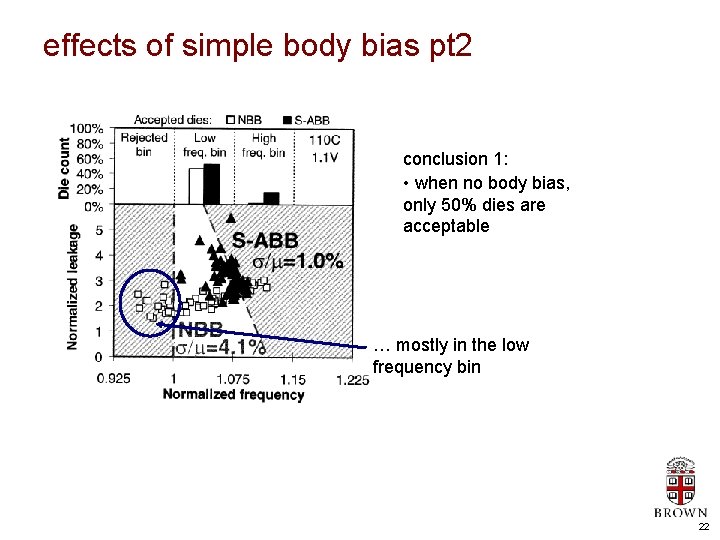

effects of simple body bias pt 2 conclusion 1: • when no body bias, only 50% dies are acceptable … mostly in the low frequency bin 22

effects of simple body bias pt 3 conclusion 2: • frequency variation was reduced to 1% from 4. 1% • more accepted dies (specially in the high frequency range) 23

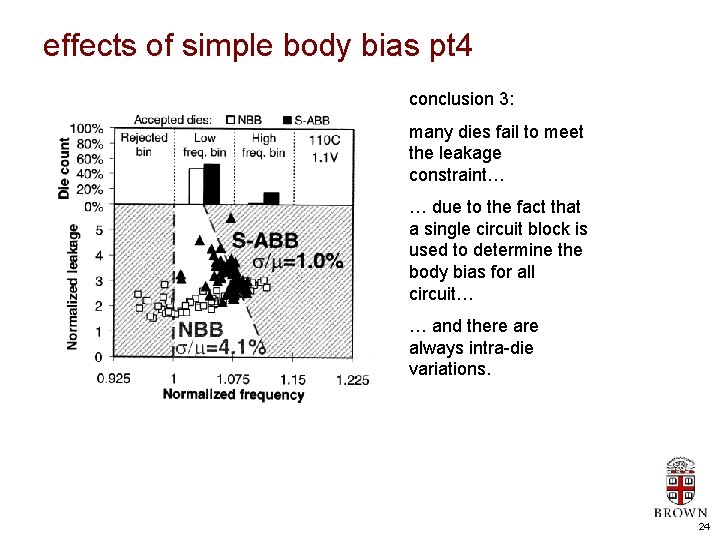

effects of simple body bias pt 4 conclusion 3: many dies fail to meet the leakage constraint… … due to the fact that a single circuit block is used to determine the body bias for all circuit… … and there always intra-die variations. 24
