ADAM-4000 Modbus I/O Applications & Channels Mark Lin e. Automation Div. PSM Industrial Automation Group Mark. lin@advantech. com. tw

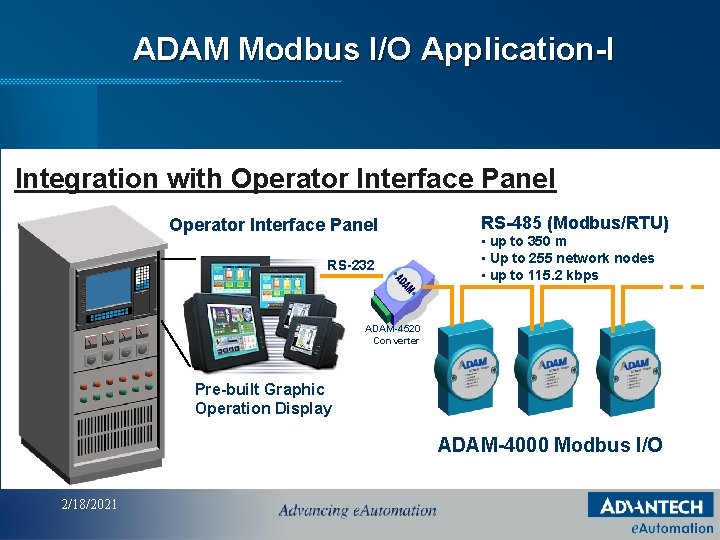

ADAM Modbus I/O Application-I Integration with Operator Interface Panel RS-232 RS-485 (Modbus/RTU) • up to 350 m • Up to 255 network nodes • up to 115. 2 kbps ADAM-4520 Converter Pre-built Graphic Operation Display ADAM-4000 Modbus I/O 2/18/2021 2

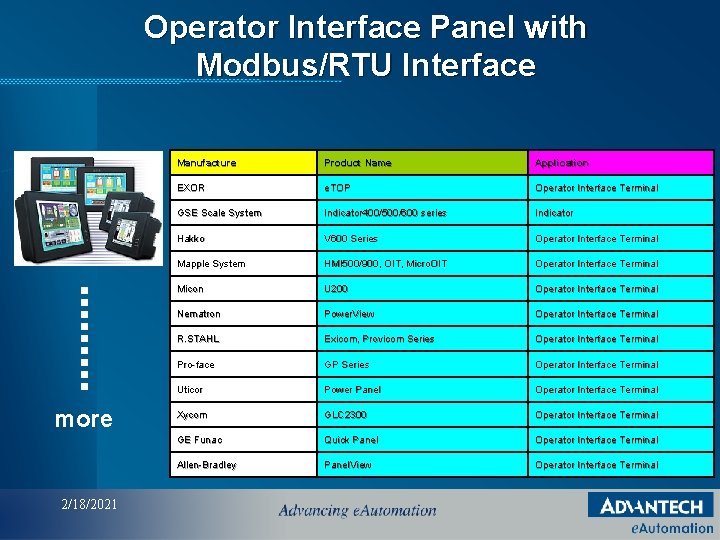

Operator Interface Panel with Modbus/RTU Interface more 2/18/2021 Manufacture Product Name Application EXOR e. TOP Operator Interface Terminal GSE Scale System Indicator 400/500/600 series Indicator Hakko V 600 Series Operator Interface Terminal Mapple System HMI 500/900, OIT, Micro. OIT Operator Interface Terminal Micon U 200 Operator Interface Terminal Nematron Power. View Operator Interface Terminal R. STAHL Exicom, Provicom Series Operator Interface Terminal Pro-face GP Series Operator Interface Terminal Uticor Power Panel Operator Interface Terminal Xycom GLC 2300 Operator Interface Terminal GE Funac Quick Panel Operator Interface Terminal Allen-Bradley Panel. View Operator Interface Terminal 3

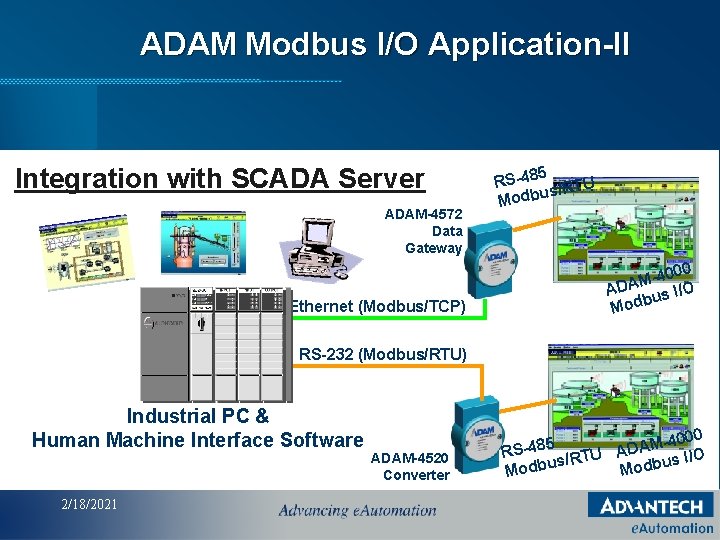

ADAM Modbus I/O Application-II Integration with SCADA Server ADAM-4572 Data Gateway Ethernet (Modbus/TCP) 5 RS-48 /RTU us Modb 000 4 M ADA us I/O b Mod RS-232 (Modbus/RTU) Industrial PC & Human Machine Interface Software 2/18/2021 ADAM-4520 Converter -4000 5 M 8 A 4 D RS RTU A dbus I/O / s u b Mo Mod 4

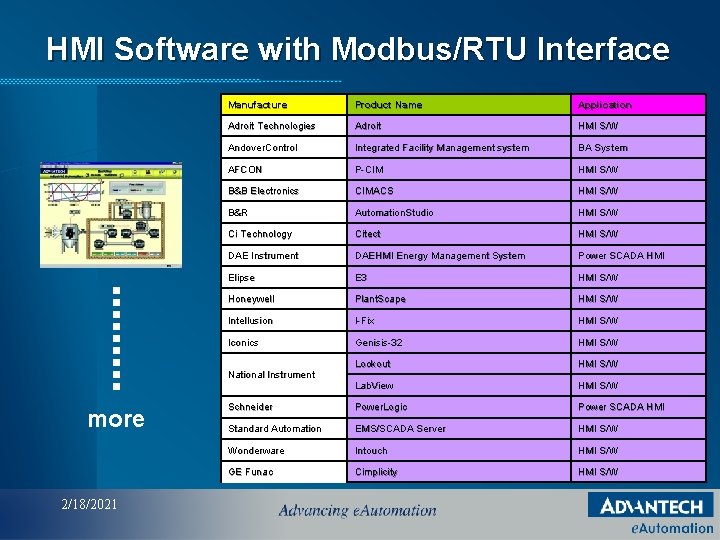

HMI Software with Modbus/RTU Interface Manufacture Product Name Application Adroit Technologies Adroit HMI S/W Andover. Control Integrated Facility Management system BA System AFCON P-CIM HMI S/W B&B Electronics CIMACS HMI S/W B&R Automation. Studio HMI S/W Ci Technology Citect HMI S/W DAE Instrument DAEHMI Energy Management System Power SCADA HMI Elipse E 3 HMI S/W Honeywell Plant. Scape HMI S/W Intellusion I-Fix HMI S/W Iconics Genisis-32 HMI S/W Lookout HMI S/W Lab. View HMI S/W Schneider Power. Logic Power SCADA HMI Standard Automation EMS/SCADA Server HMI S/W Wonderware Intouch HMI S/W GE Funac Cimplicity HMI S/W National Instrument more 2/18/2021 5

ADAM Modbus I/O Application-III Integration with DCS/PLC Control System Modbus Interface Module U) /RT s u b d o 5 (M RS-48 PLC/DCS Controller Support Modbus Protocol 2/18/2021 ADAM-4000 Remote Modbus I/O 6

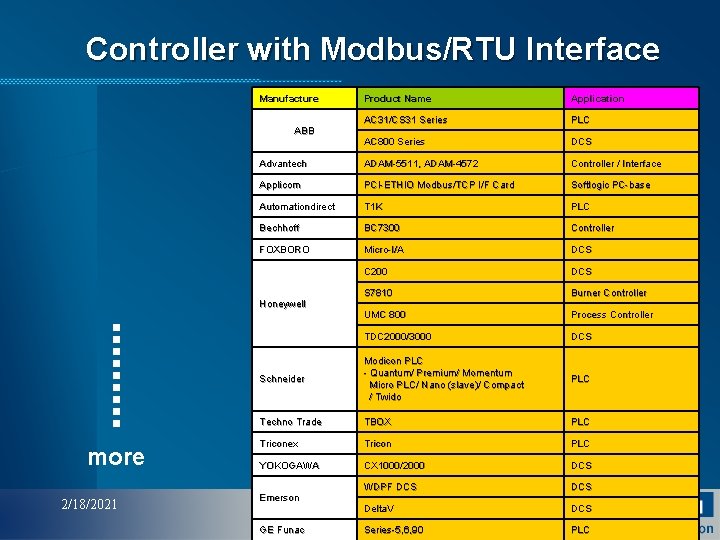

Controller with Modbus/RTU Interface Manufacture Product Name Application AC 31/CS 31 Series PLC AC 800 Series DCS Advantech ADAM-5511, ADAM-4572 Controller / Interface Applicom PCI-ETHIO Modbus/TCP I/F Card Softlogic PC-base Automationdirect T 1 K PLC Bechhoff BC 7300 Controller FOXBORO Micro-I/A DCS C 200 DCS S 7810 Burner Controller UMC 800 Process Controller TDC 2000/3000 DCS Schneider Modicon PLC - Quantum/ Premium/ Momentum Micro PLC/ Nano (slave)/ Compact / Twido PLC Techno Trade TBOX PLC Triconex Tricon PLC YOKOGAWA CX 1000/2000 DCS WDPF DCS Delta. V DCS Series-5, 6, 90 PLC ABB Honeywell more 2/18/2021 Emerson GE Funac 7
