Actuators for Robots Actuators are used in order to produce mechanical movement in robots. Slides from Braunl and Jussi Suomela HUT/Automation 1

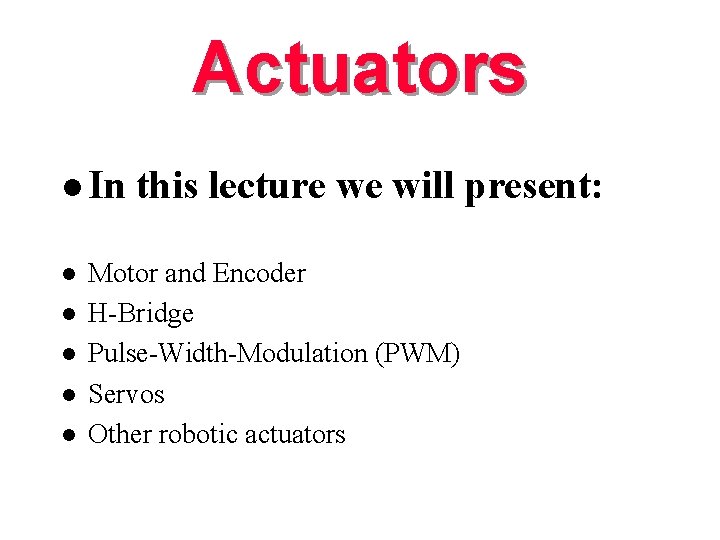

Actuators l In l l l this lecture we will present: Motor and Encoder H-Bridge Pulse-Width-Modulation (PWM) Servos Other robotic actuators

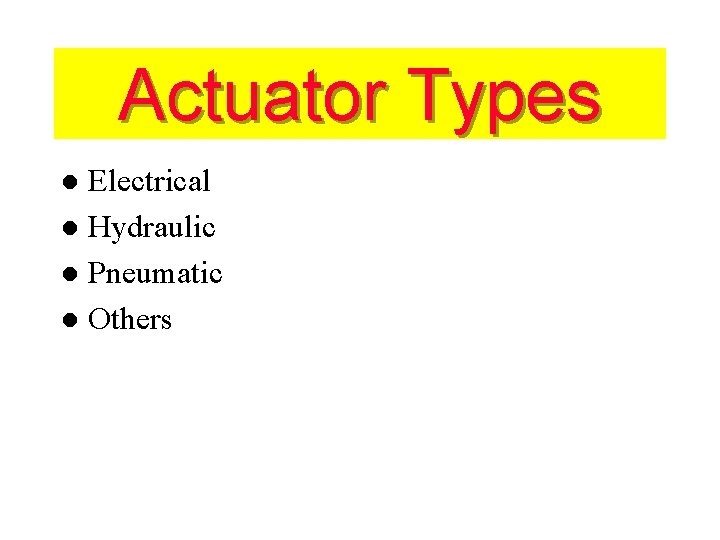

Actuator Types Electrical l Hydraulic l Pneumatic l Others l Jussi Suomela HUT/Automation 3

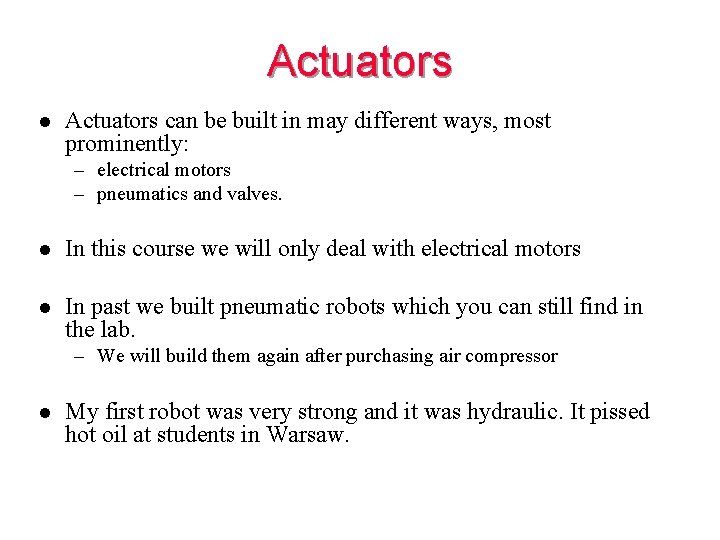

Actuators l Actuators can be built in may different ways, most prominently: – electrical motors – pneumatics and valves. l In this course we will only deal with electrical motors l In past we built pneumatic robots which you can still find in the lab. – We will build them again after purchasing air compressor l My first robot was very strong and it was hydraulic. It pissed hot oil at students in Warsaw.

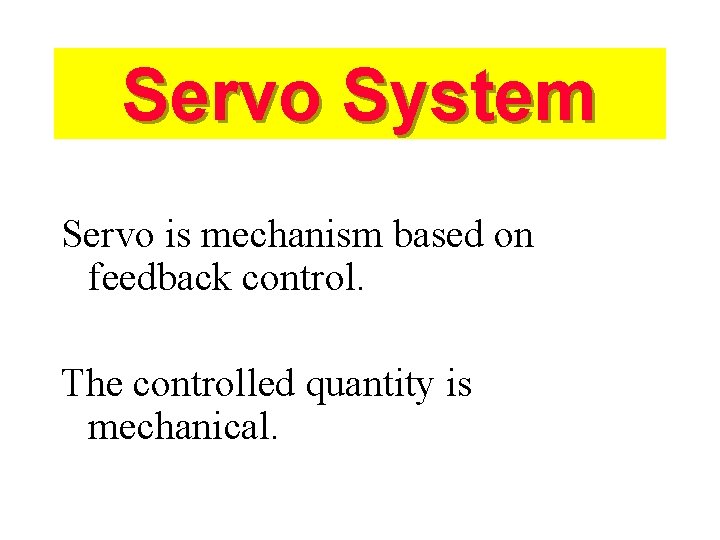

Servo System Servo is mechanism based on feedback control. The controlled quantity is mechanical. Jussi Suomela HUT/Automation 5

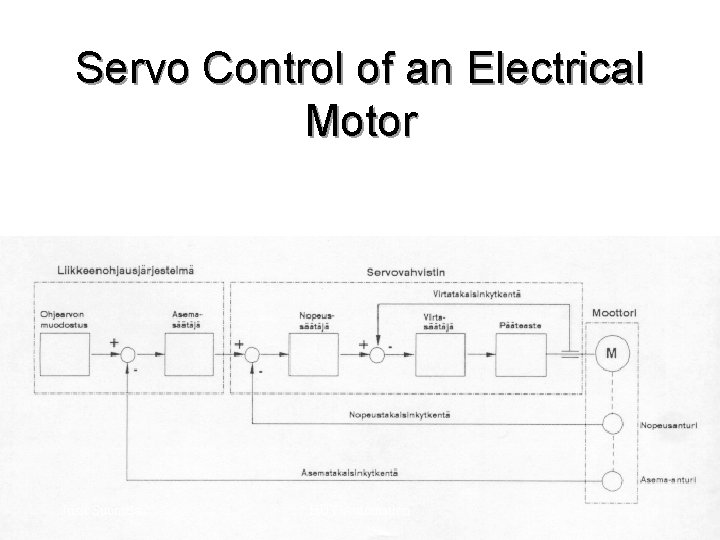

Servo Control of an Electrical Motor Jussi Suomela HUT/Automation 6

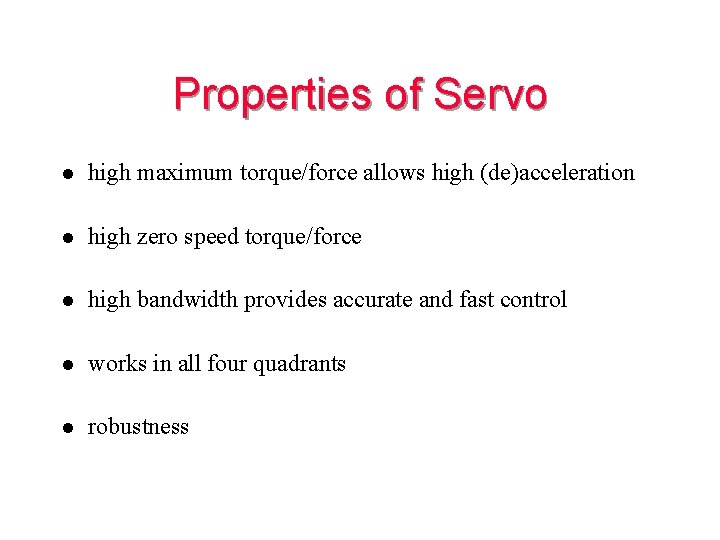

Properties of Servo l high maximum torque/force allows high (de)acceleration l high zero speed torque/force l high bandwidth provides accurate and fast control l works in all four quadrants l robustness Jussi Suomela HUT/Automation 7

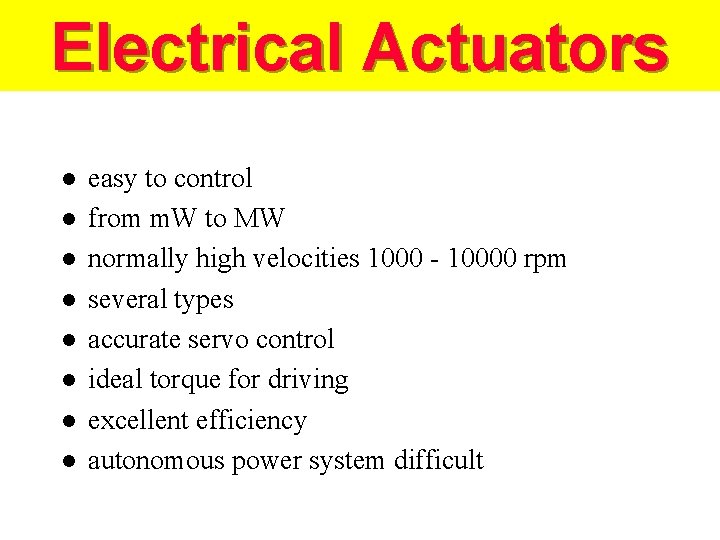

Electrical Actuators l l l l easy to control from m. W to MW normally high velocities 1000 - 10000 rpm several types accurate servo control ideal torque for driving excellent efficiency autonomous power system difficult Jussi Suomela HUT/Automation 8

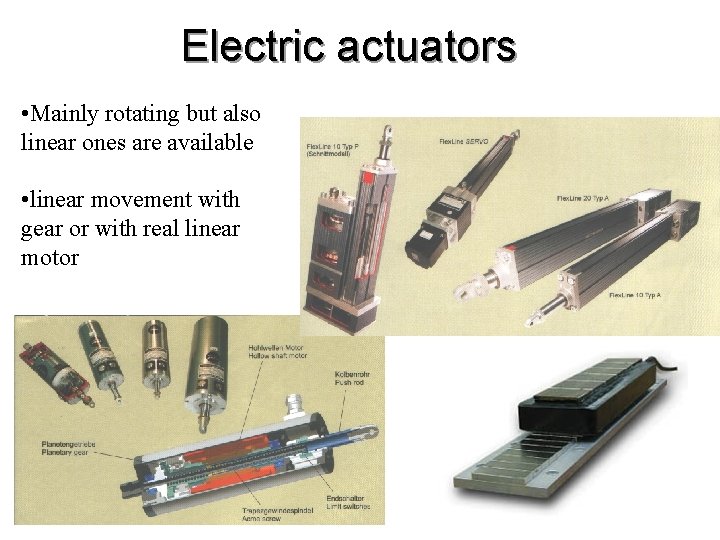

Electric actuators • Mainly rotating but also linear ones are available • linear movement with gear or with real linear motor

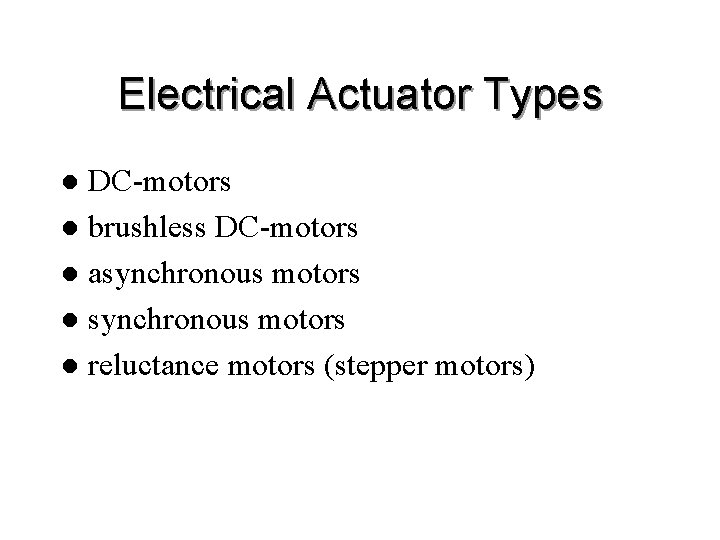

Electrical Actuator Types DC-motors l brushless DC-motors l asynchronous motors l reluctance motors (stepper motors) l Jussi Suomela HUT/Automation 10

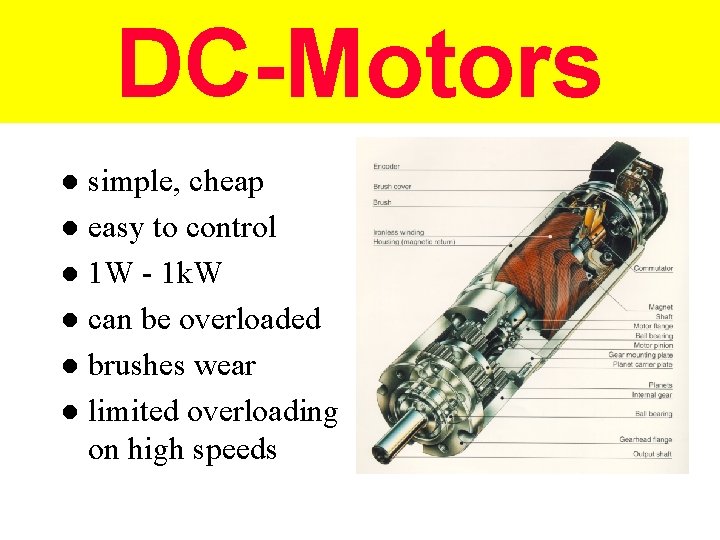

DC-Motors simple, cheap l easy to control l 1 W - 1 k. W l can be overloaded l brushes wear l limited overloading on high speeds l Jussi Suomela HUT/Automation 11

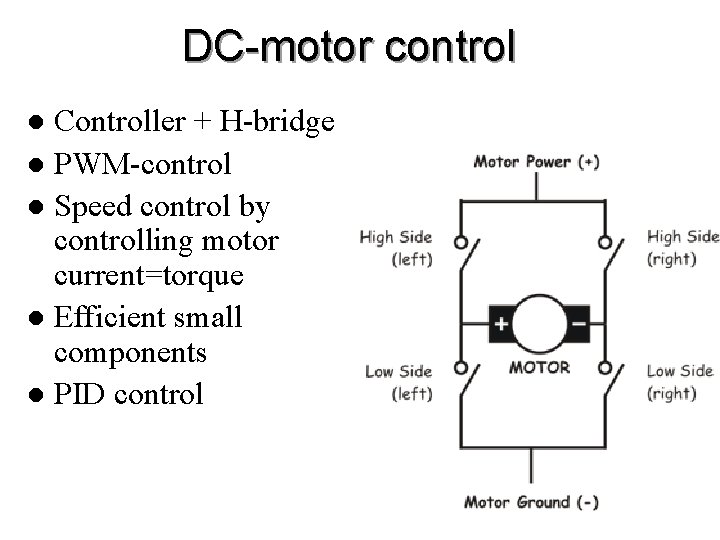

DC-motor control Controller + H-bridge l PWM-control l Speed control by controlling motor current=torque l Efficient small components l PID control l

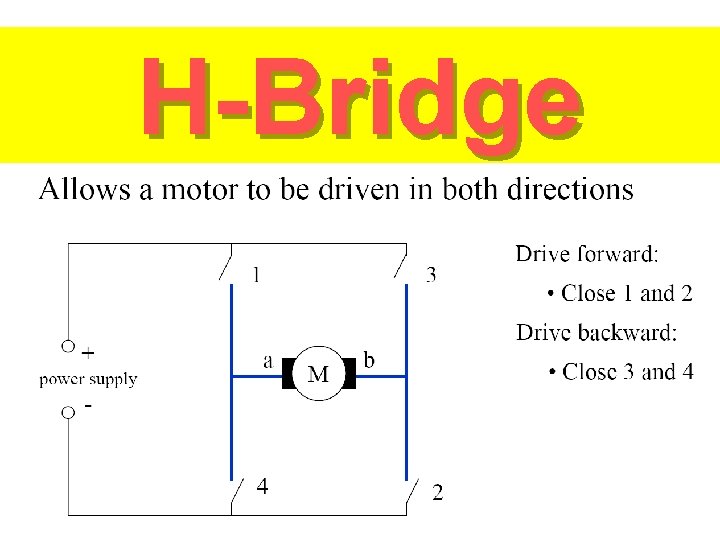

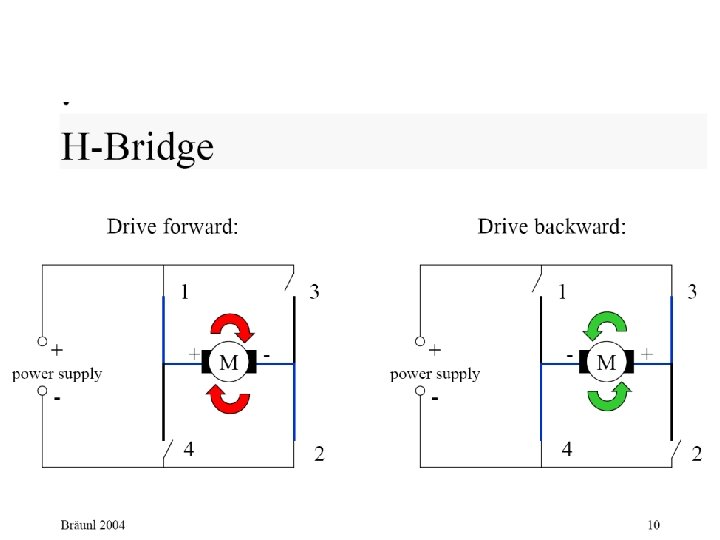

H-Bridge

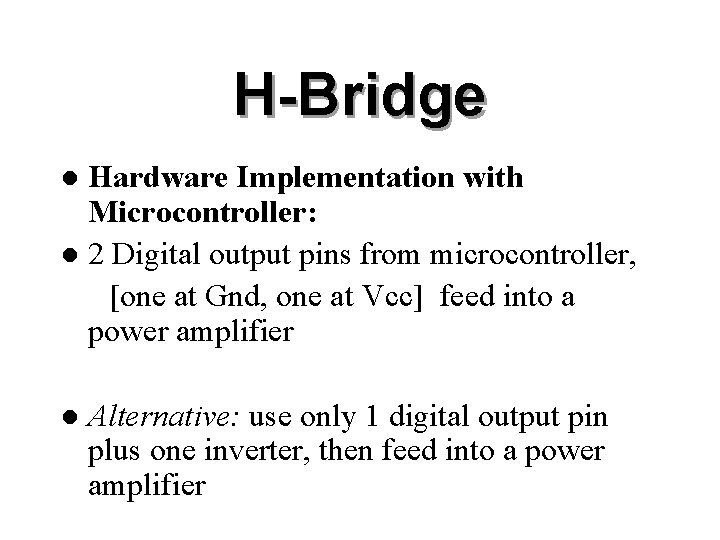

H-Bridge Hardware Implementation with Microcontroller: l 2 Digital output pins from microcontroller, [one at Gnd, one at Vcc] feed into a power amplifier l l Alternative: use only 1 digital output pin plus one inverter, then feed into a power amplifier

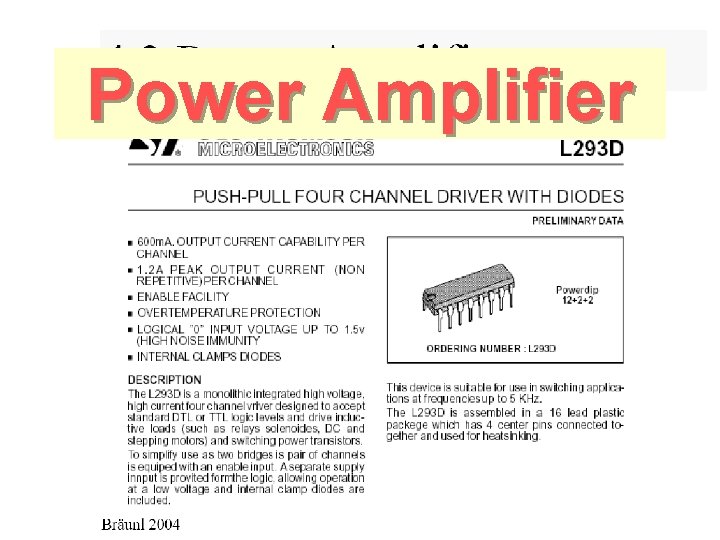

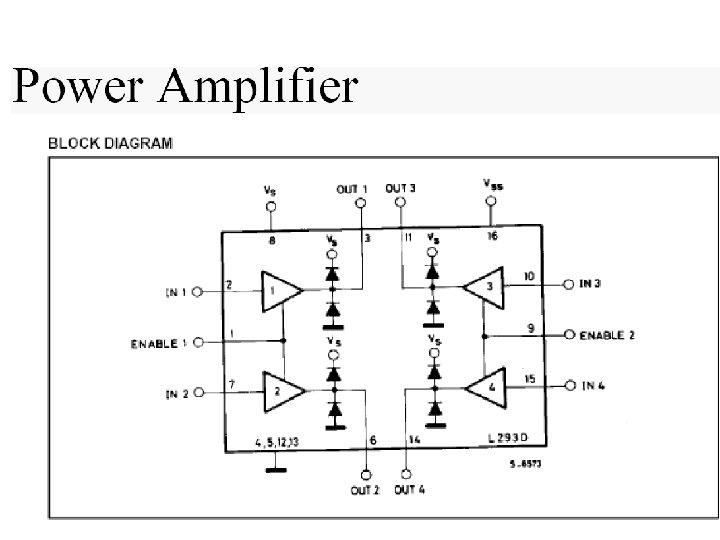

Power Amplifier

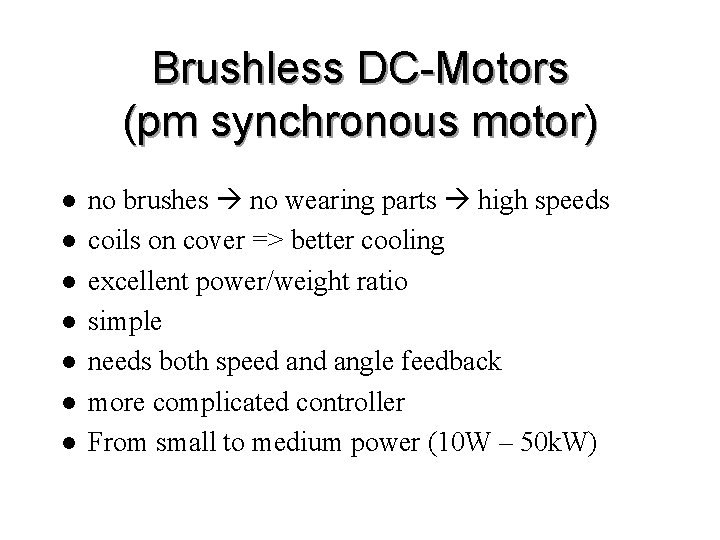

Brushless DC-Motors (pm synchronous motor) l l l l no brushes no wearing parts high speeds coils on cover => better cooling excellent power/weight ratio simple needs both speed angle feedback more complicated controller From small to medium power (10 W – 50 k. W) Jussi Suomela HUT/Automation 18

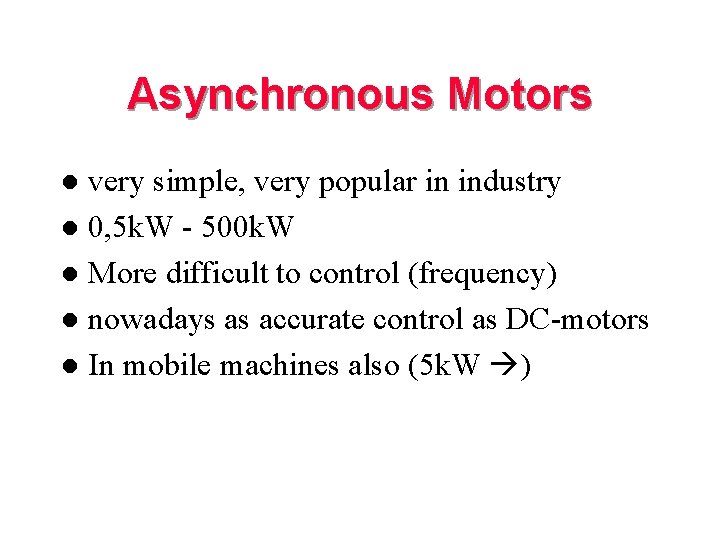

Asynchronous Motors very simple, very popular in industry l 0, 5 k. W - 500 k. W l More difficult to control (frequency) l nowadays as accurate control as DC-motors l In mobile machines also (5 k. W ) l Jussi Suomela HUT/Automation 19

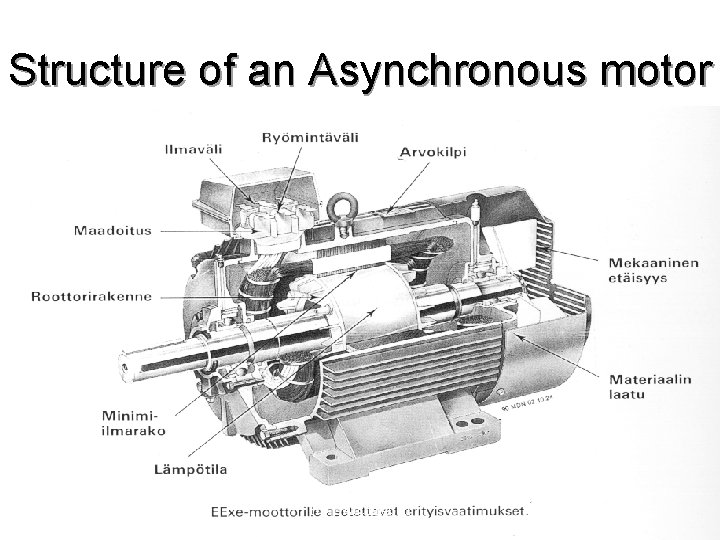

Structure of an Asynchronous motor Jussi Suomela HUT/Automation 20

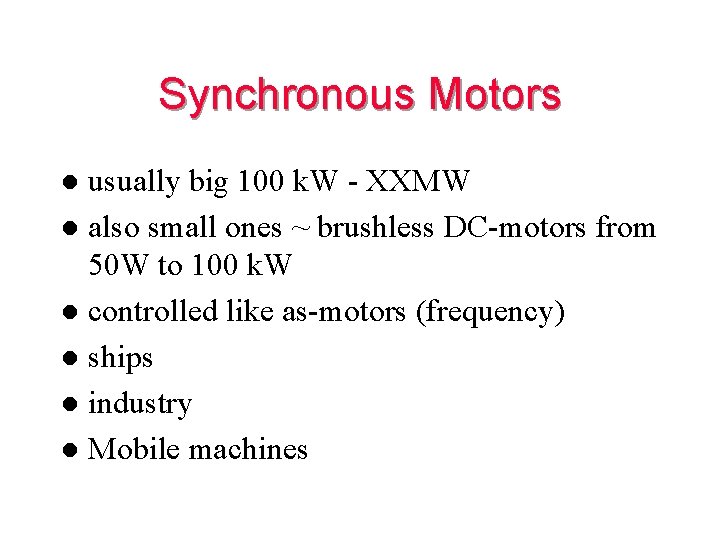

Synchronous Motors usually big 100 k. W - XXMW l also small ones ~ brushless DC-motors from 50 W to 100 k. W l controlled like as-motors (frequency) l ships l industry l Mobile machines l Jussi Suomela HUT/Automation 21

Stepper Motors

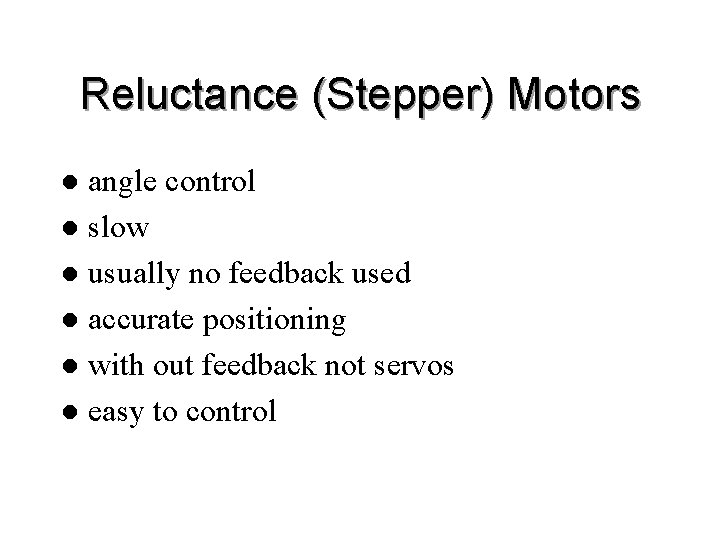

Reluctance (Stepper) Motors angle control l slow l usually no feedback used l accurate positioning l with out feedback not servos l easy to control l Jussi Suomela HUT/Automation 23

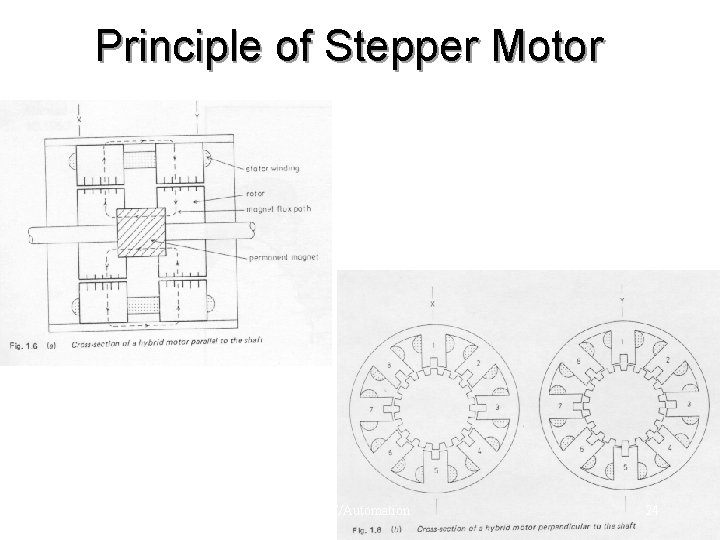

Principle of Stepper Motor Jussi Suomela HUT/Automation 24

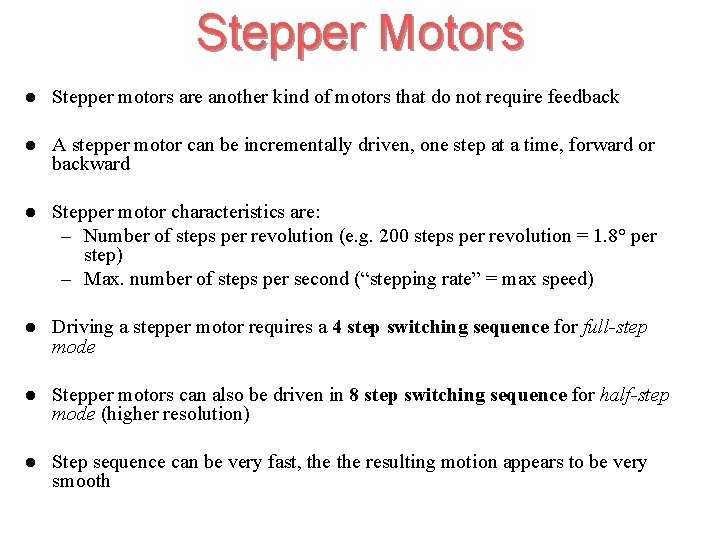

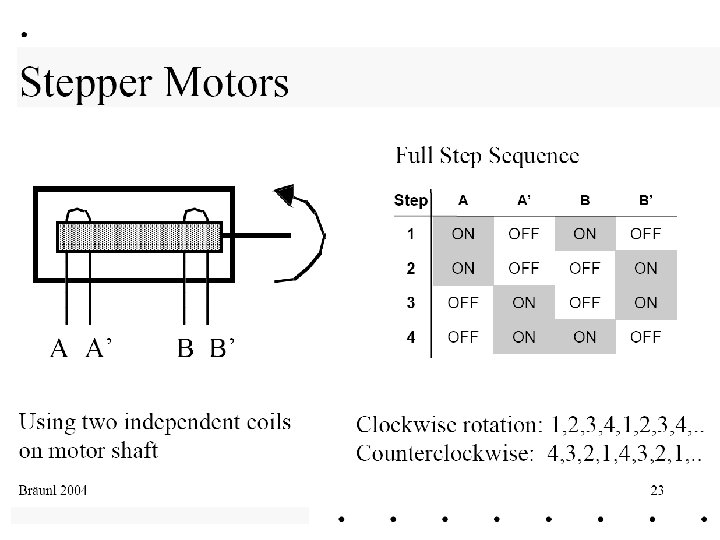

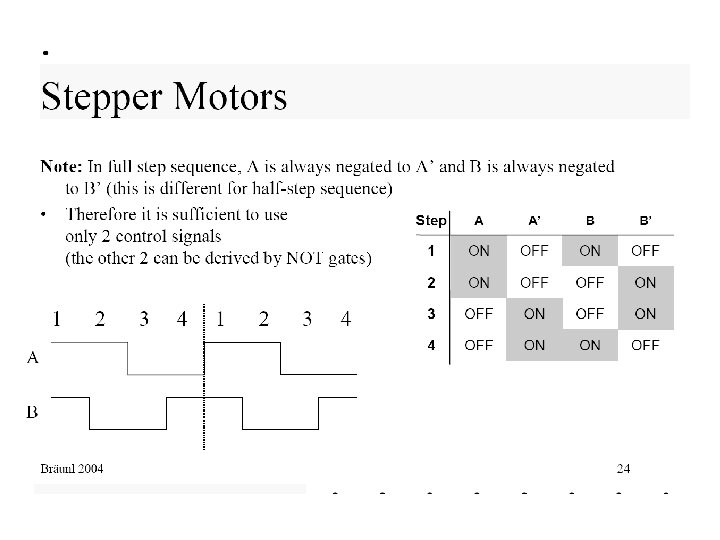

Stepper Motors l Stepper motors are another kind of motors that do not require feedback l A stepper motor can be incrementally driven, one step at a time, forward or backward l Stepper motor characteristics are: – Number of steps per revolution (e. g. 200 steps per revolution = 1. 8° per step) – Max. number of steps per second (“stepping rate” = max speed) l Driving a stepper motor requires a 4 step switching sequence for full-step mode l Stepper motors can also be driven in 8 step switching sequence for half-step mode (higher resolution) l Step sequence can be very fast, the resulting motion appears to be very smooth

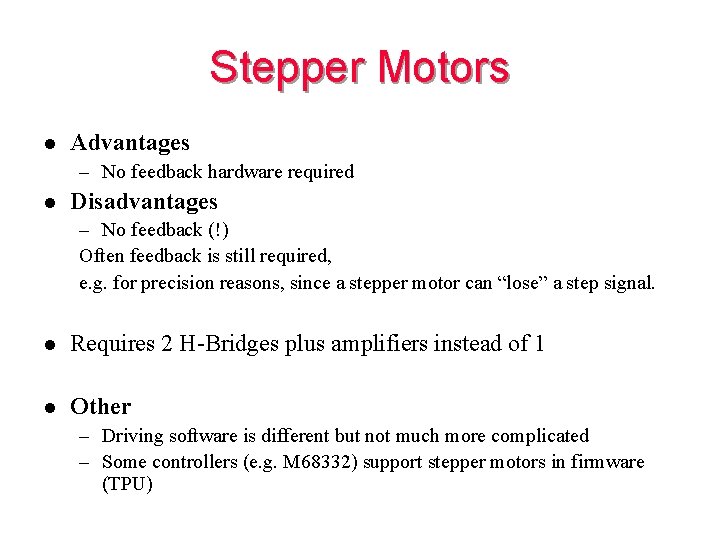

Stepper Motors l Advantages – No feedback hardware required l Disadvantages – No feedback (!) Often feedback is still required, e. g. for precision reasons, since a stepper motor can “lose” a step signal. l Requires 2 H-Bridges plus amplifiers instead of 1 l Other – Driving software is different but not much more complicated – Some controllers (e. g. M 68332) support stepper motors in firmware (TPU)

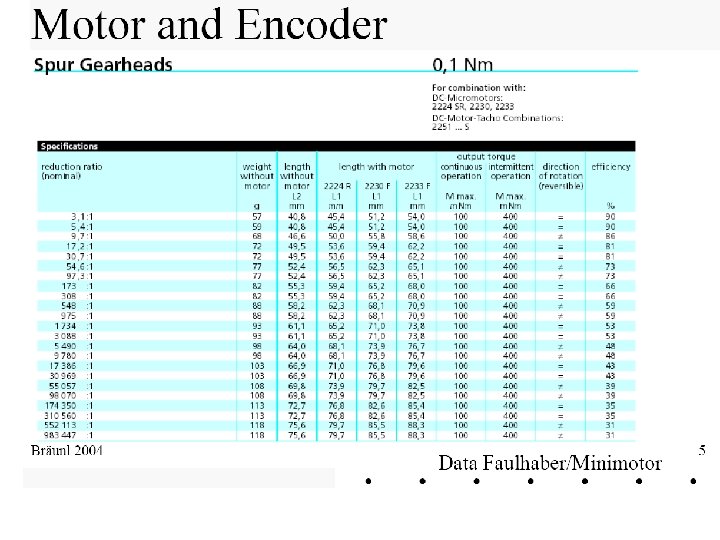

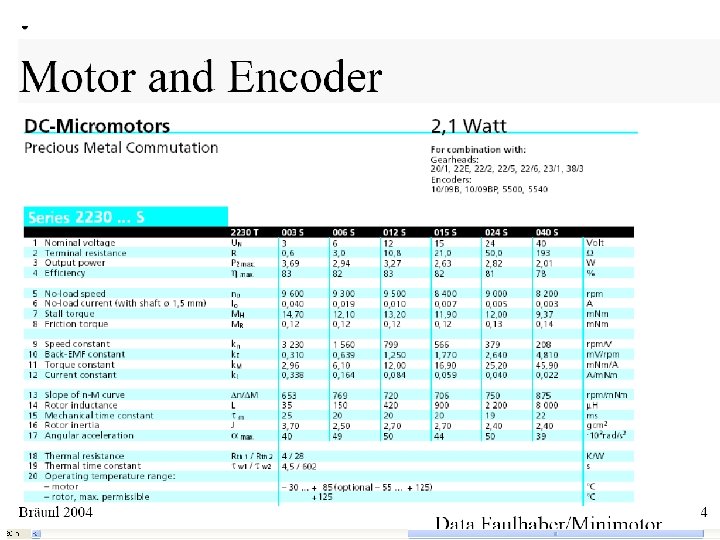

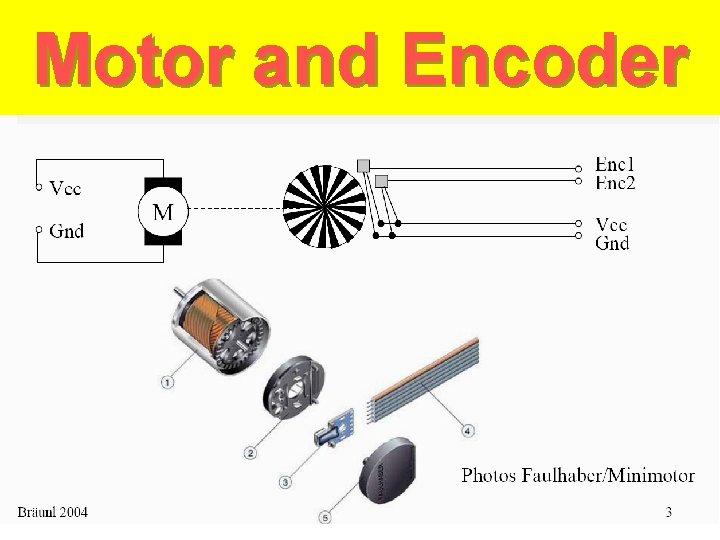

Motor and Encoder

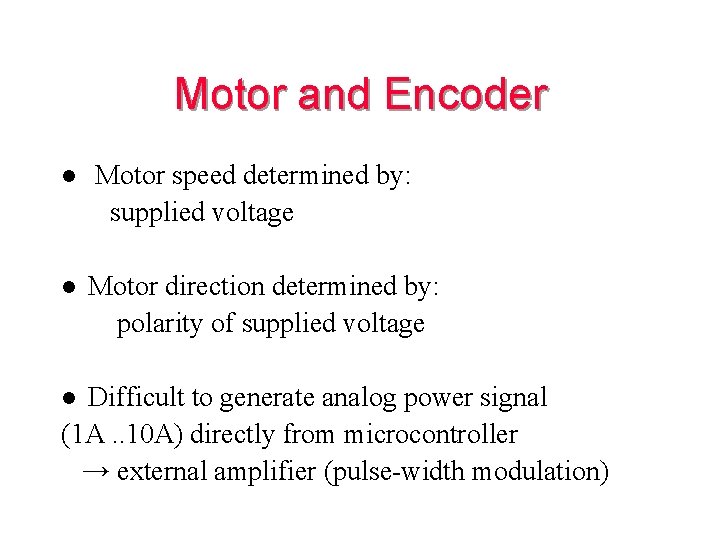

Motor and Encoder l l Motor speed determined by: supplied voltage Motor direction determined by: polarity of supplied voltage Difficult to generate analog power signal (1 A. . 10 A) directly from microcontroller → external amplifier (pulse-width modulation) l

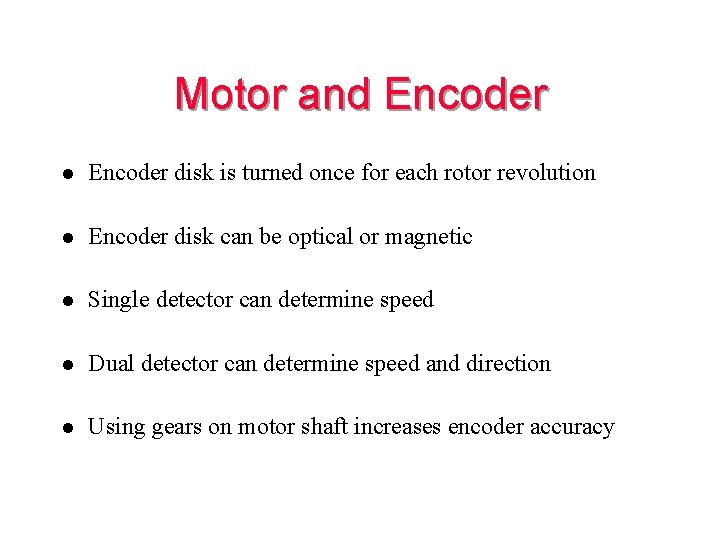

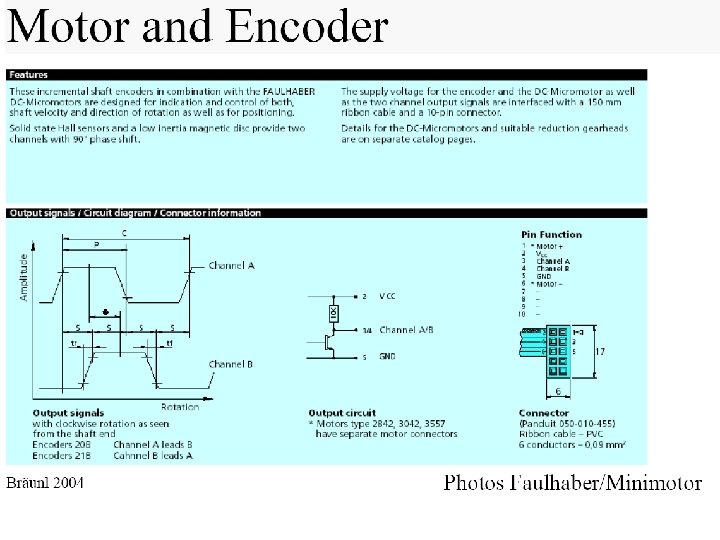

Motor and Encoder l Encoder disk is turned once for each rotor revolution l Encoder disk can be optical or magnetic l Single detector can determine speed l Dual detector can determine speed and direction l Using gears on motor shaft increases encoder accuracy

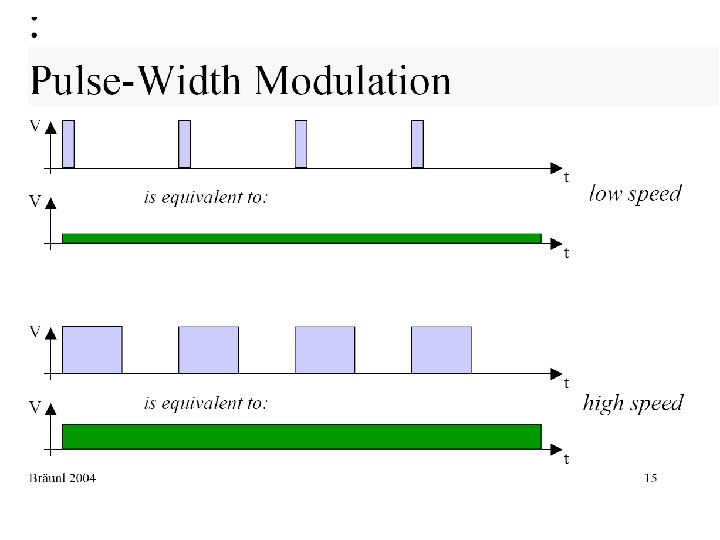

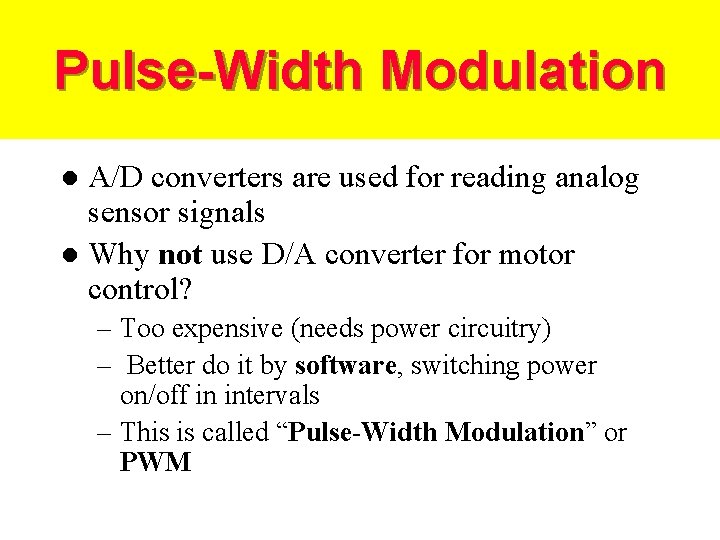

Pulse-Width Modulation A/D converters are used for reading analog sensor signals l Why not use D/A converter for motor control? l – Too expensive (needs power circuitry) – Better do it by software, switching power on/off in intervals – This is called “Pulse-Width Modulation” or PWM

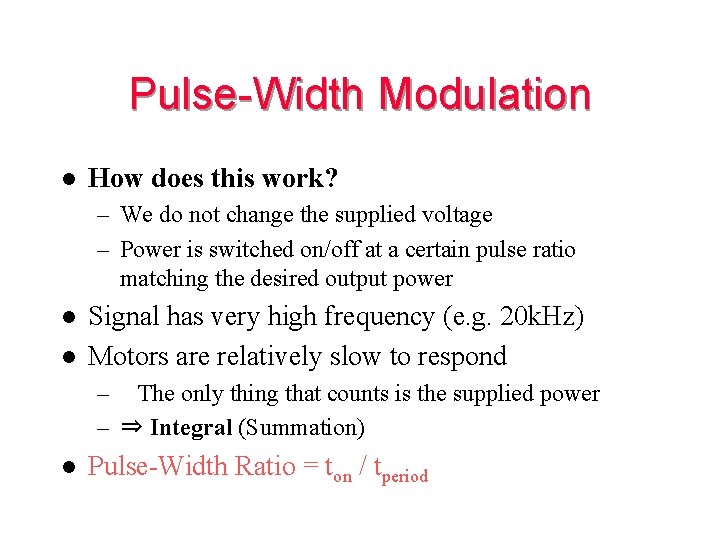

Pulse-Width Modulation l How does this work? – We do not change the supplied voltage – Power is switched on/off at a certain pulse ratio matching the desired output power l l Signal has very high frequency (e. g. 20 k. Hz) Motors are relatively slow to respond – The only thing that counts is the supplied power – ⇒ Integral (Summation) l Pulse-Width Ratio = ton / tperiod

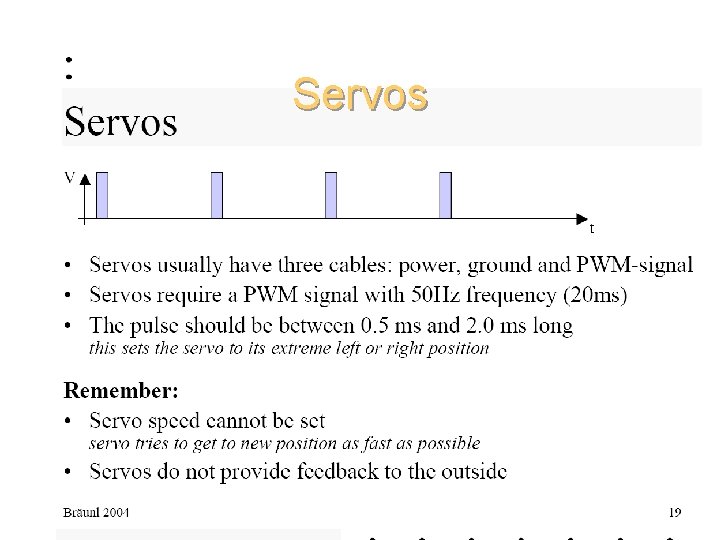

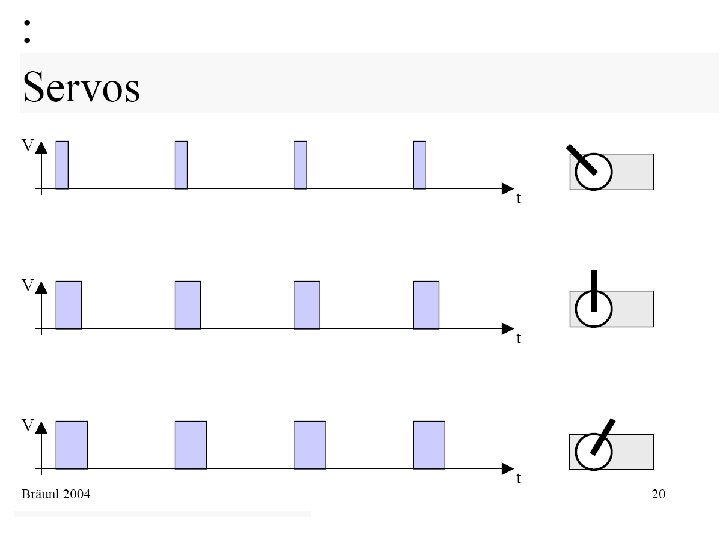

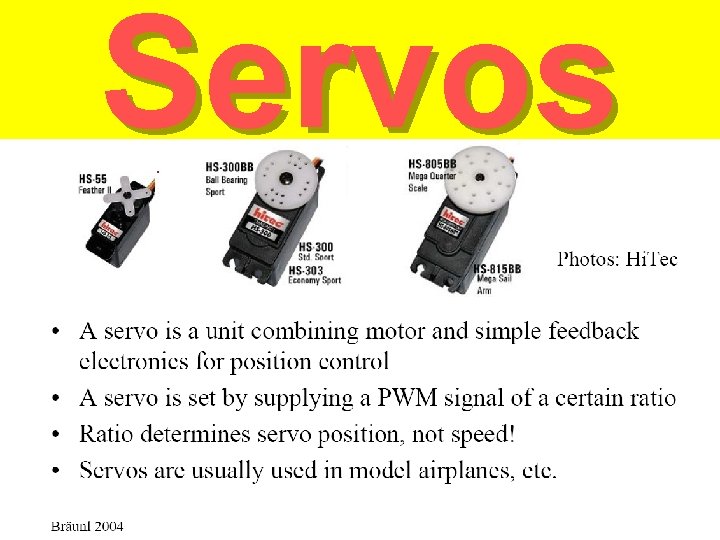

Servos

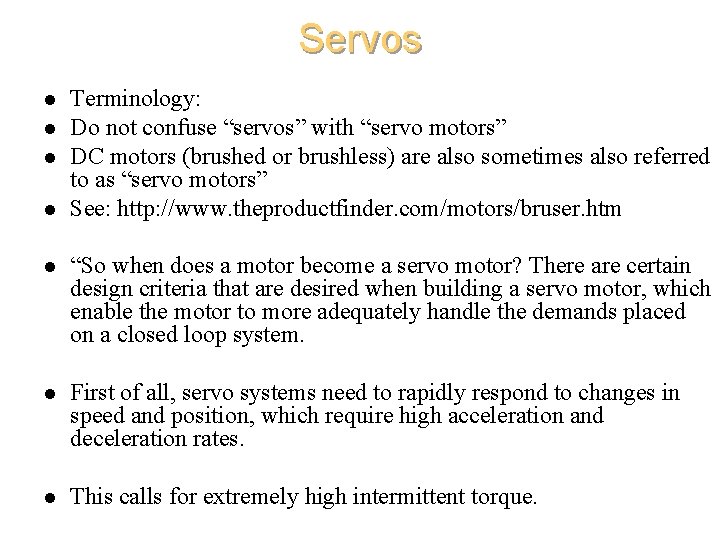

Servos l l Terminology: Do not confuse “servos” with “servo motors” DC motors (brushed or brushless) are also sometimes also referred to as “servo motors” See: http: //www. theproductfinder. com/motors/bruser. htm l “So when does a motor become a servo motor? There are certain design criteria that are desired when building a servo motor, which enable the motor to more adequately handle the demands placed on a closed loop system. l First of all, servo systems need to rapidly respond to changes in speed and position, which require high acceleration and deceleration rates. l This calls for extremely high intermittent torque.

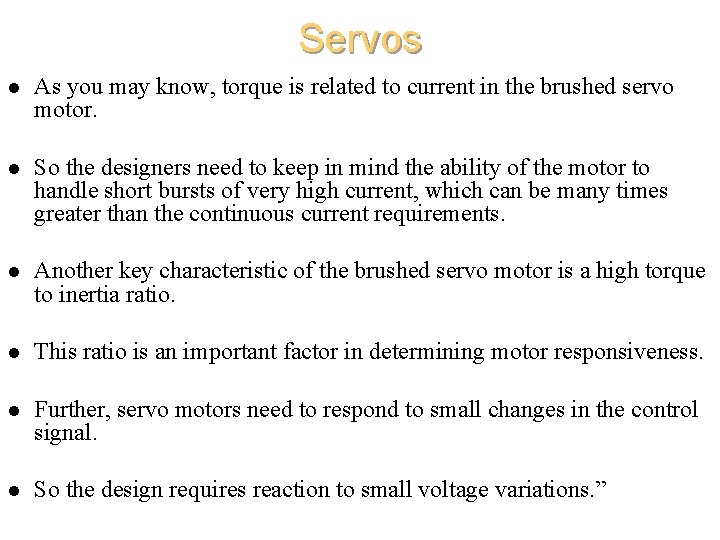

Servos l As you may know, torque is related to current in the brushed servo motor. l So the designers need to keep in mind the ability of the motor to handle short bursts of very high current, which can be many times greater than the continuous current requirements. l Another key characteristic of the brushed servo motor is a high torque to inertia ratio. l This ratio is an important factor in determining motor responsiveness. l Further, servo motors need to respond to small changes in the control signal. l So the design requires reaction to small voltage variations. ”

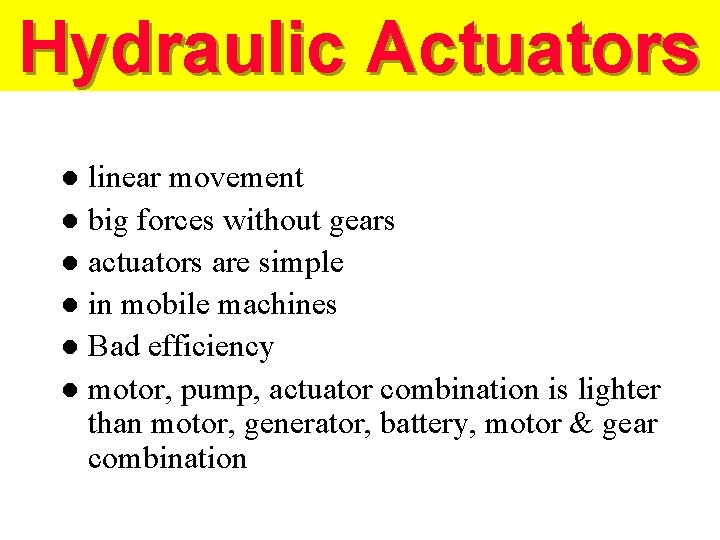

Hydraulic Actuators linear movement l big forces without gears l actuators are simple l in mobile machines l Bad efficiency l motor, pump, actuator combination is lighter than motor, generator, battery, motor & gear combination l Jussi Suomela HUT/Automation 43

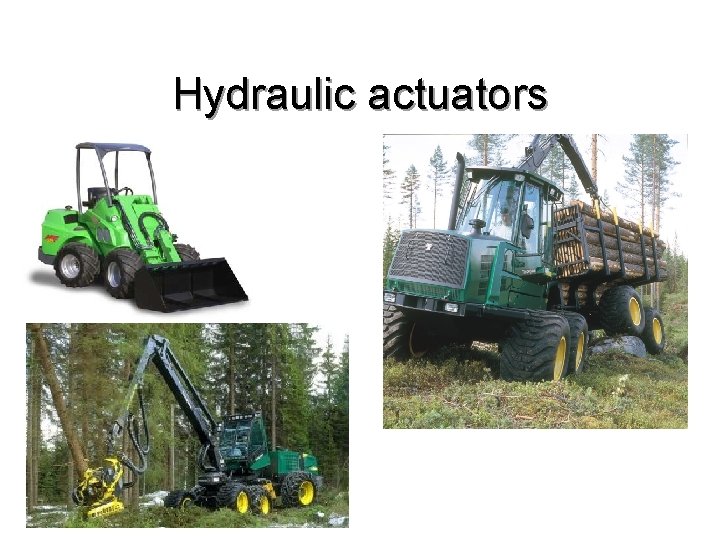

Hydraulic actuators

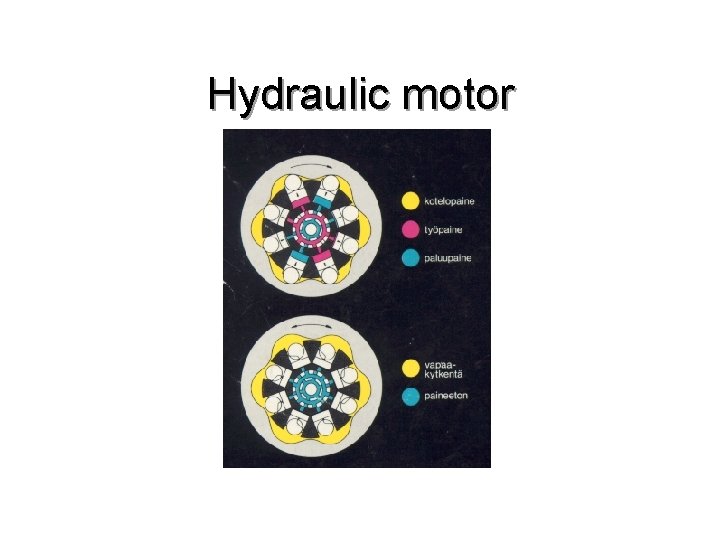

Hydraulic motor Jussi Suomela HUT/Automation 45

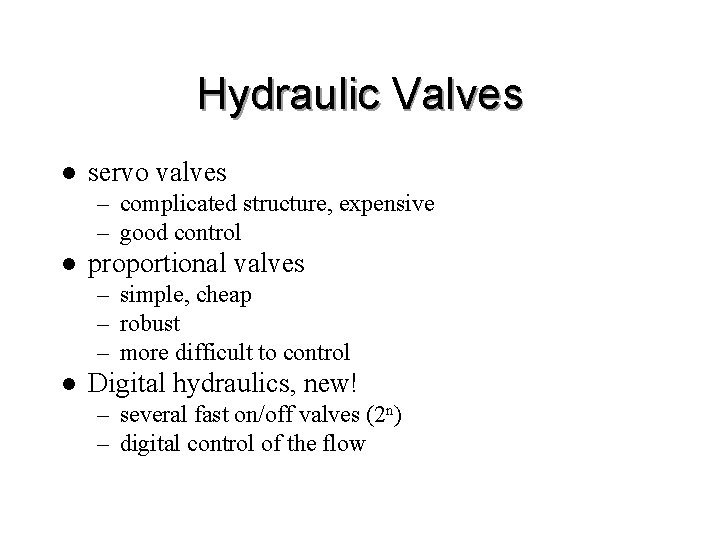

Hydraulic Valves l servo valves – complicated structure, expensive – good control l proportional valves – simple, cheap – robust – more difficult to control l Digital hydraulics, new! – several fast on/off valves (2 n) – digital control of the flow Jussi Suomela HUT/Automation 46

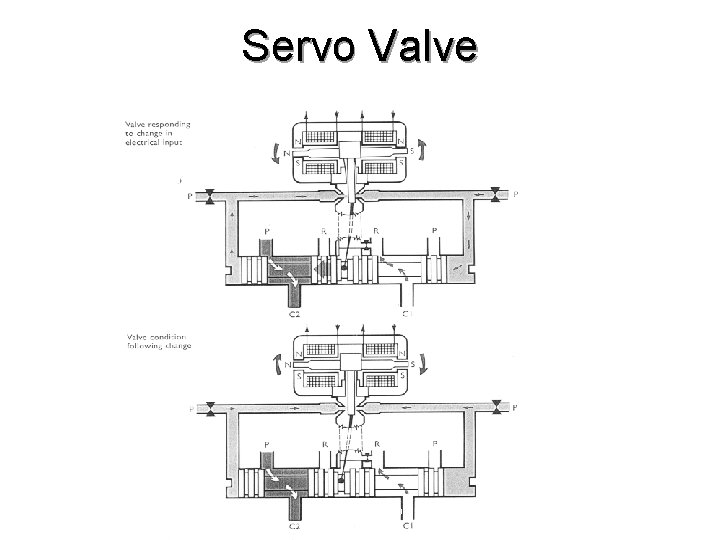

Servo Valve Jussi Suomela HUT/Automation 47

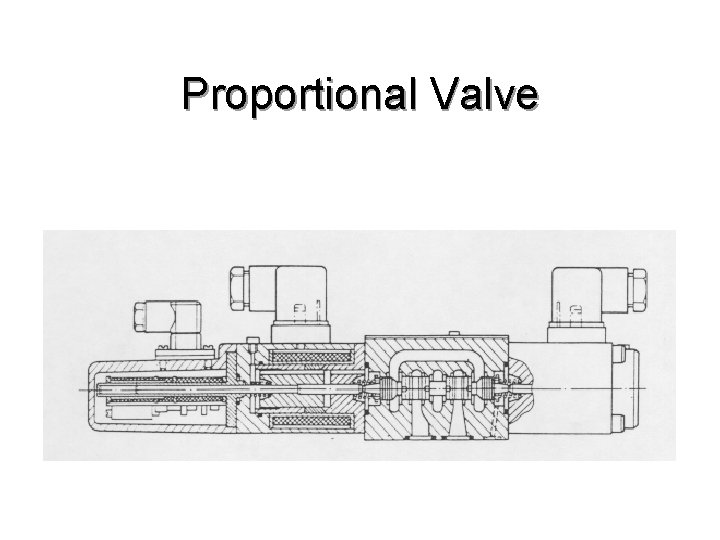

Proportional Valve Jussi Suomela HUT/Automation 48

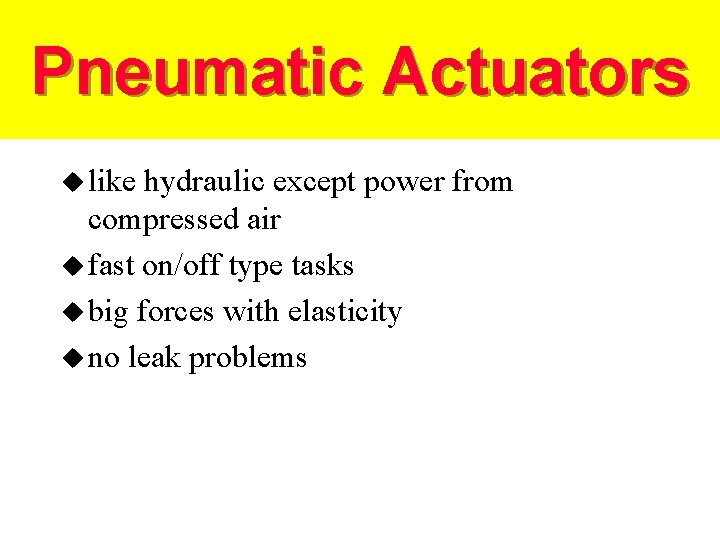

Pneumatic Actuators u like hydraulic except power from compressed air u fast on/off type tasks u big forces with elasticity u no leak problems Jussi Suomela HUT/Automation 49

Other Actuators piezoelectric l magnetic l ultra sound l SMA l inertial l Jussi Suomela HUT/Automation 50

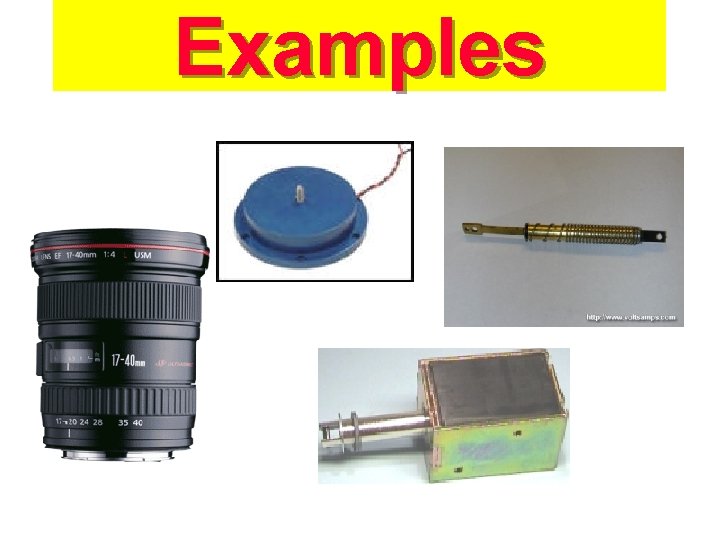

Examples

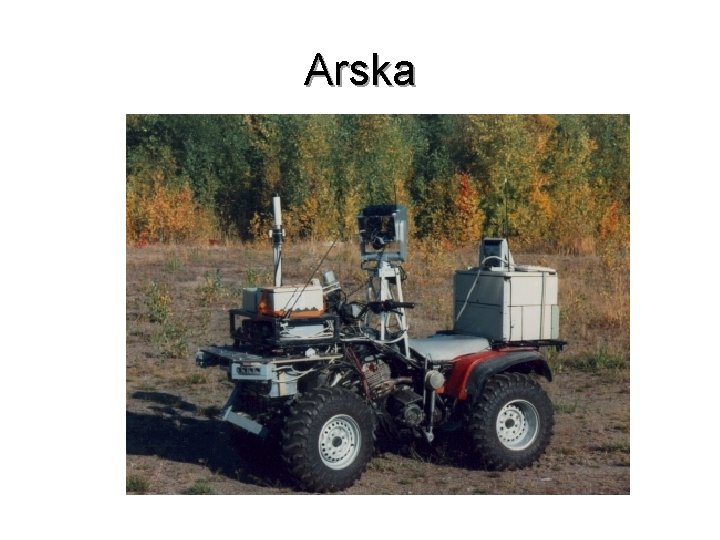

Arska

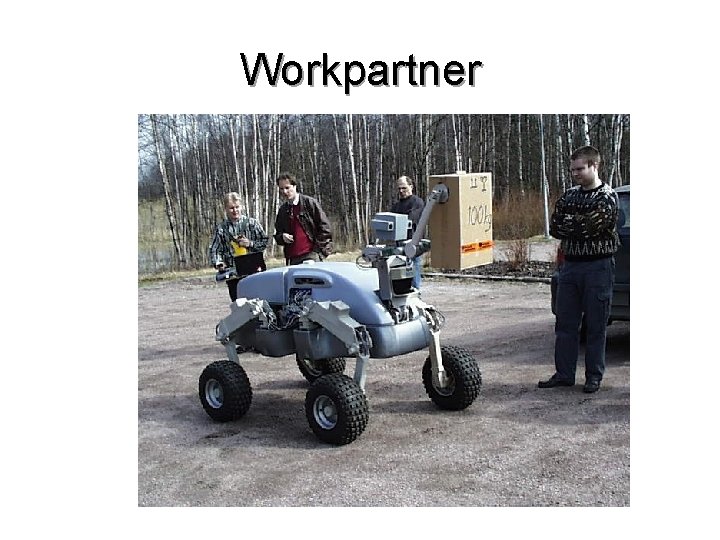

Workpartner

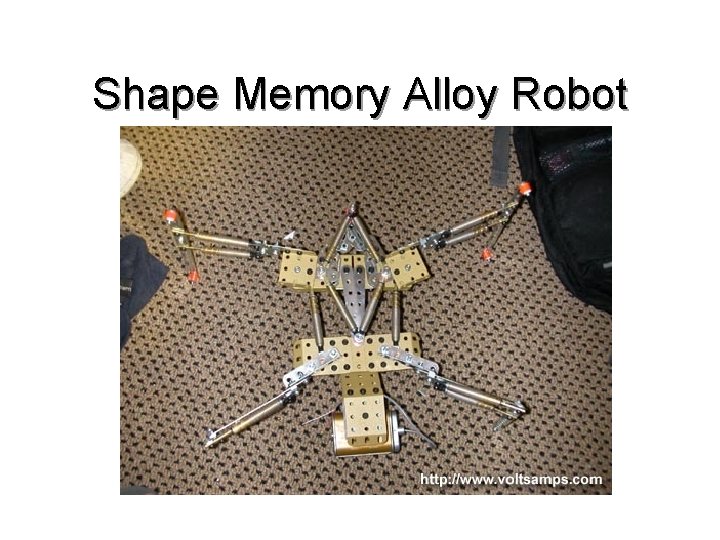

Shape Memory Alloy Robot

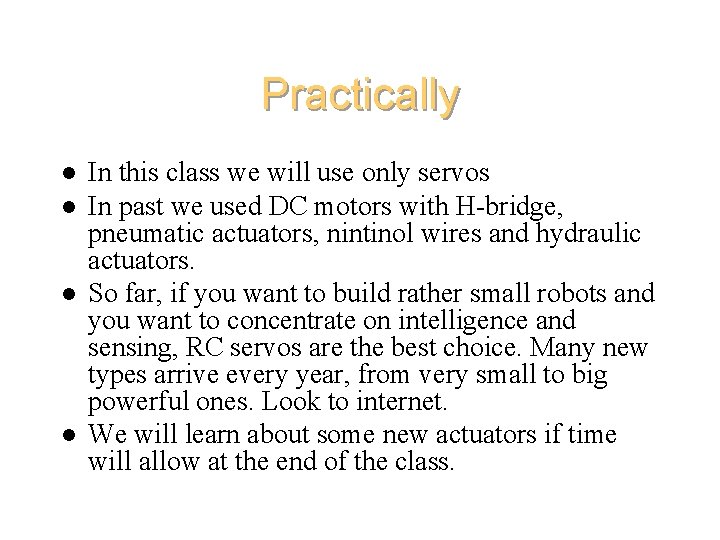

Practically l l In this class we will use only servos In past we used DC motors with H-bridge, pneumatic actuators, nintinol wires and hydraulic actuators. So far, if you want to build rather small robots and you want to concentrate on intelligence and sensing, RC servos are the best choice. Many new types arrive every year, from very small to big powerful ones. Look to internet. We will learn about some new actuators if time will allow at the end of the class.
