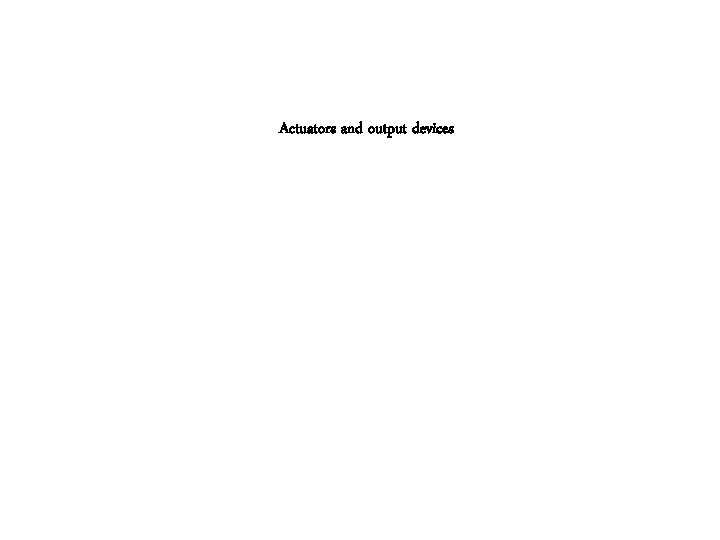

Actuators and output devices

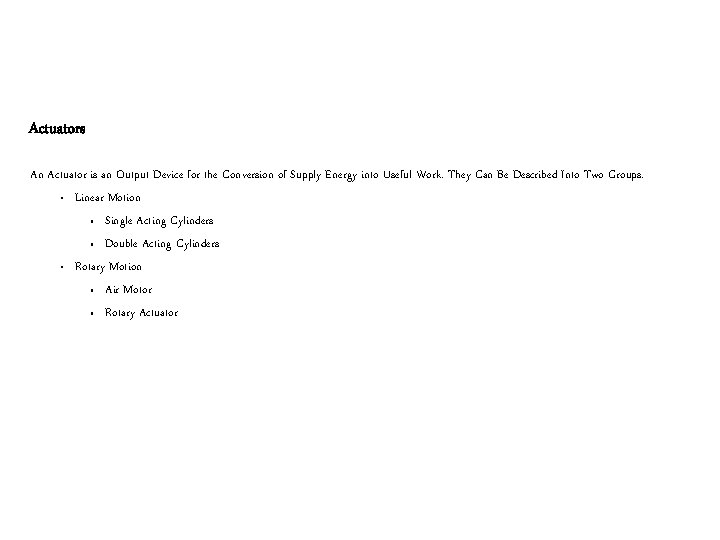

Actuators An Actuator is an Output Device for the Conversion of Supply Energy into Useful Work. They Can Be Described Into Two Groups. • Linear Motion • Single Acting Cylinders • Double Acting Cylinders • Rotary Motion • Air Motor • Rotary Actuator

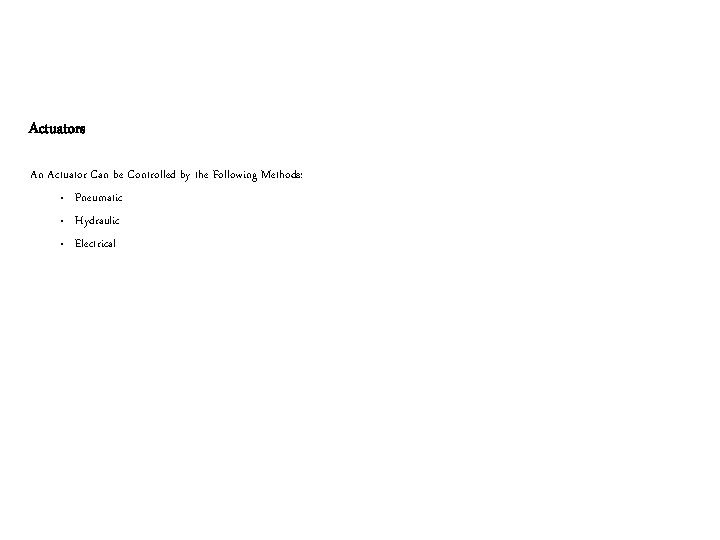

Actuators An Actuator Can be Controlled by the Following Methods: • Pneumatic • Hydraulic • Electrical

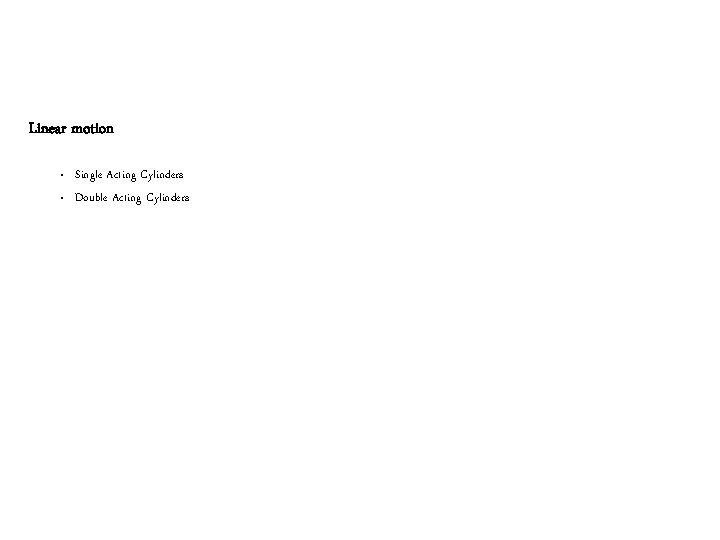

Linear motion • • Single Acting Cylinders Double Acting Cylinders

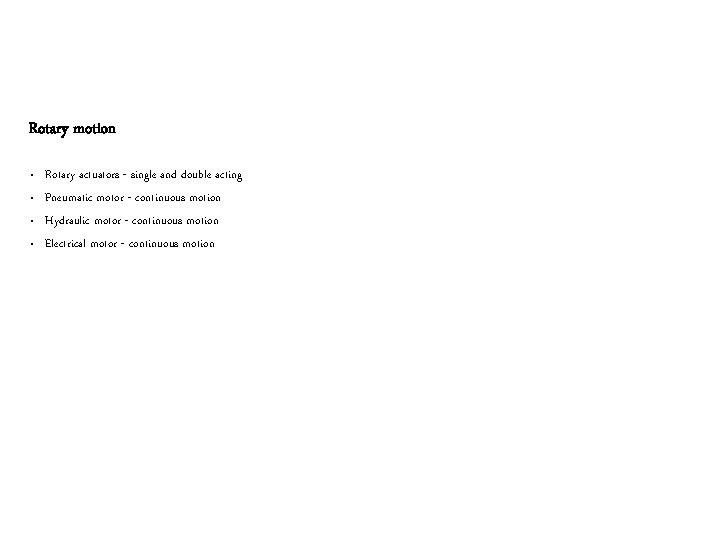

Rotary motion • • Rotary actuators - single and double acting Pneumatic motor - continuous motion Hydraulic motor - continuous motion Electrical motor - continuous motion

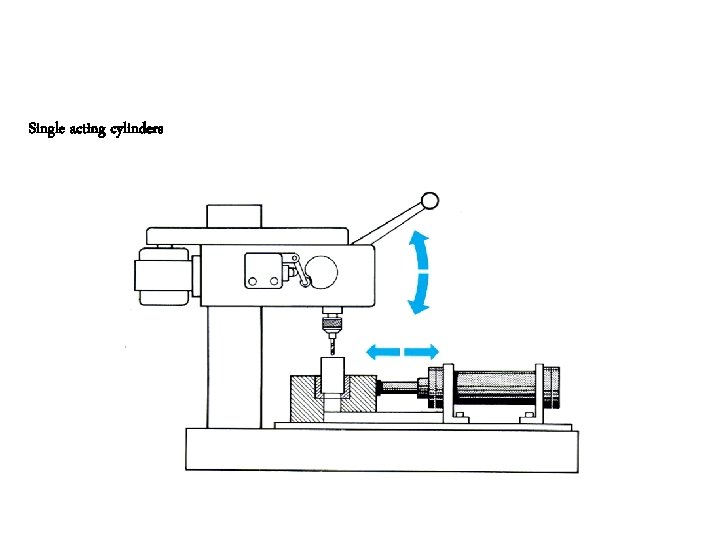

Single acting cylinders

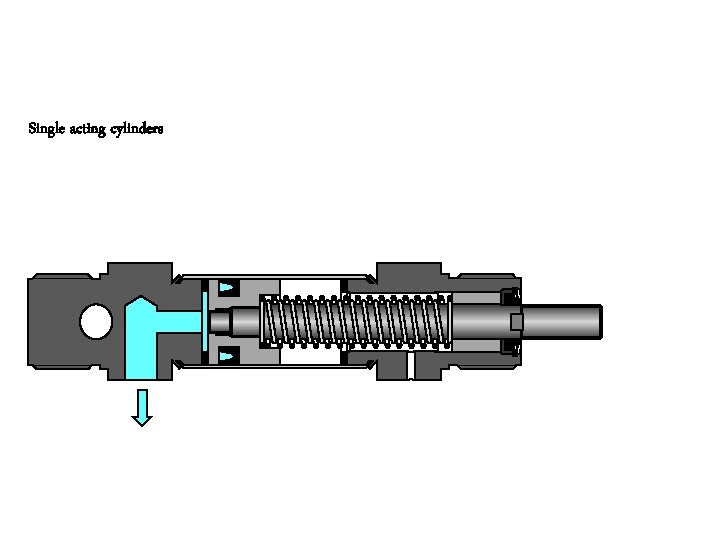

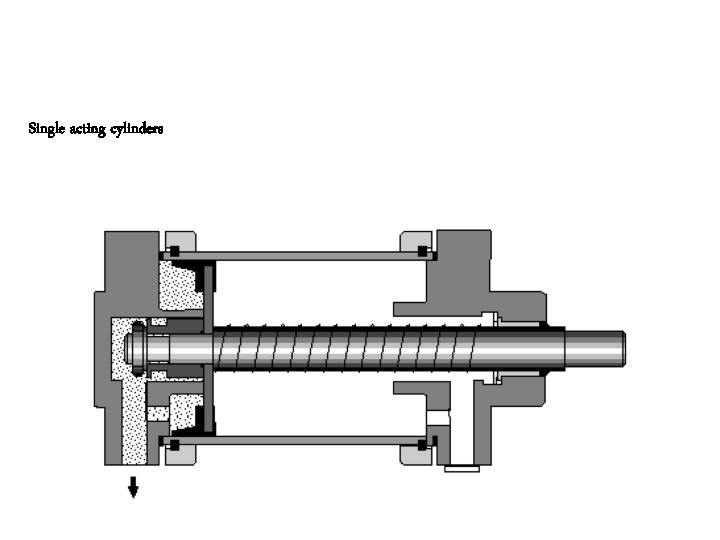

Single acting cylinders Rod Bearing Spring Vent Connection Piston Seal

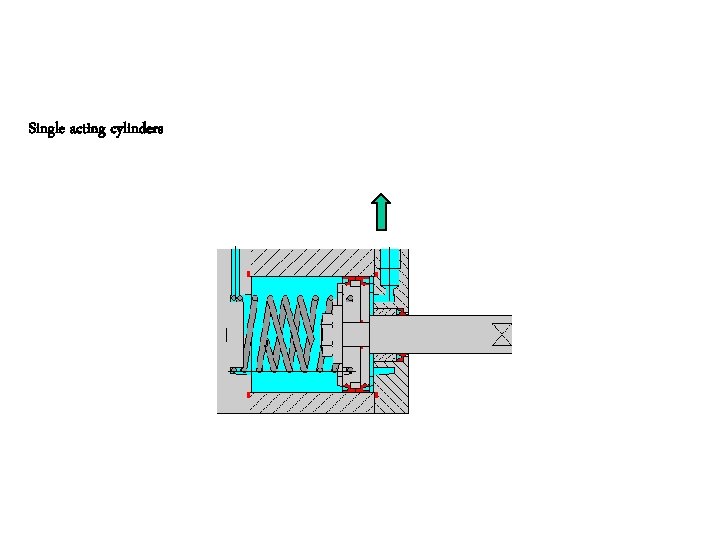

Single acting cylinders

Single acting cylinders Force = Pressure x Area (piston)

Single acting cylinders

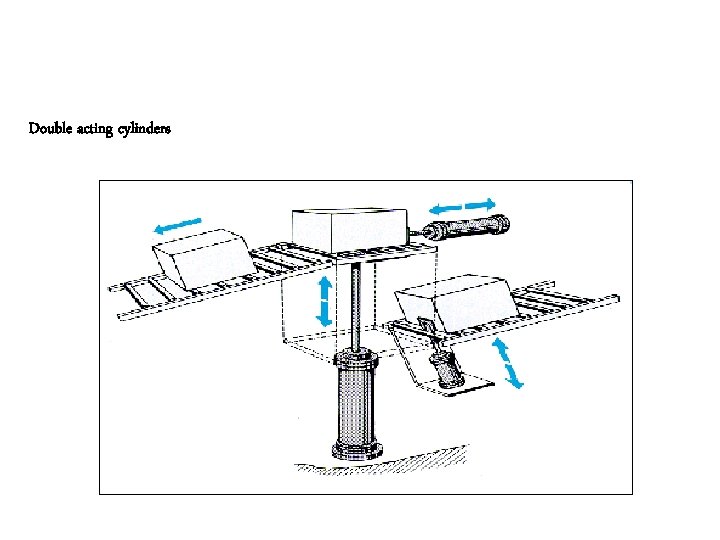

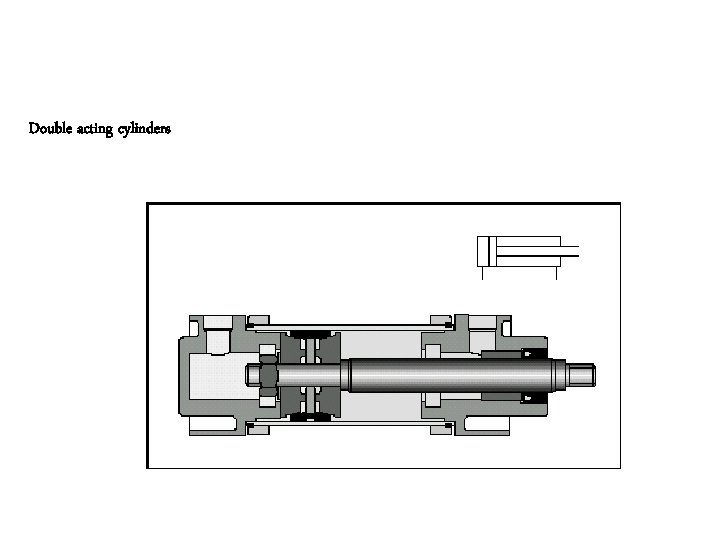

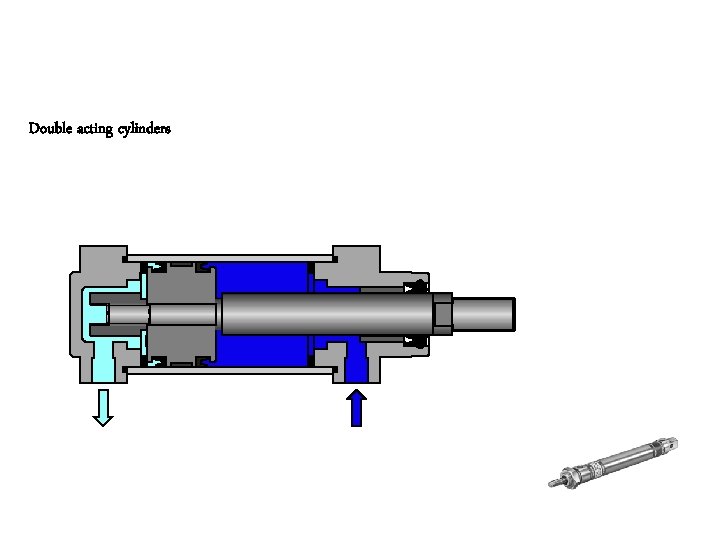

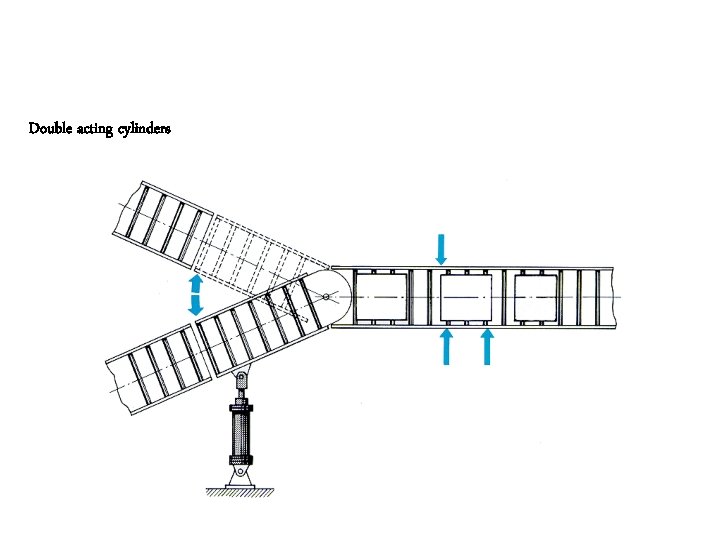

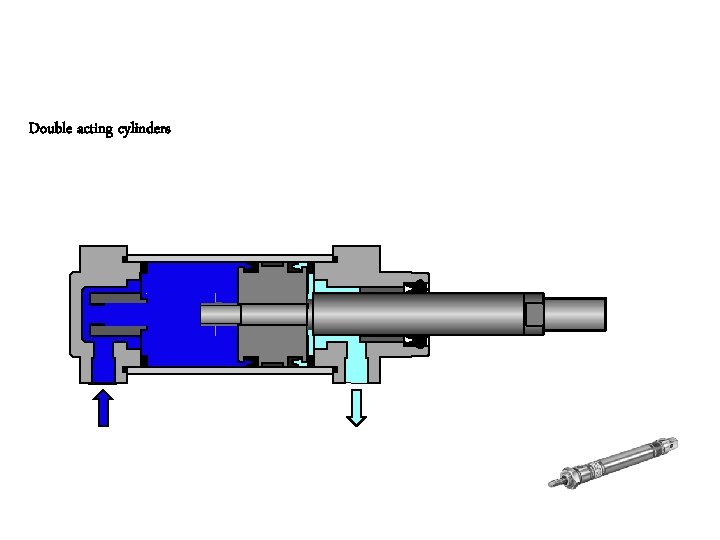

Double acting cylinders

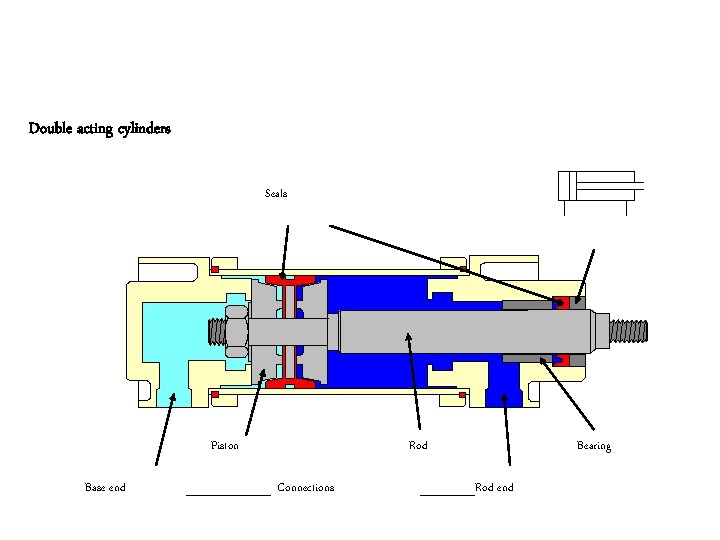

Double acting cylinders Seals Piston Base end Rod Connections Bearing Rod end

Double acting cylinders

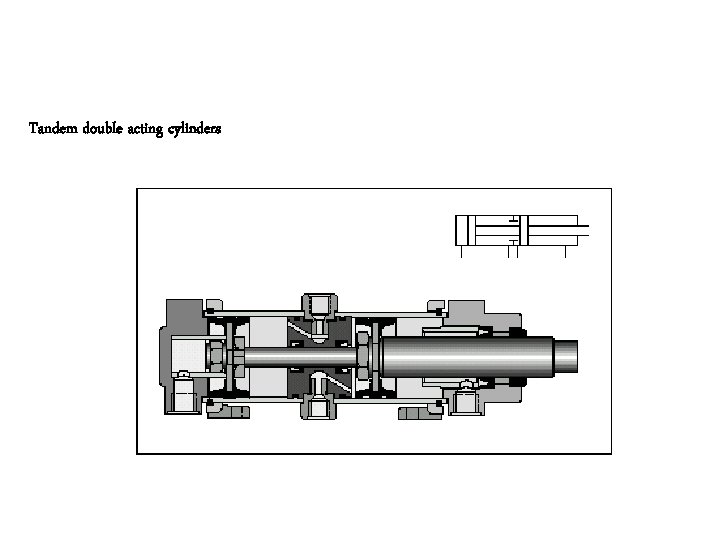

Tandem double acting cylinders

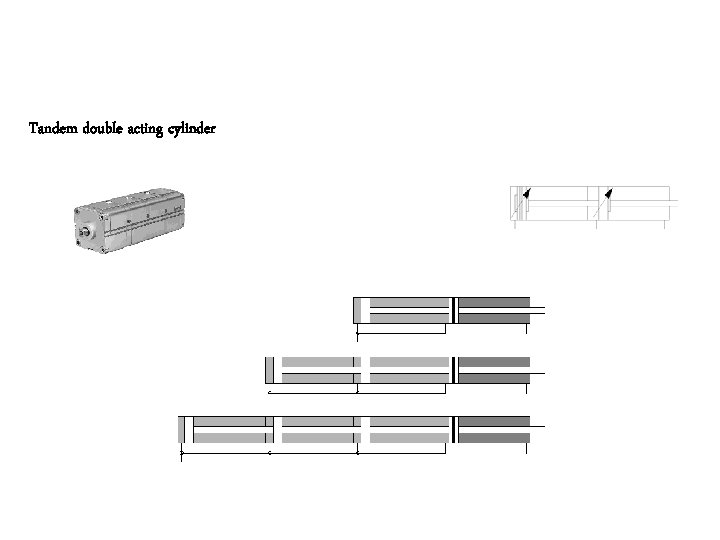

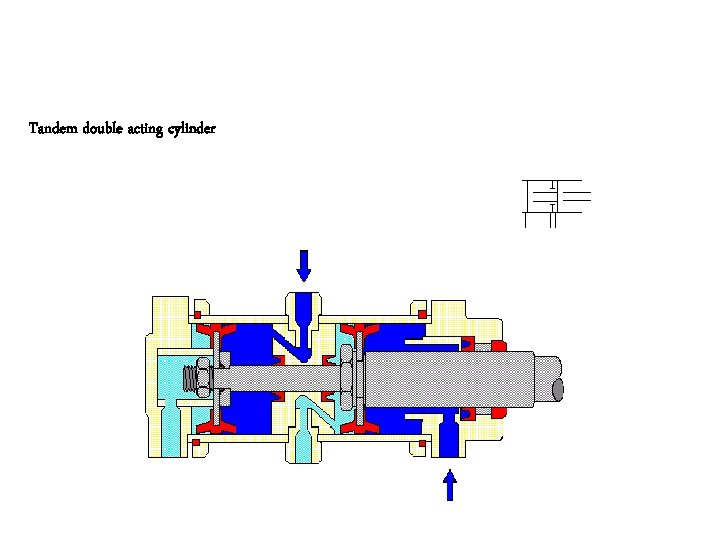

Tandem double acting cylinder

Double rod double acting cylinders

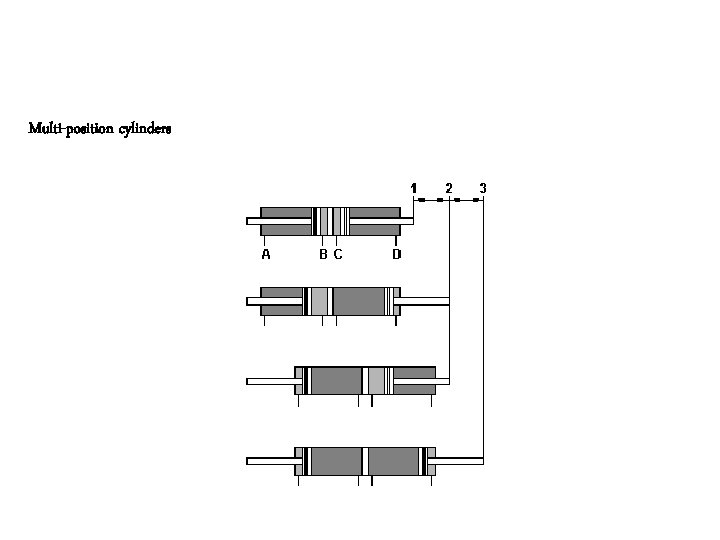

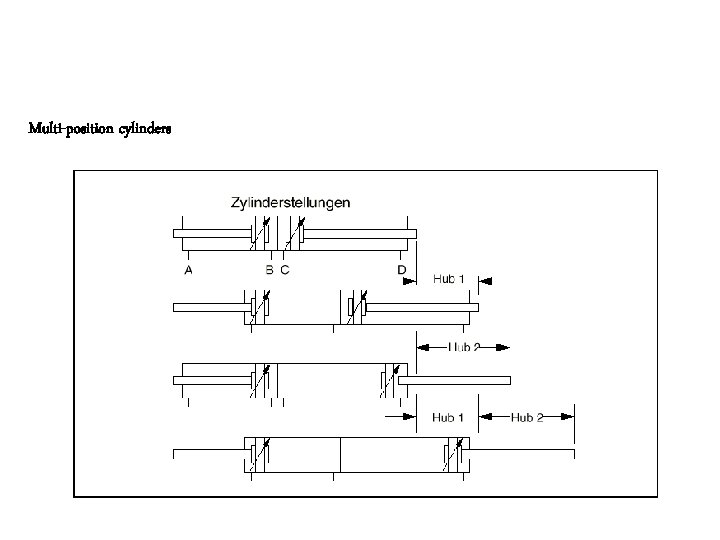

Multi-position cylinders

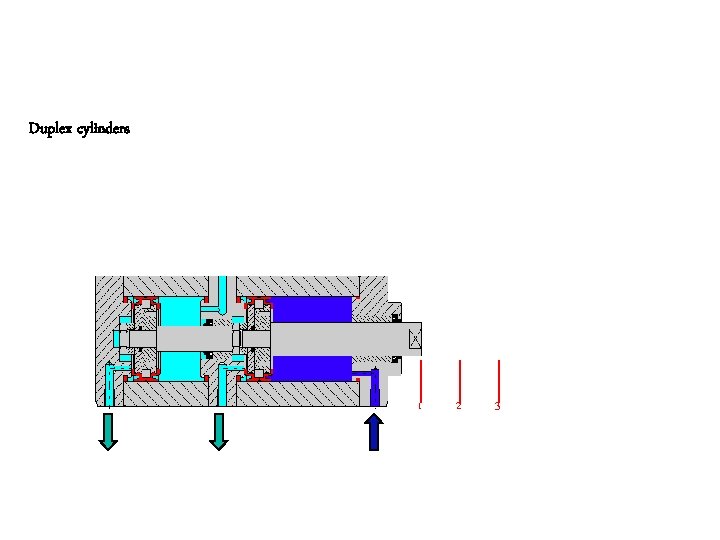

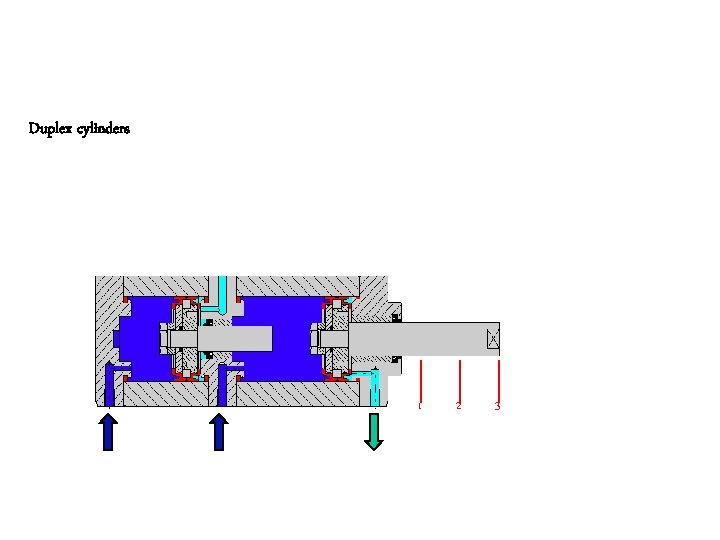

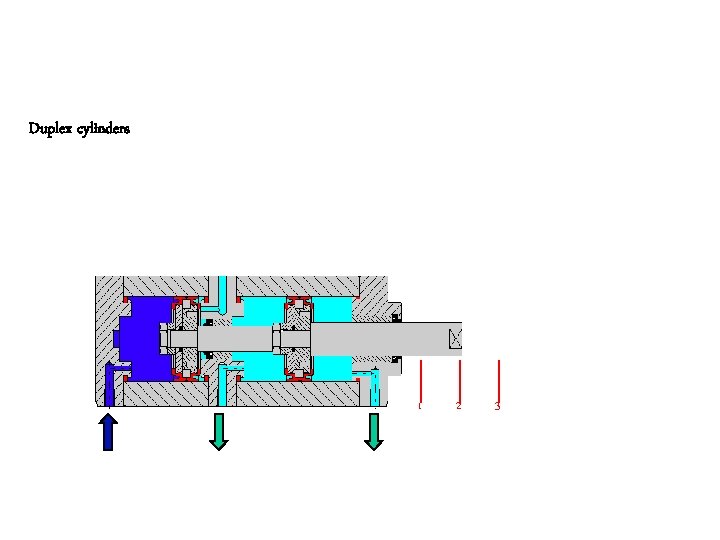

Duplex cylinders 1 2 3

Rodless cylinders

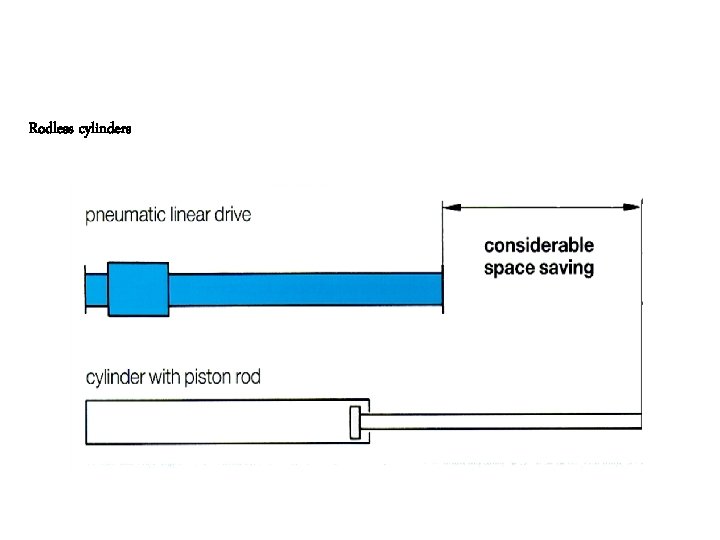

The rodless cylinder Conventional Double Acting Cylinders require space to house the cylinder. Plus space to carry out the work. More effective use of the available space can be made by using Rodless Cylinders.

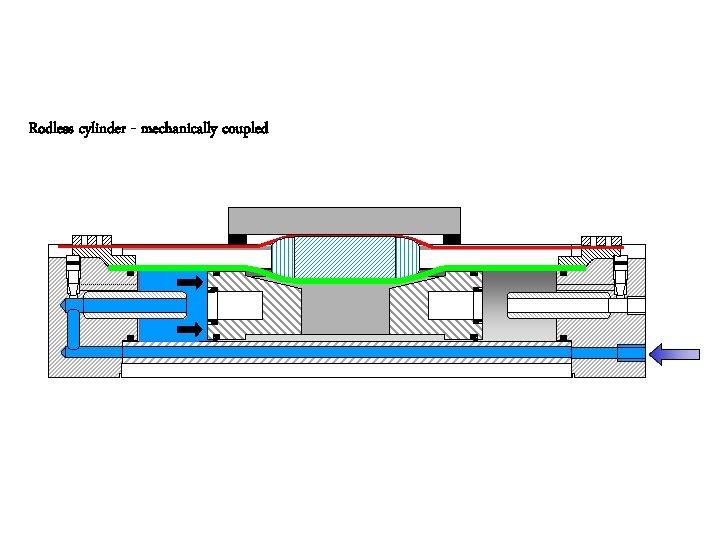

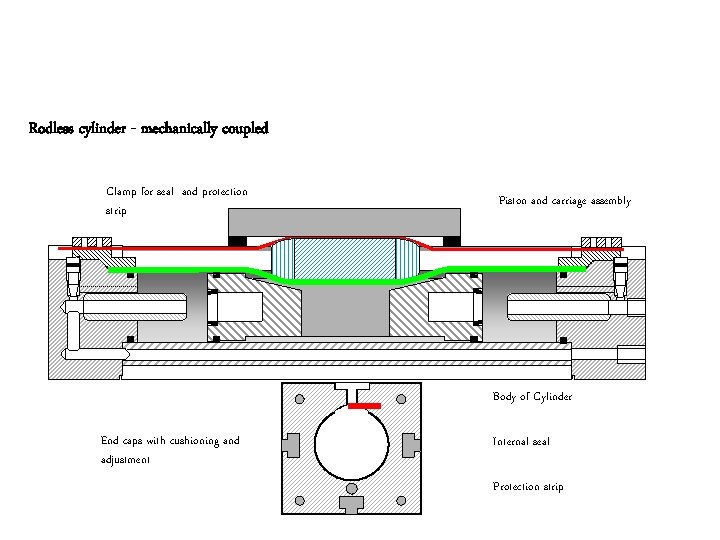

Rodless cylinder - mechanically coupled Clamp for seal and protection strip Piston and carriage assembly Body of Cylinder End caps with cushioning and adjustment Internal seal Protection strip

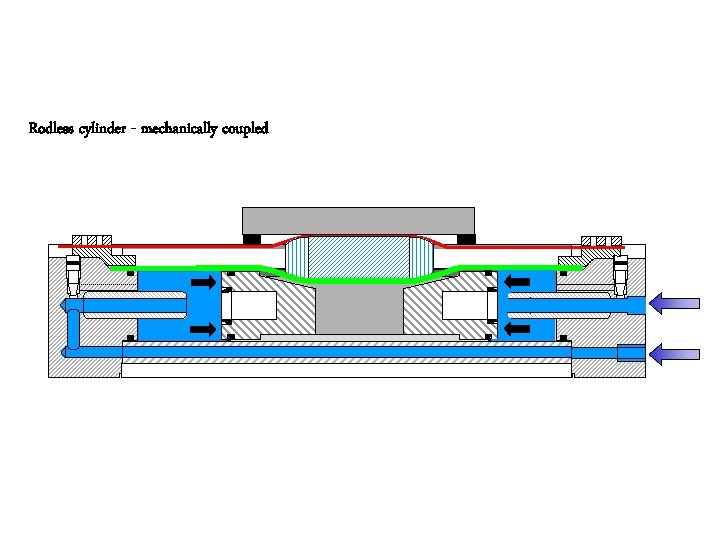

Rodless cylinder - mechanically coupled

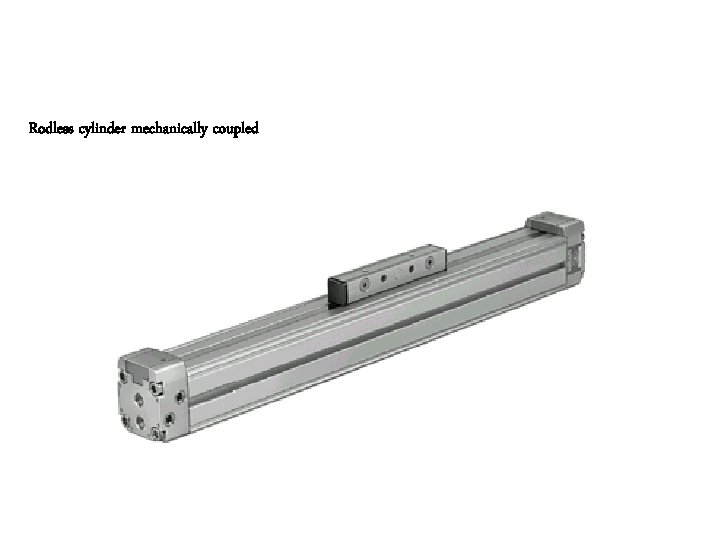

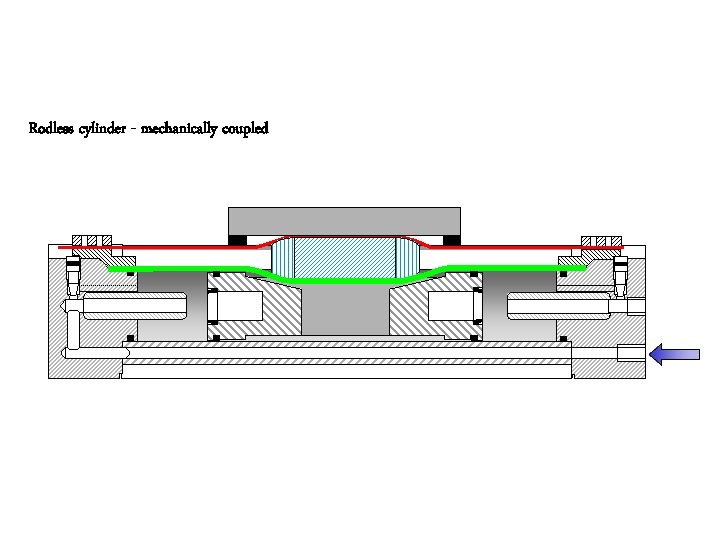

Rodless cylinder mechanically coupled

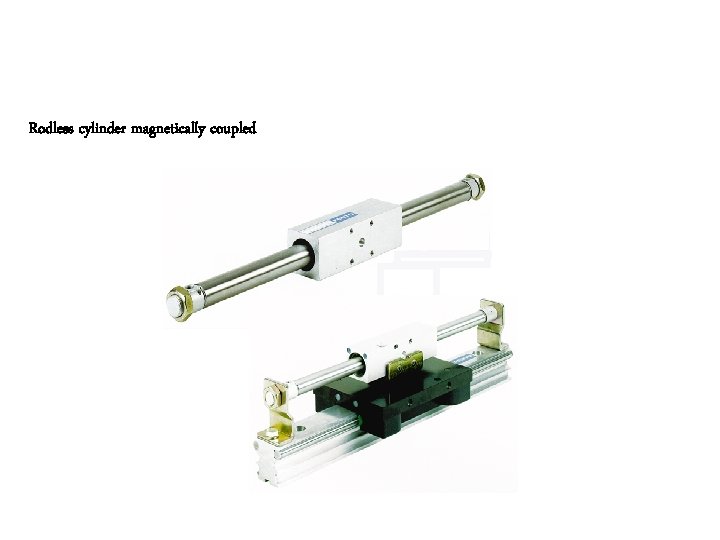

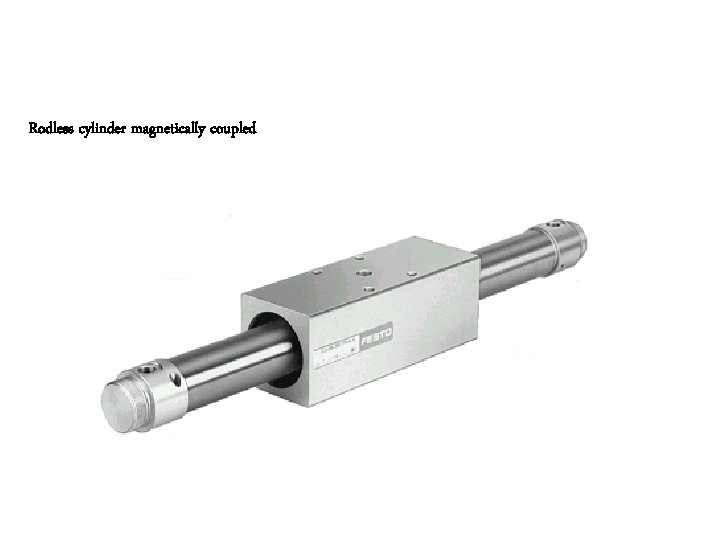

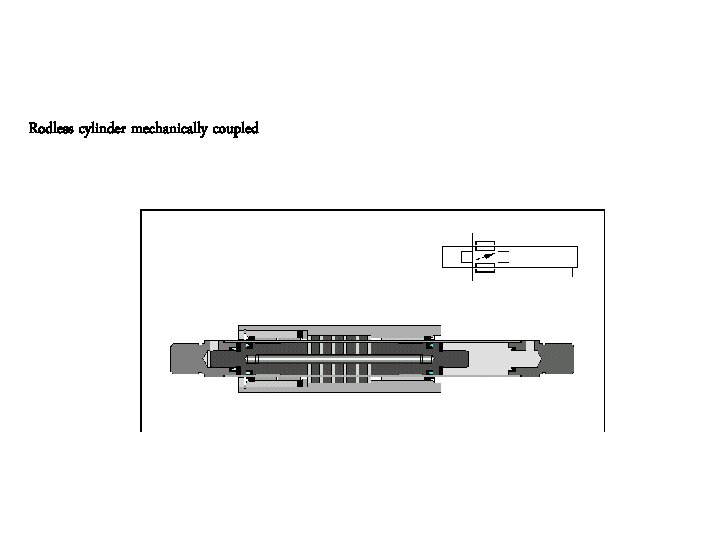

Rodless cylinder magnetically coupled

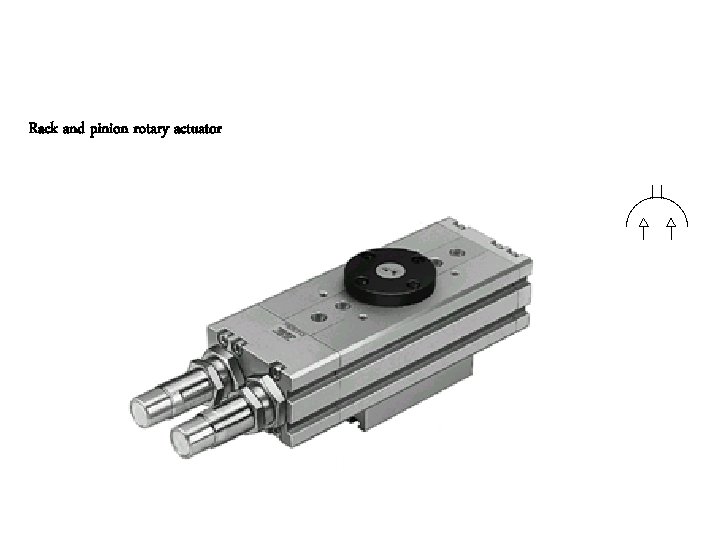

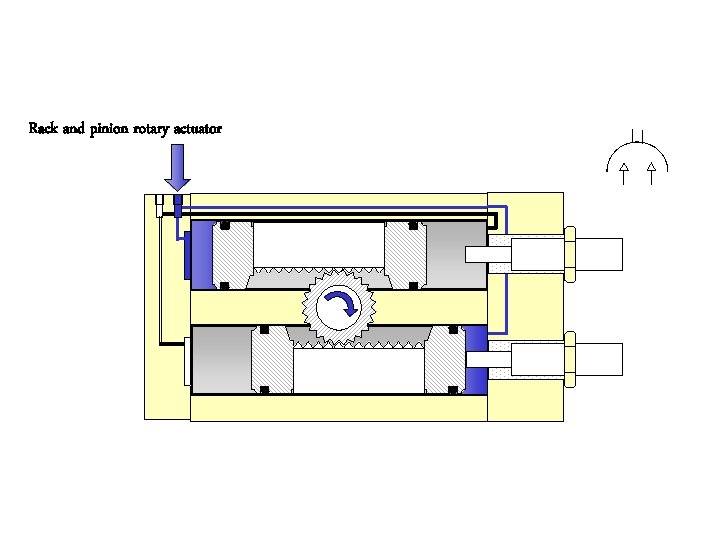

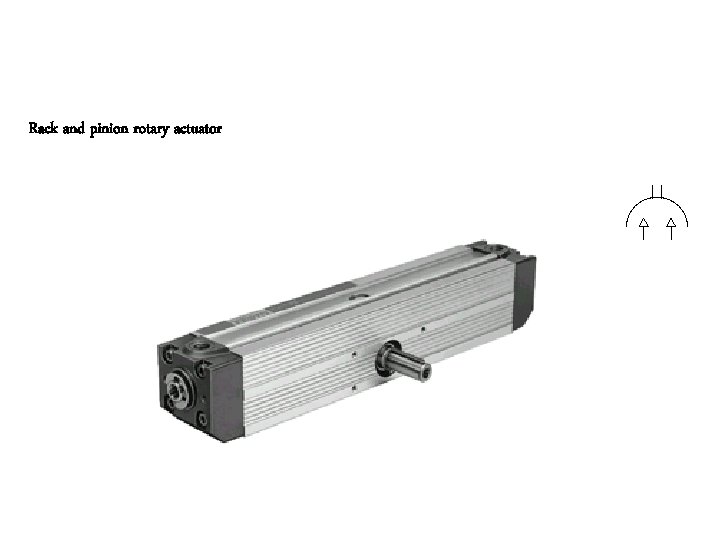

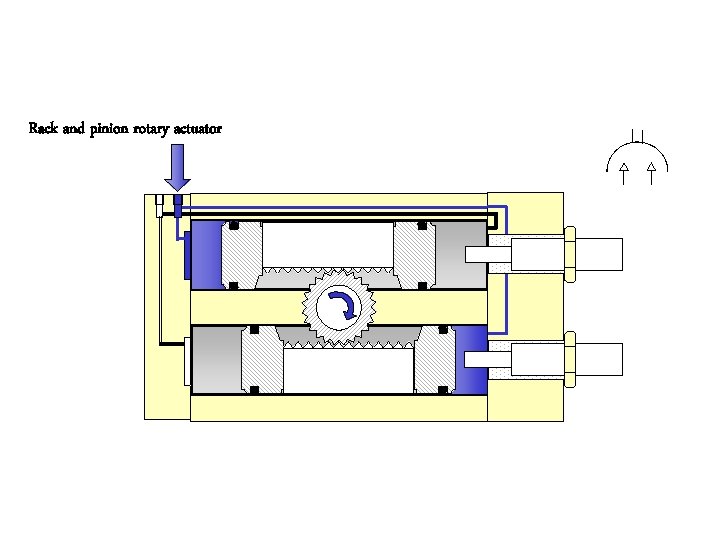

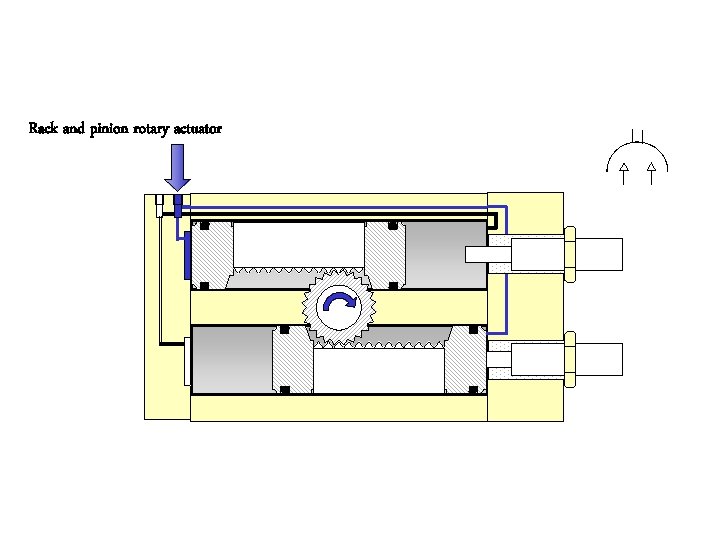

Rack and pinion rotary actuator

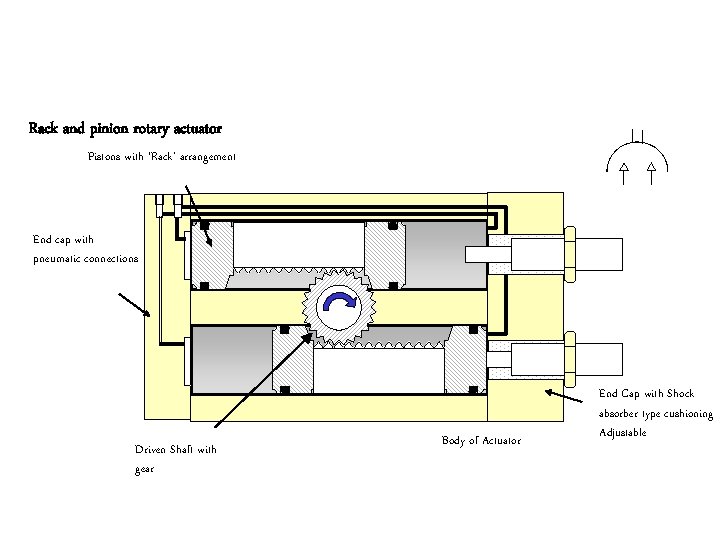

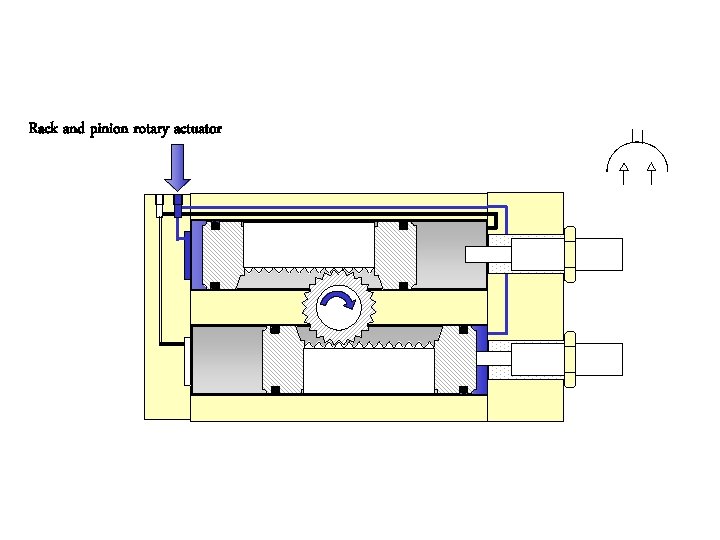

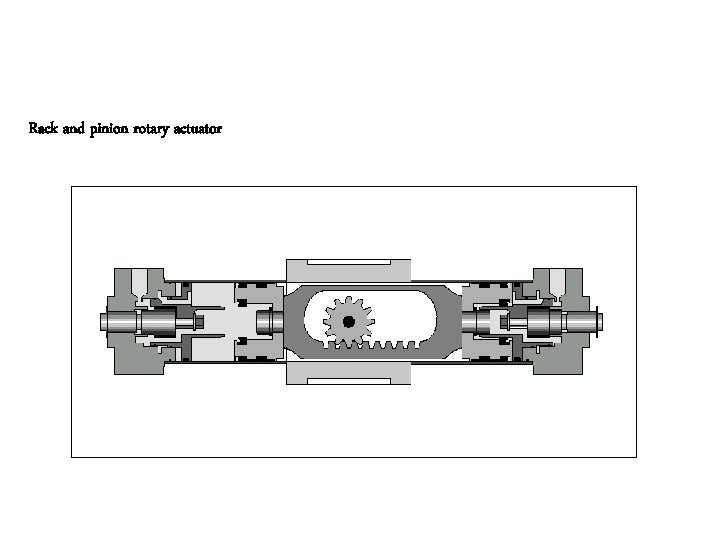

Rack and pinion rotary actuator Pistons with ‘Rack’ arrangement End cap with pneumatic connections Driven Shaft with gear Body of Actuator End Cap with Shock absorber type cushioning Adjustable

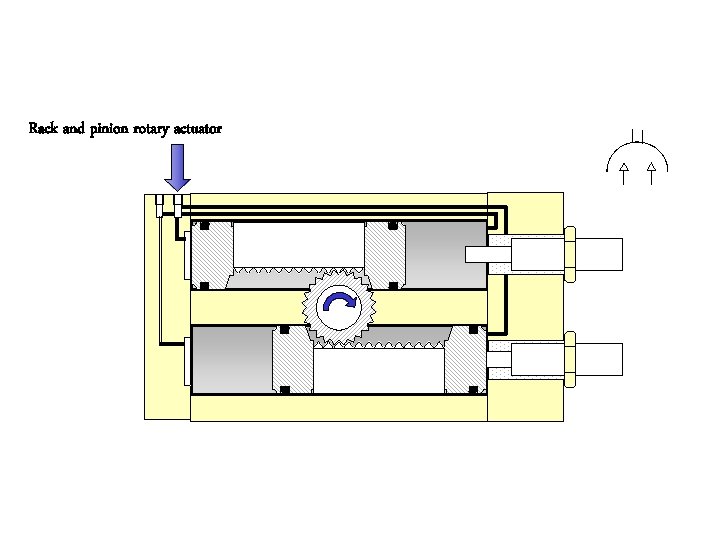

Rack and pinion rotary actuator

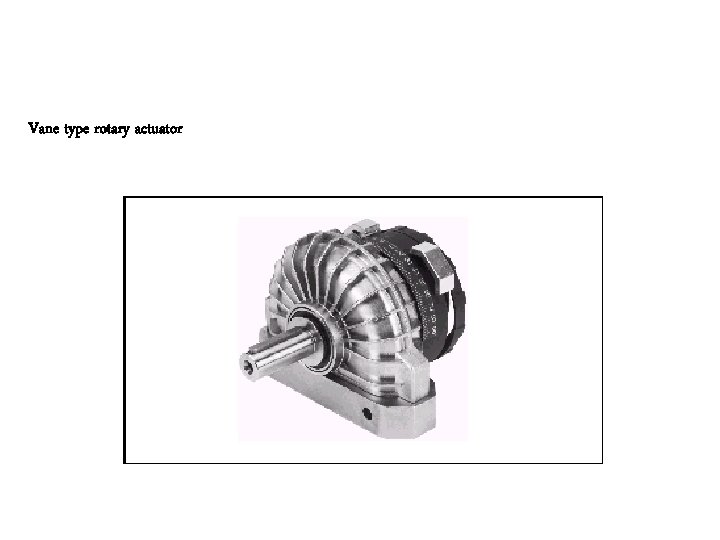

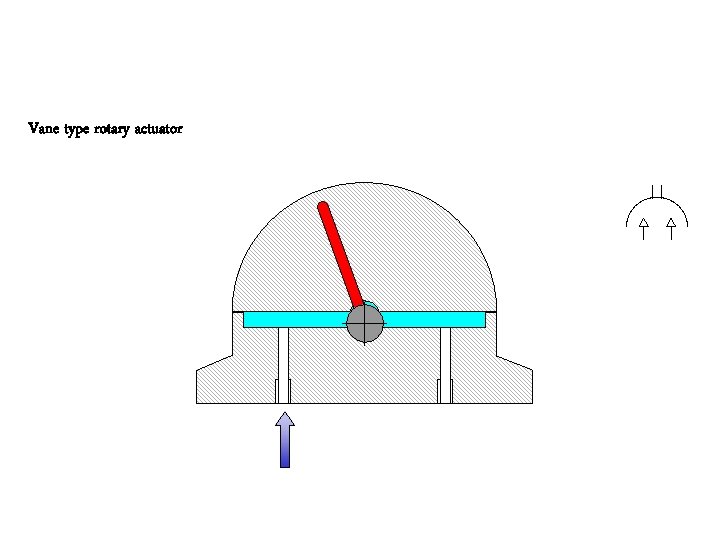

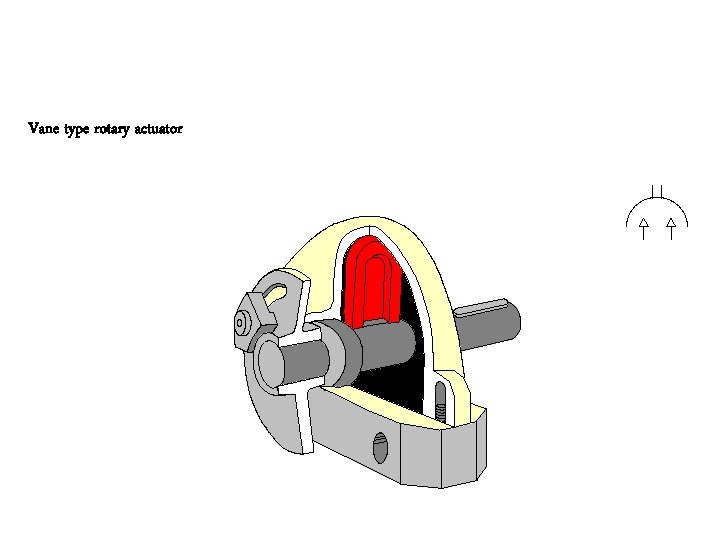

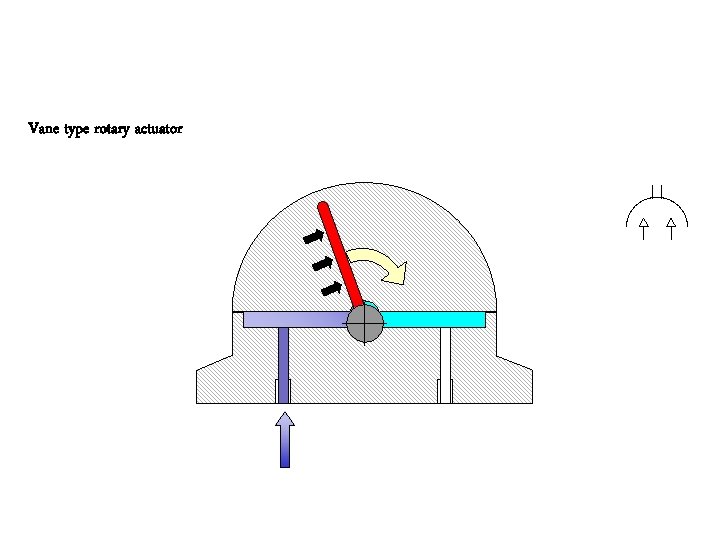

Vane type rotary actuator

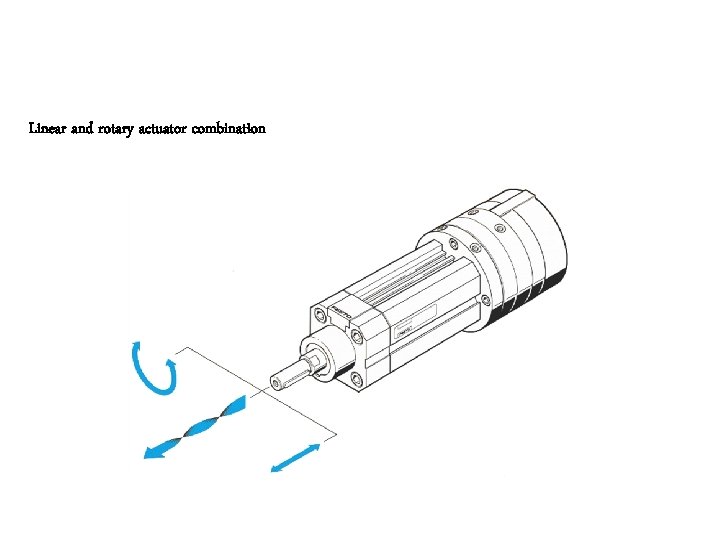

Linear and rotary actuator combination
