Activity 3 Addition of twos complement numbers Complete

Activity 3 Addition of two’s complement numbers Complete the following calculation using 8 -bit two’s complement representations and identify whether overflow error has occurred.

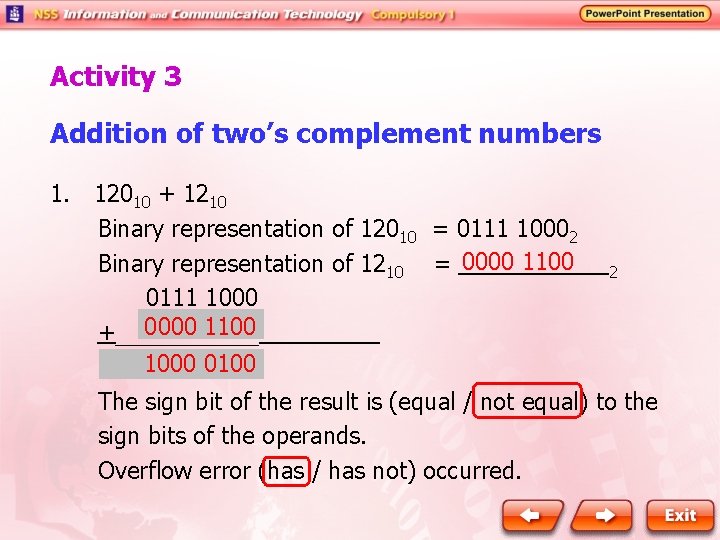

Activity 3 Addition of two’s complement numbers 1. 　12010 + 1210 　　Binary representation of 12010 = 0111 10002 　　Binary representation of 1210 = 0000 1100 　　　　0111 1000 0000 1100 　　+＿＿＿＿＿＿ 　 1000 0100 2　　　　 　　The sign bit of the result is (equal / not equal) to the 　　sign bits of the operands. 　　Overflow error (has / has not) occurred.

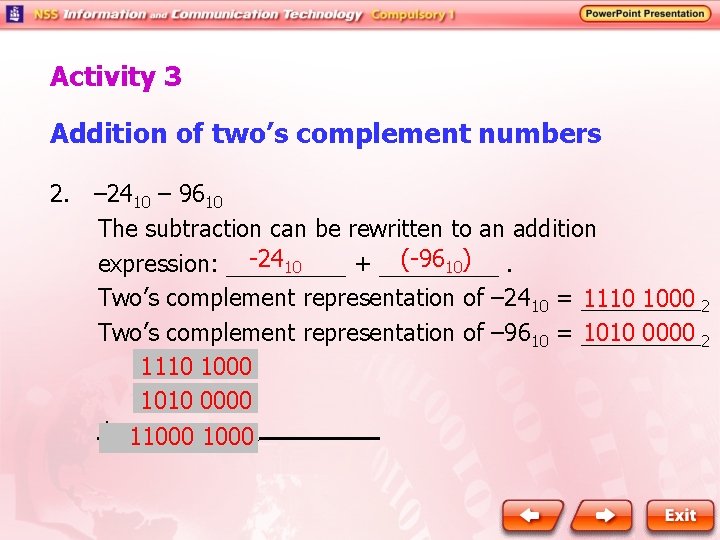

Activity 3 Addition of two’s complement numbers 2. 　– 2410 – 9610 　　The subtraction can be rewritten to an addition -2410 (-9610). 　　expression: ＿＿＿＿＿ + ＿＿＿＿＿ 　　Two’s complement representation of – 2410 = ＿＿＿＿＿ 1110 1000 2 　　Two’s complement representation of – 9610 = ＿＿＿＿＿ 1010 0000 2 　　　 1110 1000 　　　　1010 0000 　　+＿＿＿＿＿＿ 　 11000 　　

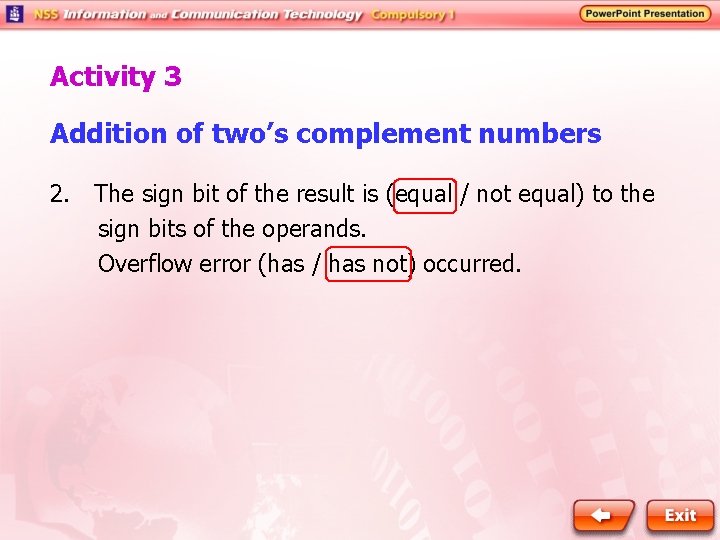

Activity 3 Addition of two’s complement numbers 2. 　The sign bit of the result is (equal / not equal) to the 　　sign bits of the operands. 　　Overflow error (has / has not) occurred.

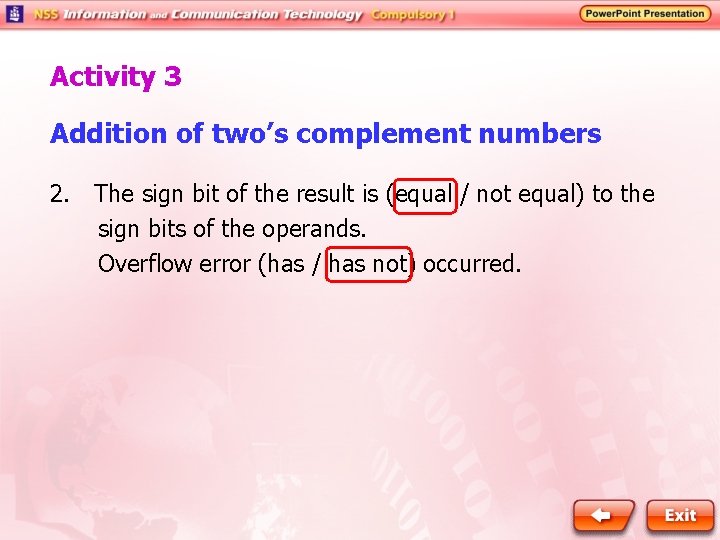

Activity 3 Addition of two’s complement numbers 2. 　The sign bit of the result is (equal / not equal) to the 　　sign bits of the operands. 　　Overflow error (has / has not) occurred.
