ACTIVITIES OF THE MECHANICAL WORKSHOP LIP COIMBRA Jornadas

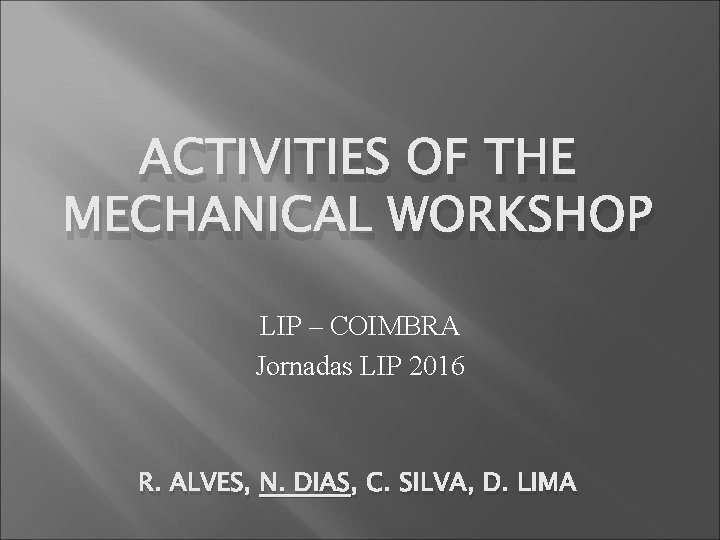

ACTIVITIES OF THE MECHANICAL WORKSHOP LIP – COIMBRA Jornadas LIP 2016 R. ALVES, N. DIAS, C. SILVA, D. LIMA

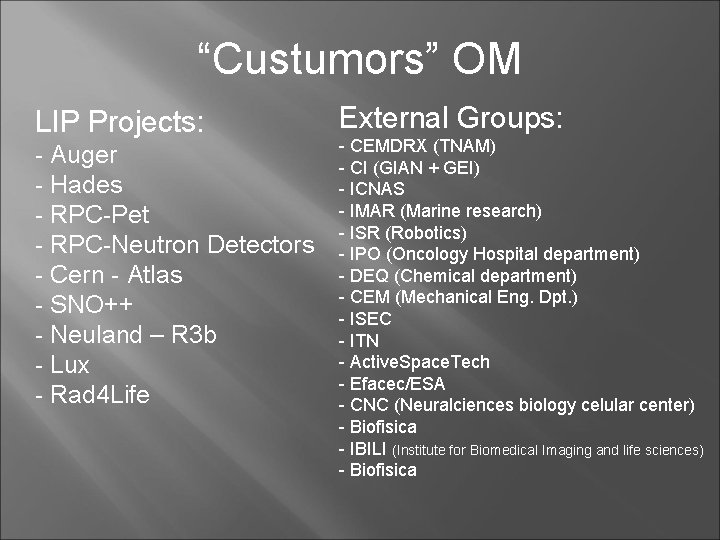

“Custumors” OM LIP Projects: - Auger - Hades - RPC-Pet - RPC-Neutron Detectors - Cern - Atlas - SNO++ - Neuland – R 3 b - Lux - Rad 4 Life External Groups: - CEMDRX (TNAM) - CI (GIAN + GEI) - ICNAS - IMAR (Marine research) - ISR (Robotics) - IPO (Oncology Hospital department) - DEQ (Chemical department) - CEM (Mechanical Eng. Dpt. ) - ISEC - ITN - Active. Space. Tech - Efacec/ESA - CNC (Neuralciences biology celular center) - Biofisica - IBILI (Institute for Biomedical Imaging and life sciences) - Biofisica

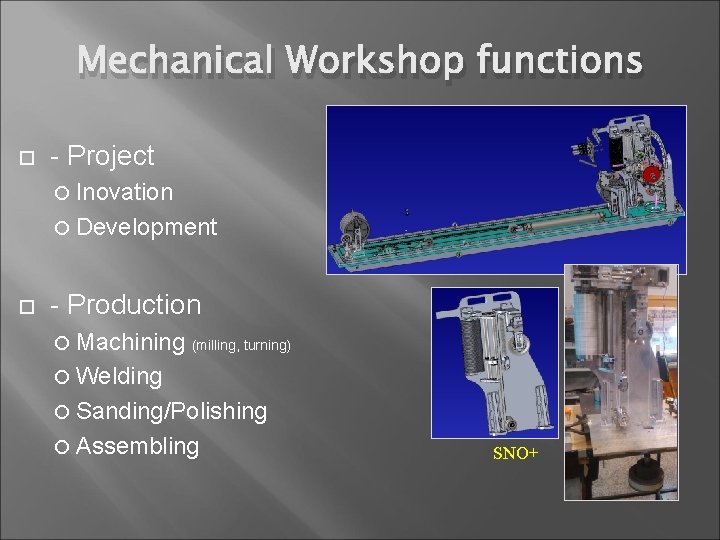

Mechanical Workshop functions - Project Inovation Development - Production Machining (milling, turning) Welding Sanding/Polishing Assembling SNO+

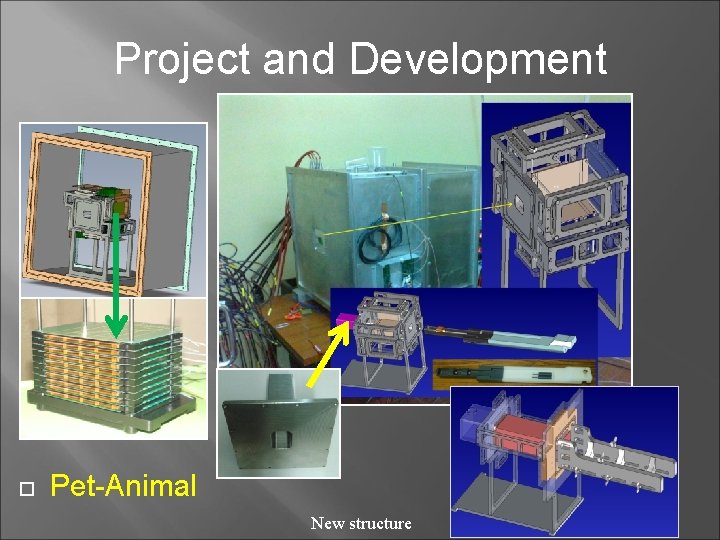

Project and Development Pet-Animal New structure

Project and Development – Internacional Cooperation The concept and the test assembly SNO++

Project and Development – Internacional Cooperation SNO+ The concept and the test assembly

Projecto e desenvolvimento – Grupos Externos Diversos Efacec/ESA ISR Copper Tantalum Aluminium Last design CNC

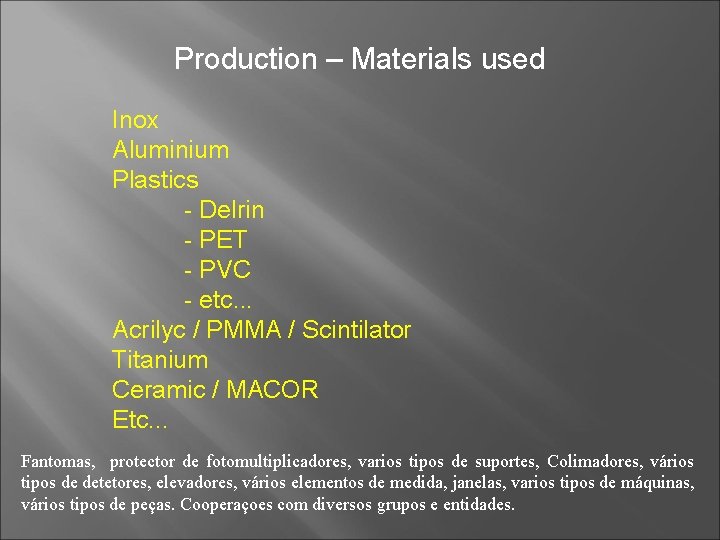

Production – Materials used Inox Aluminium Plastics - Delrin - PET - PVC - etc. . . Acrilyc / PMMA / Scintilator Titanium Ceramic / MACOR Etc. . . Fantomas, protector de fotomultiplicadores, varios tipos de suportes, Colimadores, vários tipos de detetores, elevadores, vários elementos de medida, janelas, varios tipos de máquinas, vários tipos de peças. Cooperaçoes com diversos grupos e entidades.

Projects – Auger/Neutron chamber Fully developed and manufactured in mechanichal and electrical workshop of LIP - Coimbra New design to improve better functionallity

Welding examples – Ion Transport Processes / SNO+ Example of welded structures developed and manufactured in workshop.

Several high pressure detectors

Several high pressure detectors Pressure detector to Japan

Projects – Atlas (Beam Expander) Final Prototype

Example works done or in progress Orto. Ct Biofisic Cloud Chamber Lux

Future facilities improvised SNO+ assembly room Needing some quite arrangements. . .

Thanks! We all are made of past. . . It just start with a dream. We exist to make it real. Our wishes of a good retirment
