Activities of CBS Lead Centre for GCOS RA

Activities of CBS Lead Centre for GCOS RA VI 5 th CBS-Lead Centres for GCOS Coordination Meeting, Cambridge /UK, 7 th to 9 th September 2016 Christiana Lefebvre

Outline Monitoring activities at DWD Availability of RBCN Stations Availability of GSN Stations Actions taken at CBS LC for RA VI Provision of quality controlled CLIMATs New ! Redesign of GSNMC Website Availability of GUAN Stations in RA VI Collection of World Weather Records 5 th CBS Lead Centres for GCOS Coordination Meeting, Cambridge / UK 2016 7 -9 September 2016 2

Monitoring activities at DWD CLIMAT decoding und quality control of all RBCN stations Format check and decoding with software ‚FORMCHECK‘ l Identification of reported errors (keyword, month, format) l Flagging of format errors for monitoring purpuses l Automatical correcton of format errors, if appropriate l Decoding of CLIMAT reports, also in BUFR format Provision of monitoring results from GSN stations including CLIMATs in BUFR format for GSNMC-Website as well as for the chairs of the CBS-LC 3

Availability of RBCN Stations l - Number of RBCN stations: 2843 (updated 15 November 2015) There are countries like Germany, that disseminates a CLIMAT not only for the 58 RBCN-stations but for 182 stations of the main meteorological network for surface observations Number of monthly CLIMAT reports received at DWD 2800 2700 2500 S 2400 2300 2200 2100 2000 1900 10 01/200 03/2004 06/2005 09/2005 12/2005 03/2005 06/2005 09/2006 12/2006 03/2006 06/2006 09/2007 12/2007 03/2007 06/2007 09/2008 12/2008 03/2008 06/2008 09/2009 12/2009 03/2009 06/2019 09/2010 12/2010 03/2010 06/2010 09/2011 12/2011 03/2011 06/2011 09/2012 12/2012 03/2012 06/2012 09/2013 12/2013 03/2013 06/2013 09/2014 12/2014 03/2014 06/2014 09/2015 12/2015 03/2015 06/2015 /2 6 01 6 Number 2600 4 Month/Year

Availability of GSN – Stations in RA VI in 2015 5

Performance Indicator for 2015 CA: stations received up to 21 th CC: correct format CT: valid mean temperature CR: valid precipitation total Ind: CA+CC+CT+CR 400 On average for RA VI: CA: 0, 91 CC: 0, 76 CT: 0, 85 CR: 0, 78 Ind: 0, 88 6

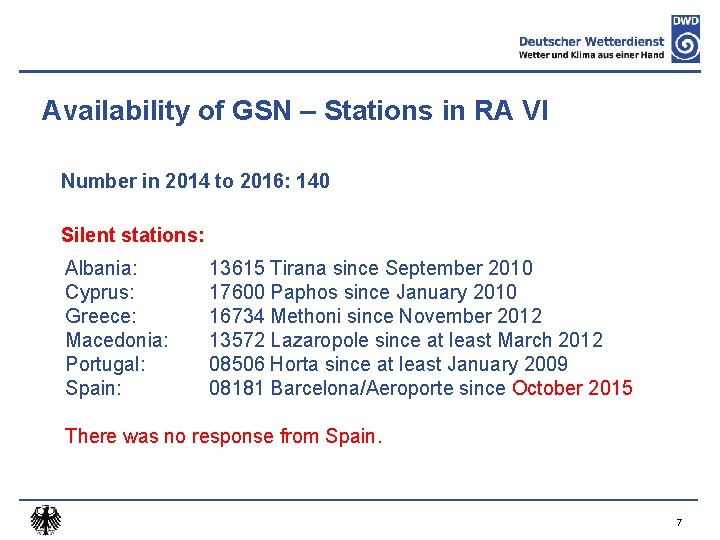

Availability of GSN – Stations in RA VI Number in 2014 to 2016: 140 Silent stations: Albania: Cyprus: Greece: Macedonia: Portugal: Spain: 13615 Tirana since September 2010 17600 Paphos since January 2010 16734 Methoni since November 2012 13572 Lazaropole since at least March 2012 08506 Horta since at least January 2009 08181 Barcelona/Aeroporte since October 2015 There was no response from Spain. 7

Increasing availability by ingestion of CLIMAT data received via e-mail and air mail E-mail: Acores (Ponta Delgada) Bolivia, Cambodia, Curaçao (switched over from air mail) El Salvador, Kirghisistan, Libya, Madagascar, Mozambique, Myanmar, Namibia, Sending of a complete year: Sambia Year 2014 from Libya in August 2015 and St. Helena years 2014 and 2015 from Cambodia in Sudan December 2015. Zimbabwe 8

Air mail: Ethiopia ZCZC CSET 01 HAAB 190631 CLIMAT 07016 63333 111 18157 2//// 30221/// 4//// 5161 60276/24 7///105= 63402 111 18378 2//// 30198/// 4//// 5182 60230/19 7///086= 63403 111 1//// 2//// 30176/// 4//// 5180 60332/29 7///103= 63450 111 1//// 2//// 30169/// 4//// 5142 60182/29 7088079= NNNN 9

Actions taken at CBS LC for RA VI l Information of the National Focal Points, if the CLIMAT reports were missing 1. Problems with GTS Von: Ene. Tillmann@envir. ee [mailto: Ene. Tillmann@envir. ee] Gesendet: Mittwoch, 18. Mai 2016 15: 17 An: Karola Hansen Betreff: Re: Missing CLIMAT report for April 2016 Dear Karola, Sorry, we have not solved the problem of sending Estonian CLIMAT reports via GTS…. . . 2. CLIMATs dessiminated, but not received at DWD Bonjour, Il a pourtant bien été envoyé depuis Uccle. Je vais le renvoyer dans quelques minutes sur le GTS. Pourrez-vous alors me dire si vous l'avez reçu? Bonne journée, …. 10

l Information of the National Focal Points, if a incorrect month was sent, though the header was correct From: selami yıldırım [mailto: syildirim@mgm. gov. tr] Sent: Monday, August 17, 2015 11: 29 AM To: 'mailto: Karola. Hansen@dwd. de' Cc: 'ekarakoc@mgm. gov. tr' June data included in CLIMAT of July 2016 Subject: FW: Düzeltilmiş klimat Dear Karola, I send you corrected July-2015 climate message listed in below. Best regards, CSTT 60 LTAA 170910 CCA CLIMAT 07015 17022 111 19982 20138 30216028 402510176 5020 60022103 7135042 801010 9010100 222 06190 19970 20128 30215009 402470179 5185 6008005 7321 333 01101 30302 40100 444 0024827 1019003 2030827 3014513 4011403 5107701 60100= 11

l Information of the National Focal Points, if the expected data are encoded as CLIMAT for another month Dear … …. . . The CLIMAT reports of your country for May 2016 are encoded as CLIMAT report for April 2016 (CLIMAT 04016). Please see below. ! Will you please so kind to inform the responsible division of your Met. Service to send a correction (CLIMAT 05016) Best regards, ZCZC CSLJ 01 LJLM 040900 CLIMAT 04016 14015 111 19787 20135 30153033 402090102 5120 60157514 7180086 8000000 9000000 333 00600 31409 40401 8090000 9000103= 14008 111 17476 23041 30002037 400261021 5053 60222520 7140088 8000000 9000000 333 22611 32013 40900 63131 73131 8160000 9131925 444 0008628 1105816 2010127 3108016 4041002 5234210 60500 712020= NNNN 12

l Information of the National Focal Points, if there are obviously errors in the data Dear …. , …. We applied a quality control to the CLIMAT data which is derived from SYNOP data. This month, all parameters show huge differences between both data sources (see below). E. g. the monthly mean temperature of station 17022 Zonguldak in the CLIMAT report is 14, 7 °C (group 3), but derived from SYNOP 22, 7 °C. Since the long term average is 21, 3 °C, the CLIMAT value seems to be incorrect. …. . We would very much appreciate, if you could let check the CLIMAT reports for August 2015, because they all seem to be incorrect. CLIMAT 08015 climat 17022 19982 20142 30147026 401920135 5128 60061405 7233104 8010001 9010100 synop 17022 19987 20145 30227/// 402650190 5228 60010/03 7293/// climat 17056 10133 20138 30177023 402240154 5147 60032203 7089039 8010001 9010101 synop 17056 10140 20144 30261/// 403050217 5237 60000/00 7291/// …………… 13

l Support with information about incorrect BUFR CLIMAT Van: Uden van, Peter (KNMI) Verzonden: donderdag 16 april 2015 15: 47 Aan: 'Karola. Hansen@dwd. de' CC: Verver, Ge (KNMI) Onderwerp: Sunshine data CLIMAT The Netherlands | Februari and March 2015 Dear Karola, with reference to your email from Wednesday 15 april 2015 09: 00 h (see below), I hereby provide you with both the sunshine duration (hours) and sunshine percentage (%) data from all five CLIMAT stations in The Netherlands for Februari and March 2015. As a temporary solution, it is done via the table below. Information I may add that KNMI has looked into the issue regarding incorrect (in fact missing) encoding values for sunshine parameter S 1 S 1 S 1 (= descriptor 0 14 032) in BUFR CLIMAT in particular. It was found that in accordance to your own observation, a zero (“ 0“) was encoded for sunshine duration in the BUFR reports for the 5 Dutch stations from (at least) Februari and March 2015 that were sent to the GTS…………. 14

l Ad hoc information to CBS LC Centres in the case of detected errors in the data. Dear all, please pay attention. There are some problems about the right content for the march messages. Best regards Karola ++++++the following data are from february 2016++++ CSEG 01 HECA 051145 CLIMAT 05016 62306 111 10169 20206 30157016 402070112 5117 60004101 7////// 8000000 9000029= 62318 111 10192 20190 30165017 402120119 5121 60011202 7000000 8000000 9000029= 62337 111 10140 20182 30136016 402130076 5118 60047504 7256092 8000000 9000000= 62378 111 10022 20193 30180019 402310131 5101 60000000 7////// 8000000 9000029= 15

l Decoding the BUFR CLIMATs and extracting information which is not available in ASCII format. If a GSN is reported only in BUFR format it is included in the monitoring of the GSNMC. 16

Provision of quality controlled CLIMATs ftp: //ftp-cdc. dwd. de/pub/CDC/ Verzeichnis = directory 17

CLIMAT raw data at CDC ftp: //ftp-cdc. dwd. de/pub/CDC/observations_global/CLIMAT/monthly/raw/ CLIMAT data files since March 2003 Die CLIMAT data files are provided on the 11 th of a month for the month before last. On the 11 th August the data file for June was provided 18

CLIMAT raw data at CDC 19

Redesign of the GSNMC Website http: //www. dwd. de/EN/ourservices/gsnmc. html? nn=565066 Target: § Improve the provision of monitoring results, that include: § CLIMAT in BUFR format § Later cut-off date § All RBCN stations § Figures in png format (no longer svg) § Information about correctness of month-year- identifier 20

Redesign of GSNMC Website ASCII BUFR Both 21

Redesign of GSNMC Website Time Source CLIMAT Export 22

Redesign of GSNMC Website 23

Monitoring results of GUAN stations in 2015 and 2016 In RA VI are located 24 GUAN stations No radiosoundings at 37789 Yerevan, Armenia since 2016 (at least since February 2016) No radiosoundings at 00 UTC: 08508 Lajes, Azores 15614 Sofia, Bulgaria 17607 Athalassa, Cyprus No radiosoundings at 12 UTC: 37789 Yerevan, Armenia (2014 and 2015) 40265 Mafraq, Jordan Athalassa and Mafraq have a second sounding per day at another hour 24

Collection of the World Weather Records Support by the CBS-LC-GCOS as decided by WMO EC (EC-64, Res. 14) WWR provided in 2016 for RA VI (16 of 42 countries): Armenia Austria (2014 + 2015) Belgium (since 1991) Bosnia and Herzegovina Coatia Czech Republic Denmark France Ireland Lithuania (since 1991) Netherlands Poland (2011 to 2015) Romania Spain Sweden (2014 + 2015) UK of Great Britain and N. Ireland Gibraltar Often station notes are missing NMHSs send the WWR to DWD, to DWD and WMO (wcdmp@wmo. int (Peer Hechler)) or only to WMO (Armenia) or directly to NCEI (France) 25

Conclusion and Outlook For the update of the GSNMC website the CBD-LC at DWD need to know exactly what kind of monitoring results are needed in future? The annual collection of WWR in not satisfying. A more effective procedure is very much appreciated. 26

27

CLIMAT in ASCII format FM 71 XI CSXX 01 CCCC 040600 (Bulletin header) CLIMAT MMJJJ IIiii 111 1 popo 2 pppp 3 sn. TTTststst. . . 9 memem. Rm. S 222 0 p. Yb. Yc 1 popo 2 pppp. . . 9 yeyey. Ry. S 333 0 T 25 T 30 1 T 35 T 35. . . 9 V 1 V 1 V 2 V 2 V 3 V 3 444 0 sn. Txdyxyx 1 sn. Tndynyn. . . 7 iy. Gx. Gn = NNNN (end of bulletin) 28
