Active Server Page It is a serverside scripting

Active Server Page • It is a server-side scripting environment for creating dynamic content. • ASP are files with. asp extension, containing HTML tags, text, and script commands. • Provides an “easy-to-use” alternative to CGI and ISAPI. • Allow content developers to embed any Active. X script language or server component into their HTML pages. Tutorial available through option pack menu. • Provide access to ODBC (Open Data Base Connectivity) connector. • Typical VBscript (Visual Basic Scripting Edition) is used to provide dynamic content. MS JScript. 4/8/99 C. Edward Chow Page 1

Create ASP with DB access • • Create an Signup MS Access Database, signup. mdb on the NT workstation right by Bilbo. Transfer the signup. mdb to the c: cs 401scripts directory on Frodo NT server. Setup ODBC system Data Source Name for the signup. mdb. Create a virtual directory with aliase cs 401 scripts with physical path c: cs 401scripts using MS management console. Create a search. htm web page using Frong. Page or other editor. It asks for the last name in a form and submit the request to retrieve the whole record of the signup database. Put the search. htm in c: cs 401www. Create a virtual directory with alias cs 401 www with physical path c: cs 401www using MS management console. Create an Active Server Page, response. asp, which 4/8/99 o o o uses VBscript to retrieve the last name from the form input, accesses the signup database for the record return a web page in a table format with all the record with last name matching the input. C. Edward Chow Page 2

Create a signup MS Access Database · Select Start | Programs | Microsoft Access · Click the "Blank Database" in "Creating a New Database Using" pane. Click OK. · Enter "cs 401 signup" as the file name for the database. Click Create. · In the table tab (default) of the cs 401 signup database window, click New. · In new Table, click the Design View and click OK. · Enter the field names (Last. Name, First. Name, and Address) of the table. You can change the field size. · Save the table name as signup (default is table 1). 4/8/99 C. Edward Chow Page 3

Create Database 4/8/99 C. Edward Chow Page 4

Specify Field names 4/8/99 C. Edward Chow Page 5

Create table for the DB • Click x icon on the upper right corner. Click Yes to confirm saving the table. • Enter “signup” as the table name. • Click No on creating primary key. • It shows the signup table was created. • Double click it or click open. • Enter several entries of the table. 4/8/99 C. Edward Chow Page 6

Setup ODBC on NT Server • Click ODBC Data Sources on control panel. 4/8/99 C. Edward Chow Page 7

Add MS Access DB • Click System DSN and Add. • Select MS Access Driver (*. mdb). Click Finish. 4/8/99 C. Edward Chow Page 8

ODBC MS Access Setup • • • Enter Data Source Name (cs 401 signup) Enter Description as (cs 401 asp DB) Click Select on Database pane and select the e: cs 401scriptscs 401 signup. mdb 4/8/99 C. Edward Chow Page 9

Create Script Virtual Directory • Select Start | Programs | NT 4. 0 option pack | MS IIS | IIS manager • Select Frodo, default web site • Select the action menu | new | virtual server • Enter alias as cs 401 scripts • Enter/browse physical path c: cs 401scripts • Check only the “Allow execute access. ” Click Finish. 4/8/99 C. Edward Chow Page 10

Create Query Form Web Page • Create a signup DB search web page with form input. It asks for the last name in a form and submit the request to retrieve the whole record of the signup database. <form METHOD="post" ACTION="/cs 401 scripts/response. asp“> Last. Name: <input NAME="Last. Name" SIZE="30"> <input TYPE="submit" value="submit"> </form> • Put the search. htm in c: cs 401www. 4/8/99 C. Edward Chow Page 11

cs 401 www Virtual Directory • Follow the same step to create the cs 401 www virtual directory with cs 401 www as alias and c: cs 401www as physical directory. • Create an Active Server Page, response. asp, which – uses VBscript to retrieve the last name from the form input, – accesses the signup database for the record – return a web page in a table format with all the record with last name matching the input. 4/8/99 C. Edward Chow Page 12

Response. asp <%@ LANGUAGE = VBScript %> <% ' ON ERROR RESUME NEXT Set Conn = Server. Create. Object("ADODB. Connection") Set RS = Server. Create. Object("ADODB. Record. Set") Conn. Open “cs 401 signup" key = Request. Form("Last. Name") sql="select * from cs 401 signup where Last. Name='" & key &"'" RS. open sql, conn, 1, 1 %> 4/8/99 C. Edward Chow Page 13

Response. asp (2) <HTML> <HEAD> <TITLE> signup response. asp File </TITLE> </HEAD> <BODY BGCOLOR="WHITE"> <center> <% IF RS. RECORDCOUNT = 0 THEN %> <font size="5"><b>No match result</b></font> <% end if %> 4/8/99 C. Edward Chow Page 14

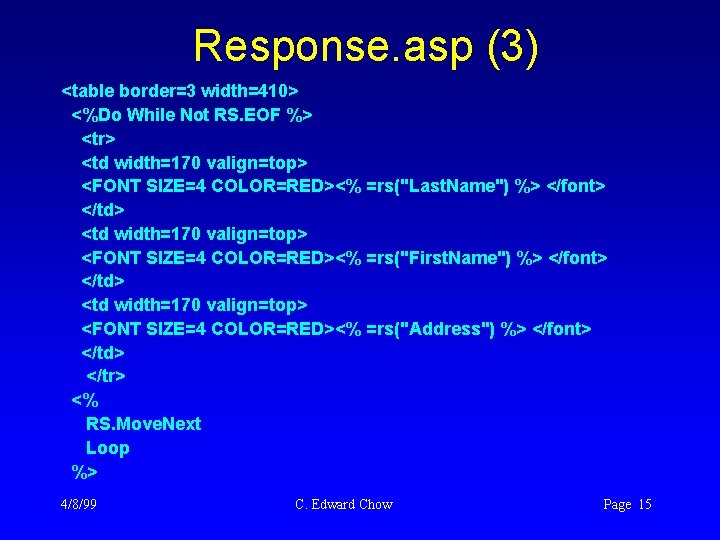

Response. asp (3) <table border=3 width=410> <%Do While Not RS. EOF %> <tr> <td width=170 valign=top> <FONT SIZE=4 COLOR=RED><% =rs("Last. Name") %> </font> </td> <td width=170 valign=top> <FONT SIZE=4 COLOR=RED><% =rs("First. Name") %> </font> </td> <td width=170 valign=top> <FONT SIZE=4 COLOR=RED><% =rs("Address") %> </font> </td> </tr> <% RS. Move. Next Loop %> 4/8/99 C. Edward Chow Page 15

Response. asp (4) <% rs. close set conn=nothing %> </TABLE> </BODY> </HTML> 4/8/99 C. Edward Chow Page 16
