ACTIVE GALAXIES and GALAXY EVOLUTION Quasars, Radio Galaxies, Seyfert Galaxies and BL Lacertae Objects

ACTIVE GALAXIES and GALAXY EVOLUTION Quasars, Radio Galaxies, Seyfert Galaxies and BL Lacertae Objects Immense powers emerging from ACTIVE GALACTIC NUCLEI: it’s just a phase they’re going through!

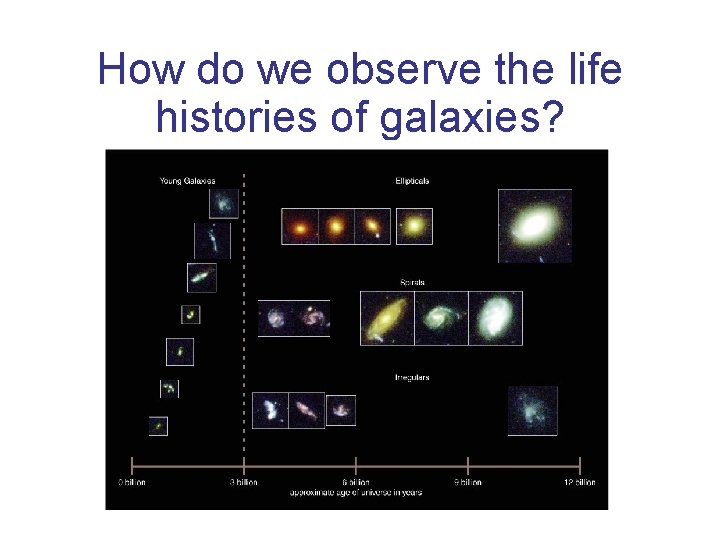

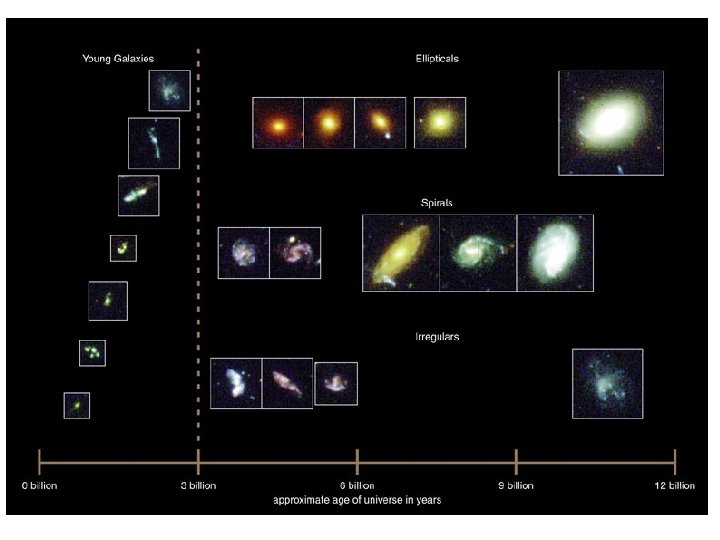

How do we observe the life histories of galaxies?

How do we observe the life histories of galaxies?

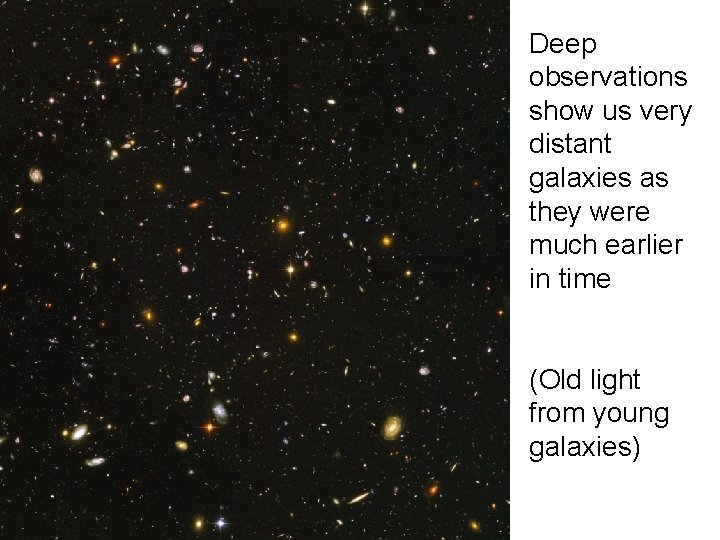

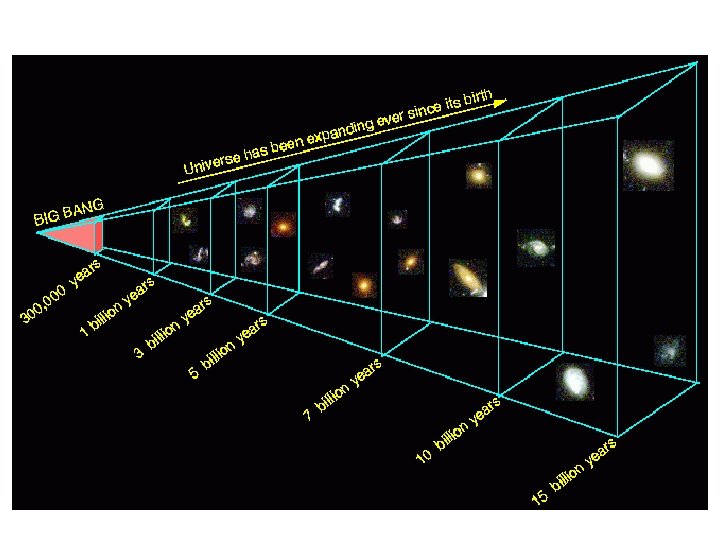

Deep observations show us very distant galaxies as they were much earlier in time

Deep observations show us very distant galaxies as they were much earlier in time (Old light from young galaxies)

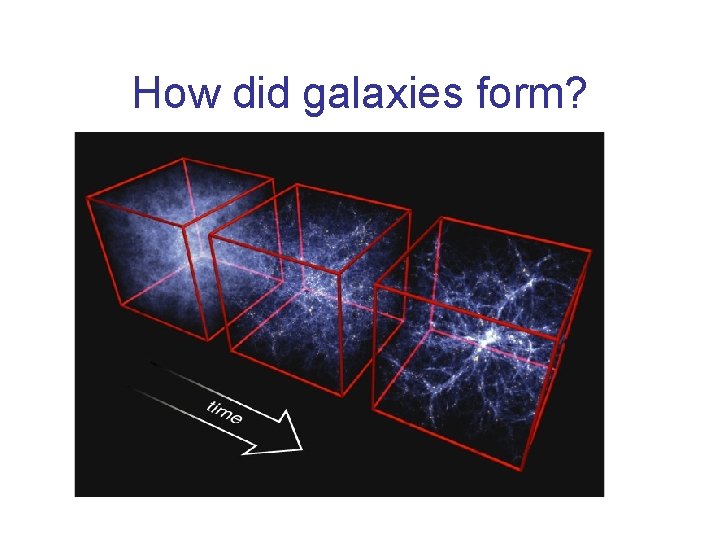

How did galaxies form?

How did galaxies form?

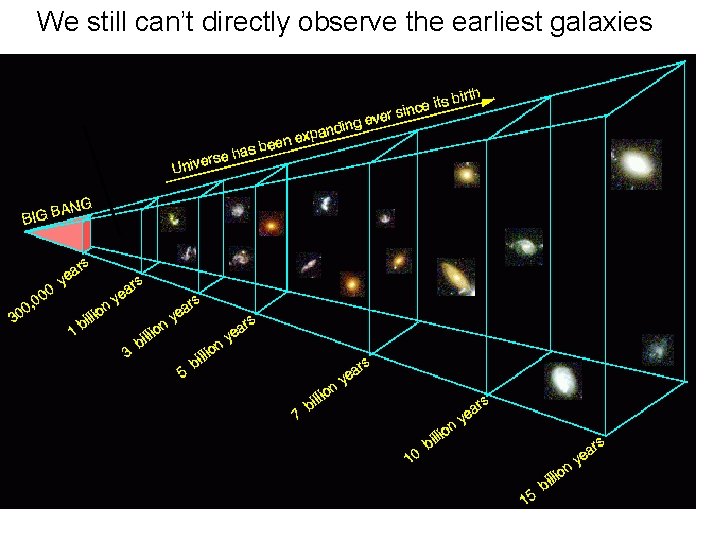

We still can’t directly observe the earliest galaxies

We still can’t directly observe the earliest galaxies

Our best models for galaxy formation assume: • Matter originally filled all of space

Our best models for galaxy formation assume: • Matter originally filled all of space almost uniformly • Gravity of denser regions pulled in surrounding matter

Denser regions contracted, forming protogalactic clouds H and He gases in these clouds formed

Denser regions contracted, forming protogalactic clouds H and He gases in these clouds formed the first stars

Supernova explosions from first stars kept much of the gas from forming stars Leftover

Supernova explosions from first stars kept much of the gas from forming stars Leftover gas settled into spinning disk Conservation of angular momentum

NGC 4414 M 87 But why do some galaxies end up looking so different?

NGC 4414 M 87 But why do some galaxies end up looking so different?

Why do galaxies differ?

Why do galaxies differ?

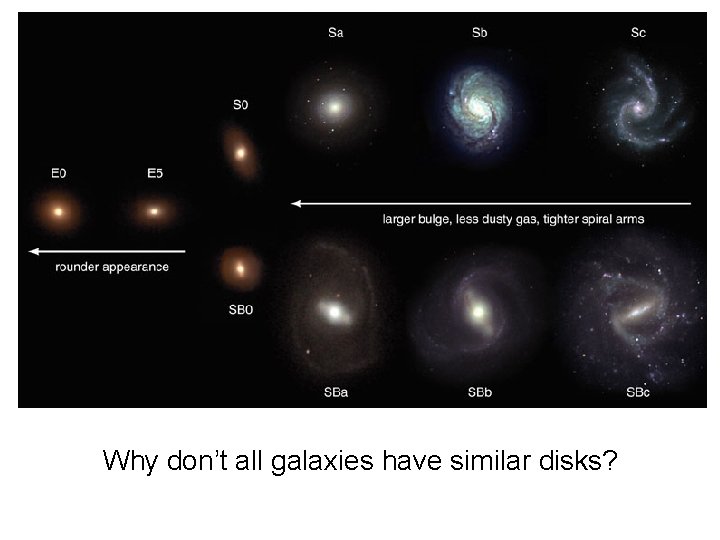

Why don’t all galaxies have similar disks?

Why don’t all galaxies have similar disks?

Conditions in Protogalactic Cloud? Spin: Initial angular momentum of protogalactic cloud could determine size

Conditions in Protogalactic Cloud? Spin: Initial angular momentum of protogalactic cloud could determine size of resulting disk

Conditions in Protogalactic Cloud? Density: Elliptical galaxies could come from dense protogalactic clouds that

Conditions in Protogalactic Cloud? Density: Elliptical galaxies could come from dense protogalactic clouds that were able to cool and form stars before gas settled into a disk Elliptical vs. Spiral Galaxy Formation

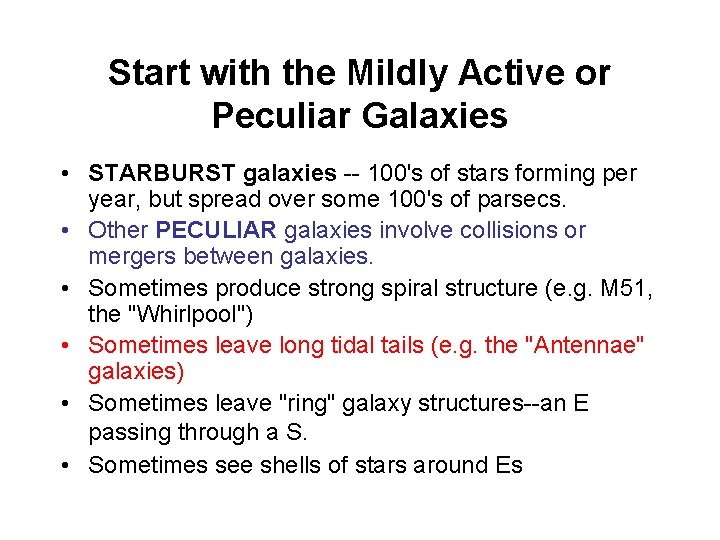

Start with the Mildly Active or Peculiar Galaxies • STARBURST galaxies -- 100's of

Start with the Mildly Active or Peculiar Galaxies • STARBURST galaxies -- 100's of stars forming per year, but spread over some 100's of parsecs. • Other PECULIAR galaxies involve collisions or mergers between galaxies. • Sometimes produce strong spiral structure (e. g. M 51, the "Whirlpool") • Sometimes leave long tidal tails (e. g. the "Antennae" galaxies) • Sometimes leave "ring" galaxy structures--an E passing through a S. • Sometimes see shells of stars around Es

Peculiar Galaxies: Starburst (NGC 7742) , Whirlpool (M 51), Antennae (NGC 4038/9) in IR,

Peculiar Galaxies: Starburst (NGC 7742) , Whirlpool (M 51), Antennae (NGC 4038/9) in IR, Ring (AM 0644 -741)

Colliding Galaxies • “Cartwheel” ring galaxy • Antennae, w/ starbursts and a simulation: a

Colliding Galaxies • “Cartwheel” ring galaxy • Antennae, w/ starbursts and a simulation: a collision in progress • Collision Simulation Movie

Collisions may explain why elliptical galaxies tend to be found where galaxies are closer

Collisions may explain why elliptical galaxies tend to be found where galaxies are closer together

Giant elliptical galaxies at the centers of clusters seem to have consumed a number

Giant elliptical galaxies at the centers of clusters seem to have consumed a number of smaller galaxies

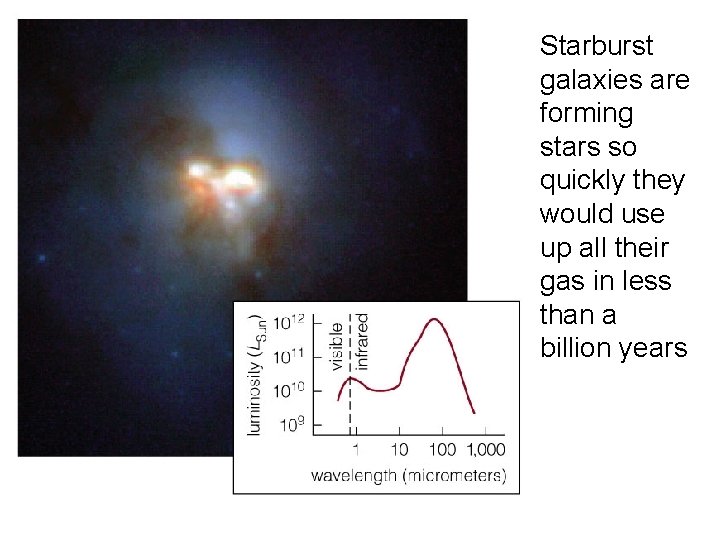

Starburst galaxies are forming stars so quickly they would use up all their gas

Starburst galaxies are forming stars so quickly they would use up all their gas in less than a billion years

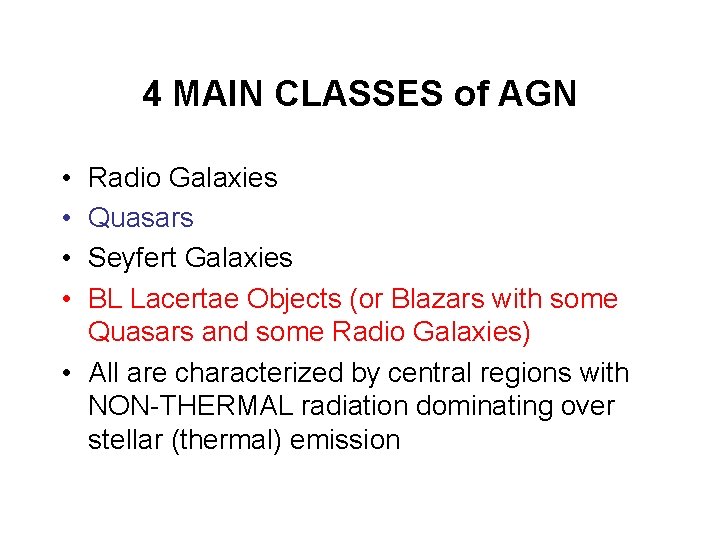

4 MAIN CLASSES of AGN • • Radio Galaxies Quasars Seyfert Galaxies BL Lacertae

4 MAIN CLASSES of AGN • • Radio Galaxies Quasars Seyfert Galaxies BL Lacertae Objects (or Blazars with some Quasars and some Radio Galaxies) • All are characterized by central regions with NON-THERMAL radiation dominating over stellar (thermal) emission

Thermal vs. Non-Thermal Spectra Normal mostly from stars, Active mostly synchrotron

Thermal vs. Non-Thermal Spectra Normal mostly from stars, Active mostly synchrotron

RADIO GALAXIES • All are in Elliptical galaxies • Two oppositely directed JETS emerge

RADIO GALAXIES • All are in Elliptical galaxies • Two oppositely directed JETS emerge from the galactic nucleus • They often feed HOT-SPOTS and LOBES on either side of the galaxy • Radio source sizes often 300 kpc or more --- much bigger than their host galaxies. • Head-tail radio galaxies arise when jets are bent by the ram-pressure of gas as the host galaxy moves through it. • For powerful sources only one jet is seen: this is because of RELATIVISTIC DOPPER BOOSTING: the approaching jet appears MUCH brighter than an intrinsically equal receding jet since moving so FAST; • Can yield CORE DOMINATED RGs

Radio Galaxy: Centaurus A

Radio Galaxy: Centaurus A

Cygnus A and M 87 Jet

Cygnus A and M 87 Jet

Radio Lobes Dwarf Big Galaxy

Radio Lobes Dwarf Big Galaxy

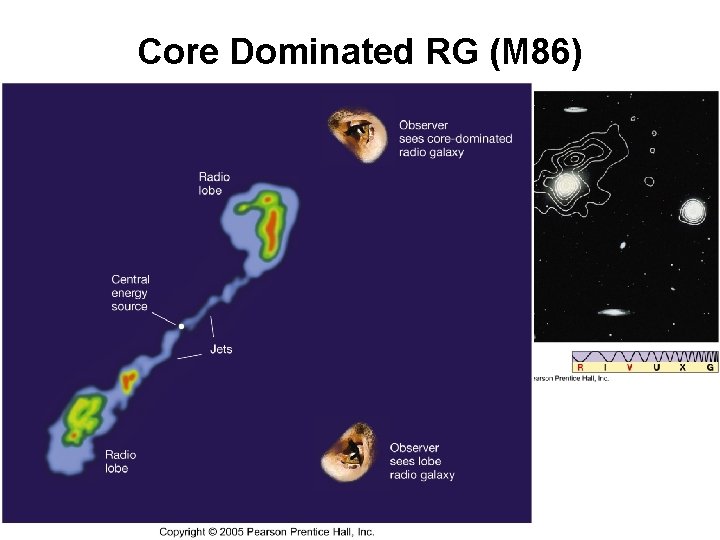

Core Dominated RG (M 86)

Core Dominated RG (M 86)

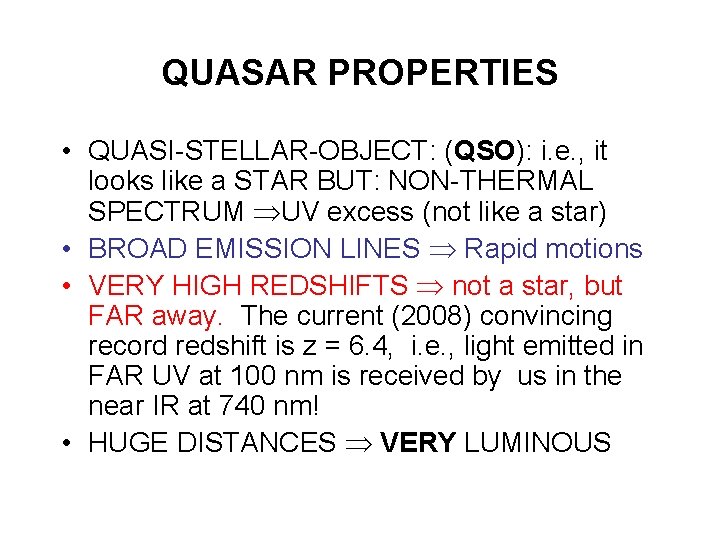

QUASAR PROPERTIES • QUASI-STELLAR-OBJECT: (QSO): i. e. , it looks like a STAR BUT:

QUASAR PROPERTIES • QUASI-STELLAR-OBJECT: (QSO): i. e. , it looks like a STAR BUT: NON-THERMAL SPECTRUM UV excess (not like a star) • BROAD EMISSION LINES Rapid motions • VERY HIGH REDSHIFTS not a star, but FAR away. The current (2008) convincing record redshift is z = 6. 4, i. e. , light emitted in FAR UV at 100 nm is received by us in the near IR at 740 nm! • HUGE DISTANCES VERY LUMINOUS

NEWER QUASAR DISCOVERIES • Only about 10% are RADIO LOUD • Most show some

NEWER QUASAR DISCOVERIES • Only about 10% are RADIO LOUD • Most show some VARIABILITY in POWER • OVV (Optically Violently Variable) QUASARS change brightness by 50% or more in a year and are highly polarized • QUASARS are AGN: surrounding galaxies detected, though small nucleus emits 101000 times MORE light than 1011 stars! “Brighter than a TRILLION suns”

Quasar 3 C 273 • Radio loud • Rare OPTICAL jet, but otherwise looks

Quasar 3 C 273 • Radio loud • Rare OPTICAL jet, but otherwise looks like a star • Relatively nearby quasar

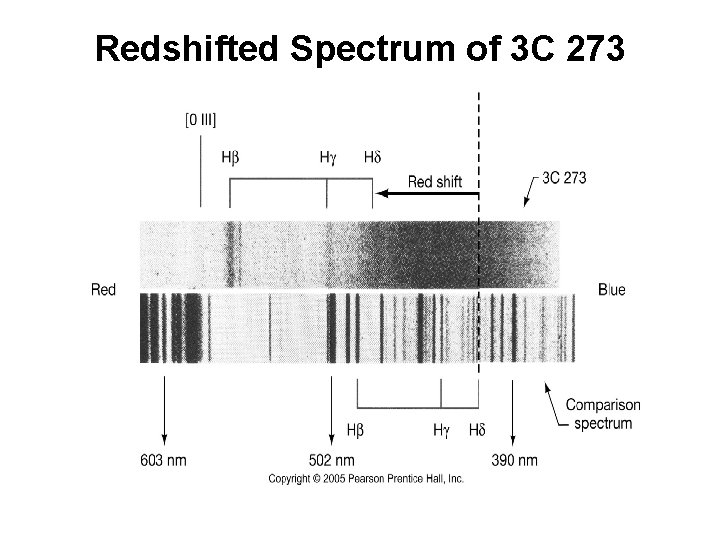

Redshifted Spectrum of 3 C 273

Redshifted Spectrum of 3 C 273

Typical Quasar Appearance • Most are actually very faint • BUT their huge redshifts

Typical Quasar Appearance • Most are actually very faint • BUT their huge redshifts imply they are billions of light-years away and intrinsically POWERFUL

Radio Loud Quasar, 3 C 175

Radio Loud Quasar, 3 C 175

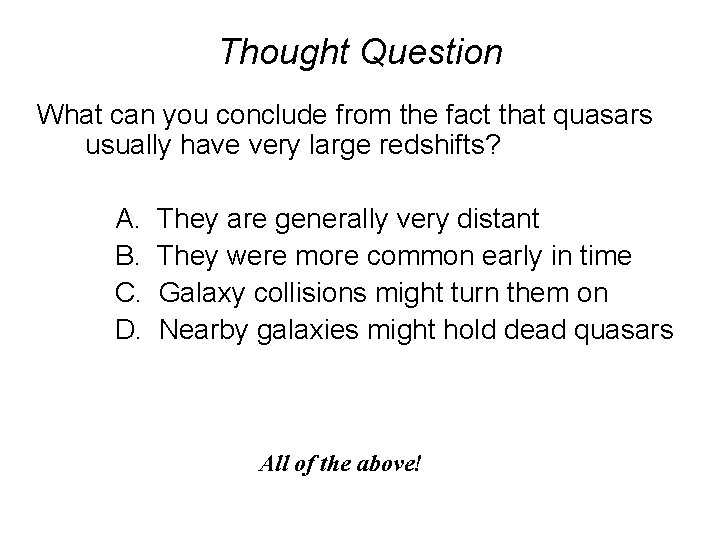

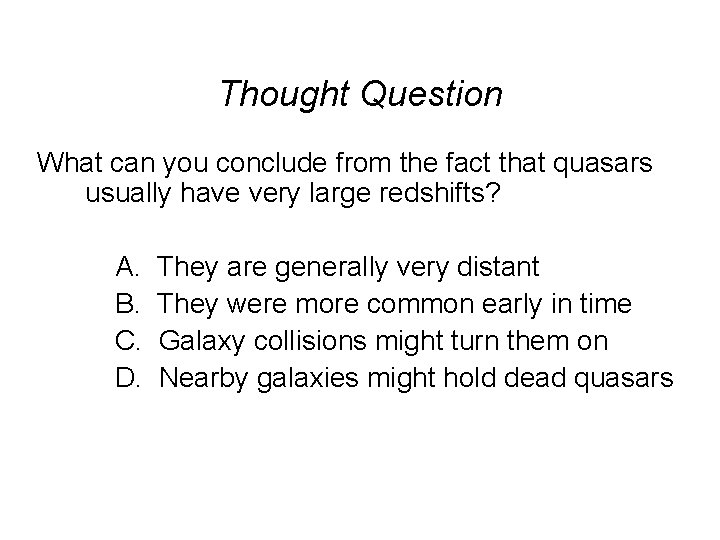

Thought Question What can you conclude from the fact that quasars usually have very

Thought Question What can you conclude from the fact that quasars usually have very large redshifts? A. B. C. D. They are generally very distant They were more common early in time Galaxy collisions might turn them on Nearby galaxies might hold dead quasars

Thought Question What can you conclude from the fact that quasars usually have very

Thought Question What can you conclude from the fact that quasars usually have very large redshifts? A. B. C. D. They are generally very distant They were more common early in time Galaxy collisions might turn them on Nearby galaxies might hold dead quasars All of the above!

Birth of a Quasar Movie • Fast variability implies small size • Immense powers

Birth of a Quasar Movie • Fast variability implies small size • Immense powers emerging from a volume similar to the solar system!

SEYFERT GALAXIES • Sa, Sb galaxies with BRIGHT, SEMI-STELLAR NUCLEI • NON-THERMAL & STRONG

SEYFERT GALAXIES • Sa, Sb galaxies with BRIGHT, SEMI-STELLAR NUCLEI • NON-THERMAL & STRONG EMISSION LINES • VARIABLE in < 1 yr COMPACT CORE • Type 1: Broad Emission lines (like QSOs), strong in X-rays • Type 2: Only narrow Emission lines, weak in X-rays • About 1% of all Spirals are SEYFERTS, so • Either 1% of all S's are always Seyferts OR • 100% of S's are Seyferts for about 1% of the time (MORE LIKELY) • OR 10% of S's are Seyferts for about 10% of the time (or any other combination of fraction and lifetime)

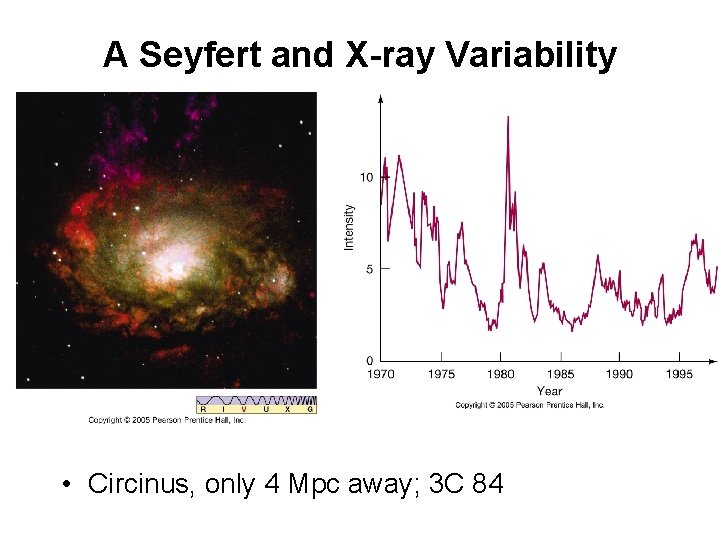

A Seyfert and X-ray Variability • Circinus, only 4 Mpc away; 3 C 84

A Seyfert and X-ray Variability • Circinus, only 4 Mpc away; 3 C 84

More About Seyferts • Seyferts are weak radio emitters. • CONCLUSIONS ABOUT SEYFERTS Fundamentally,

More About Seyferts • Seyferts are weak radio emitters. • CONCLUSIONS ABOUT SEYFERTS Fundamentally, they are WEAKER QSOs • Type 1: we see the center more directly Type 2: dusty gas torus blocks view of the center

BL Lacertae Objects • NON-THERMAL SPECTRUM: Radio through X-ray (and gamma-ray) • Radiation strongly

BL Lacertae Objects • NON-THERMAL SPECTRUM: Radio through X-ray (and gamma-ray) • Radiation strongly POLARIZED • HIGHLY VARIABLE in ALL BANDS • But (when discovered) NO REDSHIFT, so distances unknown • Later, surrounding ELLIPTICAL galaxies found • CONCLUSION: greatly enhanced emission from the AGN due to RELATIVISTIC BOOSTING of a JET pointing very close to us. • BL Lacs + OPTICALLY VIOLENTLY VARIABLE QUASARS ARE OFTEN CALLED BLAZARS

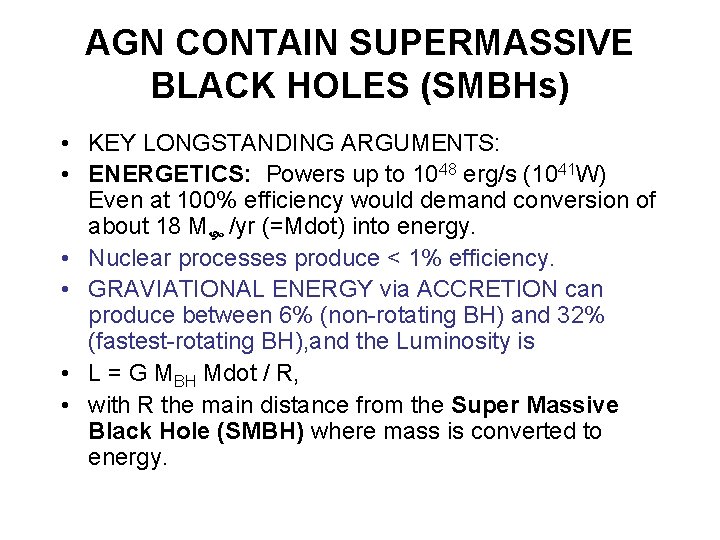

AGN CONTAIN SUPERMASSIVE BLACK HOLES (SMBHs) • KEY LONGSTANDING ARGUMENTS: • ENERGETICS: Powers up

AGN CONTAIN SUPERMASSIVE BLACK HOLES (SMBHs) • KEY LONGSTANDING ARGUMENTS: • ENERGETICS: Powers up to 1048 erg/s (1041 W) Even at 100% efficiency would demand conversion of about 18 M /yr (=Mdot) into energy. • Nuclear processes produce < 1% efficiency. • GRAVIATIONAL ENERGY via ACCRETION can produce between 6% (non-rotating BH) and 32% (fastest-rotating BH), and the Luminosity is • L = G MBH Mdot / R, • with R the main distance from the Super Massive Black Hole (SMBH) where mass is converted to energy.

Time Variability • • • t. VAR = R / c t. VAR =

Time Variability • • • t. VAR = R / c t. VAR = 104 s R = 3 x 1014 cm = 10 -4 pc For L = 1047 erg/s, M_dot = 10 M /yr we get MBH = 3 x 108 M and RS = 9 x 1013 cm • So, R = 3 RS • MUTUALLY CONSISTENT POWERS AND TIMESCALES.

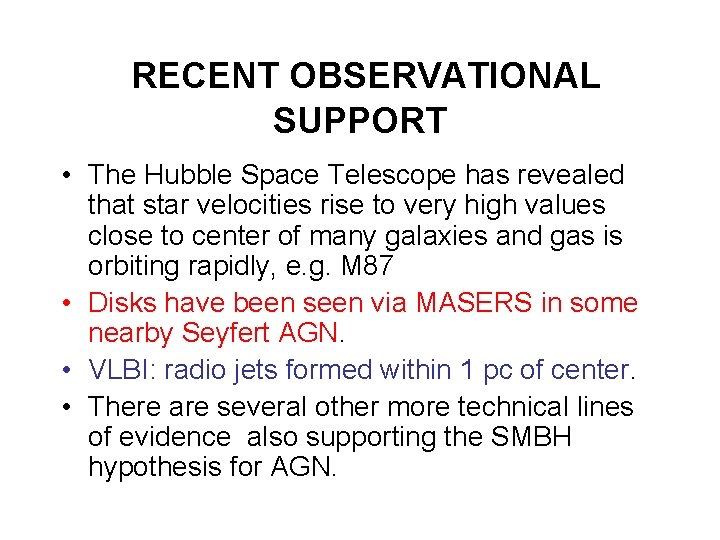

RECENT OBSERVATIONAL SUPPORT • The Hubble Space Telescope has revealed that star velocities rise

RECENT OBSERVATIONAL SUPPORT • The Hubble Space Telescope has revealed that star velocities rise to very high values close to center of many galaxies and gas is orbiting rapidly, e. g. M 87 • Disks have been seen via MASERS in some nearby Seyfert AGN. • VLBI: radio jets formed within 1 pc of center. • There are several other more technical lines of evidence also supporting the SMBH hypothesis for AGN.

Rapidly Rotating Gas in M 87 Nucleus M 87 zoom toward black hole

Rapidly Rotating Gas in M 87 Nucleus M 87 zoom toward black hole

Direct Evidence for Rotating Disk Masers formed in warped disk in NGC 4258 (and

Direct Evidence for Rotating Disk Masers formed in warped disk in NGC 4258 (and a few other Seyfert galaxies)

Evidence for Supermassive Black Holes NGC 4261: at core of radio emitting jets is

Evidence for Supermassive Black Holes NGC 4261: at core of radio emitting jets is a clear disk ~300 light-yrs across and knot of emission near BH

SMBH Model for AGN

SMBH Model for AGN

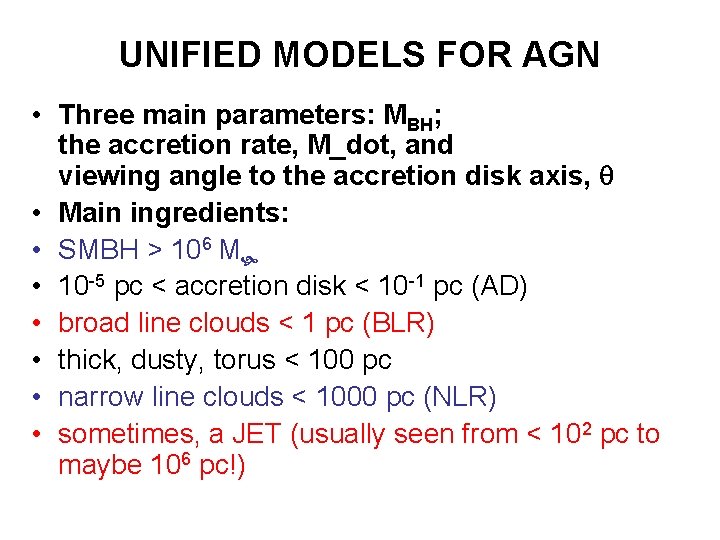

UNIFIED MODELS FOR AGN • Three main parameters: MBH; the accretion rate, M_dot, and

UNIFIED MODELS FOR AGN • Three main parameters: MBH; the accretion rate, M_dot, and viewing angle to the accretion disk axis, • Main ingredients: • SMBH > 106 M • 10 -5 pc < accretion disk < 10 -1 pc (AD) • broad line clouds < 1 pc (BLR) • thick, dusty, torus < 100 pc • narrow line clouds < 1000 pc (NLR) • sometimes, a JET (usually seen from < 102 pc to maybe 106 pc!)

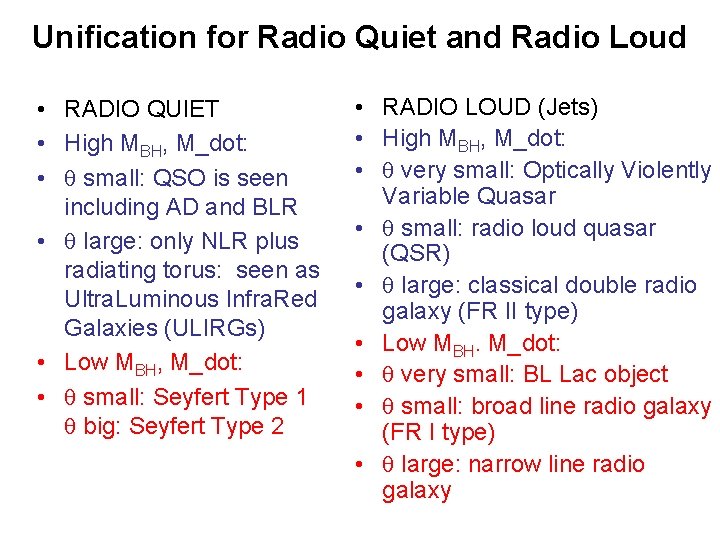

Unification for Radio Quiet and Radio Loud • RADIO QUIET • High MBH, M_dot:

Unification for Radio Quiet and Radio Loud • RADIO QUIET • High MBH, M_dot: • small: QSO is seen including AD and BLR • large: only NLR plus radiating torus: seen as Ultra. Luminous Infra. Red Galaxies (ULIRGs) • Low MBH, M_dot: • small: Seyfert Type 1 big: Seyfert Type 2 • RADIO LOUD (Jets) • High MBH, M_dot: • very small: Optically Violently Variable Quasar • small: radio loud quasar (QSR) • large: classical double radio galaxy (FR II type) • Low MBH. M_dot: • very small: BL Lac object • small: broad line radio galaxy (FR I type) • large: narrow line radio galaxy

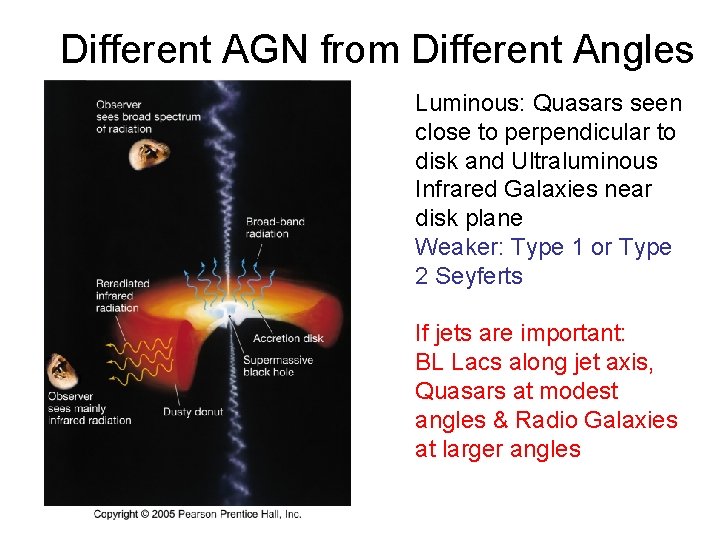

Different AGN from Different Angles Luminous: Quasars seen close to perpendicular to disk and

Different AGN from Different Angles Luminous: Quasars seen close to perpendicular to disk and Ultraluminous Infrared Galaxies near disk plane Weaker: Type 1 or Type 2 Seyferts If jets are important: BL Lacs along jet axis, Quasars at modest angles & Radio Galaxies at larger angles

Black Holes in Galaxies • Many nearby galaxies – perhaps all of them –

Black Holes in Galaxies • Many nearby galaxies – perhaps all of them – have supermassive black holes at their centers • These black holes seem to be dormant active galactic nuclei • All galaxies may have passed through a quasar-like stage earlier in time

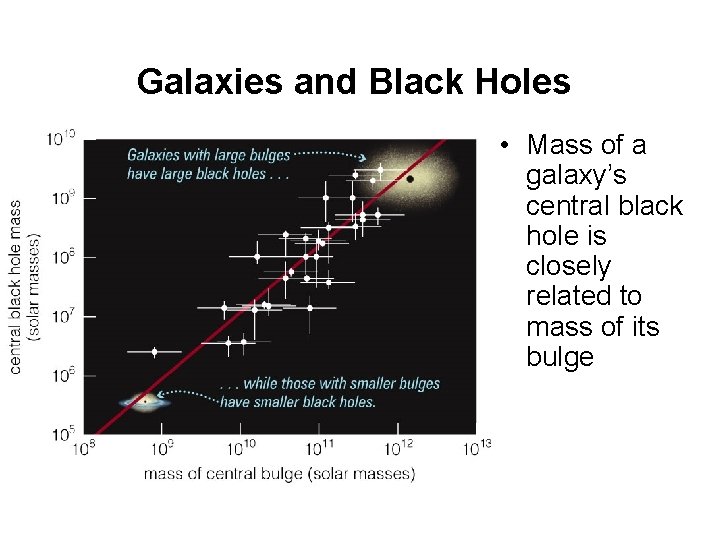

Galaxies and Black Holes • Mass of a galaxy’s central black hole is closely

Galaxies and Black Holes • Mass of a galaxy’s central black hole is closely related to mass of its bulge
