Acoustics of Concert Halls and Rooms SOME BASICS
Acoustics of Concert Halls and Rooms SOME BASICS OF ARCHITECTURAL ACOUSTICS Auditorium Acoustics Science of Sound, Chapter 23 Principles of Vibration and Sound, Chapter 11 Kimmel Center
SOUND FIELD p vs r Free field Reflections log p vs log r

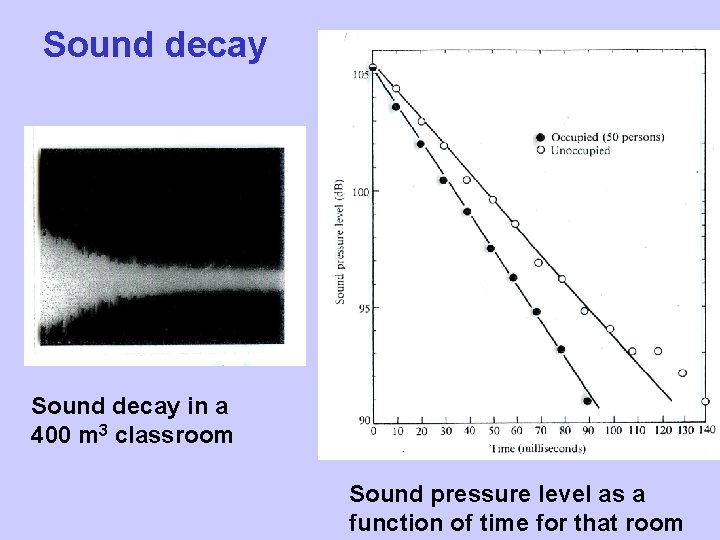

Sound decay in a 400 m 3 classroom Sound pressure level as a function of time for that room

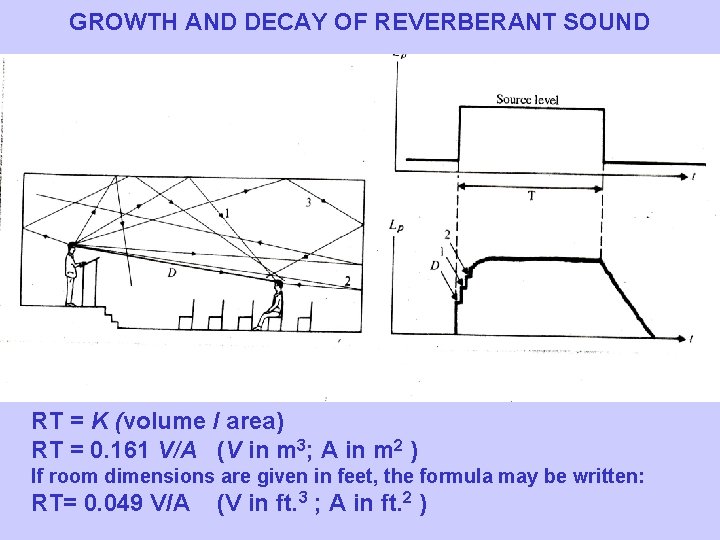

GROWTH AND DECAY OF REVERBERANT SOUND RT = K (volume / area) RT = 0. 161 V/A (V in m 3; A in m 2 ) If room dimensions are given in feet, the formula may be written: RT= 0. 049 V/A (V in ft. 3 ; A in ft. 2 )

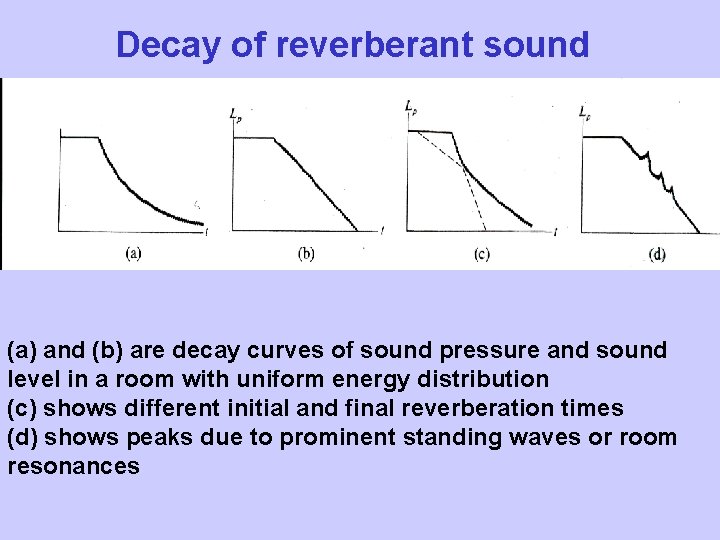

Decay of reverberant sound (a) and (b) are decay curves of sound pressure and sound level in a room with uniform energy distribution (c) shows different initial and final reverberation times (d) shows peaks due to prominent standing waves or room resonances
CALCULATING REVERBERATION TIME
CALCULATING REVERBERATION TIME
Desirable reverberation times for various sizes and functions Variation of reverberation time with frequency in good halls

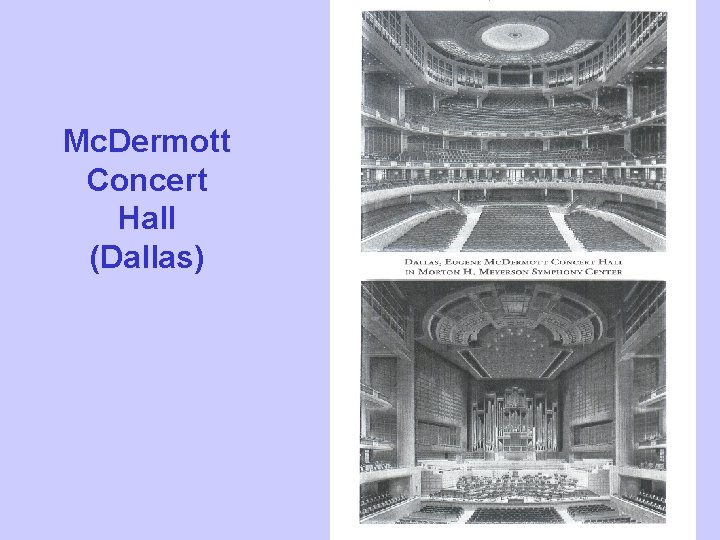

Mc. Dermott Concert Hall (Dallas)

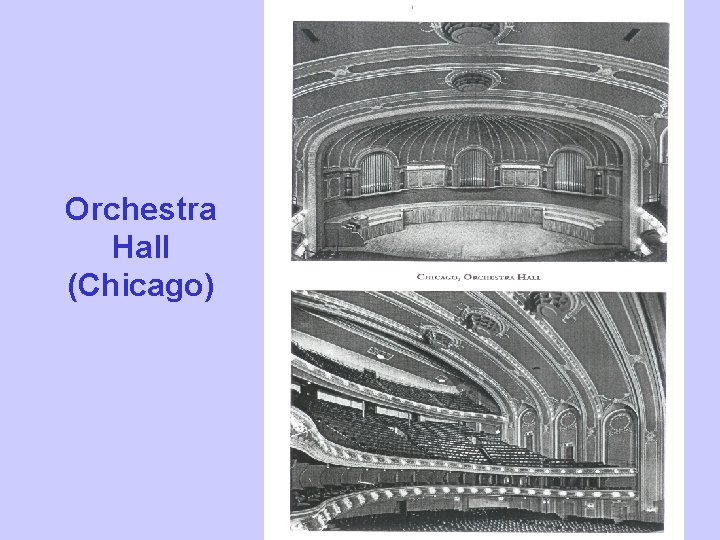

Orchestra Hall (Chicago)

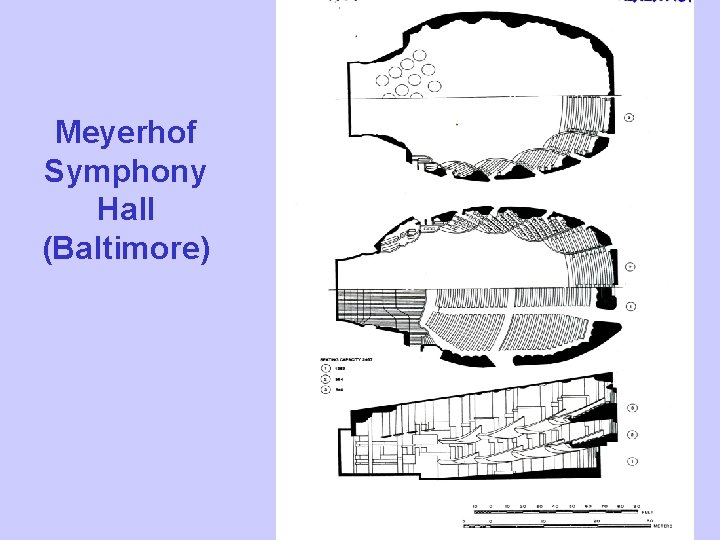

Meyerhof Symphony Hall (Baltimore)
Walt Disney Concert Hall

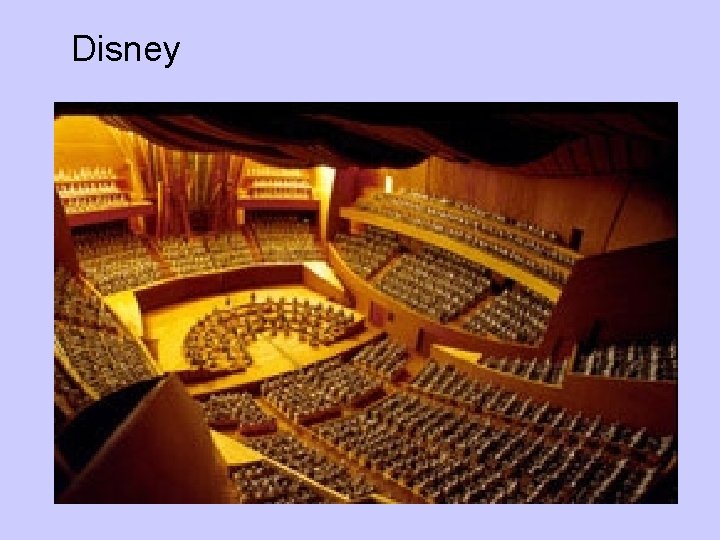

Disney

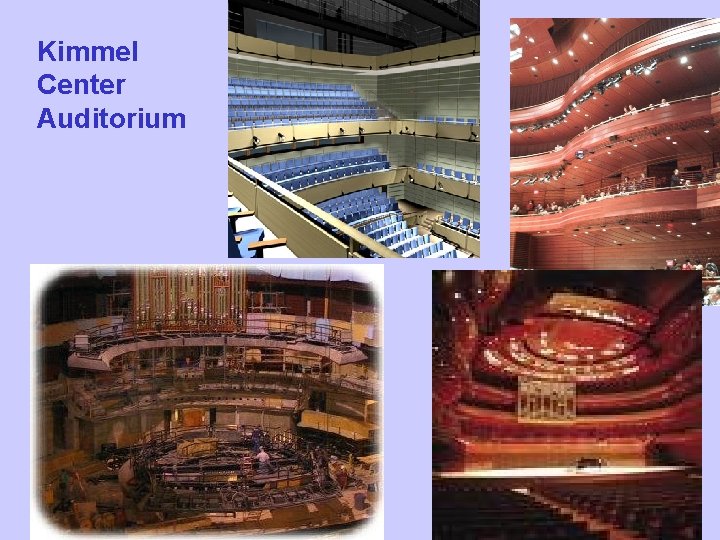

Kimmel Center Auditorium

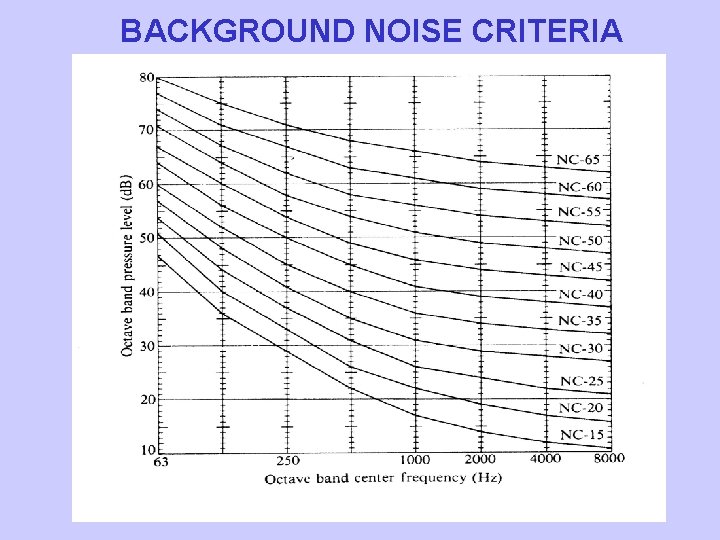

BACKGROUND NOISE CRITERIA
Important criteria for concert halls: • Spatial impression • Intimacy • Early decay time • Clarity • “Warmth”
Concert halls throughout the World
