ACO 101 Instantiating Graphic Objects Review 4 Phases

ACO 101 Instantiating Graphic Objects

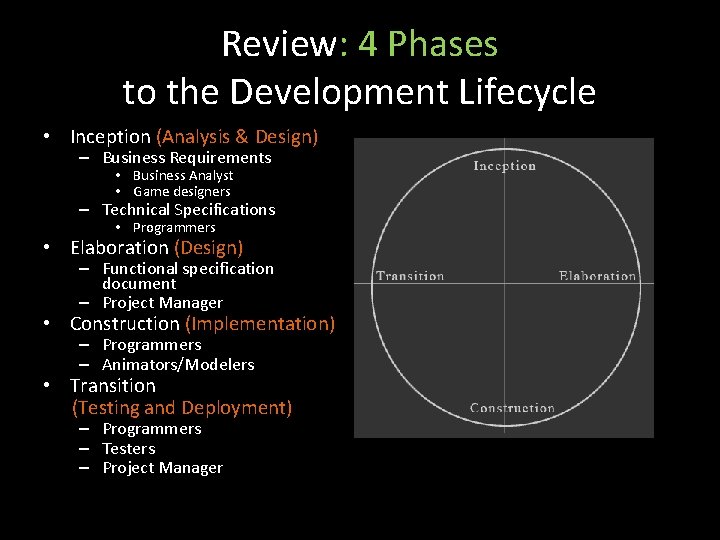

Review: 4 Phases to the Development Lifecycle • Inception (Analysis & Design) – Business Requirements • Business Analyst • Game designers – Technical Specifications • Programmers • Elaboration (Design) – Functional specification document – Project Manager • Construction (Implementation) – Programmers – Animators/Modelers • Transition (Testing and Deployment) – Programmers – Testers – Project Manager

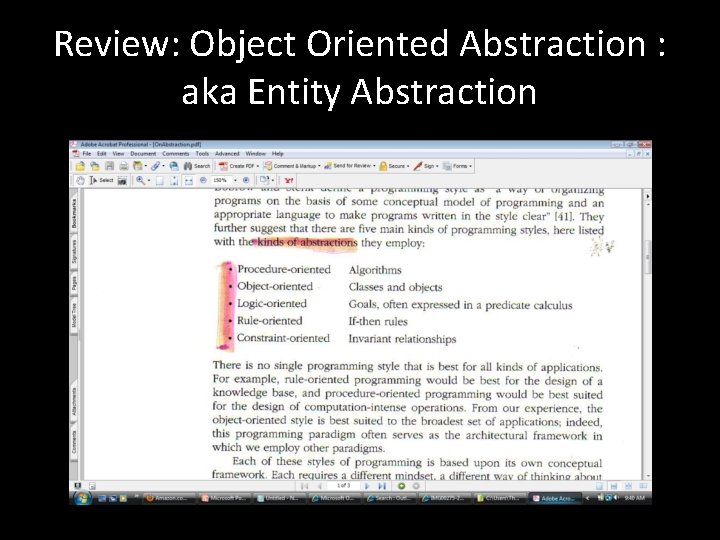

Review: Object Oriented Abstraction : aka Entity Abstraction

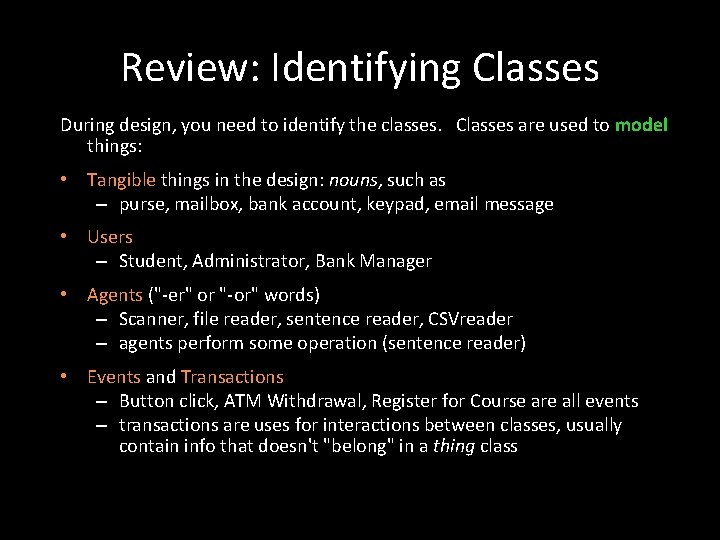

Review: Identifying Classes During design, you need to identify the classes. Classes are used to model things: • Tangible things in the design: nouns, such as – purse, mailbox, bank account, keypad, email message • Users – Student, Administrator, Bank Manager • Agents ("-er" or "-or" words) – Scanner, file reader, sentence reader, CSVreader – agents perform some operation (sentence reader) • Events and Transactions – Button click, ATM Withdrawal, Register for Course are all events – transactions are uses for interactions between classes, usually contain info that doesn't "belong" in a thing class

Identify the modules and abstract

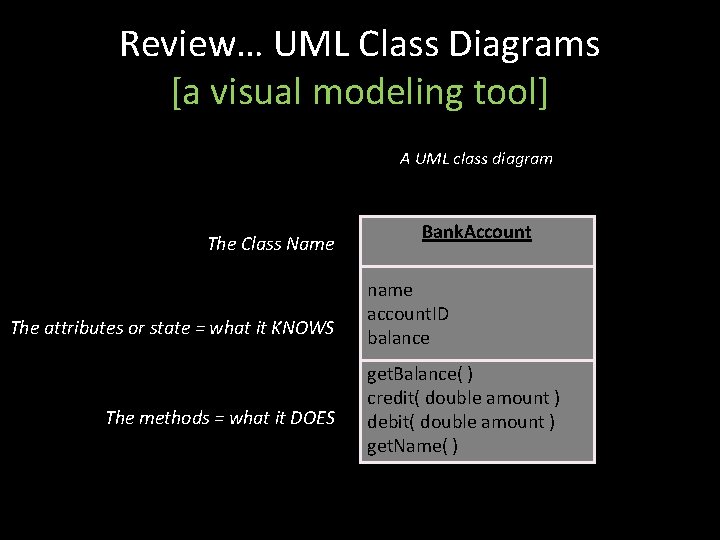

Review… UML Class Diagrams [a visual modeling tool] A UML class diagram The Class Name The attributes or state = what it KNOWS The methods = what it DOES Bank. Account name account. ID balance get. Balance( ) credit( double amount ) debit( double amount ) get. Name( )

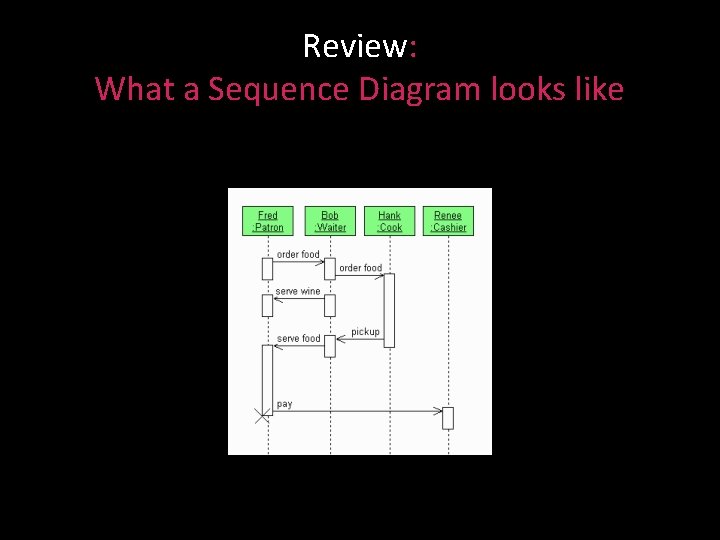

Review: What a Sequence Diagram looks like

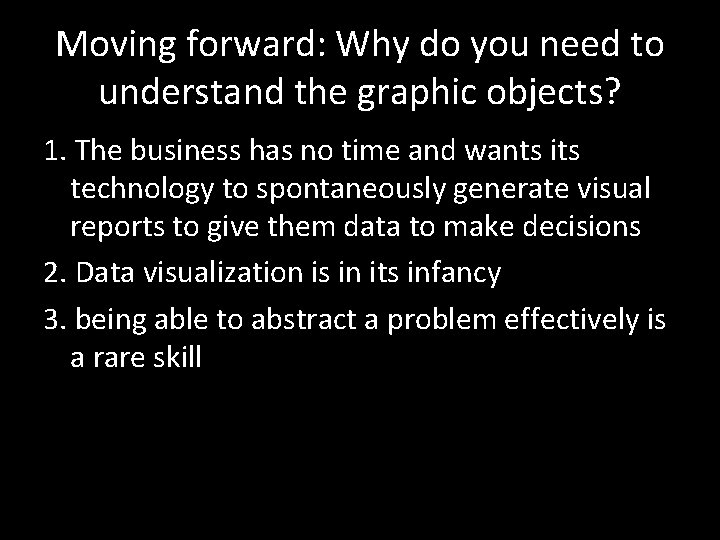

Moving forward: Why do you need to understand the graphic objects? 1. The business has no time and wants its technology to spontaneously generate visual reports to give them data to make decisions 2. Data visualization is in its infancy 3. being able to abstract a problem effectively is a rare skill

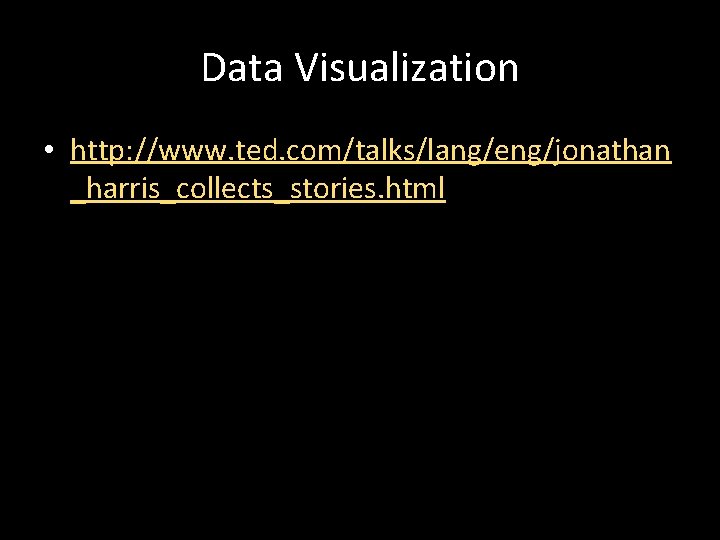

Data Visualization • http: //www. ted. com/talks/lang/eng/jonathan _harris_collects_stories. html

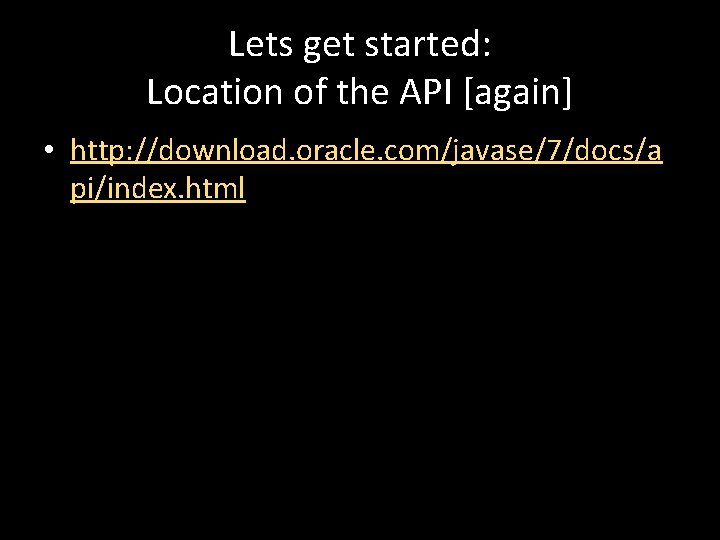

Lets get started: Location of the API [again] • http: //download. oracle. com/javase/7/docs/a pi/index. html

Graphic objects to work with

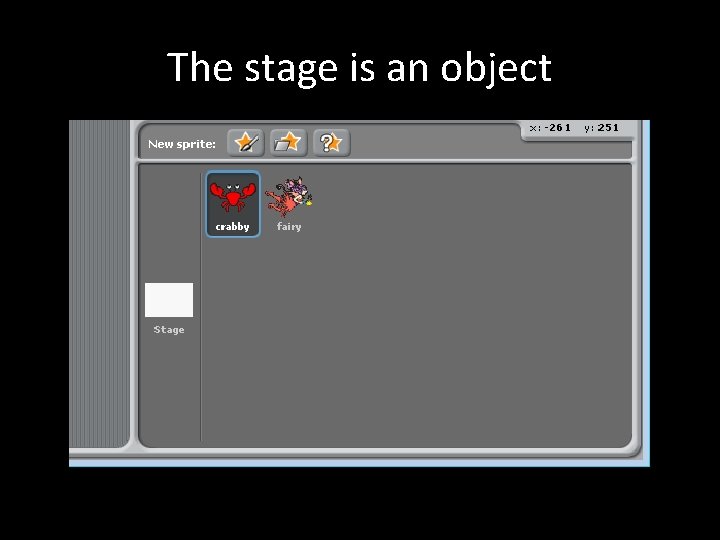

The stage is an object

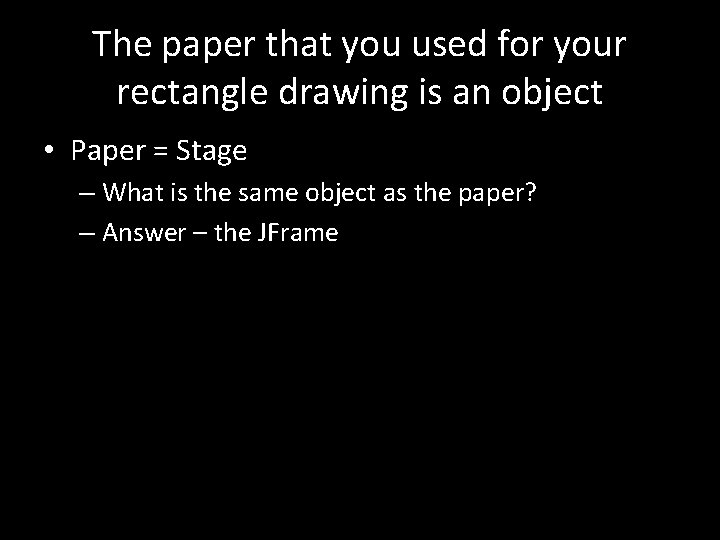

The paper that you used for your rectangle drawing is an object • Paper = Stage – What is the same object as the paper? – Answer – the JFrame

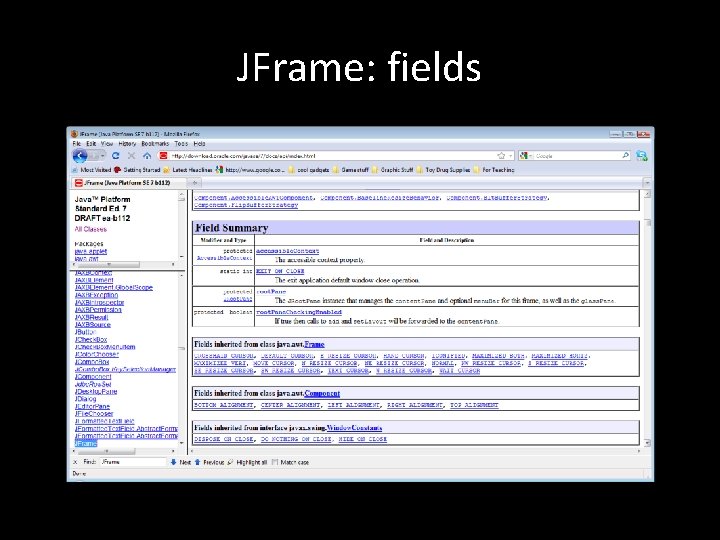

JFrame: fields

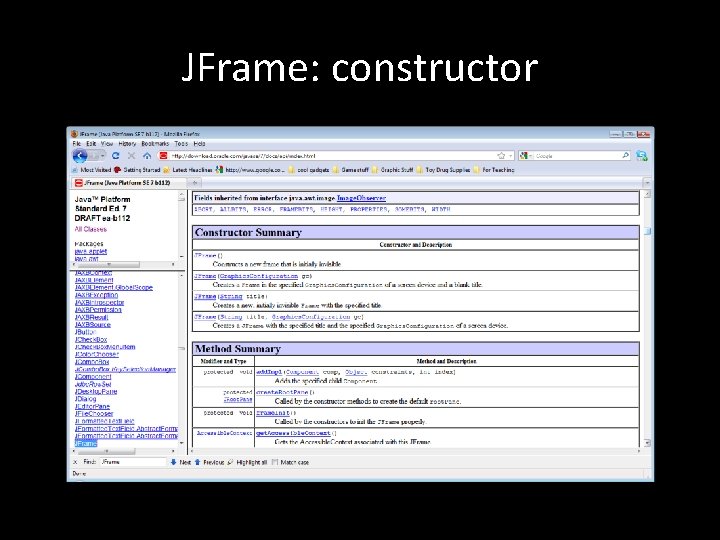

JFrame: constructor

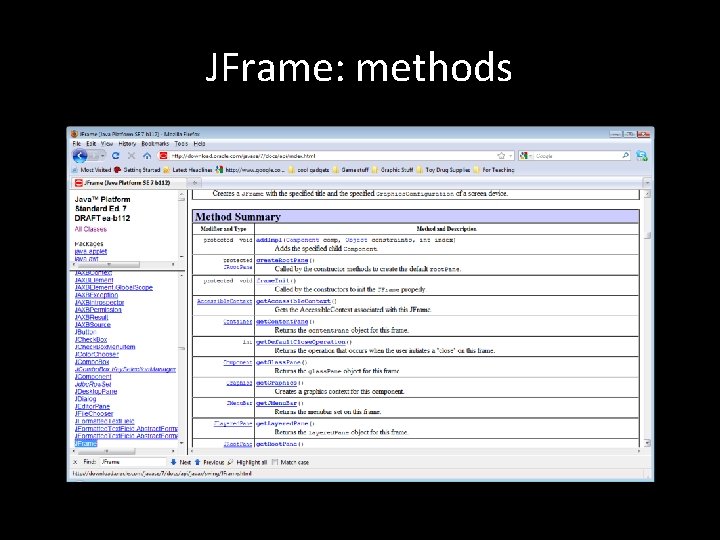

JFrame: methods

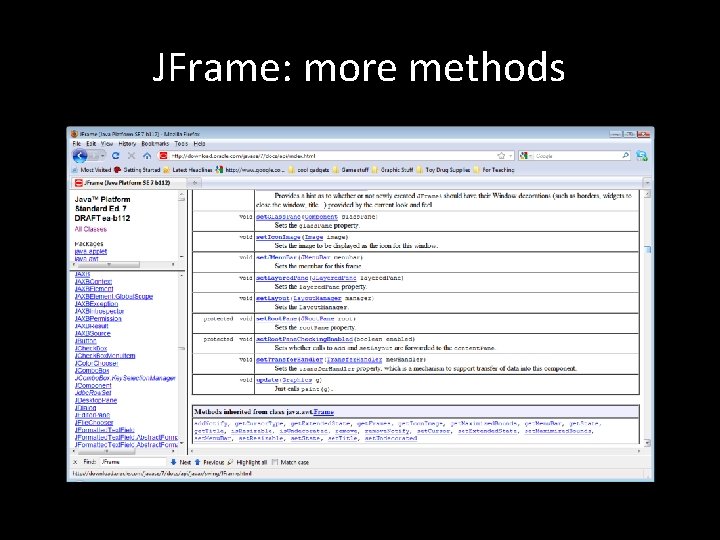

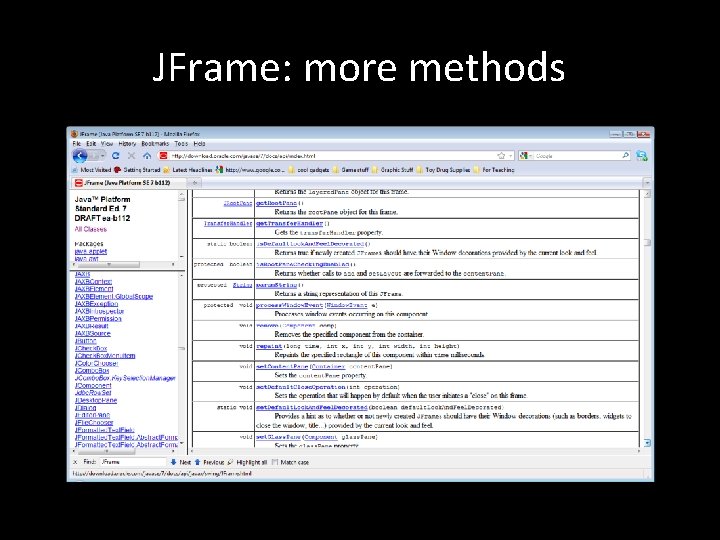

JFrame: more methods

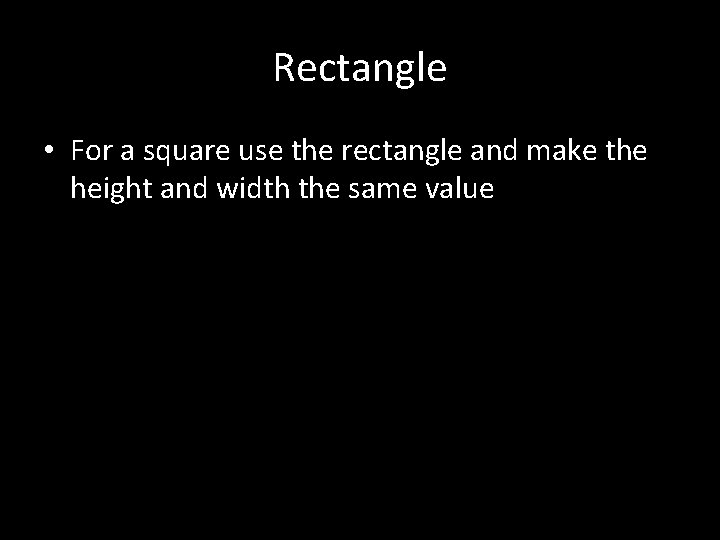

Rectangle • For a square use the rectangle and make the height and width the same value

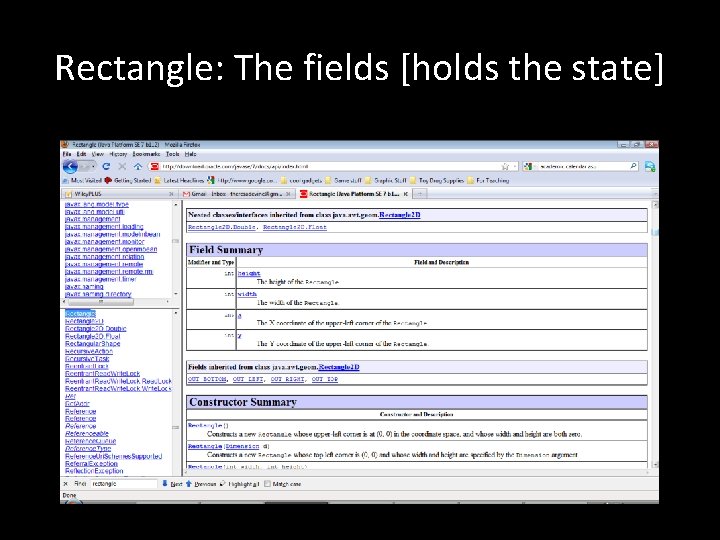

Rectangle: The fields [holds the state]

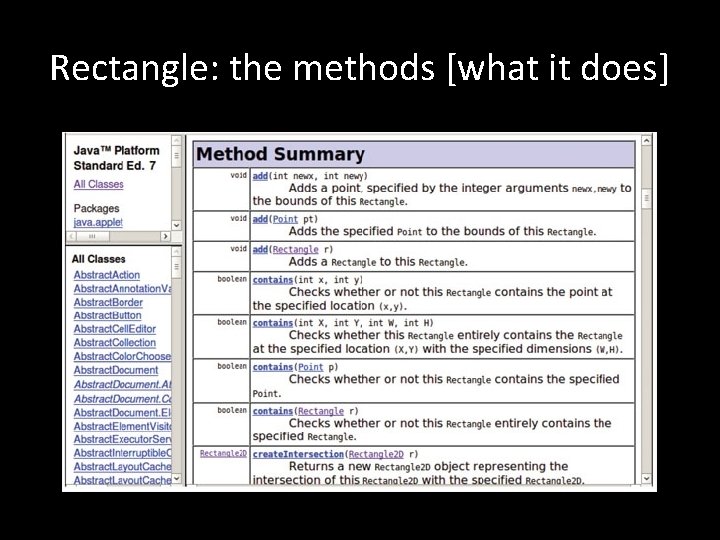

Rectangle: the methods [what it does]

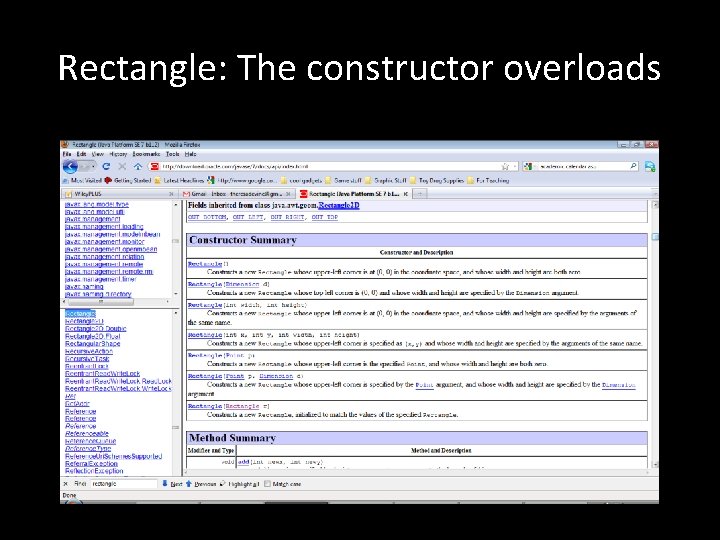

Rectangle: The constructor overloads

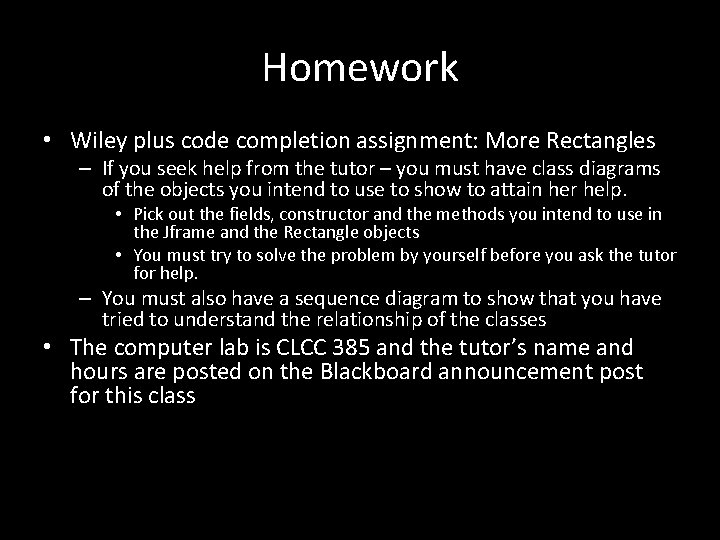

Homework • Wiley plus code completion assignment: More Rectangles – If you seek help from the tutor – you must have class diagrams of the objects you intend to use to show to attain her help. • Pick out the fields, constructor and the methods you intend to use in the Jframe and the Rectangle objects • You must try to solve the problem by yourself before you ask the tutor for help. – You must also have a sequence diagram to show that you have tried to understand the relationship of the classes • The computer lab is CLCC 385 and the tutor’s name and hours are posted on the Blackboard announcement post for this class
