ACIM BLDC SizeWeight 100 5570 Typical Efficiency 4550
电机能效法规 ACIM BLDC Size/Weight 100% 55%~70% Typical Efficiency 45%~50% 70%~75% Speed Control Difficult Easy & Linear Torque Control Poor Controllable Accuracy of Speed 3~5% 0. 5% IEC-60034 Motor Efficiency Standard Stage 2 Stage 1 European Union Market Stage 1: 2015/1/1, for Pout=7. 5 k. W~375 k. W the efficiency should meet IE 3 Stage 2: 2017/1/1, Pout=0. 75 k. W~375 k. W the efficiency should meet IE 3 3 CONFIDENTIAL

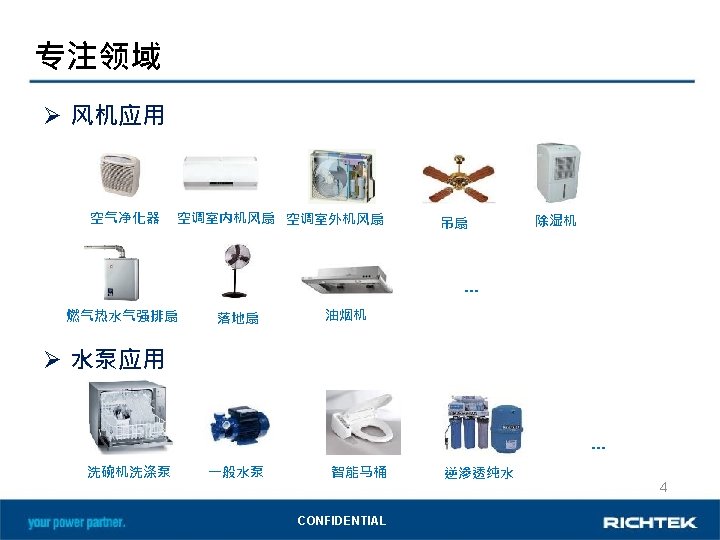

三相直流无刷电机驱动系统 Power Converter RT 7300 600 V power device CRM PFC RT 8409 Standby Power RT 7075 Two-in-one 3 -Phase Gate Driver Sensorless RT 7075 LQFP 7 x 7 -48 RT 7100 Motor Controller RT 7053 RT 7100 RT 7053 All-in-one TSSOP-28 WQFN 13 x 13 -38 CONFIDENTIAL 5
三相电机控制器—RT 7100 • • ARM Cortex M 0 (60 MHz) + Control Blocks Control algorithm: Sensorless (or 1 Hall element) Sine-wave FOC Embedded motor control library UL IEC-60730 certificated (No. E 478780) (60 MHz) RT 7100 TSSOP-28 CONFIDENTIAL 6

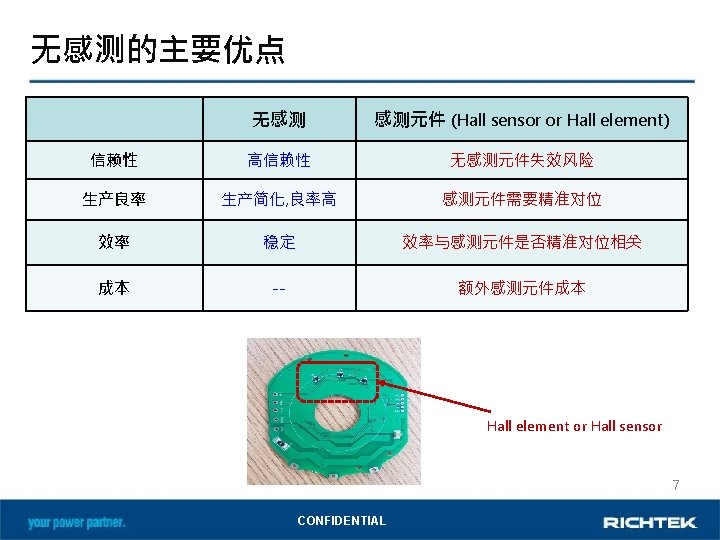

无感测磁场导向控制 Current-Torque Loop Speed Control Loop (SMO, PLL. . . ) 8 CONFIDENTIAL

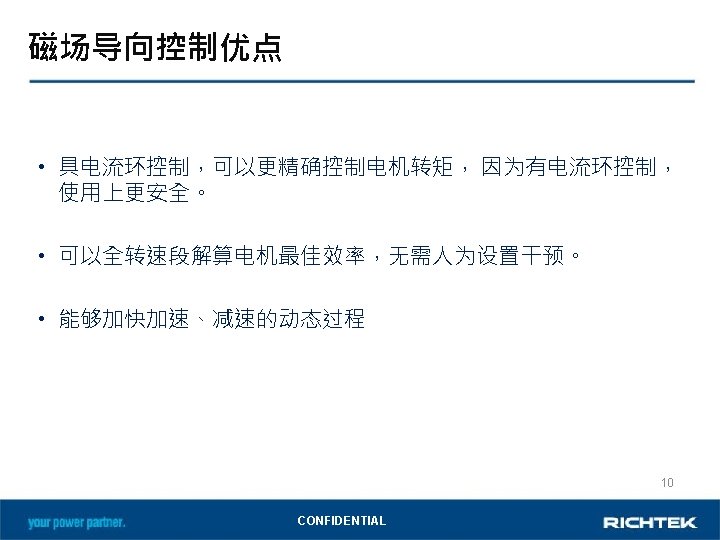

电机控制机制比较 Torque-speed Curve Kgcm Open loop FOC RPM Advantages of FOC: • FOC is current close loop control for more safe operation • Phase angle automatically compensated for different load curve CONFIDENTIAL 9
RT 7100启��流波形 电流閉环路控制 IU-Phase Link Sensorless FOC FG Ramp Adjustable 200 m. A/div Adjustable ramp-up acceleration 11 CONFIDENTIAL
UL IEC-60730安规认证 IEC-60730 Library Risk of fire System FMEA System safety check (OC, OT) Micro-electronics check (PC, ADC, registers…etc. ) 电机驱动固件过IEC-60730认证所具优势: Ø Ø 确保电机控制软件的安全性 缩短认证申请时间 减少认证申请费用 提供客户安全保证 CONFIDENTIAL 12
低转速时的相电流波形 方案 A RT 7100 waveform distortion still sine-wave 方案 B waveform distortion 高性能正弦算法使电机运转更加平顺,噪 音更小, 抖动更小。 电机轴承承受的抖动 压力更小,整机寿命更长。 * These waveforms were measured at low speed (150 RPM) with the same pedestal fan. CONFIDENTIAL 13
600 V二合一方案—RT 7075 Integrate MCM Motor controller & Gate driver Motor controller 1 Gate driver 1 RM 02 N 60 LQFP 7 x 7 -48 Motor Control LIB IEC 60730 LIB Sensor-less FOC Micro Electronic Check Startup Strategy Over Current Check Current Control Lock Rotor Check Speed Control UL IEC-60730 certificated (No. E 478780) RT 7075 CONFIDENTIAL 14
三相直流无刷电机驱动产品 Solution Product no. 3 phase motor controller RT 7100 -G 2 YYY RT 7100 -U 2 YYY RT 7075 -G 2 YYY RT 7075 -U 2 YYY 3 phase motor controller + gate driver RT 7076 -G 2 YYY RT 7076 -U 2 YYY Max Rating 5 V LDO Bootstrap diodes Package Status* TSSOP-28 -- External MP LQFP 7 x 7 -48 600 V External MP LQFP 7 x 7 -48 250 V Built in MP (two-in-one) RT 7079 -G 2 YYY RT 7079 -U 2 YYY LQFP 7 x 7 -48 60 V Built in * MP: Mass production ; DVP: Developing Built in DVP 15 CONFIDENTIAL
600 V三合一方案—RT 7053 Motor controller 1 3 phases gate driver 1 Bootstrap diodes 3 600 V IGBT 6 RT 7053 WQFN 13 x 13 -38 (for Pout<30 W application) 16 CONFIDENTIAL
开发 具—电机调适板支持 AC/DC Board Motor tuning EVB Communication Kit Ke Board Programming Kit 17
开发 具—软件支持 Adaptive Motor Control Development System • Complete motor control library • Startup strategy • Debug support • Firmware example ü Lower design complexity ü Shorten motor tuning process ü Reduce development cycle 18
生产 具支持 IC Firmware (F/W) Programming Support & Service • On-line Isolated programming kit • Off- line programming kit • IC F/W re-programmable for assembled motors • IC F/W programmable for mass production On-line Isolated programming kit Off-line programming kit F/W re-programming through VSP & FG pins 19
整体解决方案 智能家电物联网整解决方案 Wi-Fi & Bluetooth So. C (MTK) • Low power consumption • High performance • Security BLDC Driver Solution (RT) • Communication Interface • Standby power saving • Power management 20
Richtek Confidential 2 Reference Only Do not duplicate and distribute
