ACHILLES TENDONITIS AND RUPTURE Dr Carl Clinton no

Will not include such pathologies: a) b) c) e) e) f) g) Retrocalcanel Bursitis

ANATOMY 1 a) b) c) d) Attaches the plantaris/ gastrocnemius and soleus muscles to

ANATOMY 2 e) The tendon can receive a load stress 3. 9 times body

ANATOMY 3 g) Arterial anatomy of Achilles - supplied by two arteries - the

EPIDEMIOLOGY AND CAUSES a) OVERUSE - too long/too fast/too steep/ too explosive b) MISALIGNMENT

PRESENTATION a) ACHILLES TENDONITIS - gradual onset pain/stiffness - improves with heat and exercise

PRESENTATION b) ACHILLES RUPTURE - rupture can occur at any age but most common

EXAMINATION - observe gait - look for swelling/bruising - may have a palpable GAP

MANAGEMENT ACHILLES TENDONITIS Insufficient evidence from randomised controlled trials to determine which method of

a) abstain from aggravating activities b) NICER - ? ? Use NSAID (inflammation v

d) physical therapy - US/electric stimulation/laser photo stimulation e) other treatments - heparin -

f) surgery -? last resort - ? after six months - ? plantaris wrap

MANAGEMENT ACHILLES RUPTURE SURGICAL V CONSERVATIVE a) surgery v non surgery ‘NO CONSENSUS’ :

Surgical treatment of Acute Achilles Rupture significantly reduces the risk of re-rupture compared with

PROGNOSIS ACHILLES TENDONITIS a) no consensus on best treatment b) recovery can take weeks

PROGNOSIS ACHILLES RUPTURE a) no consensus on best treatment b) surgical treatment decreased risk

Slides: 20

Download presentation

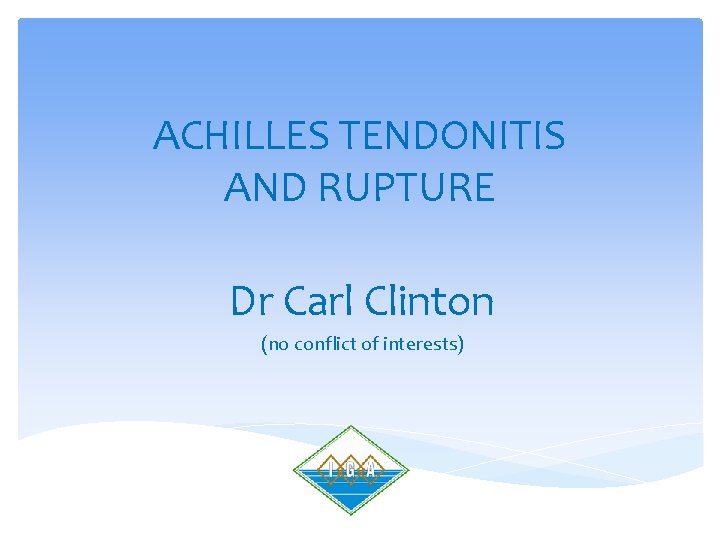

ACHILLES TENDONITIS AND RUPTURE Dr Carl Clinton (no conflict of interests)

Will not include such pathologies: a) b) c) e) e) f) g) Retrocalcanel Bursitis Haglund’s Deformity Impingement Syndrome ‘Pump Bump’ Ankle O/A Ruptured Bakers’s Cyst DVT

ANATOMY 1 a) b) c) d) Attaches the plantaris/ gastrocnemius and soleus muscles to the calcaneus Thickest and strongest tendon in the body Achilles muscle reflex tests the integrity of the S 1 spinal root About 15 cm (6 in) long

ANATOMY 2 e) The tendon can receive a load stress 3. 9 times body weight during walking and 7. 7 times body weight during running f) The tendon is surrounded by a connective tissue sheath (paratenon) rather than a true synovial sheath

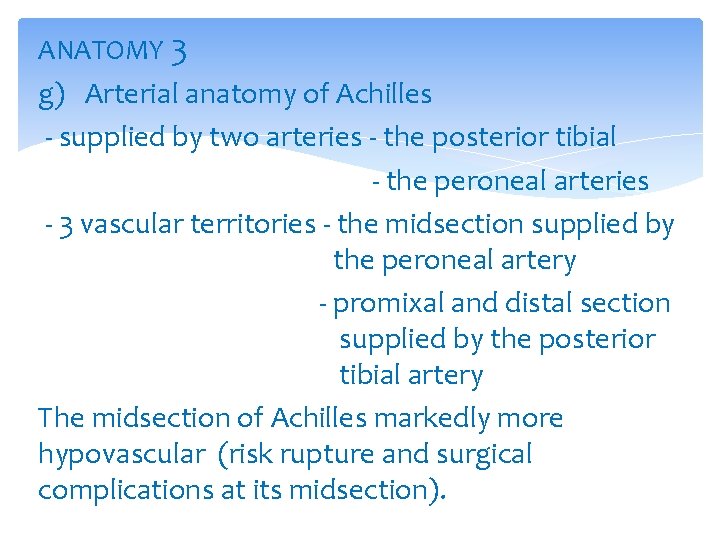

ANATOMY 3 g) Arterial anatomy of Achilles - supplied by two arteries - the posterior tibial - the peroneal arteries - 3 vascular territories - the midsection supplied by the peroneal artery - promixal and distal section supplied by the posterior tibial artery The midsection of Achilles markedly more hypovascular (risk rupture and surgical complications at its midsection).

EPIDEMIOLOGY AND CAUSES a) OVERUSE - too long/too fast/too steep/ too explosive b) MISALIGNMENT - gait (excessive pronation) c) IMPROPER FOOTWEAR - saddle too low/extra dorsiflexion e) MEDICAL SIDE EFFECTS - quinolone group of A/B (ciprofloxacin) e) CORTISONE- indirect - weakened Achilles feels too comfortable g) ACCIDENTS - laceration/crush h) GENETICS - individuals with the single nuclear plymorphism (SNP) TT genotype of the GDF 5 rs 143383 variant have twice the risk of developing Achilles problems i) SYSTEMIC CONDITIONS - gout/RA/SLE/Cushing’s syndrome

PRESENTATION a) ACHILLES TENDONITIS - gradual onset pain/stiffness - improves with heat and exercise ‘able to run off symptoms’ - may with strenuous activity get worse or experience calf pain - tenderness of the tendon on palpation - there may be crepitus and swelling - may be pain on active movement of the ankle joint

PRESENTATION b) ACHILLES RUPTURE - rupture can occur at any age but most common 30 - 50 year old - acute onset of pain in tendon - sudden ‘sharp pain’ - snap ‘heard’ - may have PMH of Achilles Tendonitis - inability to stand on tiptoe - altered gait ‘inability to push off’ - swelling/ GAP

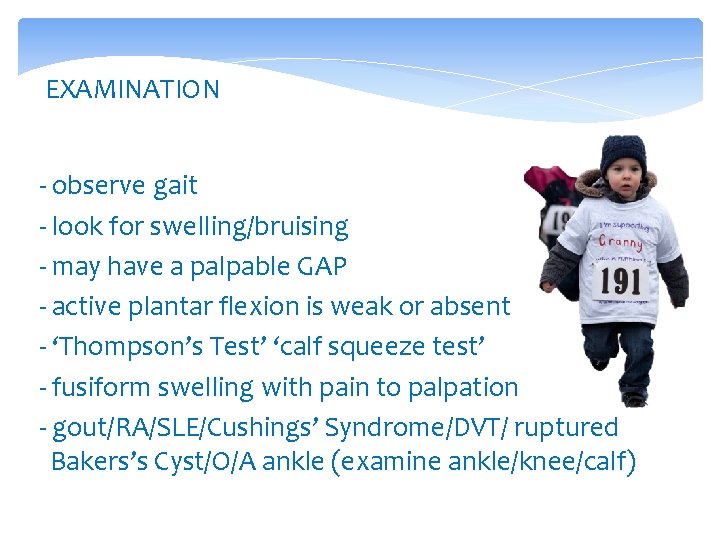

EXAMINATION - observe gait - look for swelling/bruising - may have a palpable GAP - active plantar flexion is weak or absent - ‘Thompson’s Test’ ‘calf squeeze test’ - fusiform swelling with pain to palpation - gout/RA/SLE/Cushings’ Syndrome/DVT/ ruptured Bakers’s Cyst/O/A ankle (examine ankle/knee/calf)

INVESTIGATIONS - UTRASOUND - MRI

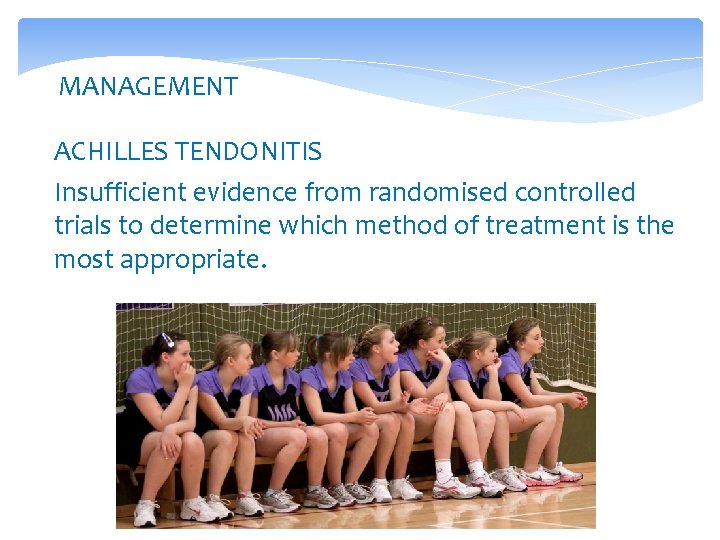

MANAGEMENT ACHILLES TENDONITIS Insufficient evidence from randomised controlled trials to determine which method of treatment is the most appropriate.

a) abstain from aggravating activities b) NICER - ? ? Use NSAID (inflammation v degenerate) c) physio + relative rest (alternative exercise) Podiatrist - ‘stretching/strengthening’ Hip/back muscles tight Calf muscles tight Strengthening anterior tibialis - massage - eccentric exercises - orthotics (gait) / review footwear

d) physical therapy - US/electric stimulation/laser photo stimulation e) other treatments - heparin - steriod injections/sclerosant injections - glycosaminoglycan sulfate - actovegin - GTN patches - electronic wave shock treatment - extra corporeal shockwave therapy - blood letting/blood injections - needling - casting

f) surgery -? last resort - ? after six months - ? plantaris wrap around - ? foot in equinus in plaster 6/52 - ? degenerate v inflammatory

MANAGEMENT ACHILLES RUPTURE SURGICAL V CONSERVATIVE a) surgery v non surgery ‘NO CONSENSUS’ : - b) best surgical approach c) best non-surgical approach

Surgical treatment of Acute Achilles Rupture significantly reduces the risk of re-rupture compared with nonsurgical treatment, but produces significantly higher risks of other complications such as infection, adhesions and disturbed skin sensibility/breakdown.

PROGNOSIS ACHILLES TENDONITIS a) no consensus on best treatment b) recovery can take weeks or months c) surgery is possible

PROGNOSIS ACHILLES RUPTURE a) no consensus on best treatment b) surgical treatment decreased risk of rerupture c) may take 1 year to recover d) may be left with slight loss of function e) usually good prognosis however

POSSIBLE EXPLANATION: -

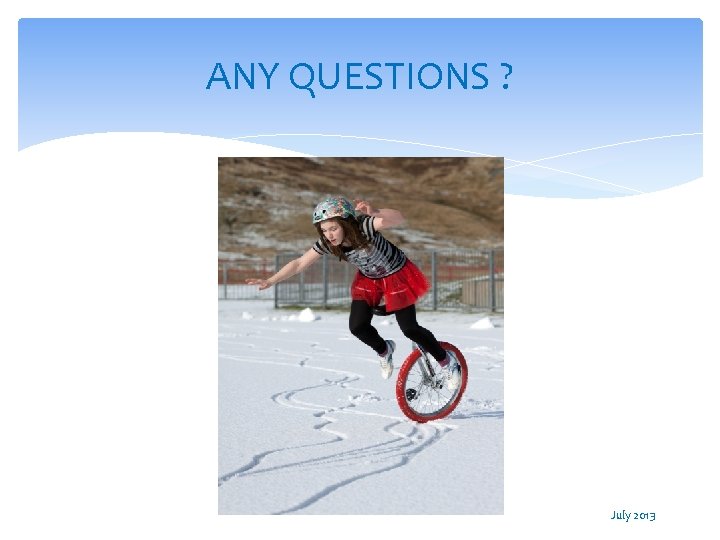

ANY QUESTIONS ? July 2013
