Achieve Mile High Infrastructure from the Core to the Edge with Dell EMC Open Infrastructure Summit Denver Kailas Jawadekar Arkady Kanevsky

Open. Stack and Open Infrastructure Solutions • Red Hat Open. Stack Platform Solutions • VMware Integrated Open. Stack Solution • Virtual Edge Platforms for u. CPE • Storage Solutions for Open. Stack • Container Solutions

Dell EMC Ready Architecture for Red Hat Open. Stack Platform Fully validated reference architecture design to simplify and accelerate production deployments for CSPs Pre-validated with Dell EMC cloud infrastructure hardware and Red Hat Open. Stack Platform software, the Dell EMC Ready Architecture for Red Hat Open. Stack Platform reduces the time it takes to procure, validate, and integrate Open. Stack components. 4 Key Values: • Fully validated and documented • Enables CSPs to rapidly launch their own services • Prescriptive yet customizable to meet workload needs of CSPs • Leverage expertise from Dell EMC Consulting Services and Professional Services to help customize your deployment

Dell EMC Ready Architecture for Red Hat Open. Stack Platform Components Red Hat Open. Stack Platform • Kernel-based Virtual Machine • Red Hat Ceph Storage • Open v. Switch and Neutron plugins • Cinder plugins • Red Hat Enterprise Linux Dell EMC infrastructure • Dell EMC Networking • 2 x S 5232 F-ON • 1 x S 3048 T-ON • Power. Edge Rack Servers • 4 x R 640/R 740 (Intel XXV 710 25 Gb. E) • 6+ x R 740 XD (Intel XXV 710 25 Gb. E and MLNX CX 5 100 Gb. E) • Dell EMC Unity • Block, image, file system 5

Dell EMC Ready Architecture for Red Hat Open. Stack Platform Hyperconverged Infrastructure Fully validated reference architecture design to simplify and accelerate HCI deployments Pre-validated with Dell EMC cloud infrastructure hardware and Red Hat HCI software, Dell EMC Ready Architecture for Red Hat Hyperconverged Open. Stack Infrastructure helps customers minimize adoption time and significantly reduces time to service to deploy HCI 6 Key Values: With advanced data reduction capabilities and software-defined networking functionality, Dell EMC Ready Architecture for Red Hat Hyperconverged Open. Stack Infrastructure empowers organizations to: • Deploy an open and versatile software-defined infrastructure with minimum footprint. • Easily virtualize business applications, maximizing resource utilization through infrastructure consolidation and resulting operational efficiencies. • Manage integrated compute-plus-storage resources with a single management interface.

Dell EMC Ironic Support Dell EMC Ironic CI Build Driver Hardware Boot Mode • Dell EMC is afounding member of project Ironic dellemc-poweredge-R 730 -R 630 -tempestdsvm-ironic-idrac R 730, R 630, R 430 BIOS • We support 3 drivers: IPMI, i. DRAC, Redfish dellemc-poweredge-R 730 -R 630 -tempestdsvm-ironic-ipmi Ipmi R 630 ( FX 2) BIOS • Dell EMC third party Ironic CI runs on Power. Edge and DSS 9600 Series Servers dellemc-poweredge-R 740 -R 640 -tempestdsvm-ironic-idrac Idrac R 740 xd, R 640 BIOS • Dell EMC is one of 5 vendors who run thirdparty Ironic CI dellemc-poweredge-R 740 -R 640 -tempestdsvm-ironic-redfish R 740 xd, R 640 BIOS dellemc-poweredge-R 740 -R 640 -UEFI-py 2 tempest-dsvm-ironic-idrac ( Python 2 support) dellemc-poweredge-R 740 -R 640 -UEFItempest-dsvm-ironic-idrac ( Python 3 support) dellemc-poweredge-R 740 -R 640 -UEFItempest-dsvm-ironic-ipmi Idrac R 740, R 640 UEFI ipmi R 740, R 640 UEFI dellemc-poweredge-R 740 -R 640 -UEFItempest-dsvm-ironic-redfish R 740, R 640 UEFI dellemc-DSS 9000 -tempest-dsvm-ironicidrac DSS 9600 BIOS dellemc-DSS 9000 -tempest-dsvm-ironicredfish Redfish DSS 9600 BIOS • Dell EMC has the most comprehensive of driver coverage for servers among all third-party Ironic CI supporting vendors • Dell EMC is only one of 2 vendors who is listed on Marketplace in Open. Stack for Ironic Drivers: • https: //www. openstack. org/marketplace /drivers/ • Dell EMC is the first server vendor to have Red Hat Bare Metal certification 7

VMware Integrated Open. Stack 5. 0 9

Dell EMC Ready Solution for VMware NFV Platform Components VMware v. Cloud NFV Platform • v. Sphere virtualization platform • v. SAN • NSX • v. Cloud Director and VMware Integrated Open. Stack (VIO) for Virtualized Infrastructure Manager (VIM) • v. Realize Suite for operations management Dell EMC infrastructure • Dell EMC Networking • 2 x S 6010 -ON or Z 9100 • 1 x S 4048 T-ON • Data Center Fabric with Big Switch Networks • Power. Edge Rack Servers • 8+ or 12+ x R 640/R 740 xd 10

Dell EMC Virtual Edge Platforms for u. CPE Available Q 4 FY 19 VEP 4600 VEP 1400 Form Factor: • Table-top/Desktop form factor Features: • Up To 16 Core • Fan less (SKU 1, 2) • 6+ Gb. E (all DPDK supported) • Internal SSD (up to 128 G) • DDR 4 ECC memory • Wi. Fi & LTE options 12 Form Factor: • Rack Server (Front Ports) Features: • Up To 16 Core • Short Depth • 6+ Gb. E (all DPDK supported) • Internal SSD (up to 1024 G) • DDR 4 ECC memory • PCIe for upgradability • Wi. Fi & LTE options via USB Power. Edge R 640 • 2 S Intel Xeon E 5 -2600 v 4 processors (22 cores max/ CPU) • QAT option via PCIe • BIOS, BMC for OOB, Internal PSU • 18” + Depth • TPM, SSD, NVMe SSD • Up to 64 GB memory ECC DDR 4 • Multiple IO and expansion options; 2 x PCIe lanes • LTE available via USB/PCIe • Up to 100 G NICs available

Dell EMC Reference Architecture for Ceph with Balanced Block Storage The Ceph RAs target the following key use cases for Block and Object Storage: • • • Object storage for archival purposes Erasure coding configuration Block storage for performance Bluestore configuration Open. Stack deployments – Cinder backend Key Differentiation and Innovations: • Intel Skylake Xeon (Platinum/Gold), XXV NICs, all NVMe • Validated RA for Dell Power. Edgewith Ceph storage and Blue. Store backend • Tested with 25 Gb. E networking, NVMe, and SSD/HDD • Performance tuned with 25 Gb. E networking, NVMe, and Blue. Store 14

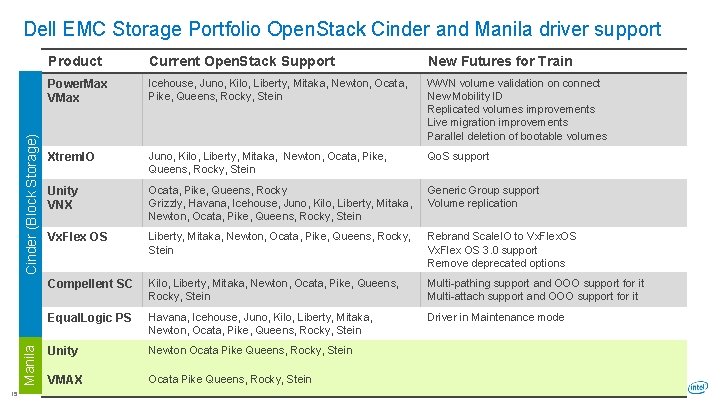

Manila Cinder (Block Storage) Dell EMC Storage Portfolio Open. Stack Cinder and Manila driver support 15 Product Current Open. Stack Support New Futures for Train Power. Max VMax Icehouse, Juno, Kilo, Liberty, Mitaka, Newton, Ocata, Pike, Queens, Rocky, Stein WWN volume validation on connect New Mobility ID Replicated volumes improvements Live migration improvements Parallel deletion of bootable volumes Xtrem. IO Juno, Kilo, Liberty, Mitaka, Newton, Ocata, Pike, Queens, Rocky, Stein Qo. S support Unity VNX Ocata, Pike, Queens, Rocky Grizzly, Havana, Icehouse, Juno, Kilo, Liberty, Mitaka, Newton, Ocata, Pike, Queens, Rocky, Stein Generic Group support Volume replication Vx. Flex OS Liberty, Mitaka, Newton, Ocata, Pike, Queens, Rocky, Stein Rebrand Scale. IO to Vx. Flex. OS Vx. Flex OS 3. 0 support Remove deprecated options Compellent SC Kilo, Liberty, Mitaka, Newton, Ocata, Pike, Queens, Rocky, Stein Multi-pathing support and OOO support for it Multi-attach support and OOO support for it Equal. Logic PS Havana, Icehouse, Juno, Kilo, Liberty, Mitaka, Newton, Ocata, Pike, Queens, Rocky, Stein Driver in Maintenance mode Unity Newton Ocata Pike Queens, Rocky, Stein VMAX Ocata Pike Queens, Rocky, Stein

Key Values: Dell EMC Ready Architecture for Red Hat Open. Shift Container Platform • Fully validated and documented • Optimized for flexibility, scalability, and performance • Enables enterprises to rapidly adopt Dev. Ops methodology or manage pre-built containerized applications • Rapidly deploy either POC or high availability production configurations • Prescriptive yet customizable to meet container deployment needs of enterprises • Scalable reference architecture designed to simplify and accelerate enterprise-grade container deployments • Pre-validated with Dell EMC cloud infrastructure hardware and Red Hat Open. Shift software • Helps customers minimize adoption time and significantly reduce the time to develop and deploy containerized applications 17 Dell. EMC. com/openshift

SUSE Container as a Service (Caa. S) Reference Architecture for Dell EMC Power. Edge • Single, unified software-defined storage cluster that provides unified object, block and file storage • Designed with unlimited scalability from terabytes to petabytes and no single point of failure • Maximizes system resiliency and application availability 18 Dell. EMC. com/containers
