Accton Network Adapter 1997 by Accton Technology Corp

Accton Network Adapter 1997 by Accton Technology Corp.

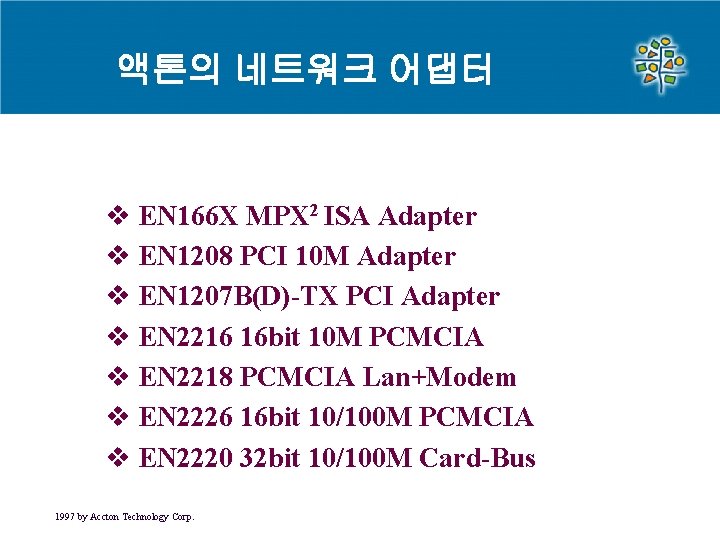

액톤의 네트워크 어댑터 v EN 166 X MPX 2 ISA Adapter v EN 1208 PCI 10 M Adapter v EN 1207 B(D)-TX PCI Adapter v EN 2216 16 bit 10 M PCMCIA v EN 2218 PCMCIA Lan+Modem v EN 2226 16 bit 10/100 M PCMCIA v EN 2220 32 bit 10/100 M Card-Bus 1997 by Accton Technology Corp.

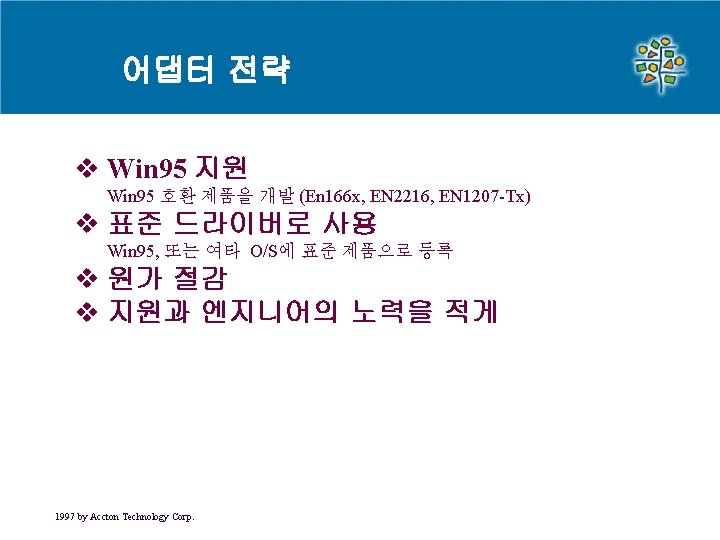

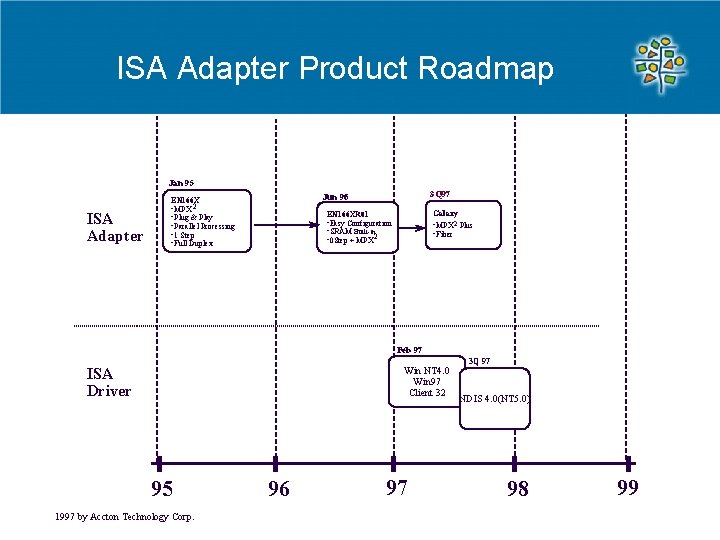

ISA Adapter Product Roadmap Jan 95 ISA Adapter 3 Q 97 Jun 96 EN 166 X • MPX 2 • Plug & Play • Parallel Processing • 1 Step • Full Duplex Galaxy EN 166 XR 01 • Easy Configuration • SRAM Built-in • 0 Step + MPX 2 • MPX 2 Plus • Fiber Feb 97 ISA Driver Win NT 4. 0 Win 97 Client 32 95 1997 by Accton Technology Corp. 96 97 3 Q 97 NDIS 4. 0(NT 5. 0) 98 99

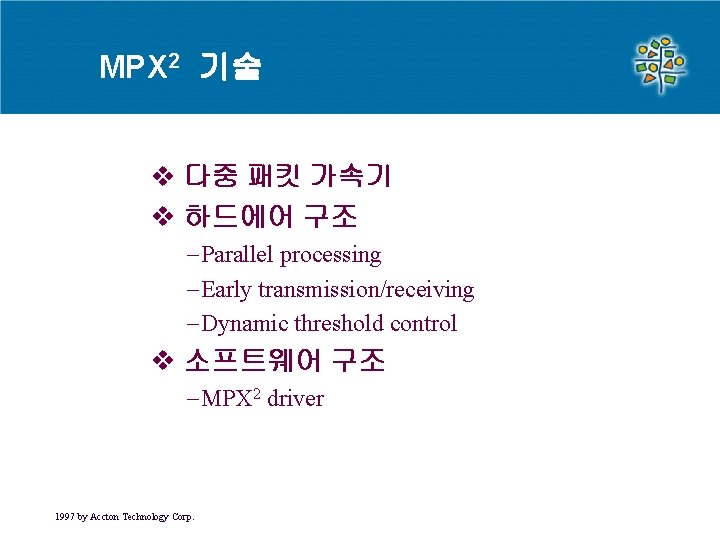

MPX 2 기술 v 다중 패킷 가속기 v 하드에어 구조 -Parallel processing -Early transmission/receiving -Dynamic threshold control v 소프트웨어 구조 -MPX 2 driver 1997 by Accton Technology Corp.

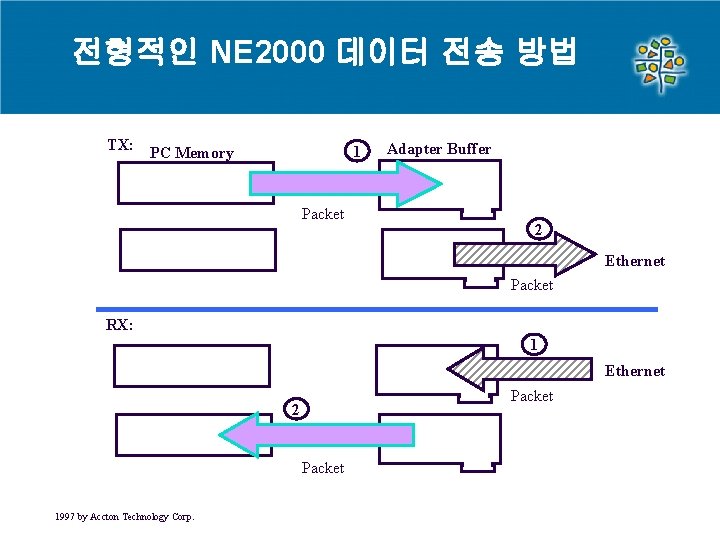

전형적인 NE 2000 데이터 전송 방법 TX: PC Memory 1 Packet Adapter Buffer 2 Ethernet Packet RX: 1 Ethernet Packet 2 Packet 1997 by Accton Technology Corp.

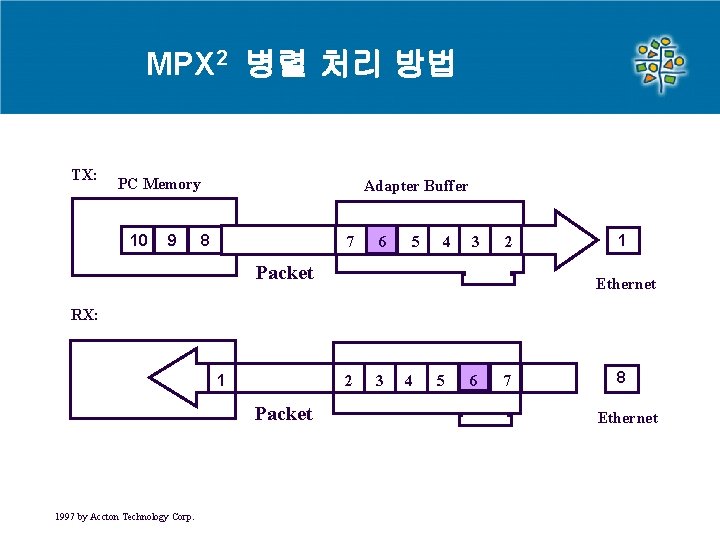

MPX 2 병렬 처리 방법 TX: PC Memory 10 9 Adapter Buffer 8 7 6 5 4 3 2 Packet 1 Ethernet RX: 1 2 Packet 1997 by Accton Technology Corp. 3 4 5 6 7 8 Ethernet

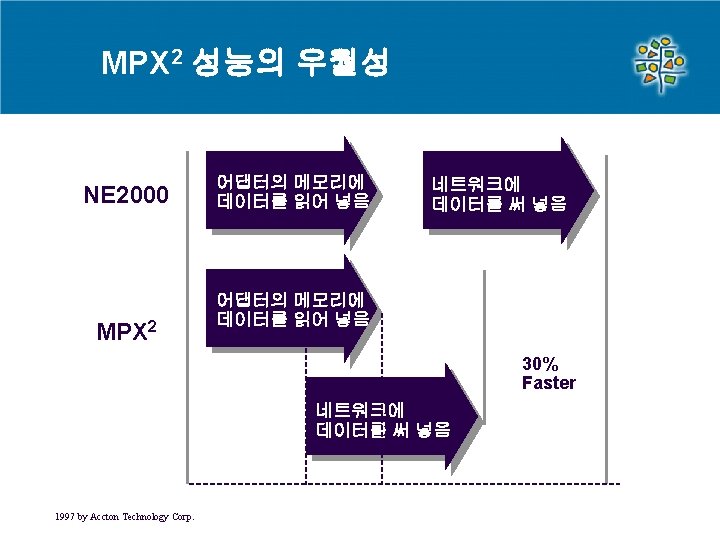

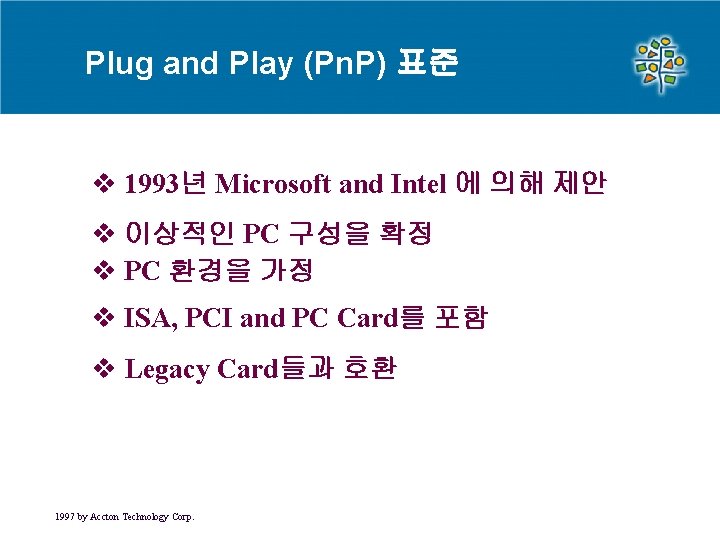

Plug and Play (Pn. P) 표준 v 1993년 Microsoft and Intel 에 의해 제안 v 이상적인 PC 구성을 확정 v PC 환경을 가정 v ISA, PCI and PC Card를 포함 v Legacy Card들과 호환 1997 by Accton Technology Corp.

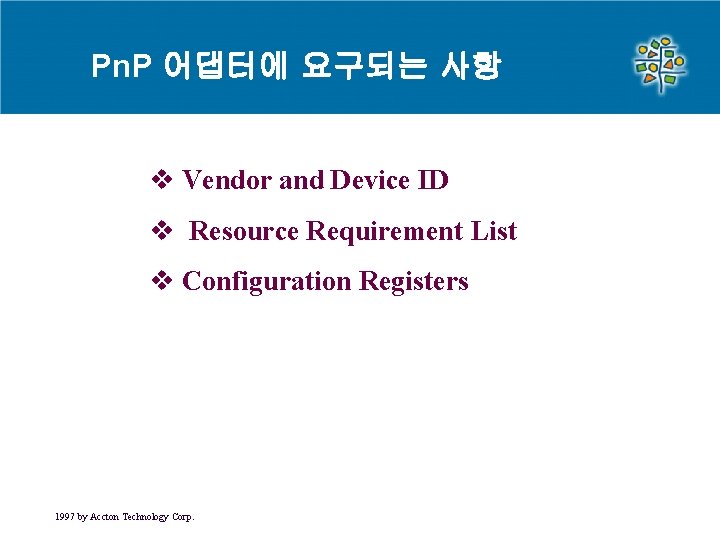

Pn. P 어댑터에 요구되는 사항 v Vendor and Device ID v Resource Requirement List v Configuration Registers 1997 by Accton Technology Corp.

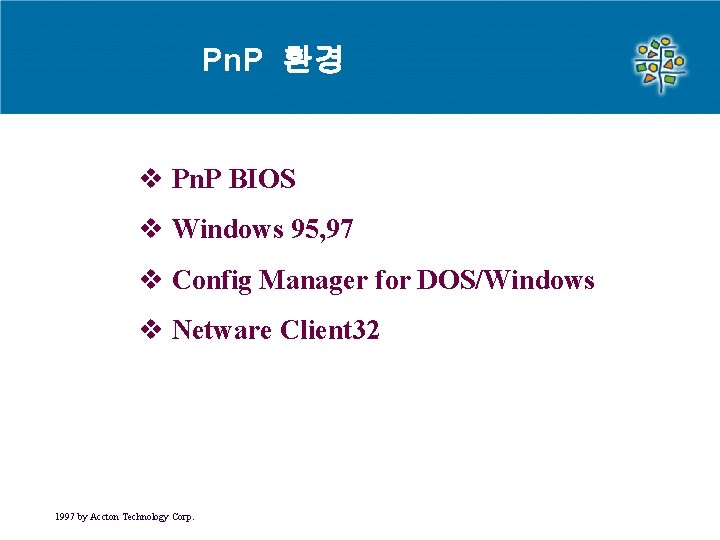

Pn. P 환경 v Pn. P BIOS v Windows 95, 97 v Config Manager for DOS/Windows v Netware Client 32 1997 by Accton Technology Corp.

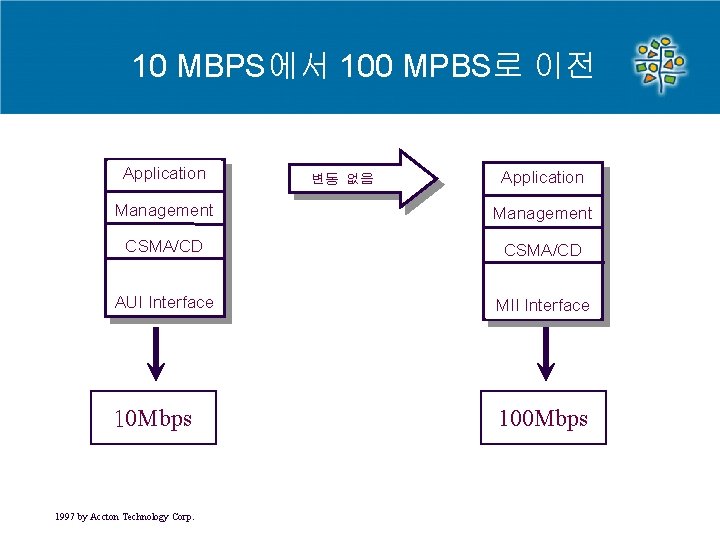

10 MBPS에서 100 MPBS로 이전 Application 변동 없음 Application Management CSMA/CD AUI Interface MII Interface 10 Mbps 100 Mbps 1997 by Accton Technology Corp.

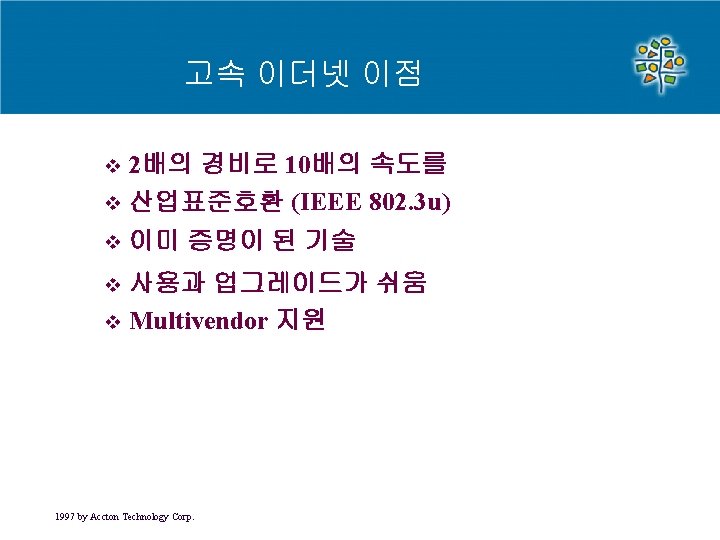

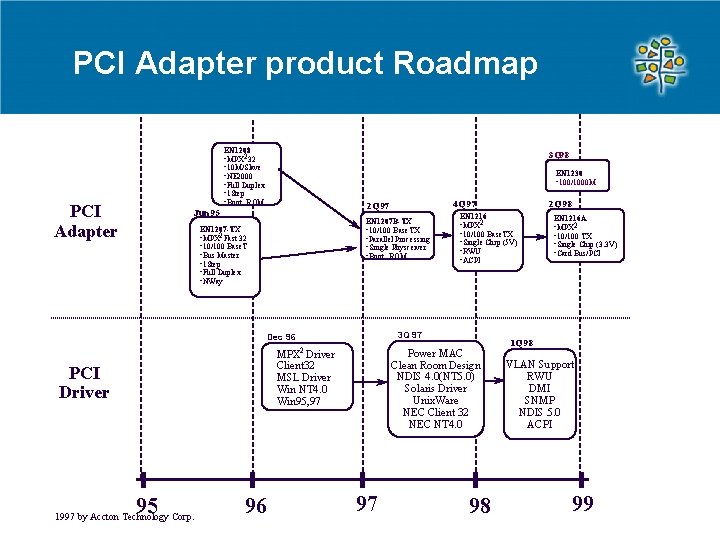

PCI Adapter product Roadmap EN 1208 • MPX 2 32 • 10 M/Slave • NE 2000 • Full Duplex • 1 Step • Boot ROM PCI Adapter 3 Q 98 EN 1230 • 100/1000 M EN 1207 B-TX • 10/100 Base. TX • Parallel Processing • Single Physceiver • Boot ROM EN 1207 -TX • MPX 2 Fast 32 • 10/100 Base. T • Bus Master • 1 Step • Full Duplex • NWay MPX 2 Driver Client 32 MSL Driver Win NT 4. 0 Win 95, 97 PCI Driver 95 96 Power MAC Clean Room Design NDIS 4. 0(NT 5. 0) Solaris Driver Unix. Ware NEC Client 32 NEC NT 4. 0 97 2 Q 98 EN 1216 • MPX 2 • 10/100 Base. TX • Single Chip (5 V) • RWU • ACPI 3 Q 97 Dec 96 1997 by Accton Technology Corp. 4 Q 97 2 Q 97 Jun 95 98 EN 1216 A • MPX 2 • 10/100 TX • Single Chip (3. 3 V) • Card Bus/PCI 1 Q 98 VLAN Support RWU DMI SNMP NDIS 5. 0 ACPI 99

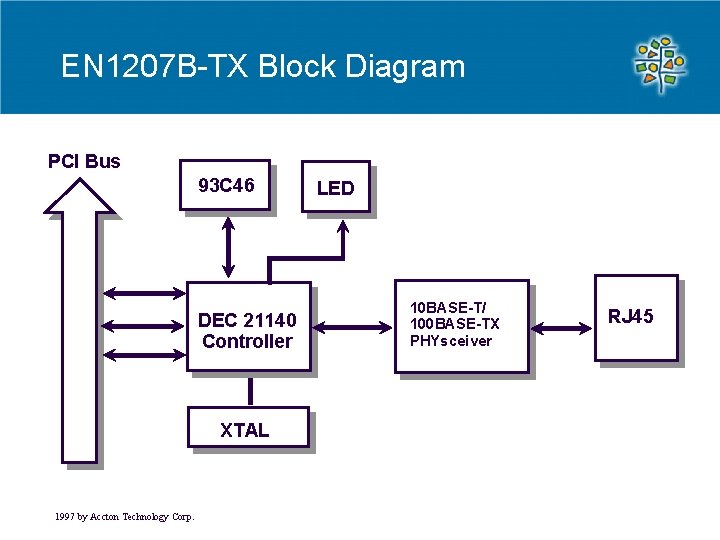

EN 1207 B-TX Block Diagram PCI Bus 93 C 46 DEC 21140 Controller XTAL 1997 by Accton Technology Corp. LED 10 BASE-T/ 100 BASE-TX PHYsceiver RJ 45

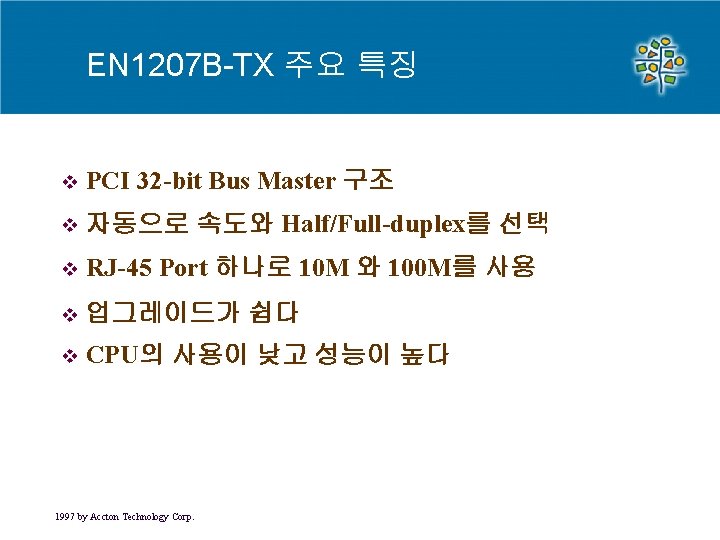

EN 1207 B-TX 주요 특징 v PCI 32 -bit Bus Master 구조 v 자동으로 속도와 Half/Full-duplex를 선택 v RJ-45 Port 하나로 10 M 와 100 M를 사용 v 업그레이드가 쉽다 v CPU의 사용이 낮고 성능이 높다 1997 by Accton Technology Corp.

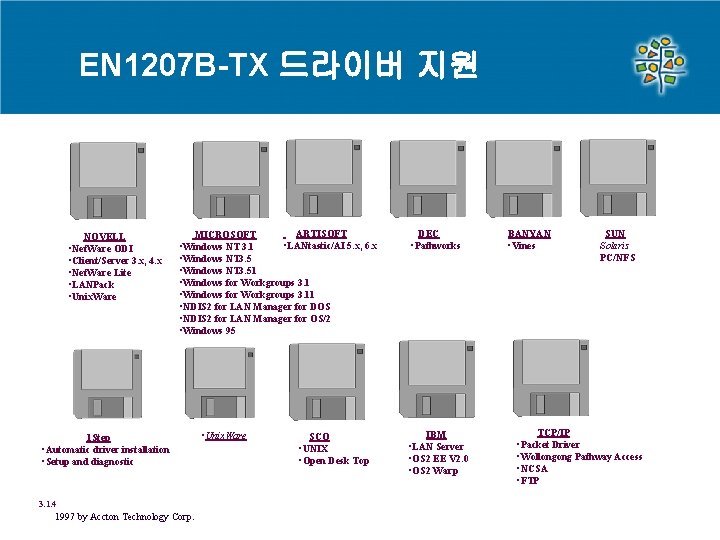

EN 1207 B-TX 드라이버 지원 NOVELL • Net. Ware ODI • Client/Server 3. x, 4. x • Net. Ware Lite • LANPack • Unix. Ware ARTISOFT MICROSOFT • LANtastic/AI 5. x, 6. x • Windows NT 3. 1 • Windows NT 3. 51 • Windows for Workgroups 3. 11 • NDIS 2 for LAN Manager for DOS • NDIS 2 for LAN Manager for OS/2 • Windows 95 1 Step • Automatic driver installation • Setup and diagnostic 3. 1. 4 1997 by Accton Technology Corp. • Unix. Ware SCO • UNIX • Open Desk Top DEC • Pathworks IBM • LAN Server • OS 2 EE V 2. 0 • OS 2 Warp BANYAN • Vines SUN Solaris PC/NFS TCP/IP • Packet Driver • Wollongong Pathway Access • NCSA • FTP

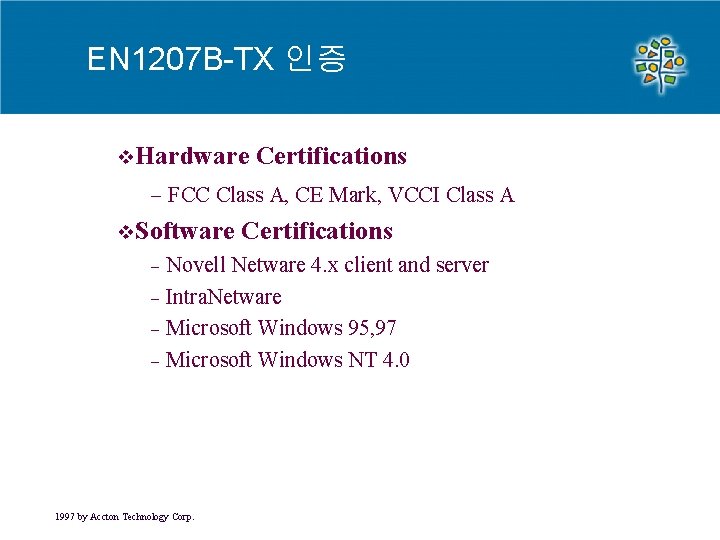

EN 1207 B-TX 인증 v. Hardware Certifications - FCC Class A, CE Mark, VCCI Class A v. Software Certifications Novell Netware 4. x client and server - Intra. Netware - Microsoft Windows 95, 97 - Microsoft Windows NT 4. 0 - 1997 by Accton Technology Corp.

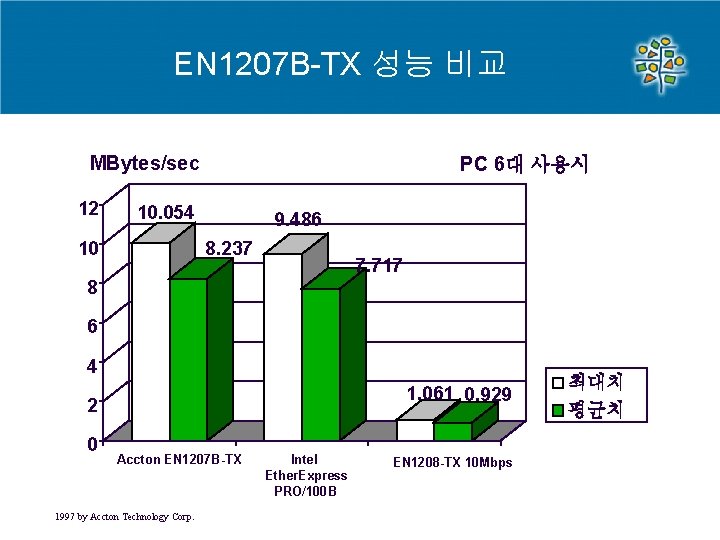

EN 1207 B-TX 성능 비교 MBytes/sec 12 PC 6대 사용시 10. 054 10 9. 486 8. 237 7. 717 8 6 4 1. 061 0. 929 2 0 Accton EN 1207 B-TX 1997 by Accton Technology Corp. Intel Ether. Express PRO/100 B EN 1208 -TX 10 Mbps 최대치 평균치

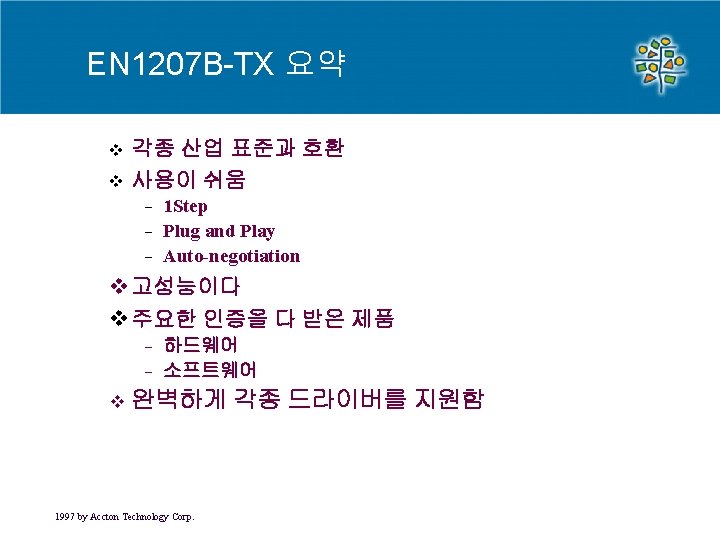

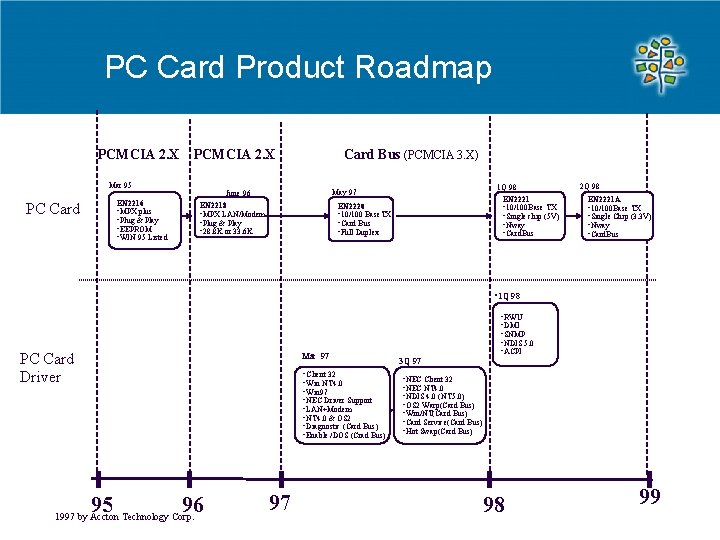

PC Card Product Roadmap PCMCIA 2. X Mar 95 1 Q 98 EN 2221 • 10/100 Base TX • Single chip (5 V) • Nway • Card. Bus May 97 June 96 EN 2216 • MPX plus • Plug & Play • EEPROM • WIN 95 Listed PC Card Bus (PCMCIA 3. X) EN 2218 • MPX LAN/Modem • Plug & Play • 28. 8 K or 33. 6 K EN 2220 • 10/100 Base. TX • Card Bus • Full Duplex 2 Q 98 EN 2221 A • 10/100 Base TX • Single Chip (3. 3 V) • Nway • Card. Bus • 1 Q 98 PC Card Driver Mar 97 • Client 32 • Win NT 4. 0 • Win 97 • NEC Driver Support • LAN+Modem • NT 4. 0 & OS 2 • Diagnostic (Card Bus) • Enable /DOS (Crad Bus) 95 96 1997 by Accton Technology Corp. 97 3 Q 97 • RWU • DMI • SNMP • NDIS 5. 0 • ACPI • NEC Client 32 • NEC NT 4. 0 • NDIS 4. 0 (NT 5. 0) • OS 2 Warp(Card Bus) • Win/NT(Card Bus) • Card Service(Card Bus) • Hot Swap(Card Bus) 98 99

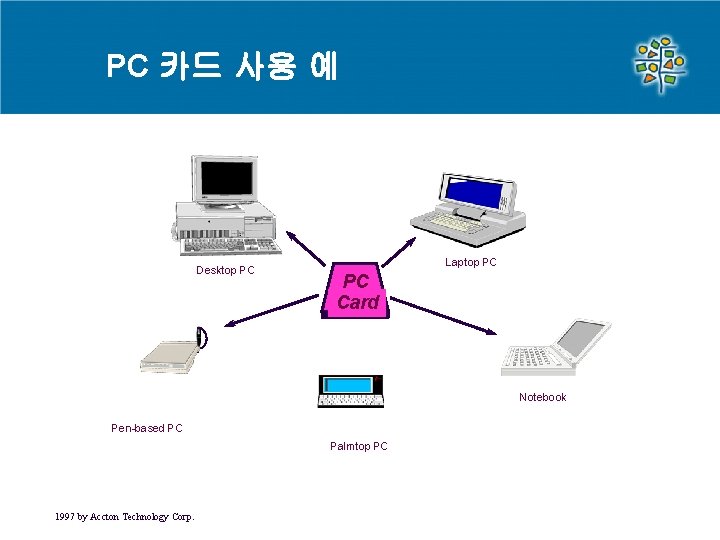

PC 카드 사용 예 Desktop PC Laptop PC PC Card Notebook Pen-based PC Palmtop PC 1997 by Accton Technology Corp.

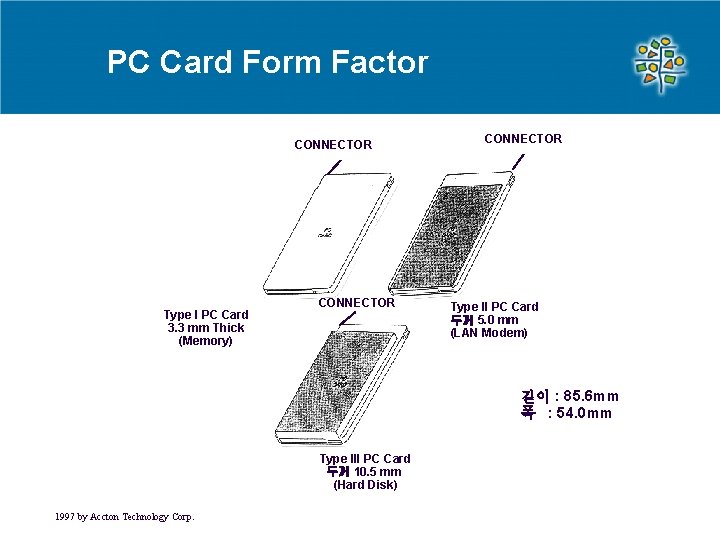

PC Card Form Factor CONNECTOR Type I PC Card 3. 3 mm Thick (Memory) CONNECTOR Type II PC Card 두께 5. 0 mm (LAN Modem) 길이 : 85. 6 mm 폭 : 54. 0 mm Type III PC Card 두께 10. 5 mm (Hard Disk) 1997 by Accton Technology Corp.

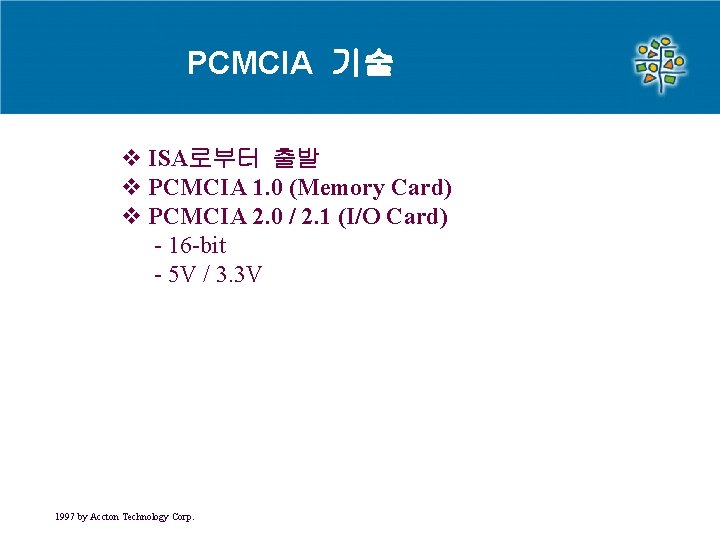

PCMCIA 기술 v ISA로부터 출발 v PCMCIA 1. 0 (Memory Card) v PCMCIA 2. 0 / 2. 1 (I/O Card) - 16 -bit - 5 V / 3. 3 V 1997 by Accton Technology Corp.

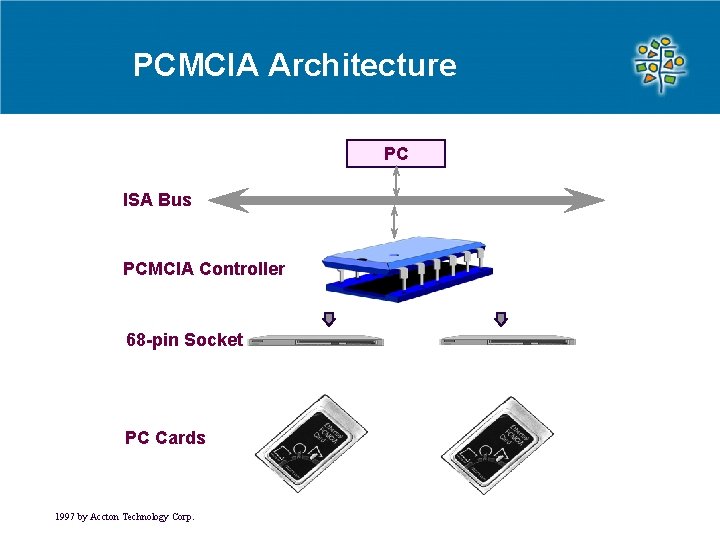

PCMCIA Architecture PC ISA Bus PCMCIA Controller 68 -pin Socket PC Cards 1997 by Accton Technology Corp.

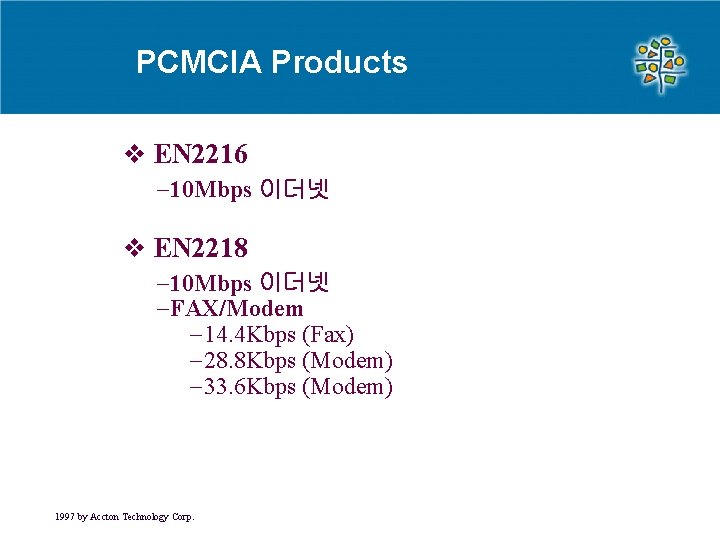

PCMCIA Products v EN 2216 -10 Mbps 이더넷 v EN 2218 -10 Mbps 이더넷 -FAX/Modem -14. 4 Kbps (Fax) -28. 8 Kbps (Modem) -33. 6 Kbps (Modem) 1997 by Accton Technology Corp.

Why Ethernet + Modem PC Card To remain connected in and out ! 1997 by Accton Technology Corp.

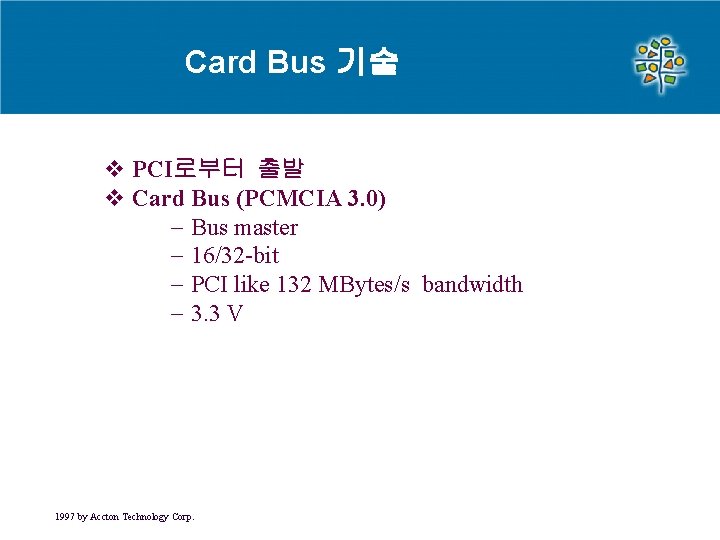

Card Bus 기술 v PCI로부터 출발 v Card Bus (PCMCIA 3. 0) - Bus master - 16/32 -bit - PCI like 132 MBytes/s bandwidth - 3. 3 V 1997 by Accton Technology Corp.

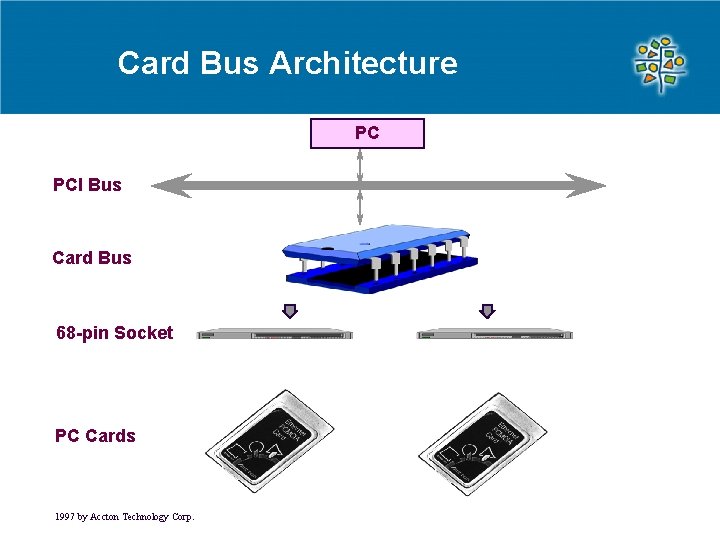

Card Bus Architecture PC PCI Bus Card Bus 68 -pin Socket PC Cards 1997 by Accton Technology Corp.

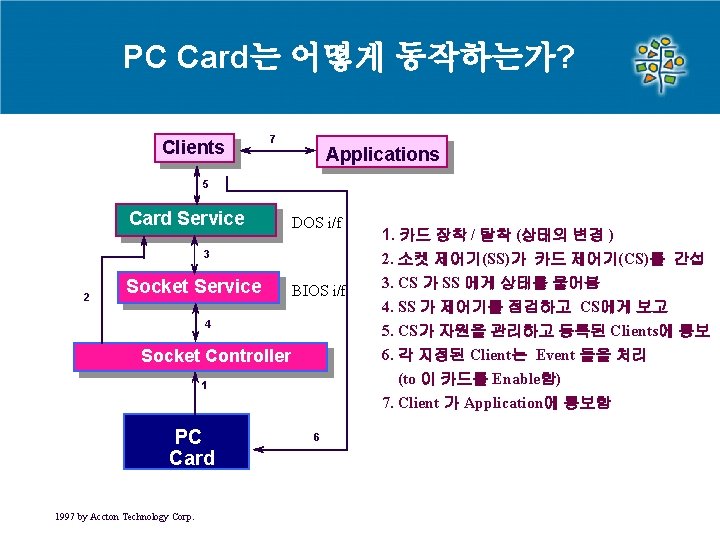

PC Card는 어떻게 동작하는가? Clients 7 Applications 5 Card Service DOS i/f 3 2 Socket Service BIOS i/f 4 Socket Controller 1 PC Card 1997 by Accton Technology Corp. 6 1. 카드 장착 / 탈착 (상태의 변경 ) 2. 소켓 제어기(SS)가 카드 제어기(CS)를 간섭 3. CS 가 SS 에게 상태를 물어봄 4. SS 가 제어기를 점검하고 CS에게 보고 5. CS가 자원을 관리하고 등록된 Clients에 통보 6. 각 지정된 Client는 Event 들을 처리 (to 이 카드를 Enable함) 7. Client 가 Application에 통보함

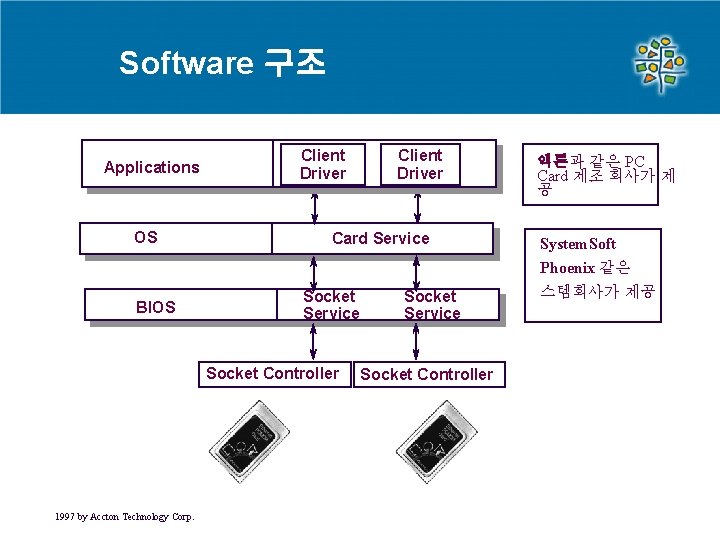

Software 구조 Applications OS BIOS Client Driver Card Service Socket Controller 1997 by Accton Technology Corp. Client Driver Socket Service Socket Controller 액톤과 같은 PC Card 제조 회사가 제 공 System. Soft Phoenix 같은 스템회사가 제공

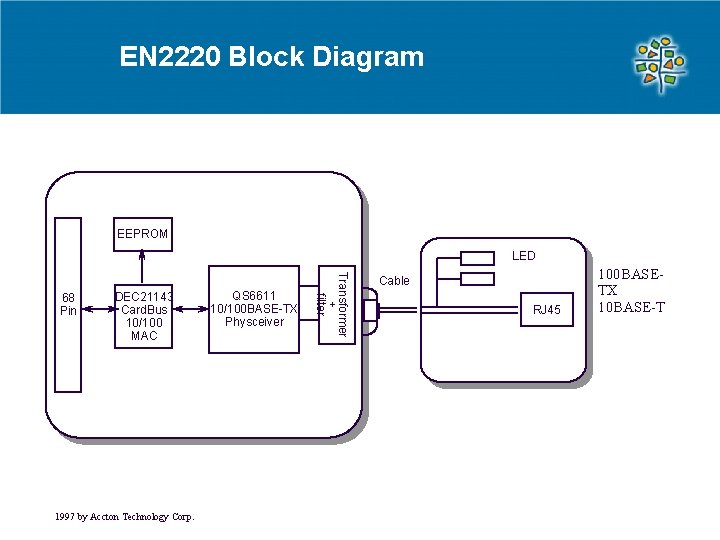

EN 2220 Block Diagram EEPROM LED DEC 21143 Card. Bus 10/100 MAC 1997 by Accton Technology Corp. QS 6611 10/100 BASE-TX Physceiver Transformer + filter 68 Pin Cable RJ 45 100 BASETX 10 BASE-T

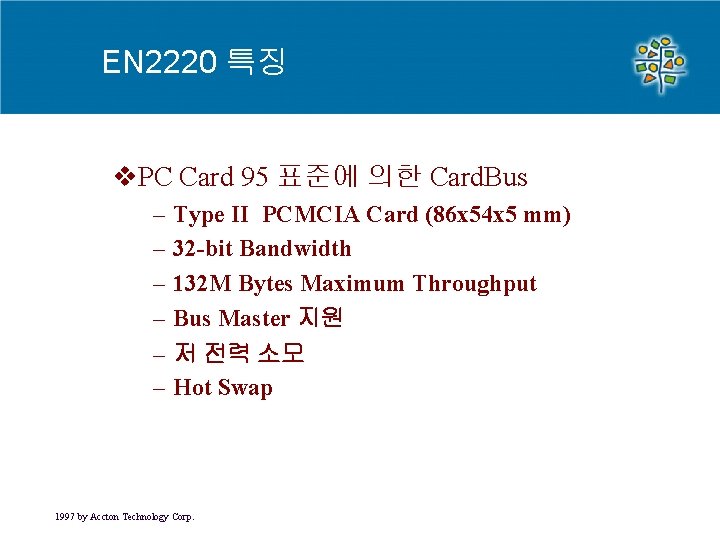

EN 2220 특징 v. PC Card 95 표준에 의한 Card. Bus – – – Type II PCMCIA Card (86 x 54 x 5 mm) 32 -bit Bandwidth 132 M Bytes Maximum Throughput Bus Master 지원 저 전력 소모 Hot Swap 1997 by Accton Technology Corp.

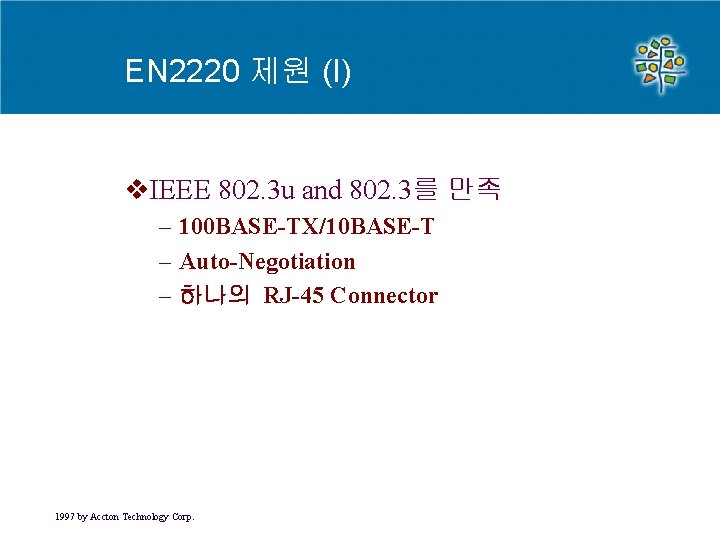

EN 2220 제원 (I) v. IEEE 802. 3 u and 802. 3를 만족 – 100 BASE-TX/10 BASE-T – Auto-Negotiation – 하나의 RJ-45 Connector 1997 by Accton Technology Corp.

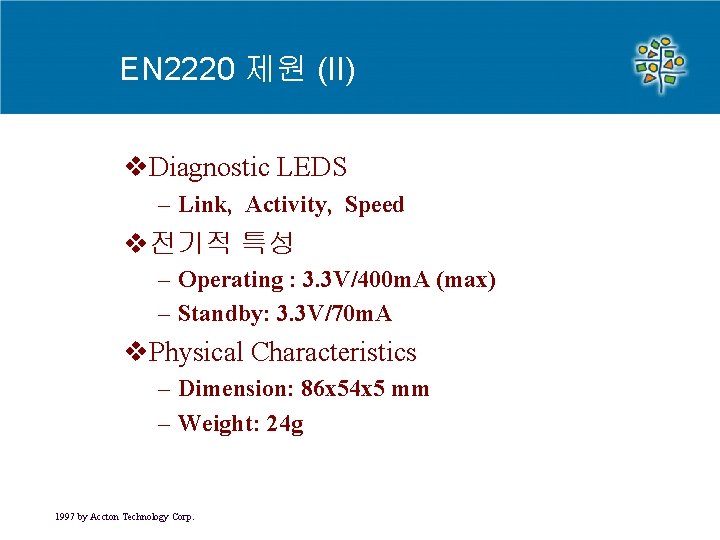

EN 2220 제원 (II) v. Diagnostic LEDS – Link, Activity, Speed v전기적 특성 – Operating : 3. 3 V/400 m. A (max) – Standby: 3. 3 V/70 m. A v. Physical Characteristics – Dimension: 86 x 54 x 5 mm – Weight: 24 g 1997 by Accton Technology Corp.

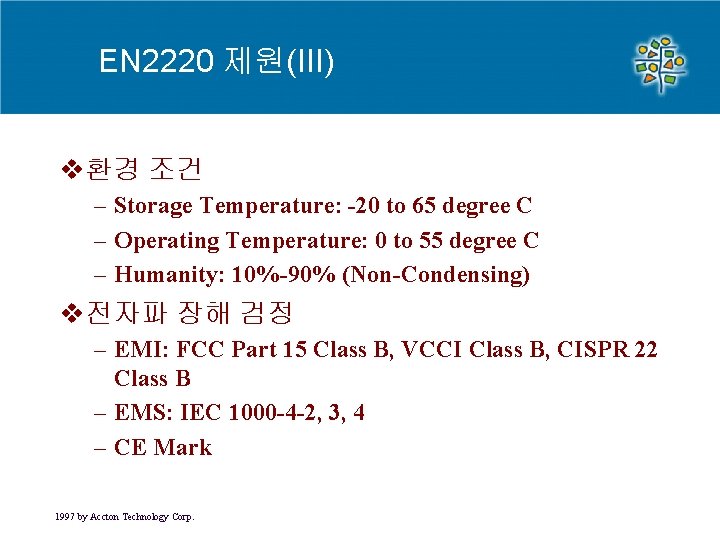

EN 2220 제원(III) v환경 조건 – Storage Temperature: -20 to 65 degree C – Operating Temperature: 0 to 55 degree C – Humanity: 10%-90% (Non-Condensing) v전자파 장해 검정 – EMI: FCC Part 15 Class B, VCCI Class B, CISPR 22 Class B – EMS: IEC 1000 -4 -2, 3, 4 – CE Mark 1997 by Accton Technology Corp.

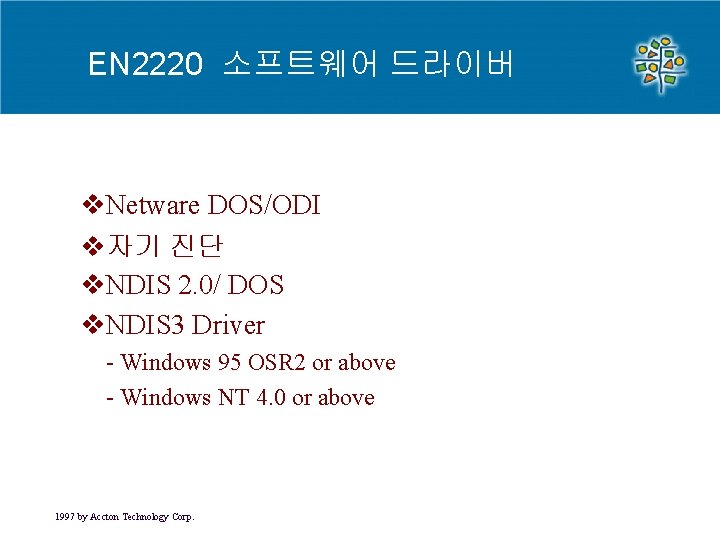

EN 2220 소프트웨어 드라이버 v. Netware DOS/ODI v자기 진단 v. NDIS 2. 0/ DOS v. NDIS 3 Driver - Windows 95 OSR 2 or above - Windows NT 4. 0 or above 1997 by Accton Technology Corp.

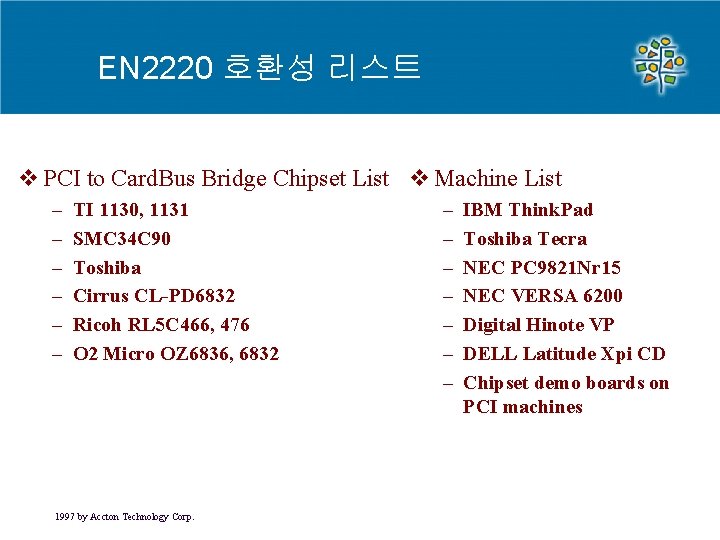

EN 2220 호환성 리스트 v PCI to Card. Bus Bridge Chipset List v Machine List – – – TI 1130, 1131 SMC 34 C 90 Toshiba Cirrus CL-PD 6832 Ricoh RL 5 C 466, 476 O 2 Micro OZ 6836, 6832 1997 by Accton Technology Corp. – – – – IBM Think. Pad Toshiba Tecra NEC PC 9821 Nr 15 NEC VERSA 6200 Digital Hinote VP DELL Latitude Xpi CD Chipset demo boards on PCI machines

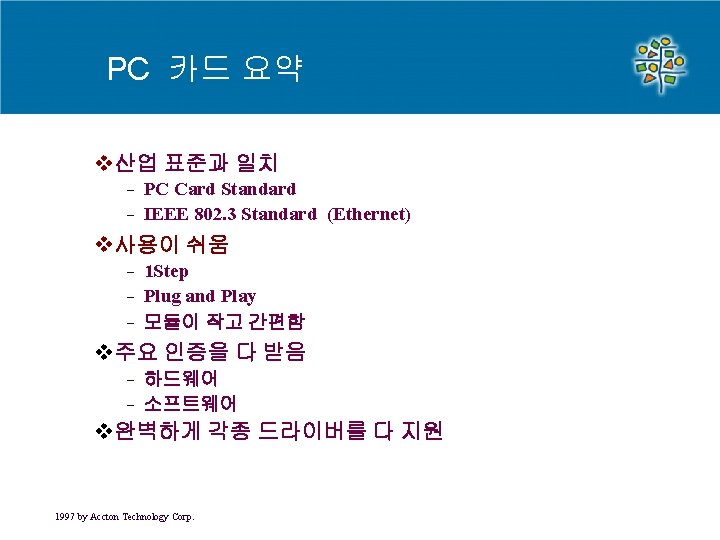

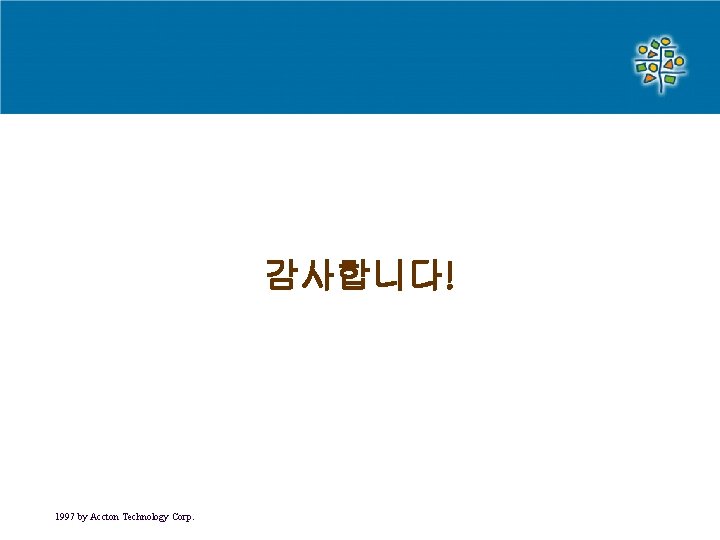

감사합니다! 1997 by Accton Technology Corp.
