Accounting Information Systems 9 th Edition Marshall B

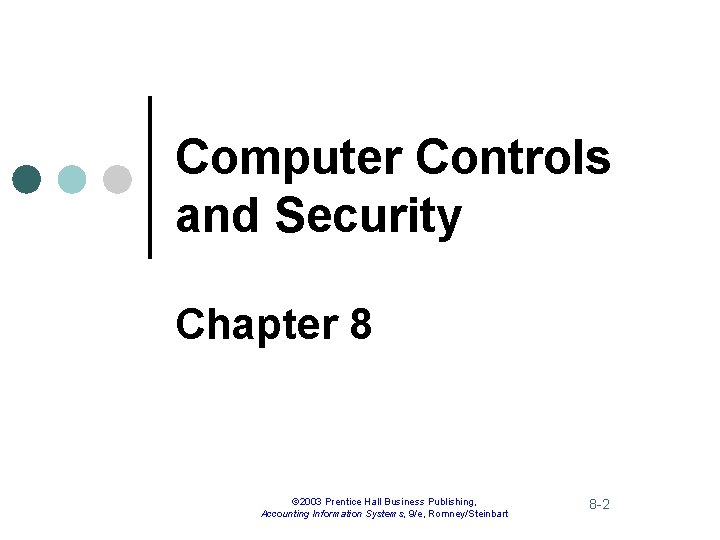

Computer Controls and Security Chapter 8 © 2003 Prentice Hall Business Publishing, Accounting Information

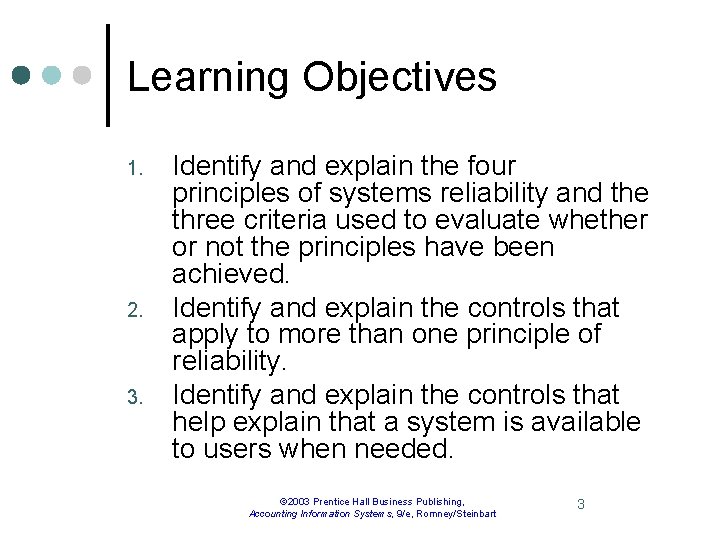

Learning Objectives 1. 2. 3. Identify and explain the four principles of systems reliability and the three criteria used to evaluate whether or not the principles have been achieved. Identify and explain the controls that apply to more than one principle of reliability. Identify and explain the controls that help explain that a system is available to users when needed. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 3

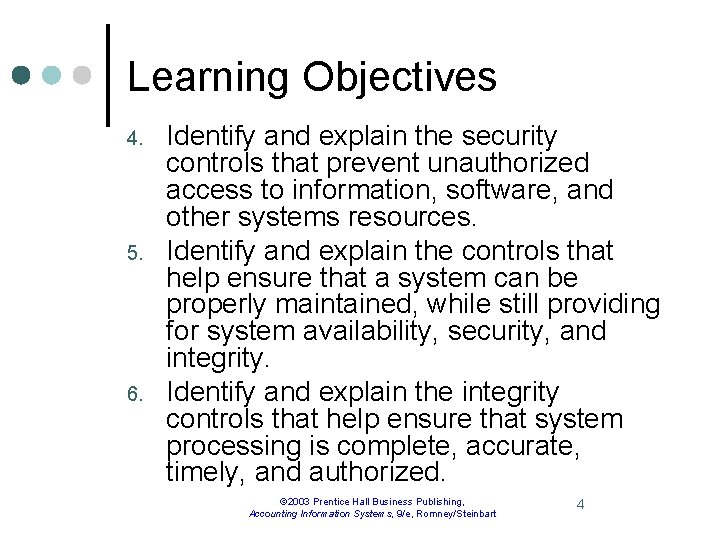

Learning Objectives 4. 5. 6. Identify and explain the security controls that prevent unauthorized access to information, software, and other systems resources. Identify and explain the controls that help ensure that a system can be properly maintained, while still providing for system availability, security, and integrity. Identify and explain the integrity controls that help ensure that system processing is complete, accurate, timely, and authorized. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 4

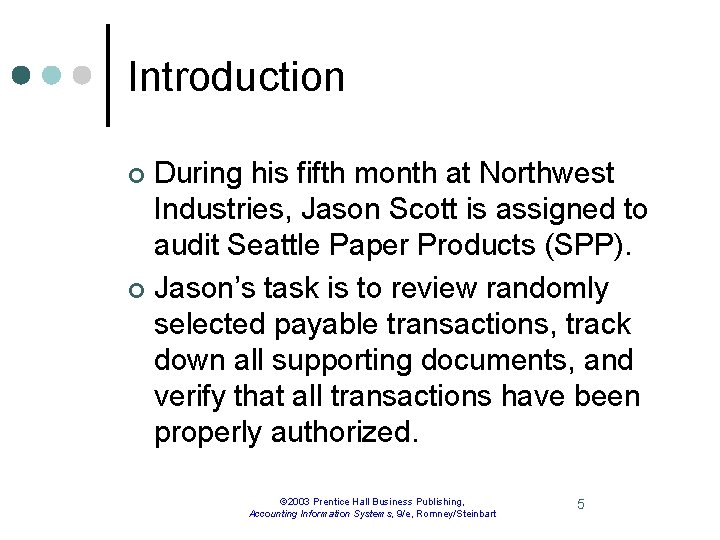

Introduction During his fifth month at Northwest Industries, Jason Scott is assigned to audit Seattle Paper Products (SPP). ¢ Jason’s task is to review randomly selected payable transactions, track down all supporting documents, and verify that all transactions have been properly authorized. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 5

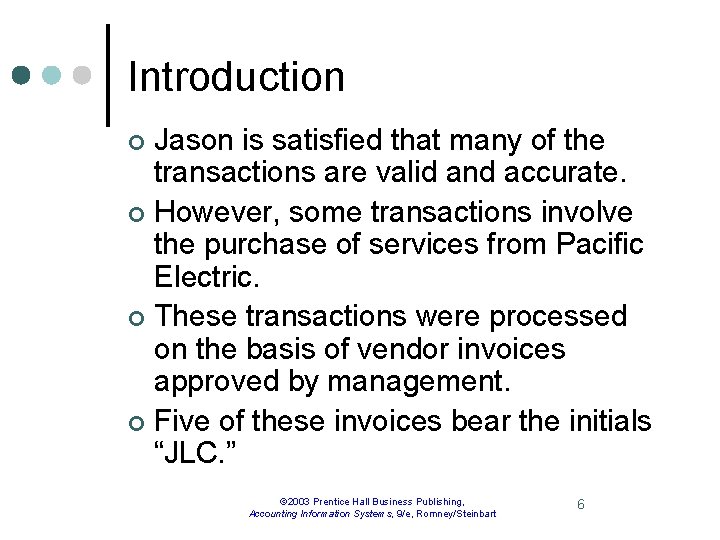

Introduction Jason is satisfied that many of the transactions are valid and accurate. ¢ However, some transactions involve the purchase of services from Pacific Electric. ¢ These transactions were processed on the basis of vendor invoices approved by management. ¢ Five of these invoices bear the initials “JLC. ” ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 6

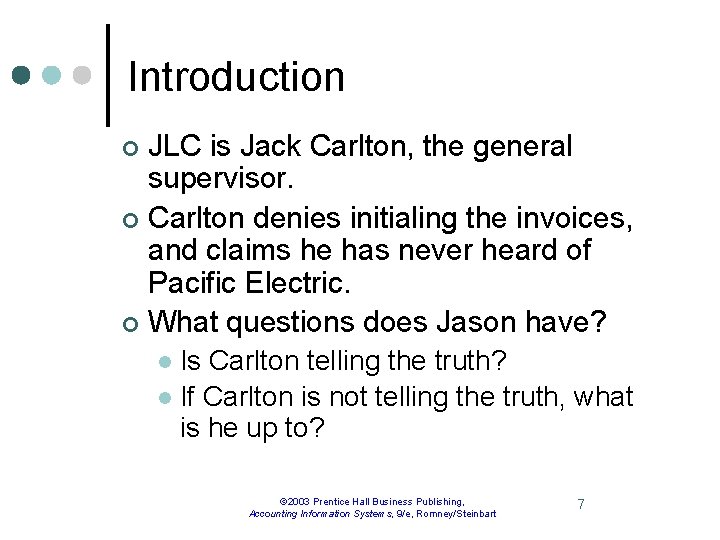

Introduction JLC is Jack Carlton, the general supervisor. ¢ Carlton denies initialing the invoices, and claims he has never heard of Pacific Electric. ¢ What questions does Jason have? ¢ Is Carlton telling the truth? l If Carlton is not telling the truth, what is he up to? l © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 7

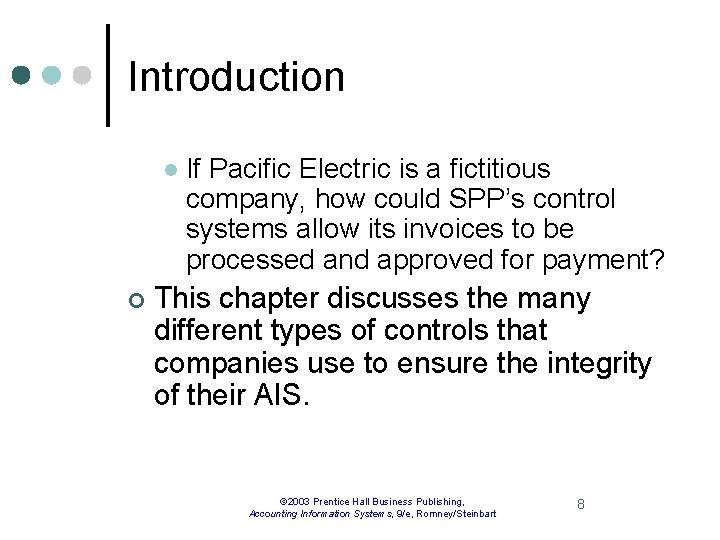

Introduction l ¢ If Pacific Electric is a fictitious company, how could SPP’s control systems allow its invoices to be processed and approved for payment? This chapter discusses the many different types of controls that companies use to ensure the integrity of their AIS. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 8

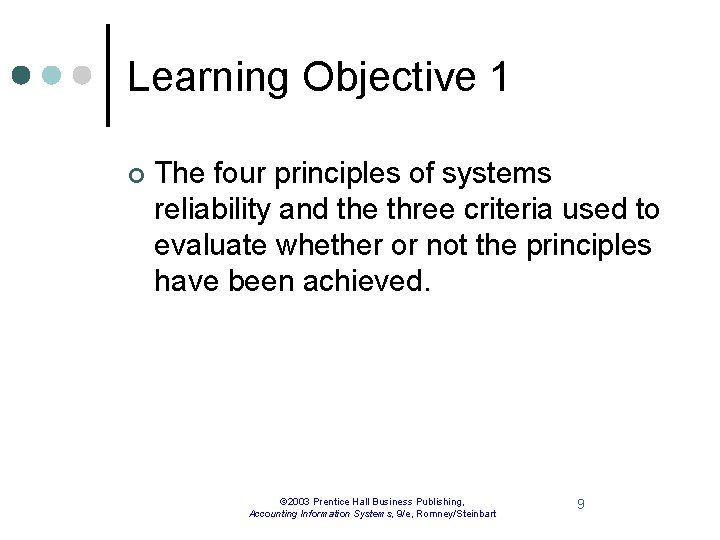

Learning Objective 1 ¢ The four principles of systems reliability and the three criteria used to evaluate whether or not the principles have been achieved. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 9

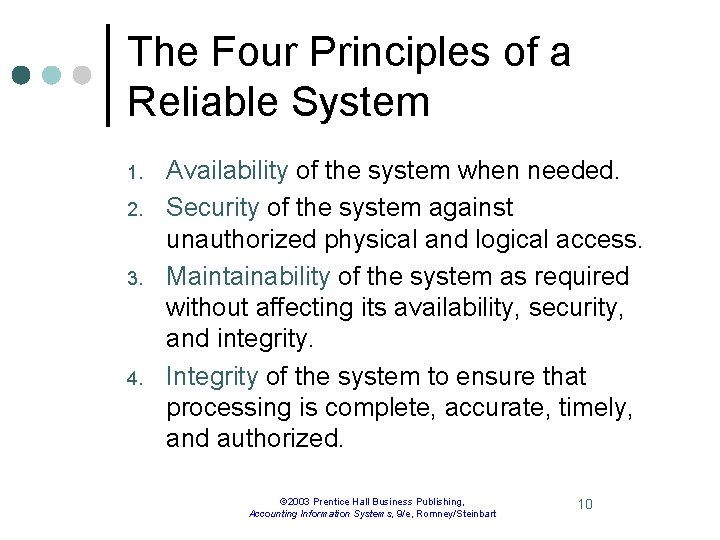

The Four Principles of a Reliable System 1. 2. 3. 4. Availability of the system when needed. Security of the system against unauthorized physical and logical access. Maintainability of the system as required without affecting its availability, security, and integrity. Integrity of the system to ensure that processing is complete, accurate, timely, and authorized. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 10

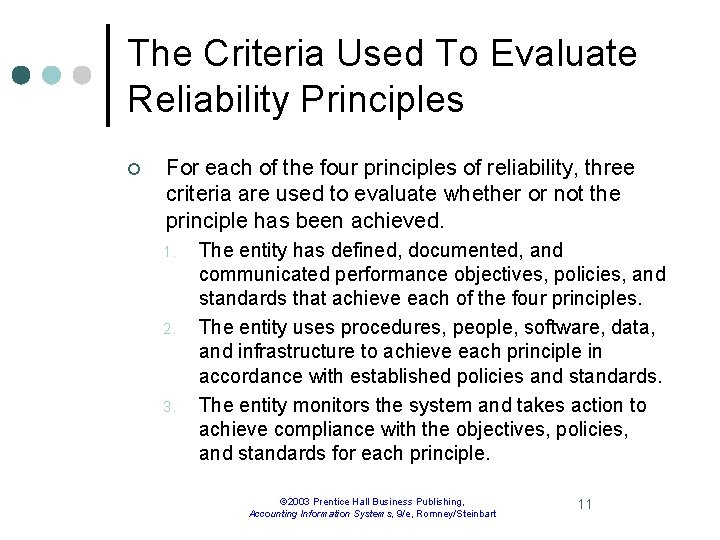

The Criteria Used To Evaluate Reliability Principles ¢ For each of the four principles of reliability, three criteria are used to evaluate whether or not the principle has been achieved. 1. 2. 3. The entity has defined, documented, and communicated performance objectives, policies, and standards that achieve each of the four principles. The entity uses procedures, people, software, data, and infrastructure to achieve each principle in accordance with established policies and standards. The entity monitors the system and takes action to achieve compliance with the objectives, policies, and standards for each principle. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 11

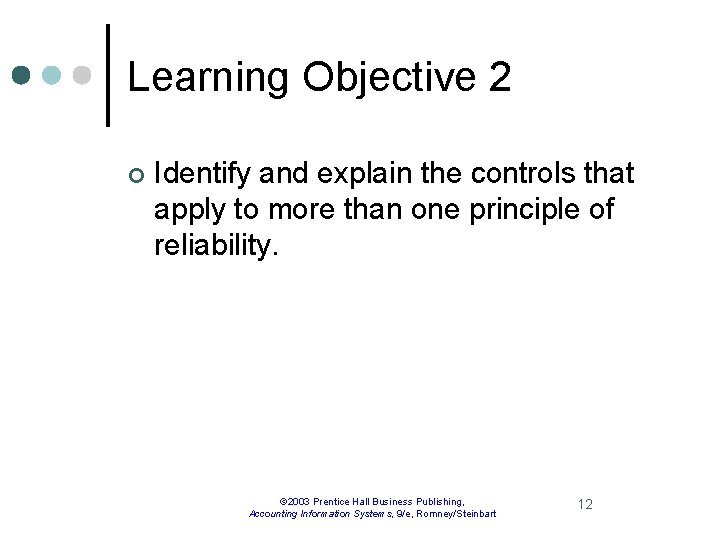

Learning Objective 2 ¢ Identify and explain the controls that apply to more than one principle of reliability. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 12

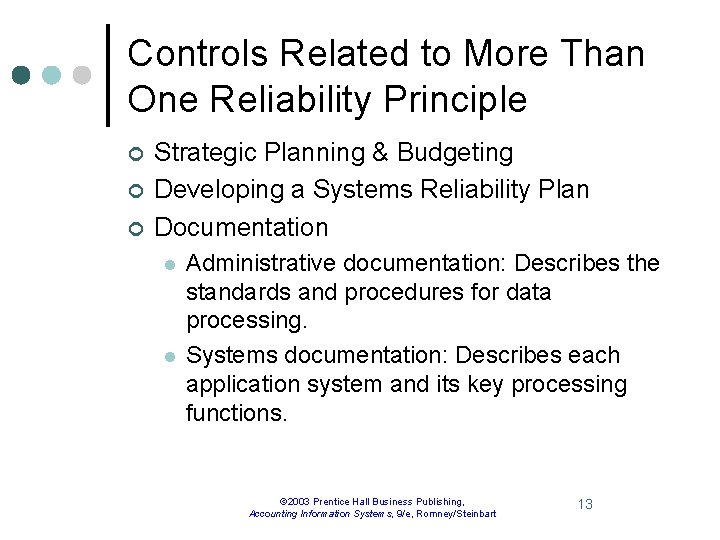

Controls Related to More Than One Reliability Principle ¢ ¢ ¢ Strategic Planning & Budgeting Developing a Systems Reliability Plan Documentation l l Administrative documentation: Describes the standards and procedures for data processing. Systems documentation: Describes each application system and its key processing functions. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 13

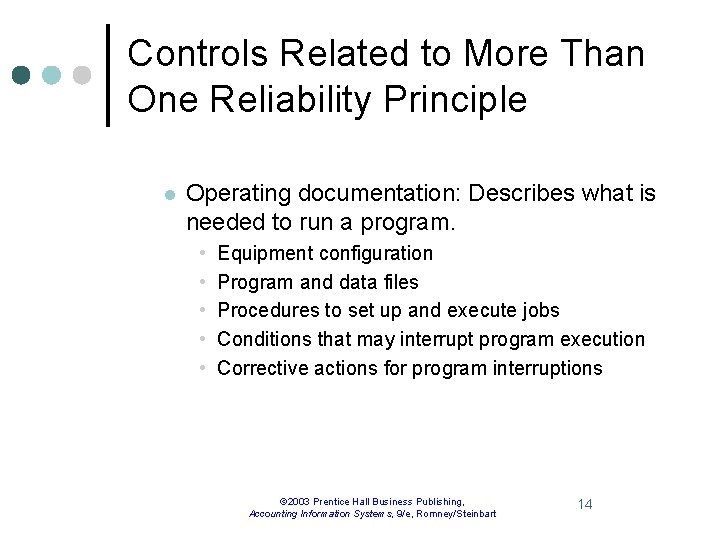

Controls Related to More Than One Reliability Principle l Operating documentation: Describes what is needed to run a program. • • • Equipment configuration Program and data files Procedures to set up and execute jobs Conditions that may interrupt program execution Corrective actions for program interruptions © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 14

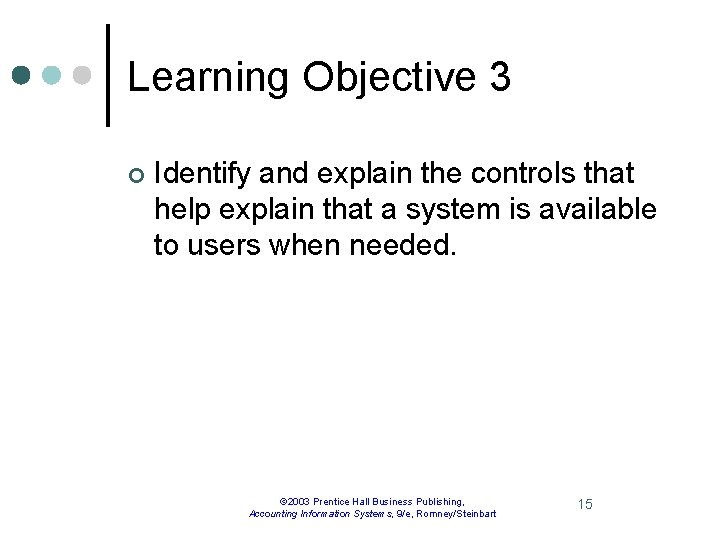

Learning Objective 3 ¢ Identify and explain the controls that help explain that a system is available to users when needed. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 15

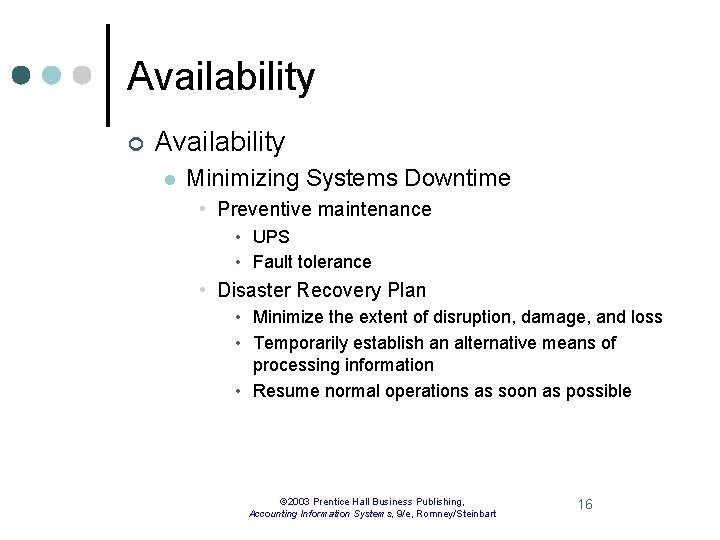

Availability ¢ Availability l Minimizing Systems Downtime • Preventive maintenance • UPS • Fault tolerance • Disaster Recovery Plan • Minimize the extent of disruption, damage, and loss • Temporarily establish an alternative means of processing information • Resume normal operations as soon as possible © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 16

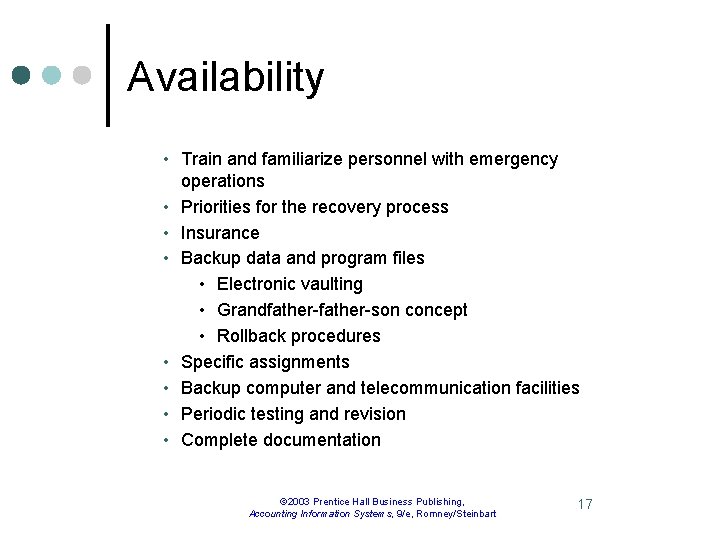

Availability • Train and familiarize personnel with emergency operations • Priorities for the recovery process • Insurance • Backup data and program files • Electronic vaulting • Grandfather-son concept • Rollback procedures • Specific assignments • Backup computer and telecommunication facilities • Periodic testing and revision • Complete documentation © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 17

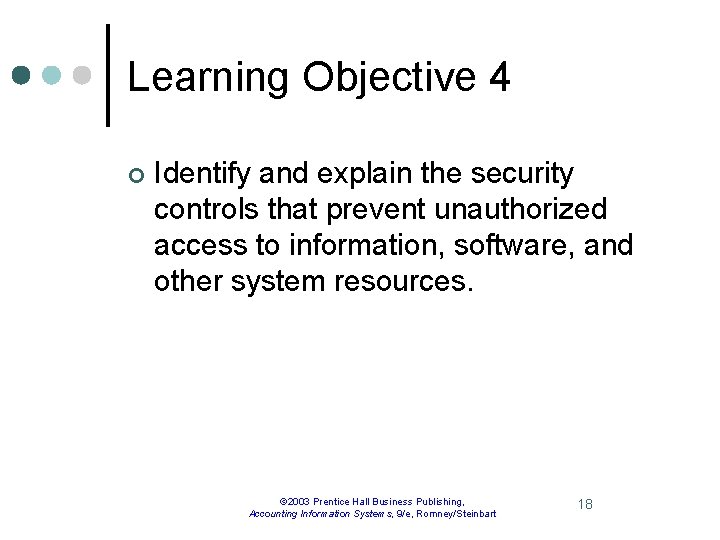

Learning Objective 4 ¢ Identify and explain the security controls that prevent unauthorized access to information, software, and other system resources. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 18

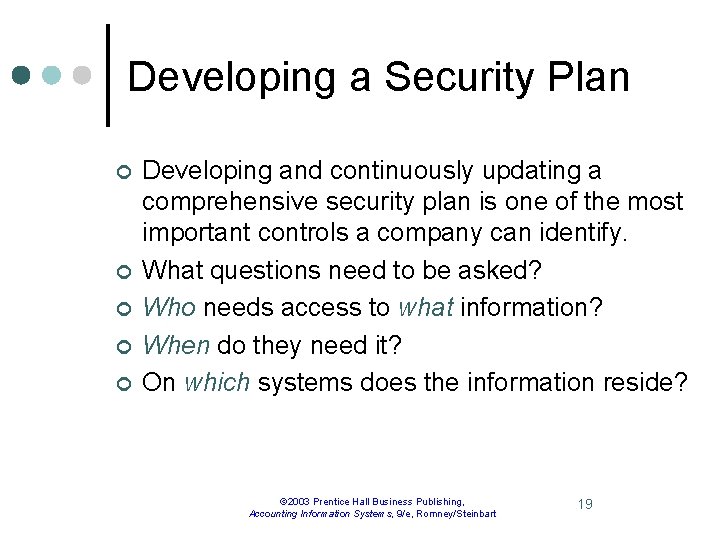

Developing a Security Plan ¢ ¢ ¢ Developing and continuously updating a comprehensive security plan is one of the most important controls a company can identify. What questions need to be asked? Who needs access to what information? When do they need it? On which systems does the information reside? © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 19

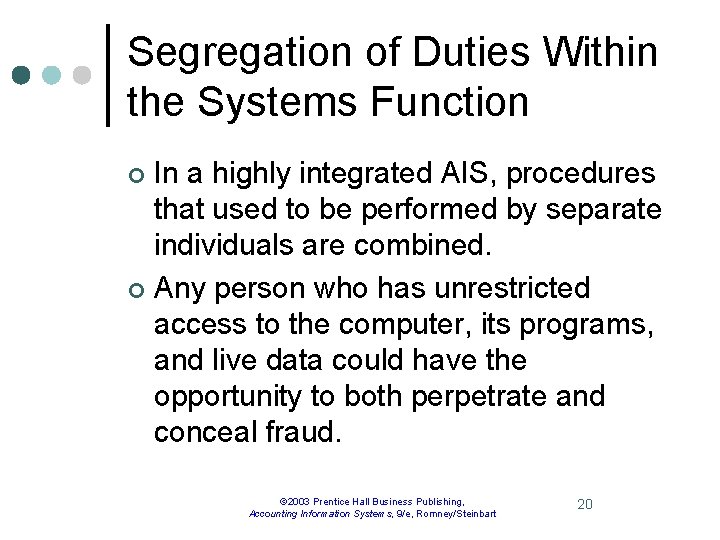

Segregation of Duties Within the Systems Function In a highly integrated AIS, procedures that used to be performed by separate individuals are combined. ¢ Any person who has unrestricted access to the computer, its programs, and live data could have the opportunity to both perpetrate and conceal fraud. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 20

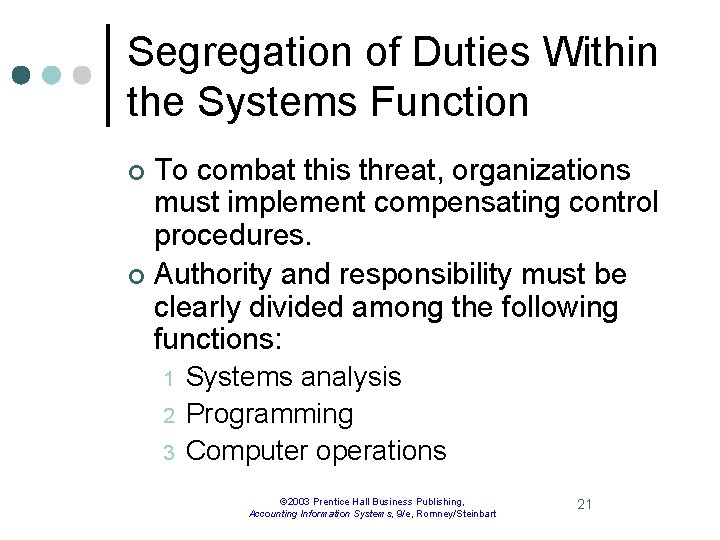

Segregation of Duties Within the Systems Function To combat this threat, organizations must implement compensating control procedures. ¢ Authority and responsibility must be clearly divided among the following functions: ¢ 1 2 3 Systems analysis Programming Computer operations © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 21

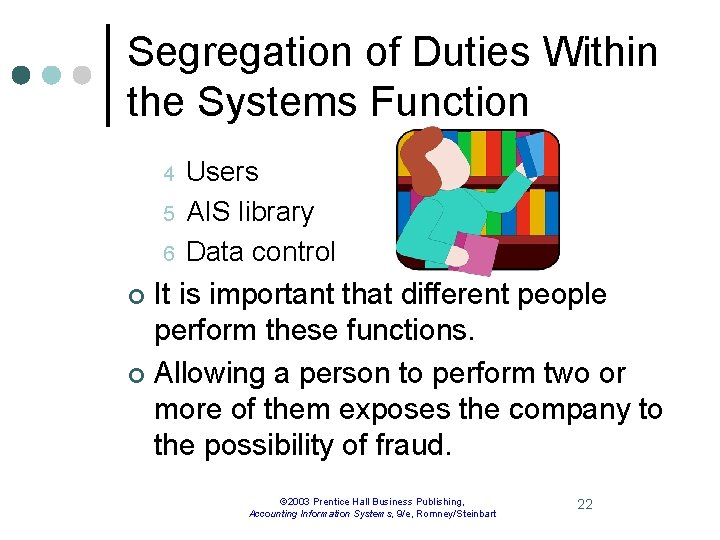

Segregation of Duties Within the Systems Function 4 5 6 Users AIS library Data control It is important that different people perform these functions. ¢ Allowing a person to perform two or more of them exposes the company to the possibility of fraud. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 22

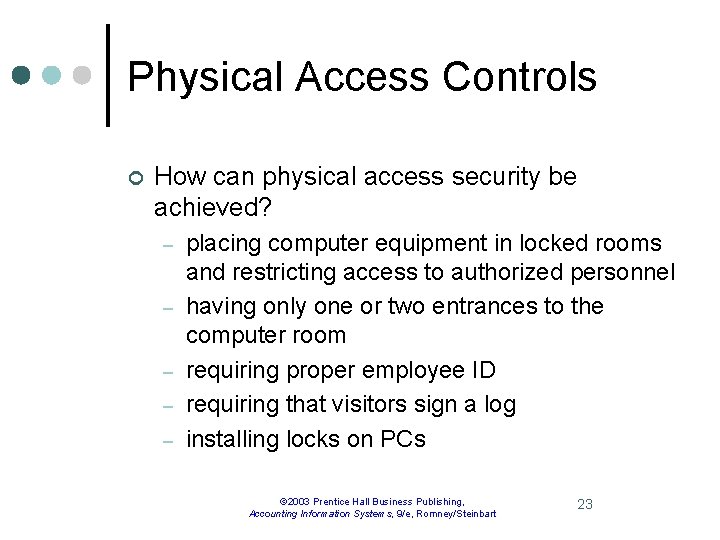

Physical Access Controls ¢ How can physical access security be achieved? – – – placing computer equipment in locked rooms and restricting access to authorized personnel having only one or two entrances to the computer room requiring proper employee ID requiring that visitors sign a log installing locks on PCs © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 23

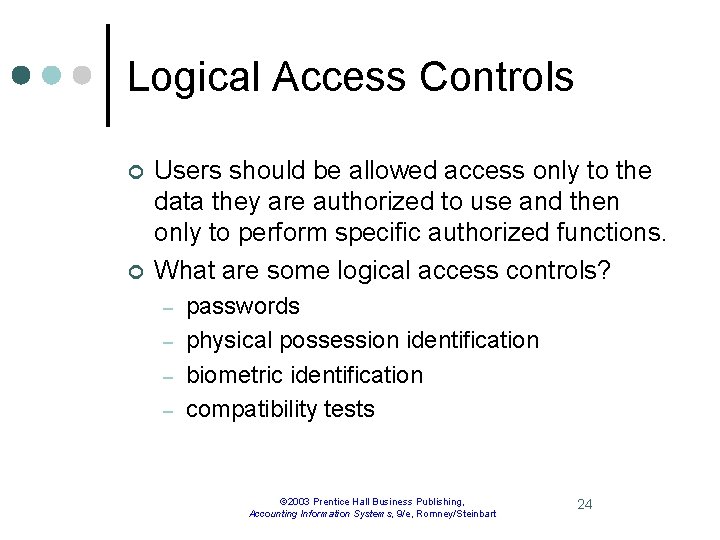

Logical Access Controls ¢ ¢ Users should be allowed access only to the data they are authorized to use and then only to perform specific authorized functions. What are some logical access controls? – – passwords physical possession identification biometric identification compatibility tests © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 24

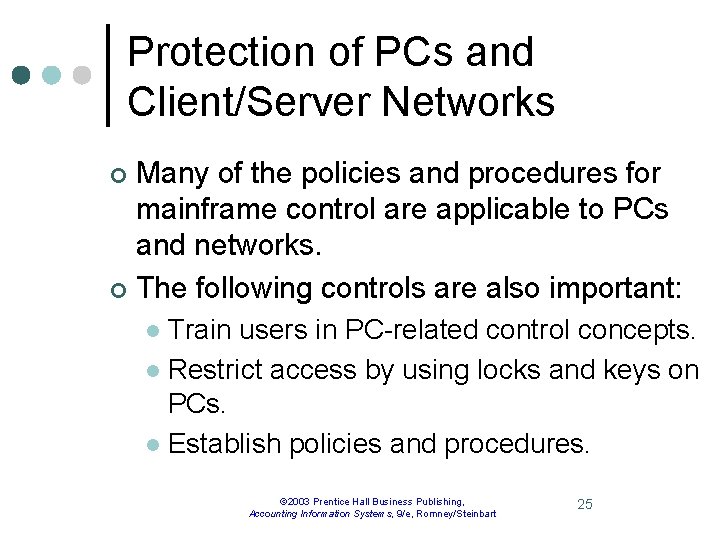

Protection of PCs and Client/Server Networks Many of the policies and procedures for mainframe control are applicable to PCs and networks. ¢ The following controls are also important: ¢ Train users in PC-related control concepts. l Restrict access by using locks and keys on PCs. l Establish policies and procedures. l © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 25

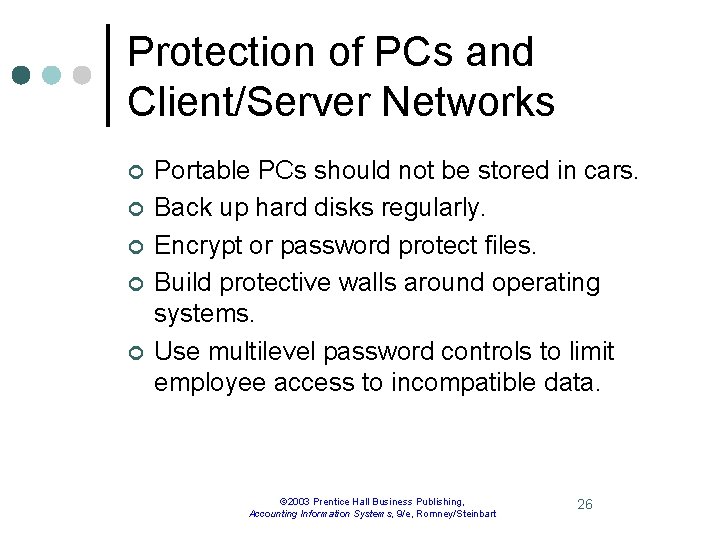

Protection of PCs and Client/Server Networks ¢ ¢ ¢ Portable PCs should not be stored in cars. Back up hard disks regularly. Encrypt or password protect files. Build protective walls around operating systems. Use multilevel password controls to limit employee access to incompatible data. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 26

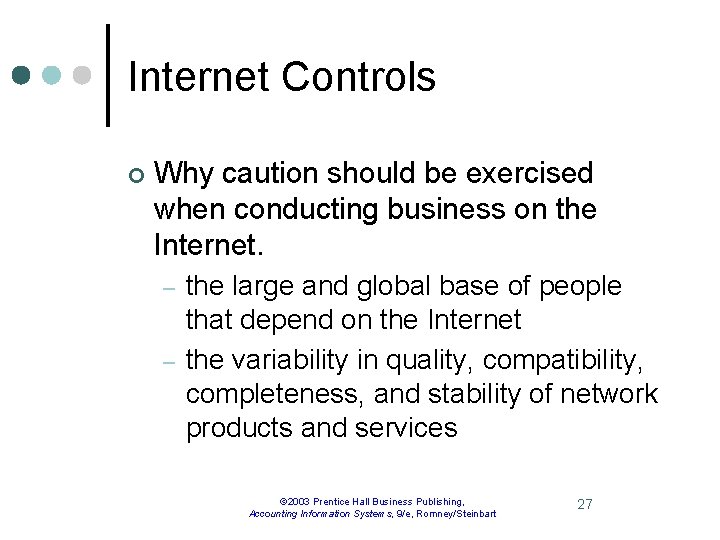

Internet Controls ¢ Why caution should be exercised when conducting business on the Internet. – – the large and global base of people that depend on the Internet the variability in quality, compatibility, completeness, and stability of network products and services © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 27

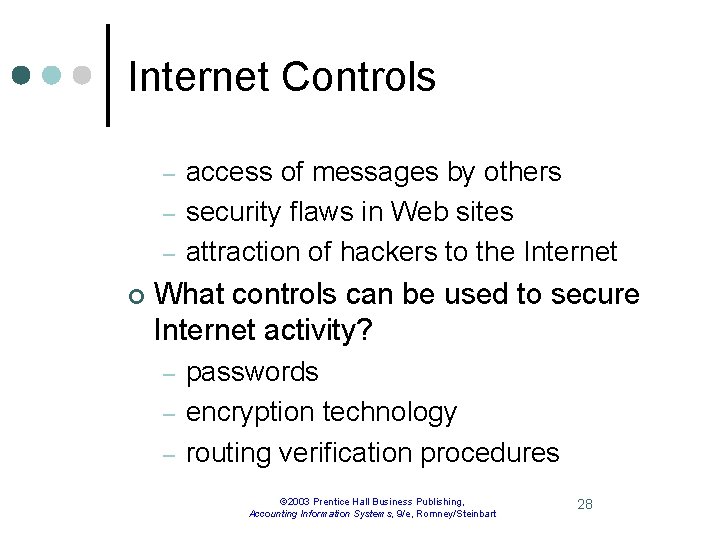

Internet Controls – – – ¢ access of messages by others security flaws in Web sites attraction of hackers to the Internet What controls can be used to secure Internet activity? – – – passwords encryption technology routing verification procedures © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 28

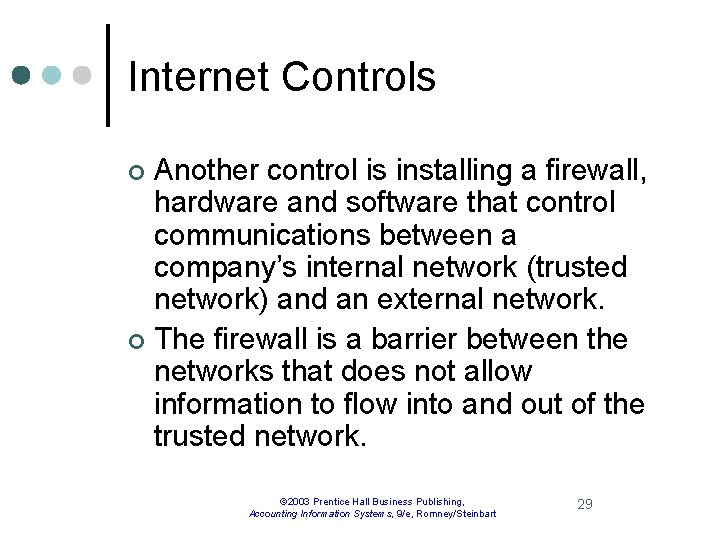

Internet Controls Another control is installing a firewall, hardware and software that control communications between a company’s internal network (trusted network) and an external network. ¢ The firewall is a barrier between the networks that does not allow information to flow into and out of the trusted network. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 29

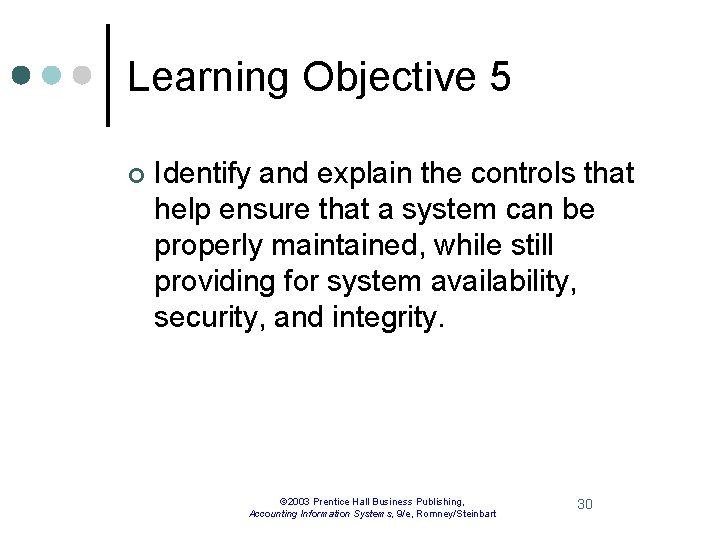

Learning Objective 5 ¢ Identify and explain the controls that help ensure that a system can be properly maintained, while still providing for system availability, security, and integrity. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 30

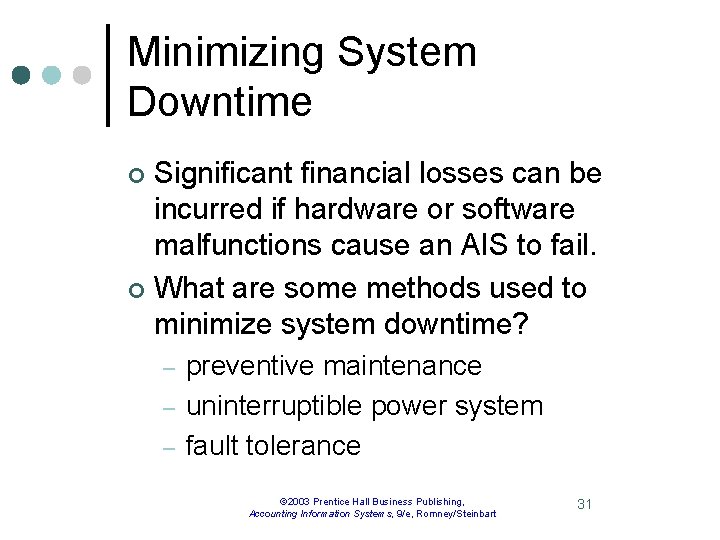

Minimizing System Downtime Significant financial losses can be incurred if hardware or software malfunctions cause an AIS to fail. ¢ What are some methods used to minimize system downtime? ¢ – – – preventive maintenance uninterruptible power system fault tolerance © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 31

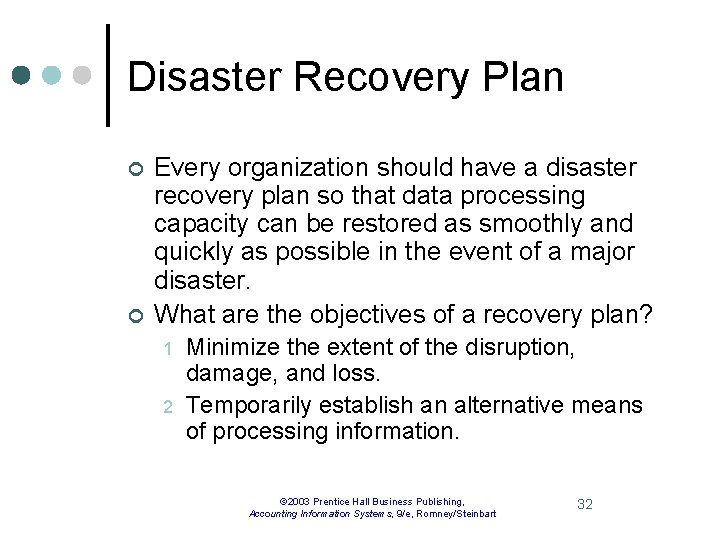

Disaster Recovery Plan ¢ ¢ Every organization should have a disaster recovery plan so that data processing capacity can be restored as smoothly and quickly as possible in the event of a major disaster. What are the objectives of a recovery plan? 1 2 Minimize the extent of the disruption, damage, and loss. Temporarily establish an alternative means of processing information. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 32

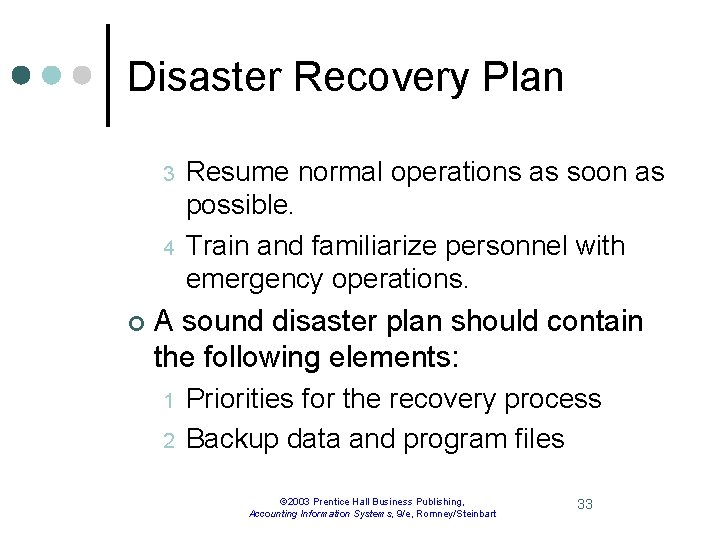

Disaster Recovery Plan 3 4 ¢ Resume normal operations as soon as possible. Train and familiarize personnel with emergency operations. A sound disaster plan should contain the following elements: 1 2 Priorities for the recovery process Backup data and program files © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 33

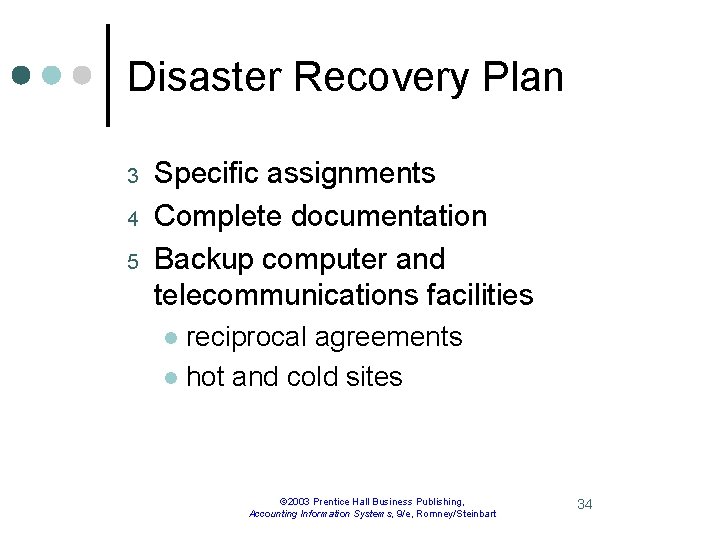

Disaster Recovery Plan 3 4 5 Specific assignments Complete documentation Backup computer and telecommunications facilities reciprocal agreements l hot and cold sites l © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 34

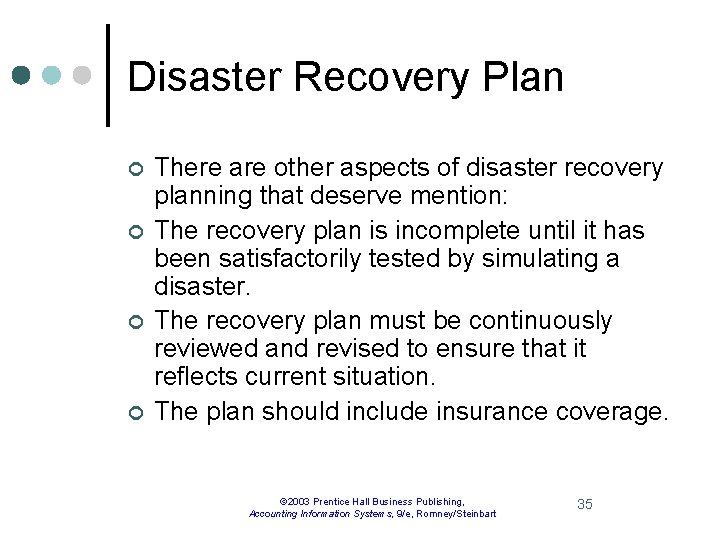

Disaster Recovery Plan ¢ ¢ There are other aspects of disaster recovery planning that deserve mention: The recovery plan is incomplete until it has been satisfactorily tested by simulating a disaster. The recovery plan must be continuously reviewed and revised to ensure that it reflects current situation. The plan should include insurance coverage. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 35

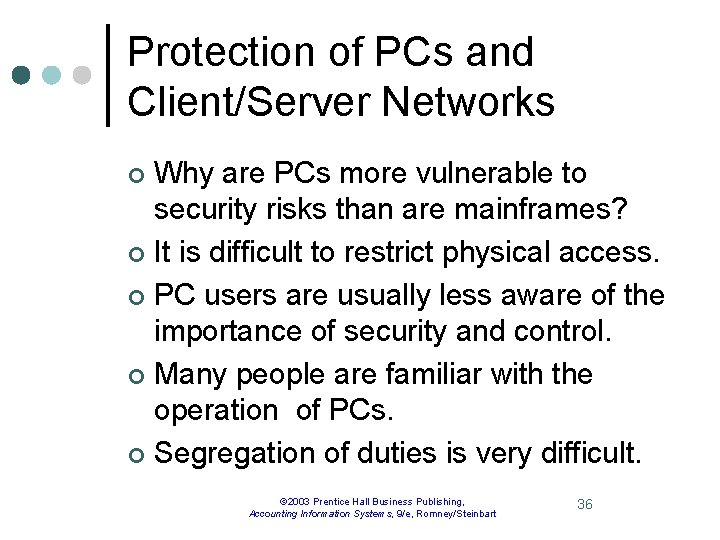

Protection of PCs and Client/Server Networks Why are PCs more vulnerable to security risks than are mainframes? ¢ It is difficult to restrict physical access. ¢ PC users are usually less aware of the importance of security and control. ¢ Many people are familiar with the operation of PCs. ¢ Segregation of duties is very difficult. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 36

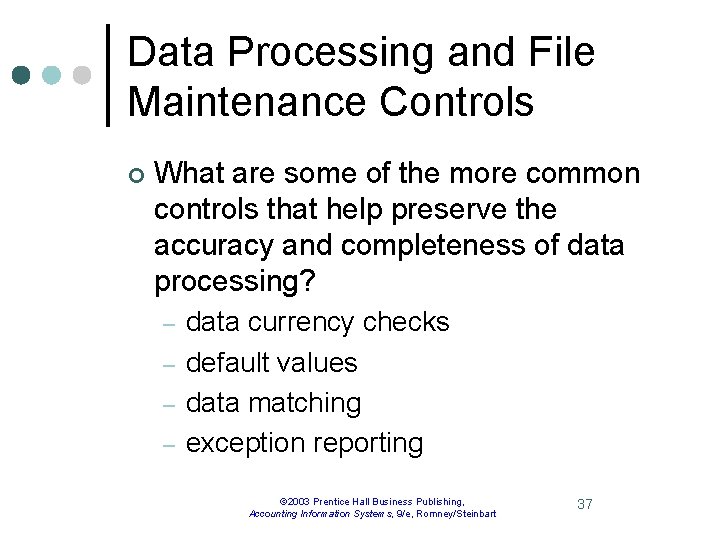

Data Processing and File Maintenance Controls ¢ What are some of the more common controls that help preserve the accuracy and completeness of data processing? – – data currency checks default values data matching exception reporting © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 37

Data Processing and File Maintenance Controls – – external data reconciliation control account reconciliation file security file conversion controls © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 38

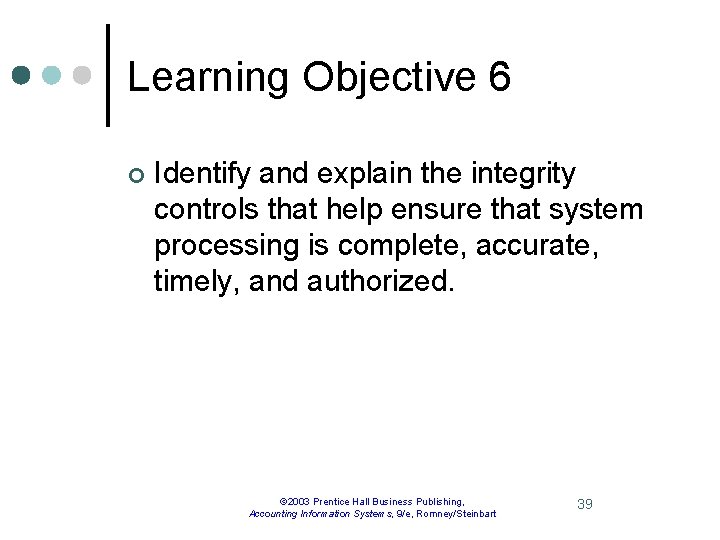

Learning Objective 6 ¢ Identify and explain the integrity controls that help ensure that system processing is complete, accurate, timely, and authorized. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 39

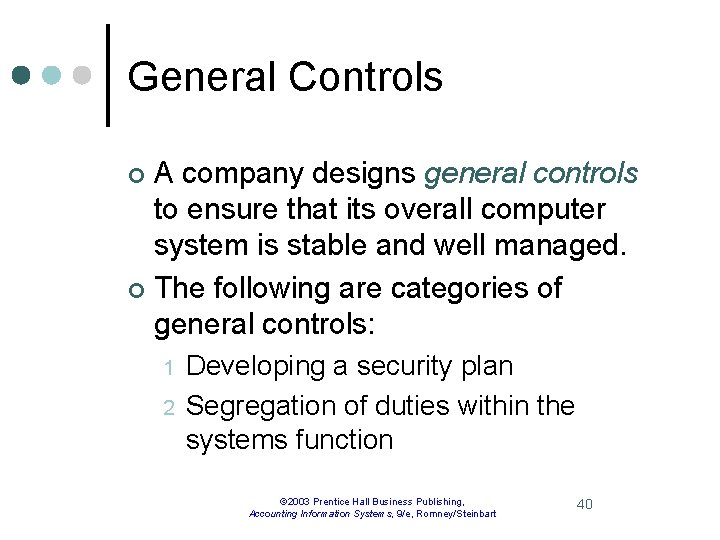

General Controls A company designs general controls to ensure that its overall computer system is stable and well managed. ¢ The following are categories of general controls: ¢ 1 2 Developing a security plan Segregation of duties within the systems function © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 40

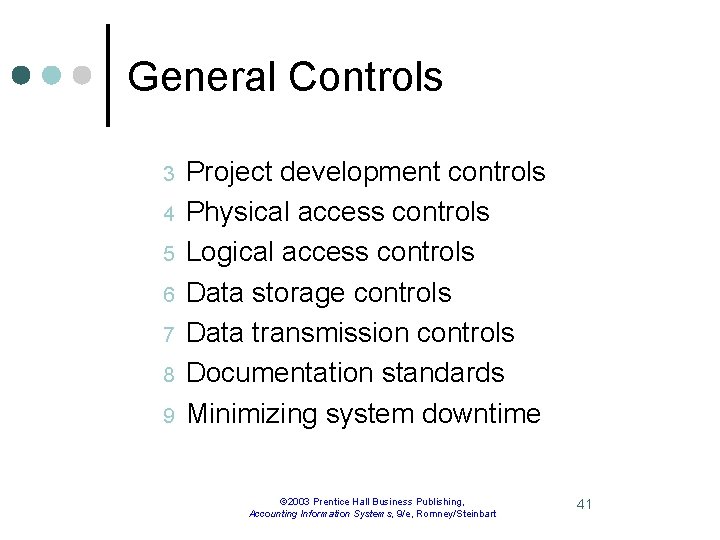

General Controls 3 4 5 6 7 8 9 Project development controls Physical access controls Logical access controls Data storage controls Data transmission controls Documentation standards Minimizing system downtime © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 41

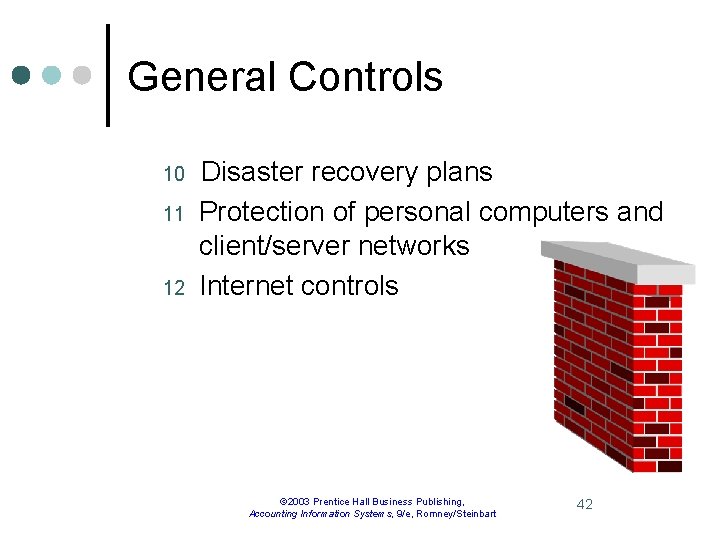

General Controls 10 11 12 Disaster recovery plans Protection of personal computers and client/server networks Internet controls © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 42

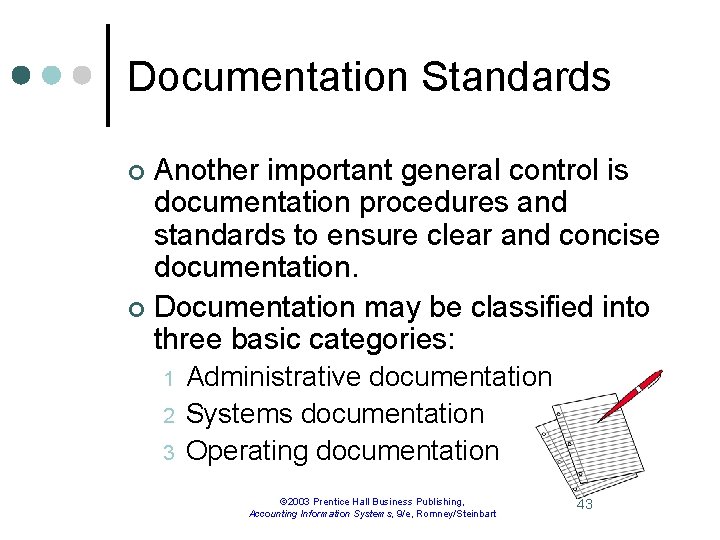

Documentation Standards Another important general control is documentation procedures and standards to ensure clear and concise documentation. ¢ Documentation may be classified into three basic categories: ¢ 1 2 3 Administrative documentation Systems documentation Operating documentation © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 43

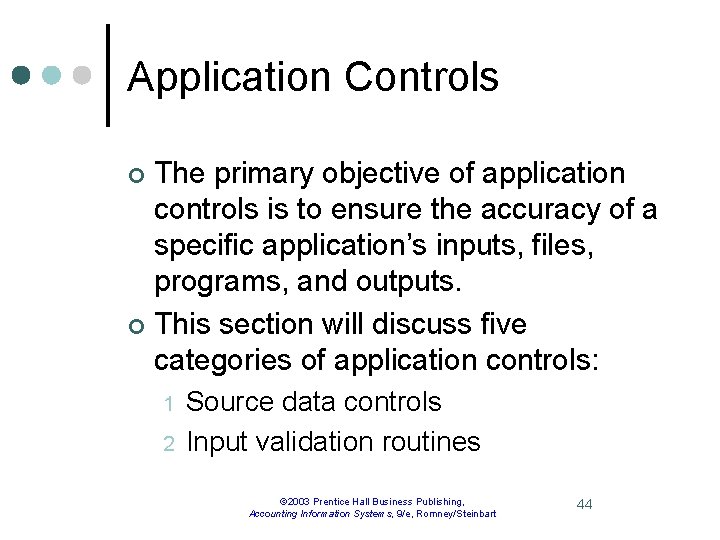

Application Controls The primary objective of application controls is to ensure the accuracy of a specific application’s inputs, files, programs, and outputs. ¢ This section will discuss five categories of application controls: ¢ 1 2 Source data controls Input validation routines © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 44

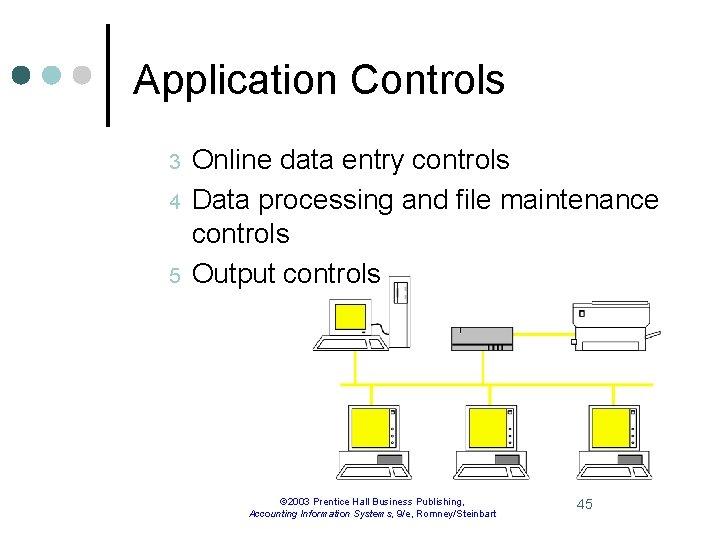

Application Controls 3 4 5 Online data entry controls Data processing and file maintenance controls Output controls © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 45

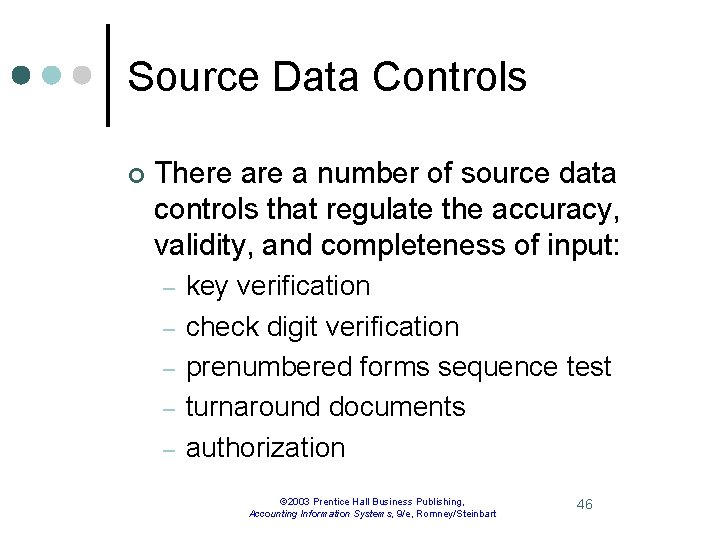

Source Data Controls ¢ There a number of source data controls that regulate the accuracy, validity, and completeness of input: – – – key verification check digit verification prenumbered forms sequence test turnaround documents authorization © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 46

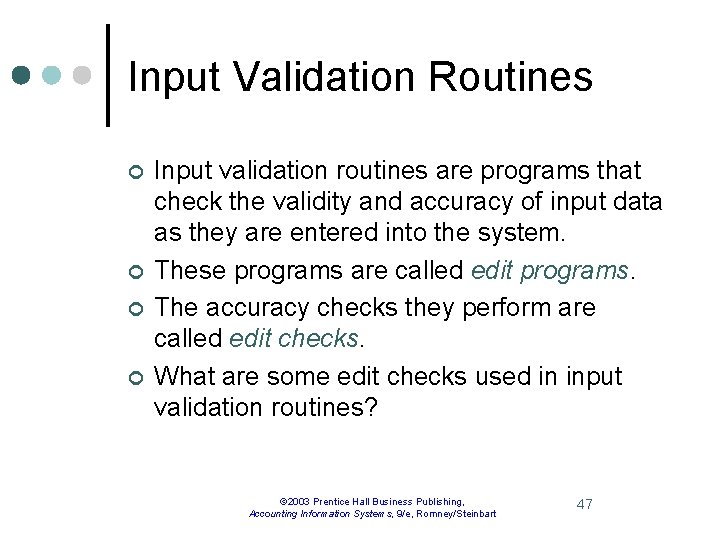

Input Validation Routines ¢ ¢ Input validation routines are programs that check the validity and accuracy of input data as they are entered into the system. These programs are called edit programs. The accuracy checks they perform are called edit checks. What are some edit checks used in input validation routines? © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 47

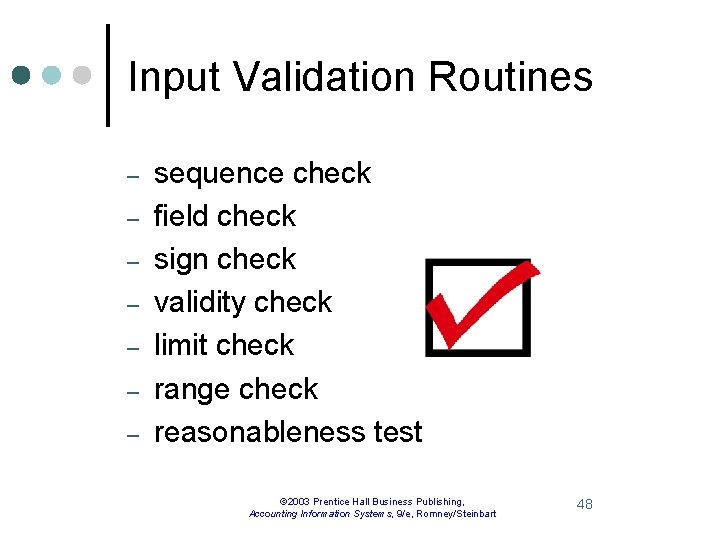

Input Validation Routines – – – – sequence check field check sign check validity check limit check range check reasonableness test © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 48

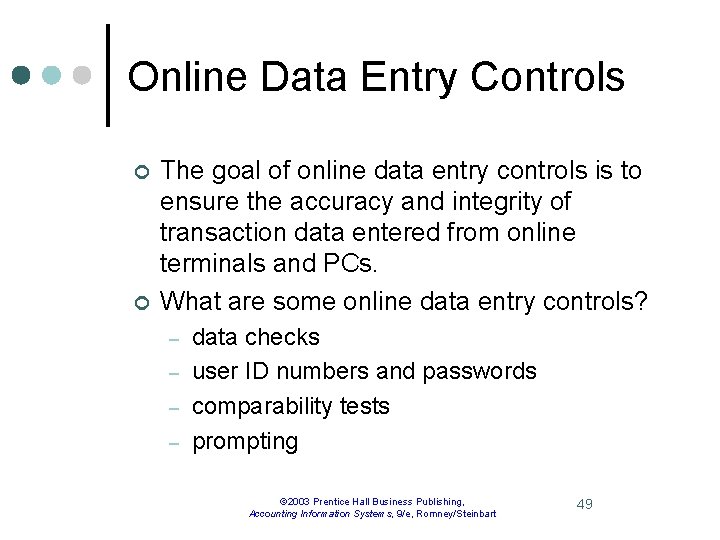

Online Data Entry Controls ¢ ¢ The goal of online data entry controls is to ensure the accuracy and integrity of transaction data entered from online terminals and PCs. What are some online data entry controls? – – data checks user ID numbers and passwords comparability tests prompting © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 49

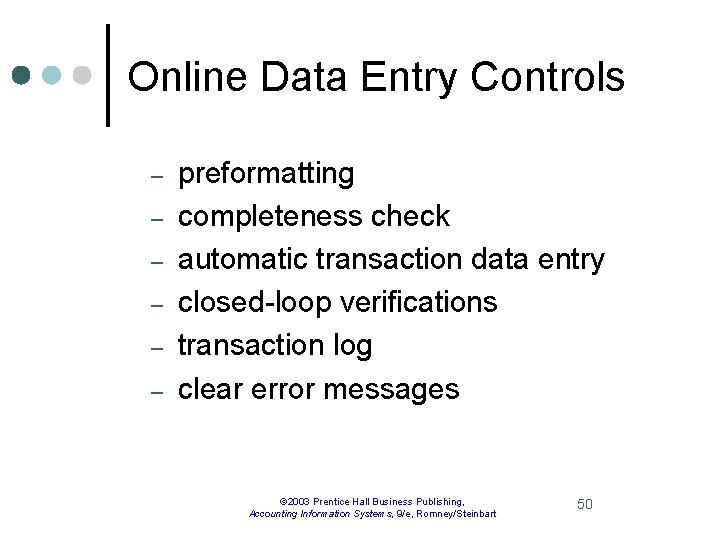

Online Data Entry Controls – – – preformatting completeness check automatic transaction data entry closed-loop verifications transaction log clear error messages © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 50

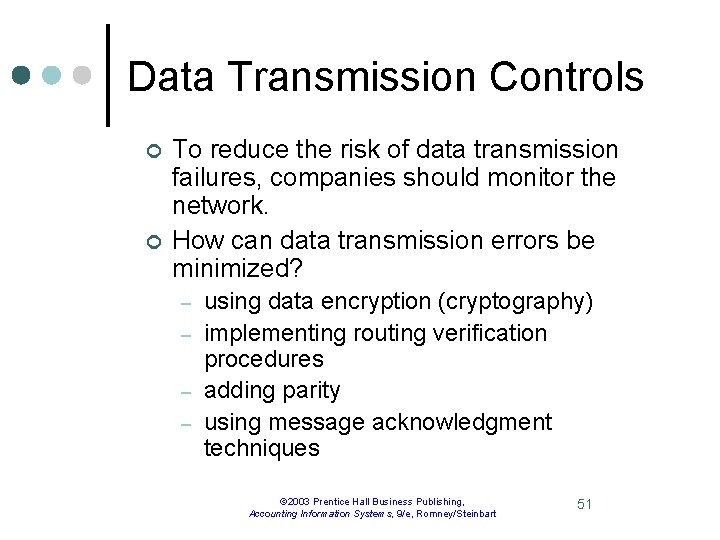

Data Transmission Controls ¢ ¢ To reduce the risk of data transmission failures, companies should monitor the network. How can data transmission errors be minimized? – – using data encryption (cryptography) implementing routing verification procedures adding parity using message acknowledgment techniques © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 51

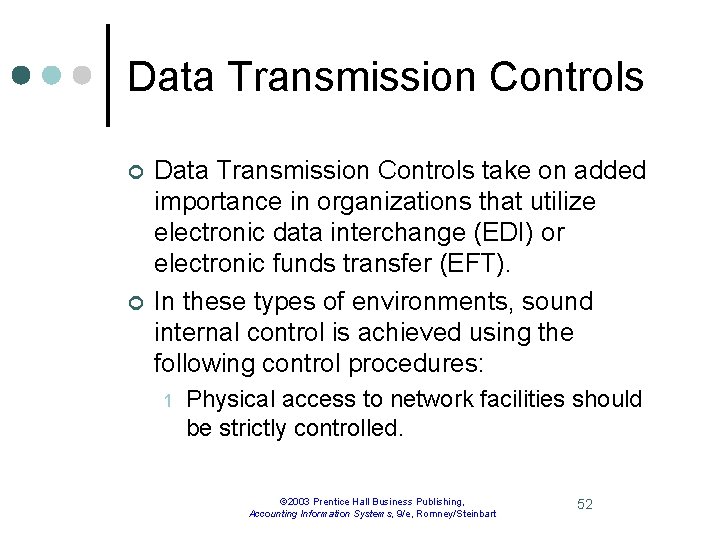

Data Transmission Controls ¢ ¢ Data Transmission Controls take on added importance in organizations that utilize electronic data interchange (EDI) or electronic funds transfer (EFT). In these types of environments, sound internal control is achieved using the following control procedures: 1 Physical access to network facilities should be strictly controlled. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 52

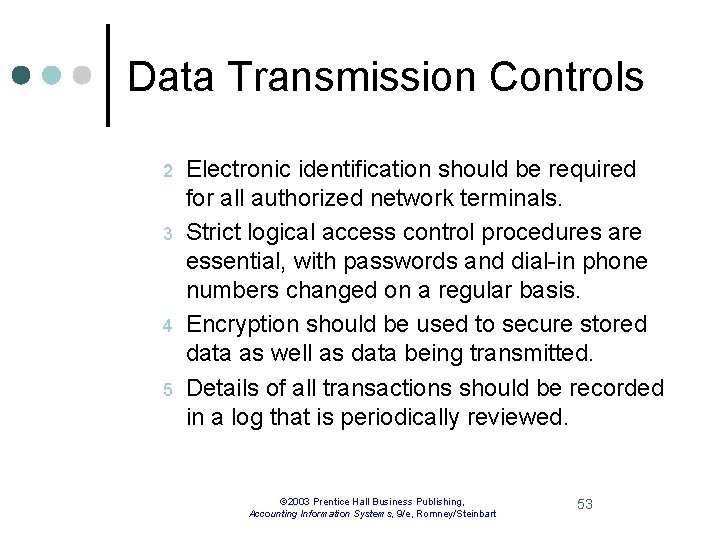

Data Transmission Controls 2 3 4 5 Electronic identification should be required for all authorized network terminals. Strict logical access control procedures are essential, with passwords and dial-in phone numbers changed on a regular basis. Encryption should be used to secure stored data as well as data being transmitted. Details of all transactions should be recorded in a log that is periodically reviewed. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 53

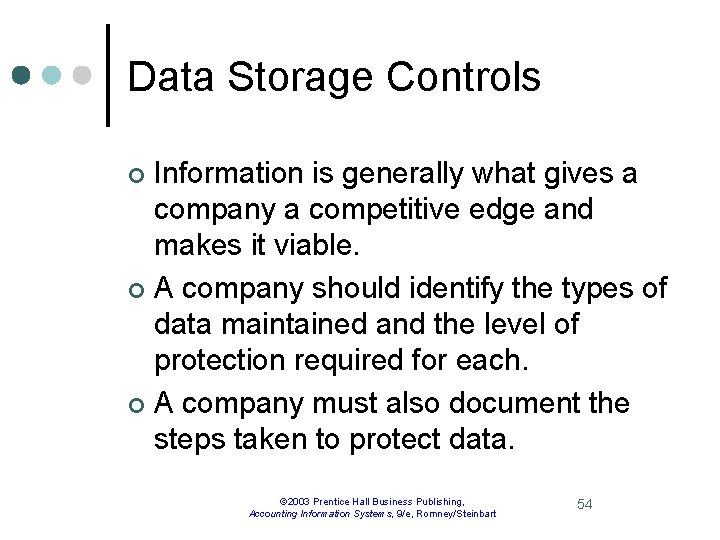

Data Storage Controls Information is generally what gives a company a competitive edge and makes it viable. ¢ A company should identify the types of data maintained and the level of protection required for each. ¢ A company must also document the steps taken to protect data. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 54

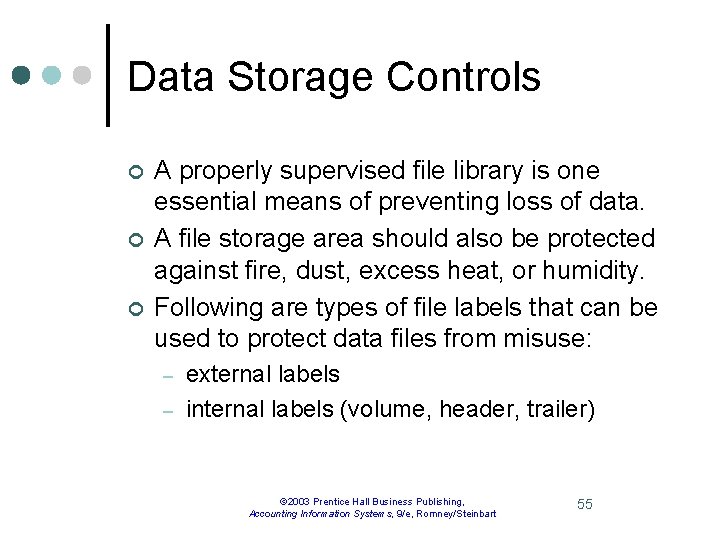

Data Storage Controls ¢ ¢ ¢ A properly supervised file library is one essential means of preventing loss of data. A file storage area should also be protected against fire, dust, excess heat, or humidity. Following are types of file labels that can be used to protect data files from misuse: – – external labels internal labels (volume, header, trailer) © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 55

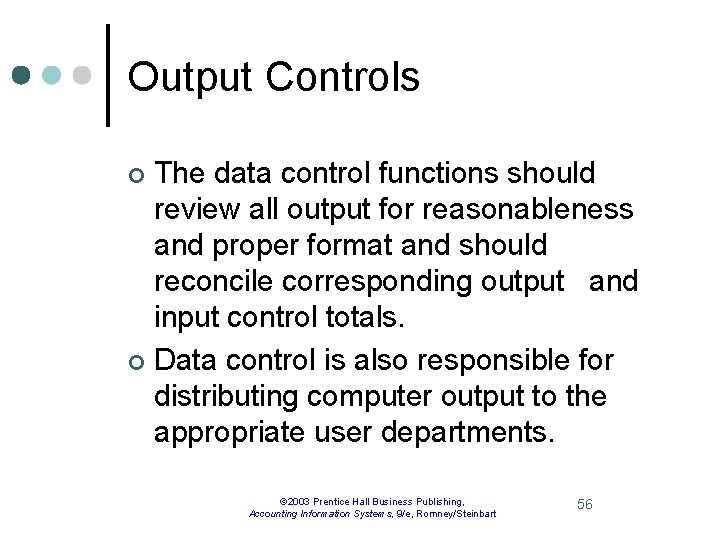

Output Controls The data control functions should review all output for reasonableness and proper format and should reconcile corresponding output and input control totals. ¢ Data control is also responsible for distributing computer output to the appropriate user departments. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 56

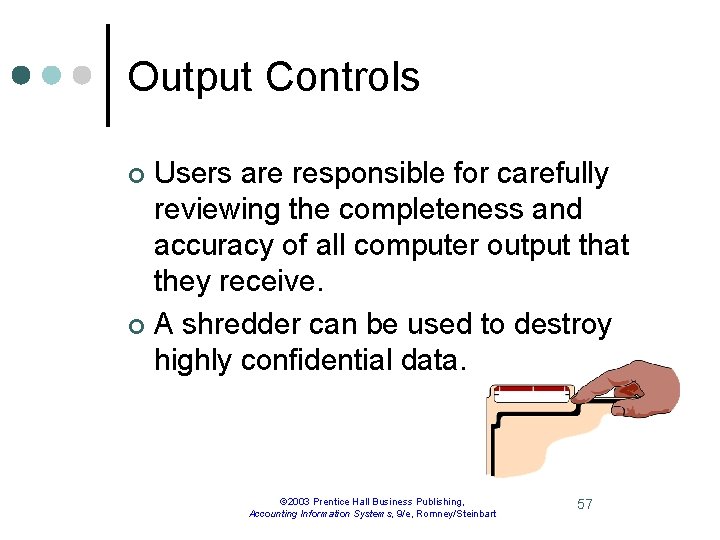

Output Controls Users are responsible for carefully reviewing the completeness and accuracy of all computer output that they receive. ¢ A shredder can be used to destroy highly confidential data. ¢ © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 57

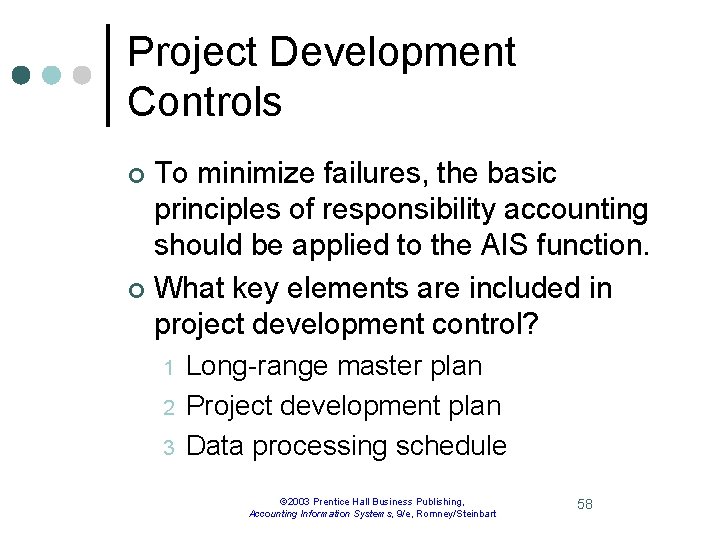

Project Development Controls To minimize failures, the basic principles of responsibility accounting should be applied to the AIS function. ¢ What key elements are included in project development control? ¢ 1 2 3 Long-range master plan Project development plan Data processing schedule © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 58

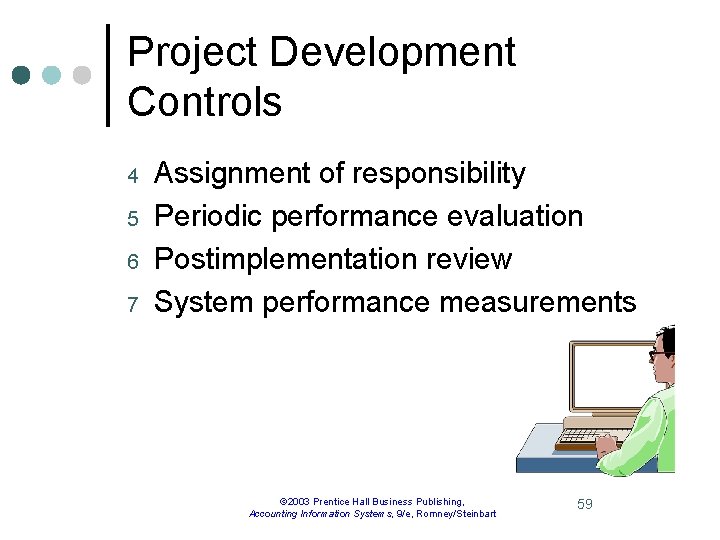

Project Development Controls 4 5 6 7 Assignment of responsibility Periodic performance evaluation Postimplementation review System performance measurements © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 59

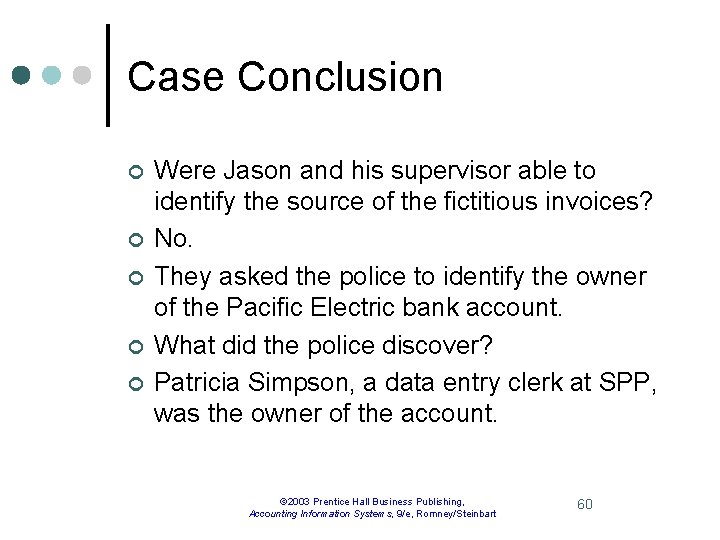

Case Conclusion ¢ ¢ ¢ Were Jason and his supervisor able to identify the source of the fictitious invoices? No. They asked the police to identify the owner of the Pacific Electric bank account. What did the police discover? Patricia Simpson, a data entry clerk at SPP, was the owner of the account. © 2003 Prentice Hall Business Publishing, Accounting Information Systems, 9/e, Romney/Steinbart 60
