INTRODUCTION ACCORD Digital EPABX / Key systems are stored program micro-processor controlled with distributed processing & time division multiplex (TDM / PCM) switching allowing efficient operation and provide : l 100 % Non-Blocking l Supporting 8 ports to 504 ports l Remote Maintenance Facility l Digital Key Telephones connectivity l Single pair Uniform Wiring through out system l Voice Mail connectivity l Caller Line Identification l E & M, ISDN, E-1, Loop Dialing l Special Hotel Features…. . etc. * Features & specifications subject to change without prior notice 2

ACCORD Digital EPABX / Key Systems ADX - 400 40 to 248 Ports ADX - 600 376 to 504 Ports ACCORD Digital EPABX / Key Systems * Features & specifications subject to change without prior notice 3

ACCORD Digital ADX – 400 ACCORD Digital EPABX / Key Systems ADX - 400 40 Ports ADX - 400 72 Ports ADX - 400 120 Ports ADX - 400 248 ports ADX - 400 * Features & specifications subject to change without prior notice 4

ACCORD Digital ADX – 600 ACCORD Digital EPABX / Key Systems ADX - 600 376 Ports ADX - 600 504 Ports ADX - 600 * Features & specifications subject to change without prior notice 5

ACCORD Digital Modules Details Model Physical Capacity Universal Slots per system (8 ports per slot) ADX - 400 40 Ports ADX - 400 ADX – 600 Total slots per system Max. CO / P&T lines Max. SLT Stations Max. KTS Stations 5 7 32 40 40 Equipped with standard CPU 1. One slot each is occupied by CPU & PSU. 72 Ports 9 11 48 72 72 Equipped with standard CPU 1. One slot each is occupied by CPU & PSU. 120 Ports 15 18 48 120 Equipped with standard CPU 1. One slot each is occupied by CPU & PSU. 248 Ports 376 Ports 504 Ports 31 47 63 36 54 72 48 96 96 248 376 504 * Features & specifications subject to change without prior notice 248 Remarks Equipped with standard CPU 2. One slot each is occupied by CPU, PSU, Tone card & High way card(1 No. ) 376 Equipped with standard CPU 3. One slot each is occupied by CPU, PSU(2 Nos. ), Tone card & High way card(2 Nos. ) 504 Equipped with standard CPU 3. One slot each is occupied by CPU, PSU(2 Nos. ), Tone card & High way card(3 Nos. ) 6

ACCORD Digital Cabinets Layout - 1 PSU CARD CPU – 1 CARD PSU CARD 5 Univ. slots, 8 ports each CPU – 1 CARD ADX – 400 ( 72 Ports) ADX – 400 ( 40 Ports) 9 Univ. slots, 8 ports each * Features & specifications subject to change without prior notice 7

ACCORD Digital Cabinets Layout - 2 CPU – 1 CARD 7 Univ. slots, 8 ports each TONE CARD PSU CARD ADX – 400 ( 120 Ports) 8 Univ. slots, 8 ports each * Features & specifications subject to change without prior notice 8

CPU – 2 CARD 8 Univ. slots, 8 ports each TONE - 2 CARD 7 Univ. slots, 8 ports each 8 Univ. slots, 8 ports each HIGHWAY CARD PSU CARD ADX – 400 ( 248 Ports) PSU CARD ACCORD Digital Cabinets Layout - 3 8 Univ. slots, 8 ports each * Features & specifications subject to change without prior notice 9

CPU - 3 CARD HIGHWAY CARD 7 Univ. slots, 8 ports each 8 Univ. slots, 8 ports each TONE - 3 CARD ADX – 600 ( 376 Ports) PSU CARD ACCORD Digital Cabinets Layout - 4 8 Univ. slots, 8 ports each * Features & specifications subject to change without prior notice 10

CPU – 3 CARD HIGHWAY CARD TONE – 3 CARD 7 Univ. slots, 8 ports each 8 Univ. slots, 8 ports each HIGHWAY CARD ADX – 600 ( 504 Ports) PSU CARD ACCORD Digital Cabinets Layout - 5 8 Univ. slots, 8 ports each * Features & specifications subject to change without prior notice 11

SYSTEM FEATURES OF ADX SERIES l l l l PCM / TDM Technology 100% Non-blocking Operator Console up-to 4 Direct Station Selection (DSS) Programmable flash timing System Information printout Flexible Numbering Plan Caller Line Identification of Incoming Calls Call Budgeting Remote Maintenance Computer Connectivity Voice Mail Connectivity Free Port Architecture with modularity E-1, E&M, ISDN-BRI, Loop Dialing * Features & specifications subject to change without prior notice 12

SPECIAL FEATURES OF ADX SERIES - 1 Auto-Redial 99 Times : When called No. is engaged, this feature allows automatic redialing including STD/ISD codes upto 99 times. Paging on Key Phone : The caller can activate Speaker Phone of the called extension when it is idle. Caller Line Identification (CLIP) : Incoming calling No. is displayed on Key Phone even if the call is transferred by the operator. Caller Name & Extension No. on Display : Name & Extension No. of the caller is displayed on the Key Phone facilitating him to respond accordingly. * Features & specifications subject to change without prior notice 13

SPECIAL FEATURES OF ADX SERIES - 2 Conference upto 3/8 Parties : Any combination of internal / external call can be in conference mode for 3 parties (built-in) or 8 parties through optional Conference Card. Background Music (BGM) : The ACCORD Key Phone user can enjoy the light background music channeled from System. Direct Outward Station Access (DOSA) : Any Extension owner can make outward calls through personal pass code from remote place and such calls remain in his A/c (optional) through Voice DISA Card). Direct Station Selection (DSS) : DSS Console provides one touch key access to Extension / Trunks with Busy Lamp Field (BLF) * Features & specifications subject to change without prior notice 14

MONEY SAVING FEATURES On-line Advice of Charge : The display shows the number dialed and subsequently “On Line Display” of near value for the call duration and amount. Auto Call Disconnection : The ACCORD ADX facilitates to fix the talk time of calls beyond which it will be automatically disconnected. Call Budgeting : It facilitates to preset a call budget in rupee value. The outside dialing is automatically locked on expiry of the budget with provision of last call continue. Dynamic STD Lock : Any individual extension can lock outward dialing by a personal secret pass code to prevent misuse. Direct Call Billing in Rupees : The ACCORD ADX facilitates direct call billing (near value) through parallel port printer in versatile printout options. * Features & specifications subject to change without prior notice 15

EFFICIENT OFFICE MANAGEMENT FEATURES Versatile ASMDR : ASMDR is a call accounting application that can record & print upto 3500 calls without dedicated printer. Power Failure Transfer : In the case of power failure P&T / CO lines become available on the preset extensions. Programmable Class of Service : You can program class of service for P&T (STD / ISD / LOCAL) dialing as per need. Multiple Attendant’s Console : Up to four Attendant Consoles including 3 auxiliary. * Features & specifications subject to change without prior notice 16

CALL ANSWERING FEATURES Absent Message Texts (AMT) : The System has 9 fixed messages which help the caller to instantly know the whereabouts of the called person. Multi Level Voice DISA (MLVD) : ACCORD ADX facilitates outside callers to directly access the desired Extension No. by surpassing the operator as guided by multilevel voice messages. Auto-Answer / Auto OFF : Key Phone can be programmed for auto-answer after preset number of incoming rings and is automatically disconnected when caller disconnects. Numeric Messaging : By Pressing message key, the user can access the message(s) left for him. Voice Mail Connectivity : ADX supports the PC based multi-port Voice Mail Connectivity. 17 * Features & specifications subject to change without prior notice

NETWORKING FEATURES E-1 Connectivity : The ACCORD ADX series supports 2 Mbps PCM link. Tie Lines : The ACCORD ADX series supports two / four wire E & M signaling. Magneto Trunk Connectivity : ADX series allows connectivity of locally powered magneto telephone sets. Group DID : ADX supports transparent Group DID. ISDN(BRI) : The System allows you to install PSTN & ISDN in one box & enjoy ISDN features when accessing an ISDN line such as Caller ID (the availability of ISDN features depends on the services provided by the local Telephone Exchange) * Features & specifications subject to change without prior notice 18

MAINTENANCE FEATURES REMOTE PROGRAMMING (THROUGH DISA CARD - OPTIONAL) l ON LINE MAINTENANCE l BULK RANGE PROGRAMMING l ON SITE PROGRAMMING THROUGH PASSCODE l PROGRAMMING THROUGH KTS / SLT (ADX - 400) l PROGRAMMING THROUGH COMPUTER (ADX - 600) l * Features & specifications subject to change without prior notice 19

KEY PHONE FEATURES l l l l l BACKLIT LCD 16 x 2 CHARACTERS ON LINE ADVICE OF CHARGE ABSENT MESSAGE TEXT (9 MESSAGES) CALLER LINE IDENTIFICATION SPEED DIALING MESSAGE WAITING LAMP BACK GROUND MUSIC LAST NUMBER REDIAL ONE TOUCH PROGRAMMABLE DIALLING KEYS HANDSFREE SPEAKER PHONE * Features & specifications subject to change without prior notice 20

UNIQUE FEATURES OF ADX SERIES l l l AUTO REDIAL MULTIPLE TIMES ABSENT MESSAGE TEXT (AMT) MULTI-LEVEL VOICE DISA (MLVD) ON LINE ADVICE OF CHARGE CALL BUDGETING AUTO CALL DISCONNECTION MULTIPLE TRUNK GROUPING PAGING ON KEY PHONE CONFERENCE CALL 3 / 8 PARTY EXTERNAL VOICE PAGING CALL BILLING THROUGH PARALLEL PORT l l l FLEXIBLE NUMBERING PLAN DYNAMIC STD LOCK MULTIPLE ATTENDANT CONSOLE (UPTO 4) AUTO ANSWER / AUTO DROP REMOTE MAINTENANCE ON LINE MAINTENANCE E-1, ISDN(BRI), E&M CONNECTIVITY GROUP HOUSING EPABX CALLER LINE IDENTIFICATION BACK GROUND MUSIC MODULAR EXPANDABILITY FROM 40 PORTS TO 504 PORTS * Features & specifications subject to change without prior notice 21

UNIQUE FEATURES FOR HOTEL / MOTEL l l l l l WELCOME GREETING MESSAGE THROUGH VDC CARD CHECK - IN WITH GUEST NAME & ADVANCE PAID CHECK - OUT GUEST MESSAGE REMINDER ROOMWISE CALL BUDGETING WAKE UP ALARM WITH VOICE MESSAGE ROOM TO ROOM CALLING RESTRICTION ROOM SHIFTING TEMPORARY CHECK-IN / CHECK -OUT FLOOR SERVICE EXTERNAL VOICE PAGING l l l l l BILLING PRINTOUT THROUGH PARALLEL PORT WITH HOTEL NAME, GUEST NAME, TARRIF, TELEPHONE CALL CHARGES etc. FLEXIBLE ROOM NUMBERING PLAN MULTIPLE ATTENDANT CONSOLE (UPTO 4) REMOTE MAINTENANCE ON LINE MAINTENANCE CALLER LINE IDENTIFICATION BACK GROUND MUSIC MODULAR EXPANDABILITY FROM 40 PORTS TO 504 PORTS AND OTHER STANDARD FEATURES l * Features & specifications subject to change without prior notice 22

UNIQUE FEATURES FOR HOSPITALS l l l WELCOME GREETING MESSAGE THROUGH VDC CARD CHECK - IN WITH PATIENT NAME & ADVANCE PAID FLOOR SERVICE PATIENT MESSAGE REMINDER ROOMWISE CALL BUDGETING WAKE UP ALARM WITH VOICE MESSAGE ROOM TO ROOM CALLING RESTRICTION PAGING ON KEY PHONE CONFERENCE CALL 3 / 8 PARTY EXTERNAL VOICE PAGING CALL BILLING THROUGH PARALLEL PORT l l l FLEXIBLE NUMBERING PLAN DYNAMIC STD LOCK MULTIPLE ATTENDANT CONSOLE (UPTO 4) AUTO ANSWER / AUTO DROP REMOTE MAINTENANCE ON LINE MAINTENANCE AUTO CALL DISCONNECTION AUTO-REDIAL GROUP HOUSING EPABX CALLER LINE IDENTIFICATION BACK GROUND MUSIC MODULAR EXPANDABILITY FROM 40 PORTS TO 504 PORTS * Features & specifications subject to change without prior notice 23

FEATURE COMPARISION IN ADX - 400 & ADX - 600 (1) FEATURE ADX - 400 ADX - 600 Auto Redial System Speed Dialing Conference Call (3 & 8 party) DISA 99 times 100 Nos. 16 times 400 Nos. Available Available Available DOSA Hotline Boss secretary systems Brokers Call through DISA card * Features & specifications subject to change without prior notice 24

FEATURE COMPARISION IN ADX - 400 & ADX - 600 (2) FEATURE ADX - 400 ADX - 600 Automatic Call Back Call Parking Absent Message Text (9 Nos. ) External Paging / Relay Self Alarm Available Available Available in hotel mode Remote Activation of KTS Call Budgeting Available * Features & specifications subject to change without prior notice 25

FEATURE COMPARISION IN ADX - 400 & ADX - 600 (3) FEATURE ADX - 400 ADX - 600 ACD / UCD Not Available For outgoing Calls only Wide list of features Available (10 Nos. ) (17 Nos. ) Available Available (10 Nos. ) Standard functions Class of Service Flexible Numbering Plan Trunk Groups Call Consult Call Forwarding Personal Speed Dialing * Features & specifications subject to change without prior notice 26

FEATURE COMPARISION IN ADX - 400 & ADX - 600 (4) FEATURE ADX - 400 ADX - 600 E&M Connectivity Not Available E-1 Connectivity Not Available R 2 MFC Signaling Not Available TWT Connectivity Not Available MTC Connectivity Not Available ISDN(BRI) Connectivity Available DID Connectivity Not Available Virtual Telephony System Programming Not Available From KTS / SLT Available From Computer * Features & specifications subject to change without prior notice 27

TYPES OF CONTROL CARDS (1) TYPE OF CARD CPU – 1 USED IN STANDARD MODULE OF ADX-400 (40, 72, 120 PORTS) DESCRIPTION - With built in Tone card With 3 party conference With Internal MOH With External MOH Port With ONE external Paging Port With ONE Serial Port for computer interface - With ONE Parallel Port for printerface - With ISDN-BRI connectivity * Features & specifications subject to change without prior notice 28

TYPES OF CONTROL CARDS (2) TYPE OF CARD CPU – 2 USED IN STANDARD MODULE OF ADX-400 (248 PORTS) HAS TO BE USED WITH TONE - 2 CPU – 2 DESCRIPTION - With SEPARATE Tone card - With 3 party conference - With ONE Serial Port for computer interface - With ONE Parallel Port for printerface - With ISDN-BRI connectivity - With Internal MOH - With External MOH Port - With TWO external Paging Port * Features & specifications subject to change without prior notice 29

TYPES OF CONTROL CARDS (3) TYPE OF CARD CPU – 3 NOTE: CPU-3 CAN BE USED IN PLACE OF CPU-1 or CPU-2 TO UPGRADE THE FEATURES NOT AVAILABLE IN THE CPU USED IN STANDARD MODULE OF ADX-600 (376, 504 PORTS) HAS TO BE USED WITH TONE - 3 CPU – 3 DESCRIPTION - With SEPARATE Tone card - With 3 party conference - With ONE Serial Port for computer interface - With ONE Serial Port for programming - With ONE Parallel Port for printerface - With E-1, DID, E&M, MTC, TWT, - ISDN-BRI connectivity - With Internal MOH - With External MOH Port - With TWO external Paging Port * Features & specifications subject to change without prior notice 30

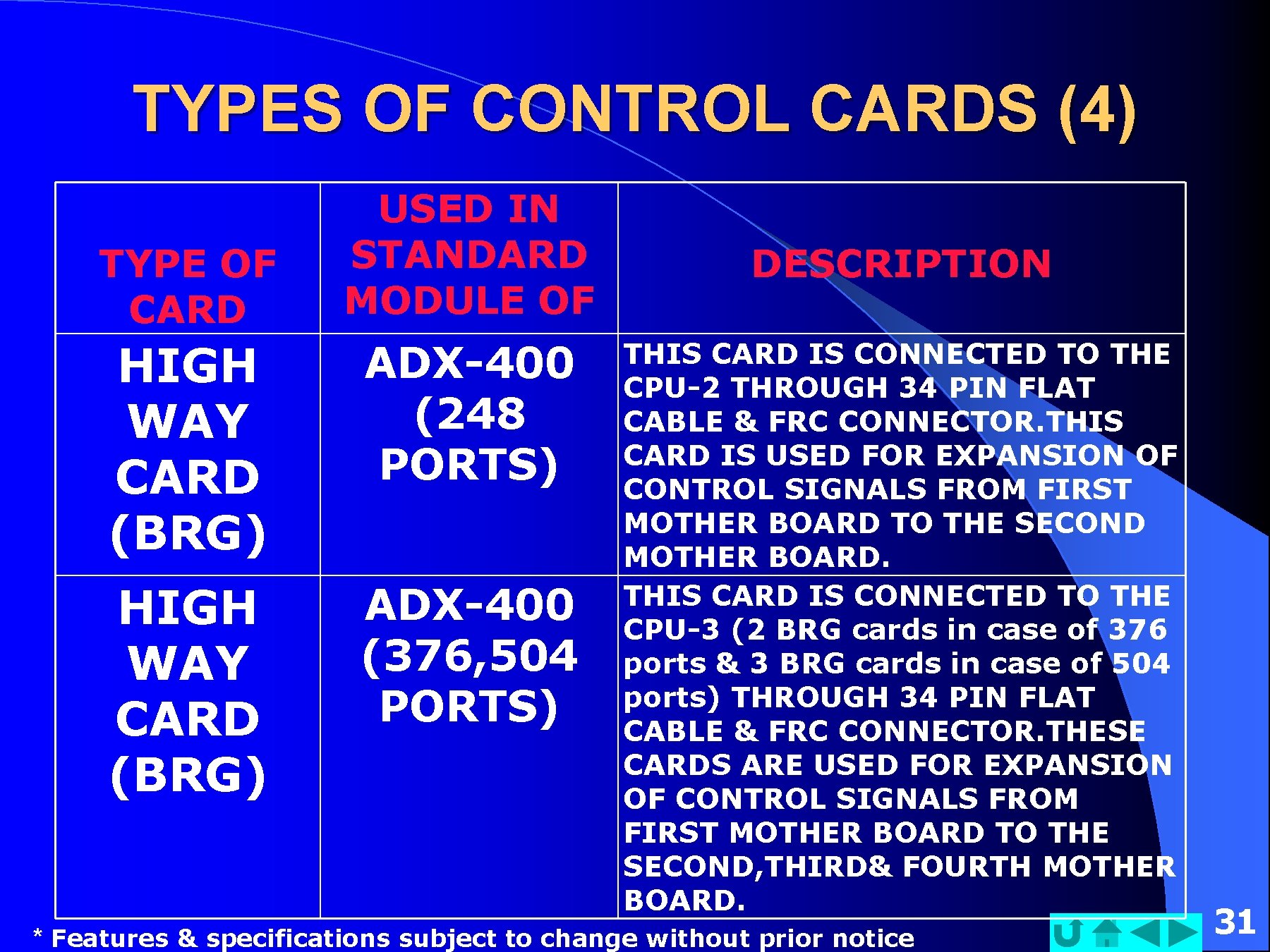

TYPES OF CONTROL CARDS (4) TYPE OF CARD USED IN STANDARD MODULE OF HIGH WAY CARD (BRG) ADX-400 (248 PORTS) HIGH WAY CARD (BRG) ADX-400 (376, 504 PORTS) DESCRIPTION THIS CARD IS CONNECTED TO THE CPU-2 THROUGH 34 PIN FLAT CABLE & FRC CONNECTOR. THIS CARD IS USED FOR EXPANSION OF CONTROL SIGNALS FROM FIRST MOTHER BOARD TO THE SECOND MOTHER BOARD. THIS CARD IS CONNECTED TO THE CPU-3 (2 BRG cards in case of 376 ports & 3 BRG cards in case of 504 ports) THROUGH 34 PIN FLAT CABLE & FRC CONNECTOR. THESE CARDS ARE USED FOR EXPANSION OF CONTROL SIGNALS FROM FIRST MOTHER BOARD TO THE SECOND, THIRD& FOURTH MOTHER BOARD. * Features & specifications subject to change without prior notice 31

TYPES OF EXTENSION / TRUNK INTERFACE CARDS TYPE OF CARD NUMBER OF PORTS CONNECTED TO Extension Card (EC) 8 Ports Analog extension Digital Extension Card (DEC) 8 Ports Digital extension (KTS / DSS) Digital Extension Card (DEC) 4 Ports Digital extension (KTS / DSS) P&T Card (PC) 8 Ports Analog Trunks P&T Card (PC) 4 Ports Analog Trunks * Features & specifications subject to change without prior notice 32

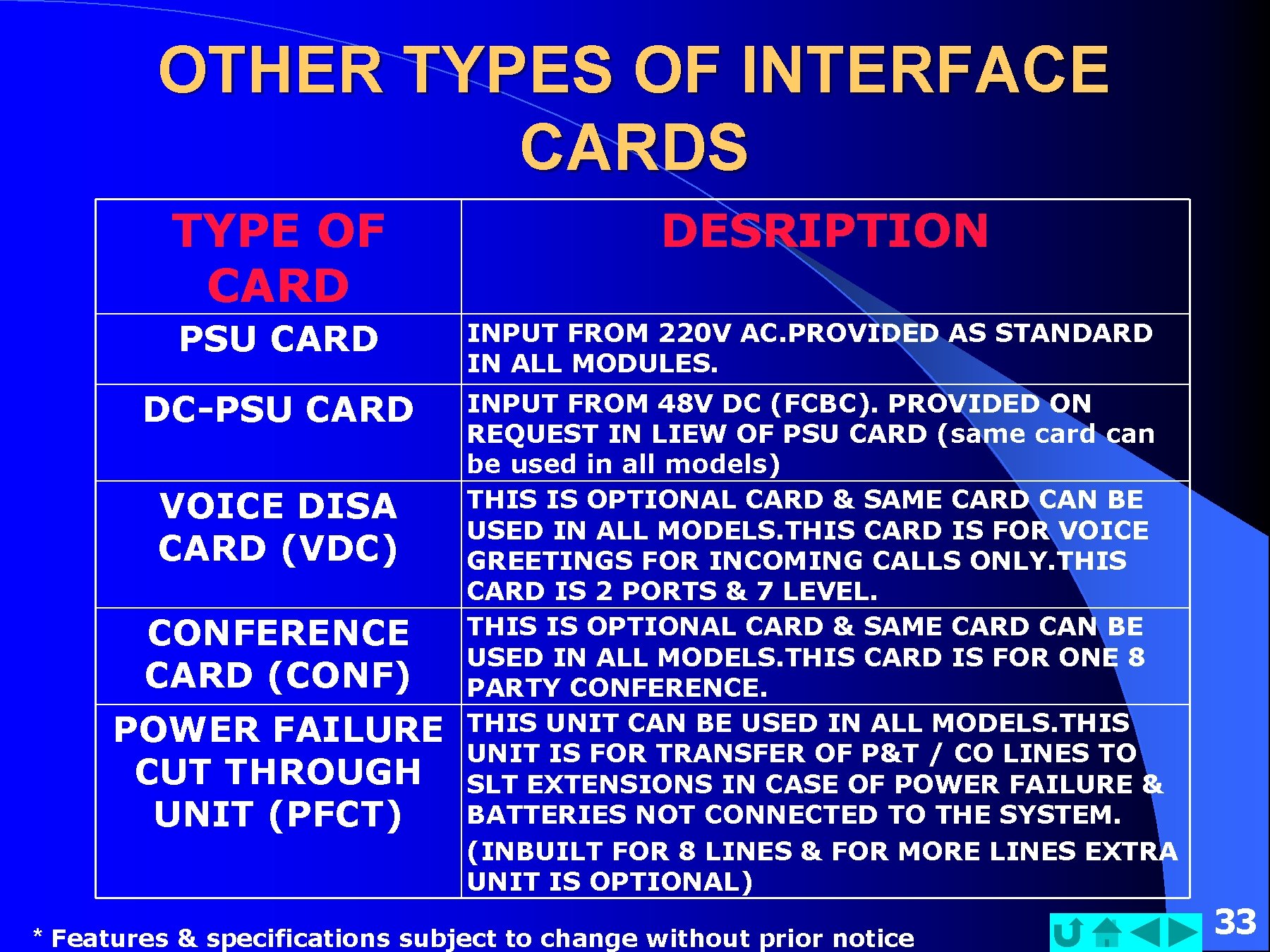

OTHER TYPES OF INTERFACE CARDS TYPE OF CARD PSU CARD DC-PSU CARD VOICE DISA CARD (VDC) CONFERENCE CARD (CONF) POWER FAILURE CUT THROUGH UNIT (PFCT) DESRIPTION INPUT FROM 220 V AC. PROVIDED AS STANDARD IN ALL MODULES. INPUT FROM 48 V DC (FCBC). PROVIDED ON REQUEST IN LIEW OF PSU CARD (same card can be used in all models) THIS IS OPTIONAL CARD & SAME CARD CAN BE USED IN ALL MODELS. THIS CARD IS FOR VOICE GREETINGS FOR INCOMING CALLS ONLY. THIS CARD IS 2 PORTS & 7 LEVEL. THIS IS OPTIONAL CARD & SAME CARD CAN BE USED IN ALL MODELS. THIS CARD IS FOR ONE 8 PARTY CONFERENCE. THIS UNIT CAN BE USED IN ALL MODELS. THIS UNIT IS FOR TRANSFER OF P&T / CO LINES TO SLT EXTENSIONS IN CASE OF POWER FAILURE & BATTERIES NOT CONNECTED TO THE SYSTEM. (INBUILT FOR 8 LINES & FOR MORE LINES EXTRA UNIT IS OPTIONAL) * Features & specifications subject to change without prior notice 33

NETWORKING TRUNK INTERFACE CARDS TYPE OF CARD AVAILABLE WITH PORTS PER CARD E&M CARD CPU – 3 ONLY 8 PORTS (2 W & 4 W) E-1 CARD CPU – 3 ONLY R 2 MFC CARD CPU – 3 ONLY TWT / BWT CARD CPU – 3 ONLY 1 PORT FOR 1 PCM LINK FOR MFC SIGNALLING 8 PORTS (Two/Both Way Trunk) MTC CARD CPU – 3 ONLY 8 PORTS (Magneto Trunk) ISDN(BRI) CARD CPU – 1, CPU – 2, CPU-3 DID CARD CPU – 3 ONLY 2 PORTS (BRI w/o voice & data) 8 PORTS (transparent DID) * Features & specifications subject to change without prior notice 34
