ACCESSIBLE INDIA FEATURES OF BUILDING FOR ALL Social

ACCESSIBLE INDIA FEATURES OF BUILDING FOR ALL Social Justice and Empowerment Department, Haryana 1

SIGNS FOR VARIOUS DISABILITIES

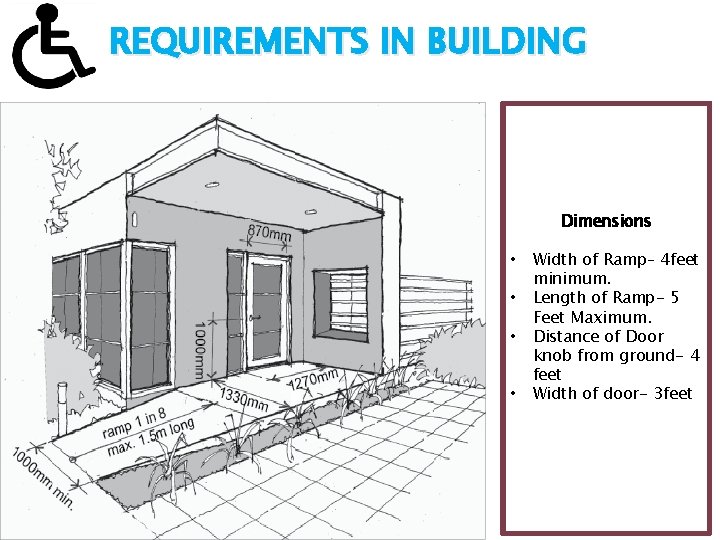

REQUIREMENTS IN BUILDING Dimensions • • Width of Ramp– 4 feet minimum. Length of Ramp- 5 Feet Maximum. Distance of Door knob from ground- 4 feet Width of door- 3 feet 3

DIMENSIONS OF RAMP

CROSS SECTION OF RAMP

REQUIREMENTS IN BUILDING Notice board should be in BRAILLE also for visually impaired 6

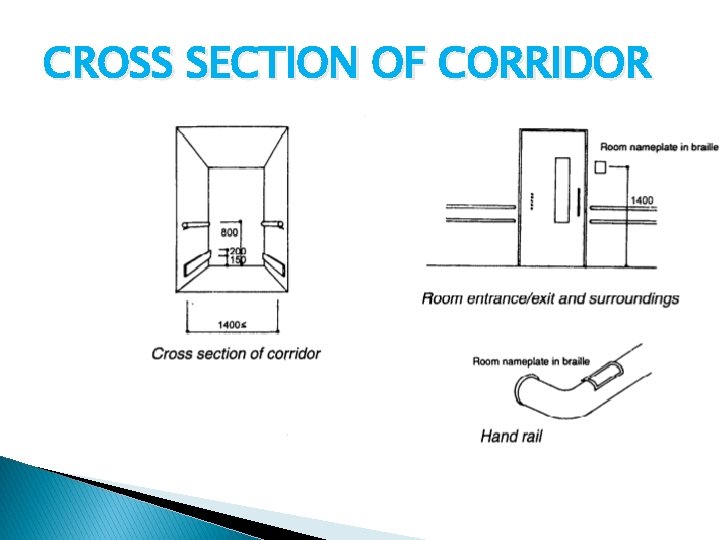

CROSS SECTION OF CORRIDOR

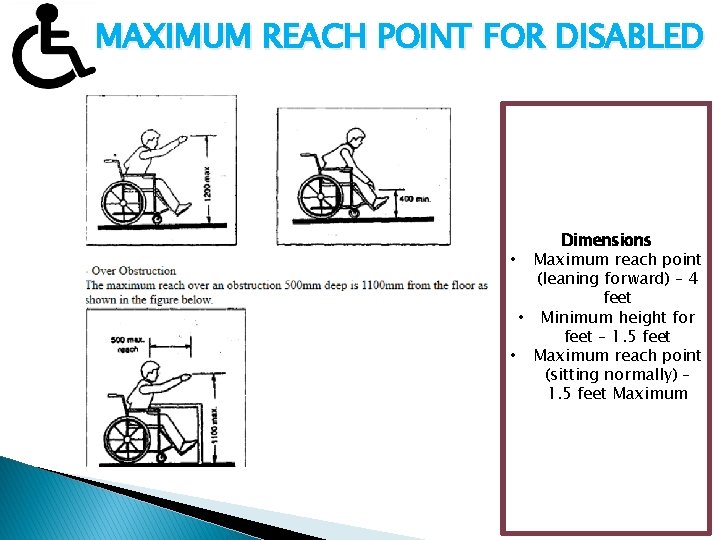

…. MAXIMUM REACH POINT FOR DISABLED Dimensions • Maximum reach point (leaning forward) – 4 feet • Minimum height for feet – 1. 5 feet • Maximum reach point (sitting normally) – 1. 5 feet Maximum 8

PUBLIC TELEPHONES 9

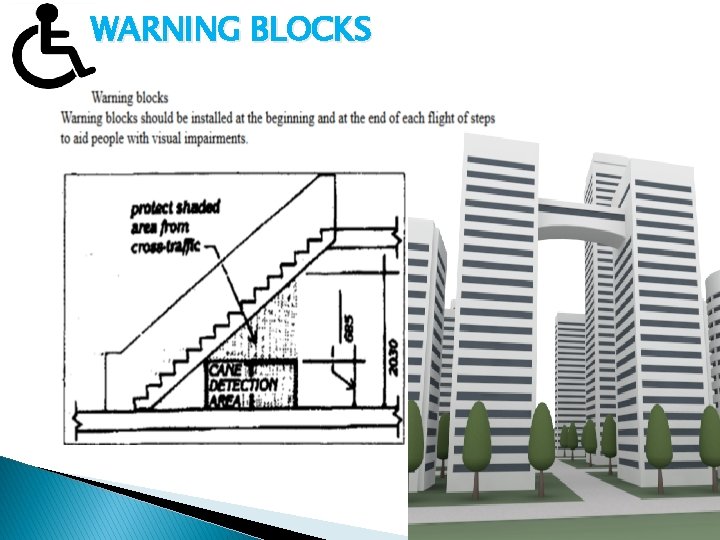

WARNING BLOCKS …. 10

Flooring • Tactile floor is compulsory • High contrast tiles on stairs • Railings shall be present at entrance, corridors, toilets, stairs • Door handles shall be disabled friendly.

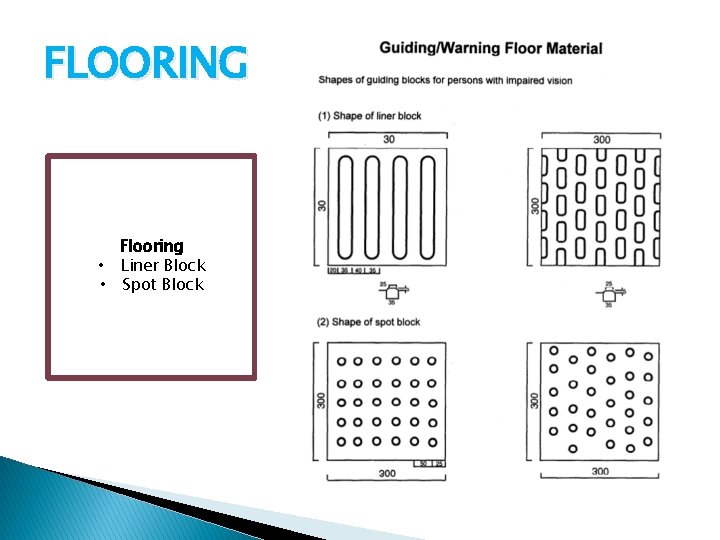

FLOORING Flooring • Liner Block • Spot Block

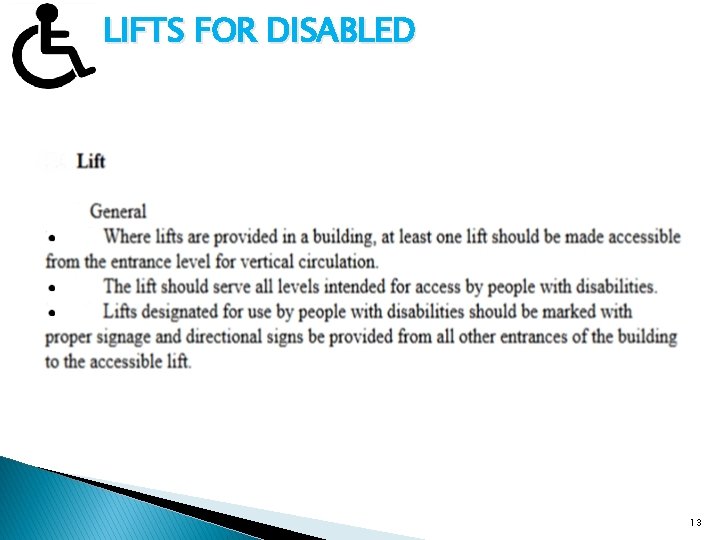

…. LIFTS FOR DISABLED 13

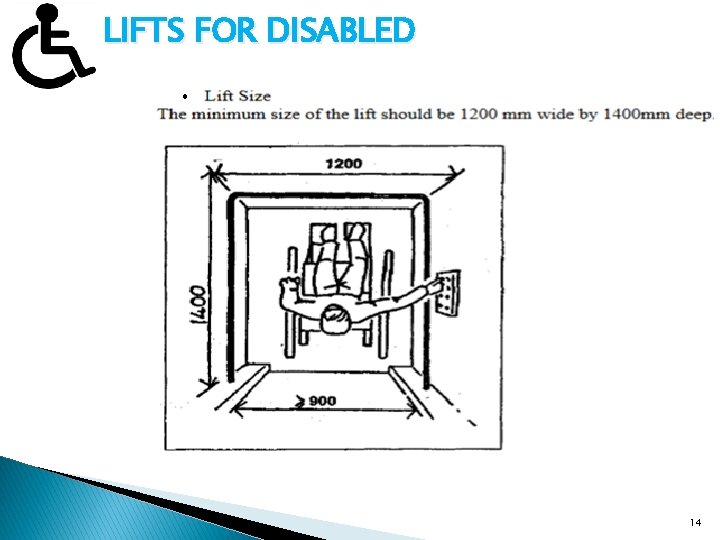

…. LIFTS FOR DISABLED 14

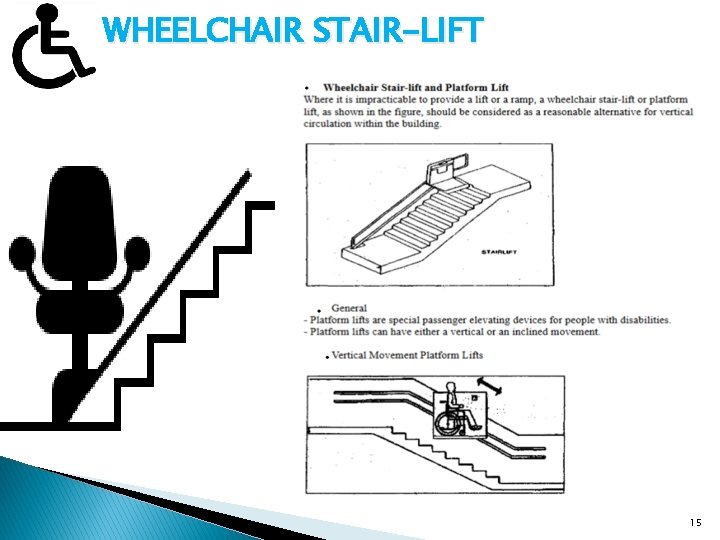

…. WHEELCHAIR STAIR-LIFT 15

R FACILITIES FOR HEARING IMPAIRED

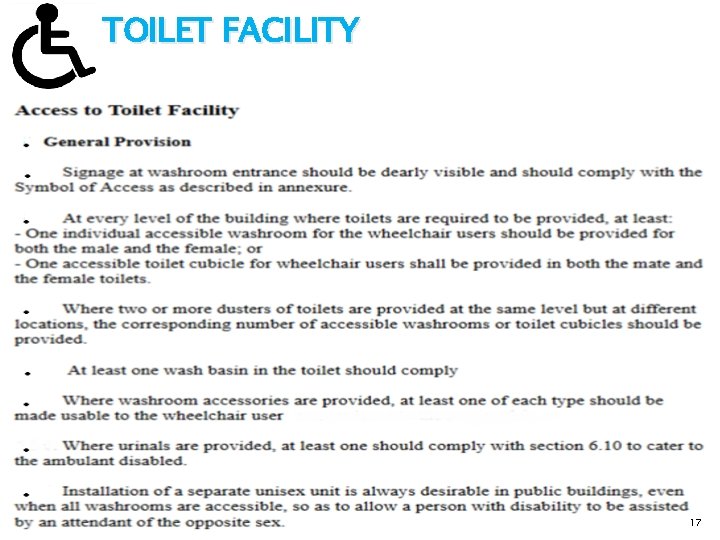

TOILET FACILITY 17

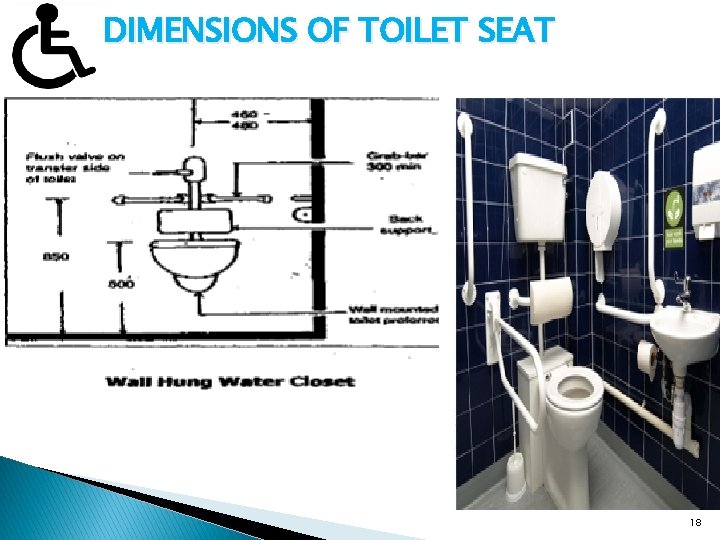

…. DIMENSIONS OF TOILET SEAT 18

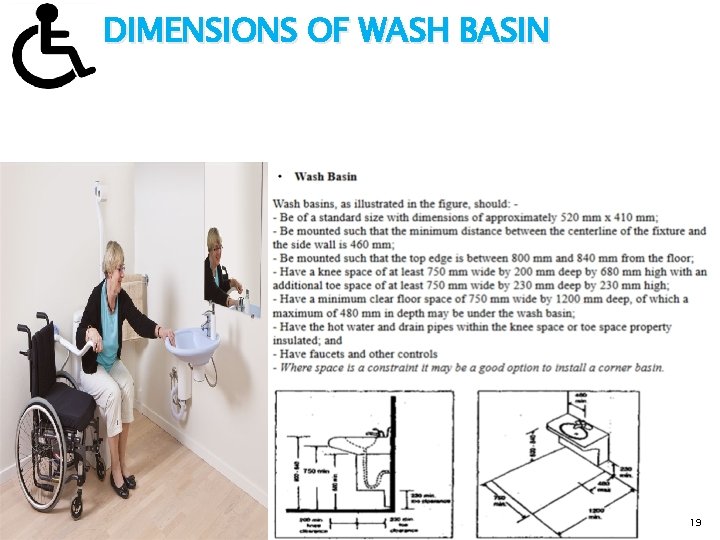

…. DIMENSIONS OF WASH BASIN 19

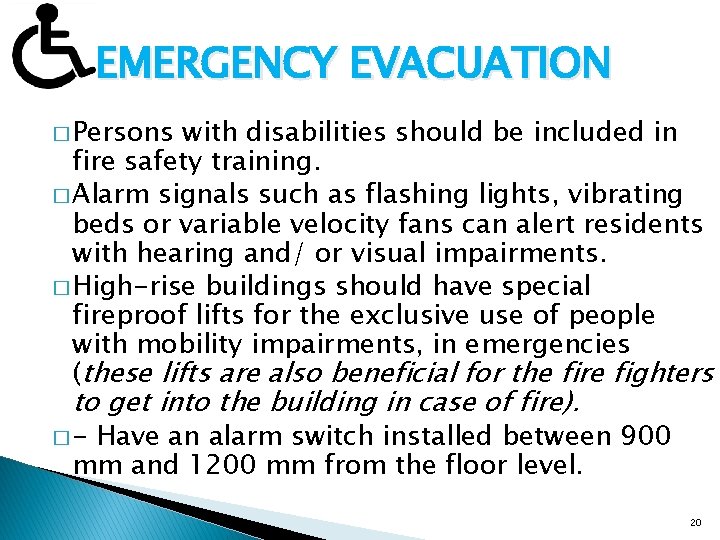

EMERGENCY EVACUATION � Persons with disabilities should be included in fire safety training. � Alarm signals such as flashing lights, vibrating beds or variable velocity fans can alert residents with hearing and/ or visual impairments. � High-rise buildings should have special fireproof lifts for the exclusive use of people with mobility impairments, in emergencies (these lifts are also beneficial for the fire fighters to get into the building in case of fire). �- Have an alarm switch installed between 900 mm and 1200 mm from the floor level. 20
