Access Control Products Access Control Application Building Office
Access Control Products
Access Control Application Building Office

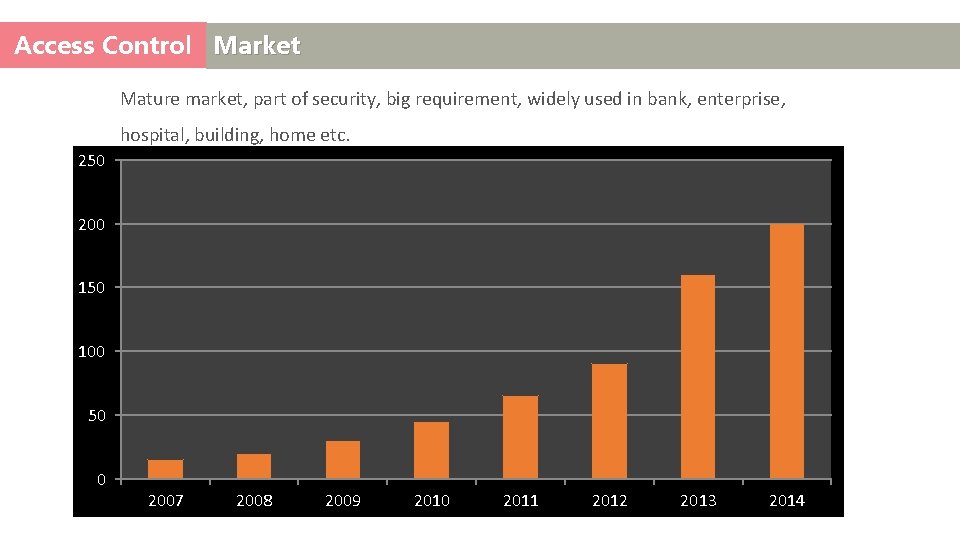

Access Control Market Mature market, part of security, big requirement, widely used in bank, enterprise, hospital, building, home etc. 250 200 150 100 50 0 2007 2008 2009 2010 2011 2012 2013 2014

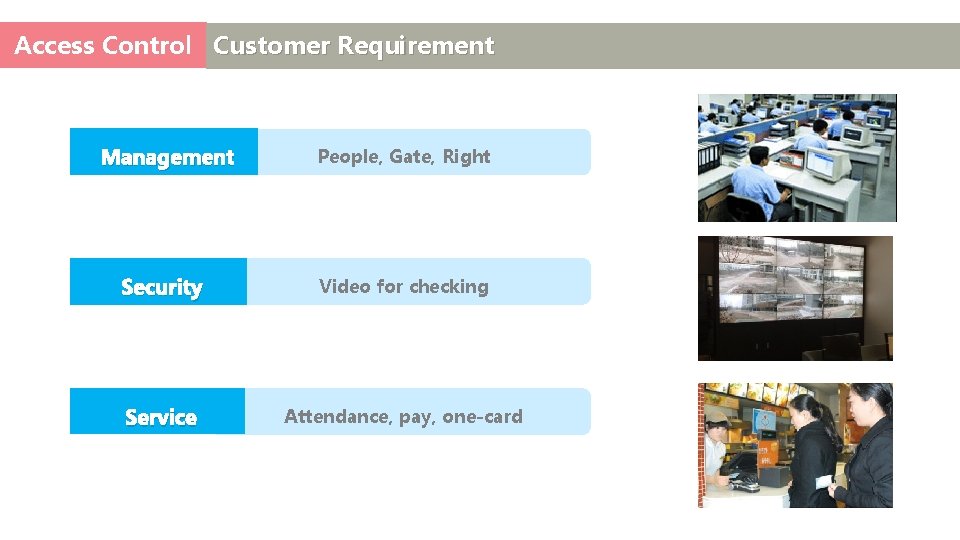

Access Control Customer Requirement Management People, Gate, Right Security Video for checking Service Attendance, pay, one-card
Access Control What is Access Control System? Alarm Feedback Reader Control Record

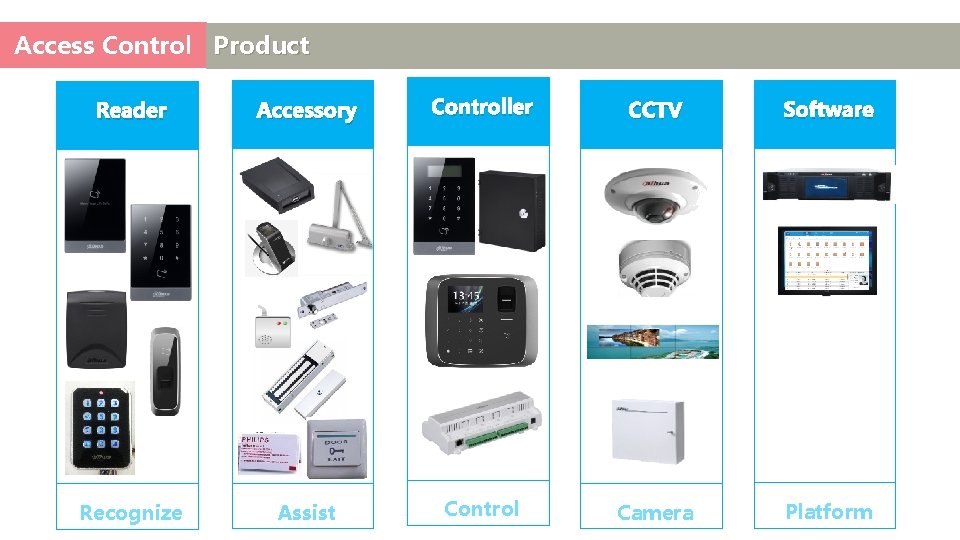

Access Control Product Reader Accessory Controller CCTV Software Recognize Assist Control Camera Platform
Access Control Name Rule —— Reader DH Brand: DH: Dahua – AS R 1 Series: 1: 1000 2: 2000 Access Product Control Type: C: Controller I: Integrated R: Reader M: Module Communication 0: Wiegand 1: RS 485 …… 1 01 Control Type： A: 0: Card 1: Password&Card B: 0: Card 1: Password 2: Fingerprint 3: Palmprint 4: Vein 5: Iris 6: Face …… A – D Card Type: Default: IC D: ID C: CPU S: Identity card B: Bluetooth M: Microwave N: NFC W: Wireless Appearance: …… A: A Type B: Water-proof M: Metal
Access Control Name Rule —— Controller DH Brand: DH: Dahua – AS Access Control C 1 2 Series: 1: 1000 2: 2000 Product Type: C: Controller I: Integrated R: Reader M: Module Communication 0: RS 232 1: RS 485 2: TCP/IP 3: RS 485/IP …… 04 B Door: 01: 1 Door 04: 4 Door 08: 8 Door …… Appearance: B: Plastic C: Iron-box

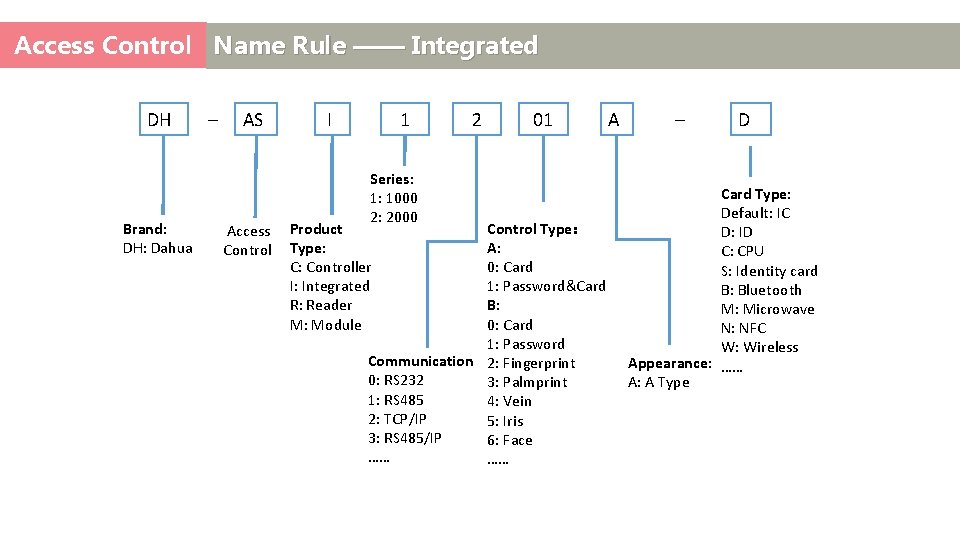

Access Control Name Rule —— Integrated DH Brand: DH: Dahua – AS Access Control I 1 Series: 1: 1000 2: 2000 Product Type: C: Controller I: Integrated R: Reader M: Module 2 01 Control Type： A: 0: Card 1: Password&Card B: 0: Card 1: Password Communication 2: Fingerprint 0: RS 232 3: Palmprint 1: RS 485 4: Vein 2: TCP/IP 5: Iris 3: RS 485/IP 6: Face …… …… A – D Card Type: Default: IC D: ID C: CPU S: Identity card B: Bluetooth M: Microwave N: NFC W: Wireless Appearance: …… A: A Type
Access Control Name Rule —— Module DH Brand: DH: Dahua – AS Access Control M 1 Series: 1: 1000 2: 2000 Product Type: C: Controller I: Integrated R: Reader M: Module 00 Control Mode: 00: Card 01: Password 02: Fingerprint 03: Palm print 04: Vein 05: Iris 06: Face ……

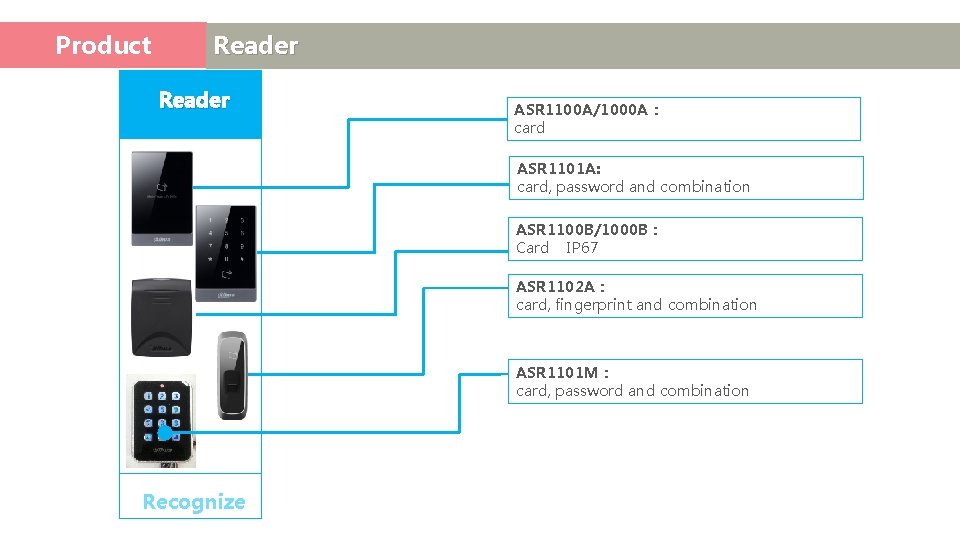

Product Access Control Reader ASR 1100 A/1000 A： card ASR 1101 A: card, password and combination ASR 1100 B/1000 B： Card IP 67 ASR 1102 A： card, fingerprint and combination ASR 1101 M： card, password and combination Recognize

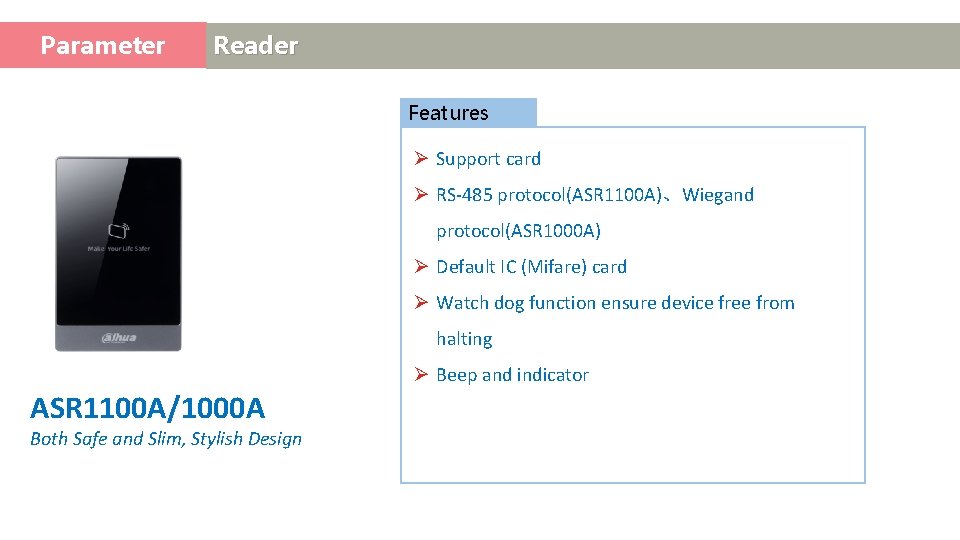

Parameter Access Control Reader Features Ø Support card Ø RS-485 protocol(ASR 1100 A)、Wiegand protocol(ASR 1000 A) Ø Default IC (Mifare) card Ø Watch dog function ensure device free from halting Ø Beep and indicator ASR 1100 A/1000 A Both Safe and Slim, Stylish Design

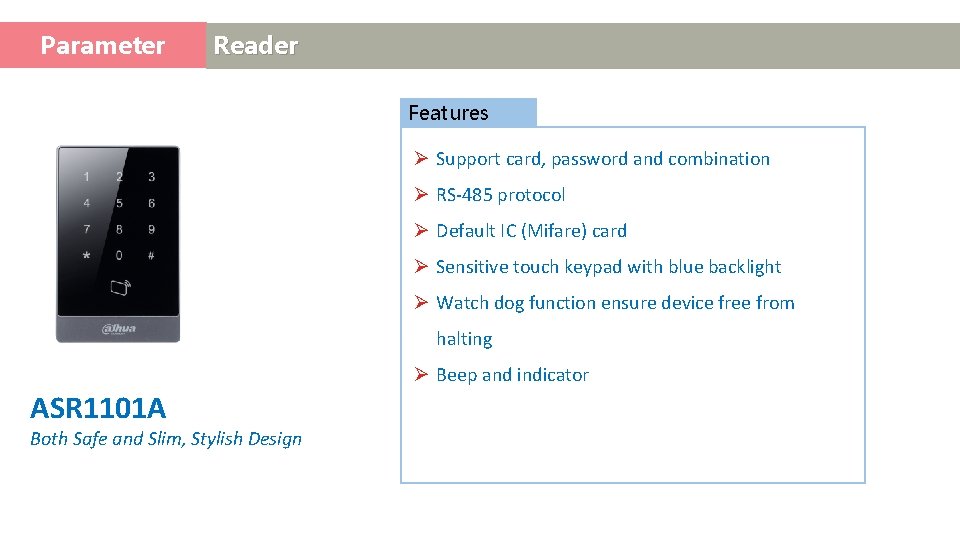

Parameter Access Control Reader Features Ø Support card, password and combination Ø RS-485 protocol Ø Default IC (Mifare) card Ø Sensitive touch keypad with blue backlight Ø Watch dog function ensure device free from halting Ø Beep and indicator ASR 1101 A Both Safe and Slim, Stylish Design

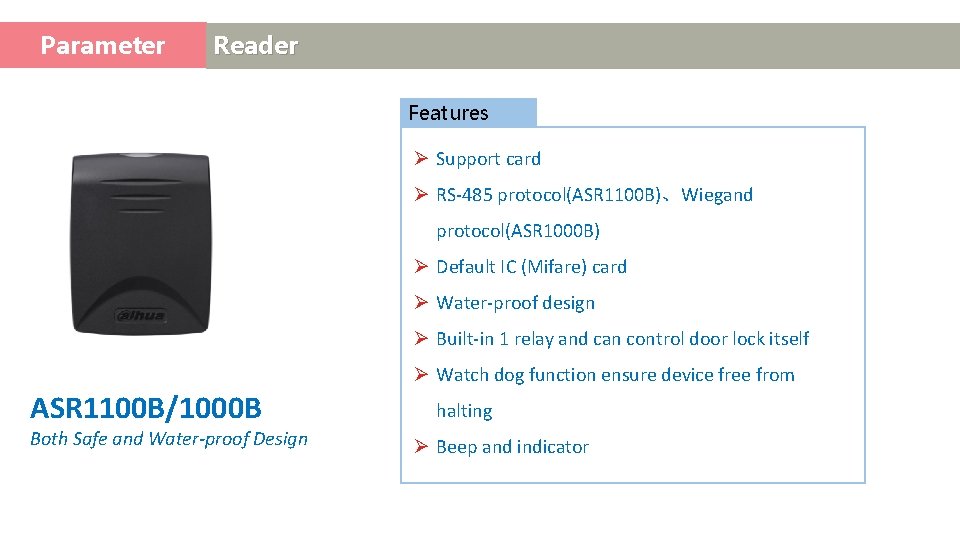

Parameter Access Control Reader Features Ø Support card Ø RS-485 protocol(ASR 1100 B)、Wiegand protocol(ASR 1000 B) Ø Default IC (Mifare) card Ø Water-proof design Ø Built-in 1 relay and can control door lock itself Ø Watch dog function ensure device free from ASR 1100 B/1000 B Both Safe and Water-proof Design halting Ø Beep and indicator

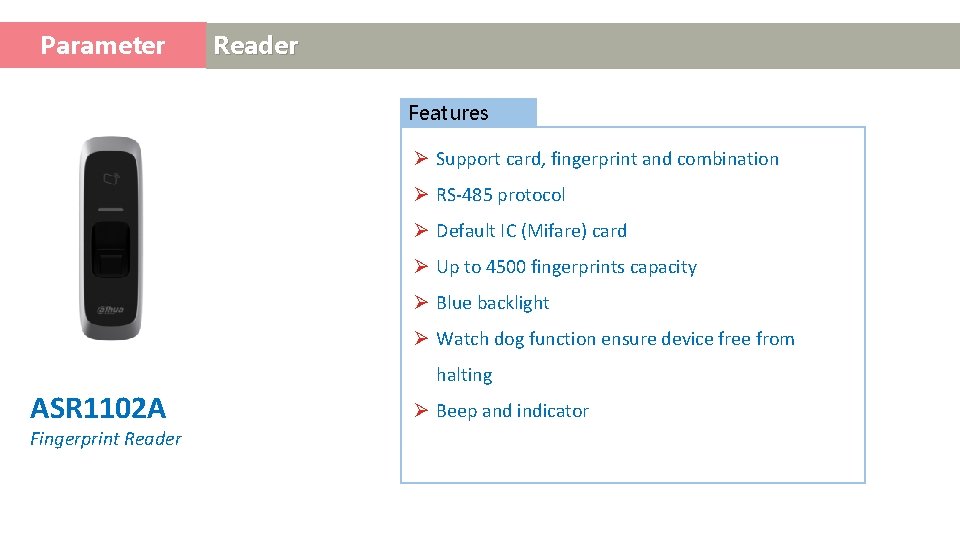

Parameter Access Control Reader Features Ø Support card, fingerprint and combination Ø RS-485 protocol Ø Default IC (Mifare) card Ø Up to 4500 fingerprints capacity Ø Blue backlight Ø Watch dog function ensure device free from halting ASR 1102 A Fingerprint Reader Ø Beep and indicator

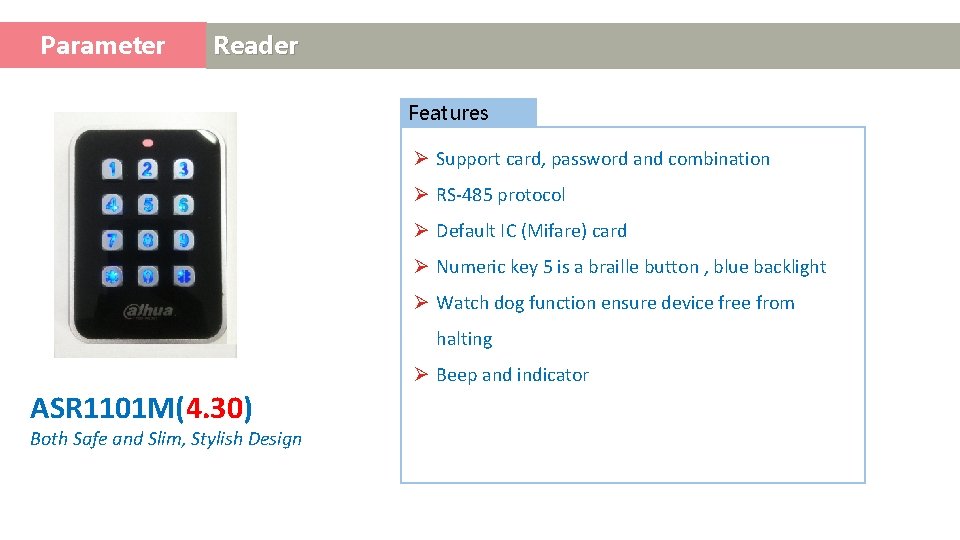

Parameter Access Control Reader Features Ø Support card, password and combination Ø RS-485 protocol Ø Default IC (Mifare) card Ø Numeric key 5 is a braille button , blue backlight Ø Watch dog function ensure device free from halting Ø Beep and indicator ASR 1101 M(4. 30) Both Safe and Slim, Stylish Design
Product Access Controller Multi-door：ASC 1204 B Card, password, fingerprint and combination Easy installation 4 door Multi-door(iron-box): ASC 1204 C Vandal-proof 4 door Battery powered Multi-door：ASC 1202 B Card, password, fingerprint and combination Easy installation 2 door Multi-door(iron-box): ASC 1202 C Vandal-proof 2 door Battery powered Control

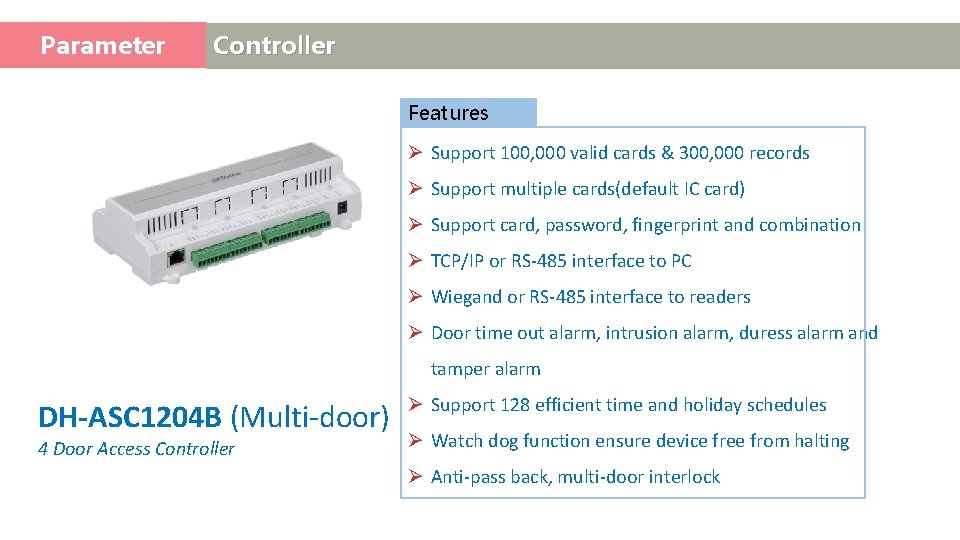

Parameter Access Controller Features Ø Support 100, 000 valid cards & 300, 000 records Ø Support multiple cards(default IC card) Ø Support card, password, fingerprint and combination Ø TCP/IP or RS-485 interface to PC Ø Wiegand or RS-485 interface to readers Ø Door time out alarm, intrusion alarm, duress alarm and tamper alarm DH-ASC 1204 B (Multi-door) 4 Door Access Controller Ø Support 128 efficient time and holiday schedules Ø Watch dog function ensure device free from halting Ø Anti-pass back, multi-door interlock
Parameter Access Controller Features Ø Support 100, 000 valid cards & 300, 000 records Ø Support multiple cards(default IC card) Ø Support card, password, fingerprint and combination Ø TCP/IP or RS-485 interface to PC Ø Wiegand or RS-485 interface to readers Ø Door time out alarm, intrusion alarm, duress alarm and tamper alarm DH-ASC 1204 C (Multi-door) 4 Door Access Controller Ø Support 128 efficient time and holiday schedules Ø Watch dog function ensure device free from halting Ø Anti-pass back, multi-door interlock Ø Battery powered

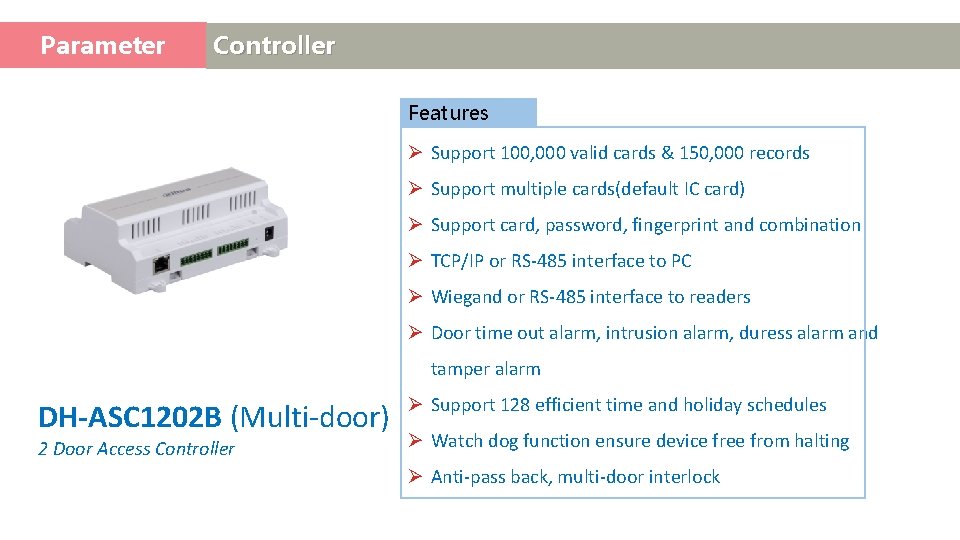

Parameter Access Controller Features Ø Support 100, 000 valid cards & 150, 000 records Ø Support multiple cards(default IC card) Ø Support card, password, fingerprint and combination Ø TCP/IP or RS-485 interface to PC Ø Wiegand or RS-485 interface to readers Ø Door time out alarm, intrusion alarm, duress alarm and tamper alarm DH-ASC 1202 B (Multi-door) 2 Door Access Controller Ø Support 128 efficient time and holiday schedules Ø Watch dog function ensure device free from halting Ø Anti-pass back, multi-door interlock

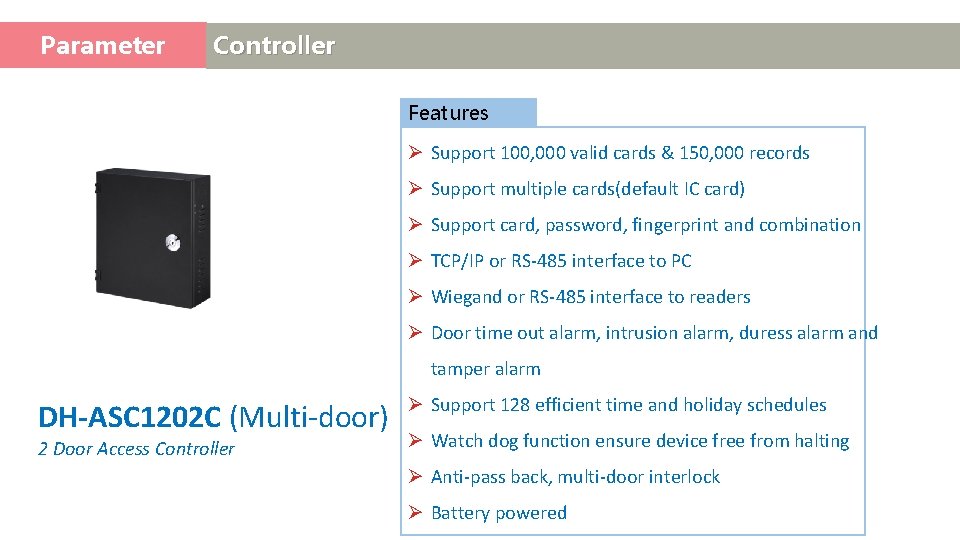

Parameter Access Controller Features Ø Support 100, 000 valid cards & 150, 000 records Ø Support multiple cards(default IC card) Ø Support card, password, fingerprint and combination Ø TCP/IP or RS-485 interface to PC Ø Wiegand or RS-485 interface to readers Ø Door time out alarm, intrusion alarm, duress alarm and tamper alarm DH-ASC 1202 C (Multi-door) 2 Door Access Controller Ø Support 128 efficient time and holiday schedules Ø Watch dog function ensure device free from halting Ø Anti-pass back, multi-door interlock Ø Battery powered
Product Access Control Integrated RFID Standalone：ASI 1201 A Card, password and combination 1 door Support reader and exit button(inside door) Fingerprint Standalone：ASI 1212 A Card, password, fingerprint and combination 1 door Voice Prompt Control

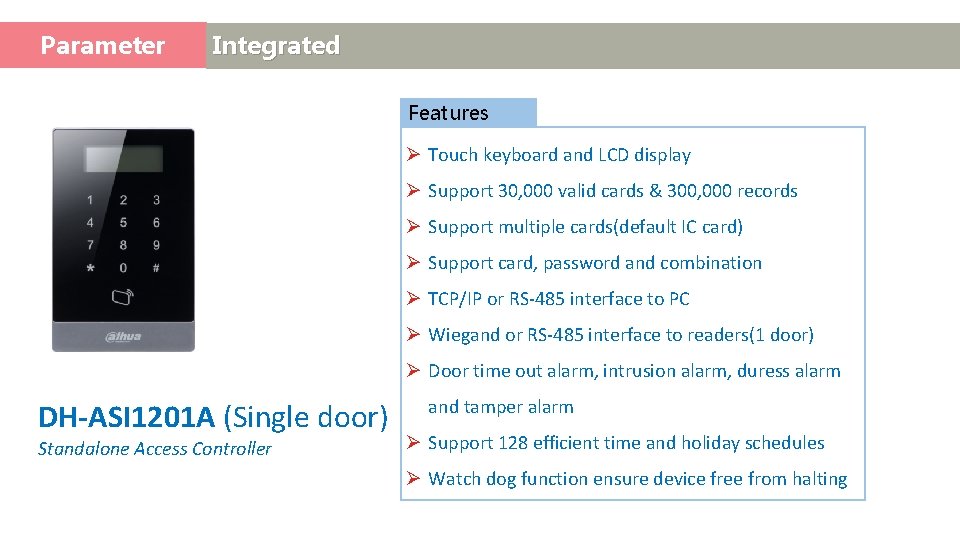

Parameter Access Control Integrated Features Ø Touch keyboard and LCD display Ø Support 30, 000 valid cards & 300, 000 records Ø Support multiple cards(default IC card) Ø Support card, password and combination Ø TCP/IP or RS-485 interface to PC Ø Wiegand or RS-485 interface to readers(1 door) Ø Door time out alarm, intrusion alarm, duress alarm DH-ASI 1201 A (Single door) Standalone Access Controller and tamper alarm Ø Support 128 efficient time and holiday schedules Ø Watch dog function ensure device free from halting
Parameter Access Control Integrated Features Ø Touch keyboard and LCD display Ø Support 30, 000 valid cards, 15, 0000 records and 4500 fingerprint Ø Support multiple cards(default IC card) Ø TCP/IP or RS-485 interface to PC Ø Wiegand or RS-485 interface to readers(1 door) Ø Door time out alarm, intrusion alarm, duress alarm DH-ASI 1212 A (4. 10) Standalone Access Controller and tamper alarm Ø Support 128 efficient time and holiday schedules Ø Watch dog function ensure device free from halting

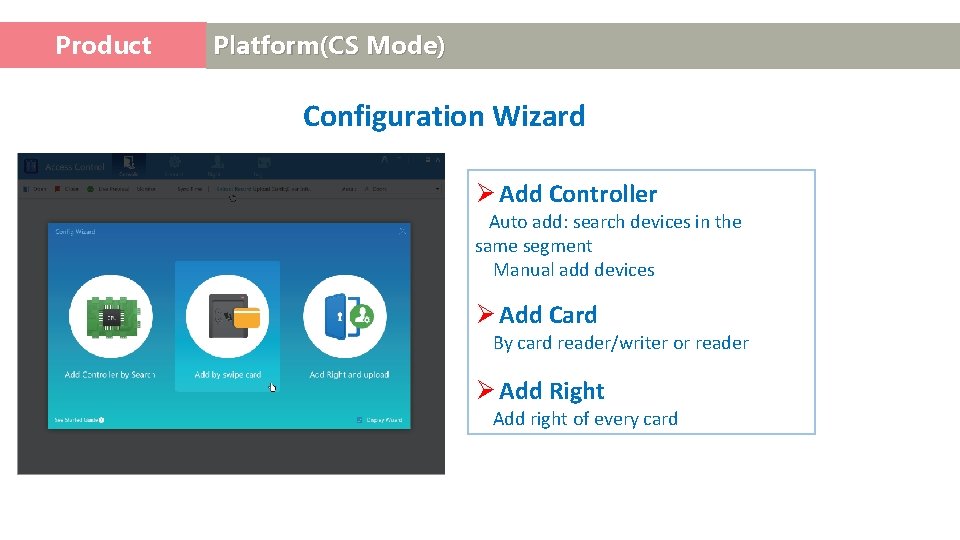

Product Access Control Platform(CS Mode) Configuration Wizard Ø Add Controller Auto add: search devices in the same segment Manual add devices Ø Add Card By card reader/writer or reader Ø Add Right Add right of every card

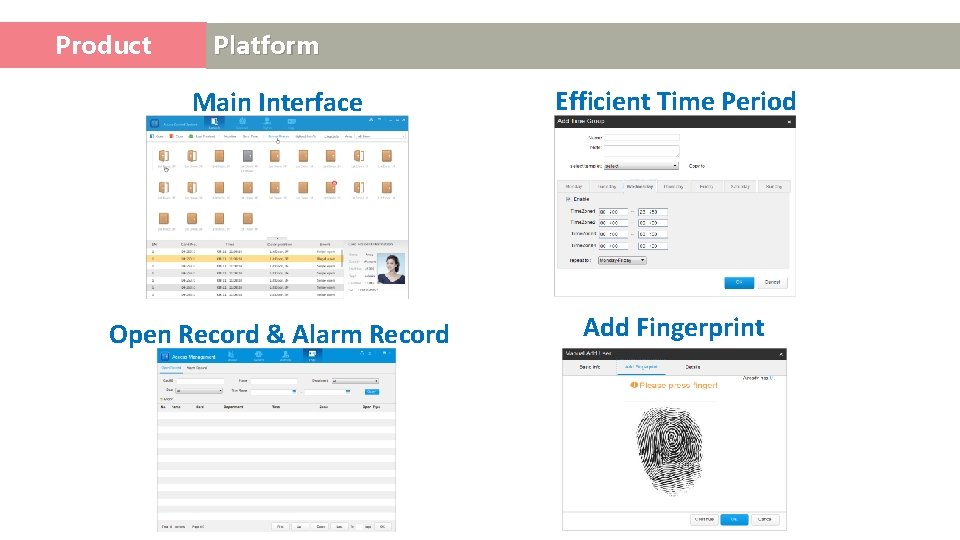

Product Access Control Platform Main Interface Efficient Time Period Open Record & Alarm Record Add Fingerprint

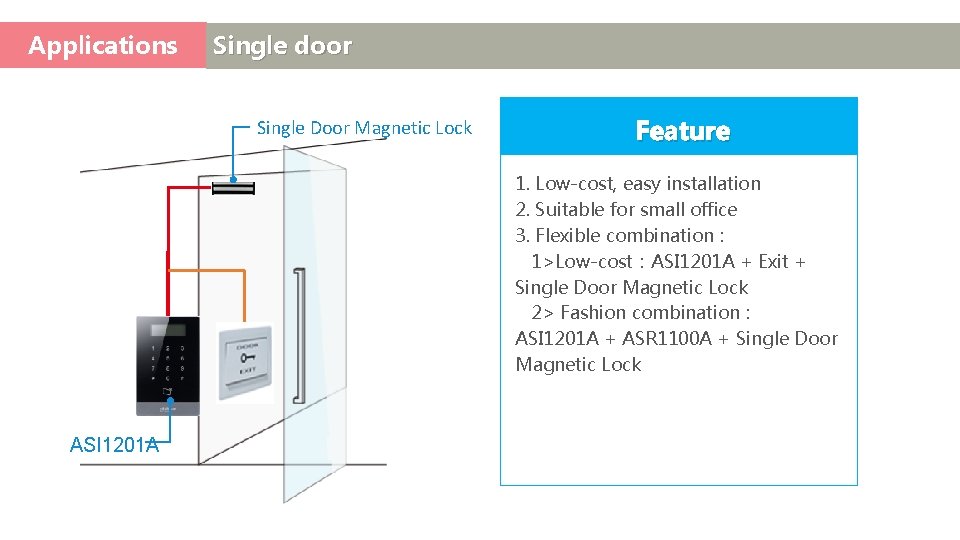

Applications Access Control Single door Single Door Magnetic Lock Feature 1. Low-cost, easy installation 2. Suitable for small office 3. Flexible combination : 1>Low-cost：ASI 1201 A + Exit + Single Door Magnetic Lock 2> Fashion combination : ASI 1201 A + ASR 1100 A + Single Door Magnetic Lock ASI 1201 A

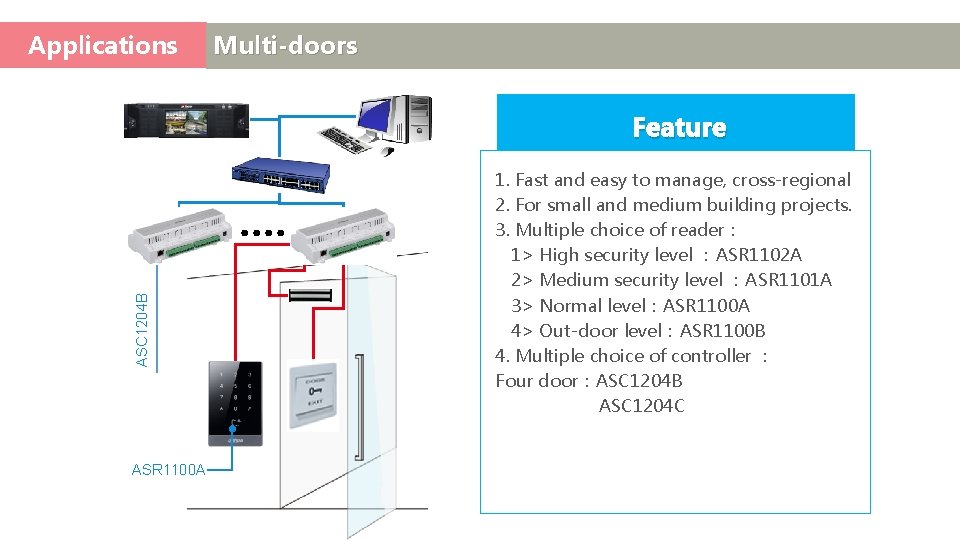

Applications Multi-doors ASC 1204 B Feature ASR 1100 A 1. Fast and easy to manage, cross-regional 2. For small and medium building projects. 3. Multiple choice of reader： 1> High security level ：ASR 1102 A 2> Medium security level ：ASR 1101 A 3> Normal level：ASR 1100 A 4> Out-door level：ASR 1100 B 4. Multiple choice of controller ： Four door：ASC 1204 B ASC 1204 C
Applications Project Decoder Monitoring center Fire Detector Illumination Air conditioning Alarm Host Function Ladder NVR 1. CCTV linkage 2. Alarm linkage 3. Online Patrol 4. Visitors, attendance, garage, consumer card.

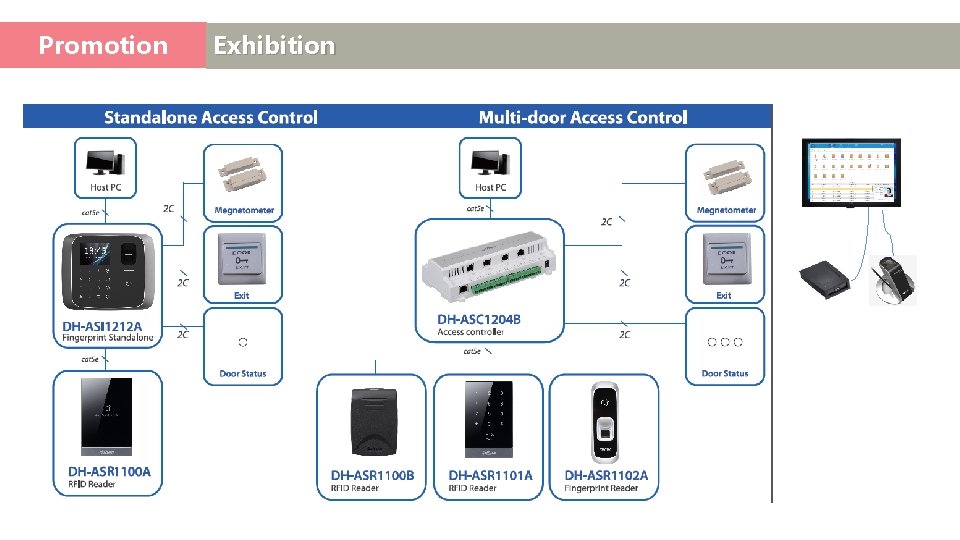

Promotion附录Exhibition

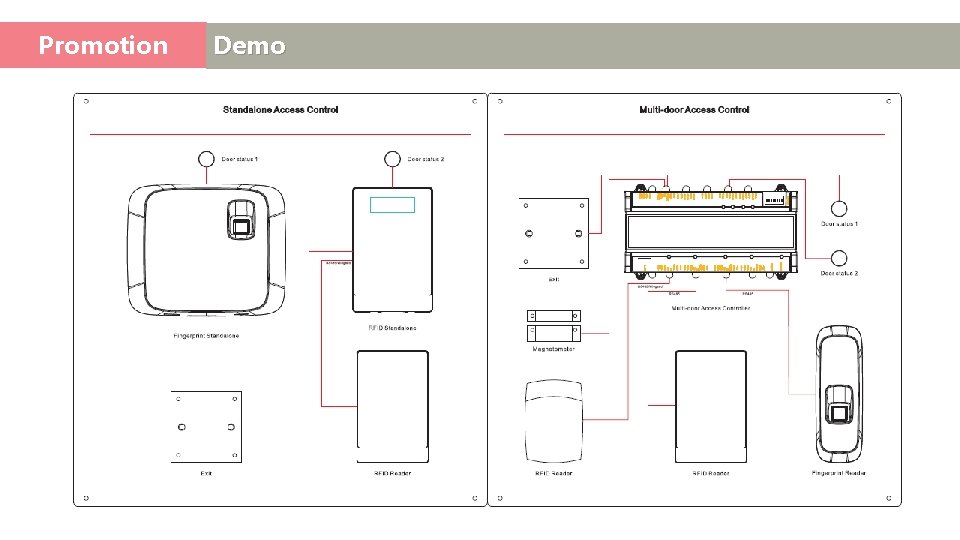

Promotion附录Demo

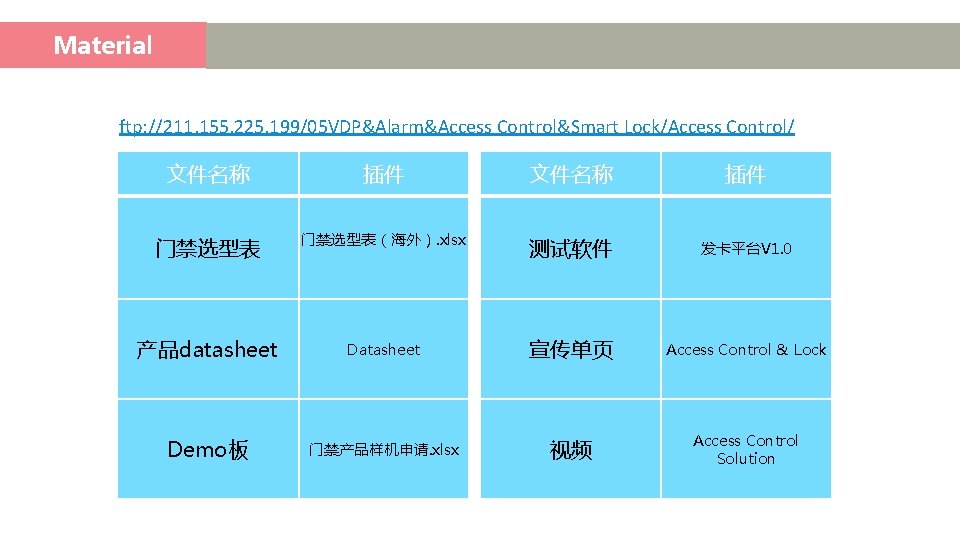

Material 附录 ftp: //211. 155. 225. 199/05 VDP&Alarm&Access Control&Smart Lock/Access Control/ 文件名称 插件 门禁选型表（海外）. xlsx 测试软件 发卡平台V 1. 0 产品datasheet Datasheet 宣传单页 Access Control & Lock Demo板 门禁产品样机申请. xlsx 视频 Access Control Solution
