Accelerometers in low Earth orbits Anja Schlicht Technische

Accelerometers in low Earth orbits Anja Schlicht Technische Universität München

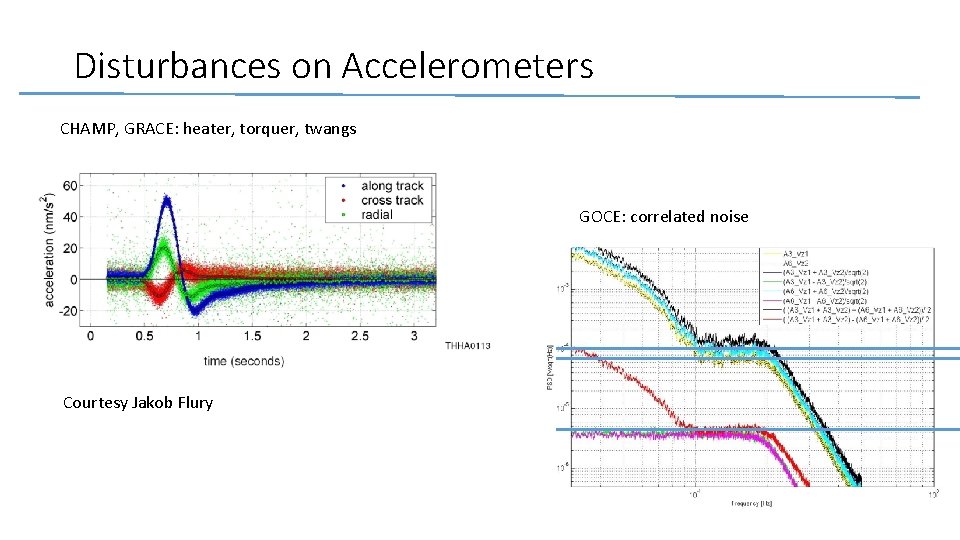

Disturbances on Accelerometers CHAMP, GRACE: heater, torquer, twangs GOCE: correlated noise Courtesy Jakob Flury

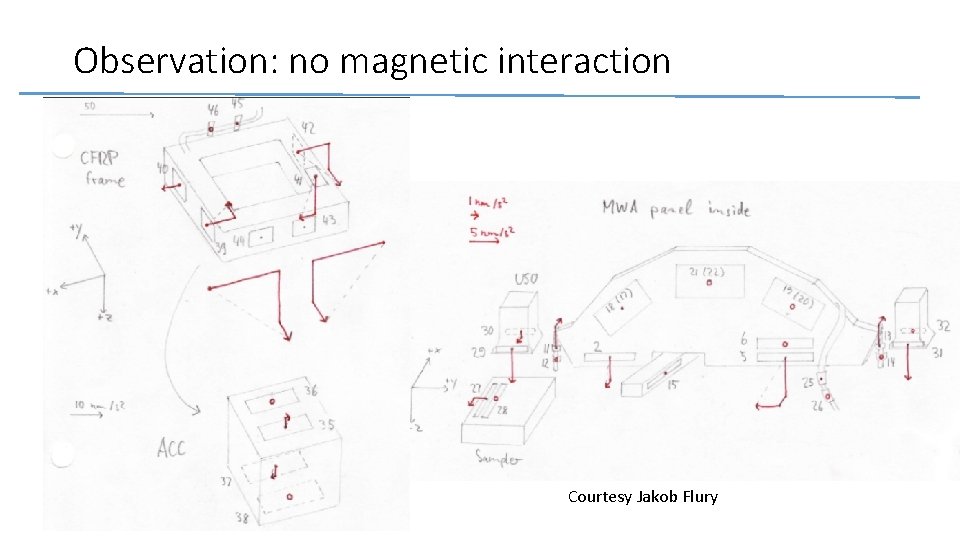

Observation: no magnetic interaction Courtesy Jakob Flury

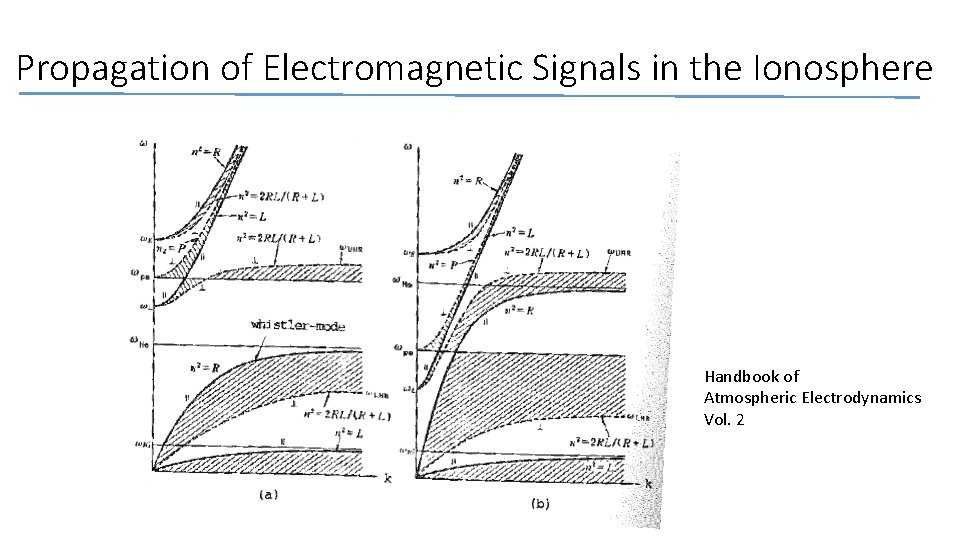

Propagation of Electromagnetic Signals in the Ionosphere Handbook of Atmospheric Electrodynamics Vol. 2

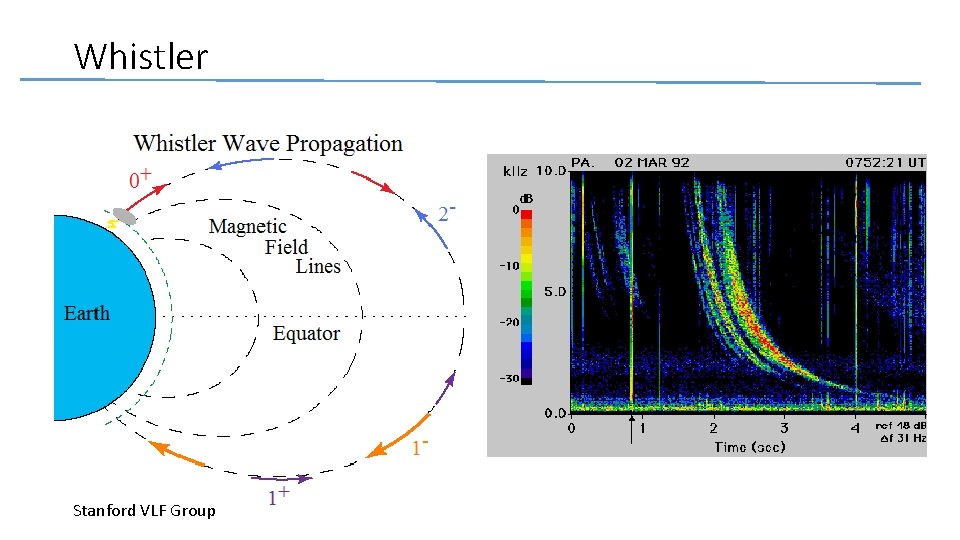

Whistler Stanford VLF Group

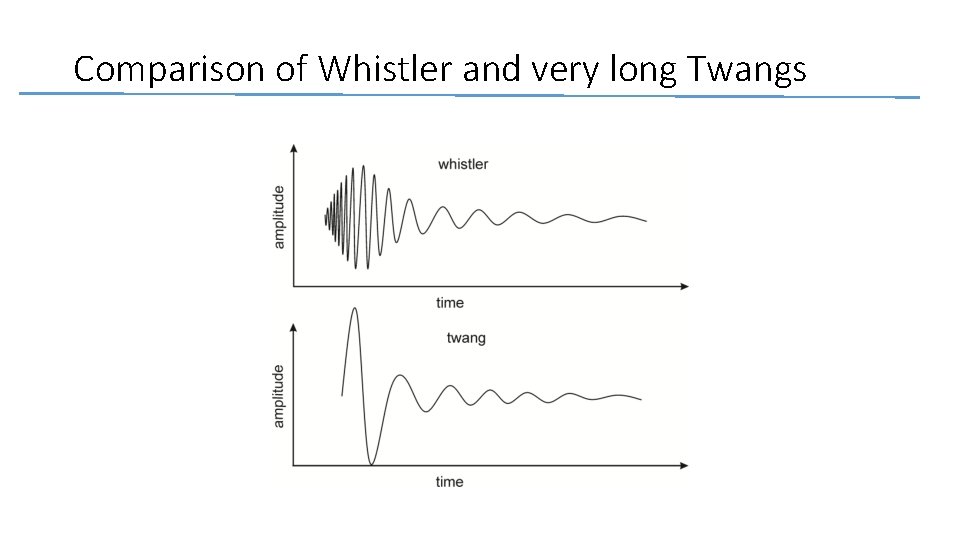

Comparison of Whistler and very long Twangs

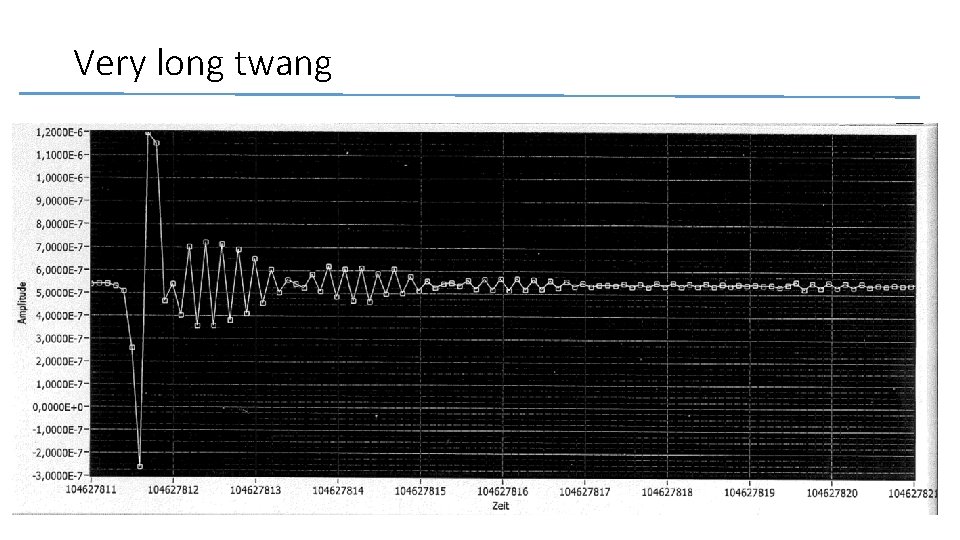

Very long twang

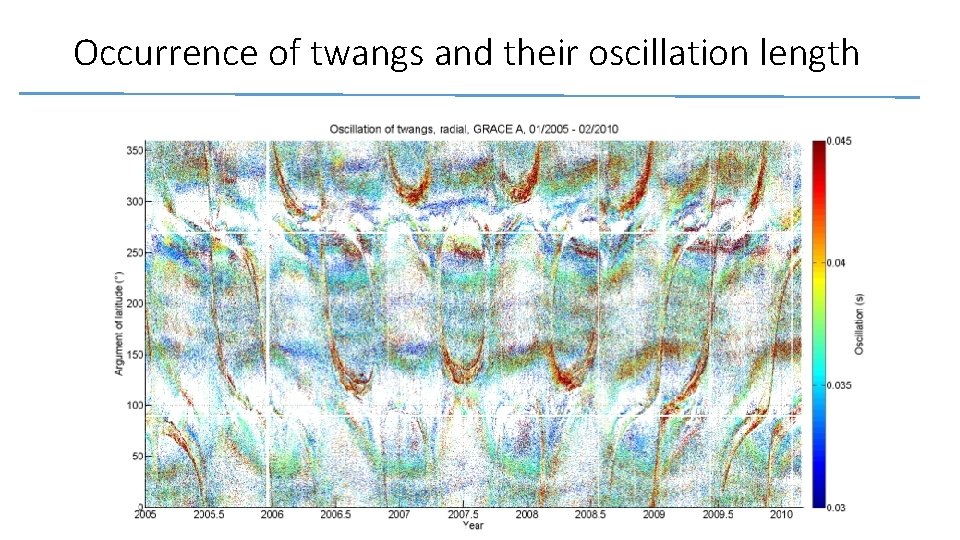

Occurrence of twangs and their oscillation length

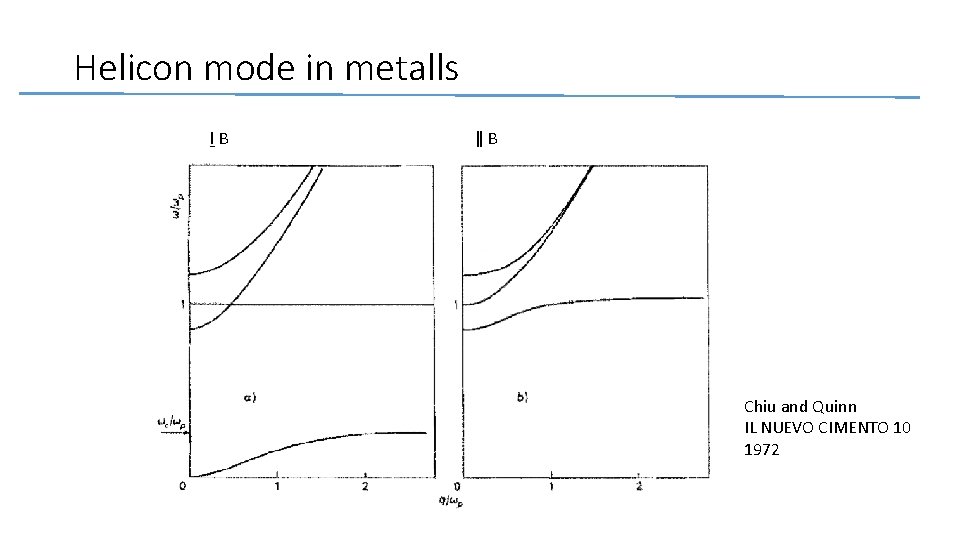

Helicon mode in metalls ḻB ǁB Chiu and Quinn IL NUEVO CIMENTO 10 1972

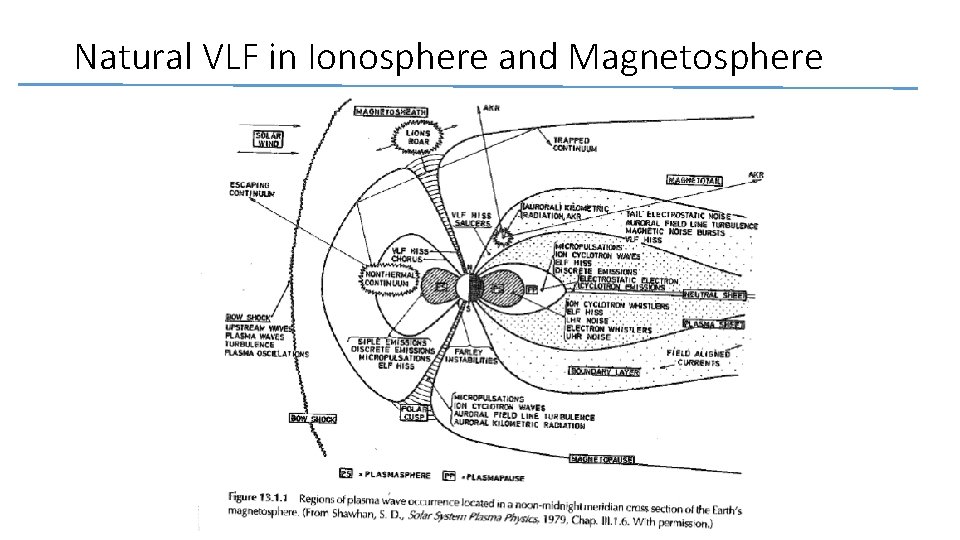

Natural VLF in Ionosphere and Magnetosphere

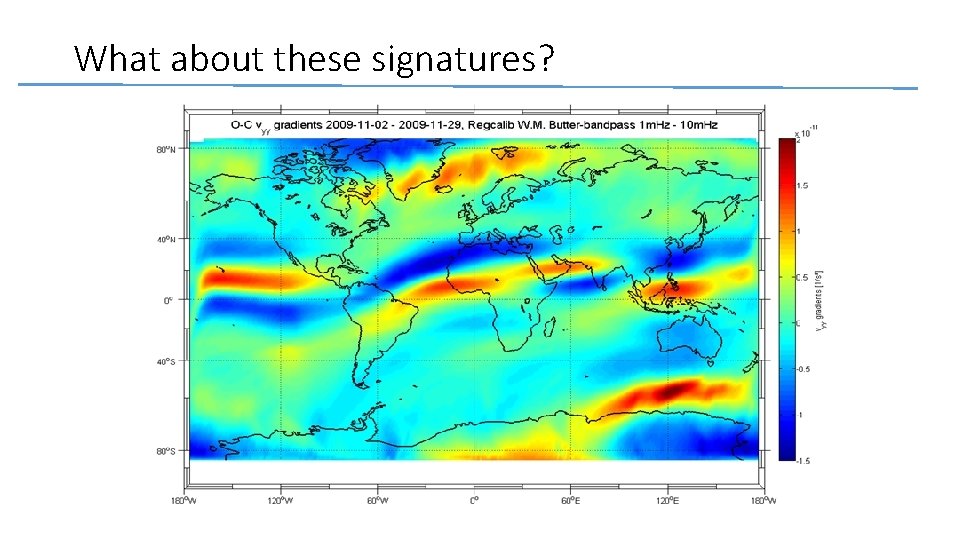

What about these signatures?

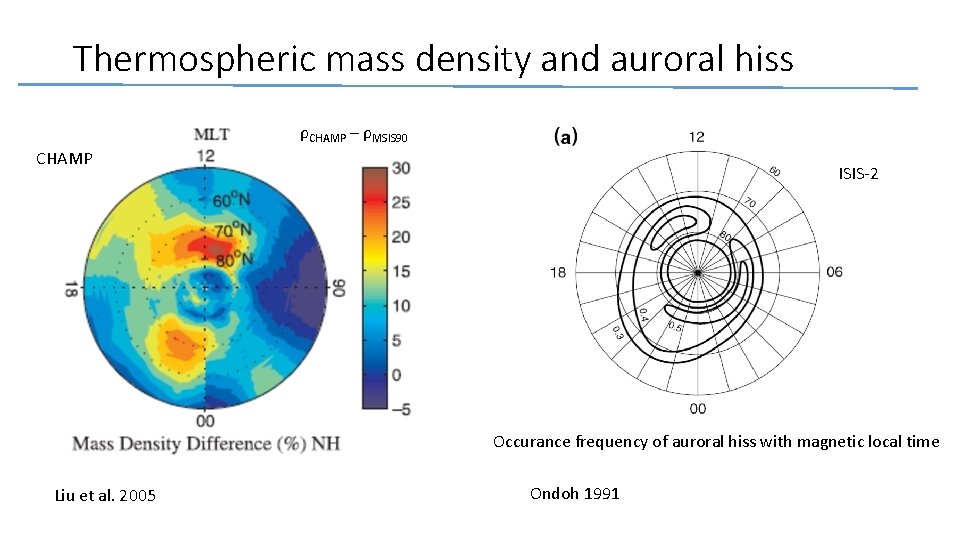

Thermospheric mass density and auroral hiss ρCHAMP – ρMSIS 90 CHAMP ISIS-2 Occurance frequency of auroral hiss with magnetic local time Liu et al. 2005 Ondoh 1991

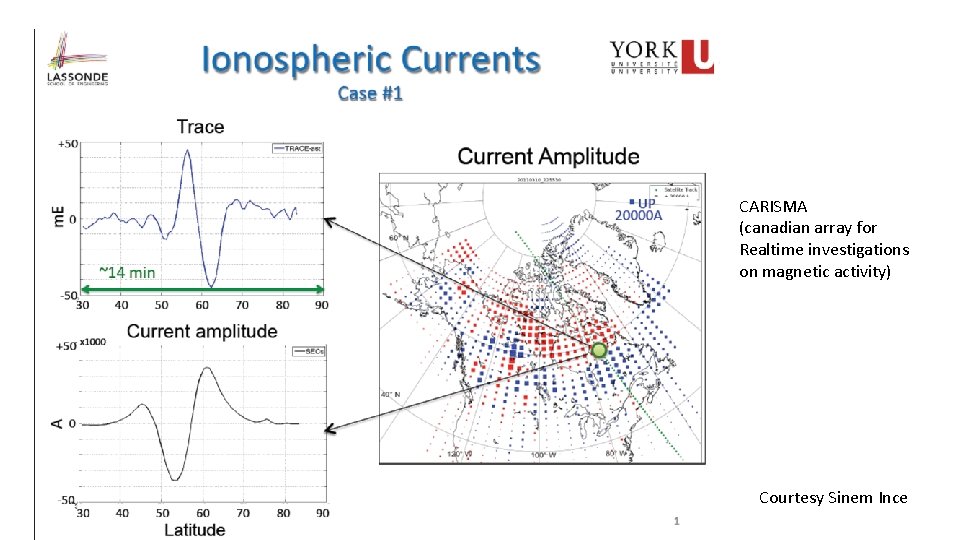

CARISMA (canadian array for Realtime investigations on magnetic activity) Courtesy Sinem Ince

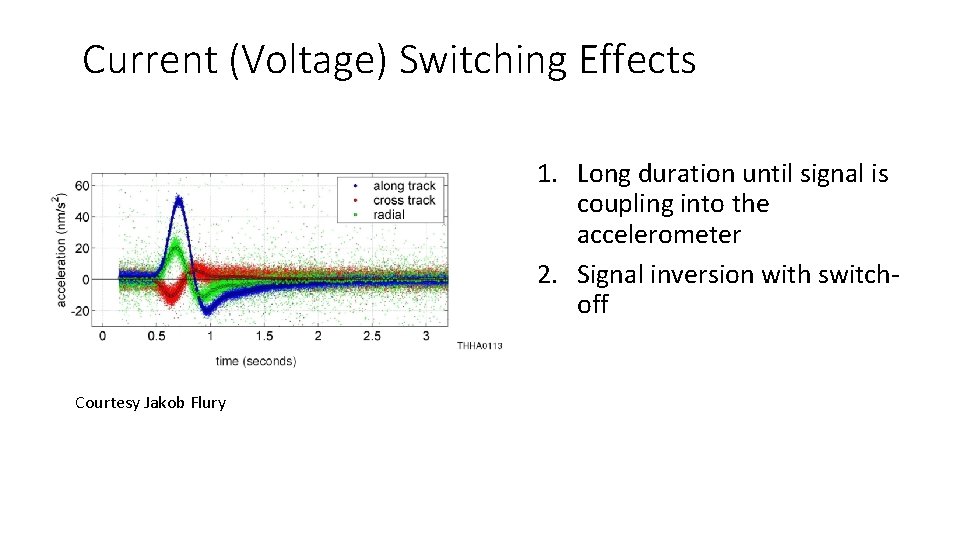

Current (Voltage) Switching Effects 1. Long duration until signal is coupling into the accelerometer 2. Signal inversion with switchoff Courtesy Jakob Flury

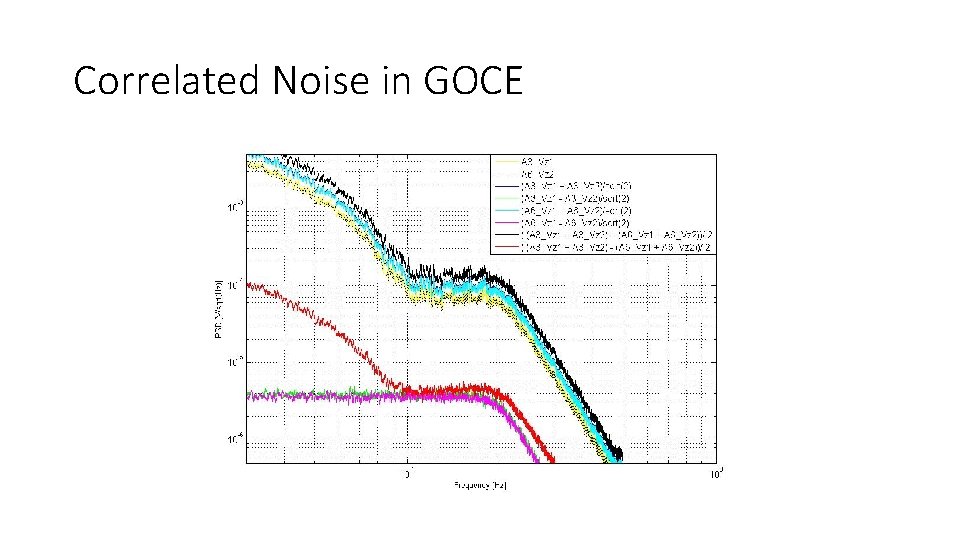

Correlated Noise in GOCE

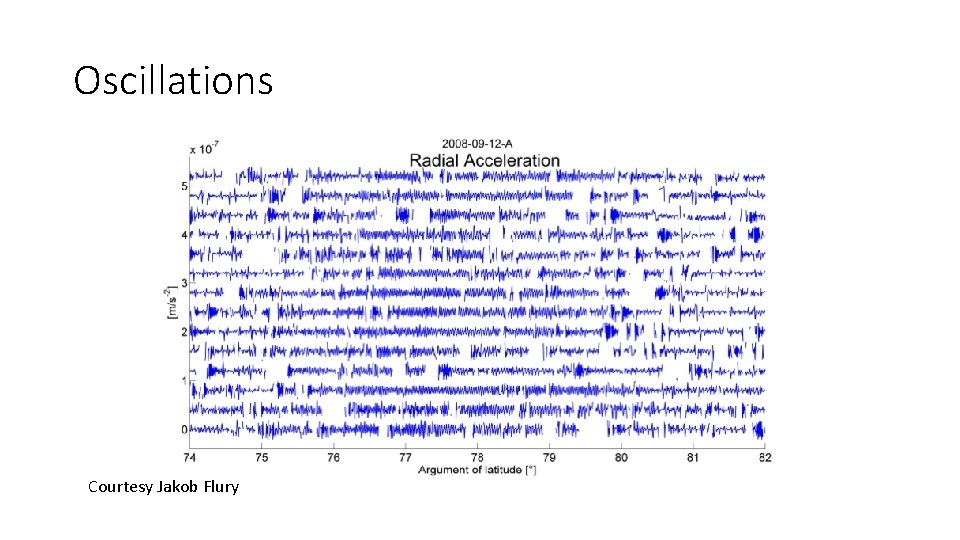

Oscillations Courtesy Jakob Flury

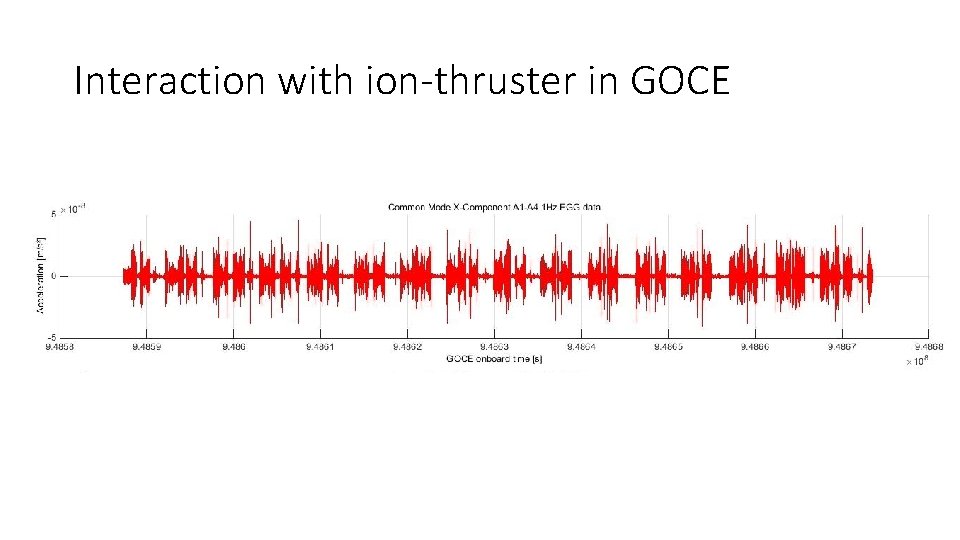

Interaction with ion-thruster in GOCE

Thank you very much!

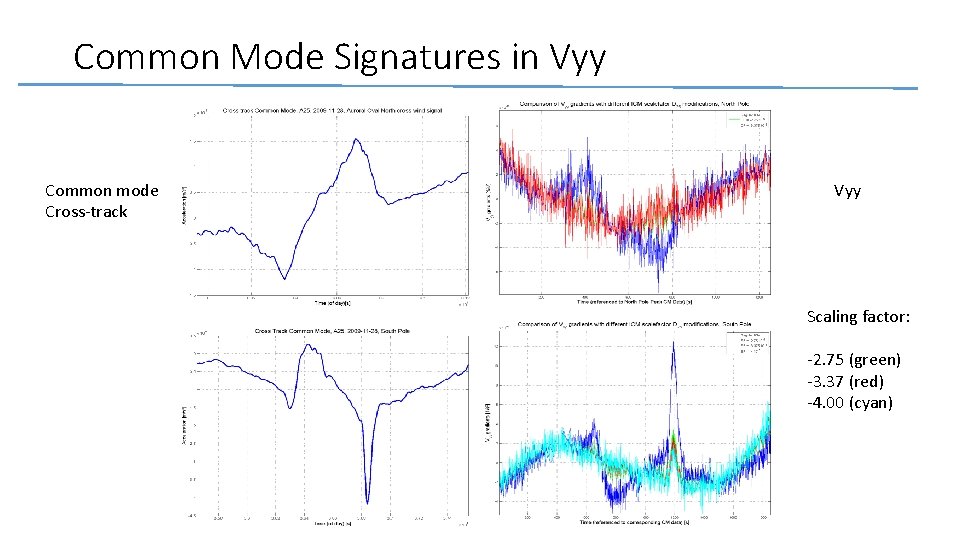

Common Mode Signatures in Vyy Common mode Cross-track Vyy Scaling factor: -2. 75 (green) -3. 37 (red) -4. 00 (cyan)
