Accelerator Development and Operation Support Q 12016 progress

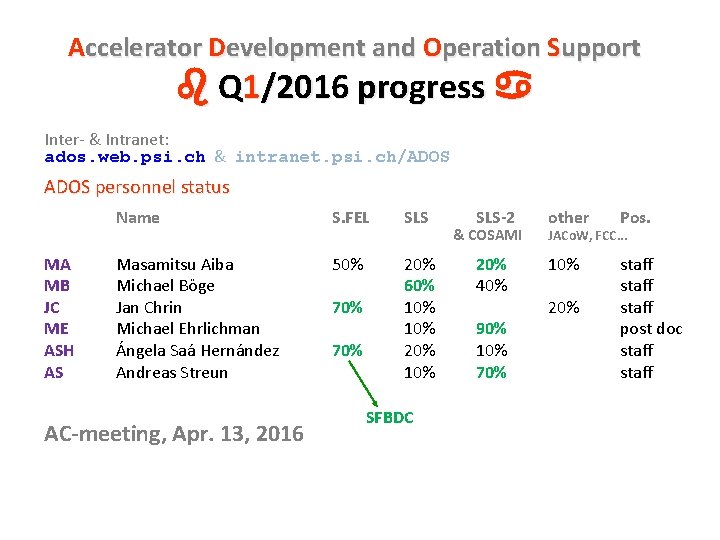

Accelerator Development and Operation Support Q 1/2016 progress Inter- & Intranet: ados. web. psi. ch & intranet. psi. ch/ADOS personnel status MA MB JC ME ASH AS Name S. FEL SLS Masamitsu Aiba Michael Böge Jan Chrin Michael Ehrlichman Ángela Saá Hernández Andreas Streun 50% 20% 60% 10% 20% 10% AC-meeting, Apr. 13, 2016 70% SFBDC SLS-2 other Pos. 20% 40% 10% staff post doc staff & COSAMI 90% 10% 70% JACo. W, FCC. . . 20%

Cosami/SLS-2 budget and priorities w Cosami status § § KTI proposal rejected resubmission Industrial partner • • § § interested in collaboration, faith in PSI 500 K contribution to XIL/Re. Scan inspection tool at SLS but no support for Cosami conceptual design report further decisions in August High priority for PSI now Decision on location in August • WLHA, Injector-1 bunker, parc innovaare, OBLA w SLS-2 status § no longer on SERI roadmap due to budget cut • no budget for SLS-2 until 2020 • but 60 new positions for SYN. . . § ATHOS well on roadmap, 40 M assured. AC meeting, April 13, 2016 2

Large chromaticity schemes for SLS-2 w. i. p. ME • Realistic SLS operating scenarios include large chromaticity • A useful lever for combating impedance instabilities • Development efforts so far have been with zero or very small chromaticity, where the chromatic footprint can be confined to the half-integer box. • With larger chromaticity, the chromatic footprint cannot be squeezed into the half-integer, and must be optimized to the integer. • SLS (1) operates with large chromaticity • APS-U has been designed for +5/+5 and spans full integer • SLS upgrade operation at large chromaticity needs to be validated, and large chromaticity, large footprint SLS magnet schemes need to be developed. APS-U +5 Chromaticity SLS upgrade zero Chromaticity SLS upgrade -5 Chromaticity

MOGA paper Phys. Rev. Acc. & Beams March 9 th submitted April 8 th accepted ! AC meeting, April 13, 2016 ME 4

Optics correction study for SLS 2 w Motivation § § MA, MB Linear optics correction is essential To reveal if LOCO style correction is applicable to SLS 2 w Results § It works well as in SLS • Residual beta-beating = 0. 2~0. 3% rms • BPM and corrector calibration accuracy ~0. 3% rms § § However, the horiz. dispersion should be corrected simultaneously Typical result AC meeting, April 13, 2016 5

COSAMI designs w. i. p. AS, Albin Wrulich w 13. 5 nm (92 e. V), 17 m. W in 0. 1% bandwidth w 430 Me. V, 100. . 200 m. A current w compact footprint 5 10 m 2 w CDR in summer w Meeting week Apr. 25 th 430 Me. V storage ring 24 m, e 4. . 7 nm 23 430 Me. V booster, 26. 4 m, e 30. . 50 nm fixed gap undulator U 16, 3 m, gap 8 mm AC meeting, April 13, 2016 Vertical transferline not shown: 23 Me. V linac/lasergun 1. 5 m, e 90 nm, 0. 43% Dp/p 6

SLS: Upgrade of hydrostatic levelling system HLS software upgrade finished after approximately one year w Support of the latest Lab. VIEW versions w Support of TCP/IP (WAGO) instead of CAN-Bus (ADAM) based readout w EPICS integration through EPICS server in Lab. VIEW w Archiving of raw and processed data (heave, pitch and roll) w Alarms on maximum deviations with e-mail notification AC meeting, April 13, 2016 MB 7

Swiss. FEL Data Distribution Server JC, Rene Kapeller First applications: Database SF Log Daemons* sf-dds : Virtual Server Message Logger BPM analysis servers Available to all for hosting services for high-level applications Virtual Accelerator GUI provides users/experts with status information and the ability to start/stop services *daemon = background process

Message Logger zmsglog Long-standing timeout problem (due to inactivity ~ 1 hr) resolved by IT (firewall issue) JC Now running stably since several weeks Recommended particularly to long running high level applications how to send messages to central logger from programs in different languages Python error. Msg = Msg. Log. Cy. Error. Msg( “Orbit. Display”, “SFBD Group”) … error. Msg. set. Msg(“freq. out-of-range”) error. Msg. send(__file__, __LINE__()) AC meeting, April 13, 2016 C++ Msg msg(‘App. Name’, ‘Contact’) … msg. set(‘All not well on the front’) msg. send(‘debug’, __FILE__, __LINE__) MATLAB msglog(‘set. App. Name’, ‘RF_Feedback’) … msglog(‘set. Msg’, ‘Invalid state’) msglog(‘send’, ‘fatal’, dbstack()) 9

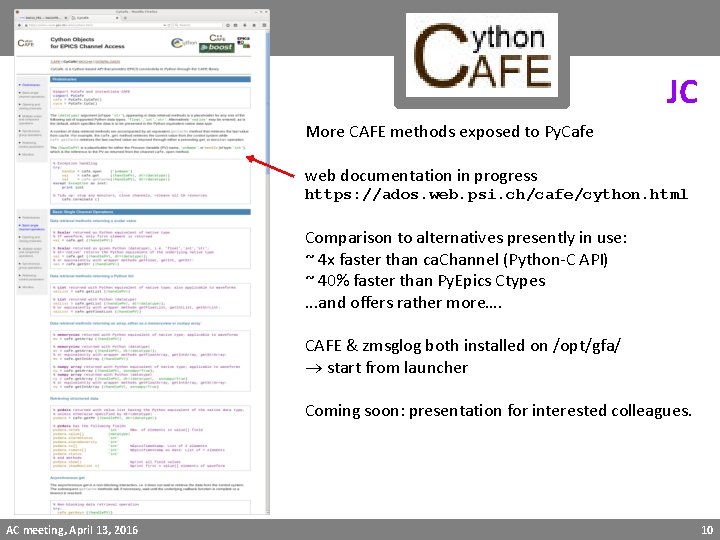

JC More CAFE methods exposed to Py. Cafe web documentation in progress https: //ados. web. psi. ch/cafe/cython. html Comparison to alternatives presently in use: ~ 4 x faster than ca. Channel (Python-C API) ~ 40% faster than Py. Epics Ctypes. . . and offers rather more…. CAFE & zmsglog both installed on /opt/gfa/ start from launcher Coming soon: presentation for interested colleagues. AC meeting, April 13, 2016 10

The CAFE empire High Level Applications in various languages C++ Matlab Python standard message reporting for CAFE errors Message Logger Wrappers MOCHA CAFE Cython* CAFE database *Programming language, looks like python but fast as C Channel access AC meeting, April 13, 2016 11

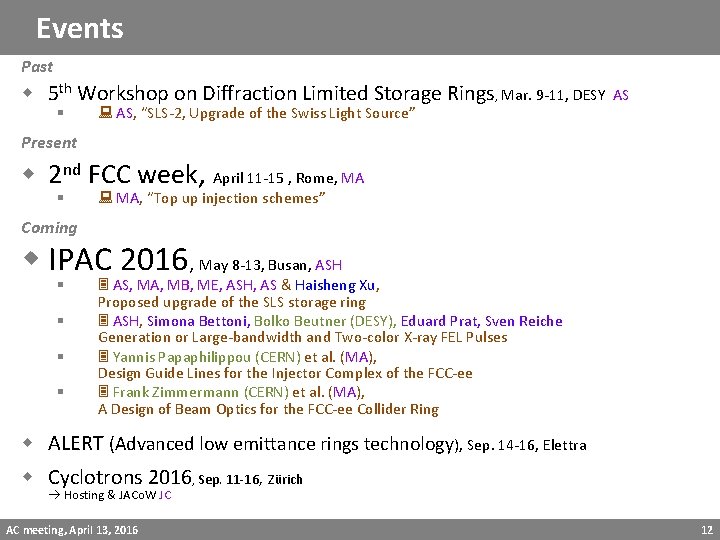

Events Past w 5 th Workshop on Diffraction Limited Storage Rings, Mar. 9 -11, DESY § AS, “SLS-2, Upgrade of the Swiss Light Source” AS Present w 2 nd FCC week, April 11 -15 , Rome, MA § MA, “Top up injection schemes” Coming w IPAC 2016, May 8 -13, Busan, ASH § § AS, MA, MB, ME, ASH, AS & Haisheng Xu, Proposed upgrade of the SLS storage ring ASH, Simona Bettoni, Bolko Beutner (DESY), Eduard Prat, Sven Reiche Generation or Large-bandwidth and Two-color X-ray FEL Pulses Yannis Papaphilippou (CERN) et al. (MA), Design Guide Lines for the Injector Complex of the FCC-ee Frank Zimmermann (CERN) et al. (MA), A Design of Beam Optics for the FCC-ee Collider Ring w ALERT (Advanced low emittance rings technology), Sep. 14 -16, Elettra w Cyclotrons 2016, Sep. 11 -16, Zürich Hosting & JACo. W JC AC meeting, April 13, 2016 12
