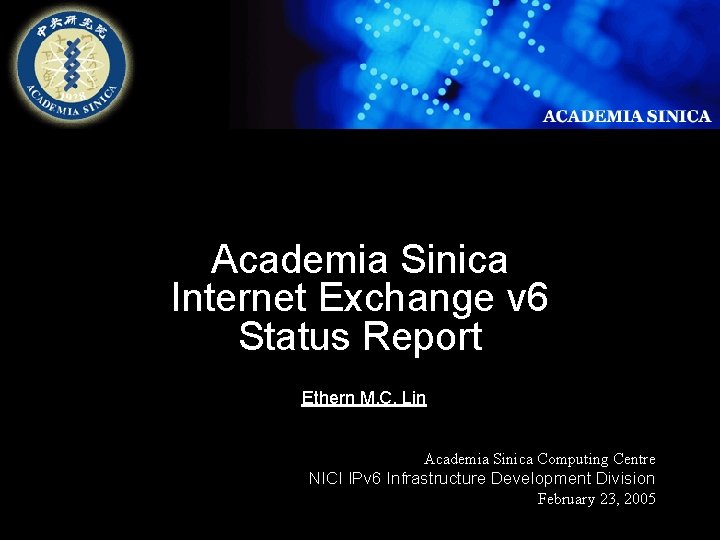

Academia Sinica Internet Exchange v 6 Status Report Ethern M. C. Lin Academia Sinica Computing Centre NICI IPv 6 Infrastructure Development Division February 23, 2005
n NICI Introduction n ASNet IPv 6 Status n ASIX 6 Status Introduction n Taipei. Giga. Po. P Status
NICI Introduction
NICI Introduction n About NICI n n n National Initiatives for Communication and Information the highest government agency in charge of the information technology in Taiwan URL: http: //www. nici. nat. gov. tw/content/application/nici/eng/index. php established the 「IPv 6 Steering Committee」 IPv 6 Steering Committee n n chaired by the DGT(Directorate General of Telecommunications) four divisions n n Research & Development, Standard & Testing, Infrastructure Development, Application & Promotion The 5 years project started from 2003, and about USD 3. 4 millions has been allocated till 2004.
ASCC Role in NICI…. n n Academia Sinica Computing Centre n APAN-TW NOC n To provide global Internet access service for academic & research domain in Taiwan n Co-founder of NICI IPv 6 Infrastructure Development Division n MOECC(TANet), NCHC(TWAREN), CHT(Hi. Net) 2003, 「 IPv 6 Migration and Promotion for Local Internet Service Providers 」 2004, 「Construction of IPv 6 Internet Exchange Project for ISP IPv 6 Backbone Network 」, Phase I 2005, the Phase II of 2004 project

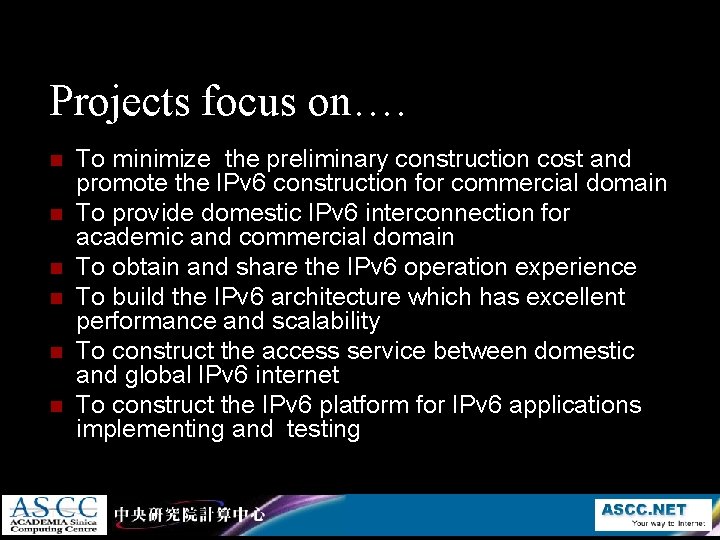

Projects focus on…. n n n To minimize the preliminary construction cost and promote the IPv 6 construction for commercial domain To provide domestic IPv 6 interconnection for academic and commercial domain To obtain and share the IPv 6 operation experience To build the IPv 6 architecture which has excellent performance and scalability To construct the access service between domestic and global IPv 6 internet To construct the IPv 6 platform for IPv 6 applications implementing and testing
NICI IPv 6 Steering Committee
ASNet IPv 6 Status
ASNet IPv 6 Status Report n ASNet n n n IPv 6 Address allocated n n n Pseudo-TLA: 3 FFE: 4001: : /32, 2002/3, will be phase-out at 2006/6/6 Sub-TLA: 2001: C 08: : /32, 2002/7 Campus networks n n n Academic Service Network(ASN: 9264) Maintained by ASCC IPv 6 Ready Cisco 6509 w/ Sup 720, Cisco 7609 w/ Sup 720, Juniper Taipei. Giga. Po. P n n IPv 6 Ready Cisco GSR 12416, Cisco 7609 w/ Sup 720

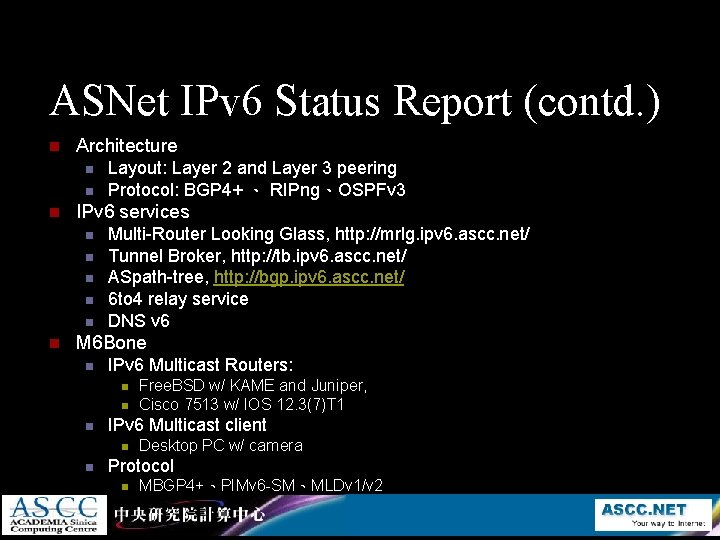

ASNet IPv 6 Status Report (contd. ) n Architecture n n n IPv 6 services n n n Layout: Layer 2 and Layer 3 peering Protocol: BGP 4+ 、 RIPng、OSPFv 3 Multi-Router Looking Glass, http: //mrlg. ipv 6. ascc. net/ Tunnel Broker, http: //tb. ipv 6. ascc. net/ ASpath-tree, http: //bgp. ipv 6. ascc. net/ 6 to 4 relay service DNS v 6 M 6 Bone n IPv 6 Multicast Routers: n n n IPv 6 Multicast client n n Free. BSD w/ KAME and Juniper, Cisco 7513 w/ IOS 12. 3(7)T 1 Desktop PC w/ camera Protocol n MBGP 4+、PIMv 6 -SM、MLDv 1/v 2
ASIX 6 Status Introduction
ASNet Internet e. Xchange v 6(ASIX 6) n Purpose and Benefits n n n To provide the global IPv 6 connection for participants of IX To provide the mature of IPv 6 infrastructure for IPv 6 development and implementation in Taiwan To share the IPv 6 experience with IX participants To minimize the cost for IX participants in initial IPv 6 construction To improve the IPv 6 traffic performance and network quality
ASIX 6 Status (contd. ) n Schema n n The IPv 6 links between Academia Sinica and participants are focus on the native and dual-stack Academia Sinica will provide needed gears and interfaces which we have for the participants n n n T 1, E 1, T 3, STM-1, FE, GE and even 10 Gbps We will provide the rack spaces, power, UPS, and air conditioner for participants There are several carriers for participants to choice to minimize the cost of IPv 6 link construction We provide the 6 Bone p. TLA IPv 6 address space for preliminary usage of participants, and assistance in the early develpoment We can provide IPv 6 -over-IPv 4 tunneling connections in the first trial
ASIX 6 Status - Domestic n IPv 6 Peerings n n n Commercial: Hi. Net(AS 17419), TTN(AS 4747), TFN(AS 9924), Giga. Media(AS 9416), Seed. Net(AS 4780), APOL(AS 17709) Academic & Research:TANet(AS 17717), TWAREN、 TANet 2(AS 7539), NHRI(AS 18181). ASNet provides the connection to 6 Bone and global IPv 6 internet service for the academic and commercial IPv 6 networks in Taiwan All circuits are Native IPv 6 Domestic bandwidth n 4. 26 Gbps in 2004, about 9 times than 2003
ASIX 6 Status - Domestic (contd. ) n TANet: 2001: 288: : /32 n n TANet 2: 2001: C 58: : /32 n n Gi. E. , transit to APAN-JP. NHRI: 2001: D 48: : /32 n n ATM PVC 50 Mb/s, transit to APAN-JP. TWAREN: 2001: E 10: : /32 n n Taipei. Giga. Po. P Dark Fiber, Gi. E. We provide IPv 4/IPv 6 transit. Fa. E. ASNet provides global IPv 6 Transit service for above networks.
ASIX 6 Status - Domestic (contd. ) n Internet Service Providers n Hi. Net: 2001: 238: : /32 n n TTN: 2001: C 50: : /32 n n n Gi. E APOL: 2001: F 10: : /32 n n Fa. E Giga. Media: 2001: D 58: : /32 n n T 1 Native-Link => FTTB in the future Seed. Net: 2001: CD 8: : /32 n n E 1 Native-Link => FTTB in the future TFN: 2001: D 20: : /32 n n ATM PVC 5 Mb/s Gi. E NCIC, will connect in the near future ASNet provides 6 Bone IPv 6 Transit service for the above networks.

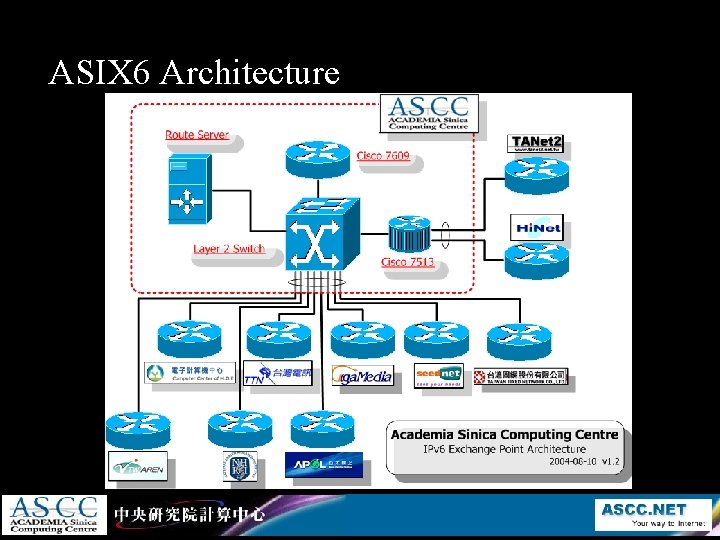

ASIX 6 Architecture

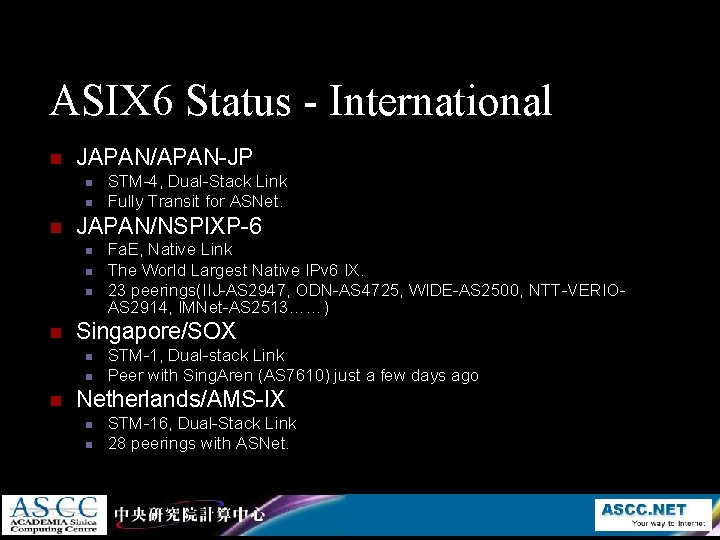

ASIX 6 Status - International n JAPAN/APAN-JP n n n JAPAN/NSPIXP-6 n n Fa. E, Native Link The World Largest Native IPv 6 IX. 23 peerings(IIJ-AS 2947, ODN-AS 4725, WIDE-AS 2500, NTT-VERIOAS 2914, IMNet-AS 2513……) Singapore/SOX n n n STM-4, Dual-Stack Link Fully Transit for ASNet. STM-1, Dual-stack Link Peer with Sing. Aren (AS 7610) just a few days ago Netherlands/AMS-IX n n STM-16, Dual-Stack Link 28 peerings with ASNet.
ASIX 6 Status - International (contd. ) n US/Star. Light n n n US/PAIX n n n STM-16, Dual Stack Abilene(AS 11537), CA*Net 4(AS 6509), 6 TAP(AS 3425), SURFNet(AS 1103) and RBNet(AS 5568) peering with ASNet. STM-4, Dual Stack AARnet(AS 7575), ISC(AS 3557) peering with ASNet. M 6 Bone: IPv 6 Multicast Testbed n n Taiwan zone Po. P site Members n n CHT-TL, TTN, TFN, Seed. Net, Giga. Media, NCKU, MCU, NCU International bandwidth n 6. 84 Gbps in 2004, about 8 times than 2003
ASIX 6 Global Infrastructure
IPv 6 Tunneling Peers n n IPv 6 -over-IPv 4 Tunneling Domestic n n International n n n 16 IPv 6 networks 13 countries 20 IPv 6 networks Total n 36 networks
IPv 6 Native/Dual-Stack Peers n n Native/Dualstack IPv 6 peers Domestic n n International n n n 10 networks 9 countries 60 IPv 6 networks Total n 70 networks
IPv 6 Native/Dual-Stack Peers (contd. ) n Domestic total n n International total n n 26 IPv 6 networks 80 IPv 6 networks Increase 48 networks more than 2003

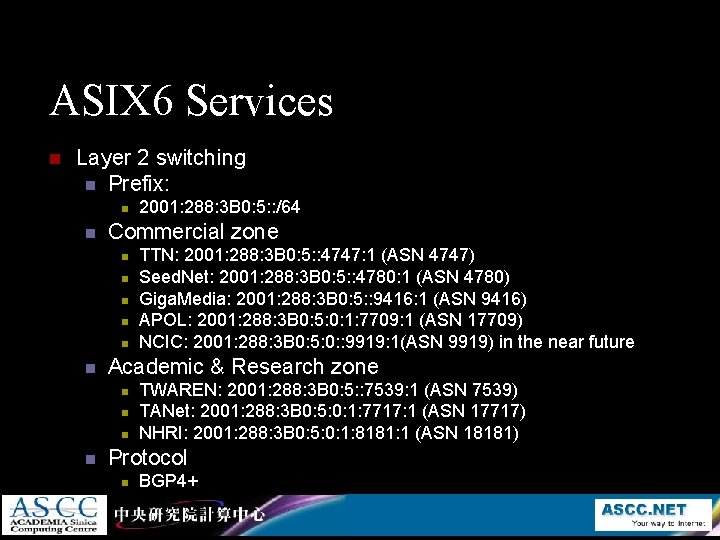

ASIX 6 Services n Layer 2 switching n Prefix: n n Commercial zone n n n TTN: 2001: 288: 3 B 0: 5: : 4747: 1 (ASN 4747) Seed. Net: 2001: 288: 3 B 0: 5: : 4780: 1 (ASN 4780) Giga. Media: 2001: 288: 3 B 0: 5: : 9416: 1 (ASN 9416) APOL: 2001: 288: 3 B 0: 5: 0: 1: 7709: 1 (ASN 17709) NCIC: 2001: 288: 3 B 0: 5: 0: : 9919: 1(ASN 9919) in the near future Academic & Research zone n n 2001: 288: 3 B 0: 5: : /64 TWAREN: 2001: 288: 3 B 0: 5: : 7539: 1 (ASN 7539) TANet: 2001: 288: 3 B 0: 5: 0: 1: 7717: 1 (ASN 17717) NHRI: 2001: 288: 3 B 0: 5: 0: 1: 8181: 1 (ASN 18181) Protocol n BGP 4+
ASIX 6 Services (contd. ) n Layer 3 routing n n TANet: 2001: 288: 1: 1005: : 1 (ASN 17717) TFN: 2001: 288: 3 B 0: : 5 B (ASN 9924) Hi. Net: 2001: 238: E 80: : 11 (ASN 17419) Protocol n n n BGP 4+, OSPFv 3 ASN: 9264 Route Server n n n Free. BSD w/ Zebra: 2001: 288: 3 B 0: 5: : 5 Cisco: 2001: 288: 3 B 0: 5: : 6 protocol n BGP 4+, OSPFv 3
ASIX 6 Services (contd. ) MRLG n BGP ASpath Tree n n n Unicast Multicast (in construction) IPv 6 Multicasting n Tunnel Broker n 6 to 4 Relay n IPv 6 DNS n
M 6 bone Introduction n Multicast IPv 6 Backbone n n n International members n n n Global coordinated by Renater, the G 6 and the Aristote Association http: //www. m 6 bone. net/ 21 countries 45 IPv 6 networks Taiwan Po. P n Maintained by ASCC
M 6 bone Global Architecture
ASIX 6 M 6 Bone service n To M 6 Bone n n n To members in Taiwan n n IPv 6 -over-IPv 4 Tunneling IPv 6 -over-IPv 6 Tunneling Native IPv 6 Prefix n n n IPv 6 -over-IPv 4 Tunneling By Cisco 7513 2001: C 08: 1 FFF: : /48 3 FFE: 4001: 1 FFF: : /48 Domestic members n 8 networks

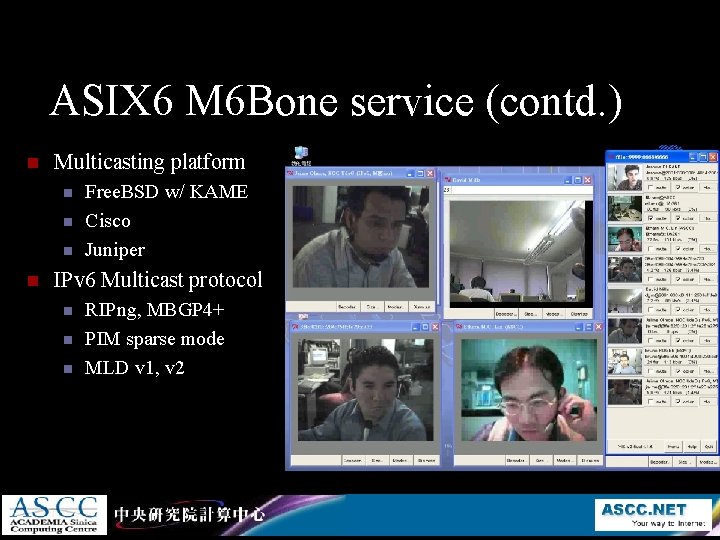

ASIX 6 M 6 Bone service (contd. ) n Multicasting platform n n Free. BSD w/ KAME Cisco Juniper IPv 6 Multicast protocol n n n RIPng, MBGP 4+ PIM sparse mode MLD v 1, v 2
ASIX 6 M 6 Bone service (contd. ) n Members n n n n n NCKU: 3 FFE: 3600: 1 A: : /48 CHT-TL: 3 FFE: 3600: E: 1500: : /64 TTN: 2001: C 50: 1 FFF: FFFF: : /64 TFN: 2001: D 20: FFFF: : /48 Hi. Net: 2001: 238: F 02: : /48 (Native link) Giga. Media: 2001: D 58: 574 F: 224: : /64 Seed. Net: 2001: CD 8: 9: : /48 MCU: 2001: C 08: 2004: : /48 NCU: 3 FFE: 3600: 5: 7968: : /64
Taipei. Giga. Po. P Status
Taipei. Giga. Po. P n n First OC-192 in Taiwan 1550 nm, 96 cords, dark fiber. The ASCC operates the Taipei. Giga. Po. P and provides interconnection service for the academic and commercial networks. The experience and operations of IPv 6 will be the reference for the Taipei. Giga. Po. P participants: n n n EBT(1 G), TFN(1 G), Giga. Media(4 G), Seed. Net(1 G), Sparq(1 G) Taipei City Gov. Education(2. 5 G), Taipei City Gov. (1 G), GSN(155 M) MOECC(10 G+2. 5 G+2 G), NTU(2. 5 G), NTOU(2. 5 G), CGU(2. 5 G), CCU(1 G), CHIT(1 G), SCU(1 G), TKU(1 G), NTUST(1 G), NTUT(1 G), NCREE(1 G), NHRI(100 M), CHIT(1 G), SCU(1 G), NTPTC(1 G)
Taipei. Giga. Po. P
IPv 6 affiliates in Academia Sinica n Project staffs n Project leader n n Project co-leaders n n n Eric Yan, eric@gate. sinica. edu. tw Kenny Huang, huangk@alum. sinica. edu. tw Network planing&management n n n Simon C. Lin, sclin@ascc. net Saw-Shung Hung, ssh@ascc. net, +886 -2 -2789 -9490 Ethern M. C. Lin, ethern@ascc. net, +886 -2 -2789 -9953 IPv 6 contact window n ipv 6@ascc. net
