A/C Power Systems This module will cover the General Locations of the A/C Power Systems through out the vessel. The A/C Power Systems are divided into three distinct sub systems: 1. Shore Power (Including Off-Ship Power) 2. Power Generation 3. Power Distribution

Shore Power comes on to the vessel in the form of 480 Volt, Three Phase, 60 Hz Alternating Current (A/C) electricity @ 100 amps. The plug on the left is Shore Power in. The plug on the right is Power Out: 480 Volt, Three Phase, 60 Hz, A/C @ 50 amps.

Shore Power The plug is designed to disconnect safely with a live load on the line. Prevents arcing. This feature enhances the safety of connecting and disconnecting shore power in the event we forget to open the shore power breaker on the dock.

Shore Power Main Switchboard – Shore Power drops down from the main deck and into the Main Switchboard. The port side of the Main Switchboard is the Shorepower section. Voltage Meter Amp Meter Hertz Power Phase Indication Source Supplying Buss Indicator

Shore Power Main Switchboard – Shore Power Information on the quality, and availability of your shore power is found on this panel. You can also select what power source (shore versus generator) is placed on the main bus. Voltage Meter Line Selector Amp Meter Line Selector Shore Power Available Indicator Source to Bus Selector

Shore Power Main Switch Board - Just Below the Shore Power Section Station in Command Selector/Indicator Phase Reversing Switch Short Circuit Detection Cluster

Shore Power Main Switch Board - Just Below the Shore Power Section Main Switch Board – Below Shore Power Motor Operated Circuit Breaker (Allows manual or remote connect/disconnect of shore power to main bus) Bus Tie Breaker (Open – Separates bus into port and starboard. Closed – Connects both sides of bus) Note: Usually closed

Shore Power Cut Sheet of Motor-Operated Circuit Breaker

Shore Power The Wheel House Power Tree gives a visual indication to the Pilot, as he enters the wheelhouse, as to the status of shore power. Power Connected – Red Light. Don’t drive away! Power Available – Red Light. Don’t drive away! On Line – Green Light Bus supplied by shore power. Wheel House Power Tree

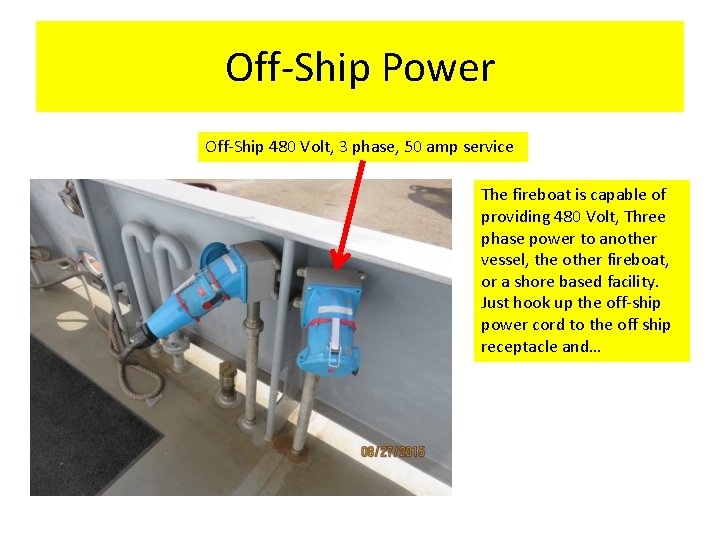

Off-Ship Power Off-Ship 480 Volt, 3 phase, 50 amp service The fireboat is capable of providing 480 Volt, Three phase power to another vessel, the other fireboat, or a shore based facility. Just hook up the off-ship power cord to the off ship receptacle and…

Off-Ship Power Off-Ship 480 Volt, 3 phase, 50 amp service …close this breaker on the port, lower panel of the Main Switchboard

Power Generation Main Switch Board – Generator Controls and Gauging Port Generator Starboard Generator

Power Generation Main Switch Board – Generator Controls and Gauging Local Control of the Generators happens on the two panels that control their respective generators. Voltage Meter Amp Meter Hertz Meter Power Meter

Power Generation Main Switch Board – Generator Controls and Gauging Amp Meter Line Selector Voltage Meter Line Selector Sync Lights Generator Off/Stby/Main Selector Paralleling Selector Switch (Manual/Auto) Generator Winding Heater indicator, on/off switch Syncroscope Indicator Syncroscope On/Off Generator E-Stop Generator Breaker Position Indicator

Power Generation Main Switch Board – Generator Controls and Gauging Easy. Gen Controller Within the Main Switch Board, behind each generator’s control and gauging panel, are the Smart. Generator Control Human. Machine Interface (HMI) displays. These computers controls the automated load transfer, paralleling, and shut-down features of each generator. They also measure and record performance, output and faults.

Power Generation Main Switch Board – Generator Breaker Generator Power Motor Operated Circuit Breaker (Allows manual or remote/automatic connect/disconnect of generator to main bus) Each generator has its own motor operator circuit breaker. These breakers are located below the respective generator’s control panel on the Main Switchboard.

Power Distribution Main Switchboard The Main Switchboard is the hub of the electrical distribution system. Everything ties into the 480 Volt Bus in the Main Switchboard. Some devices and sub-panels are directly connected to the bus through breakers. Other sub-panels are connected to the main bus through step-down transformers that divide the power to 220 volt systems or 120 volt systems. Keep in mind, the main bus is divided into a port and starboard side; linked by the bus tie breaker (normally closed). Shore power and the Port Generator feed the starboard side of the bus, and the Starboard Generator feeds the port side of the bus. Also, off-ship power comes of the port side of the bus. Yeah, it’s a little backwards, but that’s what we got. Take a look at the next slide for clarification…

Power Distribution Port Genset (#1) Starboard Genset (#2) Off-Ship Power 50 amp breaker Shore Power In 100 amp breaker Buss Tie Breaker Normally Closed

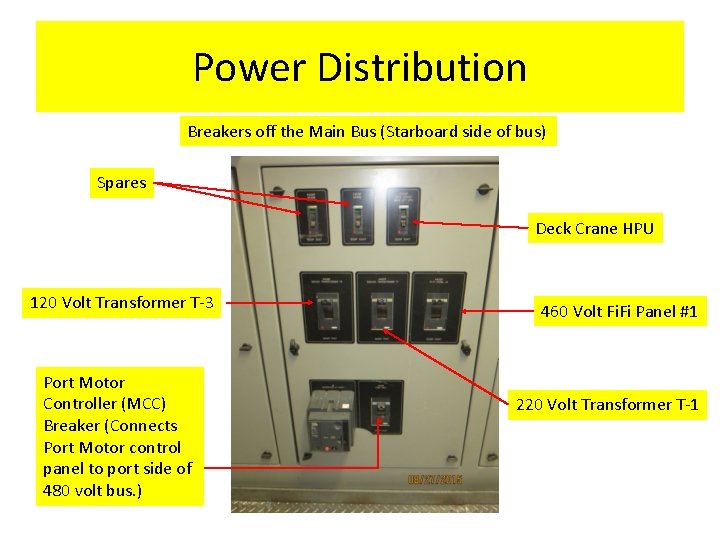

Power Distribution Breakers off the Main Bus (Starboard side of bus) Spares Deck Crane HPU 120 Volt Transformer T-3 Port Motor Controller (MCC) Breaker (Connects Port Motor control panel to port side of 480 volt bus. ) 460 Volt Fi. Fi Panel #1 220 Volt Transformer T-1

Power Distribution Breakers off the Main Bus (Port side of bus) Spare Fwd Capstan HPU Spare Aft Capstan HPU 220 Volt Transformer T-2 460 Volt Fi. Fi Panel #2 120 Volt Transformer T-4 Starboard Motor Controller (MCC) Breaker (Connects Starboard Motor control panel to starboard side of 460 volt bus. ) Off Ship Power (Export)

Power Distribution E/R 480 Volt Panels #1 and #2 MCC P 401 P and P 403 S Items controlled from these panels: • Fire/GS/Ballast pump • Auxiliary Sea Water Cooling pumps (VSP and gearbox cooling) • Tempered Water Cooling pumps (for A/C system) • F. O. Transfer Pumps • Black Water Transfer Pumps • Grey Water Transfer Pumps • Bilge Pump • Rescue Platform HPU

Power Distribution E/R 480 Volt Panels #1 and #2 MCC P 401 P and P 403 S Open this panel up, and you will find the breakers for: • Breathing Air Compressor • Service Air Compressor #1 • E/R Supply Fan #2 • Service Air Compressor #2 • HVAC/CBRN Electric Duct Pre-Heater • VSP # 1 Main Control Power • VSP #2 Main Control Power • HVAC/CBRN Supply Fan #1 • HVAC/CBRN Supply Fan #2

Power Distribution Fi. Fi Panel #1 P 402 P 460 Volt Centerline of Aft Hold Breakers for: • Foam Pumps 1 and 2 • Fi. Fi System Cabinet B • Fi. Fi System Cabinet H • Port Main Engine Jacket Water Heater • Fi. Fi System Cabinet D • Fi. Fi System Cabinet I • Stbd Main Engine Jacket Water Heater • VSP Room Fan • Aft Hold Fan

Power Distribution Fi. Fi Panel #2 P 404 S 460 Volt In front of you as you enter Aft Hold Breakers for: • Foam Pumps 3 and 4 • Fi. Fi System Cabint G • Pump Engine #1 Jacket Water Heater • Reverse Cycle Heat Pump Unit #2 • Pump Engine #2 Jacket Water Heater • Reverse Cycle Heat Pump Unit #1 • Electric Duct Heater (Make up air handler)

Power Distribution Step Down Transformers Power is stepped down form 480 Volt A/C from the main bus to 220 and 120 Volt A/C via transformers. There are two (2) transformers for the 220 Volt A/C system and two for the 120 Volt A/C system. The system is configured this way for redundancy. Should the primary transformer for either system fail, the transformer may be switched to the secondary at the incoming breaker boxes seen here. 120 Volt transformer switching on the top. 220 Volt transformer switching on the bottom.

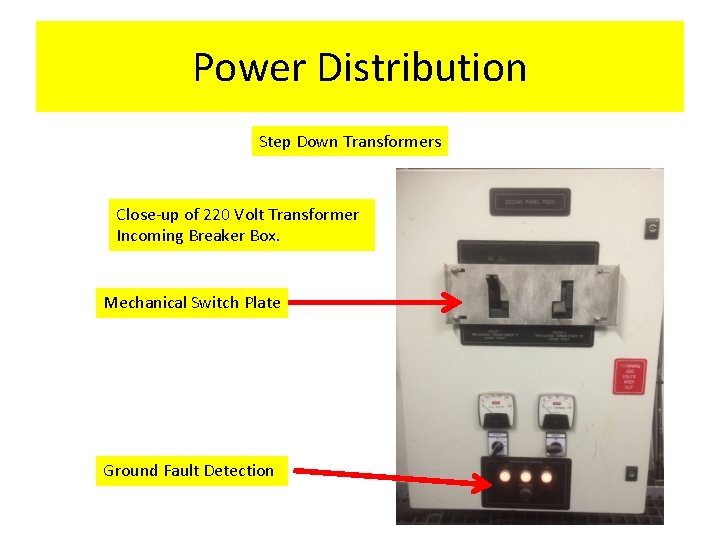

Power Distribution Step Down Transformers Close-up of 220 Volt Transformer Incoming Breaker Box. Mechanical Switch Plate Ground Fault Detection

Power Distribution Step Down Transformers 120 Volt Transformers • #4 • #3 220 Volt Transformers • #2 • #1

Power Distribution 220 Volt Panels P 200 S and P 200 P Aft Hold, Fwd Bulkhead, near Centerline P 200 P P 200 S

Power Distribution 220 Volt Panels P 200 S and P 200 P Aft Hold, Fwd Bulkhead, near Centerline P 200 S Contains Breakers for: • Wheelhouse Fan Coil Unit #2 • Cook Top (Galley) • Sea Chest Impressed Current System • Potable Water Pump #2 • Water Heater • 55 Amp Machinery Room Welder Receptacle #1 • 55 Amp Machinery Room Welder Receptacle #2 • Deck Light Circuit #2 • Wheelhouse Split System FCU #2

Power Distribution 220 Volt Panels P 200 S and P 200 P Aft Hold, Fwd Bulkhead, near Centerline P 200 P Contains Breakers For: • Wheelhouse Split System FCU#1 • Potable Water Pump #1 • Wheelhouse Fan Coil Unit #1 • Pump #3/Engine #7 Jacket Water Heater (C-12) • 55 Amp Equipment Room Welder Receptacle • Deck Light Circuit #1 • Wheelhouse Split System Condensing Unit #2 • Wheelhouse Demisting Fans • Intercom/P. A. System

Power Distribution P 100 Contains Breakers for: • 120 Volt Boat Deck Panel P 101 and Whistle • 120 Volt Hold Deck Panel P 103 • 24 Volt Emergency Batt. Charger#1 • 120 Volt Main Deck Panel P 102 • 120 Volt Main Deck Panel P 104 • Navigation Lighting Main Supply • Central Machinery Alarm & Monitoring Main Supply • CCTV System • General Alarm System Main Supply • Fire Alarm and Detection Main Supply • 12 Volt Emergency Services Batt. Charger #1 110 Volt Panels P 100 Aft E/R, Starboard Side

Power Distribution 110 Volt Panels P 103 (Sub-Panel) Aft E/R, Port Side By Main Switch Board P 103 Contains Breakers For: • • • • • • Main Deck Lighting Circuit #2 24 Volt E/R Service Battery Charger #1 24 Volt E/R Service Battery Charger #2 Hold Accommodation Lighting Circuit #1 Machinery Space Receptacles Circuit #1 VSP #1 Auxiliary Power VSP #2 Auxiliary Power Machinery Space Lighting Circuit #1 Fi. Fi System Cabinet C 110 VAC 32 A for remote valves Fi. Fi System Cabinet E 110 VAC 10 A for remote valves Fi. Fi System Cabinet F 110 VAC 32 A for remote valves Machinery Receptacles Circuit #2 Machinery Receptacles Circuit #3 24 V Fire Monitor Battery Charger #2 Generator #2 Anti-Condensation Heater Generator #2 Jacket Water Heater U. V. Sterilizer 24 V Fire Monitor Battery Charger #1 Generator #1 Anti-Condensation Heater Generator #1 Jacket Water Heater Equipment Room Cord Reel (30 A)

Power Distribution 110 Volt Panels P 102 (Sub-Panel) Main Deck, Multipurpose Room Starboard Side Aft P 102 Contains Breakers for: • • • • • Equipment Room Door Boat Deck and Wheelhouse lighting Circuit #2 Refrigerator Microwave Coffee Maker Hold Accommodation Lighting Circuit #1 Boat Deck and Main Deck Receptacle Circuit #1 Machinery Space Lighting Circuit #2 Boat Deck and Main Deck Receptacle Circuit #2 Pantry Receptacles Circuit Main Deck Receptacles Circuit #1 Main Deck Receptacles Circuit #2 CIC Receptacles Circuit Hold Accommodation Receptacles Circuit #2 Boat Deck WC Fan and Damper CBRN Fan #2 Damper Main Deck Lighting Circuit #1 ROV Outlet on Workbench (38 Amp) CBRN Detection Fan Main Deck Shower and WC Fan & Damper

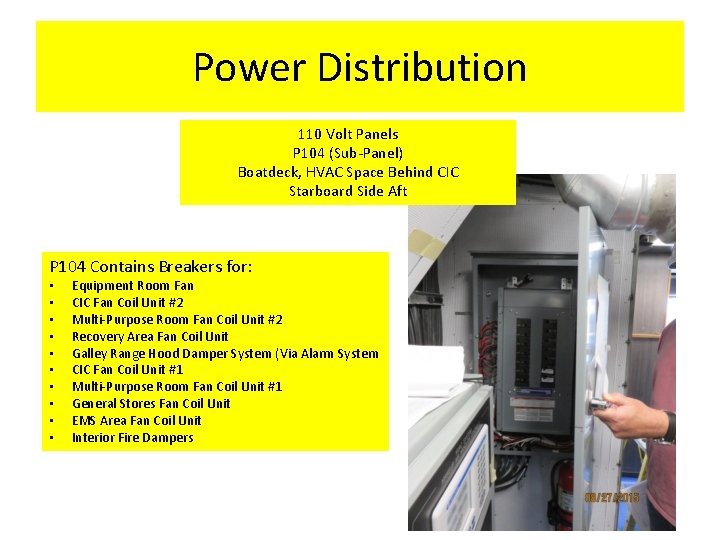

Power Distribution 110 Volt Panels P 104 (Sub-Panel) Boatdeck, HVAC Space Behind CIC Starboard Side Aft P 104 Contains Breakers for: • • • Equipment Room Fan CIC Fan Coil Unit #2 Multi-Purpose Room Fan Coil Unit #2 Recovery Area Fan Coil Unit Galley Range Hood Damper System (Via Alarm System CIC Fan Coil Unit #1 Multi-Purpose Room Fan Coil Unit #1 General Stores Fan Coil Unit EMS Area Fan Coil Unit Interior Fire Dampers

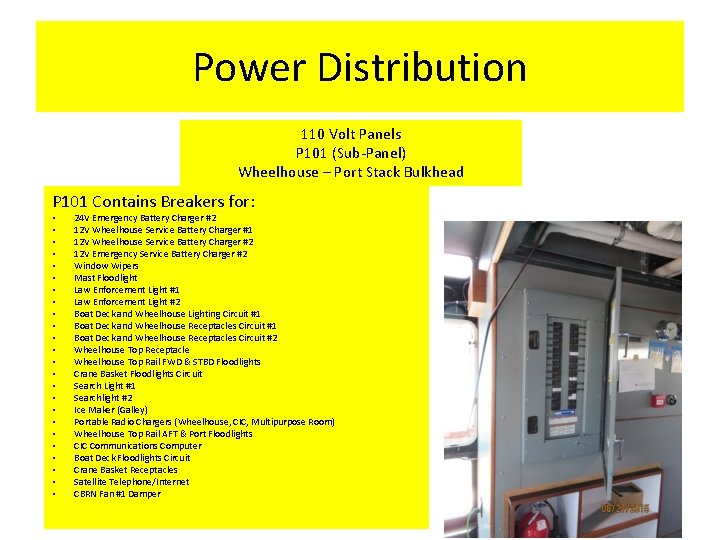

Power Distribution 110 Volt Panels P 101 (Sub-Panel) Wheelhouse – Port Stack Bulkhead P 101 Contains Breakers for: • • • • • • 24 V Emergency Battery Charger #2 12 V Wheelhouse Service Battery Charger #1 12 V Wheelhouse Service Battery Charger #2 12 V Emergency Service Battery Charger #2 Window Wipers Mast Floodlight Law Enforcement Light #1 Law Enforcement Light #2 Boat Deck and Wheelhouse Lighting Circuit #1 Boat Deck and Wheelhouse Receptacles Circuit #2 Wheelhouse Top Receptacle Wheelhouse Top Rail FWD & STBD Floodlights Crane Basket Floodlights Circuit Search Light #1 Searchlight #2 Ice Maker (Galley) Portable Radio Chargers (Wheelhouse, CIC, Multipurpose Room) Wheelhouse Top Rail AFT & Port Floodlights CIC Communications Computer Boat Deck Floodlights Circuit Crane Basket Receptacles Satellite Telephone/Internet CBRN Fan #1 Damper
