AC Power Supplies Applications Standby source for critical
AC Power Supplies • Applications – Standby source for “critical” loads (computer) – Primary source when normal ac not available • Uninterrupted Power Supply (UPS) – 2 common configurations
Configuration 1 Load normally supplied by Main Supply
Operating Modes • Normal condition – Main supply applied to the load – Rectifier keeps batteries charged • Main supply failure – Inverter supplies power to the load – When interruption is over, main supply is applied to the load
Configuration 2 Inverter supplies power to the load
Operating Modes • Normal condition – Inverter operates continuously, powering the load – Rectifier maintains the charge on the batteries – Inverter conditions the supply to the load • Inverter failure – Main supply powers the load
Typical UPS System
Operating Conditions • Main supply failure – Battery supplies the inverter – Inverter powers the load • Normal conditions – Inverter operates as a bridge rectifier – Main supply powers the load
Types of AC Power Supplies • Switched-mode • Resonant • Bidirectional
Switched-Mode AC Power Supply
Features of the Switched-Mode Configuration • Two inverters – Input side: operates at high-frequency – Reduces size of transformer and DC filter components at the input of the output-side inverter
Features of the Switched-Mode Configuration • Two inverters continued – Output side: operates at output frequency
Resonant AC Power Supply

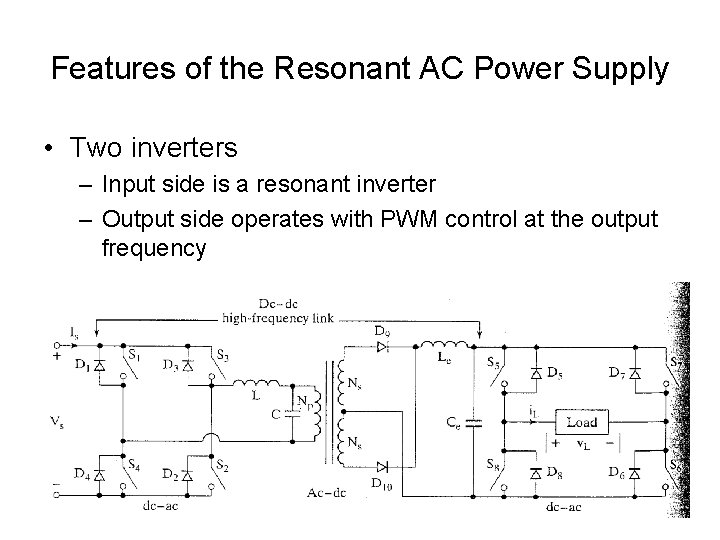

Features of the Resonant AC Power Supply • Two inverters – Input side is a resonant inverter – Output side operates with PWM control at the output frequency
Bidirectional AC Power Supply
Features of the Bidirectional AC Power Supply • Output inverter and Rectifier are combined into a cycloconverter (converts one frequency ac into another frequency ac) • Power flow in either direction
Multistage Conversions
Multistage Conversions (continued) • Four conversions • AC-DC – DC-AC – AC-DC – DC-AC • Ultimately an AC – AC Conversion
Alternative Configuration 2 -Forced-Commutated Cycloconverters
