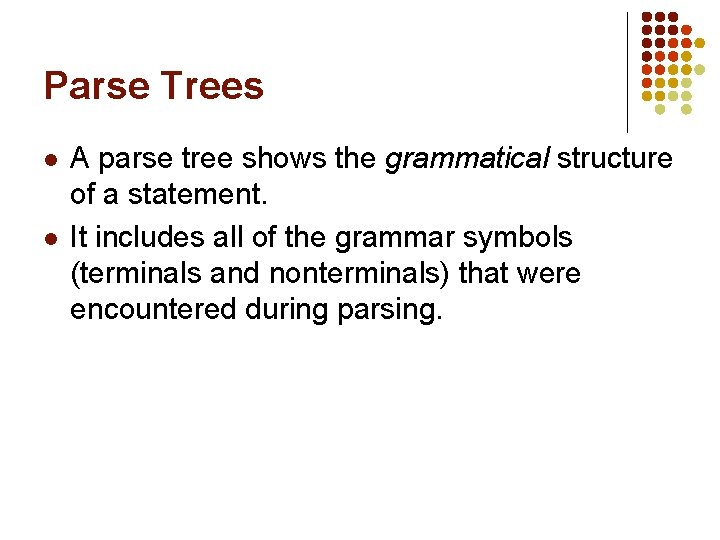

Parse Trees l l A parse tree shows the grammatical structure of a statement. It includes all of the grammar symbols (terminals and nonterminals) that were encountered during parsing.

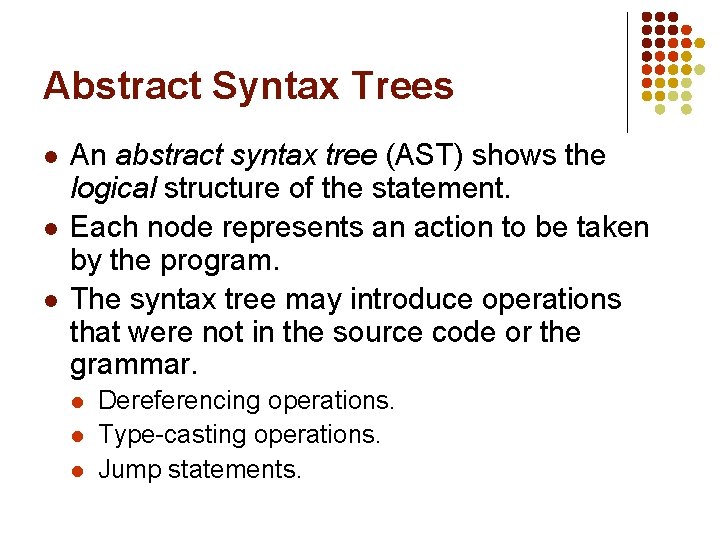

Abstract Syntax Trees l l l An abstract syntax tree (AST) shows the logical structure of the statement. Each node represents an action to be taken by the program. The syntax tree may introduce operations that were not in the source code or the grammar. l l l Dereferencing operations. Type-casting operations. Jump statements.

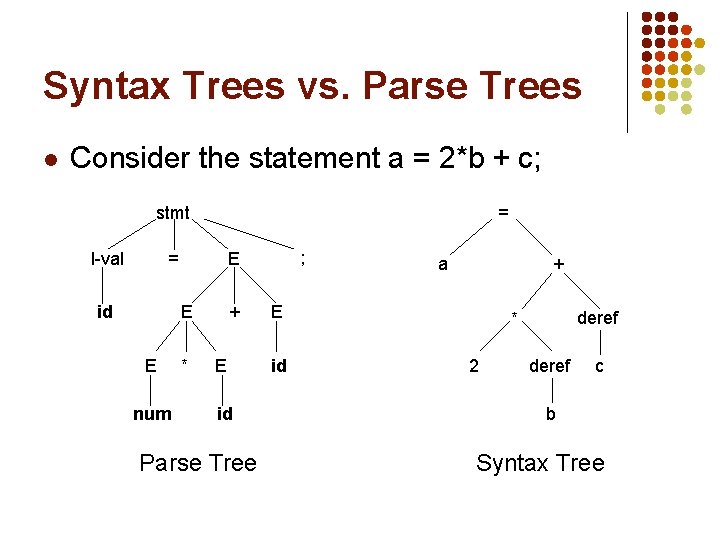

Syntax Trees vs. Parse Trees l Consider the statement a = 2*b + c; stmt l-val = = id E E num ; E * + E id Parse Tree a + E id deref * 2 deref c b Syntax Tree

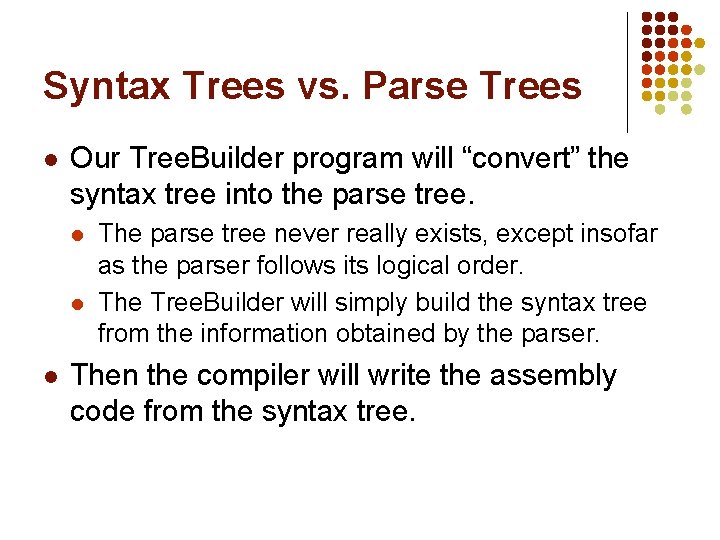

Syntax Trees vs. Parse Trees l Our Tree. Builder program will “convert” the syntax tree into the parse tree. l l l The parse tree never really exists, except insofar as the parser follows its logical order. The Tree. Builder will simply build the syntax tree from the information obtained by the parser. Then the compiler will write the assembly code from the syntax tree.

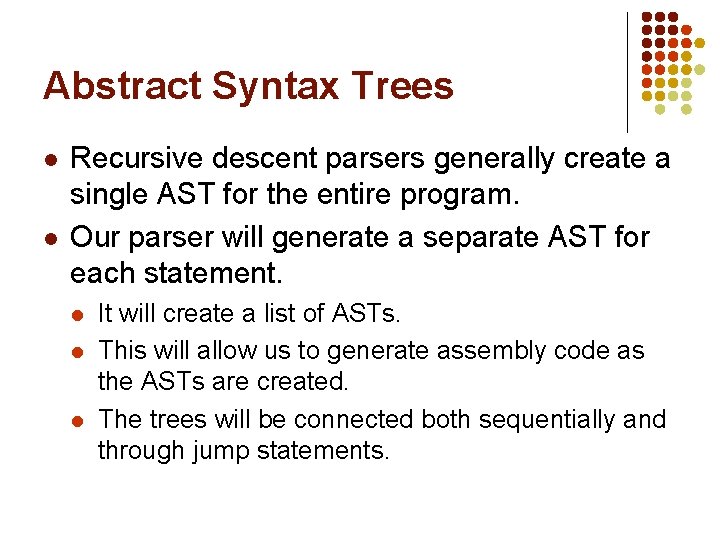

Abstract Syntax Trees l l Recursive descent parsers generally create a single AST for the entire program. Our parser will generate a separate AST for each statement. l l l It will create a list of ASTs. This will allow us to generate assembly code as the ASTs are created. The trees will be connected both sequentially and through jump statements.

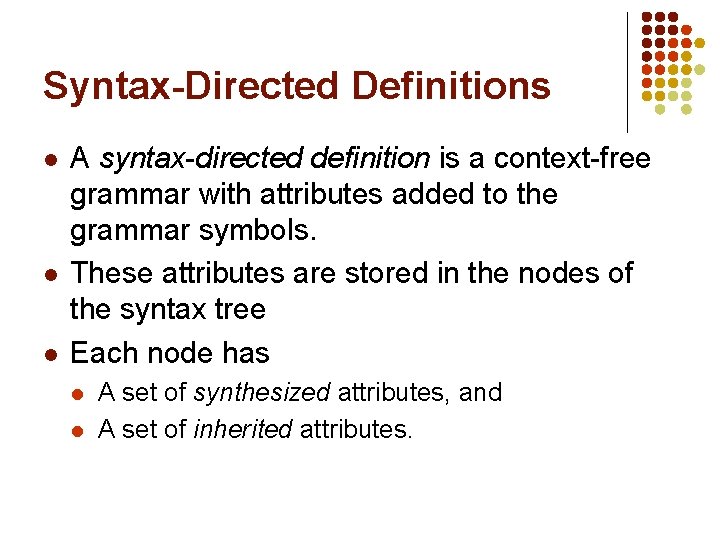

Syntax-Directed Definitions l l l A syntax-directed definition is a context-free grammar with attributes added to the grammar symbols. These attributes are stored in the nodes of the syntax tree Each node has l l A set of synthesized attributes, and A set of inherited attributes.

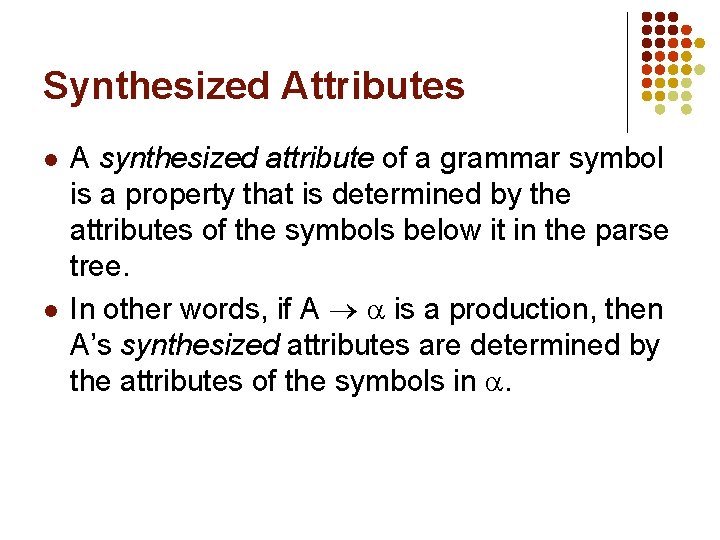

Synthesized Attributes l l A synthesized attribute of a grammar symbol is a property that is determined by the attributes of the symbols below it in the parse tree. In other words, if A is a production, then A’s synthesized attributes are determined by the attributes of the symbols in .

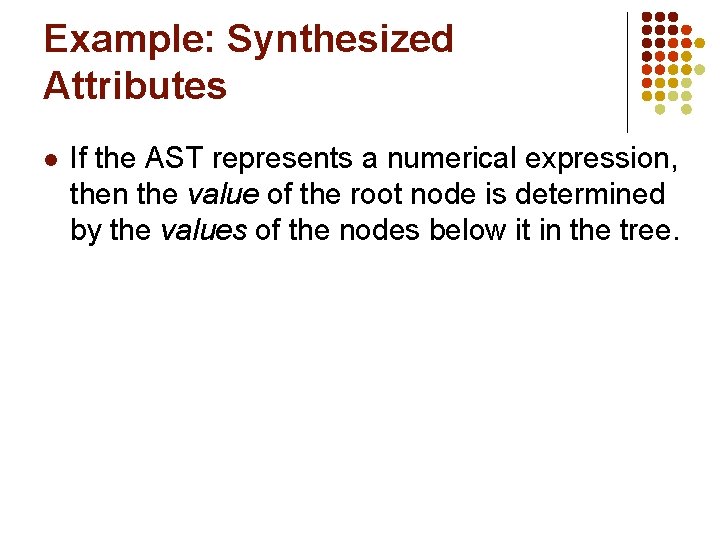

Example: Synthesized Attributes l If the AST represents a numerical expression, then the value of the root node is determined by the values of the nodes below it in the tree.

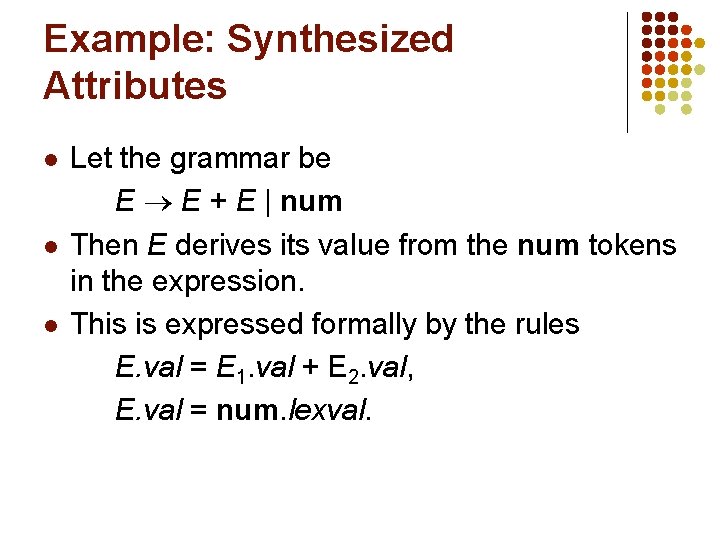

Example: Synthesized Attributes l l l Let the grammar be E E + E | num Then E derives its value from the num tokens in the expression. This is expressed formally by the rules E. val = E 1. val + E 2. val, E. val = num. lexval.

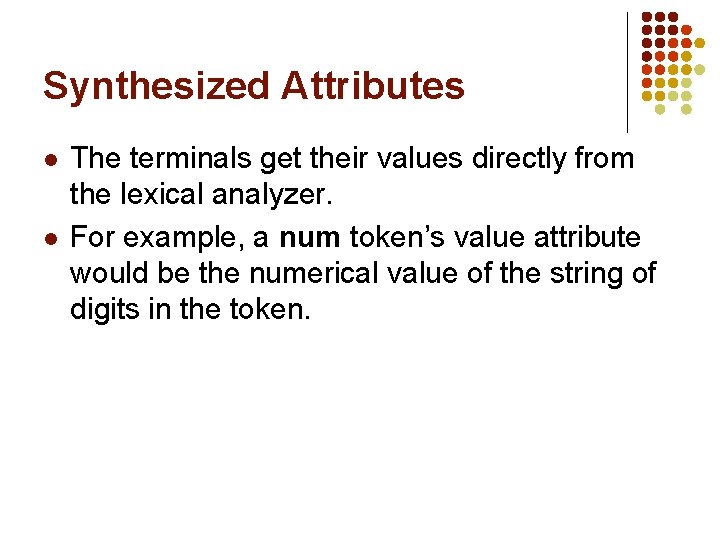

Synthesized Attributes l l The terminals get their values directly from the lexical analyzer. For example, a num token’s value attribute would be the numerical value of the string of digits in the token.

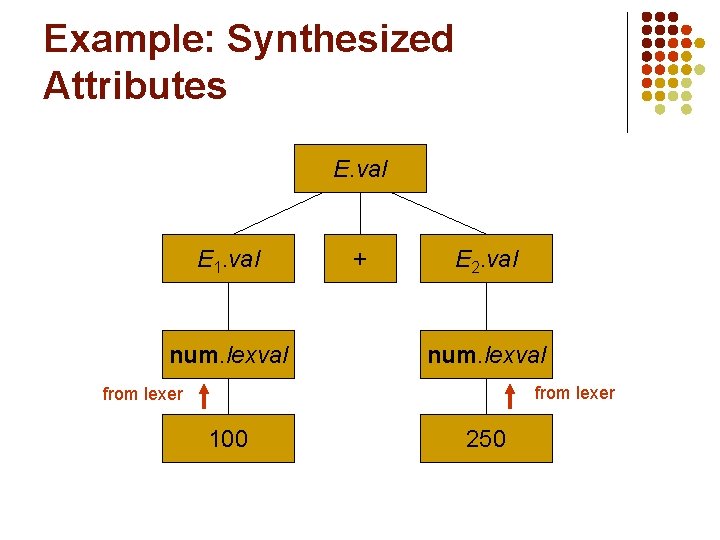

Example: Synthesized Attributes E. val E 1. val + E 2. val num. lexval 100 250

Example: Synthesized Attributes E. val E 1. val num. lexval + E 2. val num. lexval from lexer 100 250

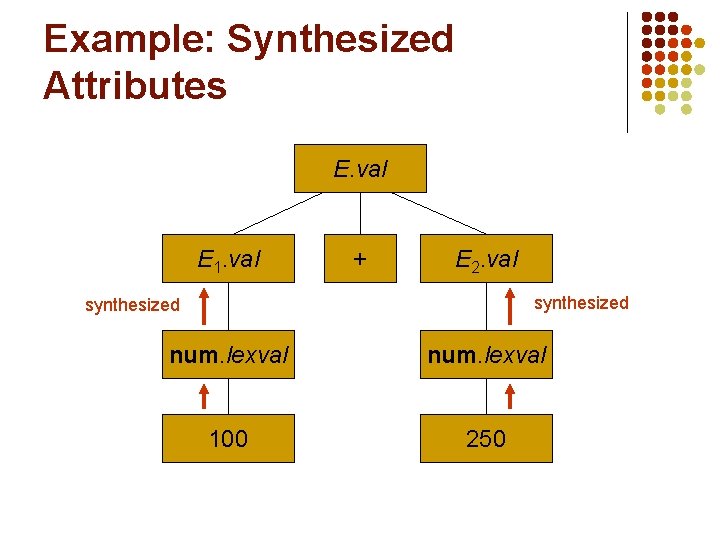

Example: Synthesized Attributes E. val E 1. val + E 2. val synthesized num. lexval 100 250

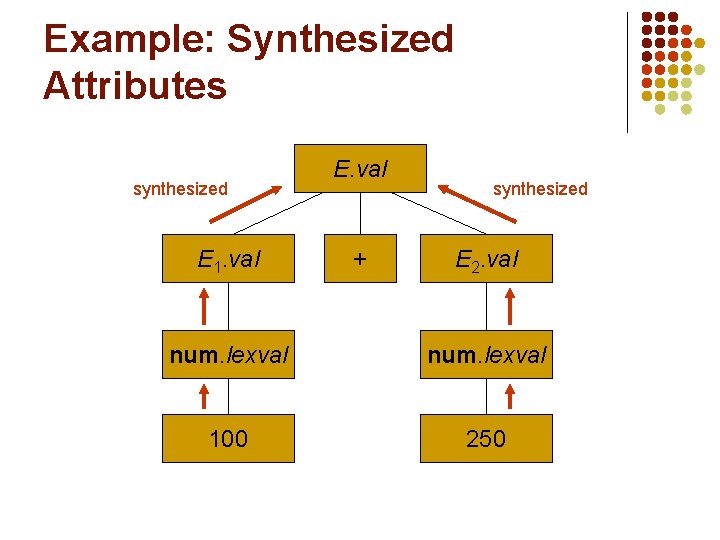

Example: Synthesized Attributes synthesized E 1. val E. val + synthesized E 2. val num. lexval 100 250

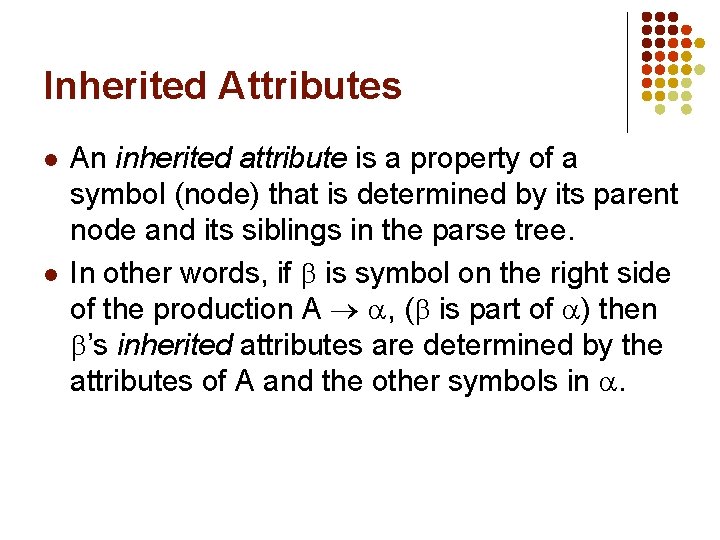

Inherited Attributes l l An inherited attribute is a property of a symbol (node) that is determined by its parent node and its siblings in the parse tree. In other words, if is symbol on the right side of the production A , ( is part of ) then ’s inherited attributes are determined by the attributes of A and the other symbols in .

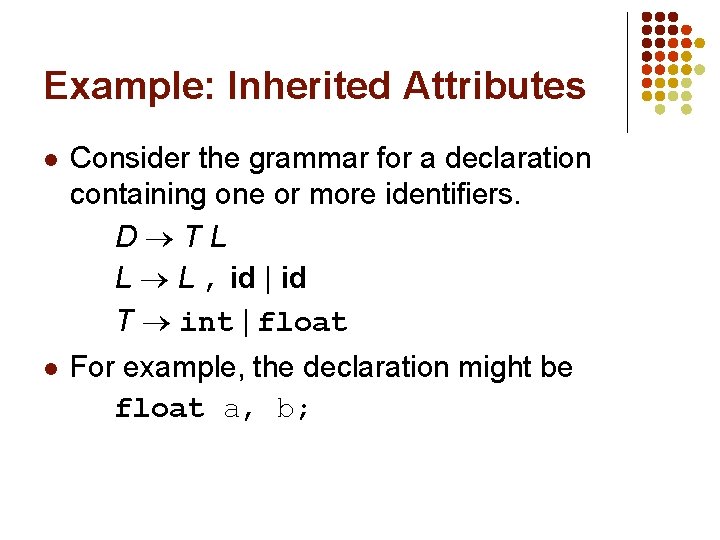

Example: Inherited Attributes l Consider the grammar for a declaration containing one or more identifiers. D TL L L , id | id T int | float l For example, the declaration might be float a, b;

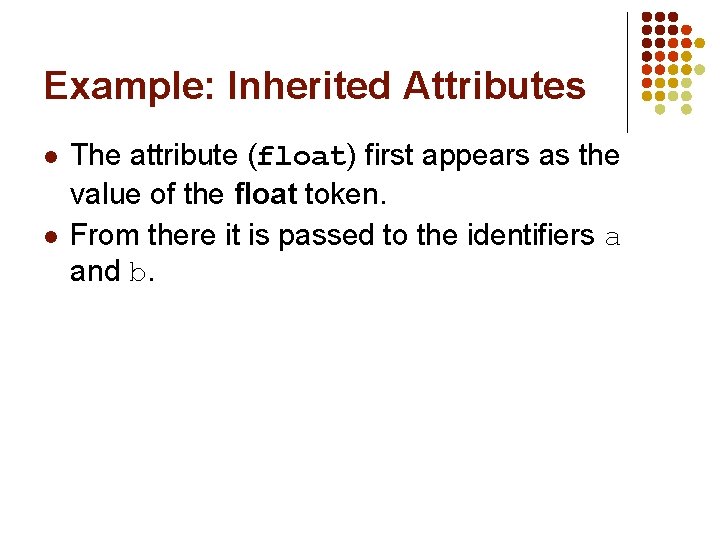

Example: Inherited Attributes l l The attribute (float) first appears as the value of the float token. From there it is passed to the identifiers a and b.

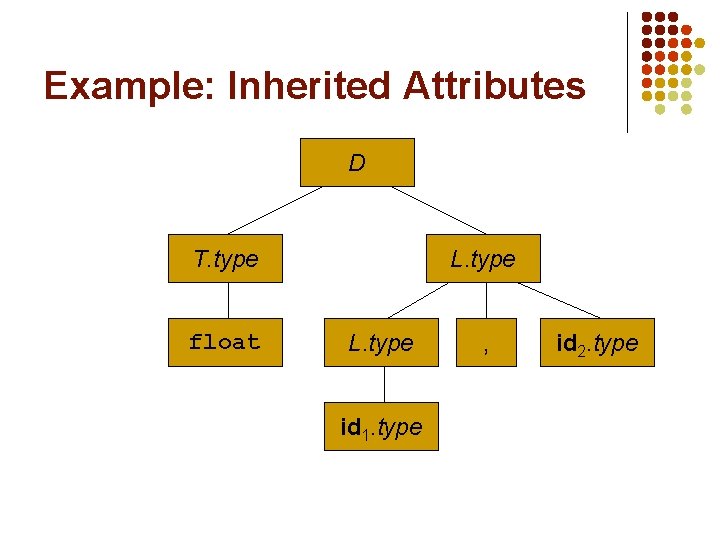

Example: Inherited Attributes D T. type float L. type id 1. type , id 2. type

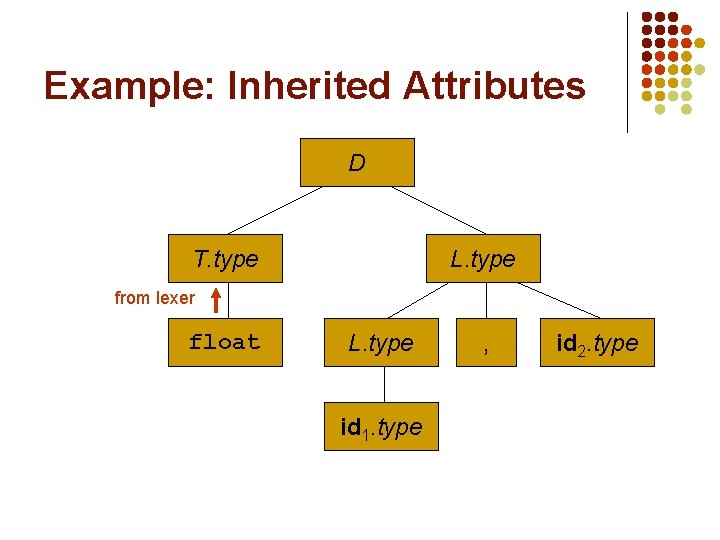

Example: Inherited Attributes D T. type L. type from lexer float L. type id 1. type , id 2. type

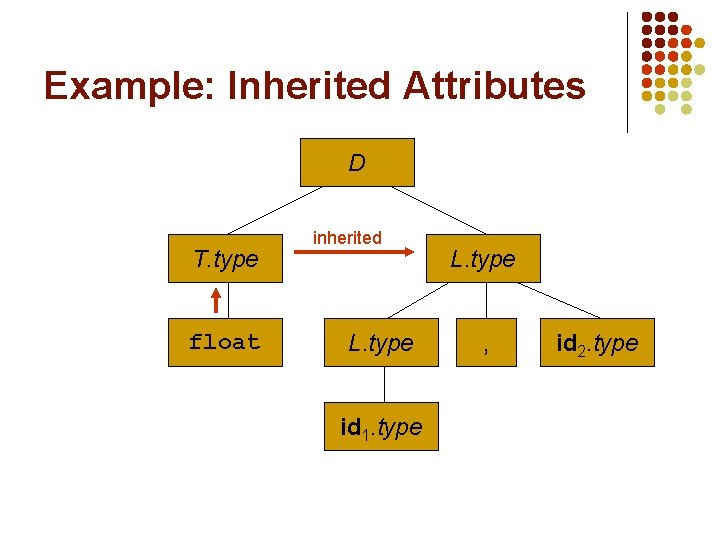

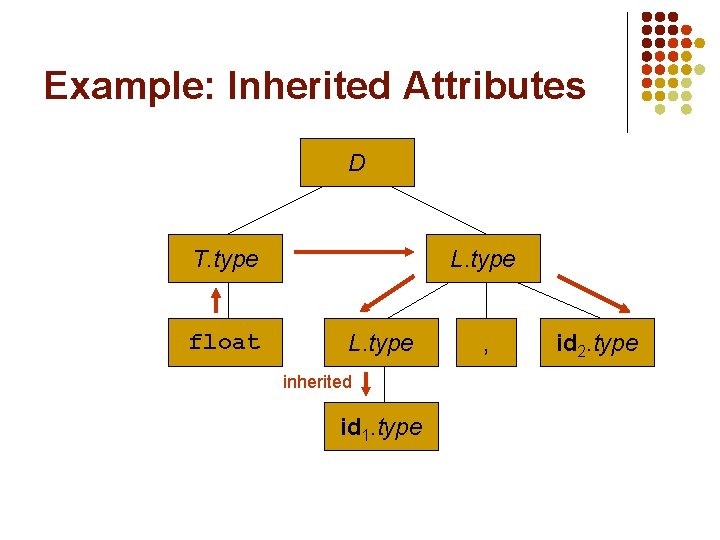

Example: Inherited Attributes D T. type float inherited L. type id 1. type L. type , id 2. type

Example: Inherited Attributes D T. type float L. type id 1. type , inherited id 2. type

Example: Inherited Attributes D T. type float L. type inherited id 1. type , id 2. type

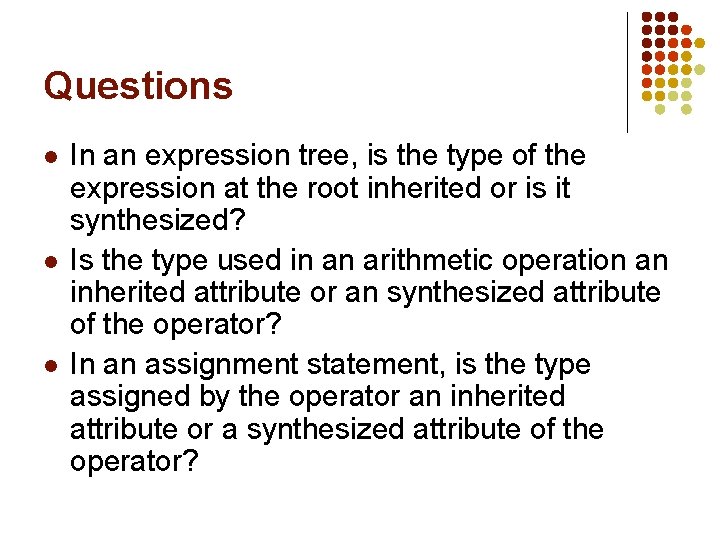

Questions l l l In an expression tree, is the type of the expression at the root inherited or is it synthesized? Is the type used in an arithmetic operation an inherited attribute or an synthesized attribute of the operator? In an assignment statement, is the type assigned by the operator an inherited attribute or a synthesized attribute of the operator?

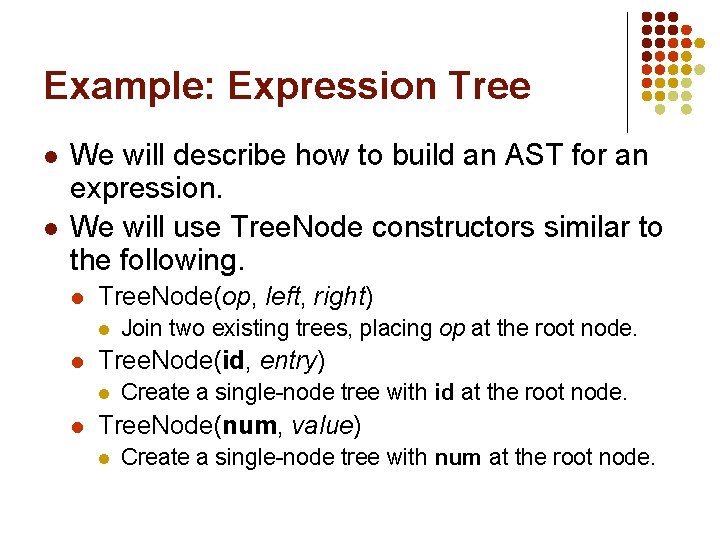

Example: Expression Tree l l We will describe how to build an AST for an expression. We will use Tree. Node constructors similar to the following. l Tree. Node(op, left, right) l l Tree. Node(id, entry) l l Join two existing trees, placing op at the root node. Create a single-node tree with id at the root node. Tree. Node(num, value) l Create a single-node tree with num at the root node.

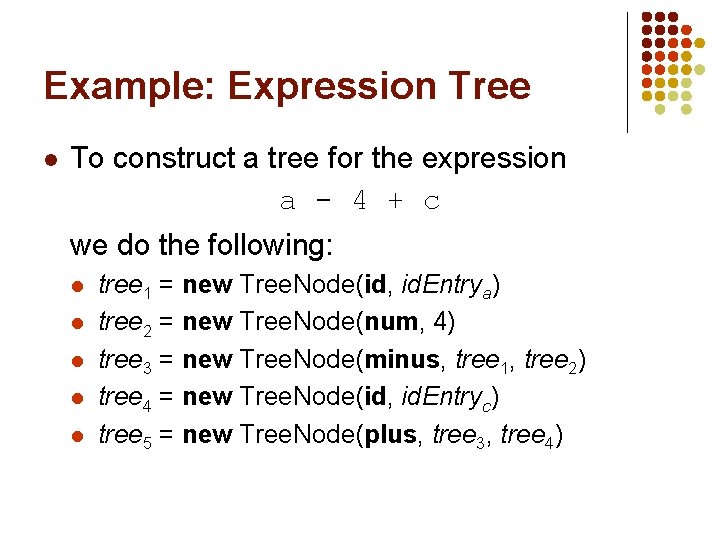

Example: Expression Tree l To construct a tree for the expression a - 4 + c we do the following: l l l tree 1 = new Tree. Node(id, id. Entrya) tree 2 = new Tree. Node(num, 4) tree 3 = new Tree. Node(minus, tree 1, tree 2) tree 4 = new Tree. Node(id, id. Entryc) tree 5 = new Tree. Node(plus, tree 3, tree 4)

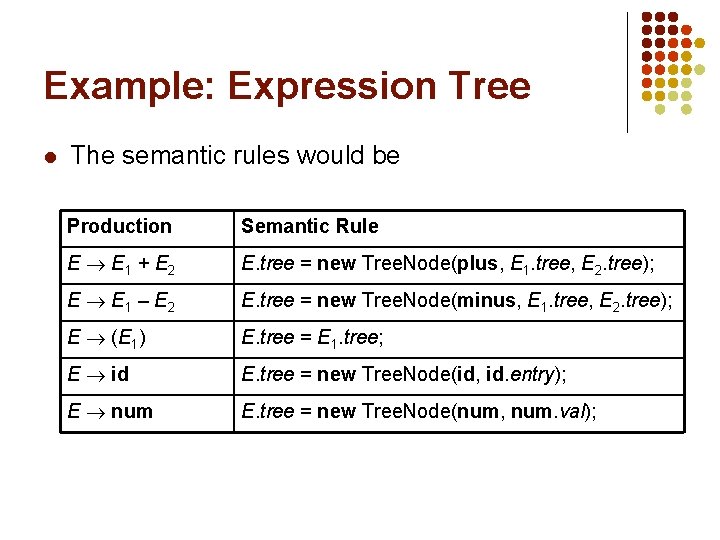

Example: Expression Tree l The semantic rules would be Production Semantic Rule E E 1 + E 2 E. tree = new Tree. Node(plus, E 1. tree, E 2. tree); E E 1 – E 2 E. tree = new Tree. Node(minus, E 1. tree, E 2. tree); E (E 1) E. tree = E 1. tree; E id E. tree = new Tree. Node(id, id. entry); E num E. tree = new Tree. Node(num, num. val);
