Abstract Syntax Leonidas Fegaras CSE 53174305 L 5

Abstract Syntax Leonidas Fegaras CSE 5317/4305 L 5: Abstract Syntax 1

Abstract Syntax Tree (AST) • A parser typically generates an Abstract Syntax Tree (AST): source file get token get next character scanner AST parser token • A parse tree is not an AST E T F + E T E F T F id(x) + id(y) * id(z) CSE 5317/4305 L 5: Abstract Syntax x * y z 2

Building Abstract Syntax Trees in Java abstract class Exp { } class Integer. Exp extends Exp { public int value; public Integer. Exp ( int n ) { value=n; } } class True. Exp extends Exp { public True. Exp () {} } class False. Exp extends Exp { public False. Exp () {} } class Variable. Exp extends Exp { public String value; public Variable. Exp ( String n ) { value=n; } } CSE 5317/4305 L 5: Abstract Syntax 3

Exp (cont. ) class Binary. Exp extends Exp { public String operator; public Exp left; public Exp right; public Binary. Exp ( String o, Exp l, Exp r ) { operator=o; left=l; right=r; } } class Unary. Exp extends Exp { public String operator; public Exp operand; public Unary. Exp ( String o, Exp e ) { operator=o; operand=e; } } class Exp. List { public Exp head; public Exp. List next; public Exp. List ( Exp h, Exp. List n ) { head=h; next=n; } } CSE 5317/4305 L 5: Abstract Syntax 4

Exp (cont. ) class Call. Exp extends Exp { public String name; public Exp. List arguments; public Call. Exp ( String nm, Exp. List s ) { name=nm; arguments=s; } } class Projection. Exp extends Exp { public Exp value; public String attribute; public Projection. Exp ( Exp v, String a ) { value=v; attribute=a; } } CSE 5317/4305 L 5: Abstract Syntax 5

Exp (cont. ) class Record. Elements { public String attribute; public Exp value; public Record. Elements next; public Record. Elements ( String a, Exp v, Record. Elements el ) { attribute=a; value=v; next=el; } } class Record. Exp extends Exp { public Record. Elements elements; public Record. Exp ( Record. Elements el ) { elements=el; } } CSE 5317/4305 L 5: Abstract Syntax 6

Examples • The AST for the input (x-2)+3 new Binary. Exp("+", new Binary. Exp("-", new Variable. Exp("x"), new Integer. Exp(2)), new Integer. Exp(3)) • The AST for the input f(x. A, true) new Call. Exp(“f”, new Exp. List(new Projection. Exp(new Variable. Exp("x"), “A”), new Exp. List(new True. Exp(), null))) CSE 5317/4305 L 5: Abstract Syntax 7

Gen • A Java package for constructing and manipulating ASTs • you are required to use Gen for your project • it is basically a Java preprocessor that adds syntactic constructs to the Java language to make the task of handling ASTs easier – uses a universal class Ast to capture any kind of AST – supports easy construction of ASTs using the #<. . . > syntax – supports pattern matching, editing, pretty-printing, etc – includes a symbol table class file. java • file. gen Architecture: Gen javac CSE 5317/4305 L 5: Abstract Syntax 8

The Gen Ast Class abstract class Ast { } class Number extends Ast { public long value; public Number ( long n ) { value = n; } } class Real extends Ast { public double value; public Real ( double n ) { value = n; } } class Variable extends Ast { public String value; public Variable ( String s ) { value = s; } } class Astring extends Ast { public String value; public Astring ( String s ) { value = s; } } CSE 5317/4305 L 5: Abstract Syntax 9

AST Nodes are Instances of Node class Node extends Ast { public String name; public Arguments args; public Node ( String n, Arguments a ) { tag = n; args = a; } } class Arguments { public Ast head; public Argumentstail; public Arguments ( Ast h, Arguments t ); public final static Arguments nil; public Arguments append ( Ast e ); } CSE 5317/4305 L 5: Abstract Syntax 10

Example To construct Binop(Plus, x, Binop(Minus, y, z)) in Java, use: Binop Plus x Binop new Node("Binop", Minus Arguments. nil. append(new Variable("Plus")). append(new Variable("x")). append(new Node("Binop", Arguments. nil. append(new Variable("Minus")). append(new Variable("y")). append(new Variable("z"))))) y z • Ugly! • You should never use this kind of code in your project CSE 5317/4305 L 5: Abstract Syntax 11

The #< > Brackets When you write #<Binop(Plus, x, Binop(Minus, y, z))> in your Gen file, it generates the following Java code: new Node("Binop", Arguments. nil. append(new Variable("Plus")). append(new Variable("x")). append(new Node("Binop", Arguments. nil. append(new Variable("Minus")). append(new Variable("y")). append(new Variable("z"))))) which represents the AST: Binop(Plus, x, Binop(Minus, y, z)) Binop Plus x Binop Minus y z CSE 5317/4305 L 5: Abstract Syntax 12

Escaping a Value Using Backquote • Objects of the class Ast can be included into the form generated by the #< > brackets by “escaping” them with a backquote (`) • The operand of the escape operator is expected to be an object of class Ast that provides the value to “fill in” the hole in the bracketed text at that point – actually, an escaped string/int/double value is also lifted to an Ast • For example Ast x = #<join(a, b, p)>; Ast y = #<select(`x, q)>; Ast z = #<project(`y, A)>; are equivalent to: Ast x = #<join(a, b, p)>; Ast y = #<select(join(a, b, p), q)>; Ast z = #<project(select(join(a, b, p), q), A)>; CSE 5317/4305 L 5: Abstract Syntax 13

BNF of #< > bracketed : : = "#<" expr ">" an AST construction | "#[" arg ", ". . . ", " arg "]" expr : : = name an Arguments construction the representation of a variable name | integer the repr. of an integer | real the repr. of a real number | string the repr. of a string | "`" name escaping to the value of name | "`(" code ")" escaping to the value of code | name "(" arg ", ". . . ", " arg ")“ the repr. of an AST node with >=0 children | "`" name "(" arg ", ". . . ", " arg ")" the repr. of an AST node with escaped name | expr opr expr an AST node that represents a binary infix opr | "`" name "[" expr "]" variable substitution arg : : = expr the repr. of an expression | ". . . " name escaping to a list of ASTs bound to name | ". . . (" code ")" escaping to a list of ASTs returned by code CSE 5317/4305 L 5: Abstract Syntax 14

“. . . ” is for Arguments • The three dots (. . . ) construct is used to indicate a list of children in an AST node – name in “. . . name” must be an instance of the class Arguments • For example, in Arguments r = #[join(a, b, p), select(c, q)]; Ast z = #<project(. . . r)>; • z will be bound to #<project(join(a, b, p), select(c, q))> CSE 5317/4305 L 5: Abstract Syntax 15

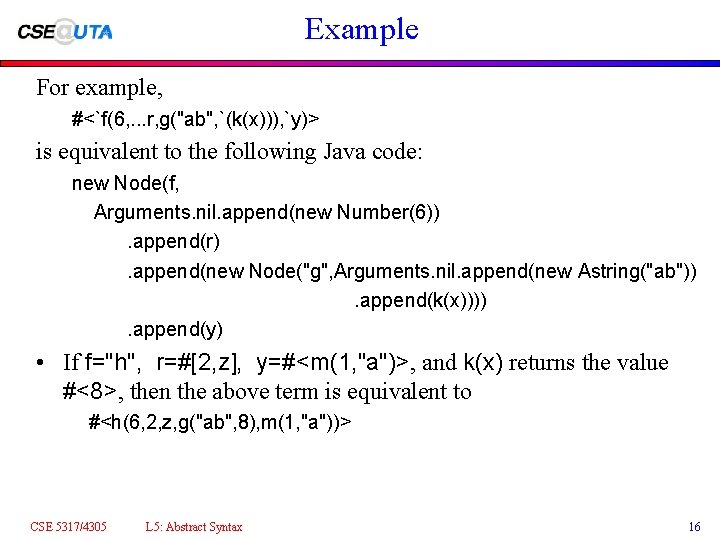

Example For example, #<`f(6, . . . r, g("ab", `(k(x))), `y)> is equivalent to the following Java code: new Node(f, Arguments. nil. append(new Number(6)). append(r). append(new Node("g", Arguments. nil. append(new Astring("ab")). append(k(x)))). append(y) • If f="h", r=#[2, z], y=#<m(1, "a")>, and k(x) returns the value #<8>, then the above term is equivalent to #<h(6, 2, z, g("ab", 8), m(1, "a"))> CSE 5317/4305 L 5: Abstract Syntax 16

Pattern Matching • Gen provides a case statement syntax with patterns • Patterns match the Ast representations with similar shape • Escape operators applied to variables inside these patterns represent variable patterns, which “bind” to corresponding subterms upon a successful match • This capability makes it particularly easy to write functions that perform source-to-source transformations CSE 5317/4305 L 5: Abstract Syntax 17

Example • A function that simplifies arithmetic expressions: Ast simplify ( Ast e ) { #case e | plus(`x, 0) => return x; | times(`x, 1) => return x; | times(`x, 0) => return #<0>; | _ => return e; #end; } where the _ pattern matches any value. • For example, simplify(#<times(z, 1)>) returns #<z> CSE 5317/4305 L 5: Abstract Syntax 18

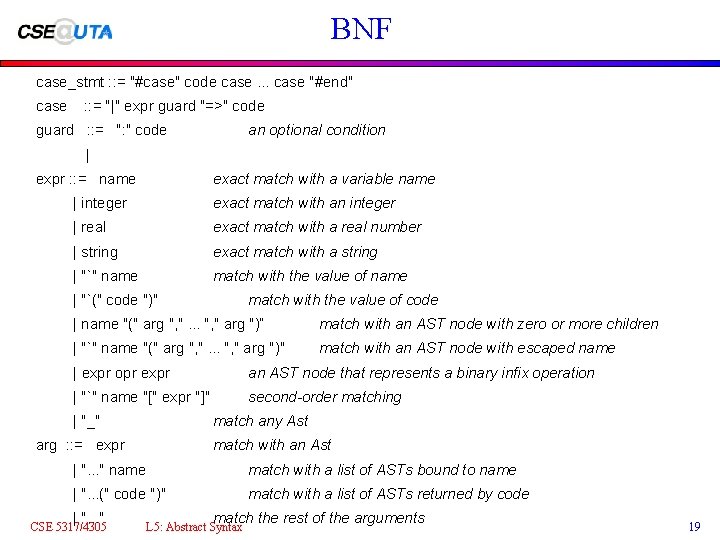

BNF case_stmt : : = "#case" code case. . . case "#end" case : : = "|" expr guard "=>" code guard : : = ": " code an optional condition | expr : : = name exact match with a variable name | integer exact match with an integer | real exact match with a real number | string exact match with a string | "`" name match with the value of name | "`(" code ")" match with the value of code | name "(" arg ", ". . . ", " arg ")“ match with an AST node with zero or more children | "`" name "(" arg ", ". . . ", " arg ")" match with an AST node with escaped name | expr opr expr an AST node that represents a binary infix operation | "`" name "[" expr "]" second-order matching | "_" match any Ast arg : : = expr match with an Ast | ". . . " name match with a list of ASTs bound to name | ". . . (" code ")" match with a list of ASTs returned by code | ". . . " CSE 5317/4305 match the rest of the arguments L 5: Abstract Syntax 19

Examples • The pattern `f(. . . r) matches any Ast Node – when it is matched with #<join(a, b, c)>, it binds 1) f to the string "join" 2) r to the Arguments #[a, b, c] • The following function adds the terms #<8> and #<9> as children to any Node e: Ast add_arg ( Ast e ) { #case e | `f(. . . r) => return #<`f(8, 9, . . . r)>; | `x => return x; #end; } CSE 5317/4305 L 5: Abstract Syntax 20

Another Example • The following function switches the inputs of a binary join found as a parameter to a Node e: Ast switch_join_args ( Ast e ) { #case e | `f(. . . r, join(`x, `y), . . . s) => return #<`f(. . . r, join(`y, `x), . . . s)>; | `x => return x; #end; } CSE 5317/4305 L 5: Abstract Syntax 21

Second-Order Pattern Matching • When `f[expr] is matched against an Ast e, it traverses the entire tree representation of e (in preorder) until it finds a tree node that matches the pattern expr – it fails when it does not find a match – when it finds a match • it succeeds • it binds the variables in the pattern expr • it binds the variable f to a list of Ast (of class Arguments) that represents the path from the root Ast to the Ast node that matched the pattern • This is best used in conjunction with the bracketed expression `f[e], which uses the path bound in f to construct a new Ast with expr replaced with e CSE 5317/4305 L 5: Abstract Syntax 22

Misc • Another syntactic construct in Gen is a for-loop that iterates over Arguments: "#for" name "in" code "do" code "#end" • For example, #for v in #[a, b, c] do System. out. println(v); #end; CSE 5317/4305 L 5: Abstract Syntax 23

Adding Semantic Actions to a Parser • Grammar: E : : = T E' E' : : = + T E' | - T E' | T : : = num • Recursive descent parser: CSE 5317/4305 L 5: Abstract Syntax int E () { return Eprime(T()); }; int Eprime ( int left ) { if (current_token=='+') { read_next_token(); return Eprime(left + T()); } else if (current_token=='-') { read_next_token(); return Eprime(left - T()); } else return left; }; int T () { if (current_token=='num') { int n = num_value; read_next_token(); return n; } else error(); }; 24

Table-Driven Predictive Parsers • use the parse stack to push/pop both actions and symbols but they use a separate semantic stack to execute the actions push(S); read_next_token(); repeat X = pop(); if (X is a terminal or '$') if (X == current_token) read_next_token(); else error(); else if (X is an action) perform the action; else if (M[X, current_token] == "X : : = Y 1 Y 2. . . Yk") { push(Yk); . . . push(Y 1); } else error(); until X == '$'; CSE 5317/4305 L 5: Abstract Syntax 25

Example • Need to embed actions { code; } in the grammar rules • Suppose that push. V and pop. V are the functions to manipulate the semantic stack • The following is the grammar of an interpreter that uses the semantic stack to perform additions and subtractions: E : : = T E' $ { print(pop. V()); } E' : : = + T { push. V(pop. V() + pop. V()); } E' | - T { push. V(-pop. V() + pop. V()); } E' | T : : = num { push. V(num); } • For example, for 1+5 -2, we have the following sequence of actions: push. V(1); push. V(5); push. V(pop. V()+pop. V()); push. V(2); push. V(-pop. V()+pop. V()); print(pop. V()); CSE 5317/4305 L 5: Abstract Syntax 26

Bottom-Up Parsers • can only perform an action after a reduction • We can only have rules of the form X : : = Y 1. . . Yn { action } where the action is always at the end of the rule; this action is evaluated after the rule X : : = Y 1. . . Yn is reduced • How? In addition to state numbers, the parser pushes values into the parse stack • If we want to put an action in the middle of the rhs of a rule, we use a dummy nonterminal, called a marker For example, X : : = a { action } b is equivalent to X : : = M b M : : = a { action } CSE 5317/4305 L 5: Abstract Syntax 27

CUP • Both terminals and non-terminals are associated with typed values – these values are instances of the Object class (or of some subclass of the Object class) – the value associated with a terminal is in most cases an Object, except for an identifier which is a String, for an integer which is an Integer, etc – the typical values associated with non-terminals in a compiler are ASTs, lists of ASTs, etc • You can retrieve the value of a symbol s at the lhs of a rule by using the notation s: x, where x is a variable name that hasn't appeared elsewhere in this rule • The value of the non-terminal defined by a rule is called RESULT and should always be assigned a value in the action – eg if the non-terminal E is associated with an Integer object, then E : : = E: n PLUS E: m CSE 5317/4305 L 5: Abstract Syntax {: RESULT = n+m; : } 28

Machinery • The parse stack elements are of type struct( state: int, value: Object ) – int is the state number – Object is the value • When a reduction occurs, the RESULT value is calculated from the values in the stack and is pushed along with the GOTO state • Example: after the reduction by E : : = E: n PLUS E: m {: RESULT = n+m; : } the RESULT value is stack[top-2]. value + stack[top]. value which is the new value pushed in the stack along with the GOTO state CSE 5317/4305 L 5: Abstract Syntax 29

ASTs in CUP • Need to associate each non-terminal symbol with an AST type non terminal Ast exp; non terminal Arguments expl; exp : : = exp: e 1 PLUS exp: e 2 {: RESULT = new Node(plus_exp, e 1, e 2); : } | exp: e 1 MINUS exp: e 2 | id: nm LP expl: el RP {: RESULT = new Node(minus_exp, e 1, e 2); : } {: RESULT = new Node(call_exp, el. reverse() . cons(new Variable(nm))); : } | INT: n {: RESULT = new Number(n. int. Value()); : } ; expl : : = expl: el COMMA exp: e | exp: e {: RESULT = el. cons(e); : } {: RESULT = nil. cons(e); : } ; CSE 5317/4305 L 5: Abstract Syntax 30
